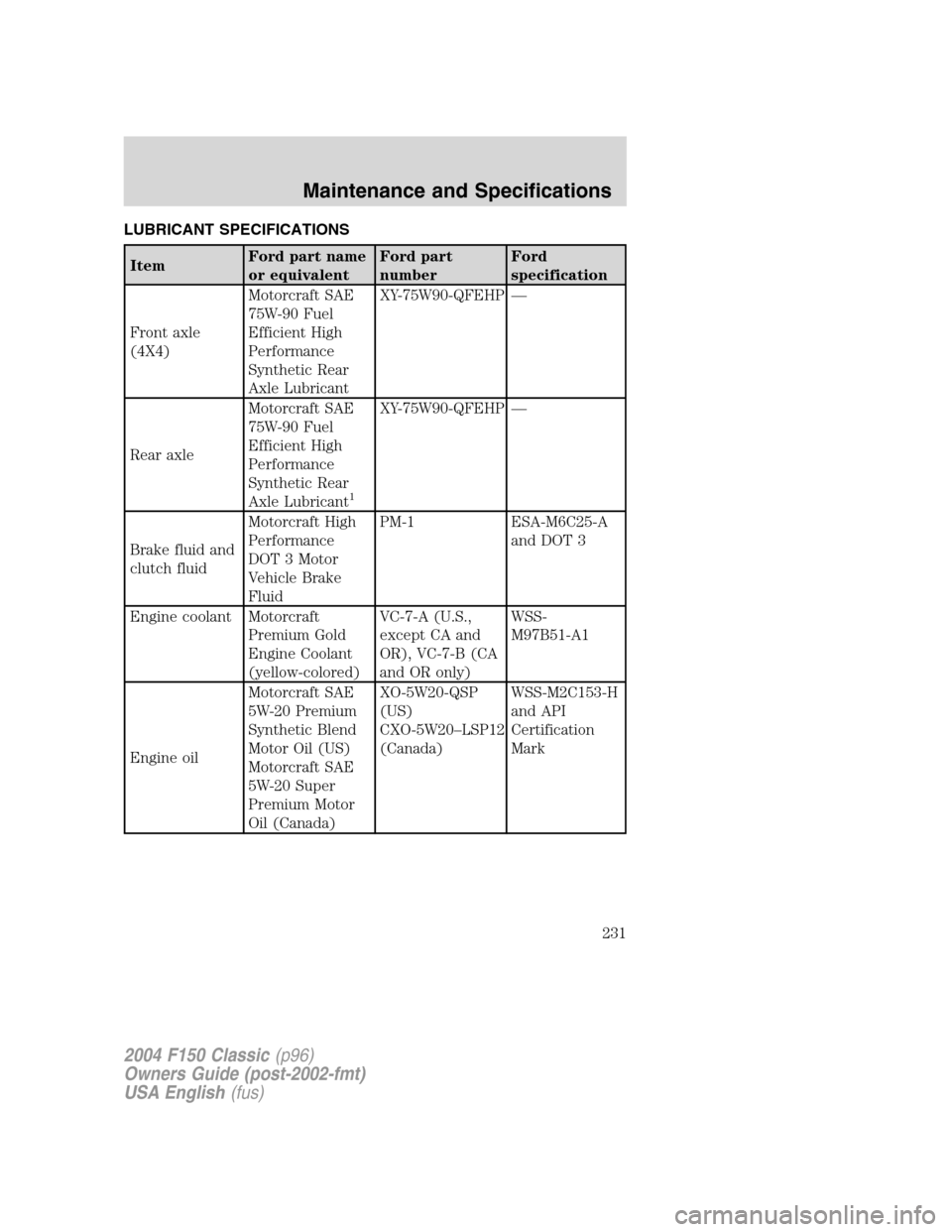

LUBRICANT SPECIFICATIONS
ItemFord part name
or equivalentFord part
numberFord
specification
Front axle
(4X4)Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle LubricantXY-75W90-QFEHP—
Rear axleMotorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle Lubricant
1
XY-75W90-QFEHP—
Brake fluid and
clutch fluidMotorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA and
OR), VC-7-B (CA
and OR only)WSS-
M97B51-A1
Engine oilMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C153-H
and API
Certification
Mark
2004 F150 Classic(p96)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
231

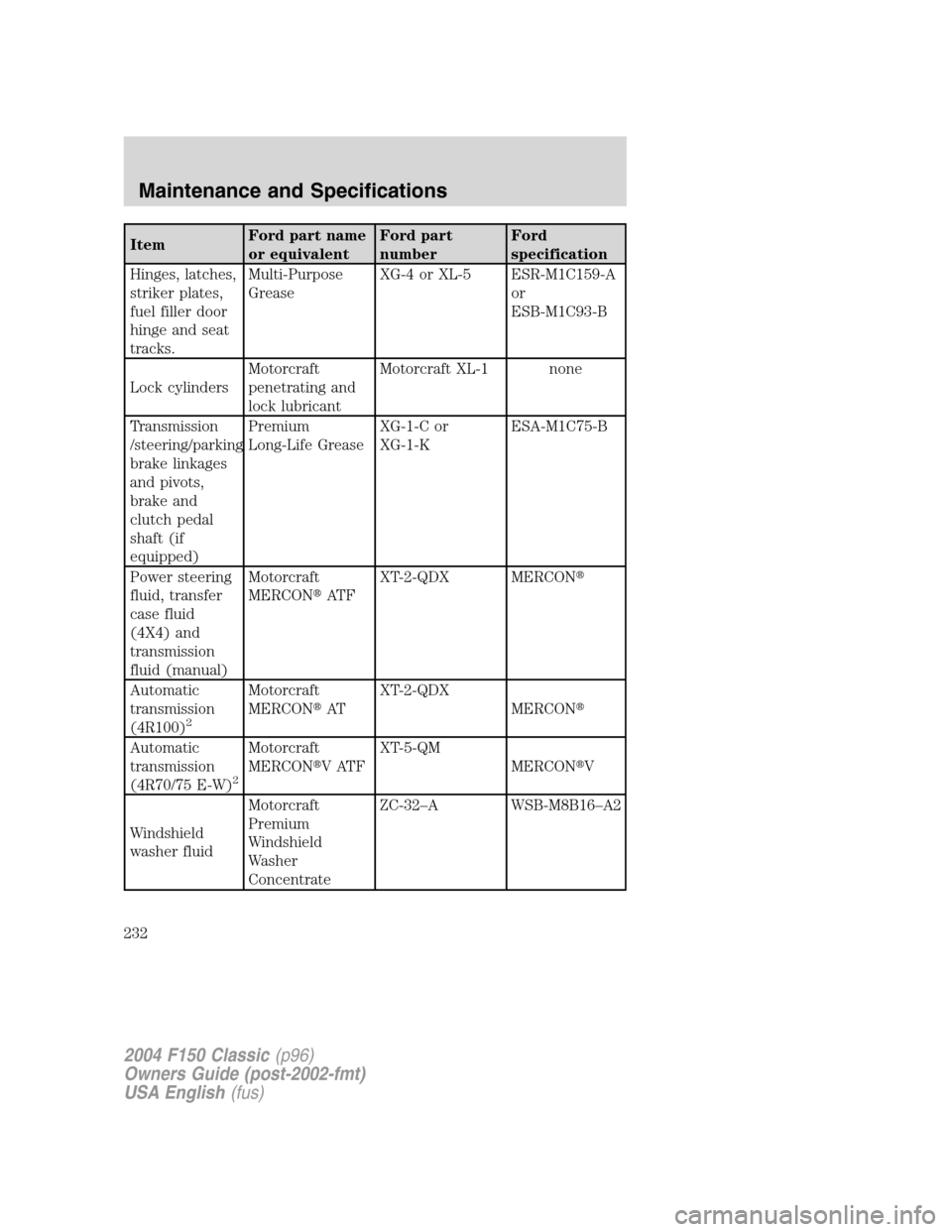

ItemFord part name
or equivalentFord part
numberFord
specification
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracks.Multi-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or
ESB-M1C93-B
Lock cylindersMotorcraft
penetrating and
lock lubricantMotorcraft XL-1 none
Transmission
/steering/parking
brake linkages
and pivots,
brake and
clutch pedal
shaft (if
equipped)Premium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Power steering
fluid, transfer
case fluid
(4X4) and
transmission
fluid (manual)Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R100)
2
Motorcraft
MERCONATXT-2-QDX
MERCON
Automatic
transmission
(4R70/75 E-W)
2
Motorcraft
MERCONVATFXT-5-QM
MERCONV
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
2004 F150 Classic(p96)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
232

1Add 118 ml (4 oz) of FEHP Friction Modifier XL-7 or equivalent, for
complete refill of Traction-Lok axles.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to yourScheduled Maintenance Guideto determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.

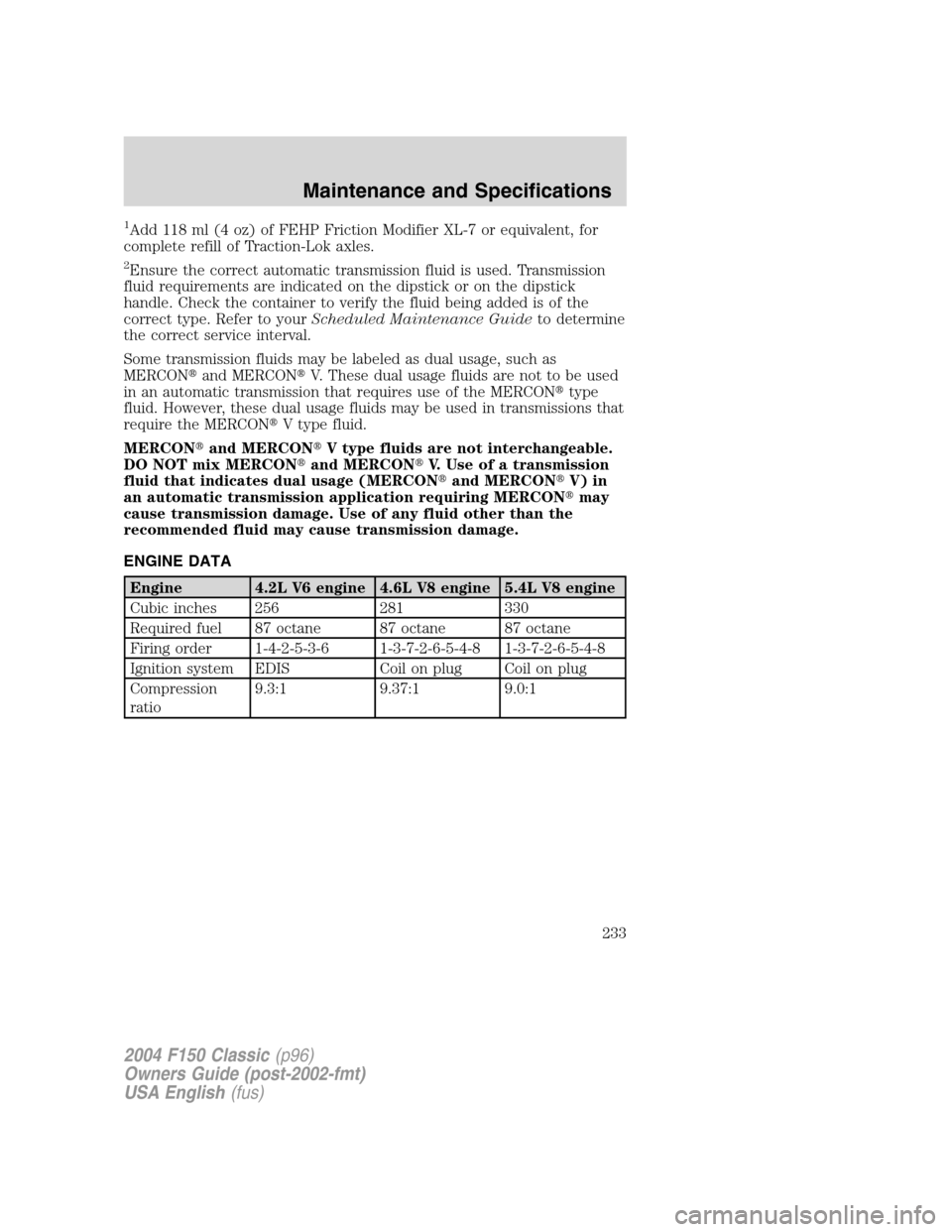

ENGINE DATA
Engine 4.2L V6 engine 4.6L V8 engine 5.4L V8 engine
Cubic inches 256 281 330
Required fuel 87 octane 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on plug Coil on plug
Compression
ratio9.3:1 9.37:1 9.0:1
2004 F150 Classic(p96)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
233

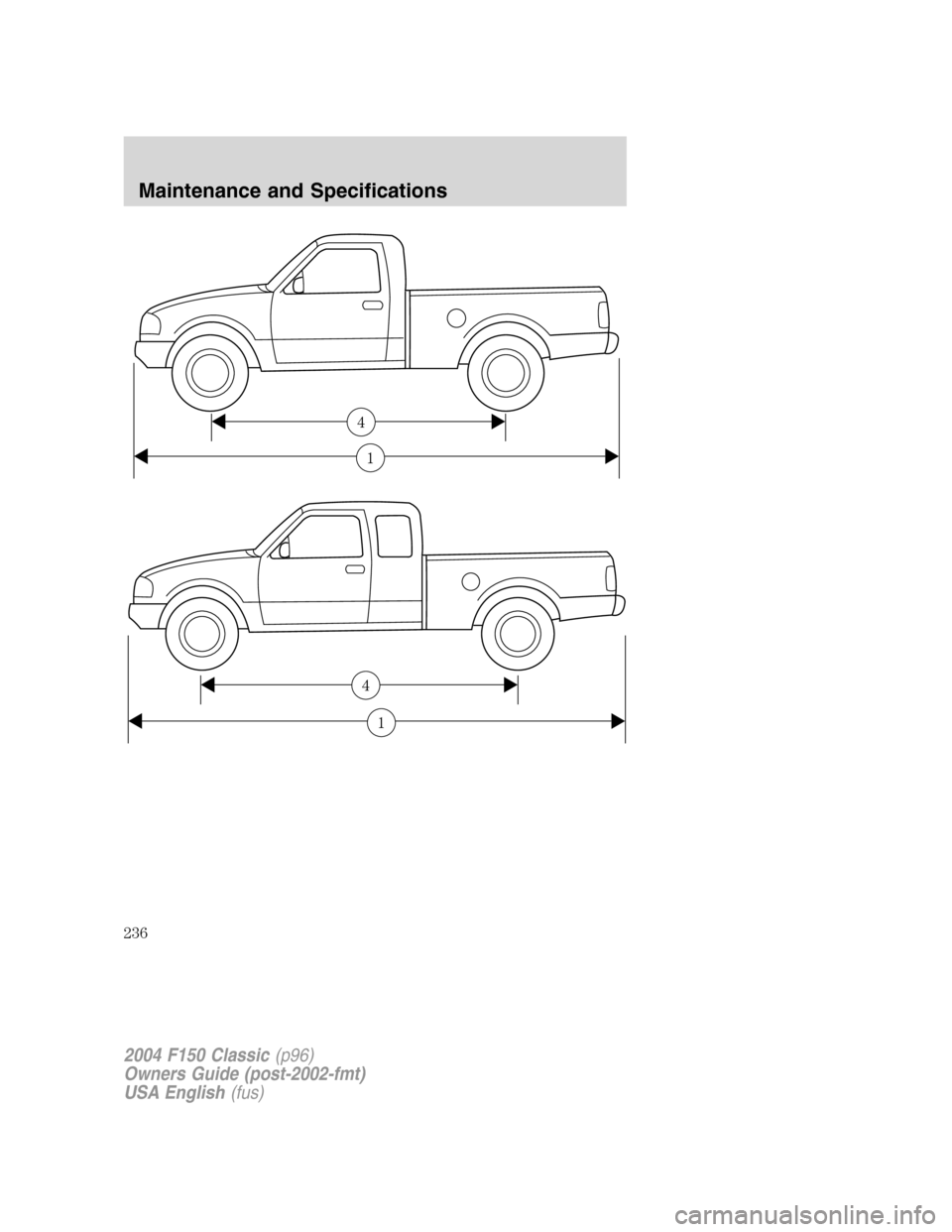

VEHICLE DIMENSIONS
Styleside
DimensionBody Style
Regular
Cab 4x2Regular Cab
4x4Super Cab
4x2Super Cab
4x4
(1) Overall
length5256 mm
(206.9 in)
(SWB)
5729 mm
(225.5 in)
(LWB)5264 mm
(207.2 in)
(SWB)
5736 mm
(225.8 in)
(LWB)5728 mm
(225.5 in)
(SWB)
6201 mm
(244.1 in)
(LWB)5735 mm
(225.8 in)
(SWB)
6208 mm
(244.4 in)
(LWB)
(2) Overall
width1989mm
(78.3 in)
12019 mm
(79.5 in)11989 mm
(78.3 in)12019 mm
(79.5 in)1
(3) Overall
height1846 mm
(72.7 in)
(SWB)
1838 mm
(72.4 in)
(LWB)1915 mm
(75.4 in)
(SWB)
1907 mm
(75.1 in)
(LWB)1849 mm
(72.8 in)
(SWB)
1841 mm
(72.5 in)
(LWB)1918 mm
(75.5 in)
(SWB)
1907 mm
(75.1 in)
(LWB)
(4) Wheel
base3045 mm
(119.9 in)
(SWB)
3518 mm
(138.5 in)
(LWB)3053 mm
(120.2 in)
(SWB)
3526 mm
(138.8 in)
(LWB)3518 mm
(138.5 in)
(SWB)
3990 mm
(157.1 in)
(LWB)3526 mm
(138.8 in)
(SWB)
3998 mm
(157.4 in)
(LWB)
(5)Track
front/rear1661 mm
(65.4 in)
1661 mm
(65.4 in)1661 mm
(65.4 in)
1661 mm
(65.4 in)1661 mm
(65.4 in)
1661 mm
(65.4 in)1661 mm
(65.4 in)
1661 mm
(65.4 in)
1Vehicle width, including mirrors: 2279 mm (89.7 in)
2004 F150 Classic(p96)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
234

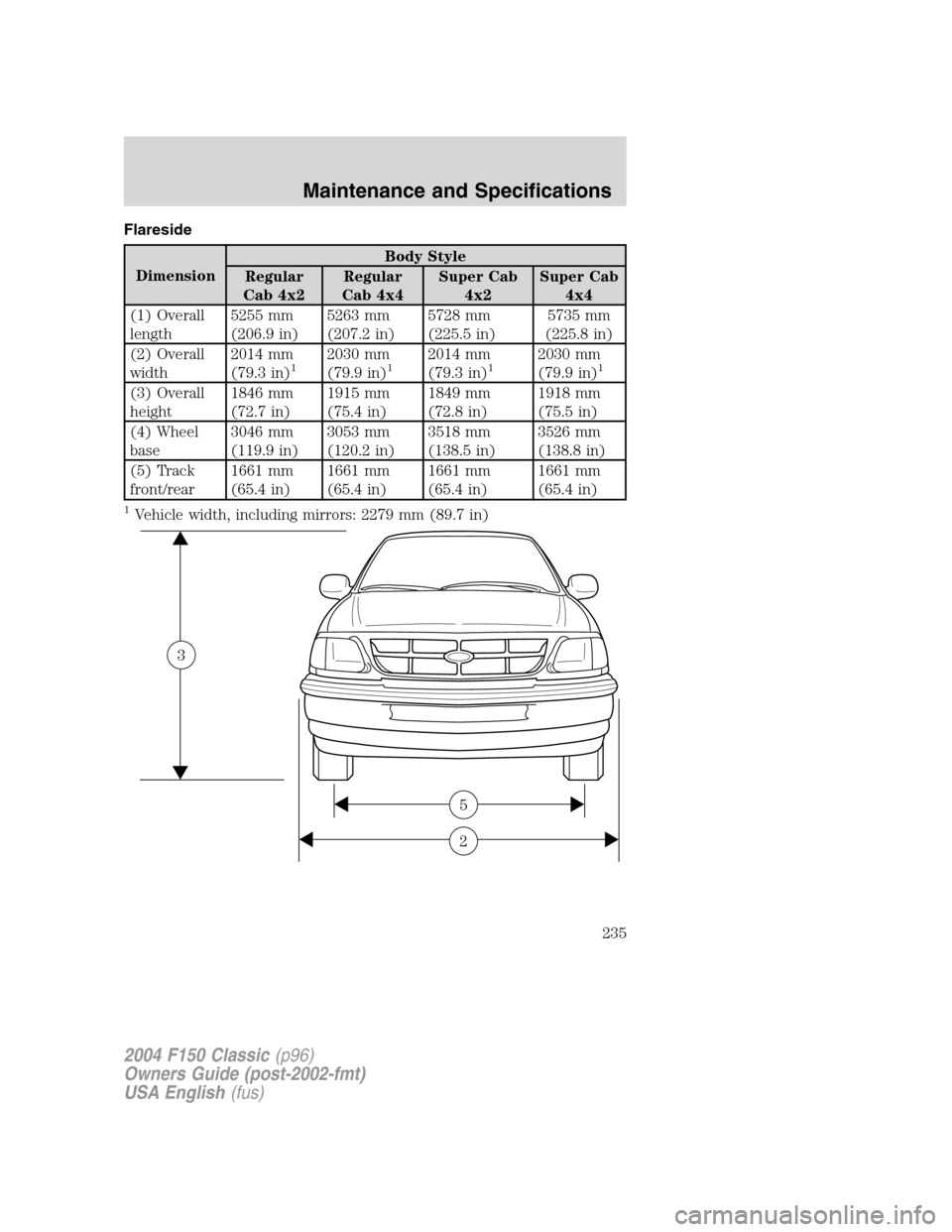

Flareside
DimensionBody Style
Regular
Cab 4x2Regular
Cab 4x4Super Cab
4x2Super Cab
4x4
(1) Overall
length5255 mm
(206.9 in)5263 mm
(207.2 in)5728 mm
(225.5 in)5735 mm
(225.8 in)
(2) Overall
width2014 mm
(79.3 in)
12030 mm
(79.9 in)12014 mm
(79.3 in)12030 mm
(79.9 in)1
(3) Overall
height1846 mm
(72.7 in)1915 mm
(75.4 in)1849 mm
(72.8 in)1918 mm
(75.5 in)
(4) Wheel
base3046 mm
(119.9 in)3053 mm
(120.2 in)3518 mm
(138.5 in)3526 mm
(138.8 in)
(5) Track
front/rear1661 mm
(65.4 in)1661 mm
(65.4 in)1661 mm
(65.4 in)1661 mm
(65.4 in)
1Vehicle width, including mirrors: 2279 mm (89.7 in)
2
5
3
2004 F150 Classic(p96)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
235

1
4
1
4
2004 F150 Classic(p96)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
236

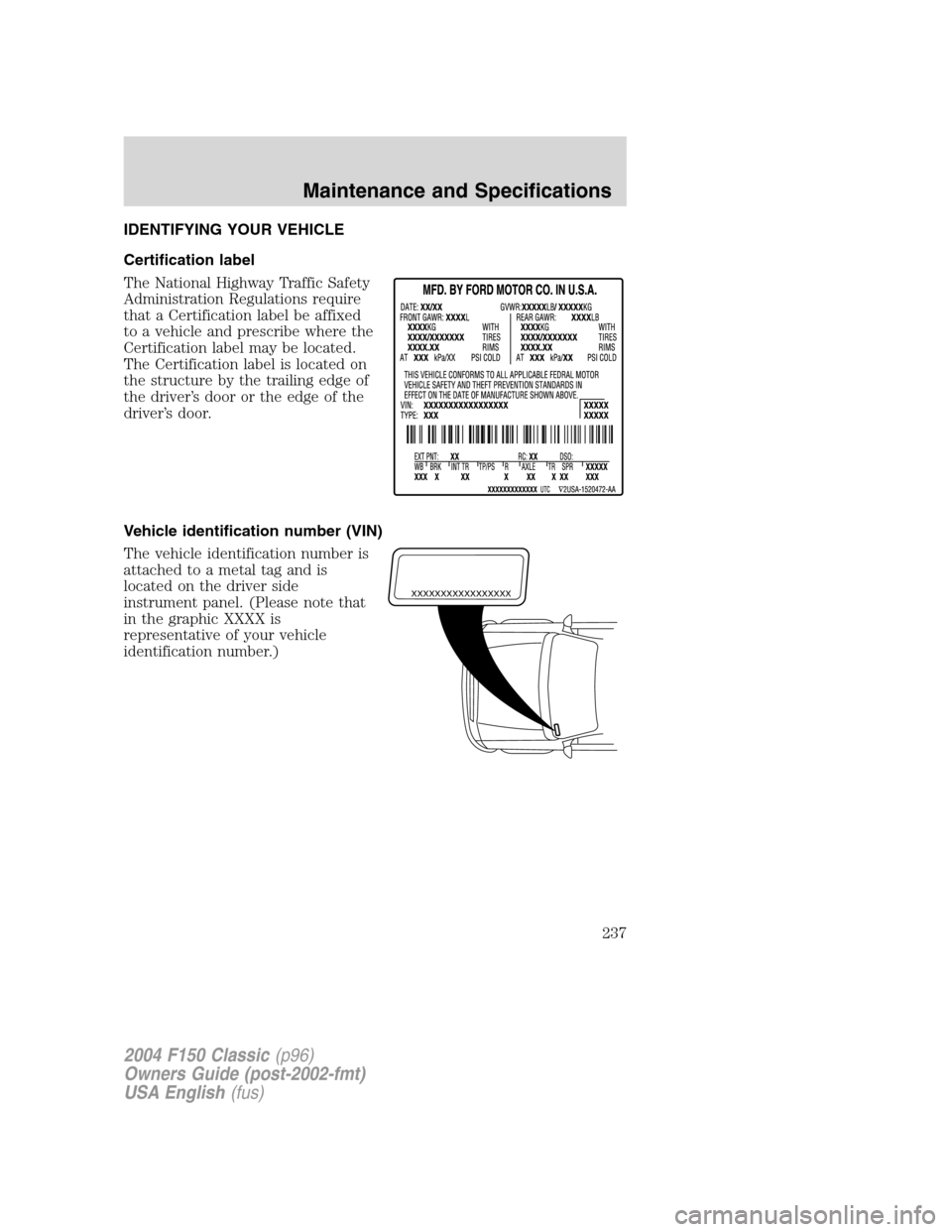

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the structure by the trailing edge of
the driver’s door or the edge of the
driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
XXXXXXXXXXXXXXXXX
2004 F150 Classic(p96)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
237

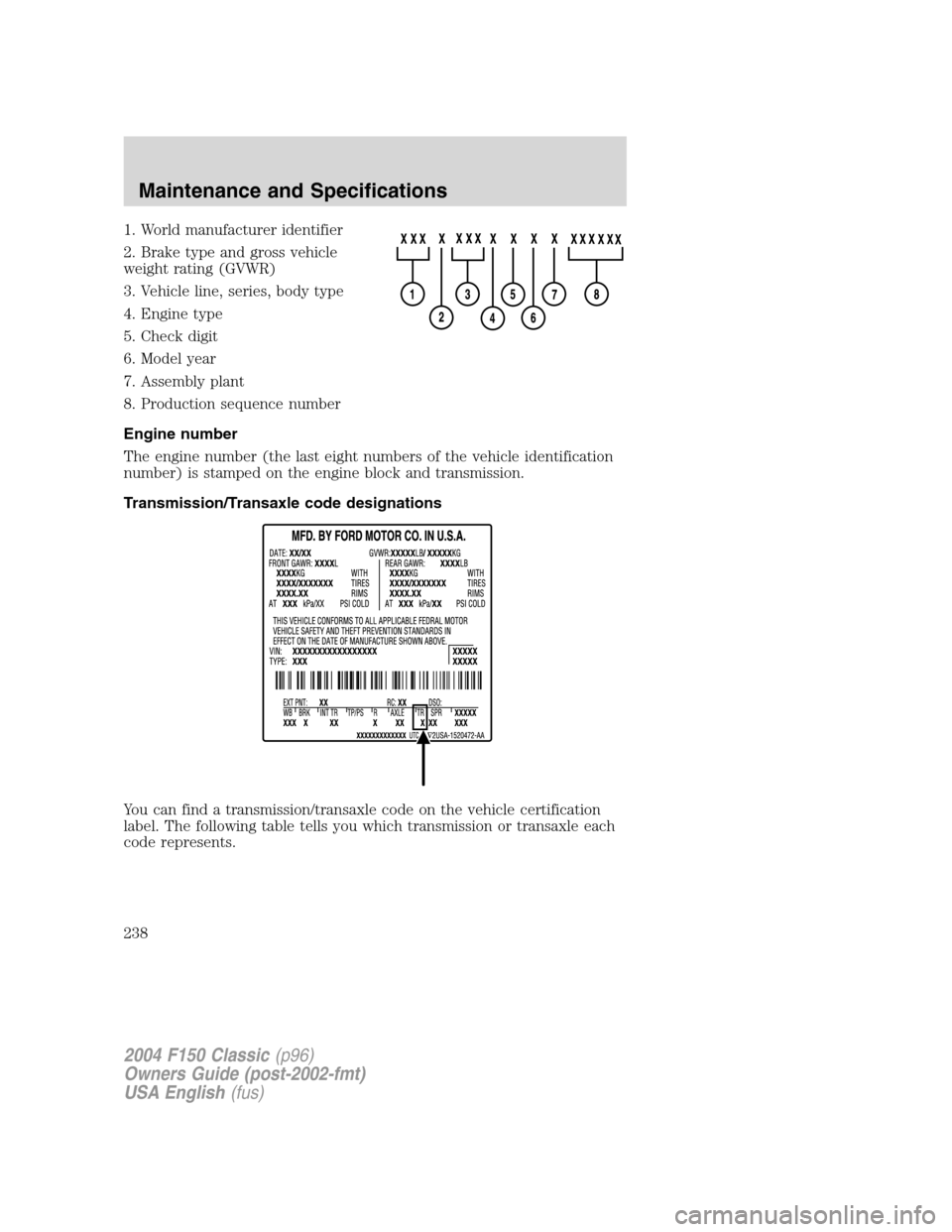

1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transmission.
Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label. The following table tells you which transmission or transaxle each
code represents.
2004 F150 Classic(p96)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
238

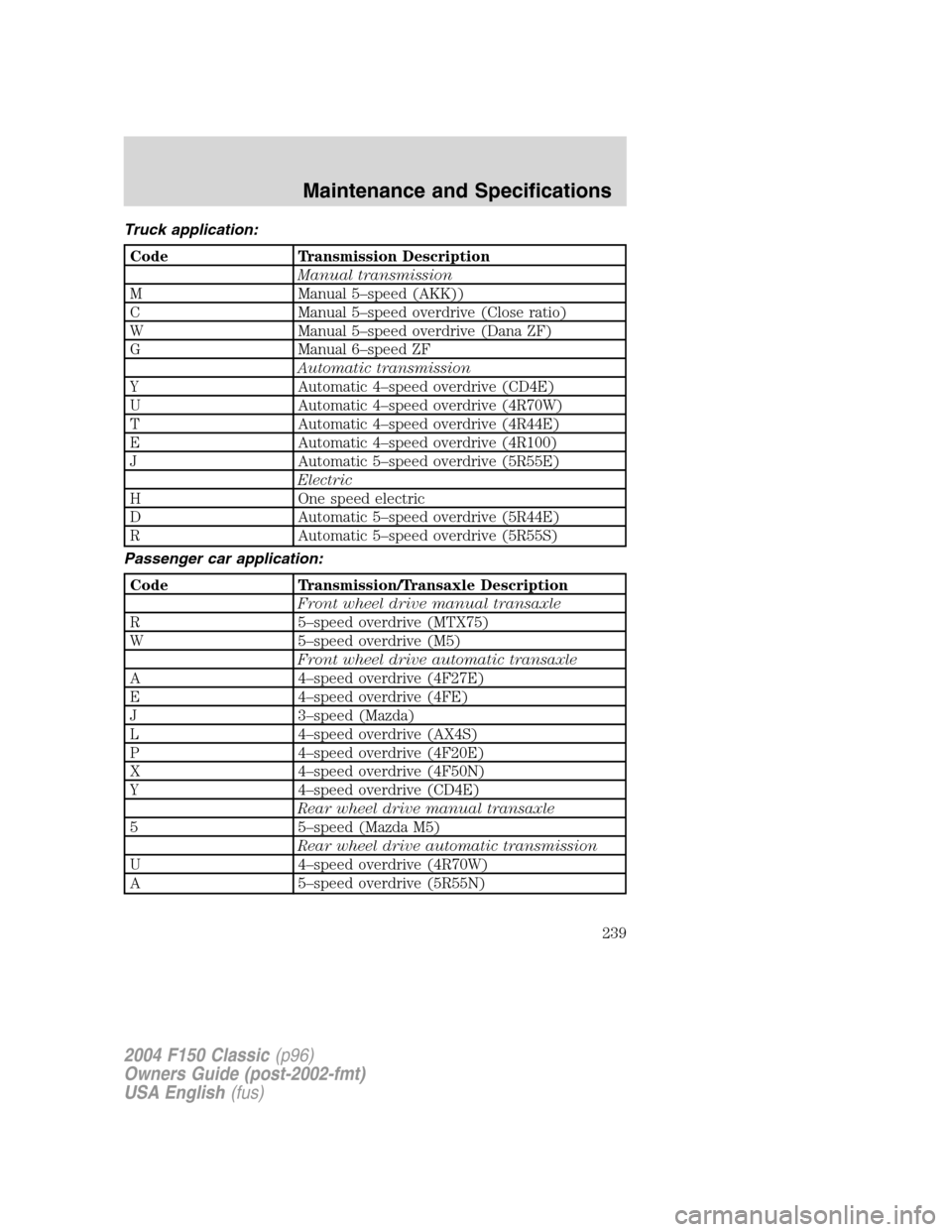

Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed (AKK))
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
Y Automatic 4–speed overdrive (CD4E)
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
R Automatic 5–speed overdrive (5R55S)
Passenger car application:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic transaxle
A4–speed overdrive (4F27E)
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
2004 F150 Classic(p96)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
239

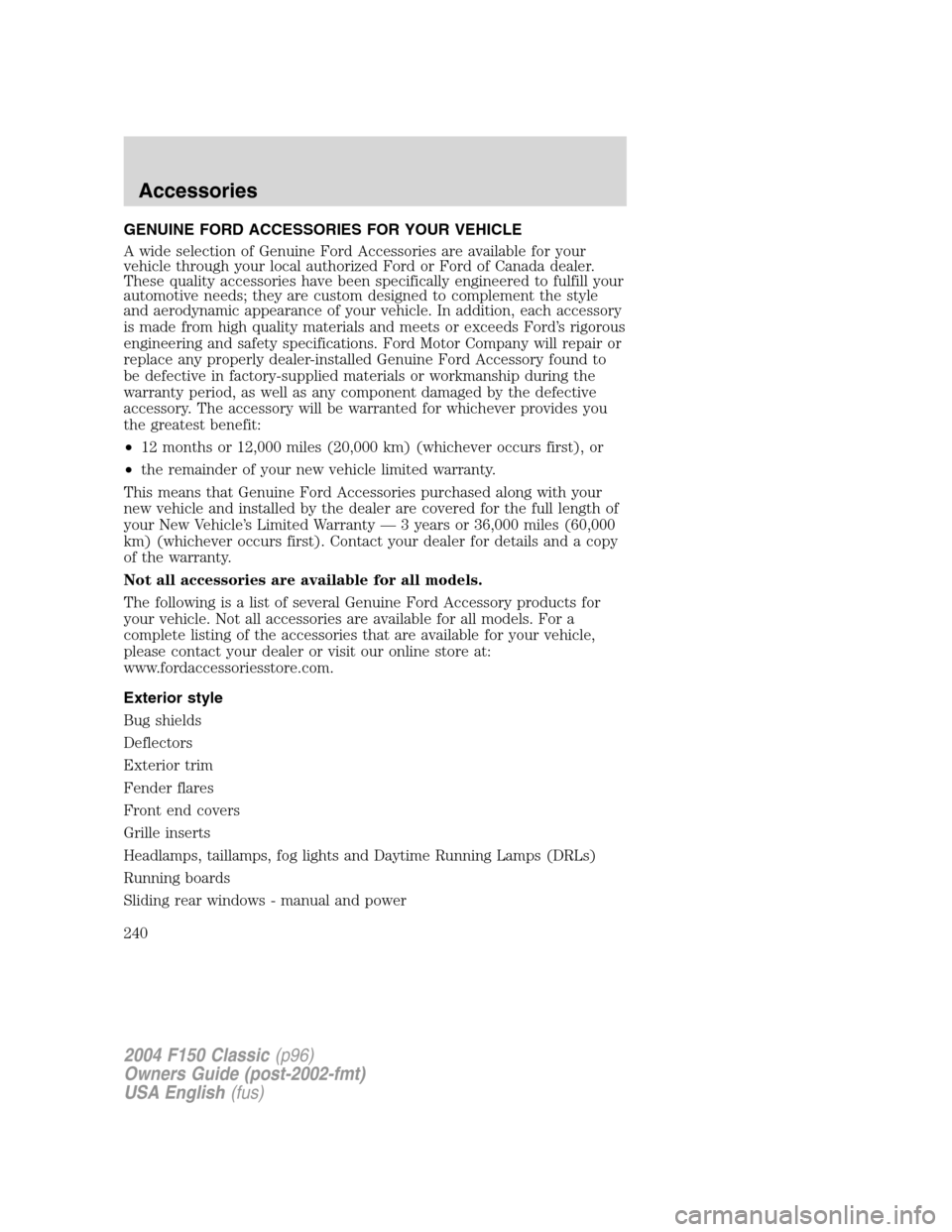

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
