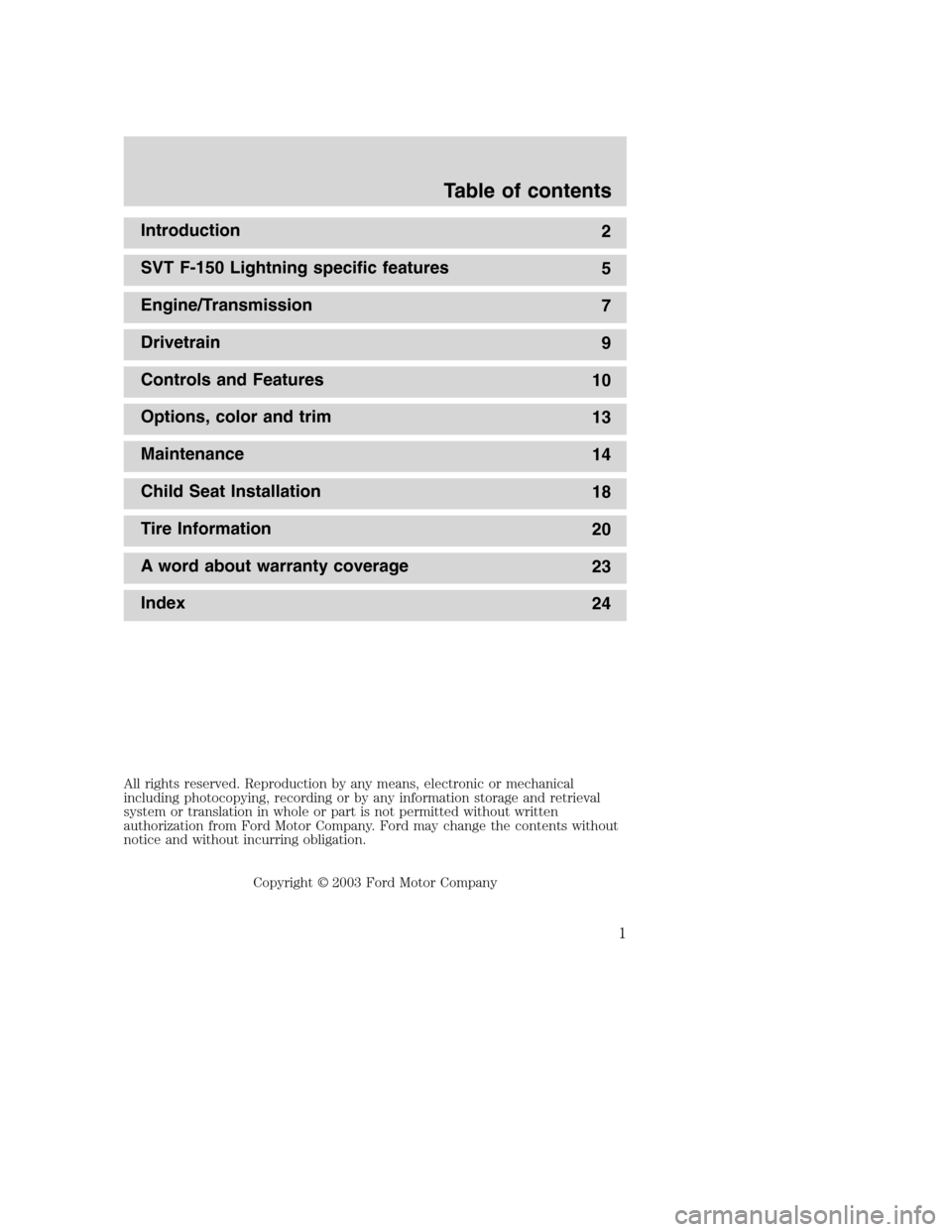

FORD F150 2004 11.G Raptor Supplement Manual

Introduction
2
SVT F-150 Lightning specific features
5
Engine/Transmission
7
Drivetrain
9
Controls and Features
10
Options, color and trim
13
Maintenance
14
Child Seat Installation
18
Tire Information
20
A word about warranty coverage
23
Index
24
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2003 Ford Motor Company
Table of contents
1

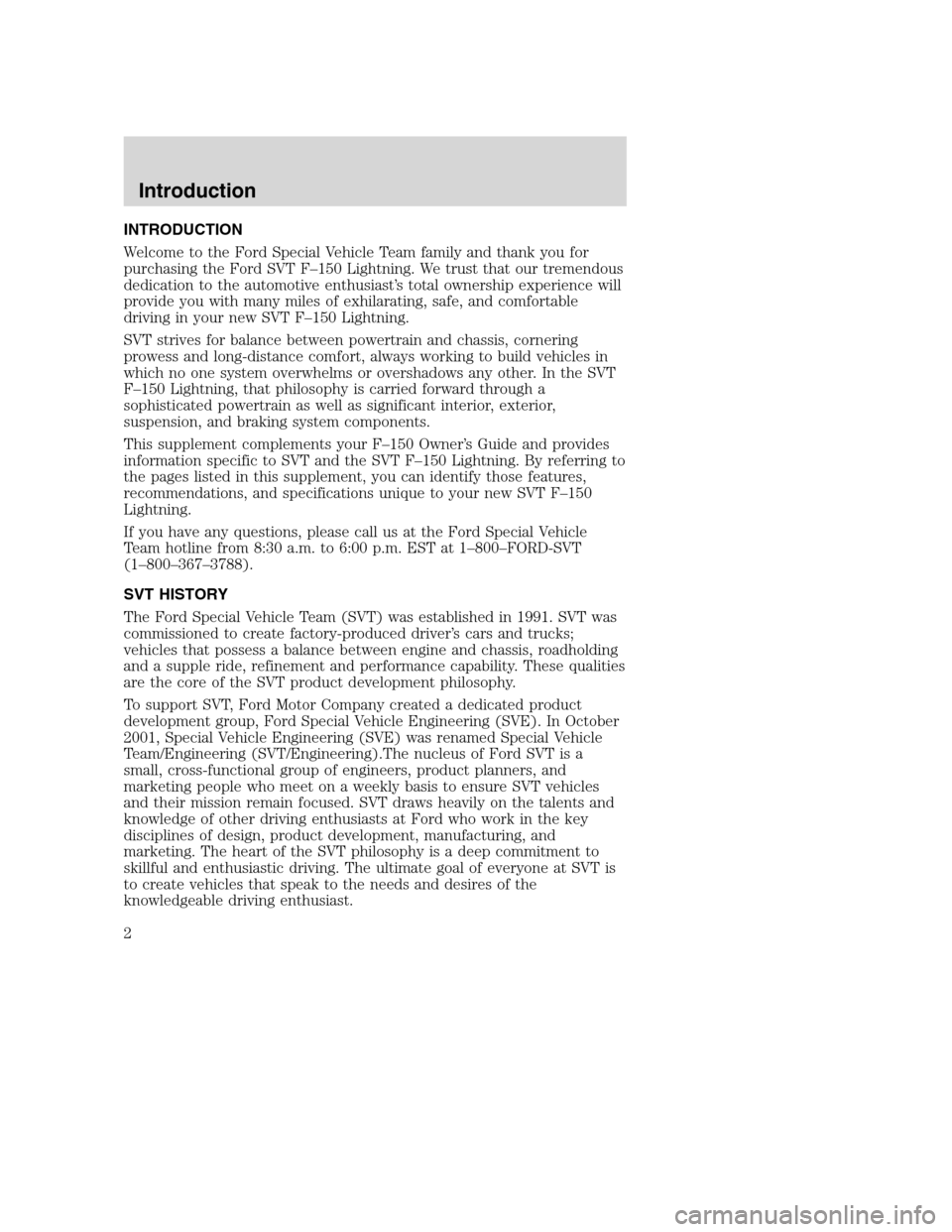

INTRODUCTION
Welcome to the Ford Special Vehicle Team family and thank you for
purchasing the Ford SVT F–150 Lightning. We trust that our tremendous
dedication to the automotive enthusiast’s total ownership experience will
provide you with many miles of exhilarating, safe, and comfortable
driving in your new SVT F–150 Lightning.
SVT strives for balance between powertrain and chassis, cornering
prowess and long-distance comfort, always working to build vehicles in
which no one system overwhelms or overshadows any other. In the SVT
F–150 Lightning, that philosophy is carried forward through a
sophisticated powertrain as well as significant interior, exterior,
suspension, and braking system components.
This supplement complements your F–150 Owner’s Guide and provides
information specific to SVT and the SVT F–150 Lightning. By referring to
the pages listed in this supplement, you can identify those features,
recommendations, and specifications unique to your new SVT F–150
Lightning.
If you have any questions, please call us at the Ford Special Vehicle
Team hotline from 8:30 a.m. to 6:00 p.m. EST at 1–800–FORD-SVT
(1–800–367–3788).
SVT HISTORY
The Ford Special Vehicle Team (SVT) was established in 1991. SVT was
commissioned to create factory-produced driver’s cars and trucks;
vehicles that possess a balance between engine and chassis, roadholding
and a supple ride, refinement and performance capability. These qualities
are the core of the SVT product development philosophy.
To support SVT, Ford Motor Company created a dedicated product
development group, Ford Special Vehicle Engineering (SVE). In October
2001, Special Vehicle Engineering (SVE) was renamed Special Vehicle
Team/Engineering (SVT/Engineering).The nucleus of Ford SVT is a
small, cross-functional group of engineers, product planners, and
marketing people who meet on a weekly basis to ensure SVT vehicles
and their mission remain focused. SVT draws heavily on the talents and
knowledge of other driving enthusiasts at Ford who work in the key
disciplines of design, product development, manufacturing, and
marketing. The heart of the SVT philosophy is a deep commitment to
skillful and enthusiastic driving. The ultimate goal of everyone at SVT is
to create vehicles that speak to the needs and desires of the
knowledgeable driving enthusiast.
Introduction
Introduction
2

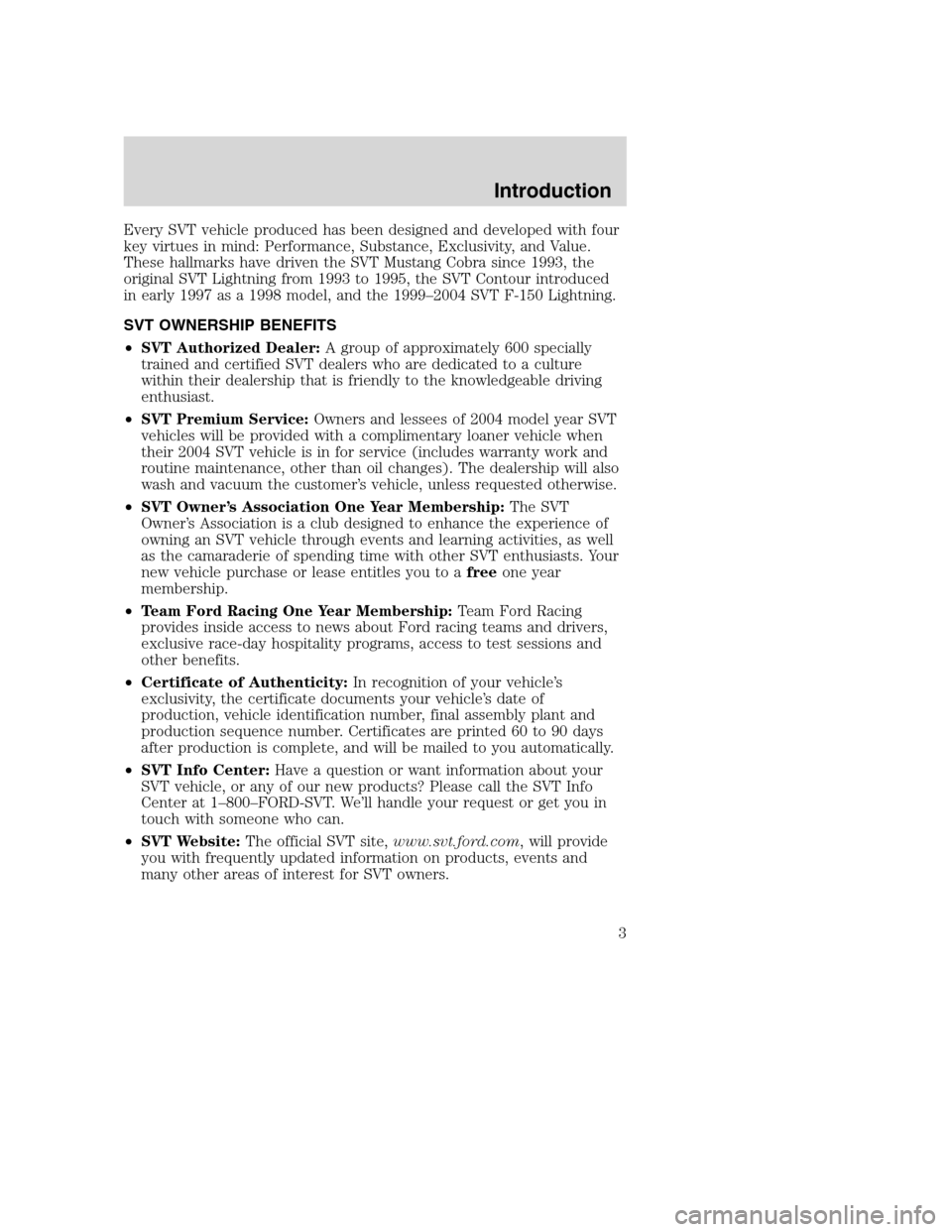

Every SVT vehicle produced has been designed and developed with four
key virtues in mind: Performance, Substance, Exclusivity, and Value.
These hallmarks have driven the SVT Mustang Cobra since 1993, the
original SVT Lightning from 1993 to 1995, the SVT Contour introduced
in early 1997 as a 1998 model, and the 1999–2004 SVT F-150 Lightning.
SVT OWNERSHIP BENEFITS
•SVT Authorized Dealer:A group of approximately 600 specially
trained and certified SVT dealers who are dedicated to a culture
within their dealership that is friendly to the knowledgeable driving
enthusiast.
•SVT Premium Service:Owners and lessees of 2004 model year SVT
vehicles will be provided with a complimentary loaner vehicle when
their 2004 SVT vehicle is in for service (includes warranty work and
routine maintenance, other than oil changes). The dealership will also
wash and vacuum the customer’s vehicle, unless requested otherwise.
•SVT Owner’s Association One Year Membership:The SVT
Owner’s Association is a club designed to enhance the experience of
owning an SVT vehicle through events and learning activities, as well
as the camaraderie of spending time with other SVT enthusiasts. Your
new vehicle purchase or lease entitles you to afreeone year
membership.
•Team Ford Racing One Year Membership:Team Ford Racing
provides inside access to news about Ford racing teams and drivers,
exclusive race-day hospitality programs, access to test sessions and
other benefits.
•Certificate of Authenticity:In recognition of your vehicle’s
exclusivity, the certificate documents your vehicle’s date of
production, vehicle identification number, final assembly plant and
production sequence number. Certificates are printed 60 to 90 days
after production is complete, and will be mailed to you automatically.
•SVT Info Center:Have a question or want information about your
SVT vehicle, or any of our new products? Please call the SVT Info
Center at 1–800–FORD-SVT. We’ll handle your request or get you in
touch with someone who can.
•SVT Website:The official SVT site,www.svt.ford.com, will provide
you with frequently updated information on products, events and
many other areas of interest for SVT owners.
Introduction
3

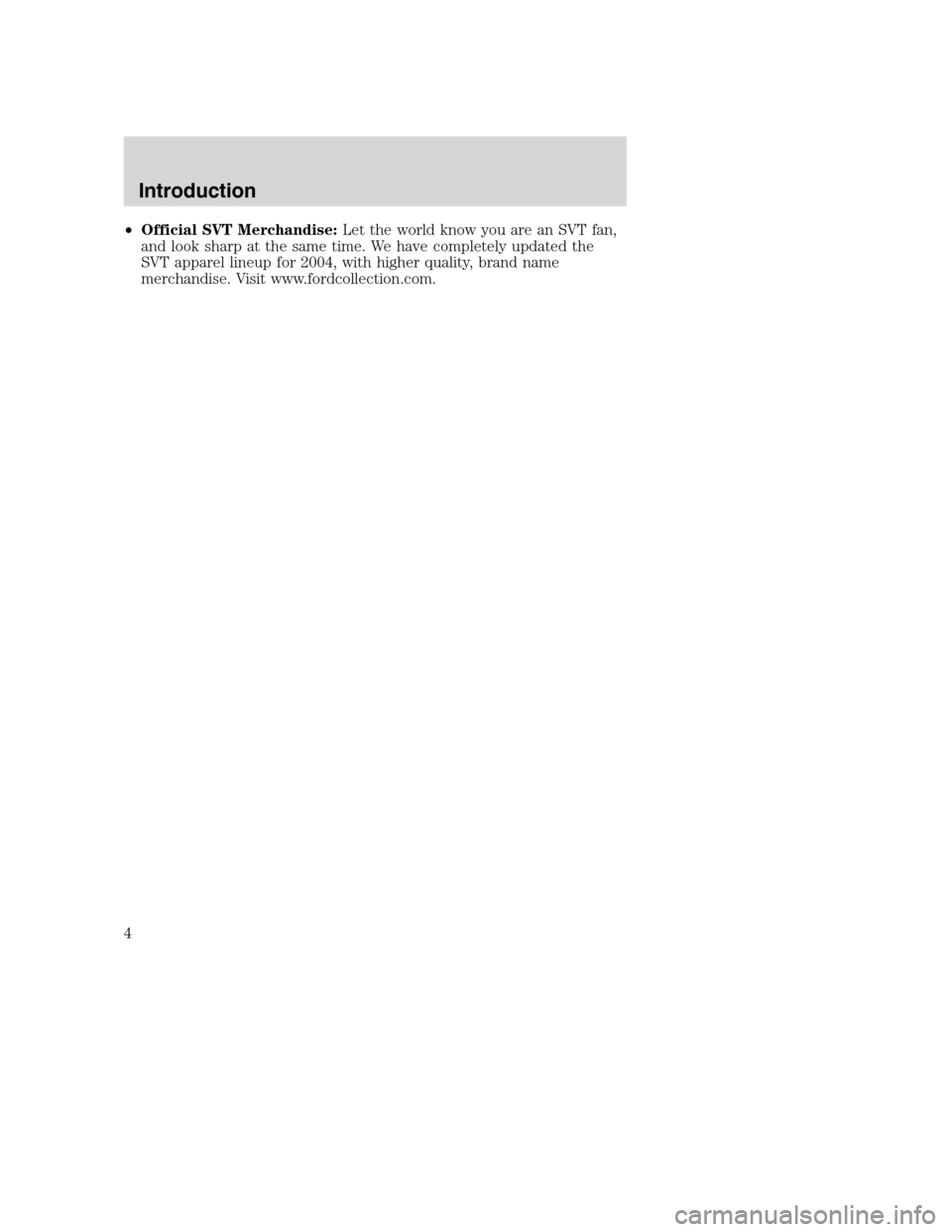

•Official SVT Merchandise:Let the world know you are an SVT fan,
and look sharp at the same time. We have completely updated the
SVT apparel lineup for 2004, with higher quality, brand name
merchandise. Visit www.fordcollection.com.
Introduction
4

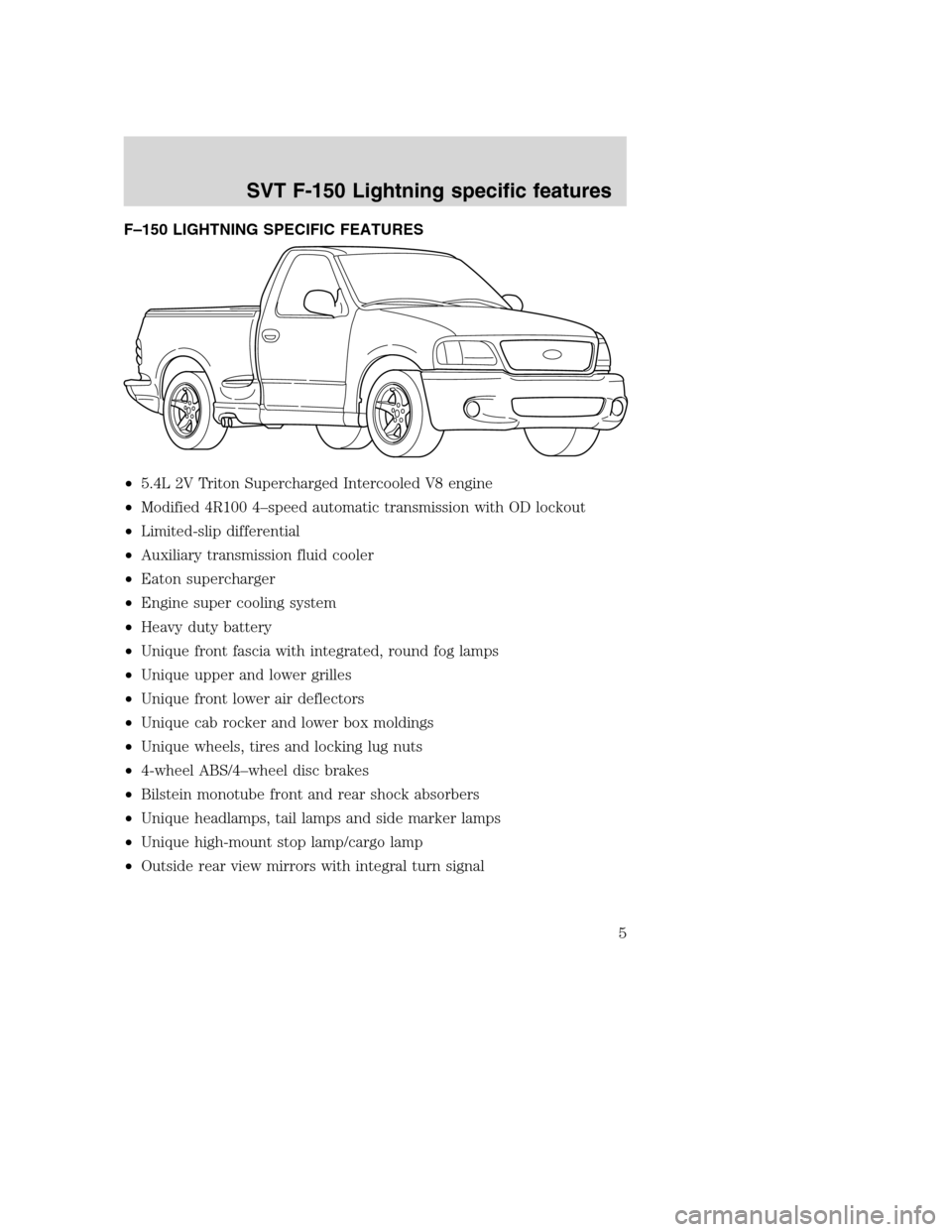

F–150 LIGHTNING SPECIFIC FEATURES
•5.4L 2V Triton Supercharged Intercooled V8 engine
•Modified 4R100 4–speed automatic transmission with OD lockout
•Limited-slip differential
•Auxiliary transmission fluid cooler
•Eaton supercharger
•Engine super cooling system
•Heavy duty battery
•Unique front fascia with integrated, round fog lamps
•Unique upper and lower grilles
•Unique front lower air deflectors
•Unique cab rocker and lower box moldings
•Unique wheels, tires and locking lug nuts
•4-wheel ABS/4–wheel disc brakes
•Bilstein monotube front and rear shock absorbers
•Unique headlamps, tail lamps and side marker lamps
•Unique high-mount stop lamp/cargo lamp
•Outside rear view mirrors with integral turn signal
SVT F-150 Lightning specific features
SVT F-150 Lightning specific features
5

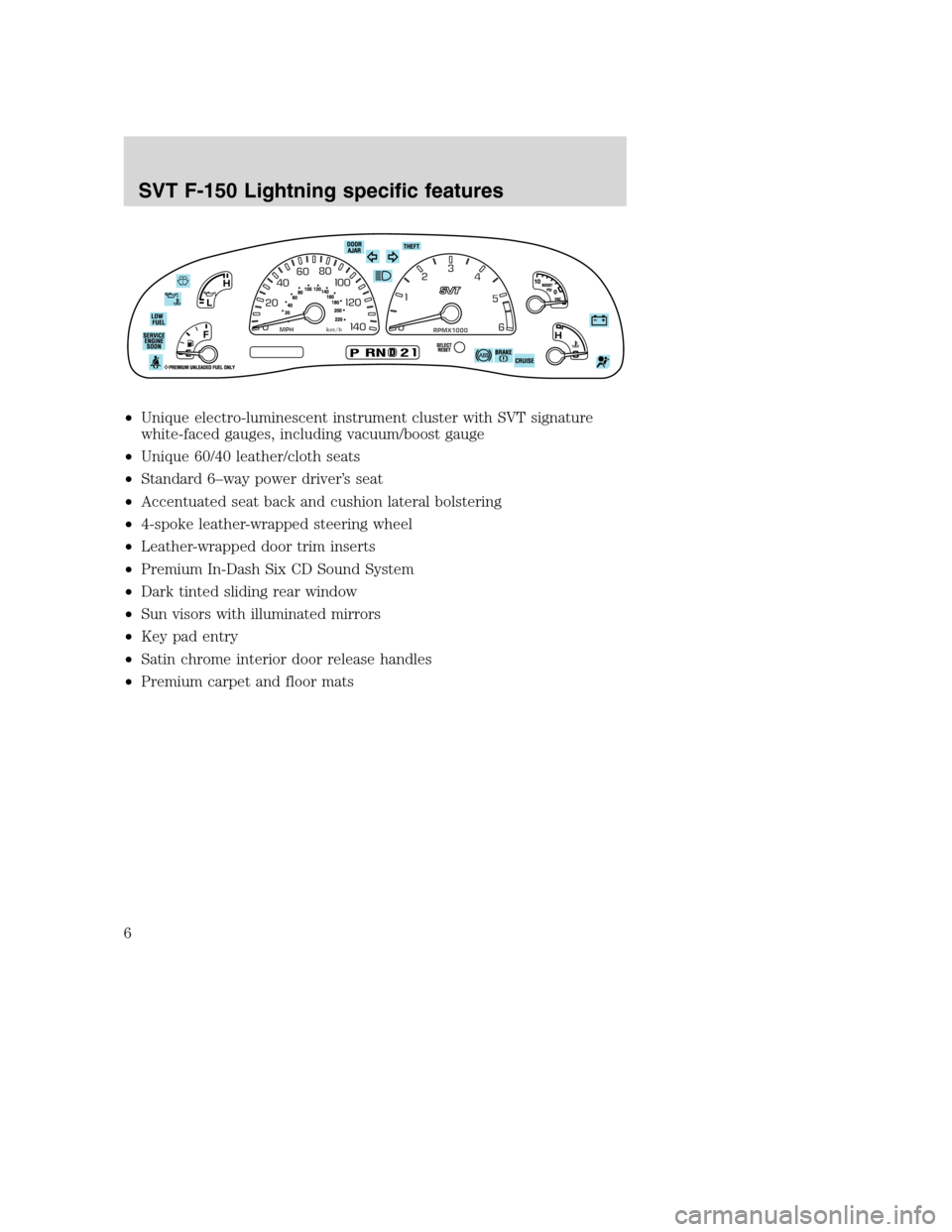

•Unique electro-luminescent instrument cluster with SVT signature
white-faced gauges, including vacuum/boost gauge
•Unique 60/40 leather/cloth seats
•Standard 6–way power driver’s seat
•Accentuated seat back and cushion lateral bolstering
•4-spoke leather-wrapped steering wheel
•Leather-wrapped door trim inserts
•Premium In-Dash Six CD Sound System
•Dark tinted sliding rear window
•Sun visors with illuminated mirrors
•Key pad entry
•Satin chrome interior door release handles
•Premium carpet and floor mats
SVT F-150 Lightning specific features
6

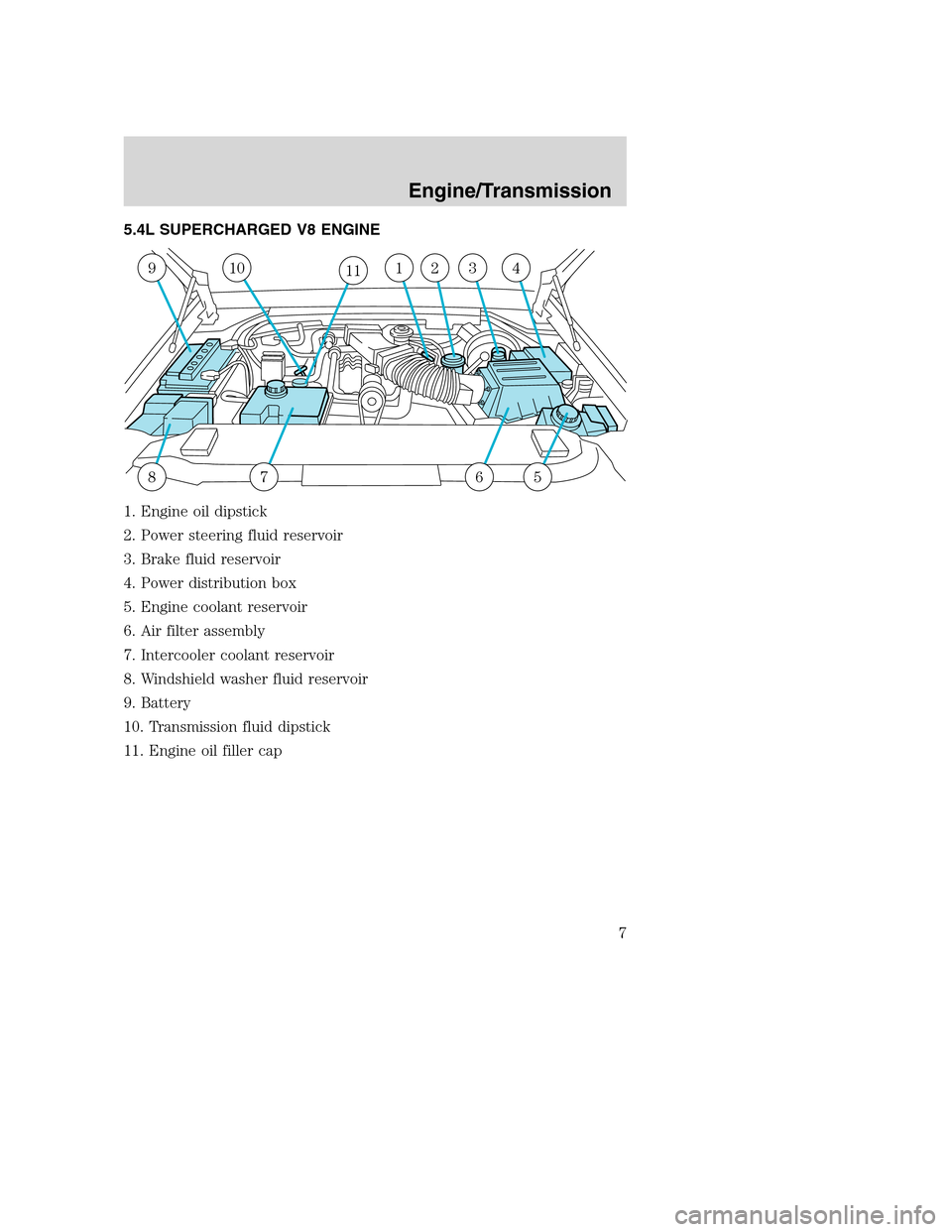

5.4L SUPERCHARGED V8 ENGINE
1. Engine oil dipstick
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Power distribution box
5. Engine coolant reservoir
6. Air filter assembly
7. Intercooler coolant reservoir
8. Windshield washer fluid reservoir
9. Battery
10. Transmission fluid dipstick
11. Engine oil filler cap
9
8765
10111234
Engine/Transmission
Engine/Transmission
7

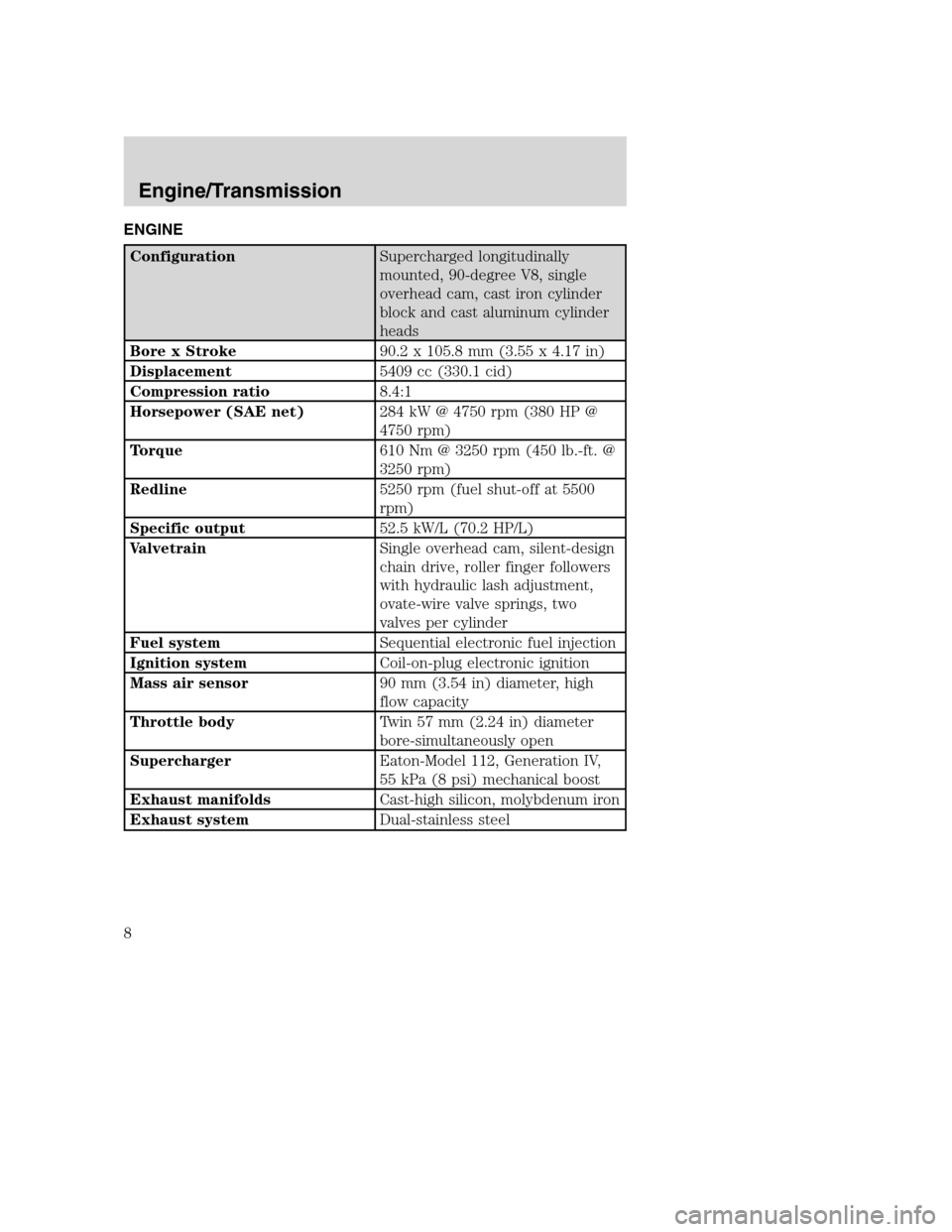

ENGINE
ConfigurationSupercharged longitudinally
mounted, 90-degree V8, single
overhead cam, cast iron cylinder
block and cast aluminum cylinder
heads
Bore x Stroke90.2 x 105.8 mm (3.55 x 4.17 in)
Displacement5409 cc (330.1 cid)
Compression ratio8.4:1
Horsepower (SAE net)284 kW @ 4750 rpm (380 HP @
4750 rpm)
Torque610 Nm @ 3250 rpm (450 lb.-ft. @
3250 rpm)
Redline5250 rpm (fuel shut-off at 5500
rpm)
Specific output52.5 kW/L (70.2 HP/L)
ValvetrainSingle overhead cam, silent-design
chain drive, roller finger followers
with hydraulic lash adjustment,
ovate-wire valve springs, two
valves per cylinder
Fuel systemSequential electronic fuel injection
Ignition systemCoil-on-plug electronic ignition
Mass air sensor90 mm (3.54 in) diameter, high
flow capacity
Throttle bodyTwin 57 mm (2.24 in) diameter
bore-simultaneously open
SuperchargerEaton-Model 112, Generation IV,
55 kPa (8 psi) mechanical boost
Exhaust manifoldsCast-high silicon, molybdenum iron
Exhaust systemDual-stainless steel
Engine/Transmission
8

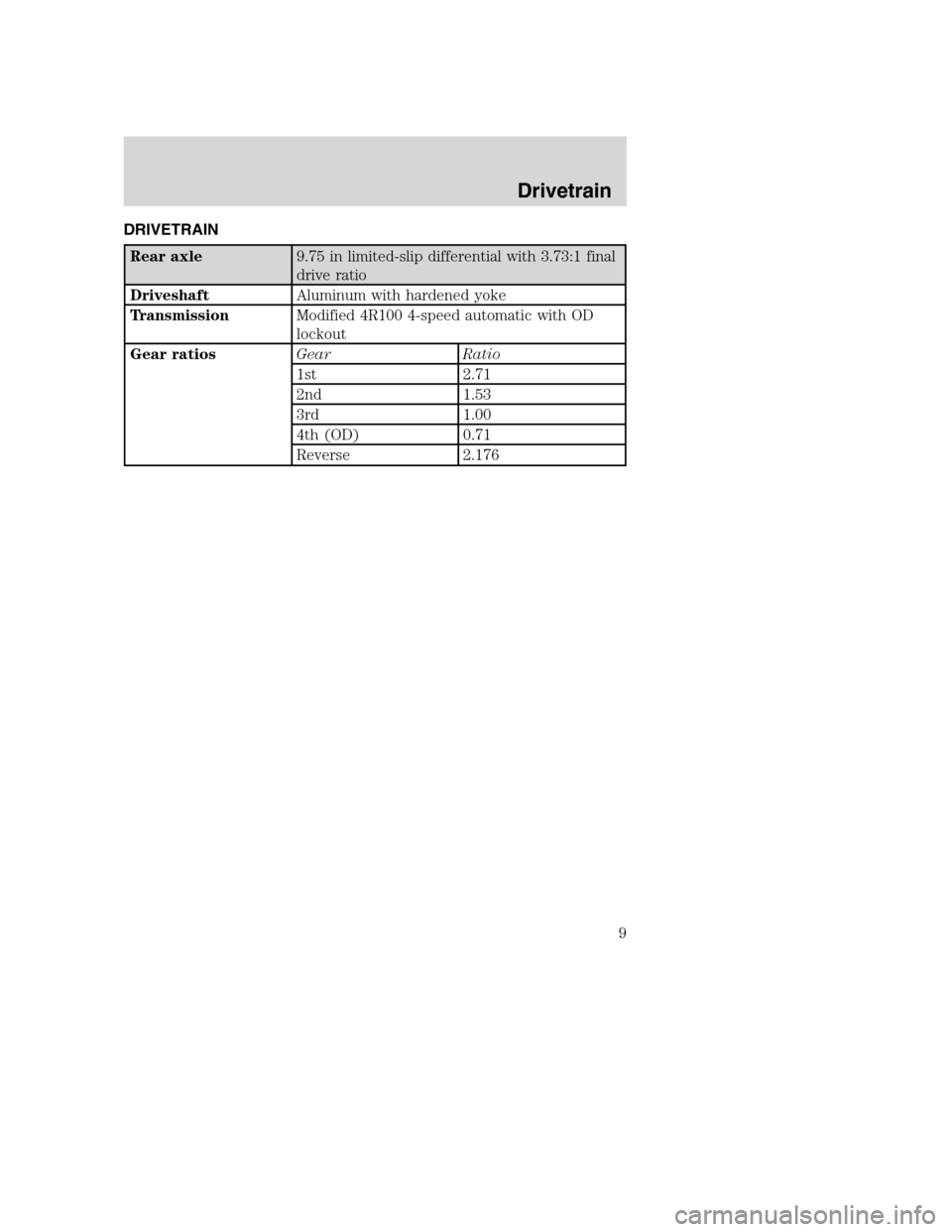

DRIVETRAIN
Rear axle9.75 in limited-slip differential with 3.73:1 final
drive ratio
DriveshaftAluminum with hardened yoke
TransmissionModified 4R100 4-speed automatic with OD
lockout
Gear ratiosGear Ratio
1st 2.71
2nd 1.53
3rd 1.00
4th (OD) 0.71
Reverse 2.176
Drivetrain
Drivetrain
9

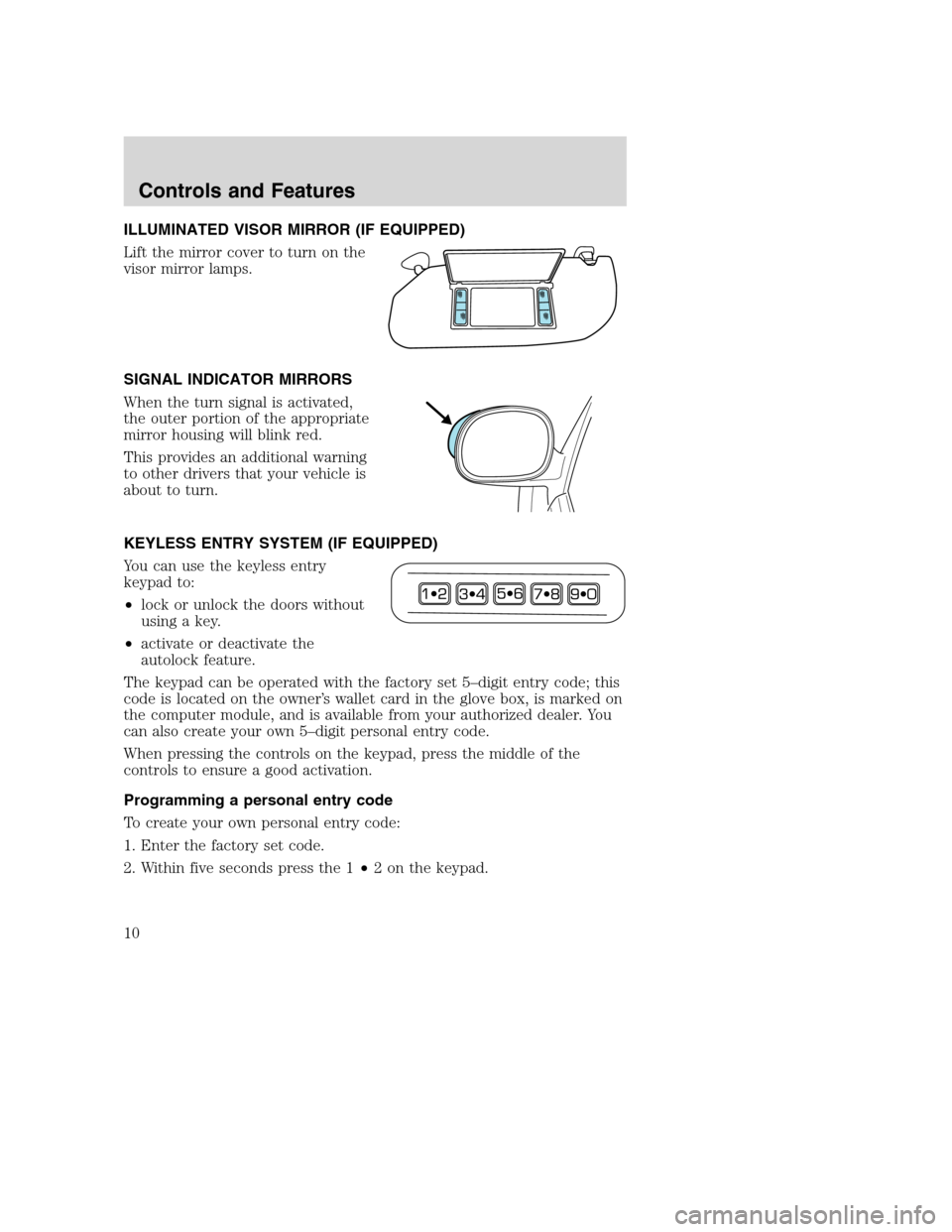

ILLUMINATED VISOR MIRROR (IF EQUIPPED)
Lift the mirror cover to turn on the
visor mirror lamps.
SIGNAL INDICATOR MIRRORS
When the turn signal is activated,
the outer portion of the appropriate
mirror housing will blink red.
This provides an additional warning
to other drivers that your vehicle is
about to turn.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•activate or deactivate the
autolock feature.
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box, is marked on
the computer module, and is available from your authorized dealer. You
can also create your own 5–digit personal entry code.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
Controls and Features
Controls and Features
10
