FORD F150 2005 11.G Quick Reference Guide

91078

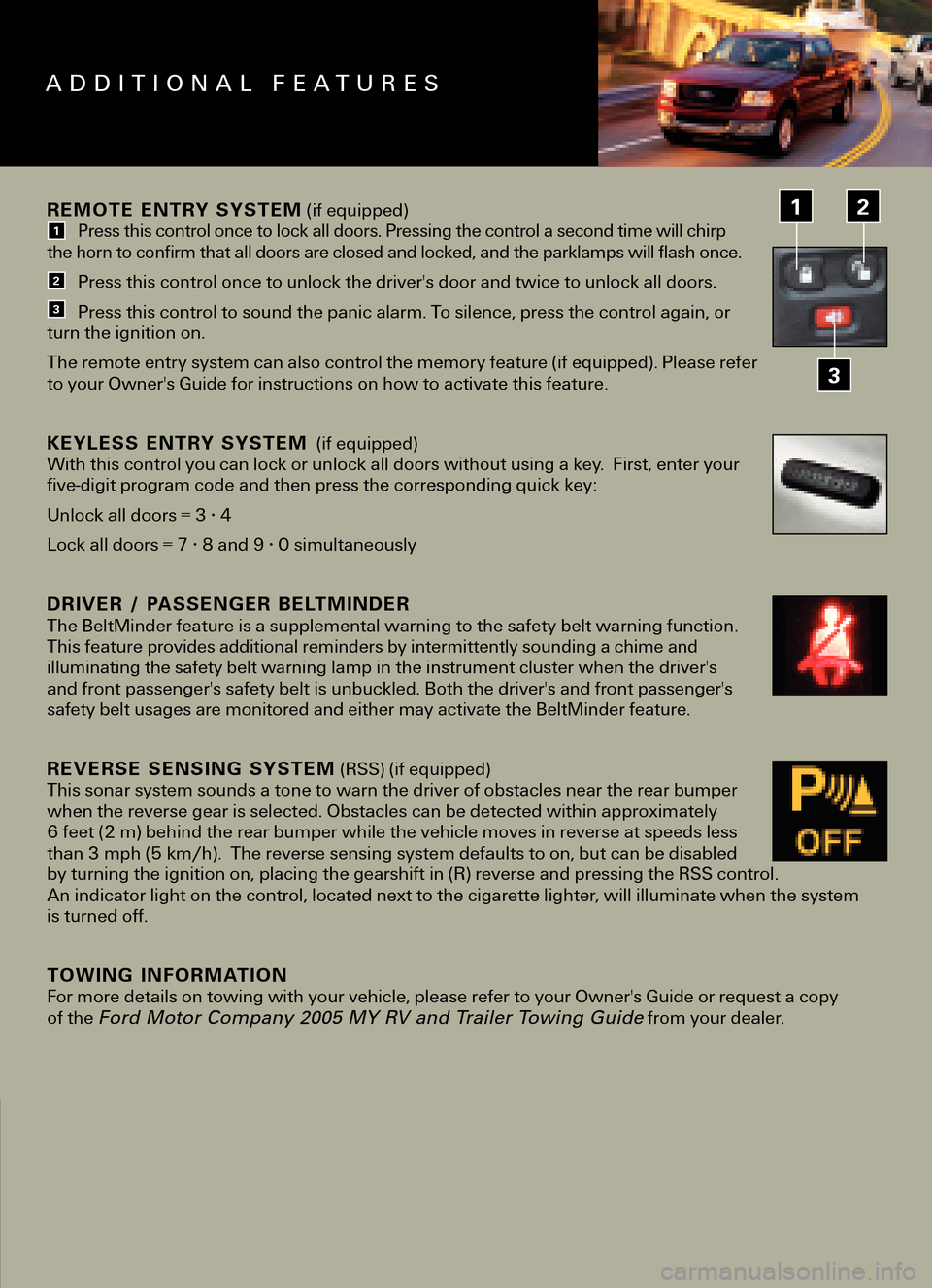

REMOTE ENTRY SYSTEM(if equipped)Press this control once to lock all doors. Pressing the control a second time will chirp
the horn to confirm that all doors are closed and locked, and the parklamps will flash once.
Press this control once to unlock the driver's door and twice to unlock all doors.
Press this control to sound the panic alarm. To silence, press the control again, or
turn the ignition on.
The remote entry system can also control the memory feature (if equipped). Please refer
to your Owner's Guide for instructions on how to activate this feature.
KEYLESS ENTRY SYSTEM(if equipped)
With this control you can lock or unlock all doors without using a key. First, enter your
fivedigit program code and then press the corresponding quick key:
Unlock all doors = 3 • 4Lock all doors = 7 • 8 and 9 • 0 simultaneously
DRIVER / PASSENGER BELTMINDER The BeltMinder feature is a supplemental warning to the safety belt warning function.
This feature provides additional reminders by intermittently sounding a chime and
illuminating the safety belt warninglamp in the instrument cluster when the driver's
and front passenger's safety belt is unbuckled. Both the driver's and front passenger's
safety belt usages are monitored and either may activate the BeltMinder feature.
REVERSE SENSING SYSTEM(RSS) (if equipped)
This sonar system sounds a tone to warn the driver of obstacles near the rear bumperwhen the reverse gear is selected. Obstacles can be detected within approximately 6 feet (2 m) behind the rear bumper while the vehicle moves in reverse at speeds lessthan 3 mph (5 km/h). The reverse sensing system defaults to on, but can be disabledby turning the ignition on, placing the gearshift in (R) reverse and pressing the RSS control.
An indicator light on the control, located next to the cigarette lighter, will illuminate when the system is turned off.
TOWING INFORMATIONFor more details on towing with your vehicle, please refer to your Owner's Guide or request a copy
of the Ford Motor Company 2005 MY RV and Trailer Towing Guidefrom your dealer.
DOOR CONTROLS
ADDITIONAL FEATURES
