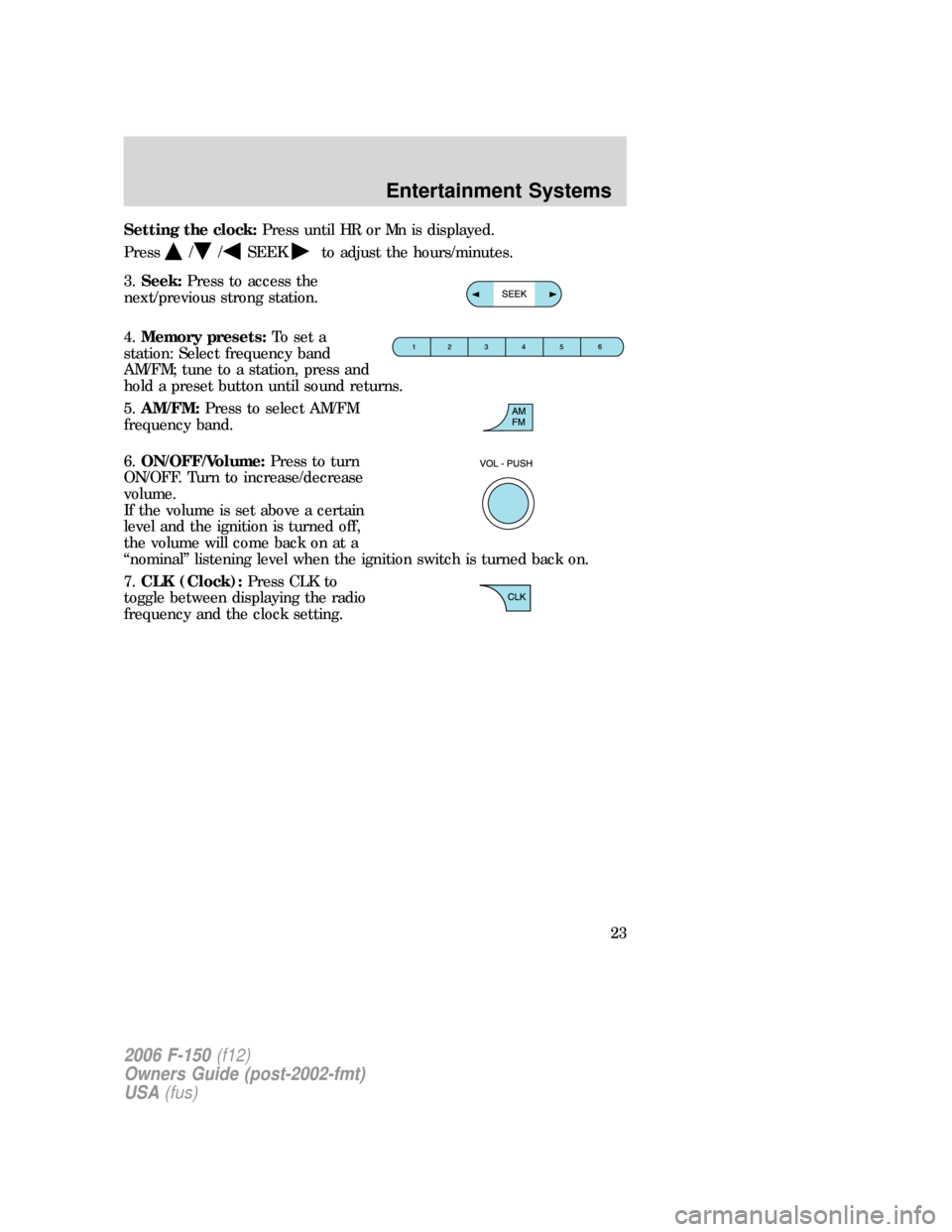

Page 23 of 336
Setting the clock:Press until HR or Mn is displayed.
Press
//SEEKto adjust the hours/minutes.
3.Seek:Press to access the
next/previous strong station.
4.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
5.AM/FM:Press to select AM/FM
frequency band.
6.ON/OFF/Volume:Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
7.CLK (Clock):Press CLK to
toggle between displaying the radio
frequency and the clock setting.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
23

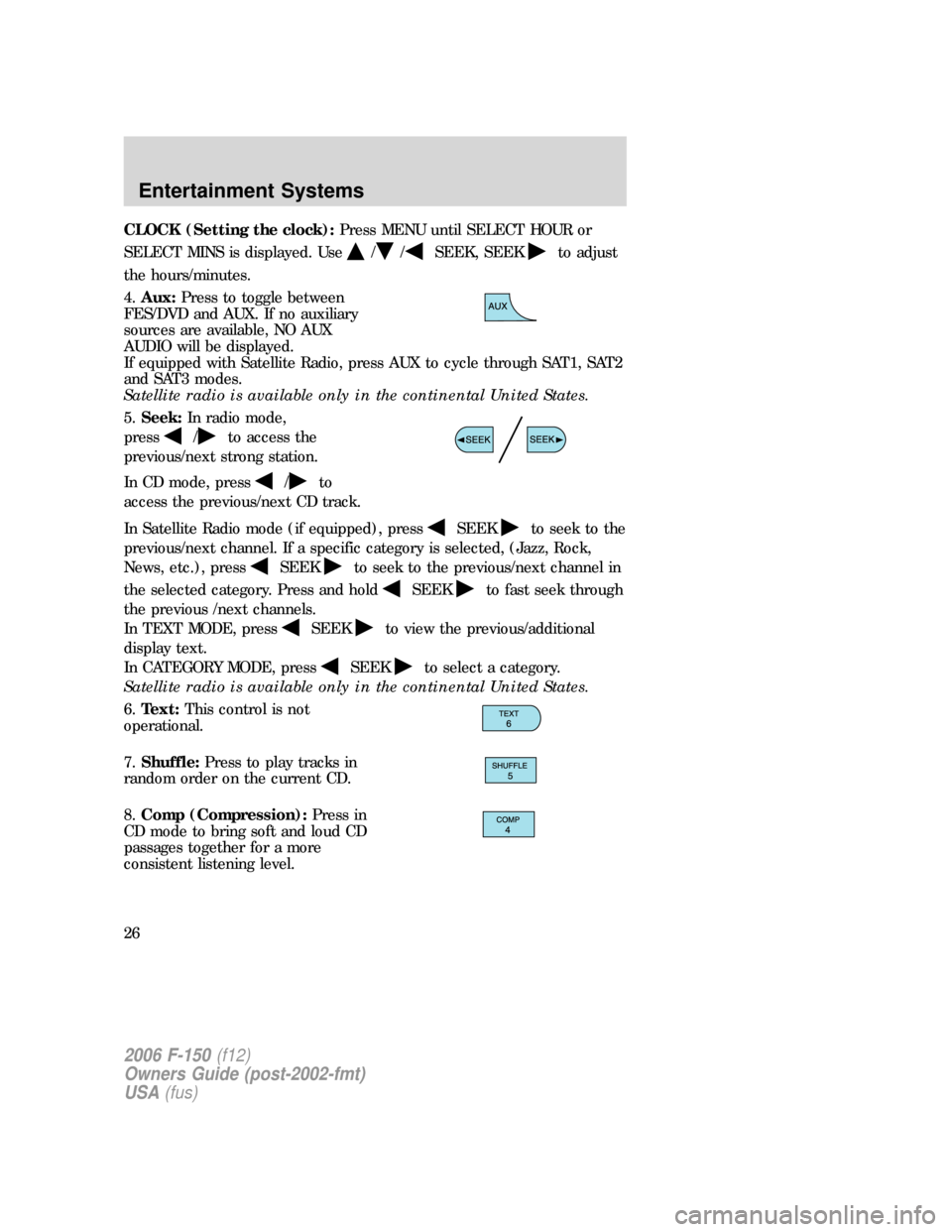

Page 26 of 336
CLOCK (Setting the clock):Press MENU until SELECT HOUR or
SELECT MINS is displayed. Use
//SEEK, SEEKto adjust
the hours/minutes.
4.Aux:Press to toggle between
FES/DVD and AUX. If no auxiliary
sources are available, NO AUX
AUDIO will be displayed.
If equipped with Satellite Radio, press AUX to cycle through SAT1, SAT2
and SAT3 modes.
Satellite radio is available only in the continental United States.
5.Seek:In radio mode,
press
/to access the
previous/next strong station.
In CD mode, press
/to
access the previous/next CD track.
In Satellite Radio mode (if equipped), press
SEEKto seek to the
previous/next channel. If a specific category is selected, (Jazz, Rock,
News, etc.), press
SEEKto seek to the previous/next channel in
the selected category. Press and hold
SEEKto fast seek through
the previous /next channels.
In TEXT MODE, press
SEEKto view the previous/additional
display text.
In CATEGORY MODE, press
SEEKto select a category.
Satellite radio is available only in the continental United States.
6.Text:This control is not
operational.
7.Shuffle:Press to play tracks in
random order on the current CD.
8.Comp (Compression):Press in
CD mode to bring soft and loud CD
passages together for a more
consistent listening level.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
26

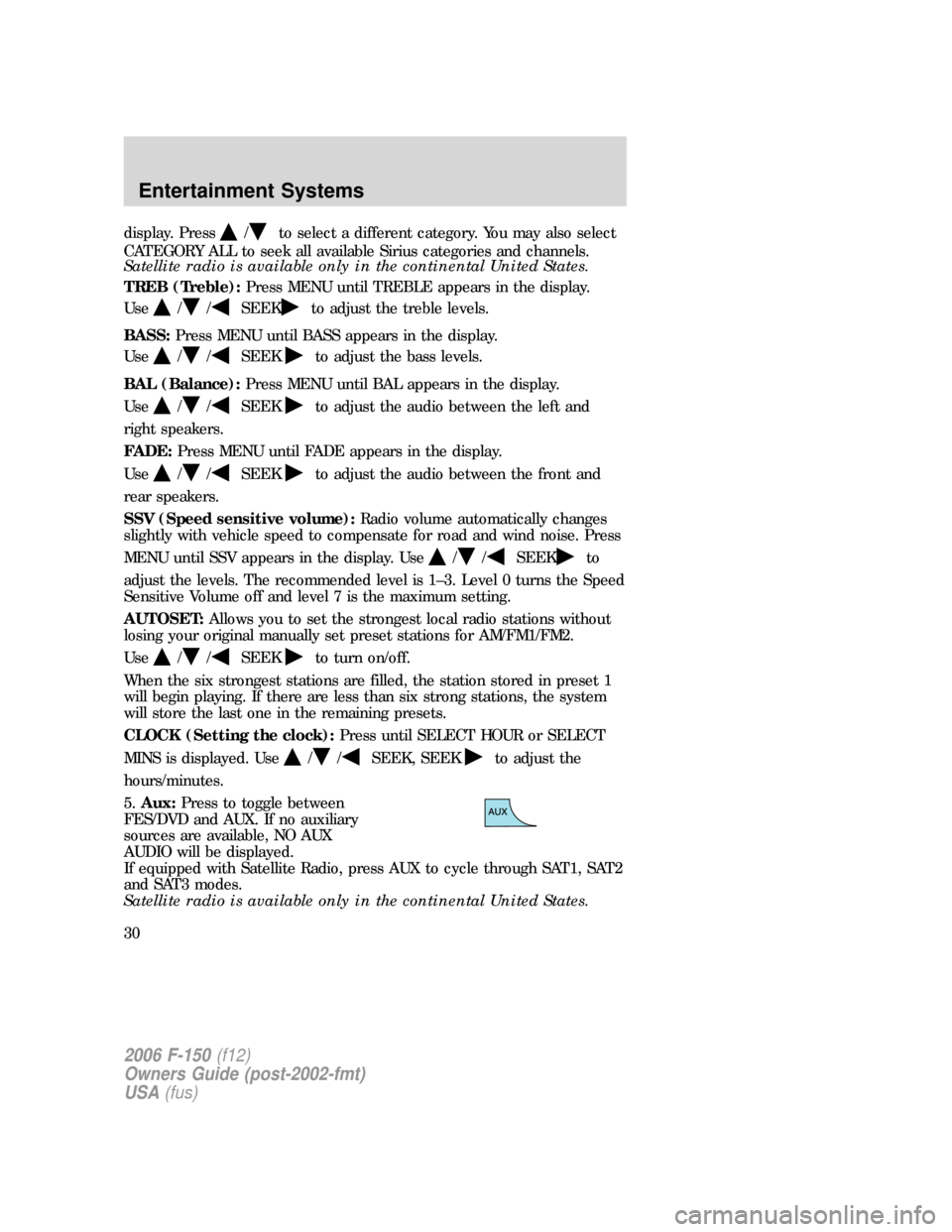

Page 30 of 336
display. Press/to select a different category. You may also select
CATEGORY ALL to seek all available Sirius categories and channels.
Satellite radio is available only in the continental United States.
TREB (Treble):Press MENU until TREBLE appears in the display.
Use
//SEEKto adjust the treble levels.
BASS:Press MENU until BASS appears in the display.
Use
//SEEKto adjust the bass levels.
BAL (Balance):Press MENU until BAL appears in the display.
Use
//SEEKto adjust the audio between the left and
right speakers.
FADE:Press MENU until FADE appears in the display.
Use
//SEEKto adjust the audio between the front and
rear speakers.
SSV (Speed sensitive volume):Radio volume automatically changes
slightly with vehicle speed to compensate for road and wind noise. Press
MENU until SSV appears in the display. Use
//SEEKto
adjust the levels. The recommended level is 1–3. Level 0 turns the Speed
Sensitive Volume off and level 7 is the maximum setting.
AUTOSET:Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2.
Use
//SEEKto turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
CLOCK (Setting the clock):Press until SELECT HOUR or SELECT
MINS is displayed. Use
//SEEK, SEEKto adjust the
hours/minutes.
5.Aux:Press to toggle between
FES/DVD and AUX. If no auxiliary
sources are available, NO AUX
AUDIO will be displayed.
If equipped with Satellite Radio, press AUX to cycle through SAT1, SAT2
and SAT3 modes.
Satellite radio is available only in the continental United States.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
30

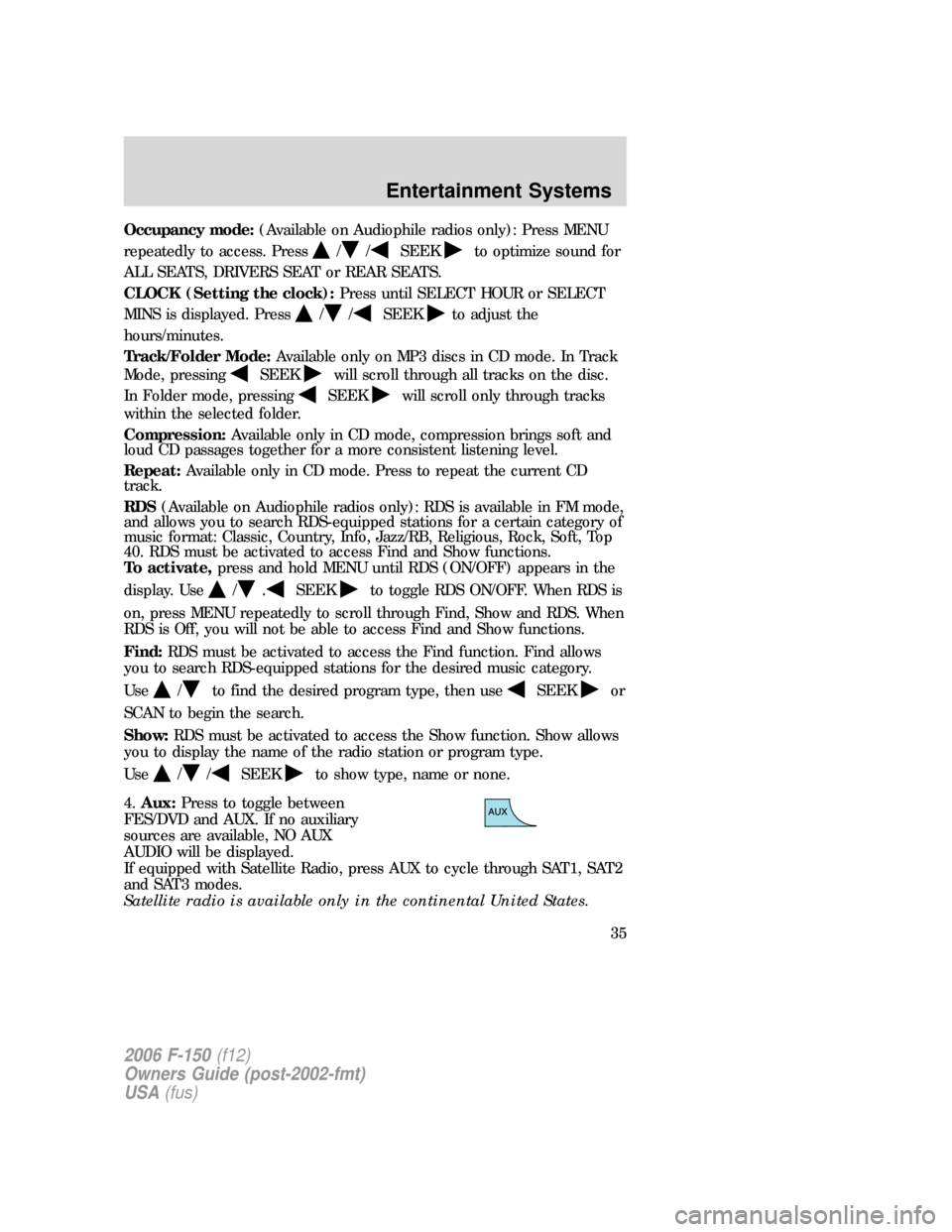

Page 35 of 336
Occupancy mode:(Available on Audiophile radios only): Press MENU
repeatedly to access. Press
//SEEKto optimize sound for
ALL SEATS, DRIVERS SEAT or REAR SEATS.
CLOCK (Setting the clock):Press until SELECT HOUR or SELECT
MINS is displayed. Press
//SEEKto adjust the
hours/minutes.
Track/Folder Mode:Available only on MP3 discs in CD mode. In Track
Mode, pressing
SEEKwill scroll through all tracks on the disc.
In Folder mode, pressing
SEEKwill scroll only through tracks
within the selected folder.
Compression:Available only in CD mode, compression brings soft and
loud CD passages together for a more consistent listening level.
Repeat:Available only in CD mode. Press to repeat the current CD
track.
RDS(Available on Audiophile radios only): RDS is available in FM mode,
and allows you to search RDS-equipped stations for a certain category of
music format: Classic, Country, Info, Jazz/RB, Religious, Rock, Soft, Top
40. RDS must be activated to access Find and Show functions.
To activate,press and hold MENU until RDS (ON/OFF) appears in the
display. Use
/.SEEKto toggle RDS ON/OFF. When RDS is
on, press MENU repeatedly to scroll through Find, Show and RDS. When
RDS is Off, you will not be able to access Find and Show functions.
Find:RDS must be activated to access the Find function. Find allows
you to search RDS-equipped stations for the desired music category.
Use
/to find the desired program type, then useSEEKor
SCAN to begin the search.
Show:RDS must be activated to access the Show function. Show allows
you to display the name of the radio station or program type.
Use
//SEEKto show type, name or none.
4.Aux:Press to toggle between
FES/DVD and AUX. If no auxiliary
sources are available, NO AUX
AUDIO will be displayed.
If equipped with Satellite Radio, press AUX to cycle through SAT1, SAT2
and SAT3 modes.
Satellite radio is available only in the continental United States.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
35

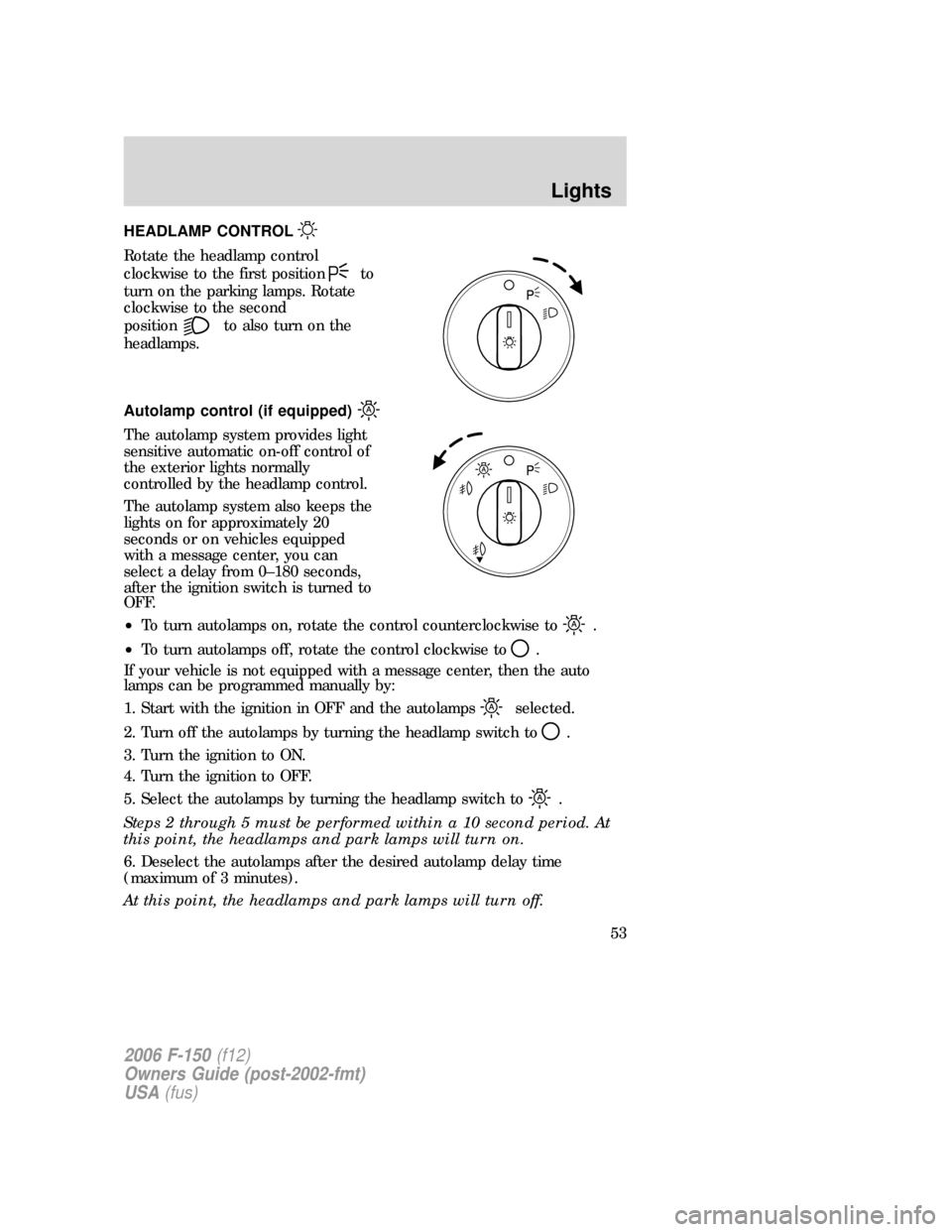

Page 53 of 336
HEADLAMP CONTROL
Rotate the headlamp control
clockwise to the first position
to
turn on the parking lamps. Rotate
clockwise to the second
position
to also turn on the
headlamps.
Autolamp control (if equipped)
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The autolamp system also keeps the
lights on for approximately 20
seconds or on vehicles equipped
with a message center, you can
select a delay from 0–180 seconds,
after the ignition switch is turned to
OFF.
•To turn autolamps on, rotate the control counterclockwise to
.
•To turn autolamps off, rotate the control clockwise to
.
If your vehicle is not equipped with a message center, then the auto
lamps can be programmed manually by:
1. Start with the ignition in OFF and the autolamps
selected.
2. Turn off the autolamps by turning the headlamp switch to
.
3. Turn the ignition to ON.
4. Turn the ignition to OFF.
5. Select the autolamps by turning the headlamp switch to
.
Steps 2 through 5 must be performed within a 10 second period. At
this point, the headlamps and park lamps will turn on.
6. Deselect the autolamps after the desired autolamp delay time
(maximum of 3 minutes).
At this point, the headlamps and park lamps will turn off.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
53

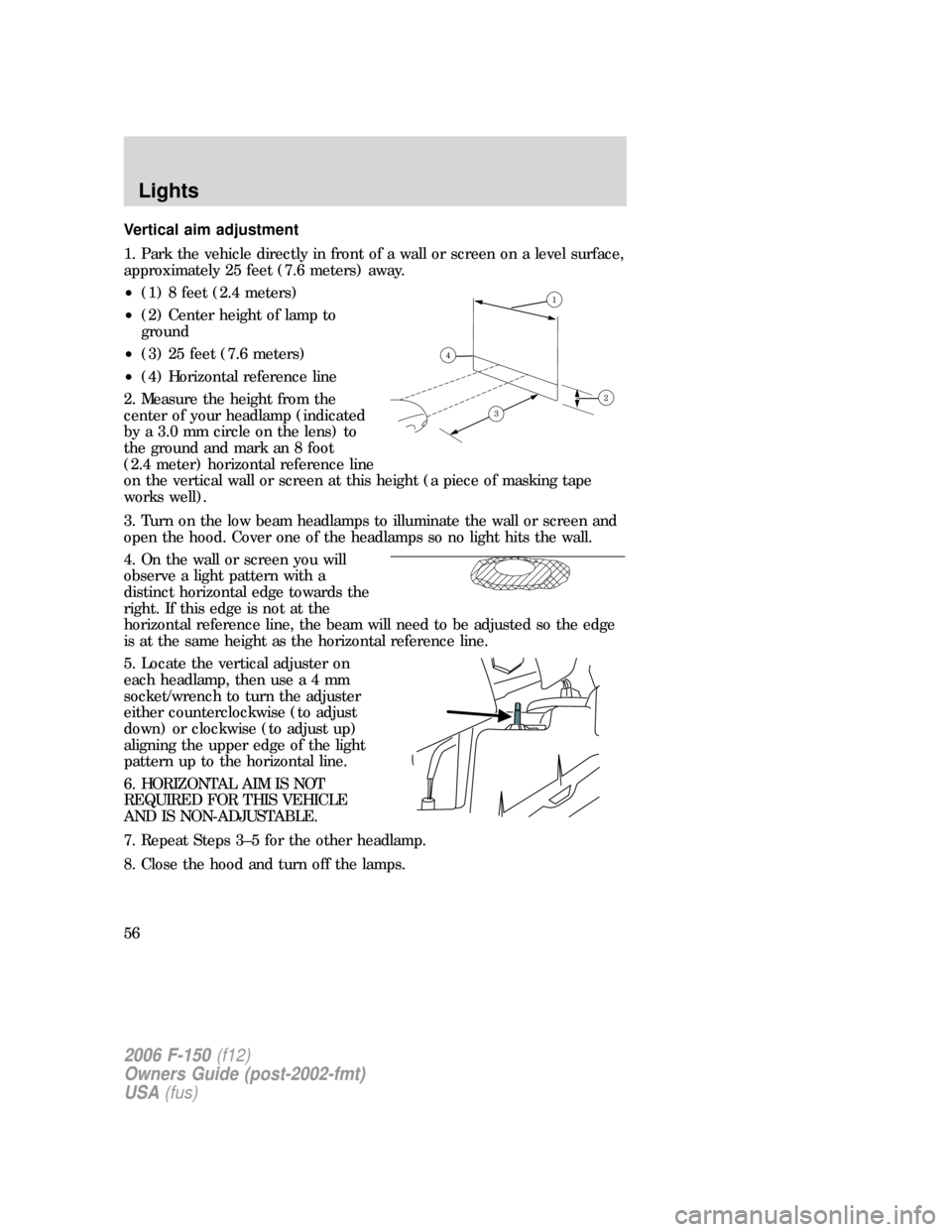

Page 56 of 336
Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height from the
center of your headlamp (indicated
by a 3.0 mm circle on the lens) to
the ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this height (a piece of masking tape
works well).
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood. Cover one of the headlamps so no light hits the wall.
4. On the wall or screen you will
observe a light pattern with a
distinct horizontal edge towards the
right. If this edge is not at the
horizontal reference line, the beam will need to be adjusted so the edge
is at the same height as the horizontal reference line.
5. Locate the vertical adjuster on
each headlamp, then usea4mm
socket/wrench to turn the adjuster
either counterclockwise (to adjust
down) or clockwise (to adjust up)
aligning the upper edge of the light
pattern up to the horizontal line.
6. HORIZONTAL AIM IS NOT
REQUIRED FOR THIS VEHICLE
AND IS NON-ADJUSTABLE.
7. Repeat Steps 3–5 for the other headlamp.
8. Close the hood and turn off the lamps.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
56

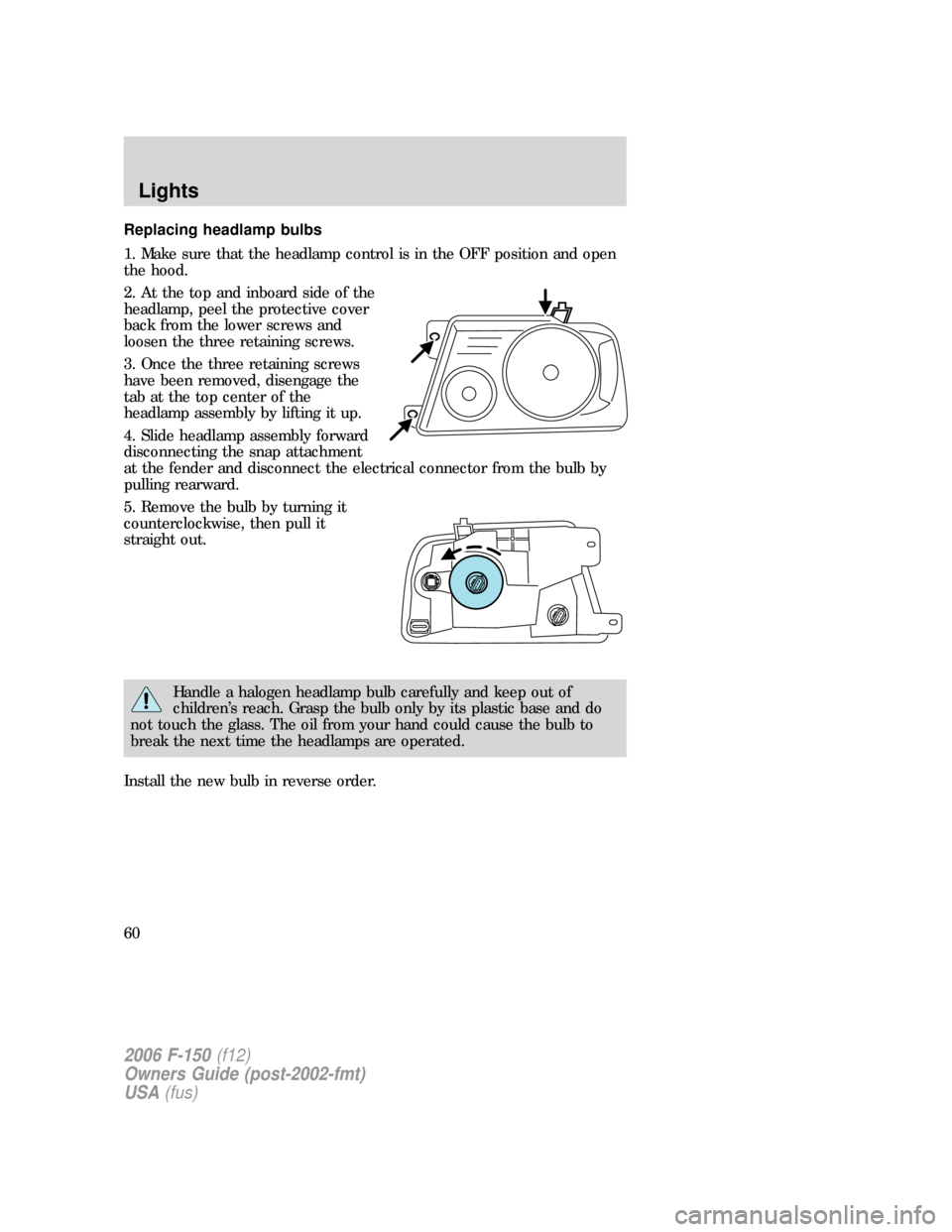

Page 60 of 336
Replacing headlamp bulbs
1. Make sure that the headlamp control is in the OFF position and open
the hood.
2. At the top and inboard side of the
headlamp, peel the protective cover
back from the lower screws and
loosen the three retaining screws.
3. Once the three retaining screws
have been removed, disengage the
tab at the top center of the
headlamp assembly by lifting it up.
4. Slide headlamp assembly forward
disconnecting the snap attachment
at the fender and disconnect the electrical connector from the bulb by
pulling rearward.
5. Remove the bulb by turning it
counterclockwise, then pull it
straight out.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
Install the new bulb in reverse order.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
60

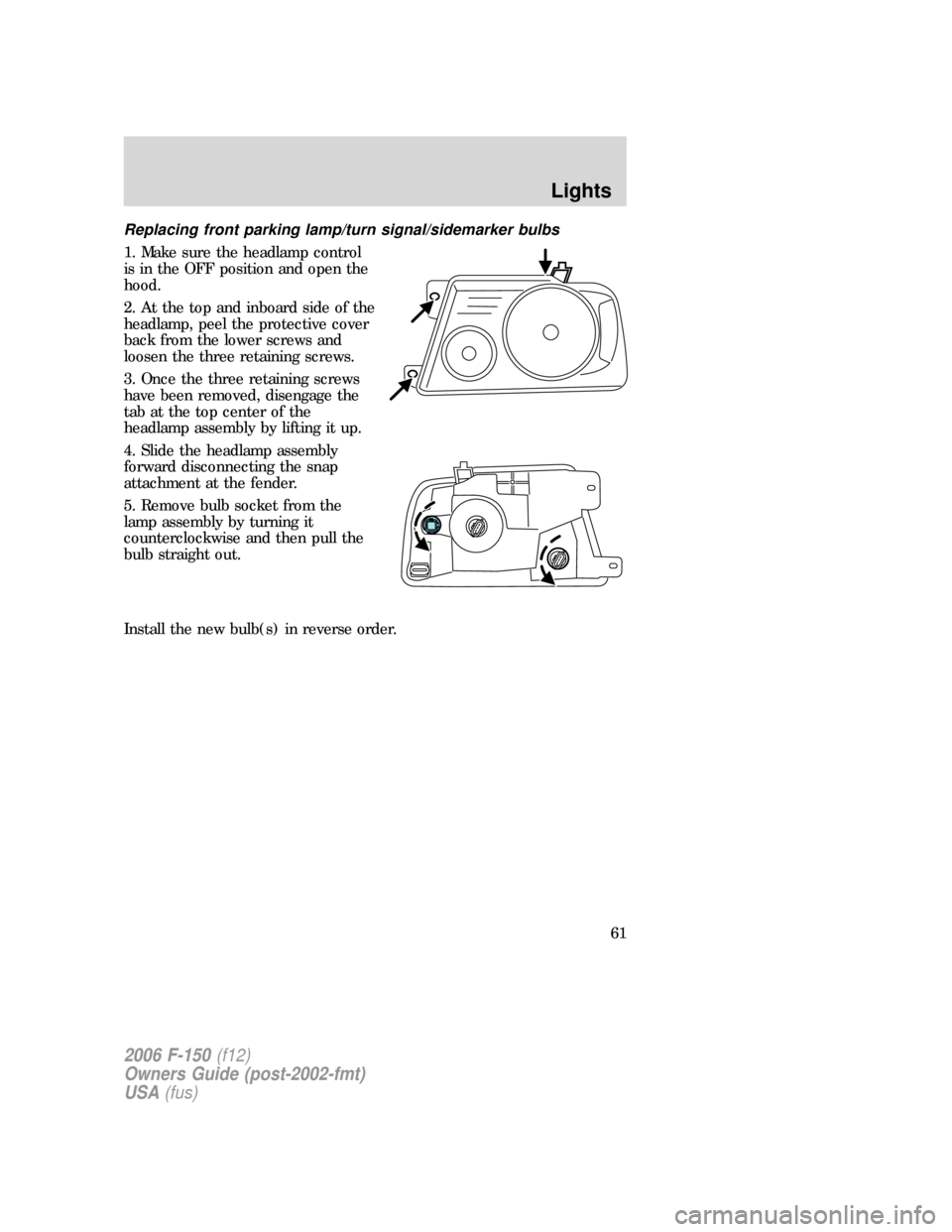

Page 61 of 336
Replacing front parking lamp/turn signal/sidemarker bulbs
1. Make sure the headlamp control
is in the OFF position and open the
hood.
2. At the top and inboard side of the
headlamp, peel the protective cover
back from the lower screws and
loosen the three retaining screws.
3. Once the three retaining screws
have been removed, disengage the
tab at the top center of the
headlamp assembly by lifting it up.
4. Slide the headlamp assembly
forward disconnecting the snap
attachment at the fender.
5. Remove bulb socket from the
lamp assembly by turning it
counterclockwise and then pull the
bulb straight out.
Install the new bulb(s) in reverse order.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
61

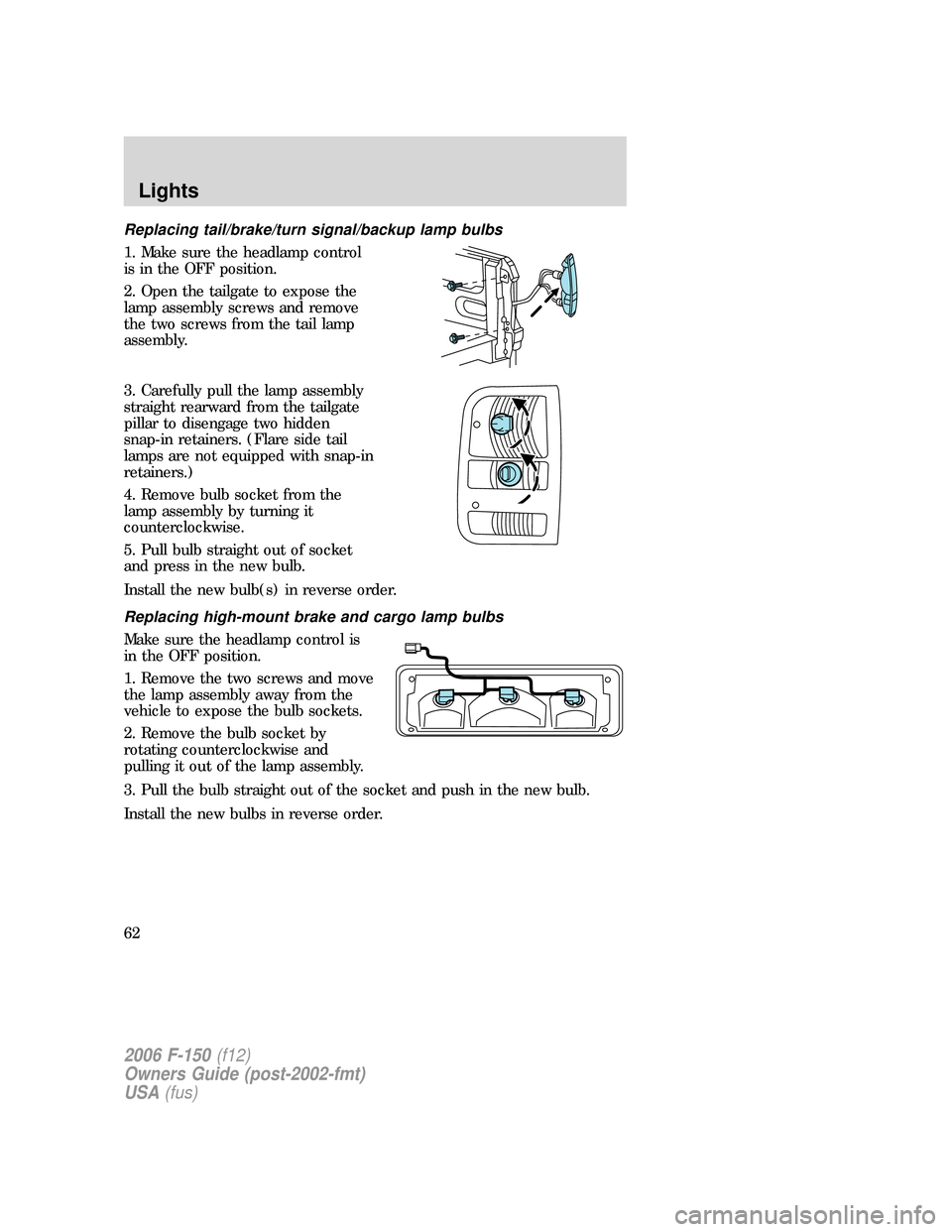

Page 62 of 336
Replacing tail/brake/turn signal/backup lamp bulbs
1. Make sure the headlamp control
is in the OFF position.
2. Open the tailgate to expose the
lamp assembly screws and remove
the two screws from the tail lamp
assembly.
3. Carefully pull the lamp assembly
straight rearward from the tailgate
pillar to disengage two hidden
snap-in retainers. (Flare side tail
lamps are not equipped with snap-in
retainers.)
4. Remove bulb socket from the
lamp assembly by turning it
counterclockwise.
5. Pull bulb straight out of socket
and press in the new bulb.
Install the new bulb(s) in reverse order.
Replacing high-mount brake and cargo lamp bulbs
Make sure the headlamp control is
in the OFF position.
1. Remove the two screws and move
the lamp assembly away from the
vehicle to expose the bulb sockets.
2. Remove the bulb socket by
rotating counterclockwise and
pulling it out of the lamp assembly.
3. Pull the bulb straight out of the socket and push in the new bulb.
Install the new bulbs in reverse order.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
62
Page 63 of 336

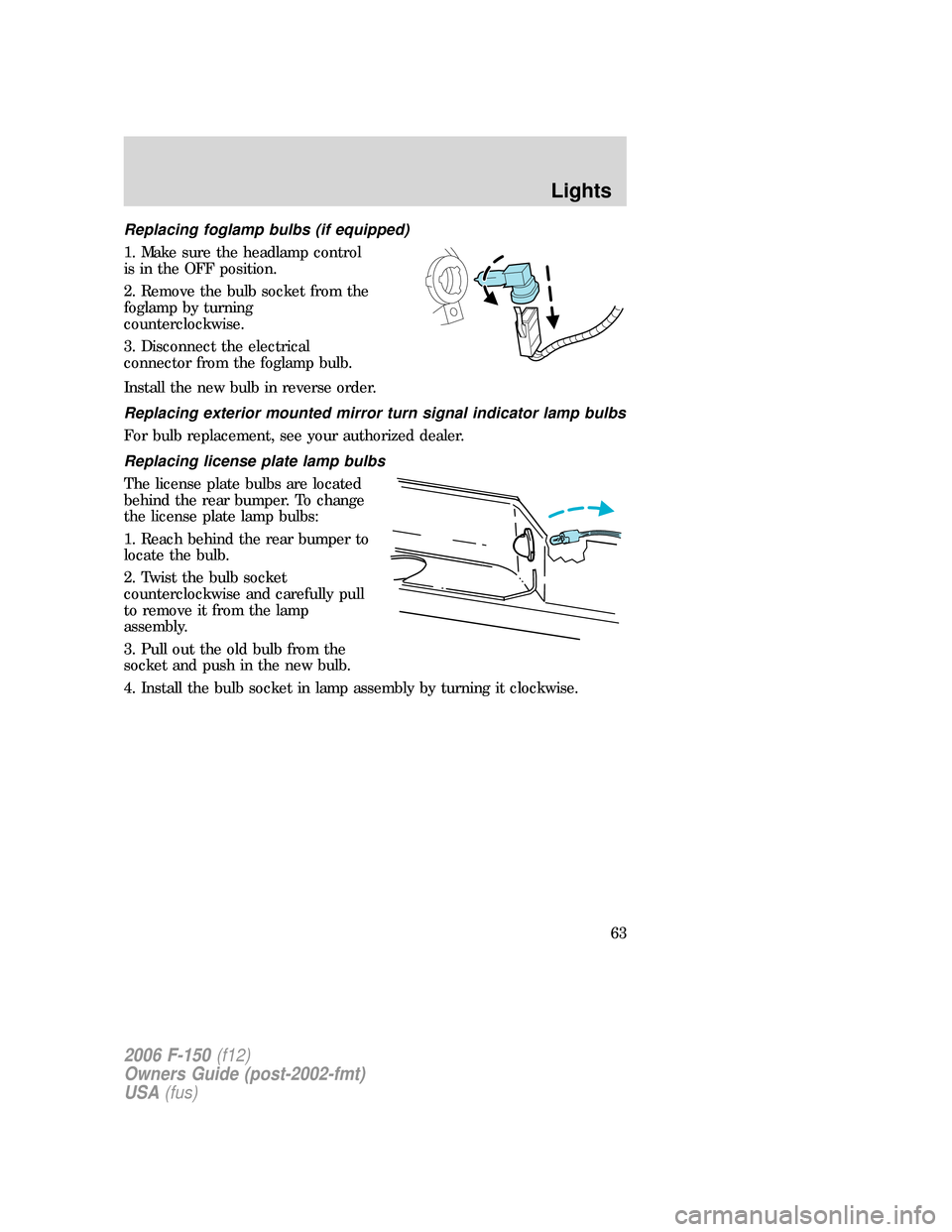

Replacing foglamp bulbs (if equipped)
1. Make sure the headlamp control
is in the OFF position.
2. Remove the bulb socket from the
foglamp by turning
counterclockwise.
3. Disconnect the electrical
connector from the foglamp bulb.
Install the new bulb in reverse order.
Replacing exterior mounted mirror turn signal indicator lamp bulbs
For bulb replacement, see your authorized dealer.
Replacing license plate lamp bulbs
The license plate bulbs are located
behind the rear bumper. To change
the license plate lamp bulbs:
1. Reach behind the rear bumper to
locate the bulb.
2. Twist the bulb socket
counterclockwise and carefully pull
to remove it from the lamp
assembly.
3. Pull out the old bulb from the
socket and push in the new bulb.
4. Install the bulb socket in lamp assembly by turning it clockwise.
2006 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
63
