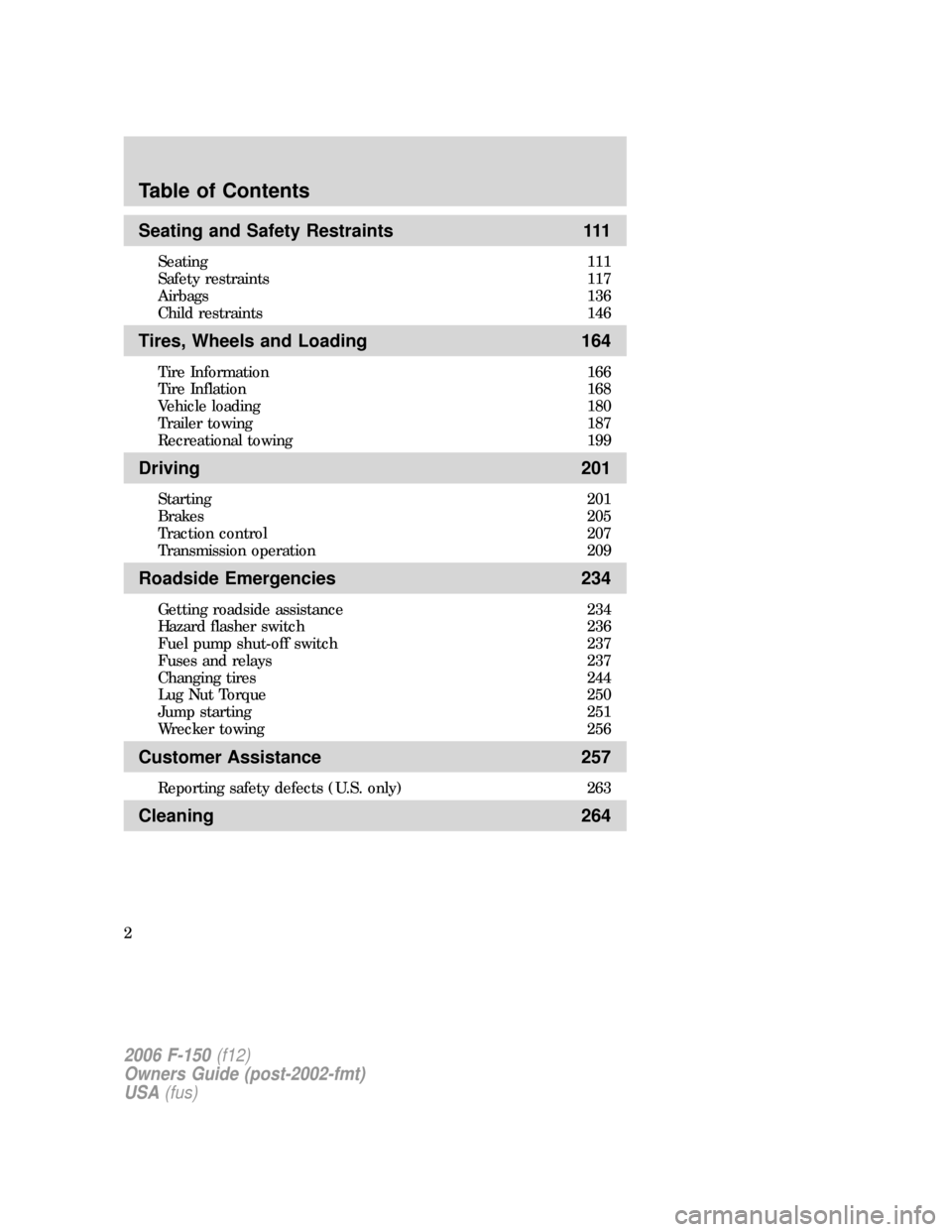

FORD F150 2006 11.G Owners Manual Seating and Safety Restraints 111
Seating 111
Safety restraints 117
Airbags 136
Child restraints 146
Tires, Wheels and Loading 164
Tire Information 166
Tire Inflation 168
Vehicle loading 180
Trailer t

Page 138 of 336

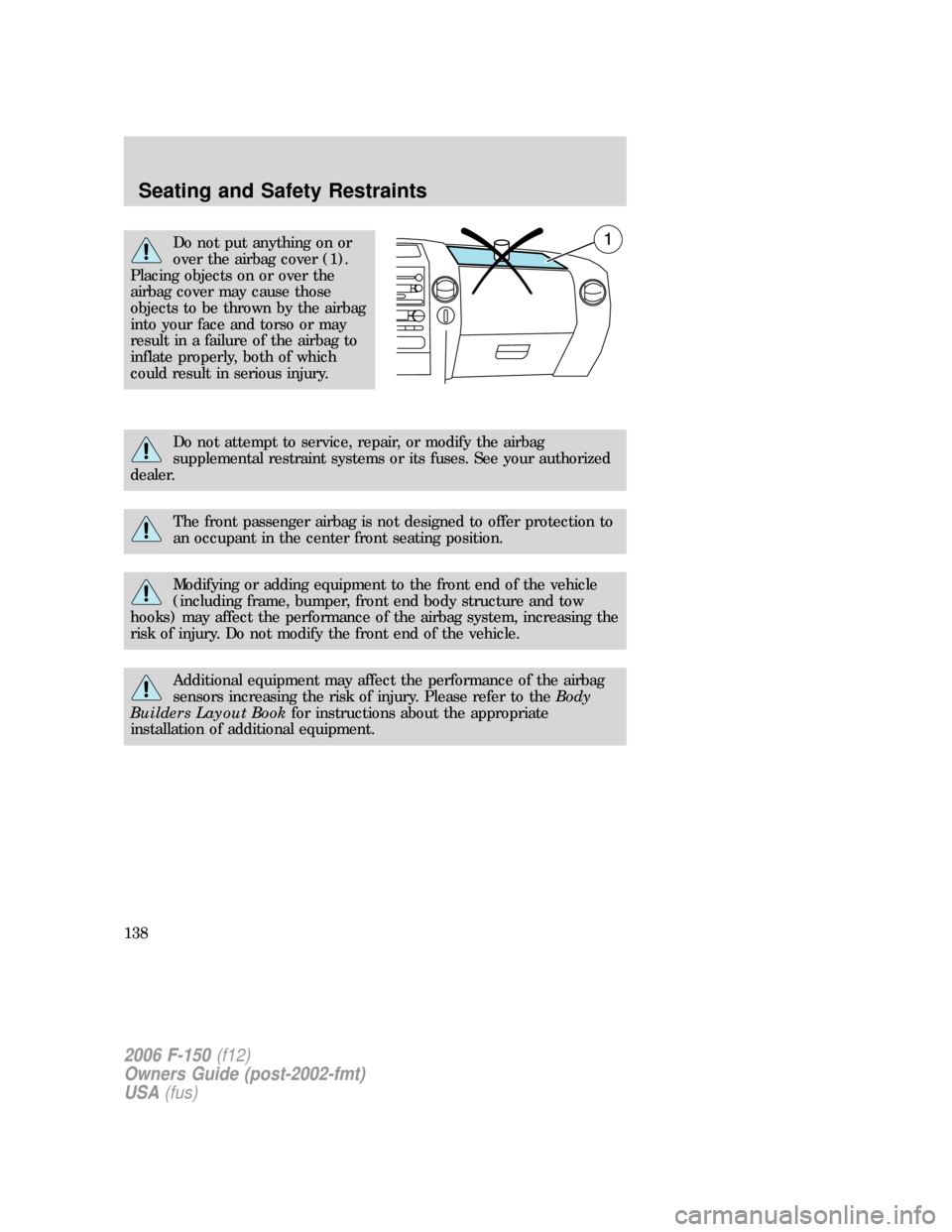

FORD F150 2006 11.G Owners Manual Do not put anything on or
over the airbag cover (1).
Placing objects on or over the
airbag cover may cause those
objects to be thrown by the airbag
into your face and torso or may
result in a failure

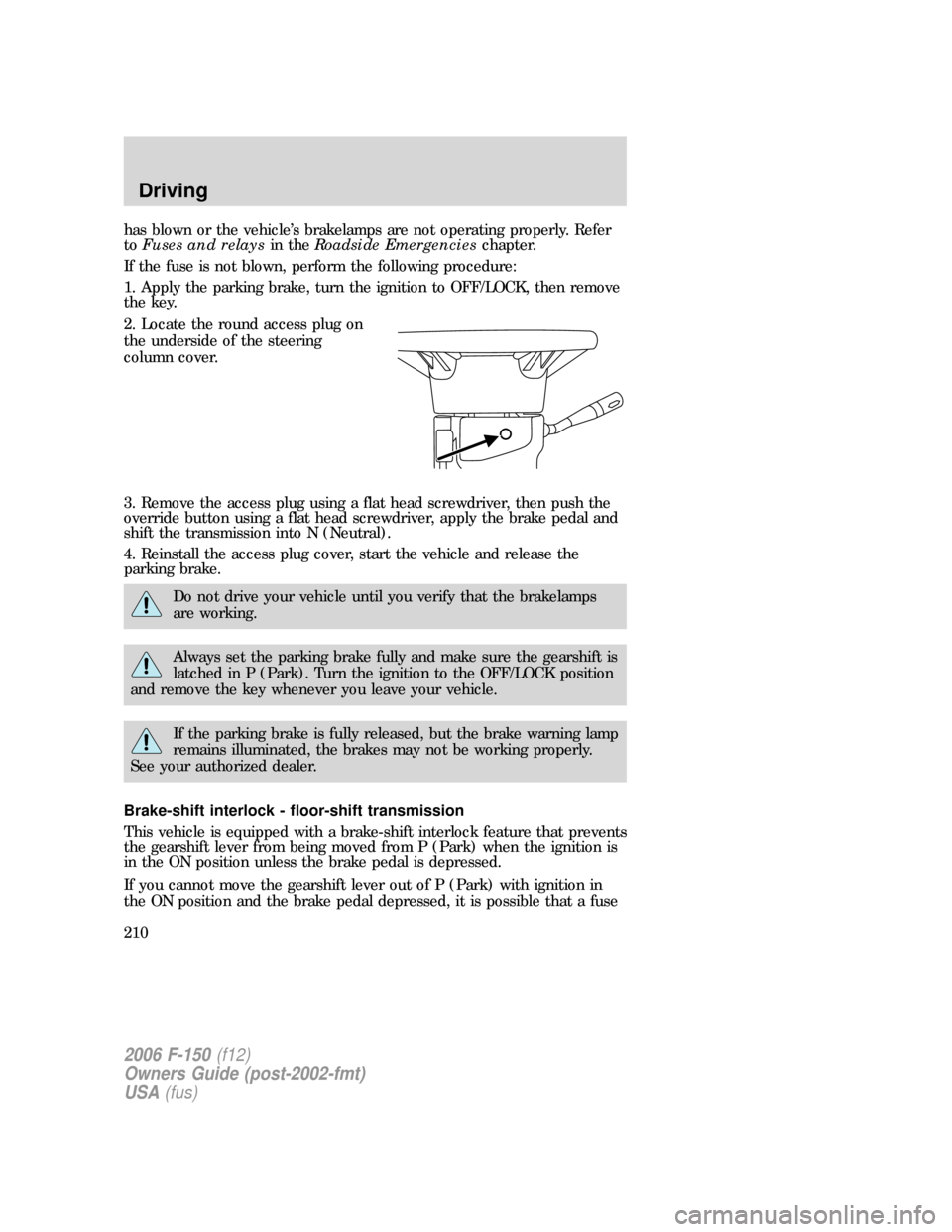

Page 210 of 336

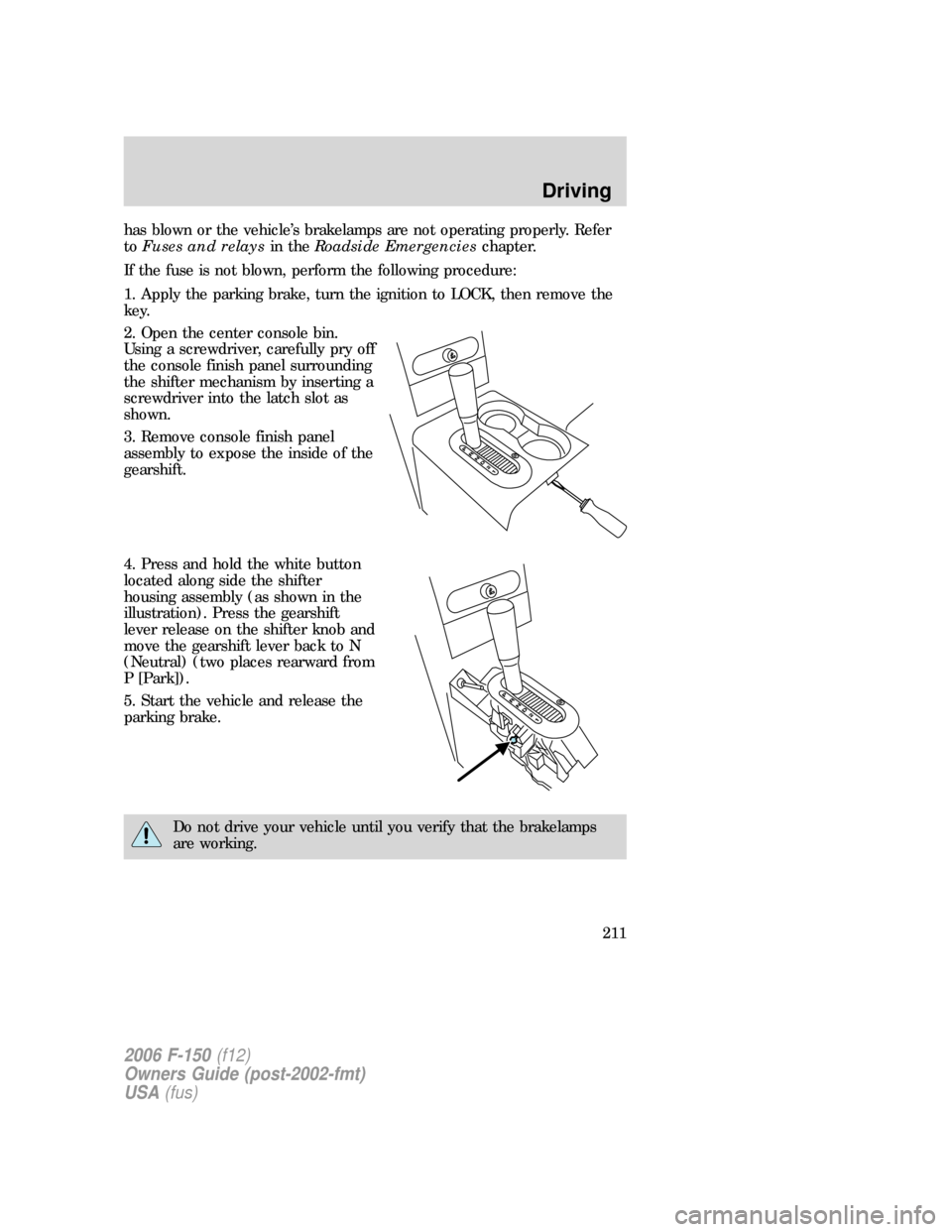

FORD F150 2006 11.G Owners Manual has blown or the vehicle’s brakelamps are not operating properly. Refer
toFuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown, perform the following procedure:
1. Apply the p

Page 211 of 336

FORD F150 2006 11.G Owners Manual has blown or the vehicle’s brakelamps are not operating properly. Refer
toFuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown, perform the following procedure:
1. Apply the p

Page 232 of 336

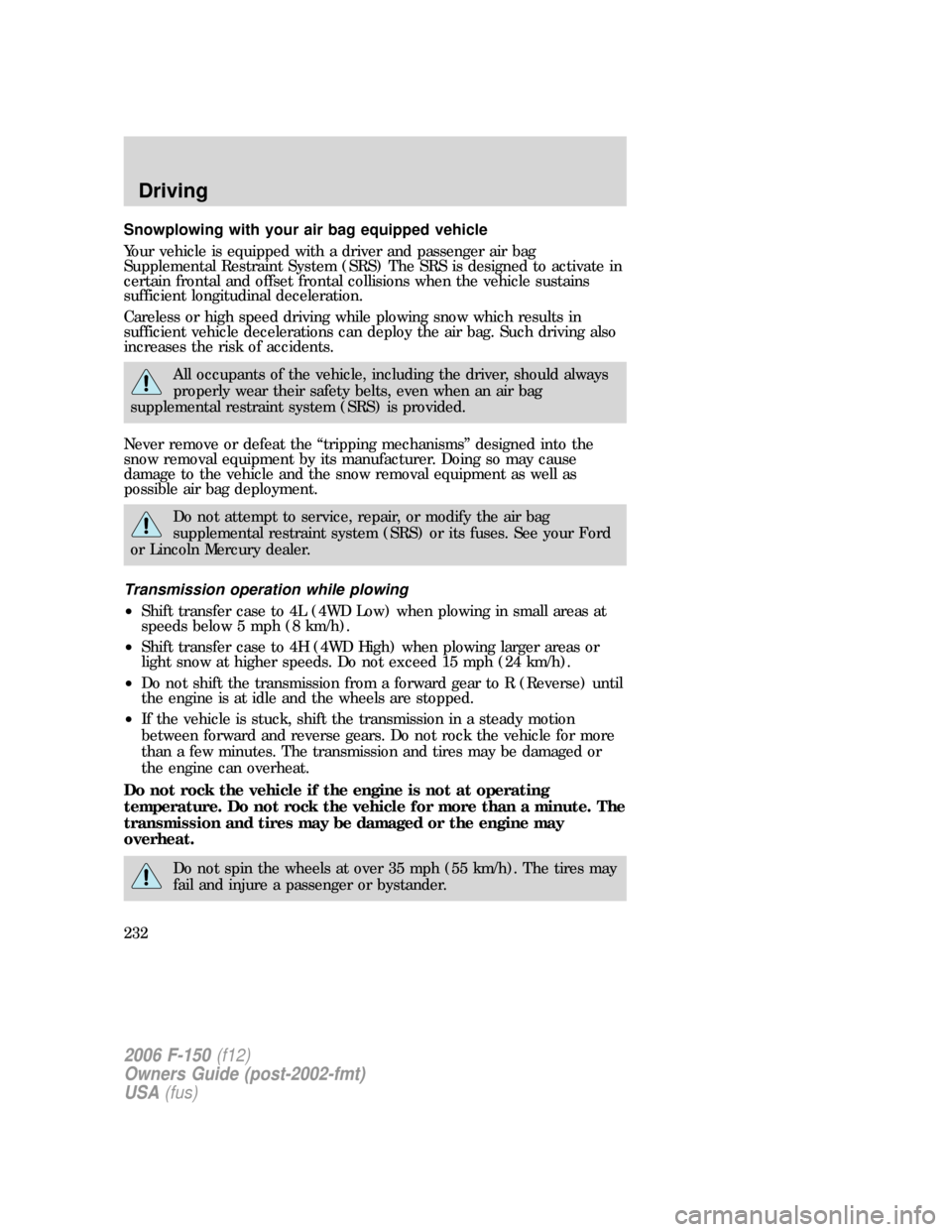

FORD F150 2006 11.G Owners Manual Snowplowing with your air bag equipped vehicle
Your vehicle is equipped with a driver and passenger air bag
Supplemental Restraint System (SRS) The SRS is designed to activate in
certain frontal and o

Page 237 of 336

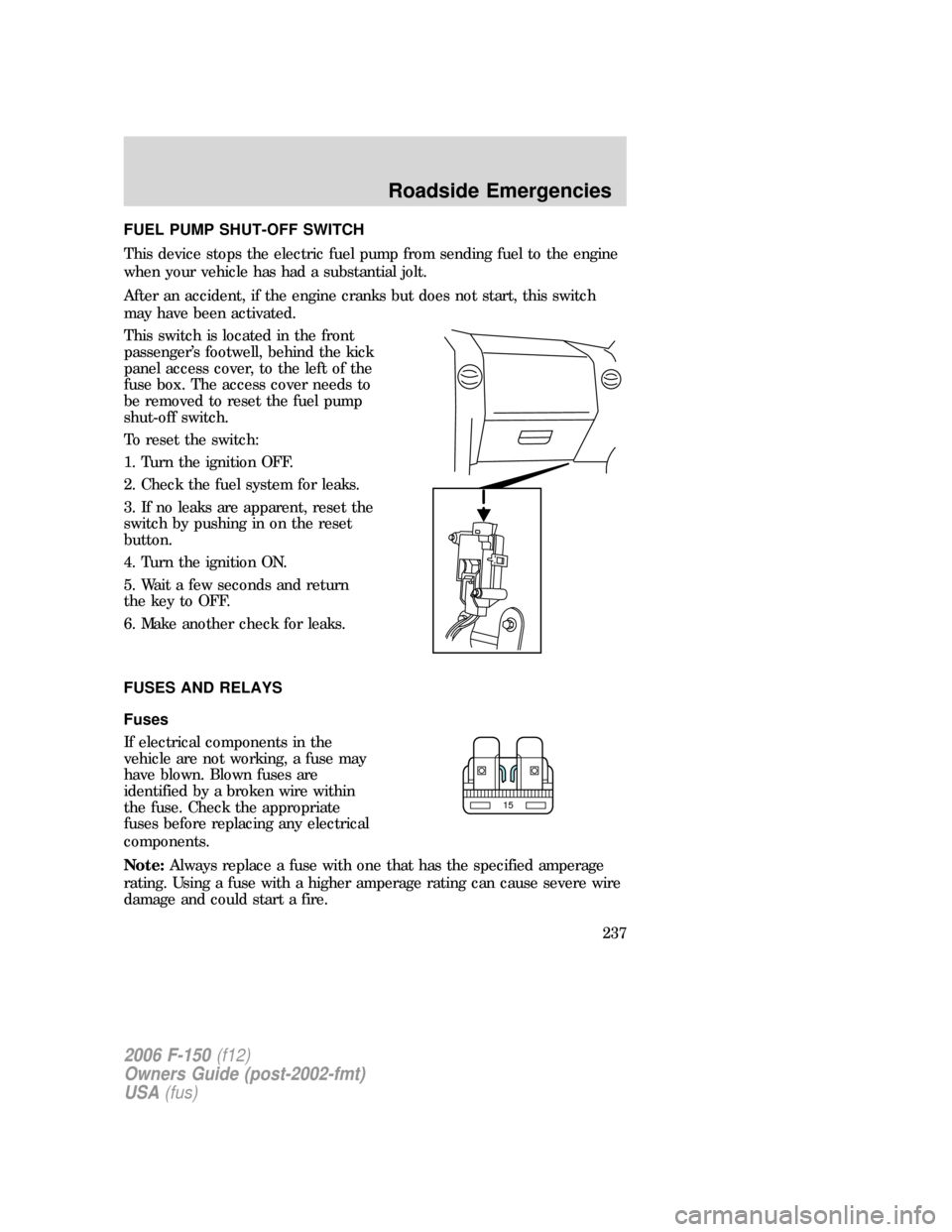

FORD F150 2006 11.G Owners Manual FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not st

Page 238 of 336

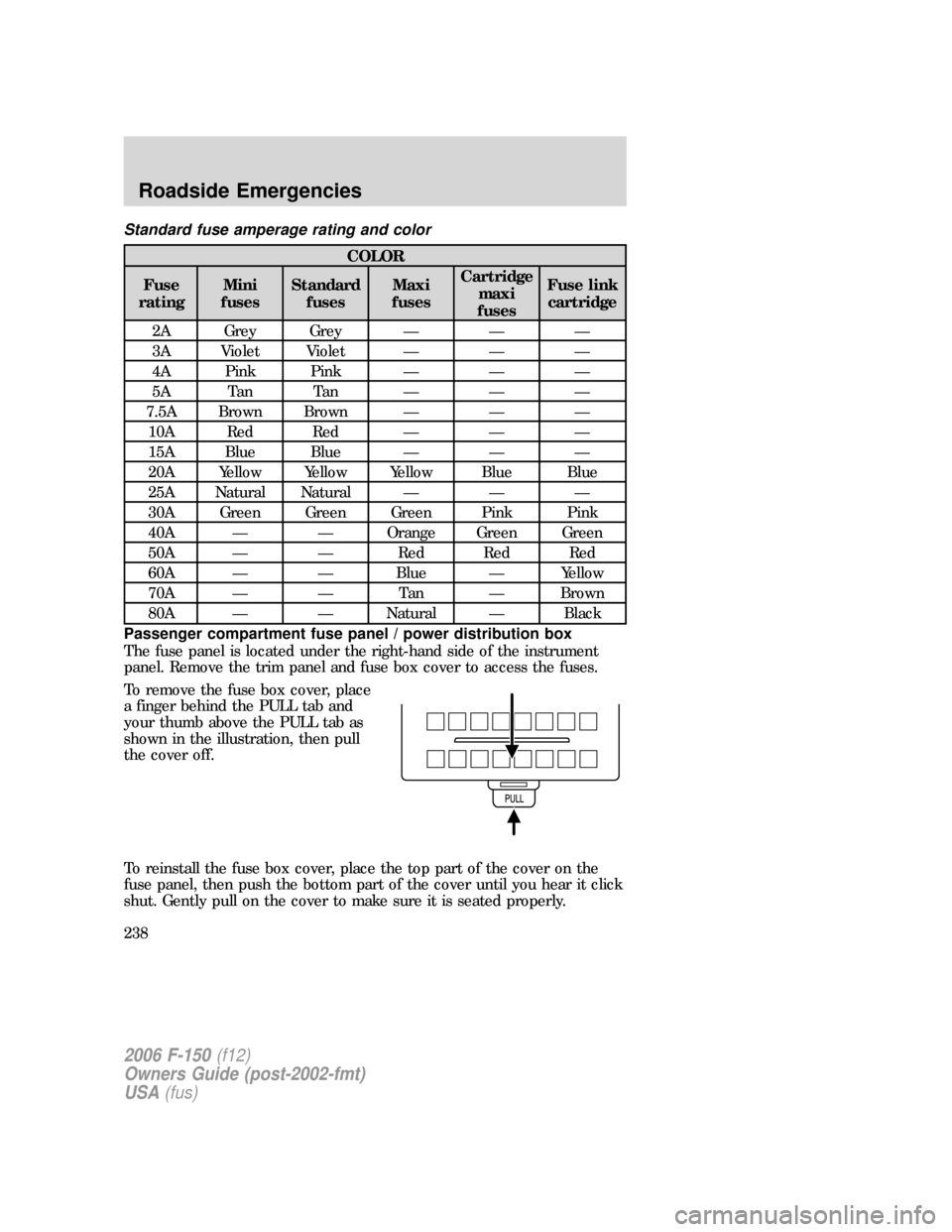

FORD F150 2006 11.G Owners Manual Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink �

Page 239 of 336

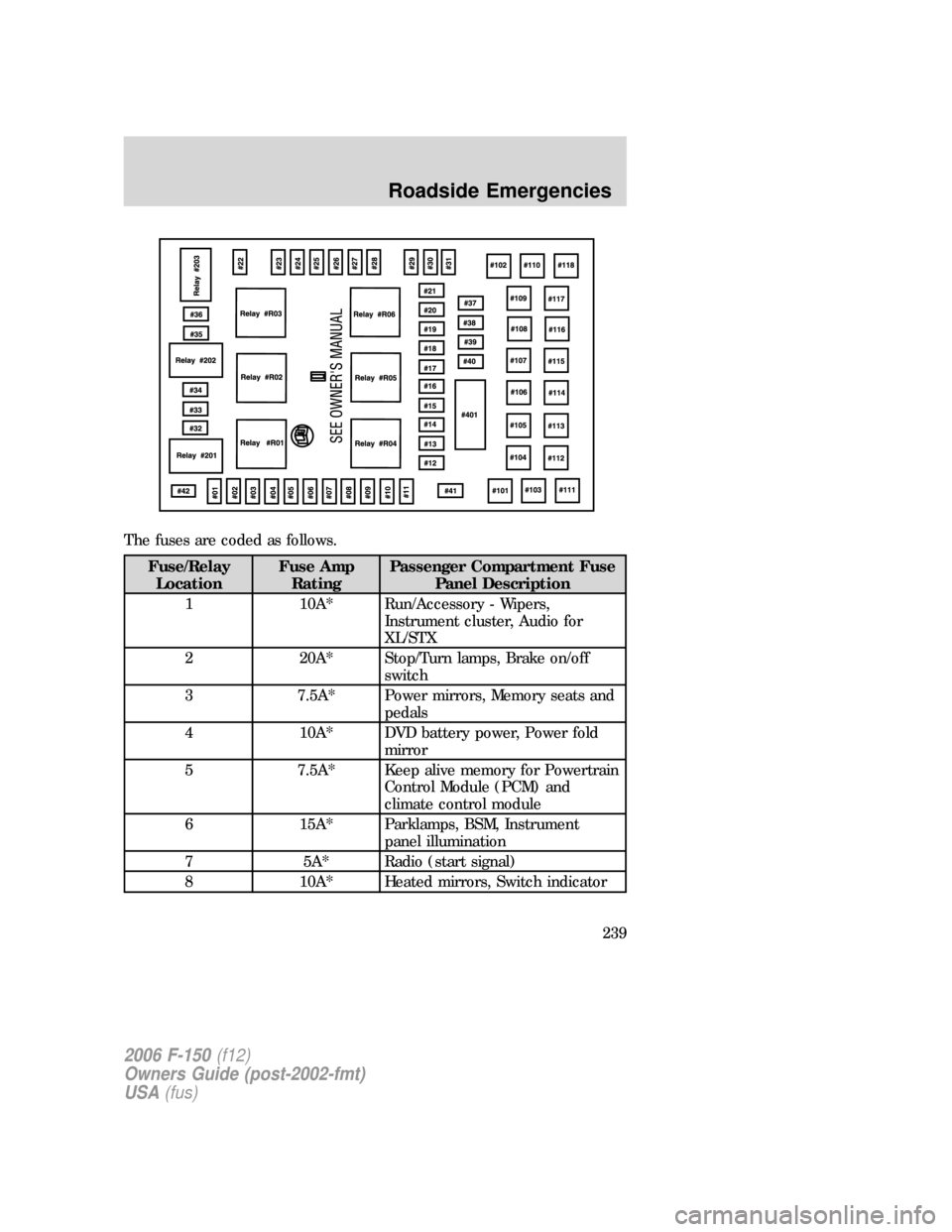

FORD F150 2006 11.G Owners Manual The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 10A* Run/Accessory - Wipers,
Instrument cluster, Audio for
XL/STX
2 20A* Stop/Turn lamp

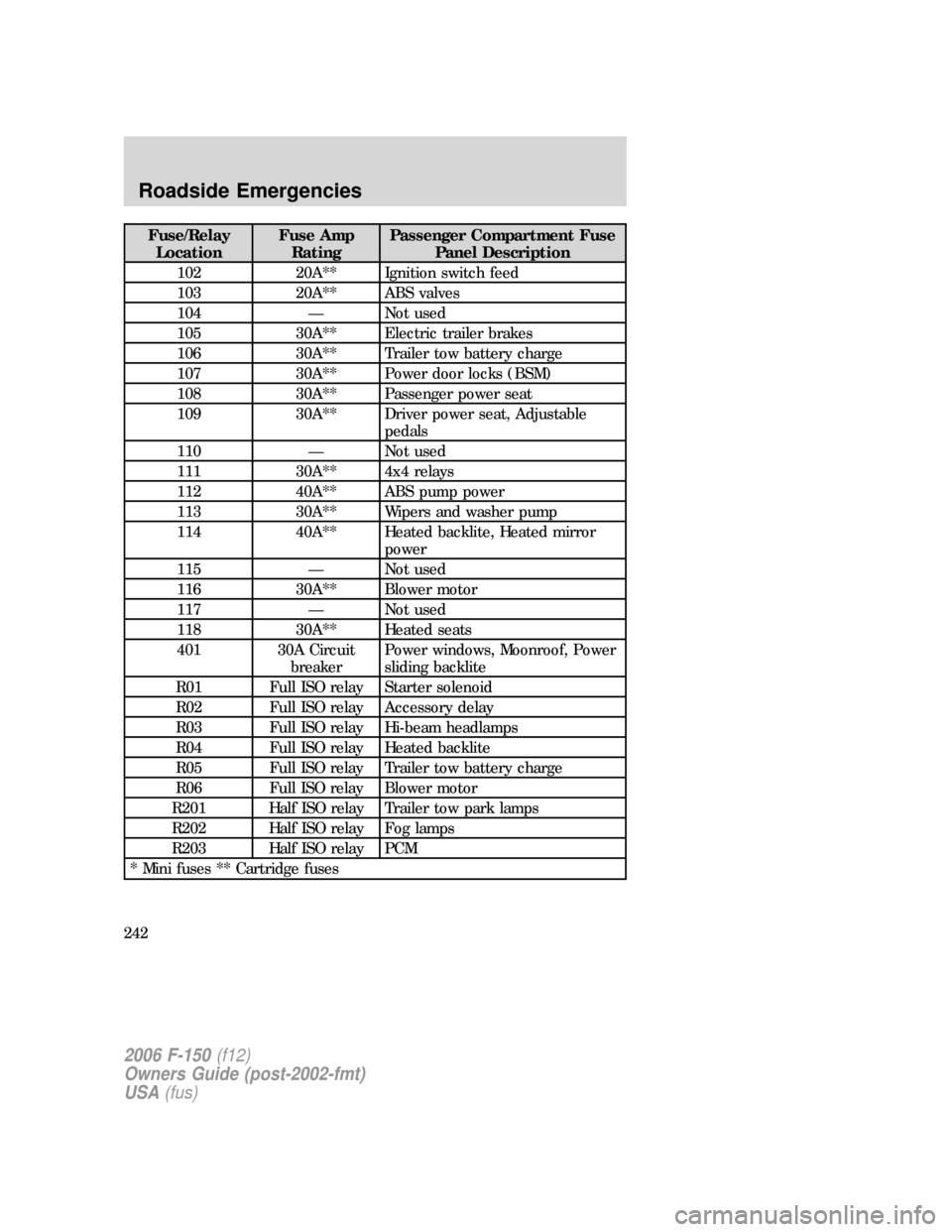

Page 242 of 336

FORD F150 2006 11.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
102 20A** Ignition switch feed
103 20A** ABS valves
104 — Not used
105 30A** Electric trailer brakes
106 30A** Trailer

Page 331 of 336

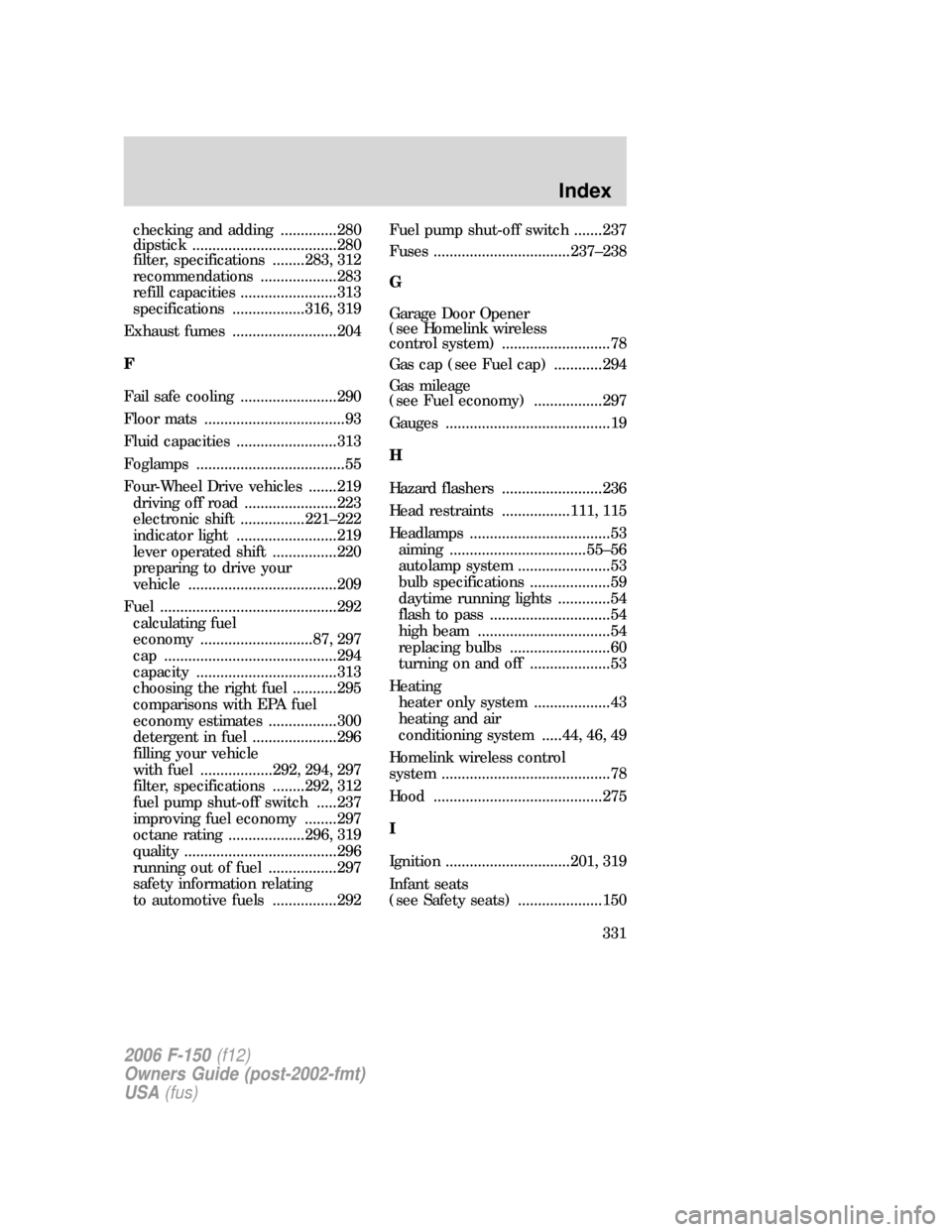

FORD F150 2006 11.G Owners Manual checking and adding ..............280
dipstick ....................................280
filter, specifications ........283, 312
recommendations ...................283
refill capacities ................
