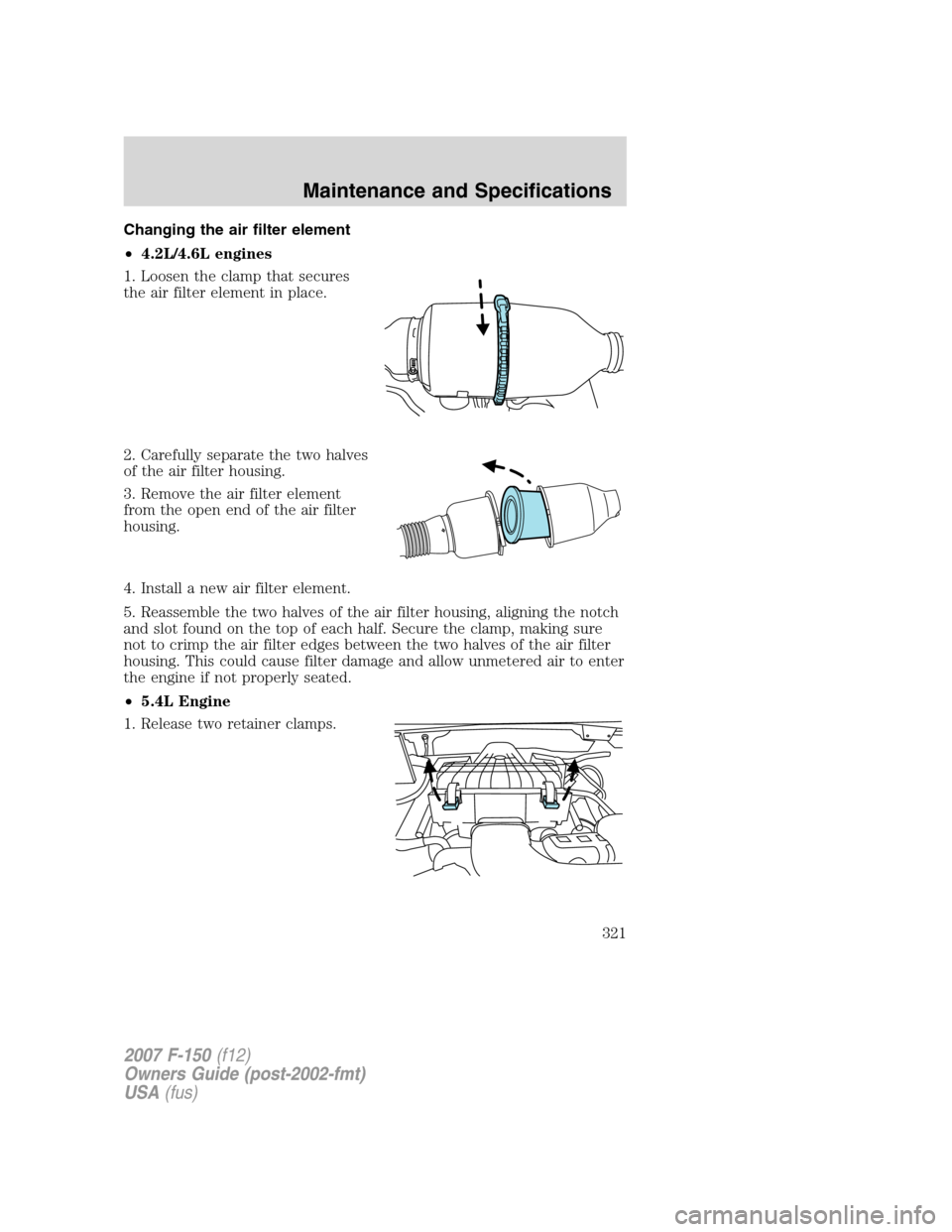

Changing the air filter element
•4.2L/4.6L engines
1. Loosen the clamp that secures
the air filter element in place.
2. Carefully separate the two halves
of the air filter housing.
3. Remove the air filter element
from the open end of the air filter
housing.
4. Install a new air filter element.
5. Reassemble the two halves of the air filter housing, aligning the notch
and slot found on the top of each half. Secure the clamp, making sure
not to crimp the air filter edges between the two halves of the air filter
housing. This could cause filter damage and allow unmetered air to enter
the engine if not properly seated.
•5.4L Engine
1. Release two retainer clamps.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
321

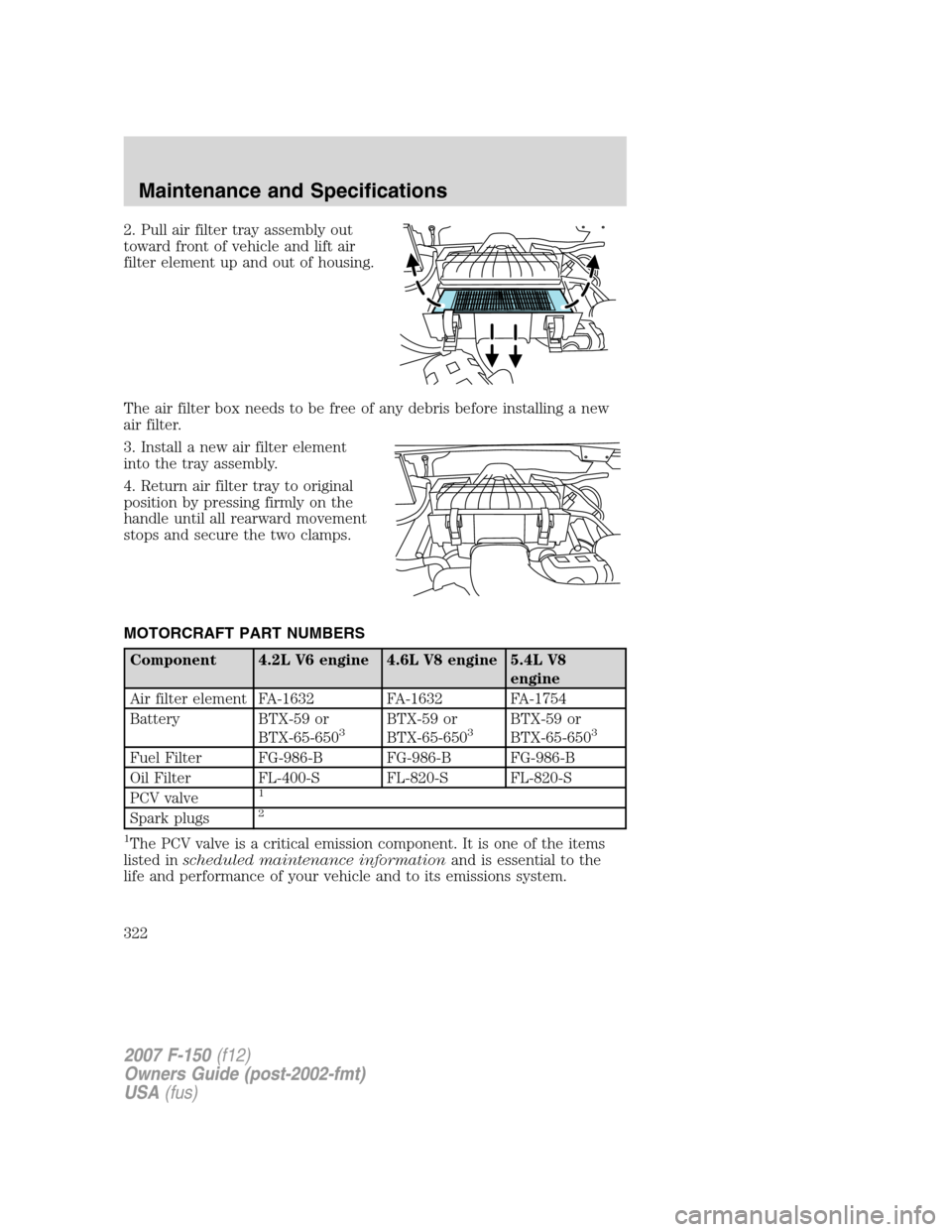

2. Pull air filter tray assembly out
toward front of vehicle and lift air
filter element up and out of housing.
The air filter box needs to be free of any debris before installing a new
air filter.
3. Install a new air filter element
into the tray assembly.
4. Return air filter tray to original
position by pressing firmly on the
handle until all rearward movement
stops and secure the two clamps.
MOTORCRAFT PART NUMBERS
Component 4.2L V6 engine 4.6L V8 engine 5.4L V8
engine
Air filter element FA-1632 FA-1632 FA-1754
Battery BTX-59 or
BTX-65-650
3BTX-59 or
BTX-65-6503BTX-59 or
BTX-65-6503
Fuel Filter FG-986-B FG-986-B FG-986-B
Oil Filter FL-400-S FL-820-S FL-820-S
PCV valve
1
Spark plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
322

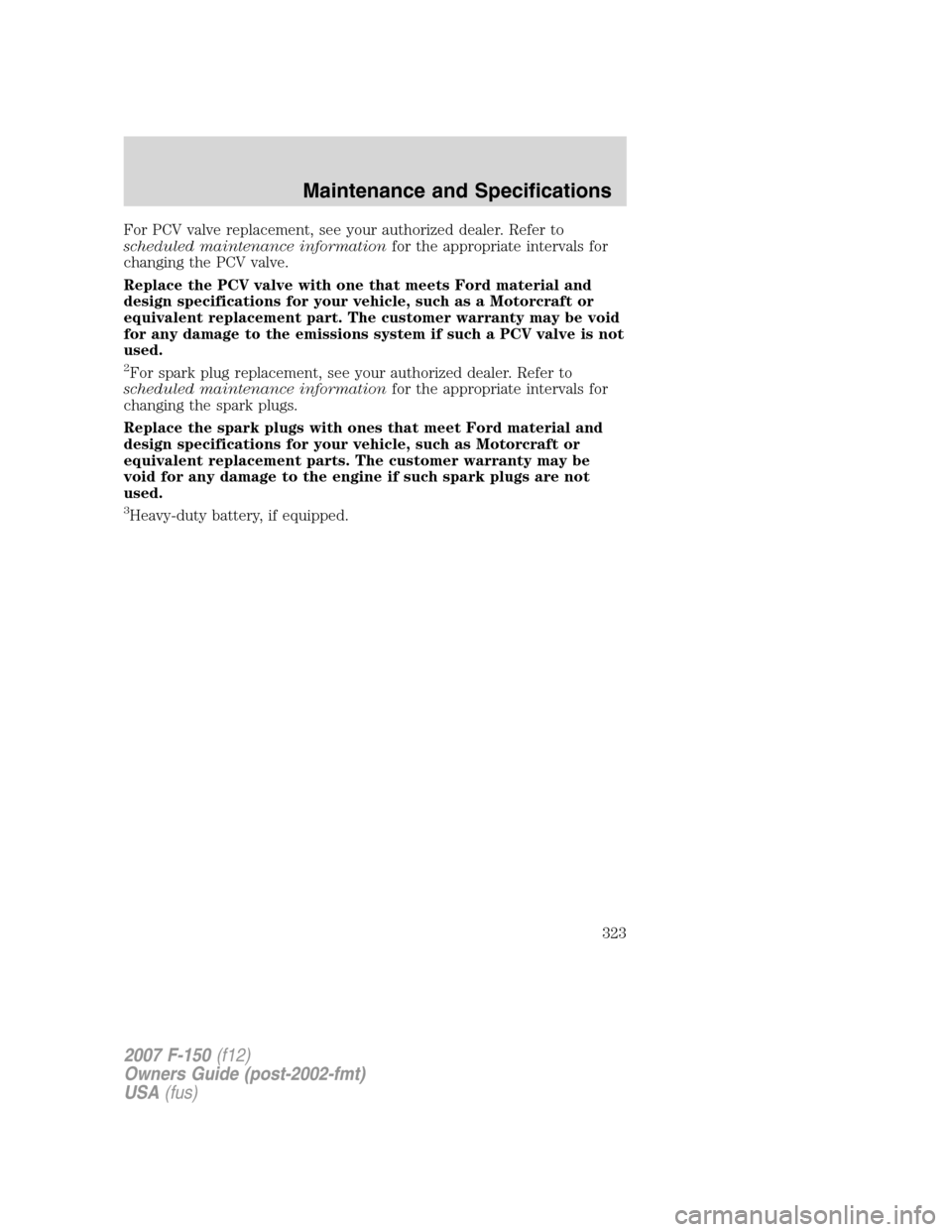

For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
3Heavy-duty battery, if equipped.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
323

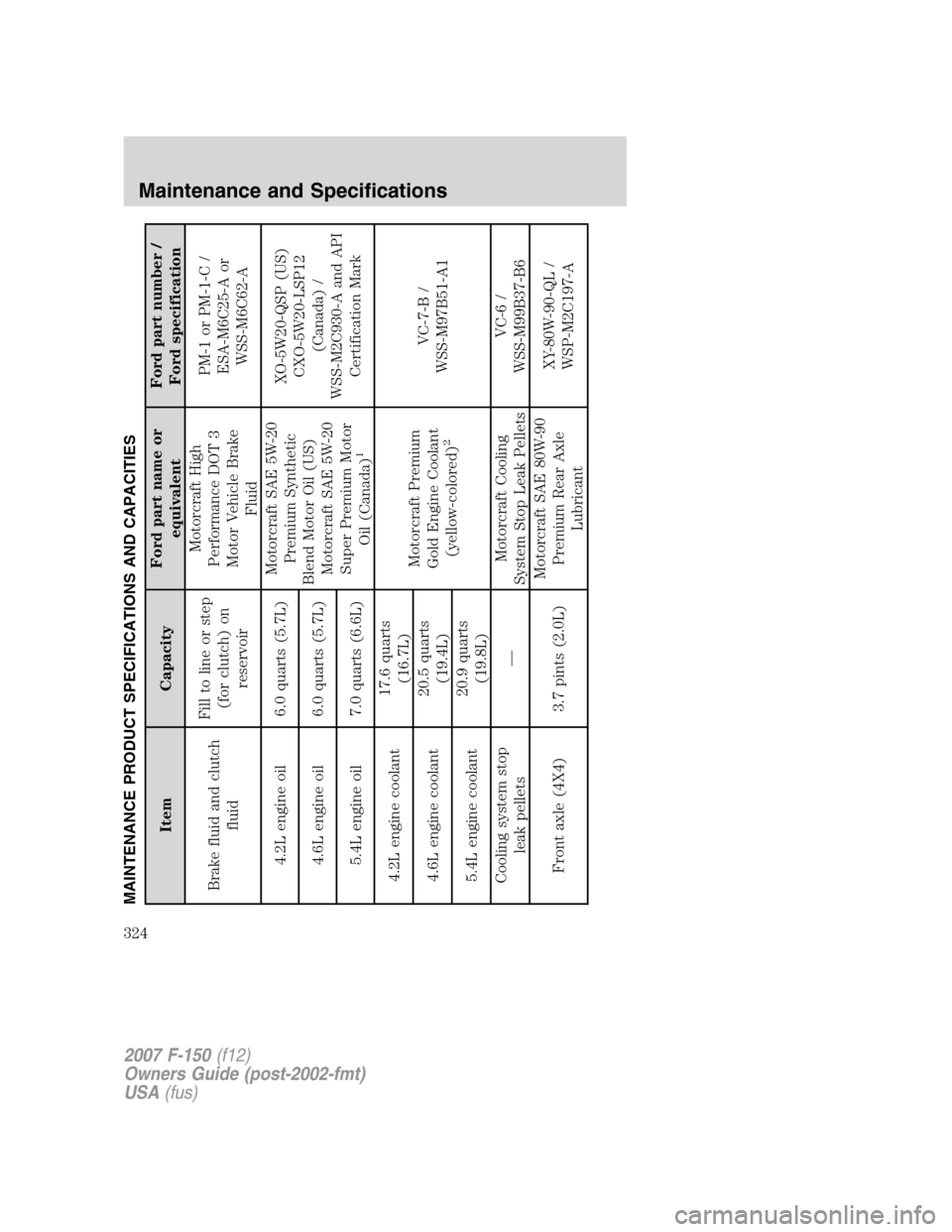

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluid and clutch
fluidFill to line or step
(for clutch) on
reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1 or PM-1-C /
ESA-M6C25-A or
WSS-M6C62-A
4.2L engine oil 6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
1
XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark 4.6L engine oil 6.0 quarts (5.7L)
5.4L engine oil 7.0 quarts (6.6L)
4.2L engine coolant17.6 quarts
(16.7L)
Motorcraft Premium
Gold Engine Coolant
(yellow-colored)
2
VC-7-B /
WSS-M97B51-A1 4.6L engine coolant20.5 quarts
(19.4L)
5.4L engine coolant20.9 quarts
(19.8L)
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Front axle (4X4) 3.7 pints (2.0L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W-90-QL /
WSP-M2C197-A
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
324

Item CapacityFord part name or
equivalentFord part number /
Ford specification

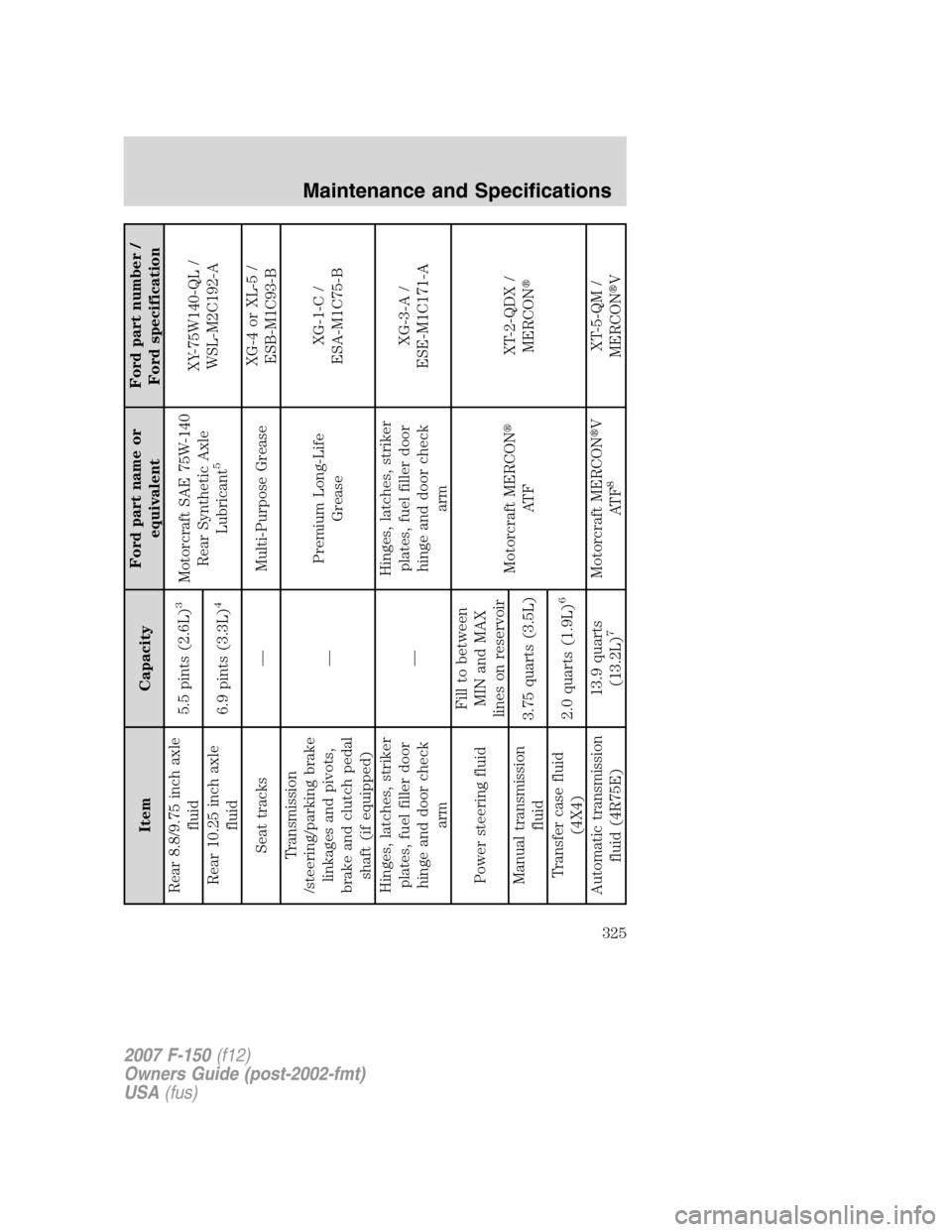

Rear 8.8/9.75 inch axle
fluid5.5 pints (2.6L)
3
Motorcraft SAE 75W-140
Rear Synthetic Axle
Lubricant
5
XY-75W140-QL /
WSL-M2C192-A
Rear 10.25 inch axle
fluid6.9 pints (3.3L)
4
Seat tracks — Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Transmission
/steering/parking brake
linkages and pivots,
brake and clutch pedal
shaft (if equipped)—Premium Long-Life
GreaseXG-1-C /
ESA-M1C75-B
Hinges, latches, striker
plates, fuel filler door
hinge and door check
arm—Hinges, latches, striker
plates, fuel filler door
hinge and door check
armXG-3-A /
ESE-M1C171-A
Power steering fluidFill to between
MIN and MAX
lines on reservoir
Motorcraft MERCON
AT FXT-2-QDX /
MERCON Manual transmission
fluid3.75 quarts (3.5L)
Transfer case fluid
(4X4)2.0 quarts (1.9L)
6
Automatic transmission
fluid (4R75E)13.9 quarts
(13.2L)
7
Motorcraft MERCONV
AT F
8
XT-5-QM /
MERCONV
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
325

Item CapacityFord part name or
equivalentFord part number /
Ford specification

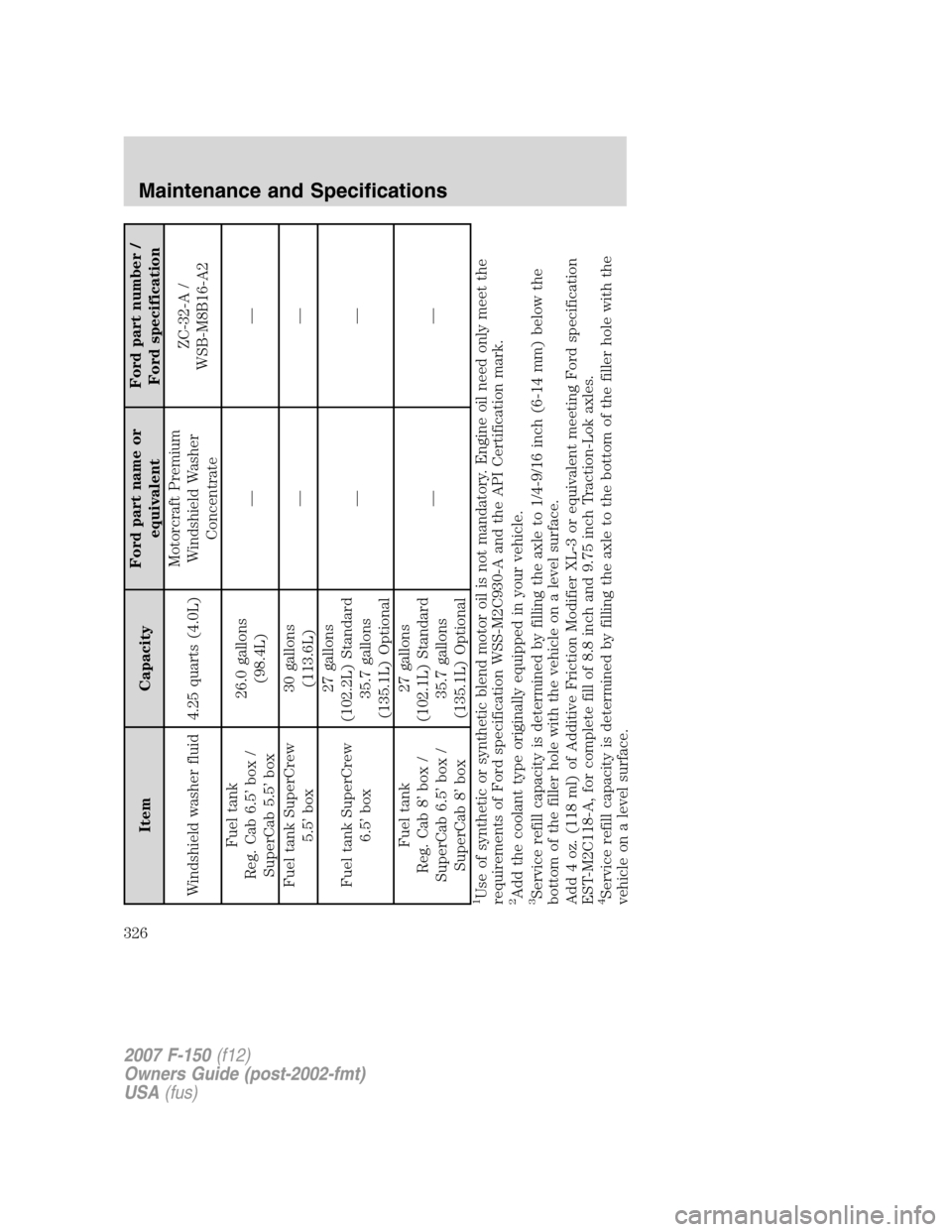

Windshield washer fluid 4.25 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank
Reg. Cab 6.5’ box /
SuperCab 5.5’ box26.0 gallons
(98.4L)——
Fuel tank SuperCrew
5.5’ box30 gallons
(113.6L)——
Fuel tank SuperCrew
6.5’ box27 gallons
(102.2L) Standard
35.7 gallons
(135.1L) Optional——
Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’ box /
SuperCab 8’ box27 gallons
(102.1L) Standard
35.7 gallons
(135.1L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch and 9.75 inch Traction-Lok axles.4Service refill capacity is determined by filling the axle to the bottom of the filler hole with the
vehicle on a level surface.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
326

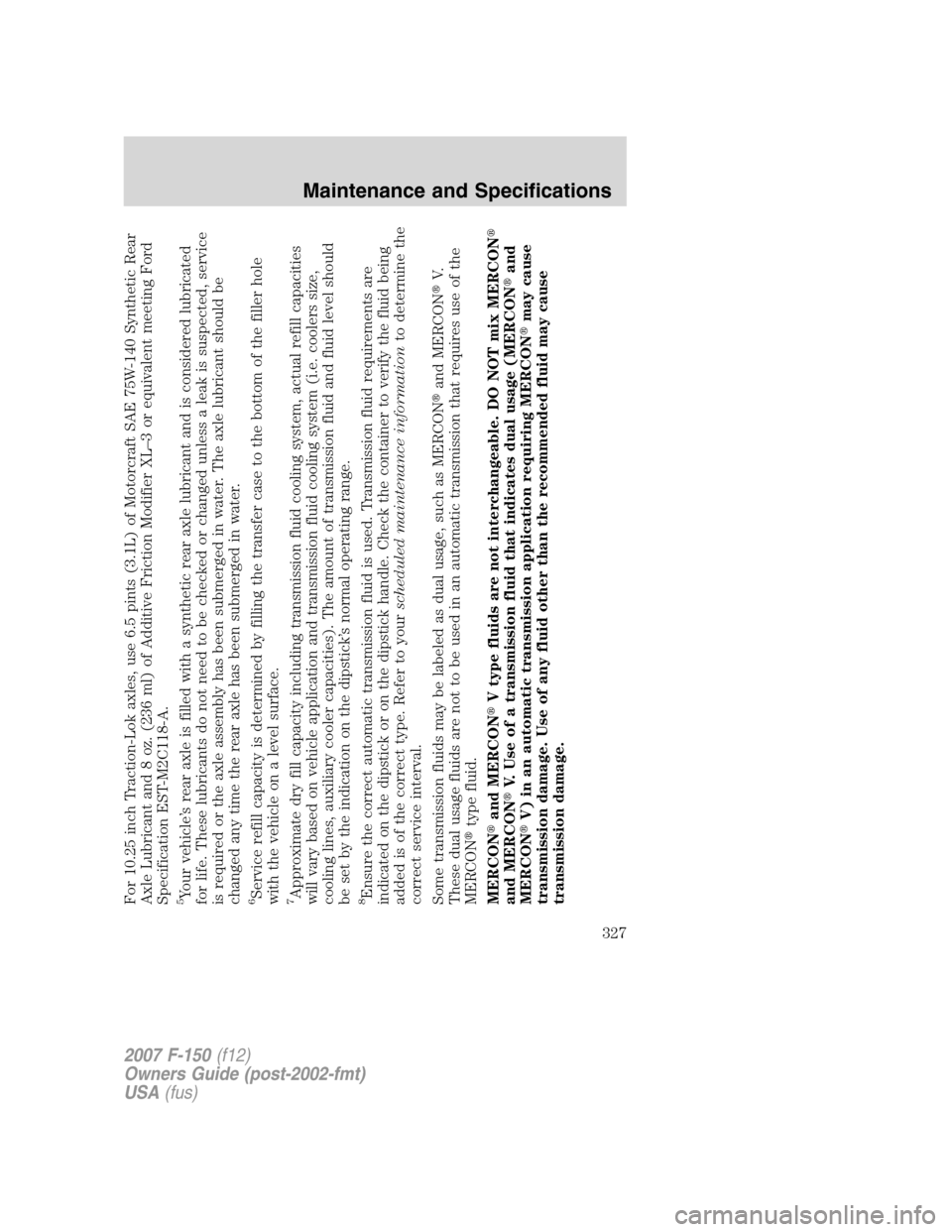

For 10.25 inch Traction-Lok axles, use 6.5 pints (3.1L) of Motorcraft SAE 75W-140 Synthetic Rear
Axle Lubricant and 8 oz. (236 ml) of Additive Friction Modifier XL–3 or equivalent meeting Ford
Specification EST-M2C118-A.5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.6Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.7Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.8Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick or on the dipstick handle. Check the container to verify the fluid being
added is of the correct type. Refer to yourscheduled maintenance informationto determine the
correct service interval.
Some transmission fluids may be labeled as dual usage, such as MERCONand MERCONV.
These dual usage fluids are not to be used in an automatic transmission that requires use of the
MERCONtype fluid.
MERCONand MERCONV type fluids are not interchangeable. DO NOT mix MERCON
and MERCONV. Use of a transmission fluid that indicates dual usage (MERCONand
MERCONV) in an automatic transmission application requiring MERCONmay cause
transmission damage. Use of any fluid other than the recommended fluid may cause
transmission damage.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
327

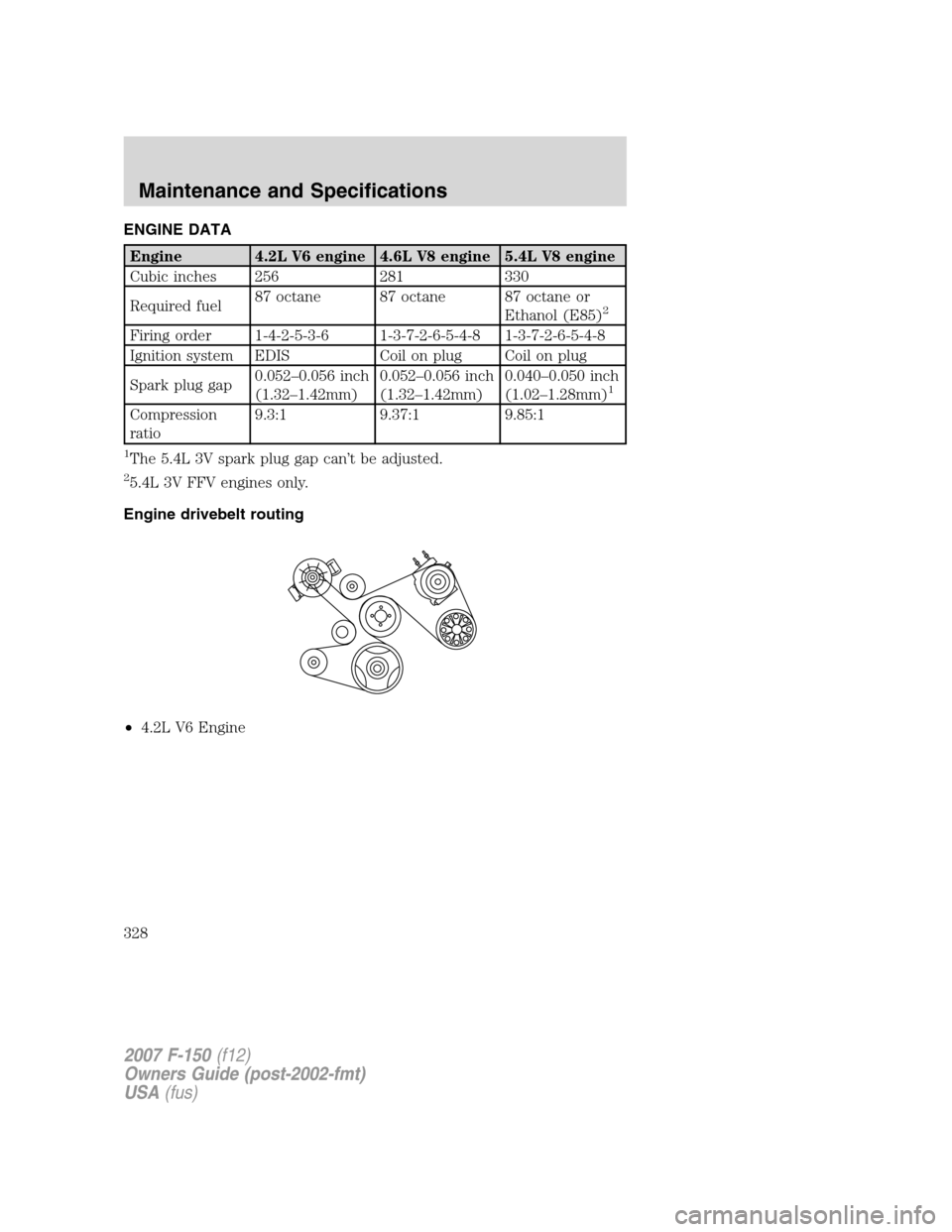

ENGINE DATA
Engine 4.2L V6 engine 4.6L V8 engine 5.4L V8 engine
Cubic inches 256 281 330
Required fuel87 octane 87 octane 87 octane or
Ethanol (E85)
2
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on plug Coil on plug
Spark plug gap0.052–0.056 inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)0.040–0.050 inch
(1.02–1.28mm)
1
Compression
ratio9.3:1 9.37:1 9.85:1
1The 5.4L 3V spark plug gap can’t be adjusted.
25.4L 3V FFV engines only.
Engine drivebelt routing
•4.2L V6 Engine
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
328

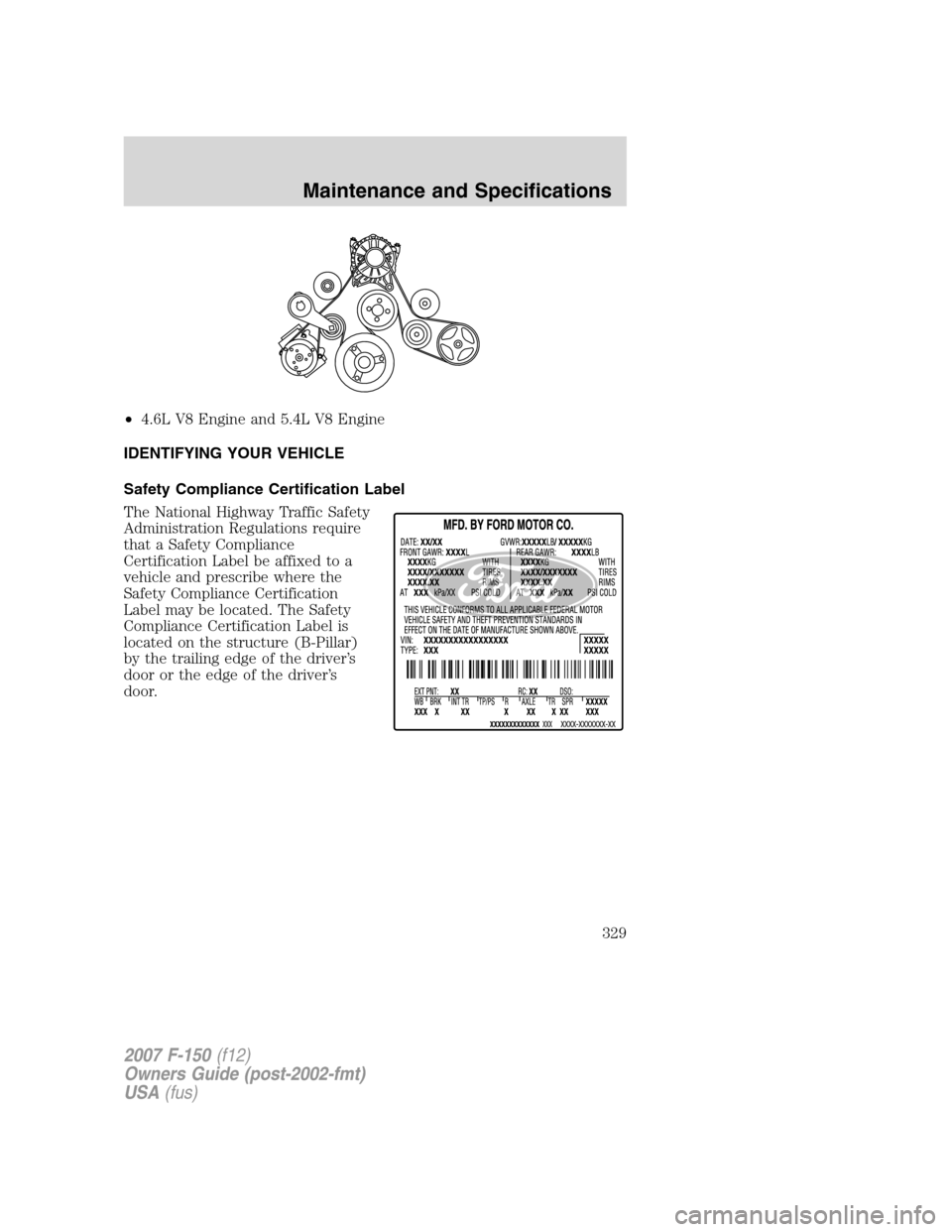

•4.6L V8 Engine and 5.4L V8 Engine
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
2007 F-150(f12)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
329

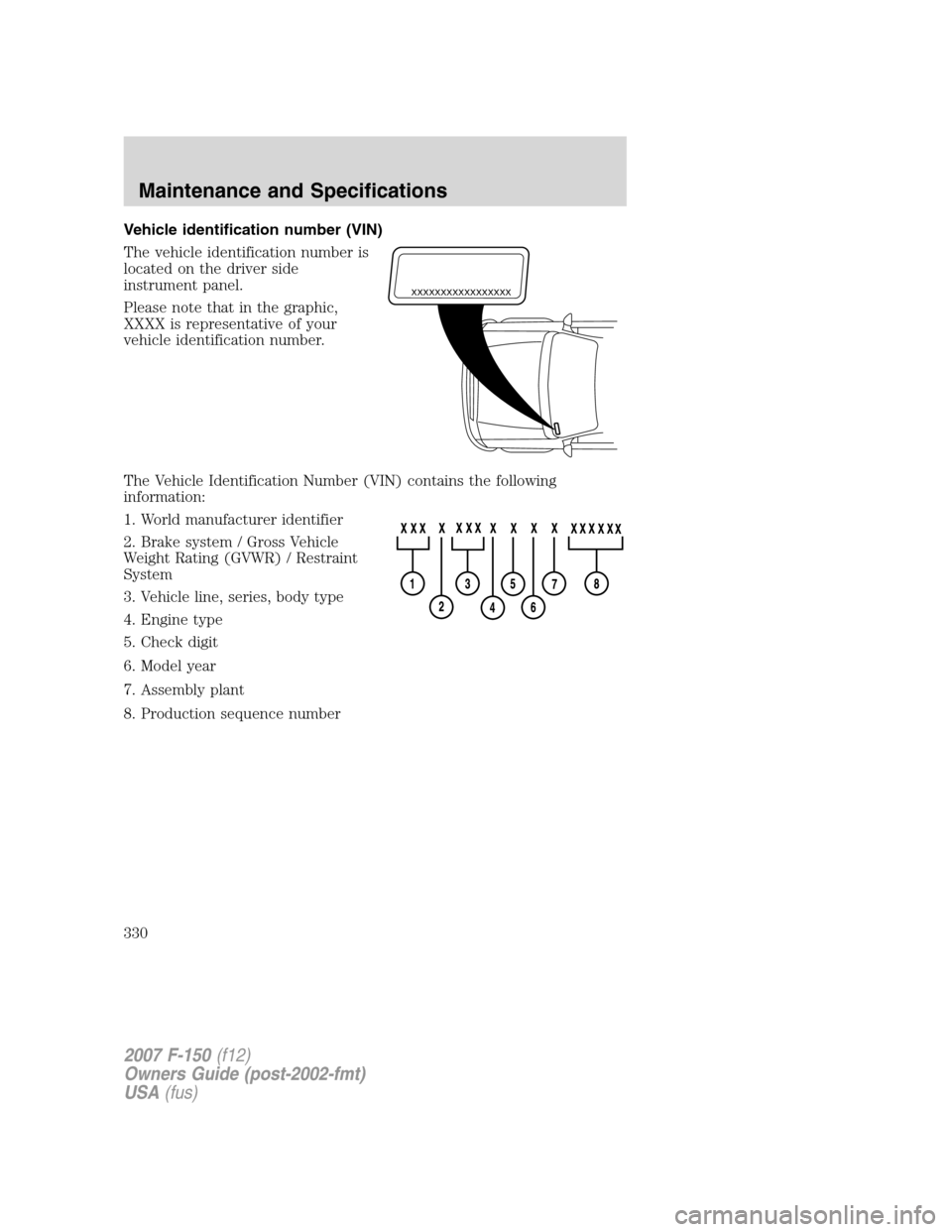

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
