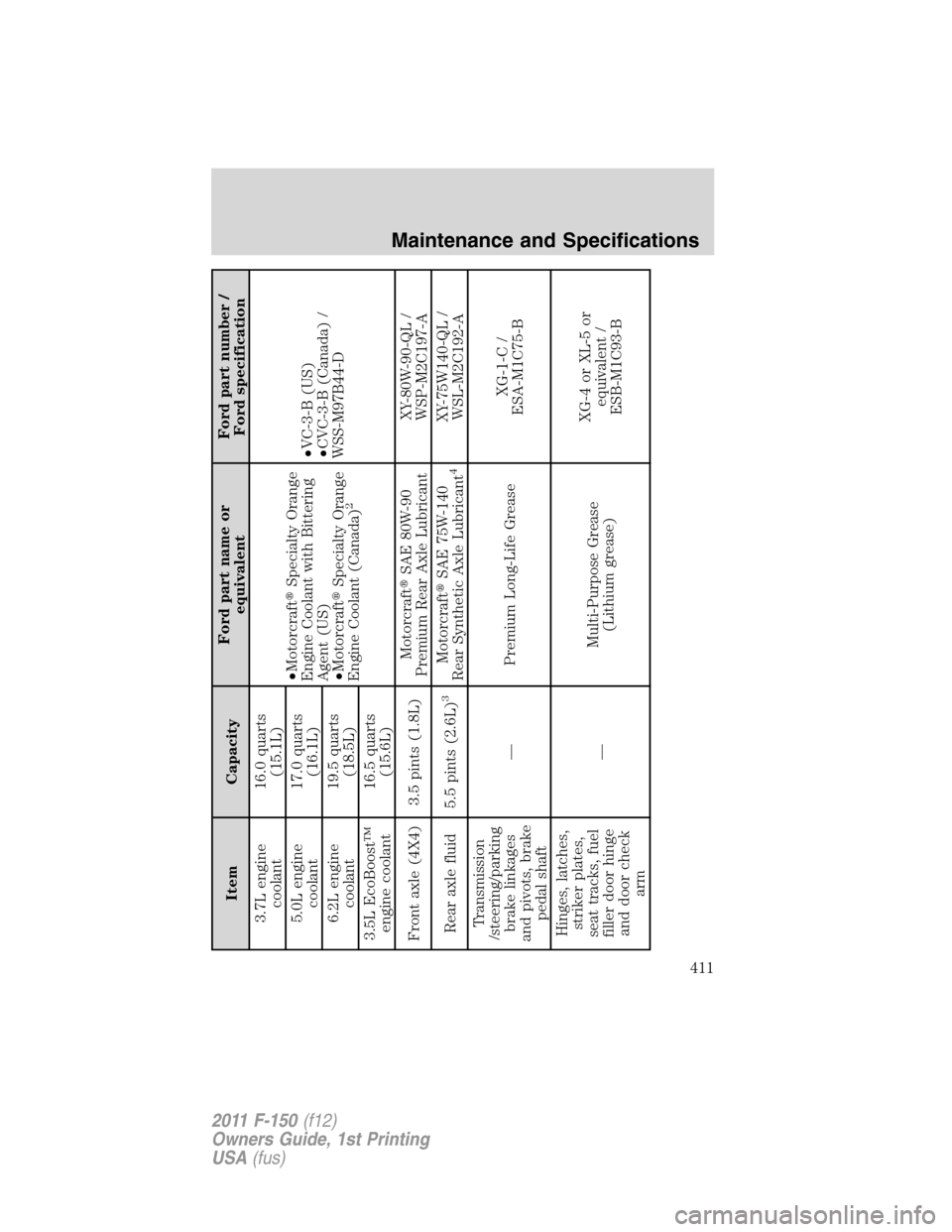

Item CapacityFord part name or
equivalentFord part number /
Ford specification
3.7L engine
coolant16.0 quarts
(15.1L)
•MotorcraftSpecialty Orange
Engine Coolant with Bittering
Agent (US)
•MotorcraftSpecialty Orange
Engine Coolant (Canada)
2
•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D 5.0L engine
coolant17.0 quarts
(16.1L)
6.2L engine
coolant19.5 quarts
(18.5L)
3.5L EcoBoost™
engine coolant16.5 quarts
(15.6L)
Front axle (4X4) 3.5 pints (1.8L)MotorcraftSAE 80W-90
Premium Rear Axle LubricantXY-80W-90-QL /
WSP-M2C197-A
Rear axle fluid 5.5 pints (2.6L)
3
MotorcraftSAE 75W-140
Rear Synthetic Axle Lubricant
4
XY-75W140-QL /
WSL-M2C192-A
Transmission
/steering/parking
brake linkages
and pivots, brake
pedal shaft— Premium Long-Life GreaseXG-1-C /
ESA-M1C75-B
Hinges, latches,
striker plates,
seat tracks, fuel
filler door hinge
and door check
arm—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Maintenance and Specifications
411
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

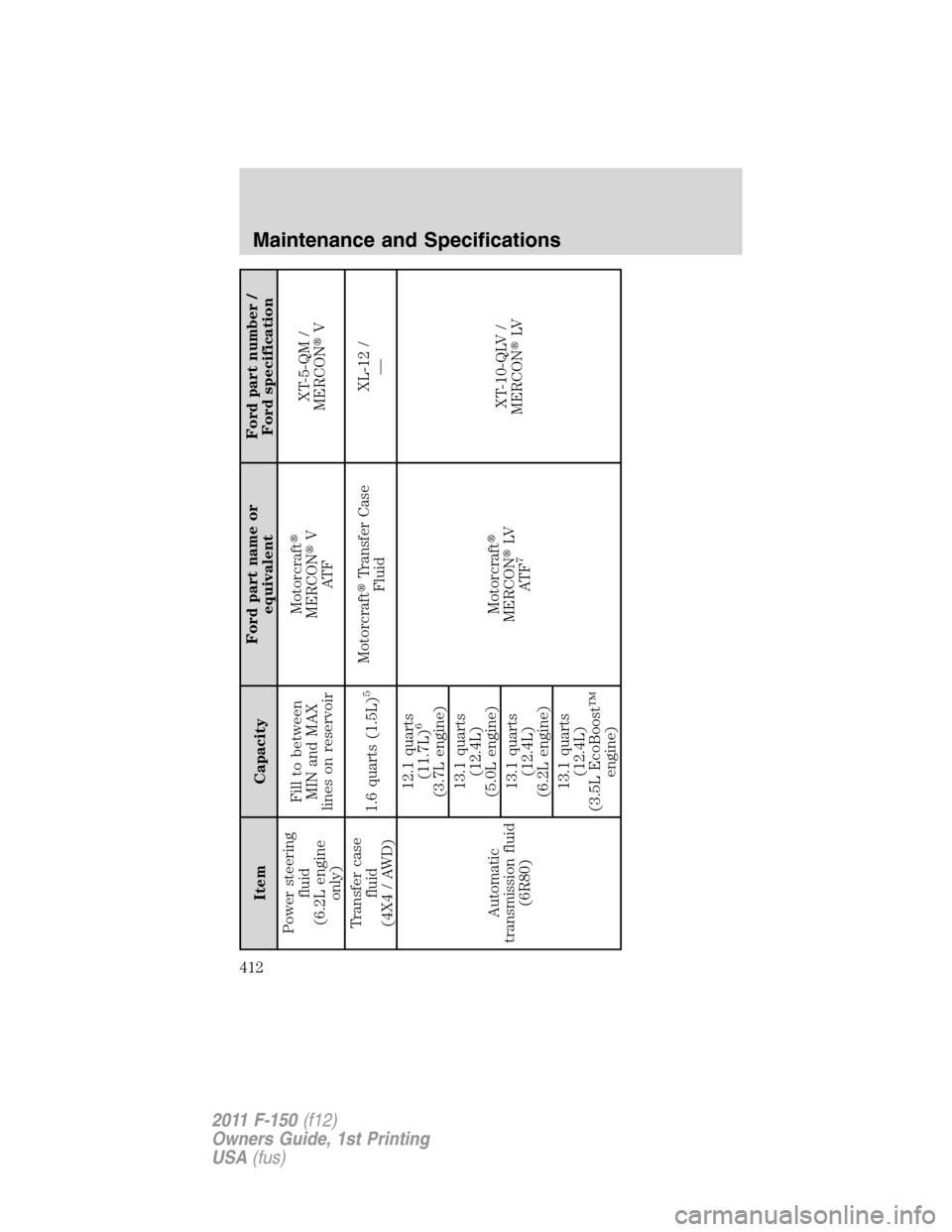

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Power steering
fluid
(6.2L engine
only)Fill to between
MIN and MAX
lines on reservoirMotorcraft
MERCONV
AT FXT-5-QM /
MERCONV
Transfer case
fluid
(4X4 / AWD)1.6 quarts (1.5L)
5
MotorcraftTransfer Case
FluidXL-12 /
—
Automatic
transmission fluid
(6R80)12.1 quarts
(11.7L)
6
(3.7L engine)
Motorcraft
MERCONLV
AT F
7
XT-10-QLV /
MERCONLV 13.1 quarts
(12.4L)
(5.0L engine)
13.1 quarts
(12.4L)
(6.2L engine)
13.1 quarts
(12.4L)
(3.5L EcoBoost™
engine)
Maintenance and Specifications
412
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

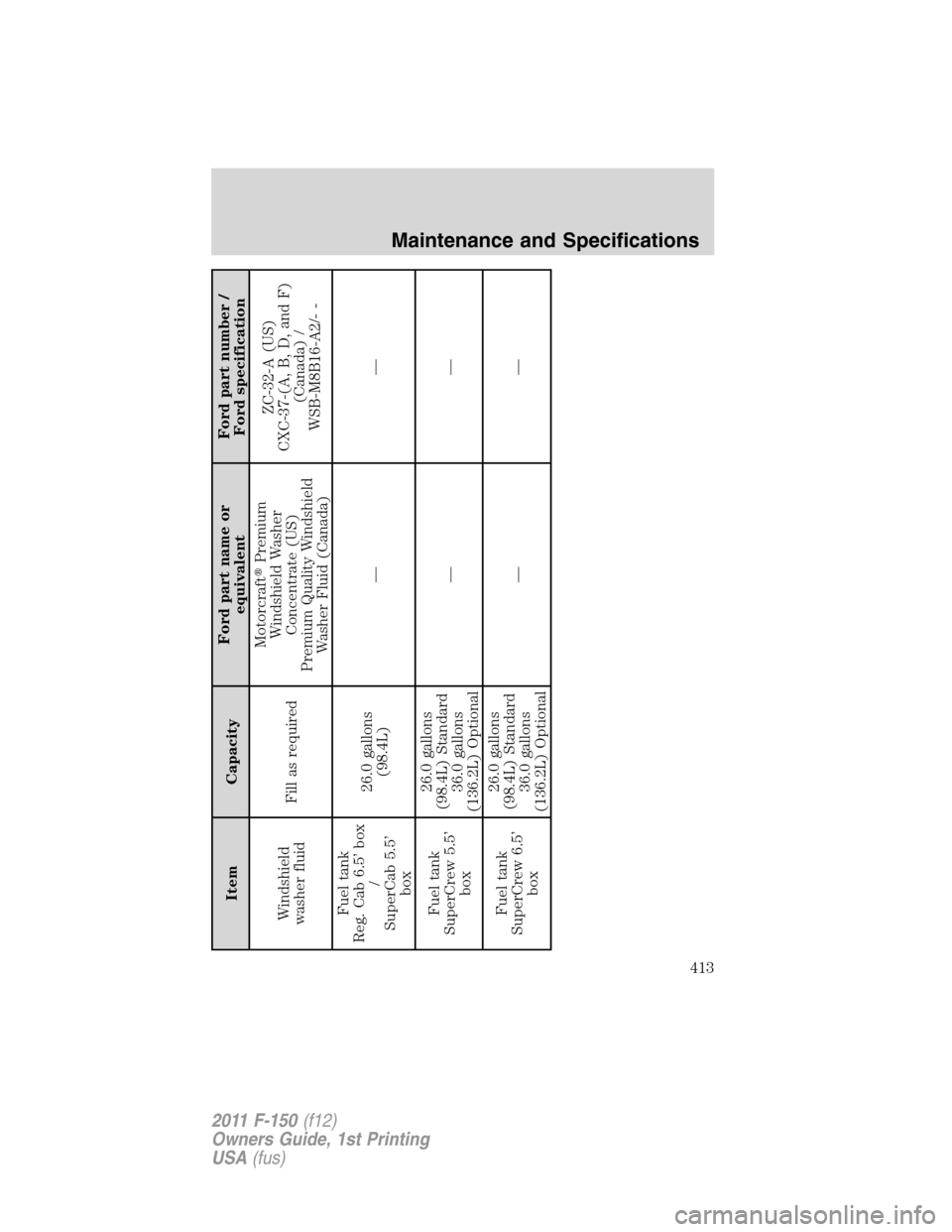

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Windshield
washer fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality Windshield
Washer Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank
Reg. Cab 6.5’ box
/
SuperCab 5.5’
box26.0 gallons
(98.4L)——
Fuel tank
SuperCrew 5.5’
box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Fuel tank
SuperCrew 6.5’
box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
Maintenance and Specifications
413
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
Reg. Cab 8’ box /
SuperCab 6.5’
box /
SuperCab 8’ box26.0 gallons
(98.4L) Standard
36.0 gallons
(136.2L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle. Check the coolant reservoir bottle
labeling for the correct fluid type to use.3Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 8.8 inch and 9.75 inch Traction-Lok axles.4Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.5Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.6Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.7Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
Maintenance and Specifications
414
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

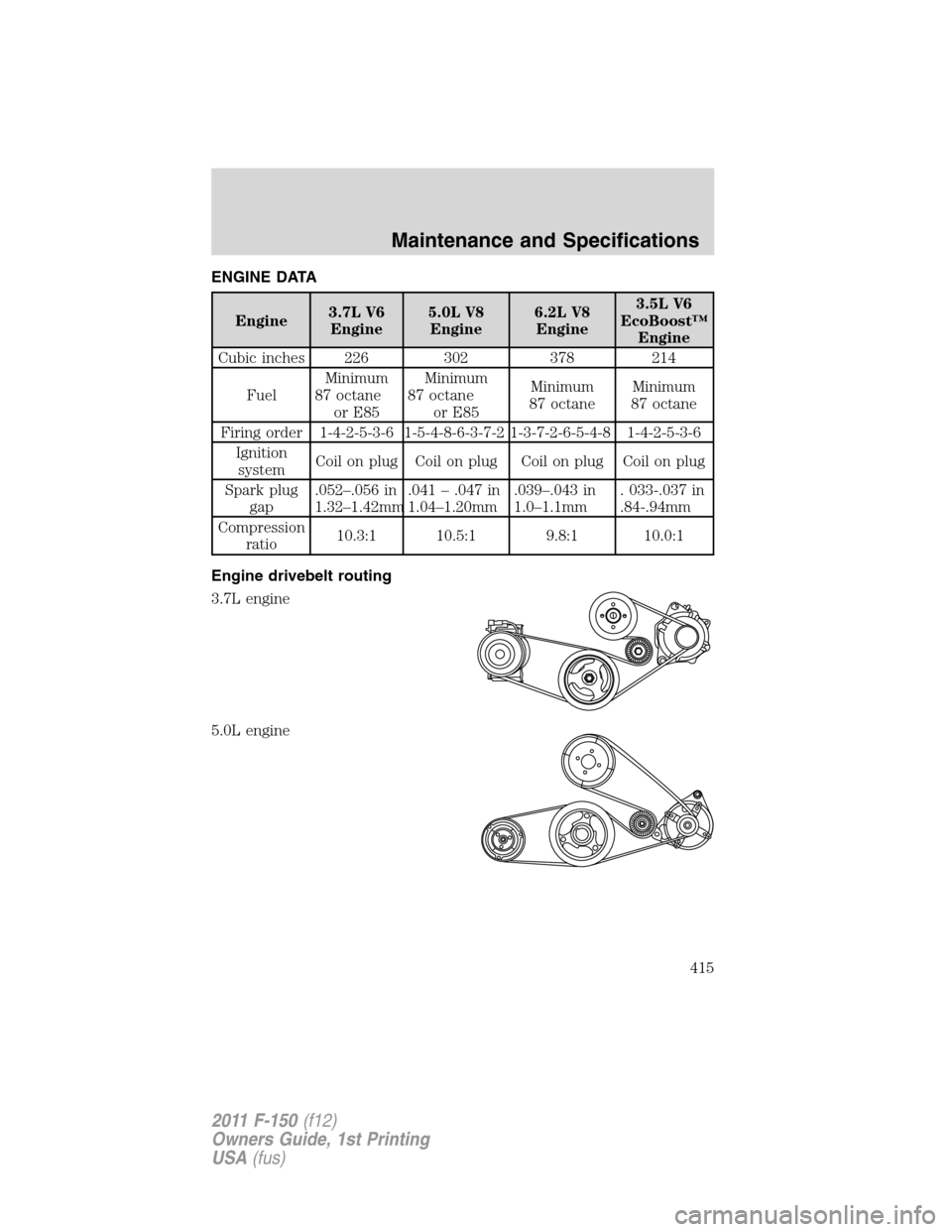

ENGINE DATA
Engine3.7L V6
Engine5.0L V8
Engine6.2L V8
Engine3.5L V6
EcoBoost™
Engine
Cubic inches 226 302 378 214
FuelMinimum
87 octane
or E85Minimum
87 octane
or E85Minimum
87 octaneMinimum
87 octane
Firing order 1-4-2-5-3-6 1-5-4-8-6-3-7-2 1-3-7-2-6-5-4-8 1-4-2-5-3-6
Ignition
systemCoilonplug Coilonplug Coilonplug Coilonplug
Spark plug
gap.052–.056 in
1.32–1.42mm.041 – .047 in
1.04–1.20mm.039–.043 in
1.0–1.1mm. 033-.037 in
.84-.94mm
Compression
ratio10.3:1 10.5:1 9.8:1 10.0:1
Engine drivebelt routing
3.7L engine
5.0L engine
Maintenance and Specifications
415
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

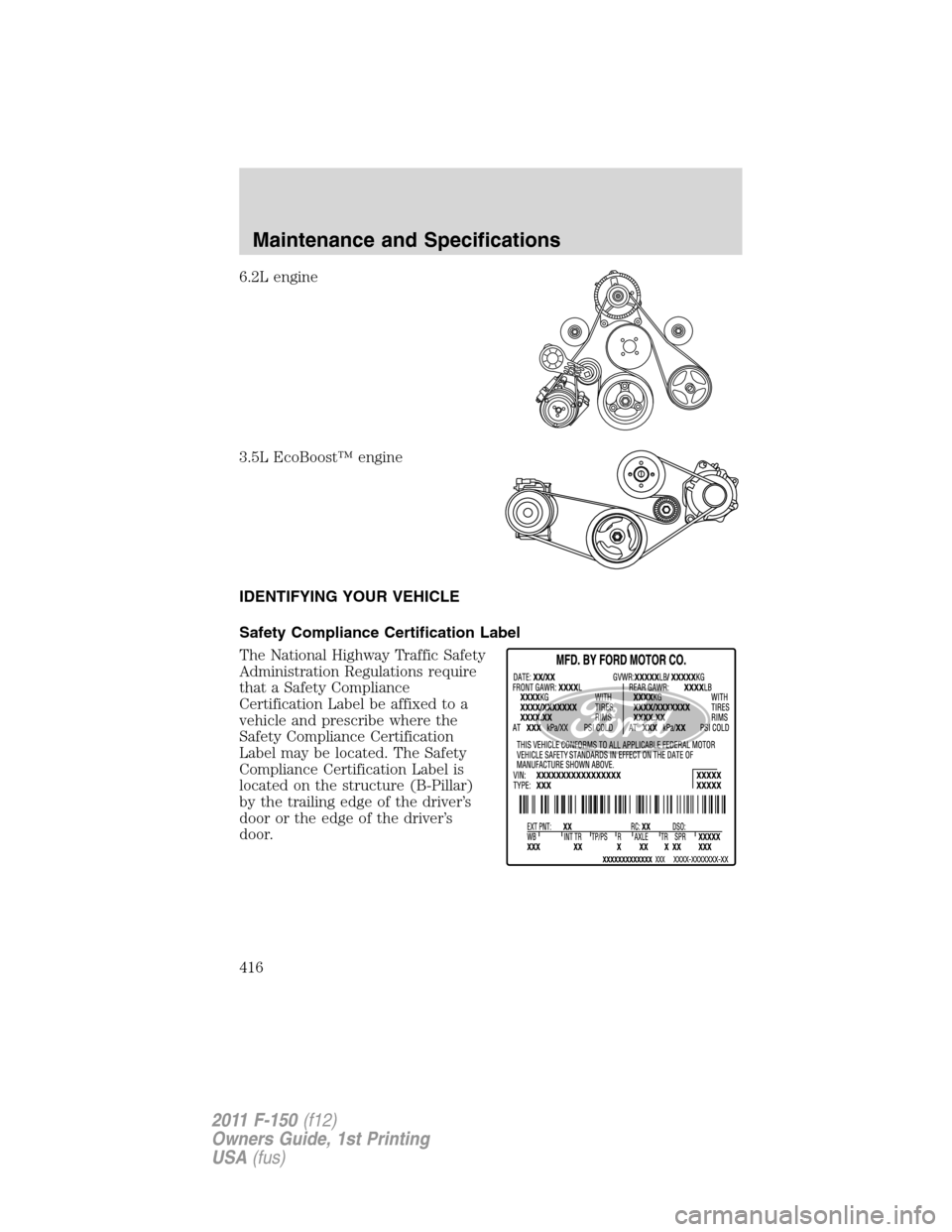

6.2L engine
3.5L EcoBoost™ engine
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
416
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

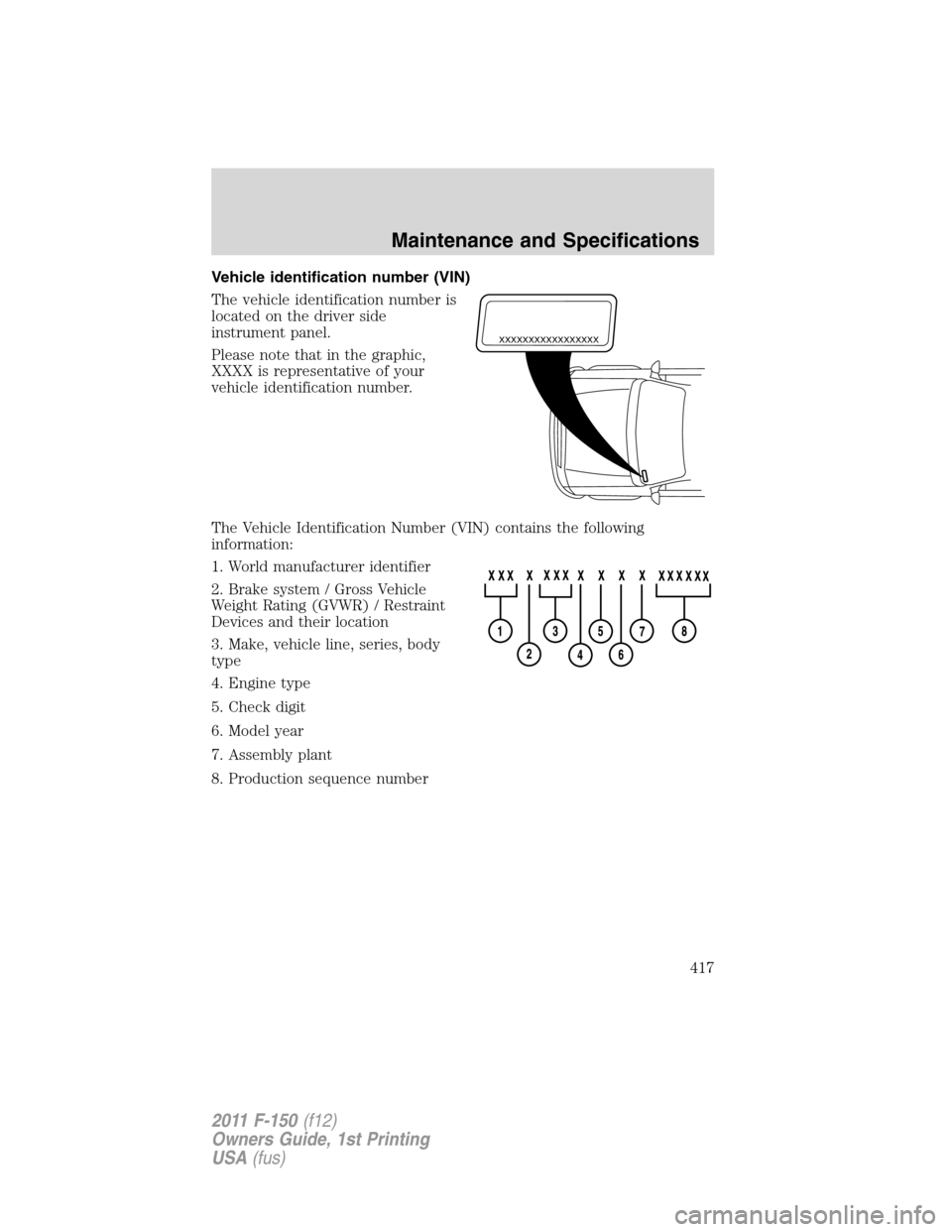

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
417
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

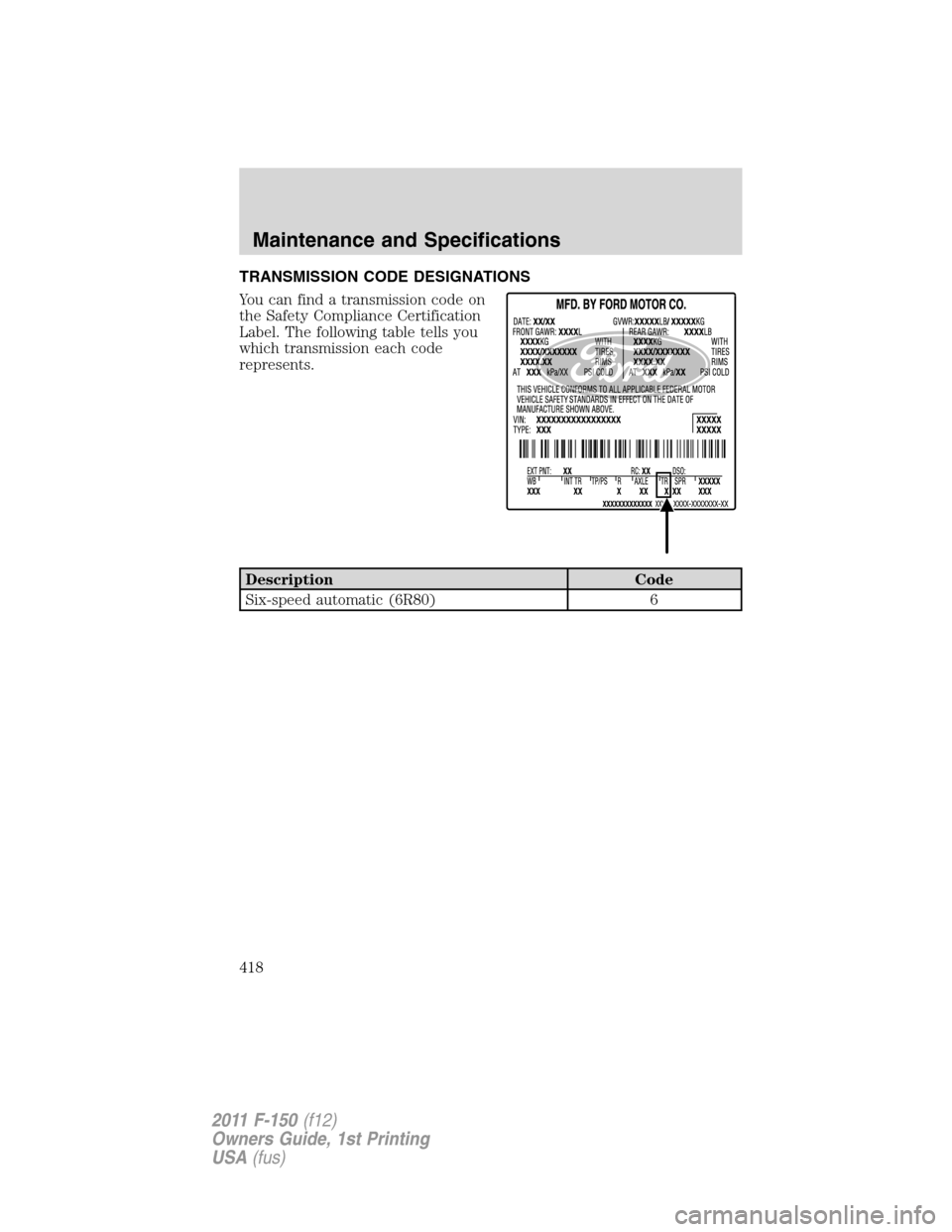

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Six-speed automatic (6R80) 6
Maintenance and Specifications
418
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com (U.S. only).
Exterior style
•Bug shields•Running boards
•Chrome exhaust tips•Step bars
•Deflectors•Wheels
•Front grilles•Splash guards
•Custom graphics*
Interior style
•Ambient lighting•Power sliding rear window
•Floor mats•Leather-trimmed interior seating*
•Electrochromatic compass/temperature interior mirrors
Accessories
419
2011 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

Lifestyle
•Ash cup / smoker’s package•Racks and carriers*
•Bedliners and bedmats•Truck bed camping tent*
•Bed side step•Sportliner cargo liner*
•Towing mirrors•Rear seat entertainment*
•Portable navigation*•Trailer brake controller
•Bed extender•Hitch ball and towbars
•Tonneau covers*
•Interior cargo organization and management
•Truck bed cargo organization and management
•Trailer hitches, wiring harnesses and accessories
Peace of mind
•Keyless entry keypad•Remote start
•Vehicle security systems•Wheel locks
•Bed step*•Windshield wiper shaker*
•Protective seat covers*•Back up alarm*
•Cable lock*•Tool/cargo boxes*
•Bed hooks*
•Locking gas plug for capless fuel system
•Vehicle tracking and recovery*
•Bumper and hitch mounted parking sensors*
•Bed mounted oversize spare tire carrier*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
Accessories
420
2011 F-150(f12)
Owners Guide, 1st Printing
