FORD F250 SUPER DUTY 2005 Owner's Manual

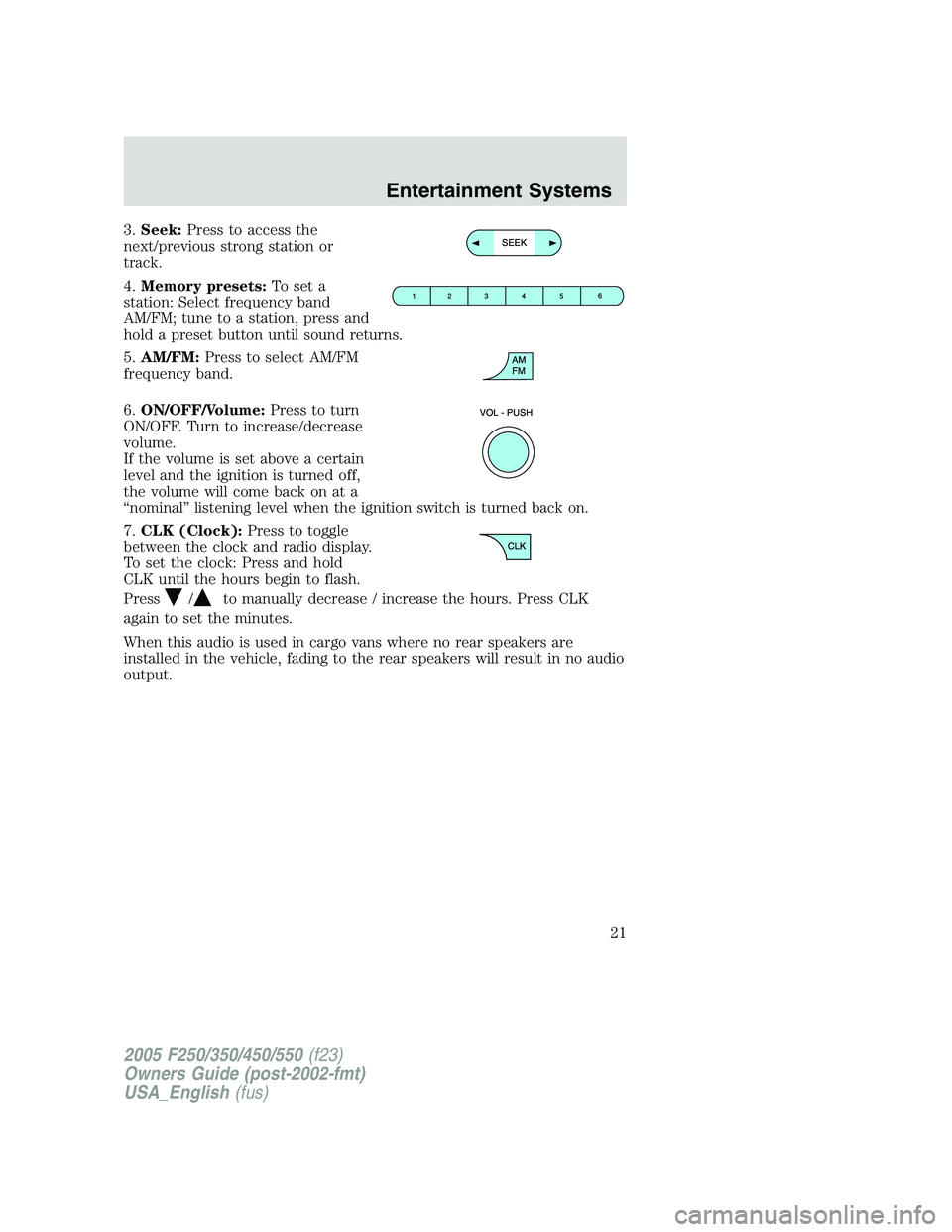

3. Seek: Press to access the
next/previous strong station or
track.
4. Memory presets: To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
5. AM/FM: Press to select AM/FM
frequency band.
6. ON/OFF/Volume: Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
7. CLK (Clock): Press to toggle
between the clock and radio display.
To set the clock: Press and hold
CLK until the hours begin to flash.
Press / to manually decrease / increase the hours. Press CLK
again to set the minutes.
When this audio is used in cargo vans where no rear speakers are
installed in the vehicle, fading to the rear speakers will result in no audio
output.
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Entertainment Systems
21

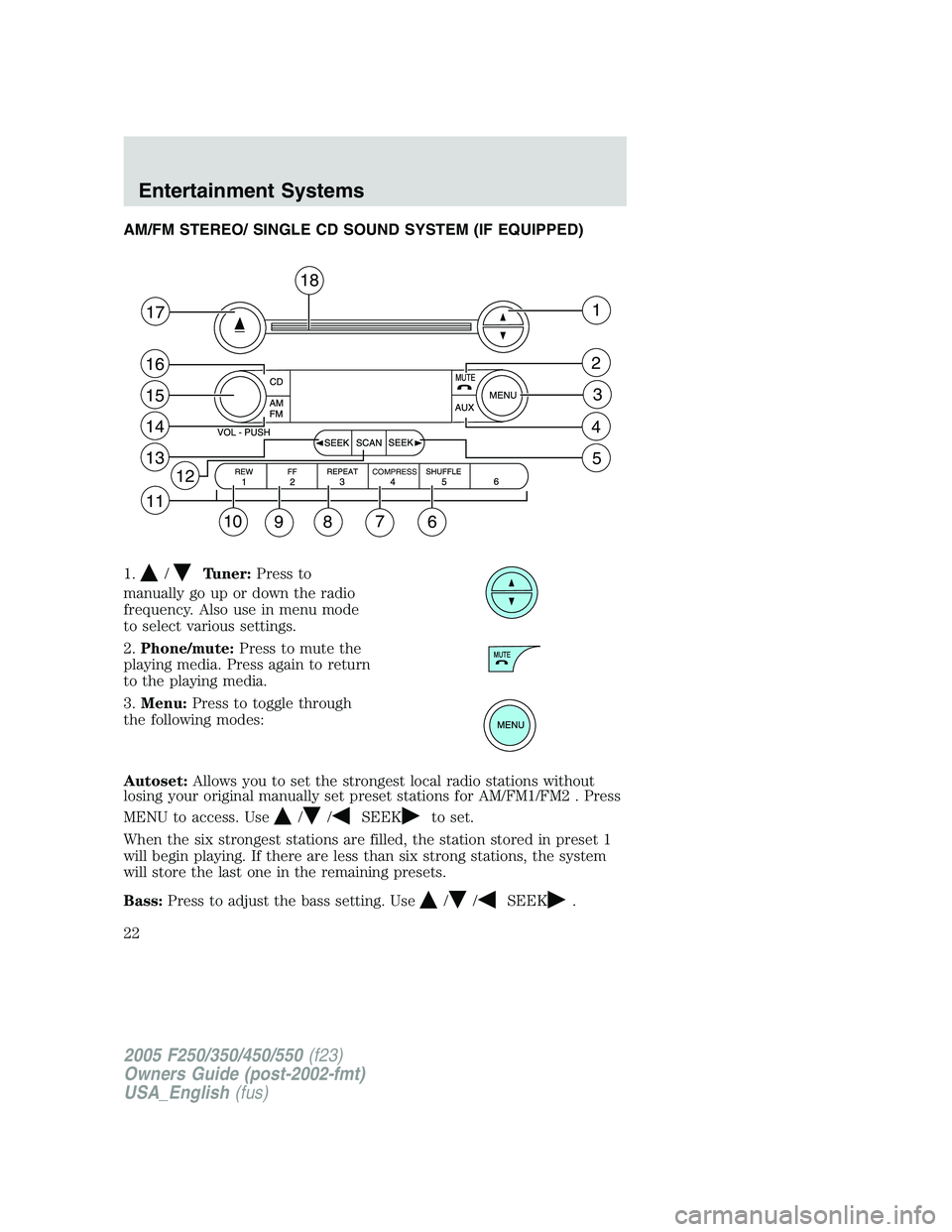

AM/FM STEREO/ SINGLE CD SOUND SYSTEM (IF EQUIPPED)
1. / Tuner: Press to
manually go up or down the radio
frequency. Also use in menu mode
to select various settings.
2. Phone/mute: Press to mute the
playing media. Press again to return
to the playing media.
3. Menu: Press to toggle through
the following modes:
Autoset: Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2 . Press
MENU to access. Use / / SEEK to set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass: Press to adjust the bass setting. Use / / SEEK .11
10
98 7
6 4 1
2
3
13 141516 17 18
5
12 COMPRESS
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Entertainment Systems
22

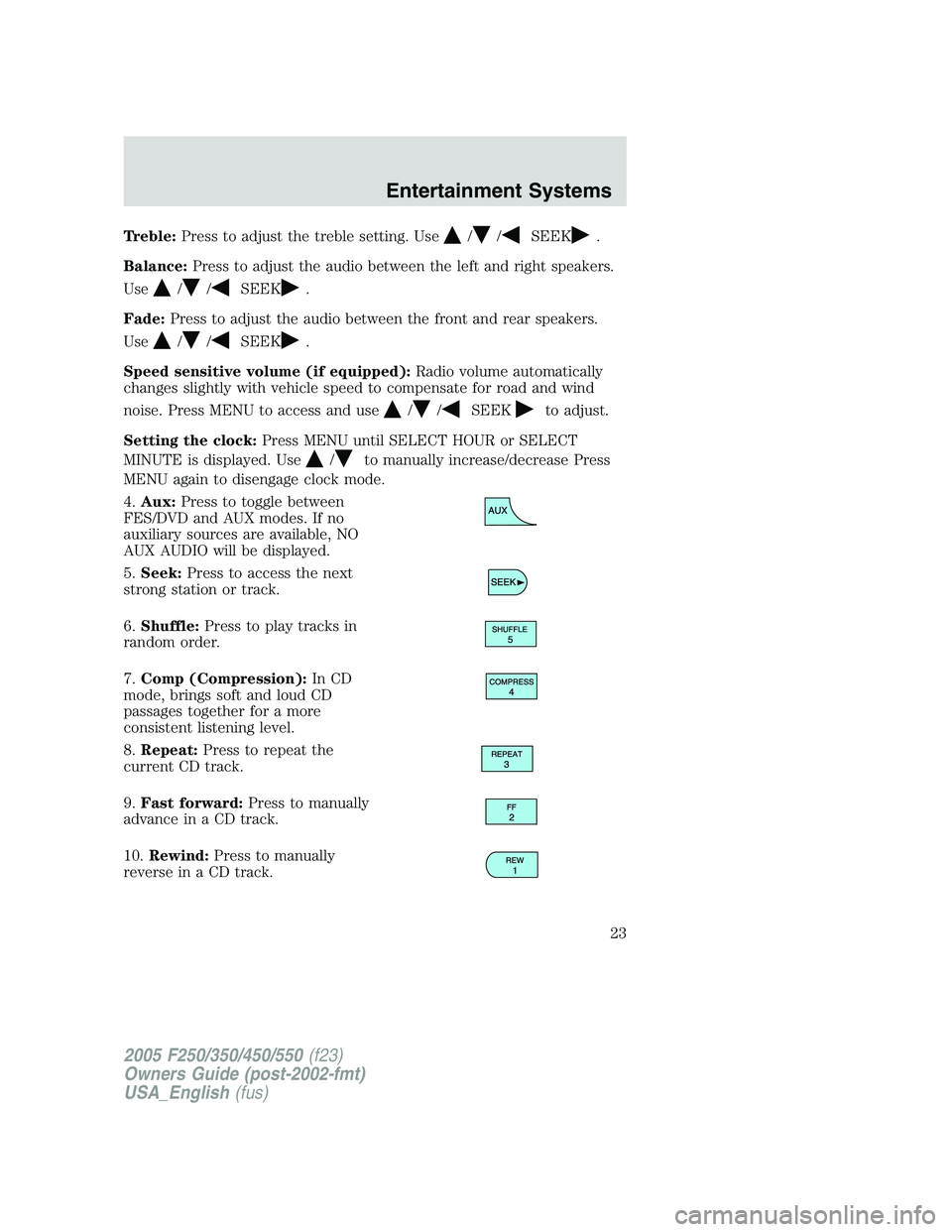

Treble: Press to adjust the treble setting. Use / / SEEK .
Balance: Press to adjust the audio between the left and right speakers.
Use
/ / SEEK .
Fade: Press to adjust the audio between the front and rear speakers.
Use / / SEEK .
Speed sensitive volume (if equipped): Radio volume automatically
changes slightly with vehicle speed to compensate for road and wind
noise. Press MENU to access and use
/ / SEEK to adjust.
Setting the clock: Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use / to manually increase/decrease Press
MENU again to disengage clock mode.
4. Aux: Press to toggle between
FES/DVD and AUX modes. If no
auxiliary sources are available, NO
AUX AUDIO will be displayed.
5. Seek: Press to access the next
strong station or track.
6. Shuffle: Press to play tracks in
random order.
7. Comp (Compression): In CD
mode, brings soft and loud CD
passages together for a more
consistent listening level.
8. Repeat: Press to repeat the
current CD track.
9. Fast forward: Press to manually
advance in a CD track.
10. Rewind: Press to manually
reverse in a CD track.
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Entertainment Systems
23

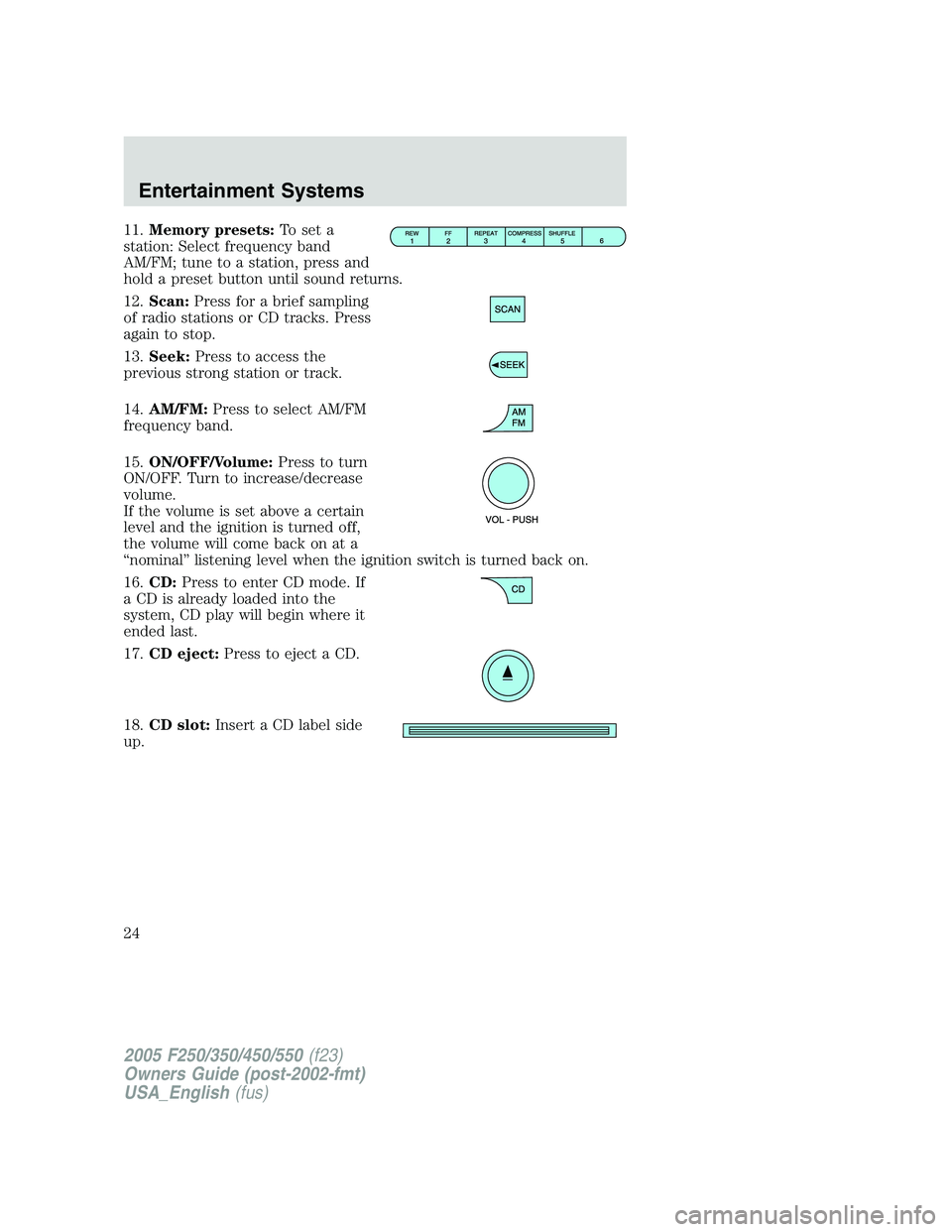

11. Memory presets: To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
12. Scan: Press for a brief sampling
of radio stations or CD tracks. Press
again to stop.
13. Seek: Press to access the
previous strong station or track.
14. AM/FM: Press to select AM/FM
frequency band.
15. ON/OFF/Volume: Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
16. CD: Press to enter CD mode. If
a CD is already loaded into the
system, CD play will begin where it
ended last.
17. CD eject: Press to eject a CD.
18. CD slot: Insert a CD label side
up.
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Entertainment Systems
24

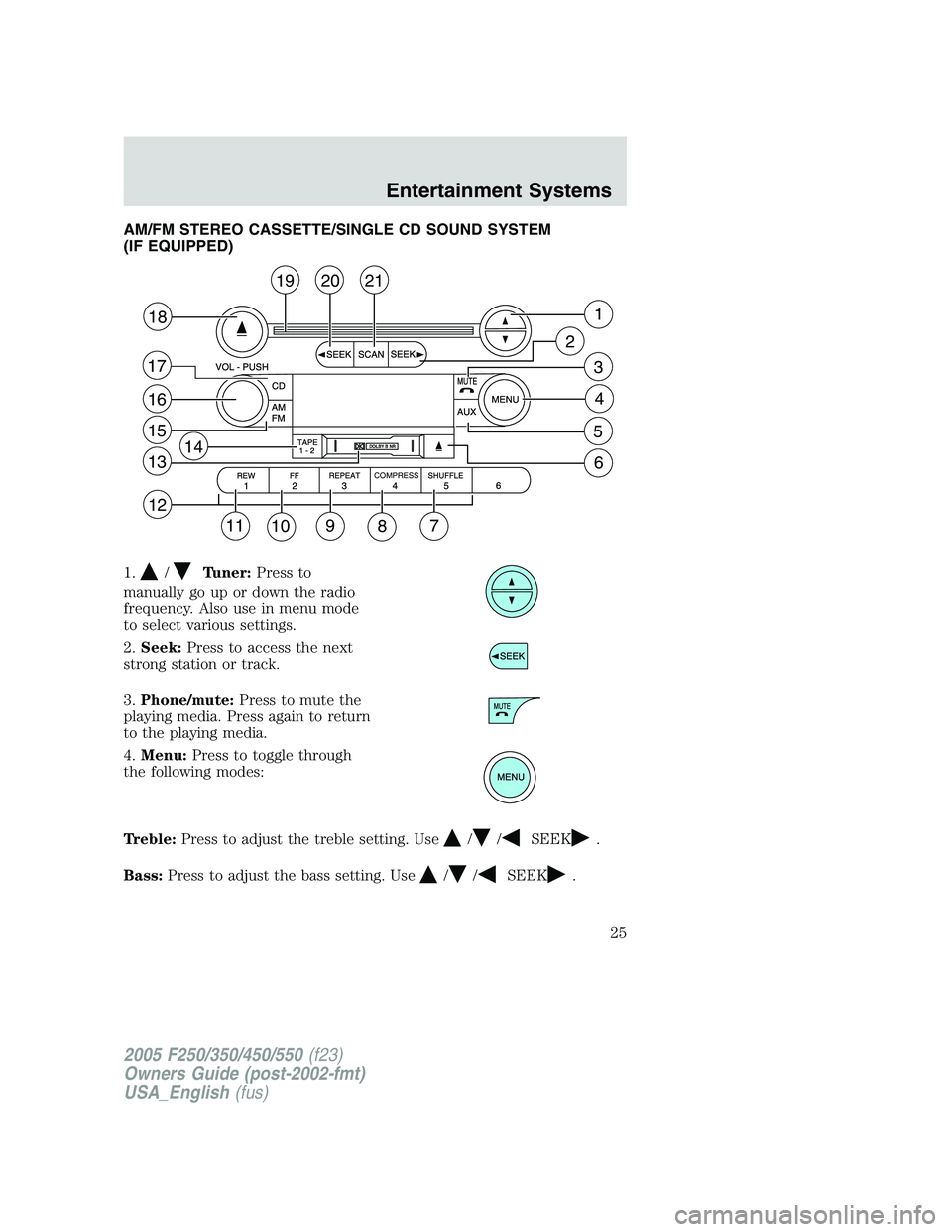

AM/FM STEREO CASSETTE/SINGLE CD SOUND SYSTEM
(IF EQUIPPED)
1. / Tuner: Press to
manually go up or down the radio
frequency. Also use in menu mode
to select various settings.
2. Seek: Press to access the next
strong station or track.
3. Phone/mute: Press to mute the
playing media. Press again to return
to the playing media.
4. Menu: Press to toggle through
the following modes:
Treble: Press to adjust the treble setting. Use / / SEEK .
Bass: Press to adjust the bass setting. Use / / SEEK .12
11
10 9
8 7 52 1
3
4
613 141516 18 19
20 21
17 DOLBY B NR
COMPRESS
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Entertainment Systems
25

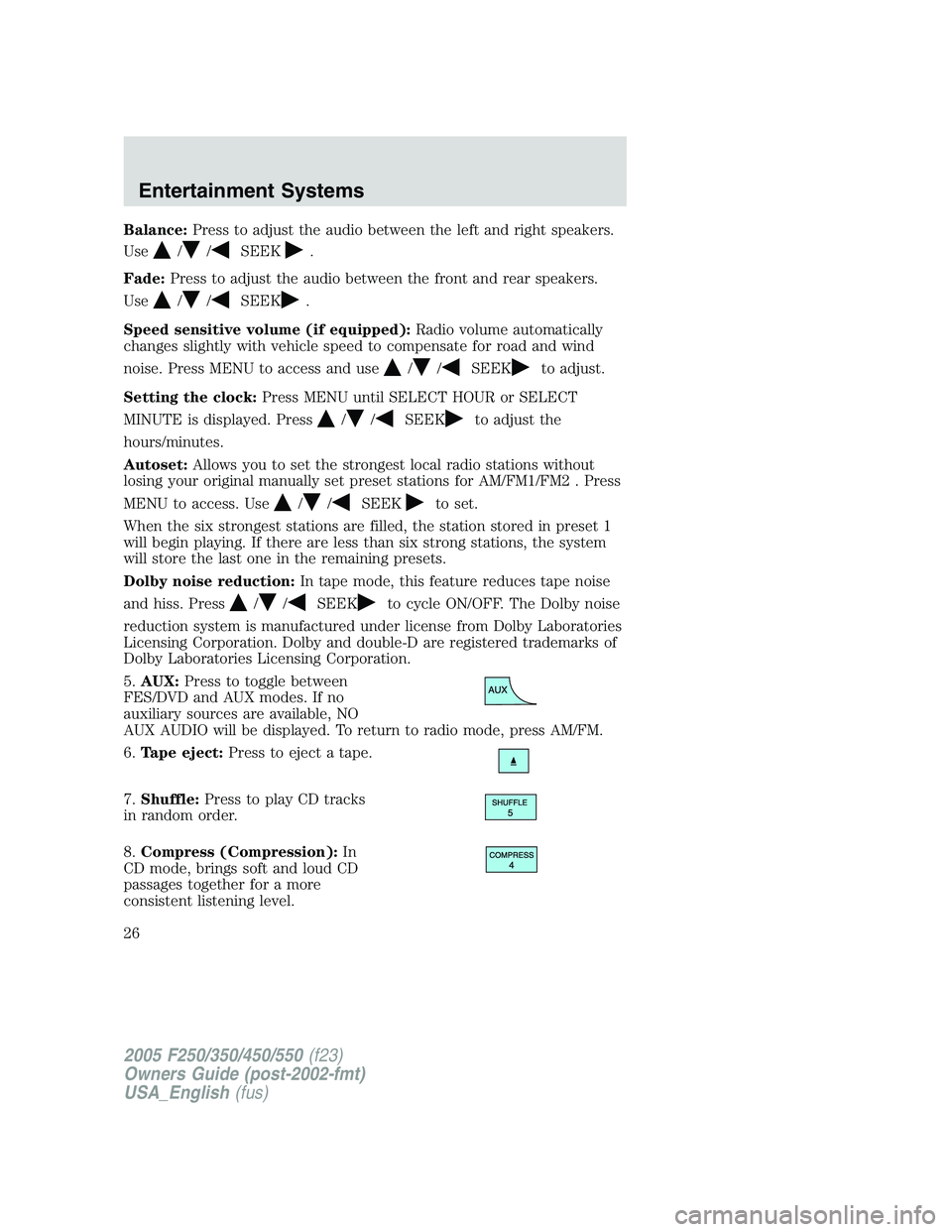

Balance: Press to adjust the audio between the left and right speakers.
Use / / SEEK .
Fade: Press to adjust the audio between the front and rear speakers.
Use / / SEEK .
Speed sensitive volume (if equipped): Radio volume automatically
changes slightly with vehicle speed to compensate for road and wind
noise. Press MENU to access and use / / SEEK to adjust.
Setting the clock: Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Press / / SEEK to adjust the
hours/minutes.
Autoset: Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2 . Press
MENU to access. Use / / SEEK to set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Dolby noise reduction: In tape mode, this feature reduces tape noise
and hiss. Press / / SEEK to cycle ON/OFF. The Dolby noise
reduction system is manufactured under license from Dolby Laboratories
Licensing Corporation. Dolby and double-D are registered trademarks of
Dolby Laboratories Licensing Corporation.
5. AUX: Press to toggle between
FES/DVD and AUX modes. If no
auxiliary sources are available, NO
AUX AUDIO will be displayed. To return to radio mode, press AM/FM.
6. Tape eject: Press to eject a tape.
7. Shuffle: Press to play CD tracks
in random order.
8. Compress (Compression): In
CD mode, brings soft and loud CD
passages together for a more
consistent listening level.
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Entertainment Systems
26

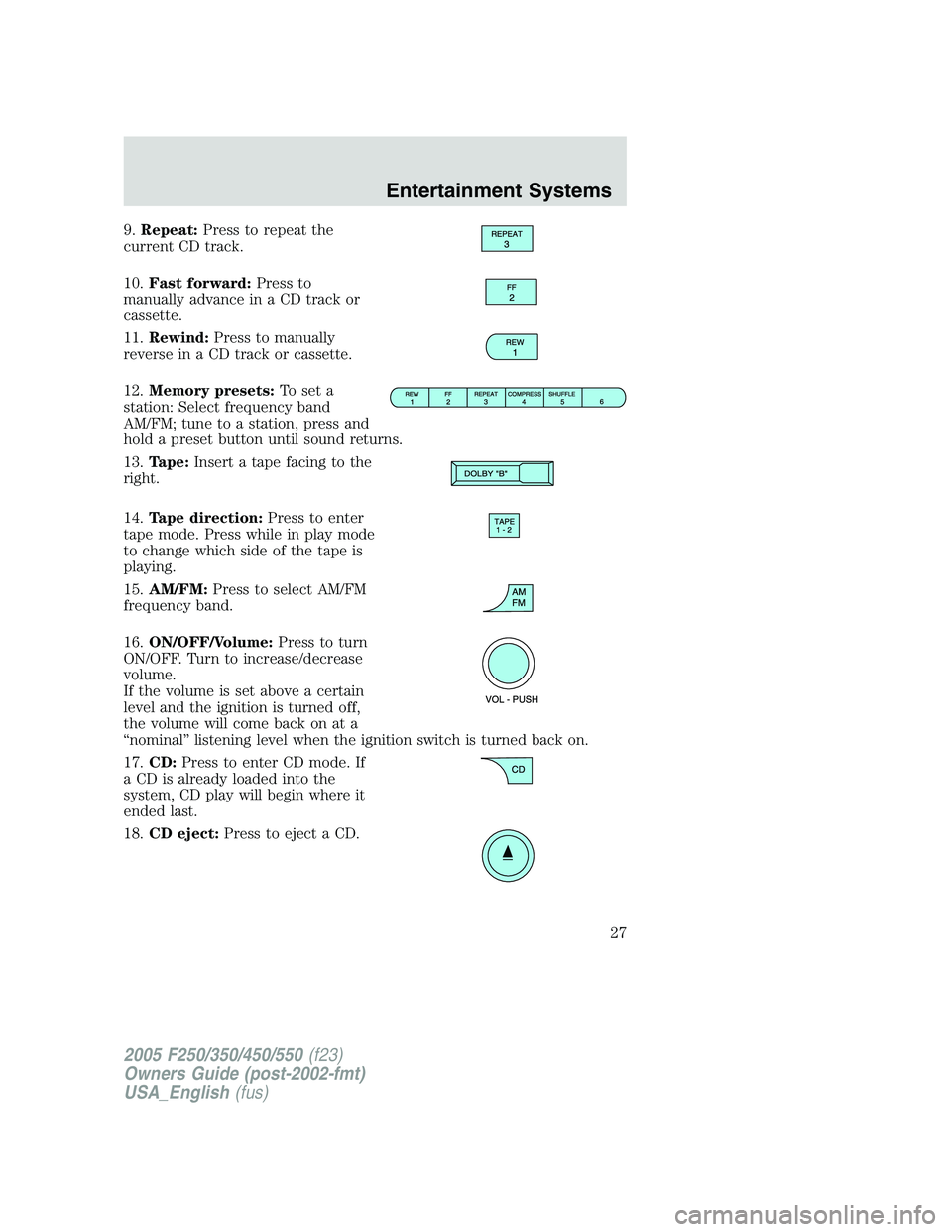

9. Repeat: Press to repeat the
current CD track.
10. Fast forward: Press to
manually advance in a CD track or
cassette.
11. Rewind: Press to manually
reverse in a CD track or cassette.
12. Memory presets: To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
13. Tape: Insert a tape facing to the
right.
14. Tape direction: Press to enter
tape mode. Press while in play mode
to change which side of the tape is
playing.
15. AM/FM: Press to select AM/FM
frequency band.
16. ON/OFF/Volume: Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
17. CD: Press to enter CD mode. If
a CD is already loaded into the
system, CD play will begin where it
ended last.
18. CD eject: Press to eject a CD.
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Entertainment Systems
27

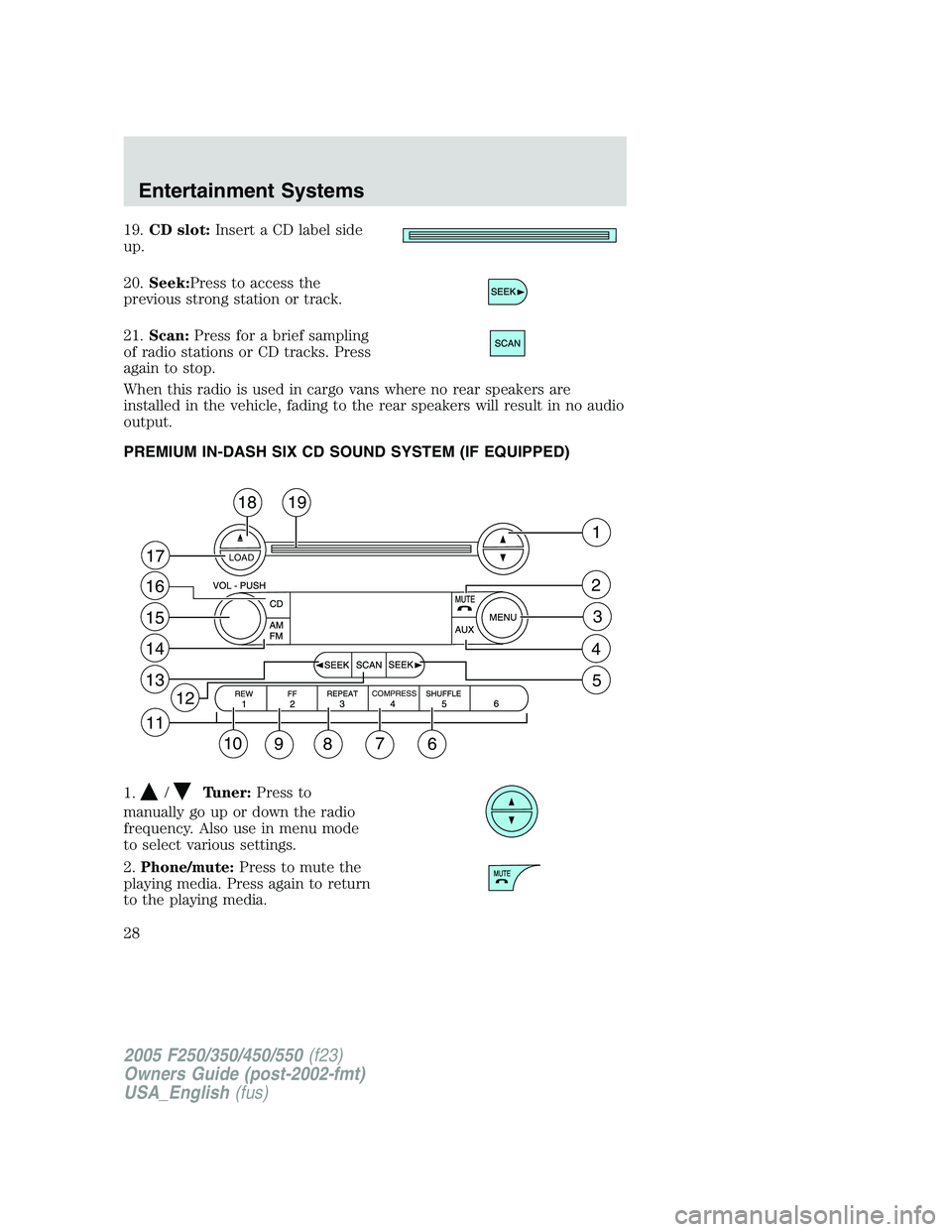

19. CD slot: Insert a CD label side
up.
20. Seek: Press to access the
previous strong station or track.
21. Scan: Press for a brief sampling
of radio stations or CD tracks. Press
again to stop.
When this radio is used in cargo vans where no rear speakers are
installed in the vehicle, fading to the rear speakers will result in no audio
output.
PREMIUM IN-DASH SIX CD SOUND SYSTEM (IF EQUIPPED)
1. / Tuner: Press to
manually go up or down the radio
frequency. Also use in menu mode
to select various settings.
2. Phone/mute: Press to mute the
playing media. Press again to return
to the playing media. LOAD
COMPRESS
11
10
98 7
6 4 1
2
3
13 141516 17 19
5
12 18
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Entertainment Systems
28

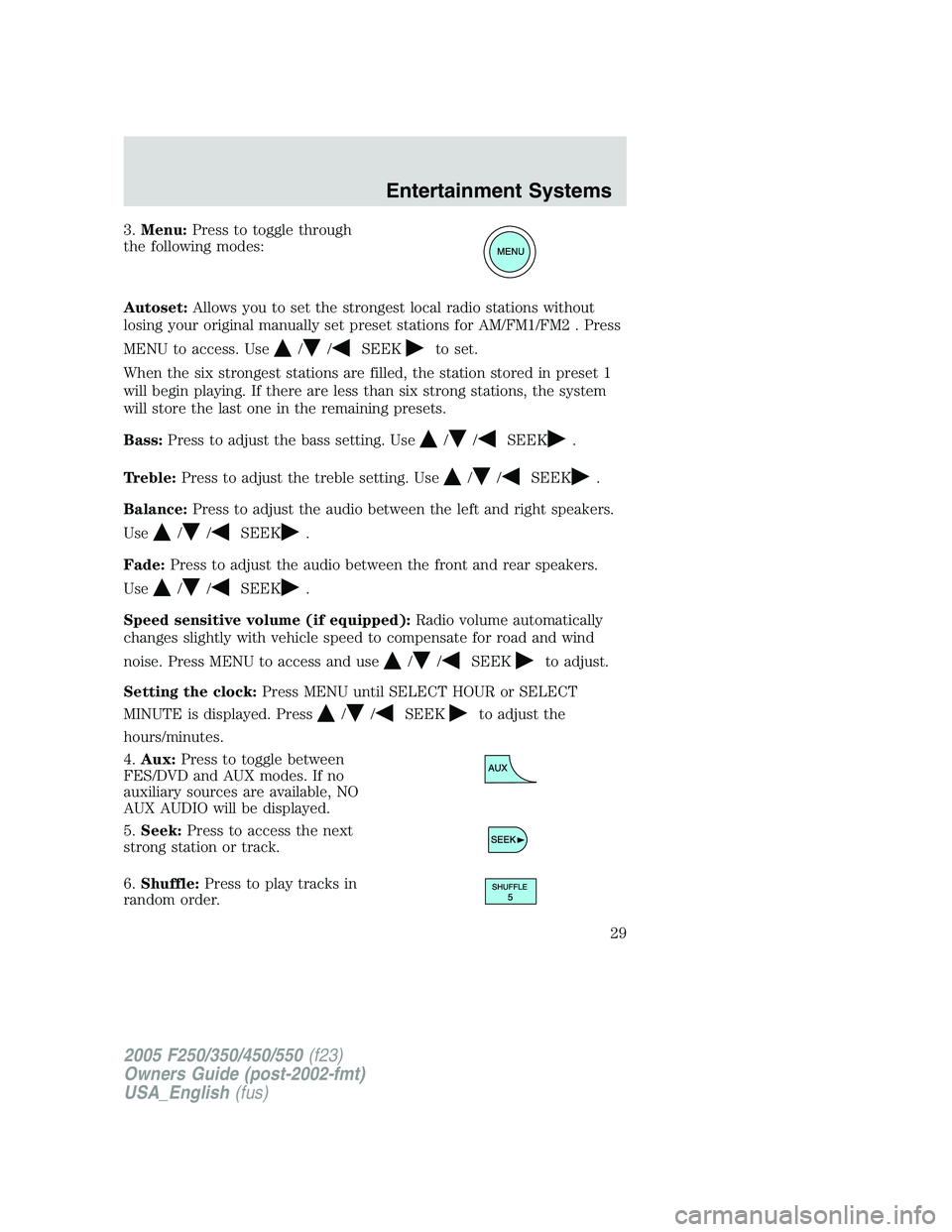

3. Menu: Press to toggle through
the following modes:
Autoset: Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2 . Press
MENU to access. Use
/ / SEEK to set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass: Press to adjust the bass setting. Use
/ / SEEK .
Treble: Press to adjust the treble setting. Use
/ / SEEK .
Balance: Press to adjust the audio between the left and right speakers.
Use
/ / SEEK .
Fade: Press to adjust the audio between the front and rear speakers.
Use
/ / SEEK .
Speed sensitive volume (if equipped): Radio volume automatically
changes slightly with vehicle speed to compensate for road and wind
noise. Press MENU to access and use
/ / SEEK to adjust.
Setting the clock: Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Press / / SEEK to adjust the
hours/minutes.
4. Aux: Press to toggle between
FES/DVD and AUX modes. If no
auxiliary sources are available, NO
AUX AUDIO will be displayed.
5. Seek: Press to access the next
strong station or track.
6. Shuffle: Press to play tracks in
random order.
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Entertainment Systems
29

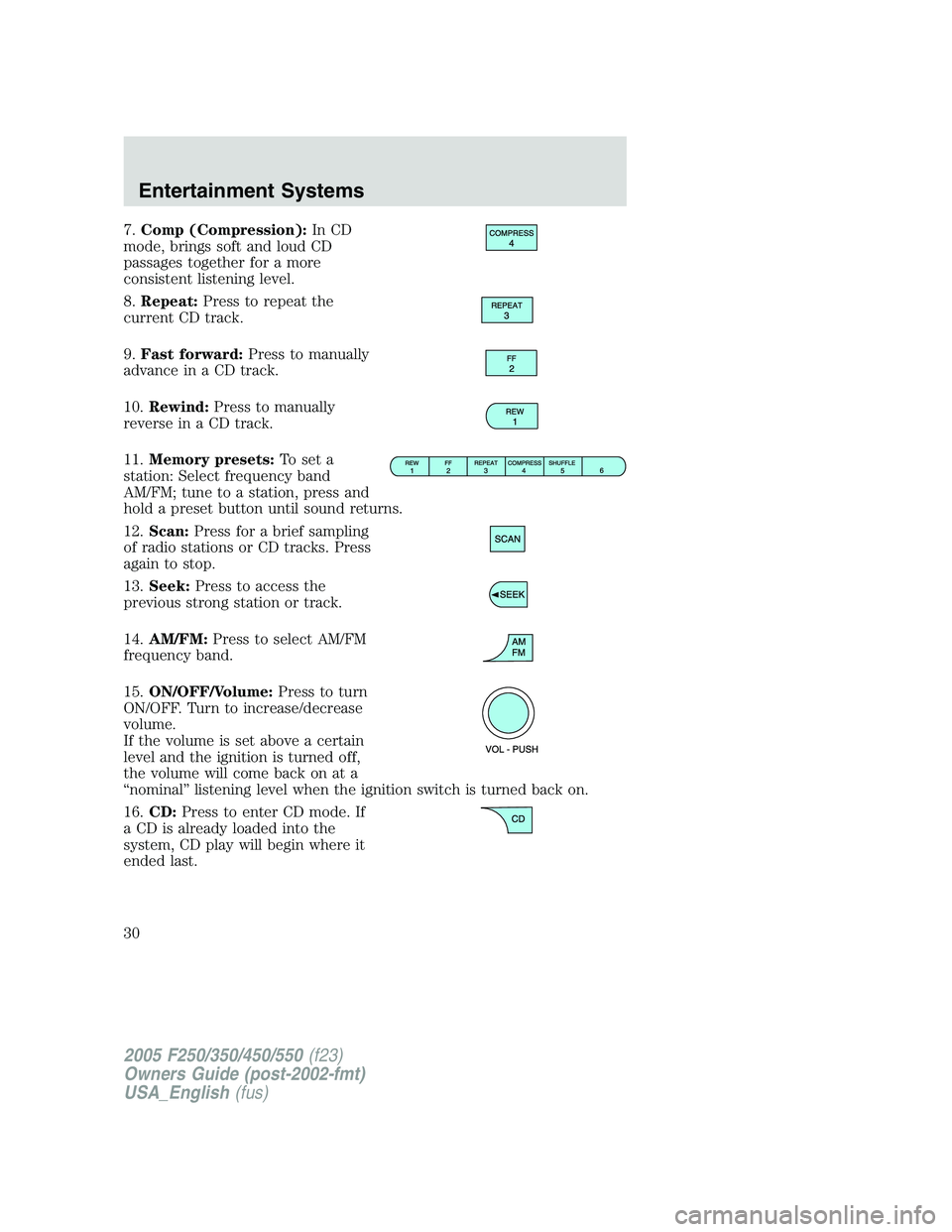

7. Comp (Compression): In CD
mode, brings soft and loud CD
passages together for a more
consistent listening level.
8. Repeat: Press to repeat the
current CD track.
9. Fast forward: Press to manually
advance in a CD track.
10. Rewind: Press to manually
reverse in a CD track.
11. Memory presets: To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
12. Scan: Press for a brief sampling
of radio stations or CD tracks. Press
again to stop.
13. Seek: Press to access the
previous strong station or track.
14. AM/FM: Press to select AM/FM
frequency band.
15. ON/OFF/Volume: Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
16. CD: Press to enter CD mode. If
a CD is already loaded into the
system, CD play will begin where it
ended last.
