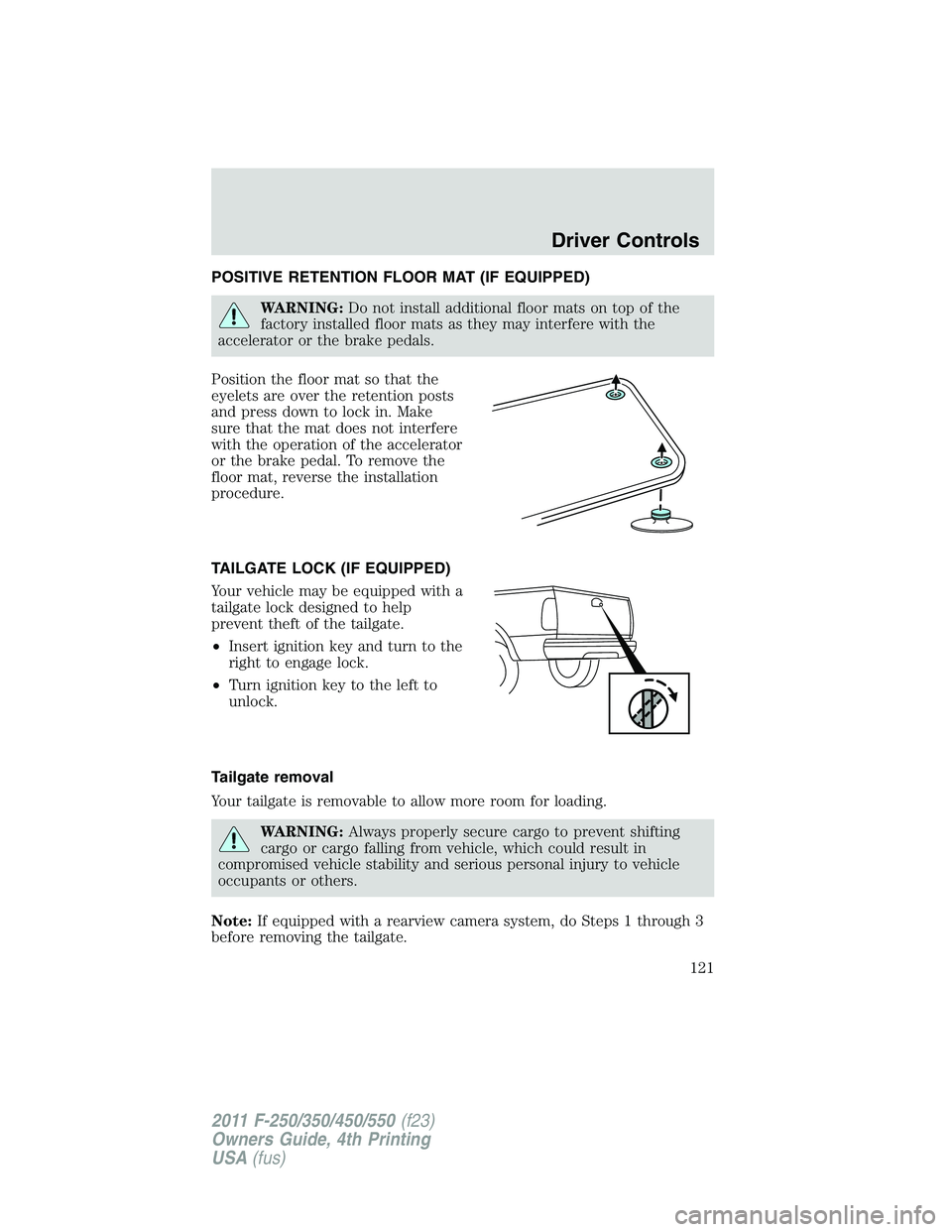

POSITIVE RETENTION FLOOR MAT (IF EQUIPPED)
WARNING: Do not install additional floor mats on top of the
factory installed floor mats as they may interfere with the
accelerator or the brake pedals.
Position the floor mat so that the
eyelets are over the retention posts
and press down to lock in. Make
sure that the mat does not interfere
with the operation of the accelerator
or the brake pedal. To remove the
floor mat, reverse the installation
procedure.
TAILGATE LOCK (IF EQUIPPED)
Your vehicle may be equipped with a
tailgate lock designed to help
prevent theft of the tailgate.
• Insert ignition key and turn to the
right to engage lock.
• Turn ignition key to the left to
unlock.
Tailgate removal
Your tailgate is removable to allow more room for loading.
WARNING: Always properly secure cargo to prevent shifting
cargo or cargo falling from vehicle, which could result in
compromised vehicle stability and serious personal injury to vehicle
occupants or others.
Note: If equipped with a rearview camera system, do Steps 1 through 3
before removing the tailgate. Driver Controls
121
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

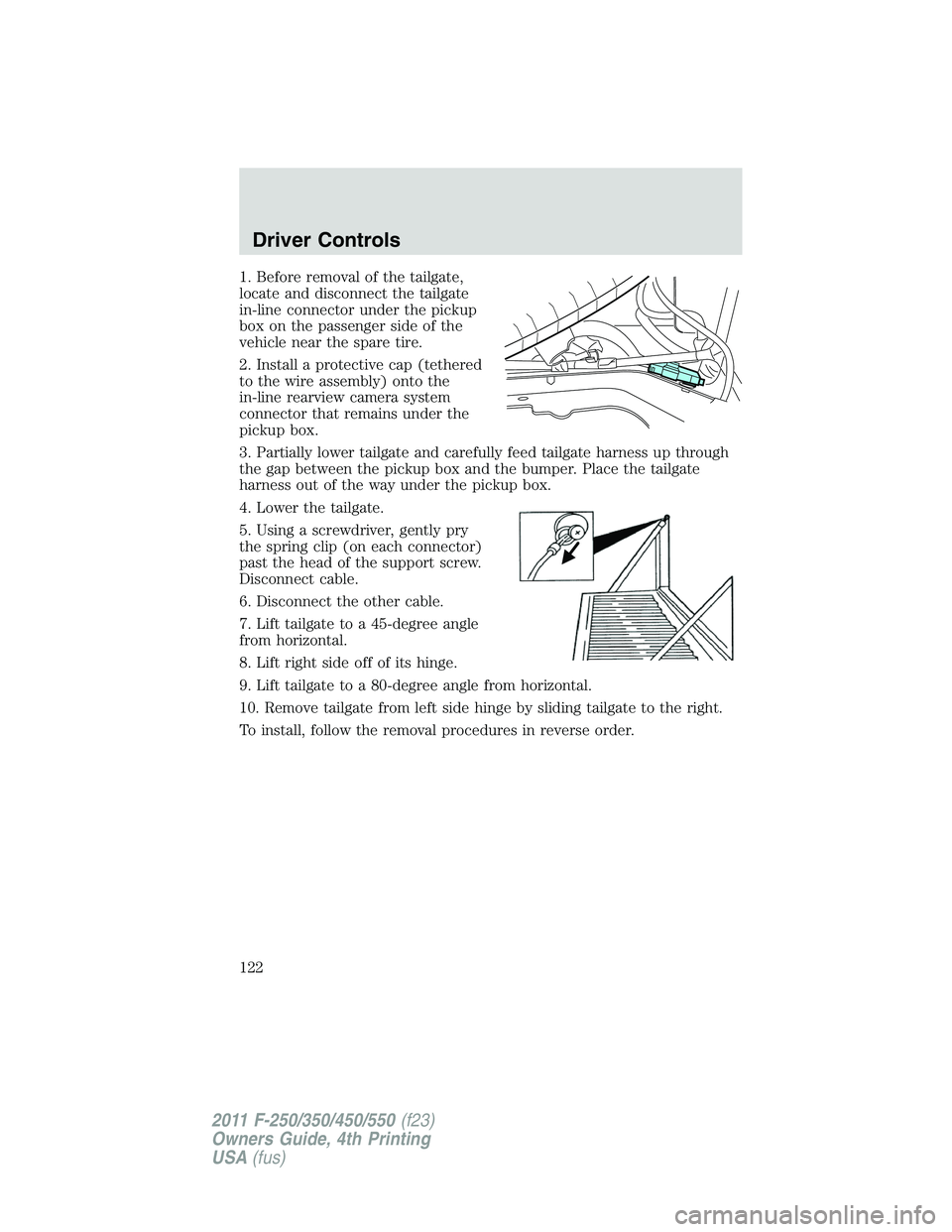

1. Before removal of the tailgate,
locate and disconnect the tailgate
in-line connector under the pickup
box on the passenger side of the
vehicle near the spare tire.
2. Install a protective cap (tethered
to the wire assembly) onto the
in-line rearview camera system
connector that remains under the
pickup box.
3. Partially lower tailgate and carefully feed tailgate harness up through
the gap between the pickup box and the bumper. Place the tailgate
harness out of the way under the pickup box.
4. Lower the tailgate.
5. Using a screwdriver, gently pry
the spring clip (on each connector)
past the head of the support screw.
Disconnect cable.
6. Disconnect the other cable.
7. Lift tailgate to a 45-degree angle
from horizontal.
8. Lift right side off of its hinge.
9. Lift tailgate to a 80-degree angle from horizontal.
10. Remove tailgate from left side hinge by sliding tailgate to the right.
To install, follow the removal procedures in reverse order.Driver Controls
122
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

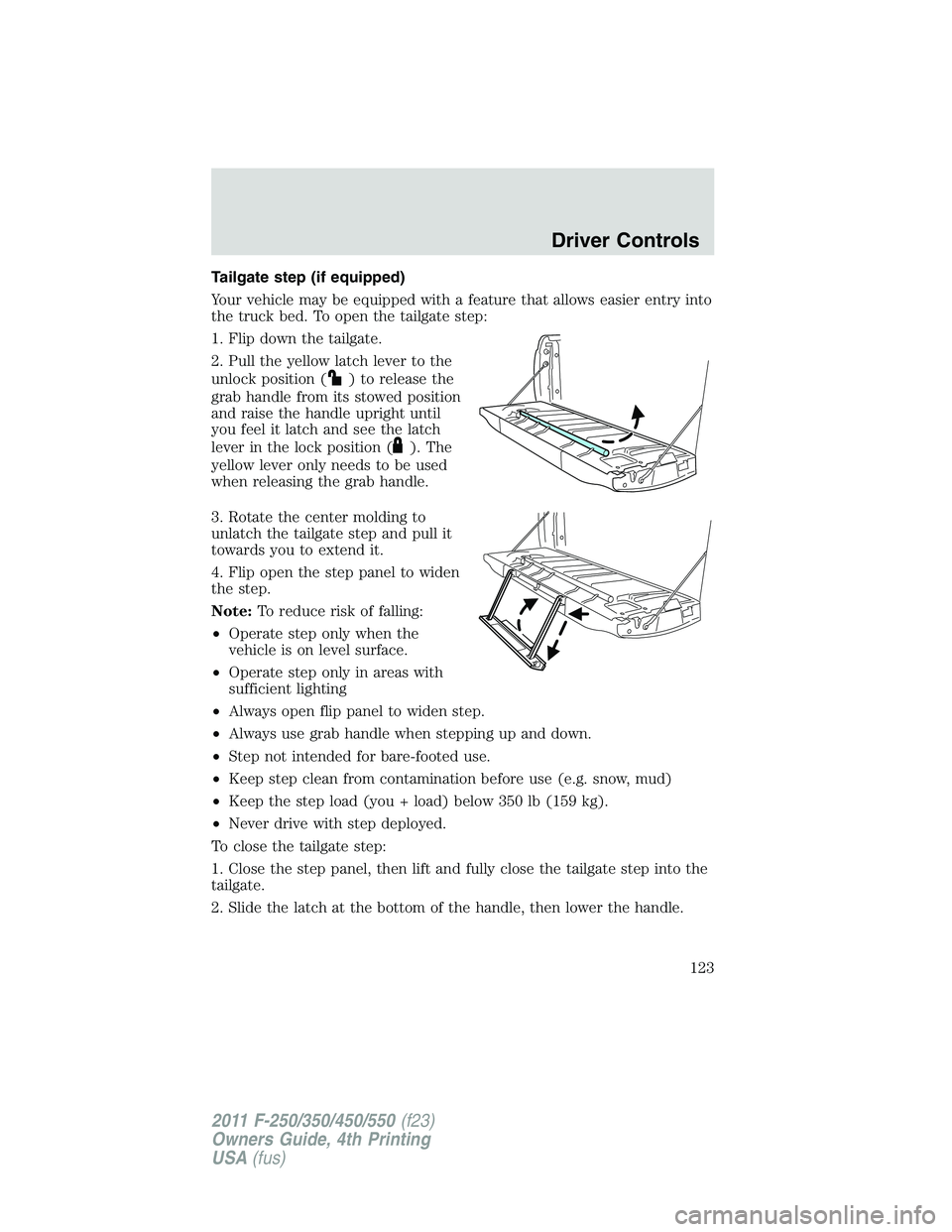

Tailgate step (if equipped)
Your vehicle may be equipped with a feature that allows easier entry into
the truck bed. To open the tailgate step:
1. Flip down the tailgate.
2. Pull the yellow latch lever to the
unlock position ( ) to release the
grab handle from its stowed position
and raise the handle upright until
you feel it latch and see the latch
lever in the lock position ( ). The
yellow lever only needs to be used
when releasing the grab handle.
3. Rotate the center molding to
unlatch the tailgate step and pull it
towards you to extend it.
4. Flip open the step panel to widen
the step.
Note: To reduce risk of falling:
• Operate step only when the
vehicle is on level surface.
• Operate step only in areas with
sufficient lighting
• Always open flip panel to widen step.
• Always use grab handle when stepping up and down.
• Step not intended for bare-footed use.
• Keep step clean from contamination before use (e.g. snow, mud)
• Keep the step load (you + load) below 350 lb (159 kg).
• Never drive with step deployed.
To close the tailgate step:
1. Close the step panel, then lift and fully close the tailgate step into the
tailgate.
2. Slide the latch at the bottom of the handle, then lower the handle. Driver Controls
123
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

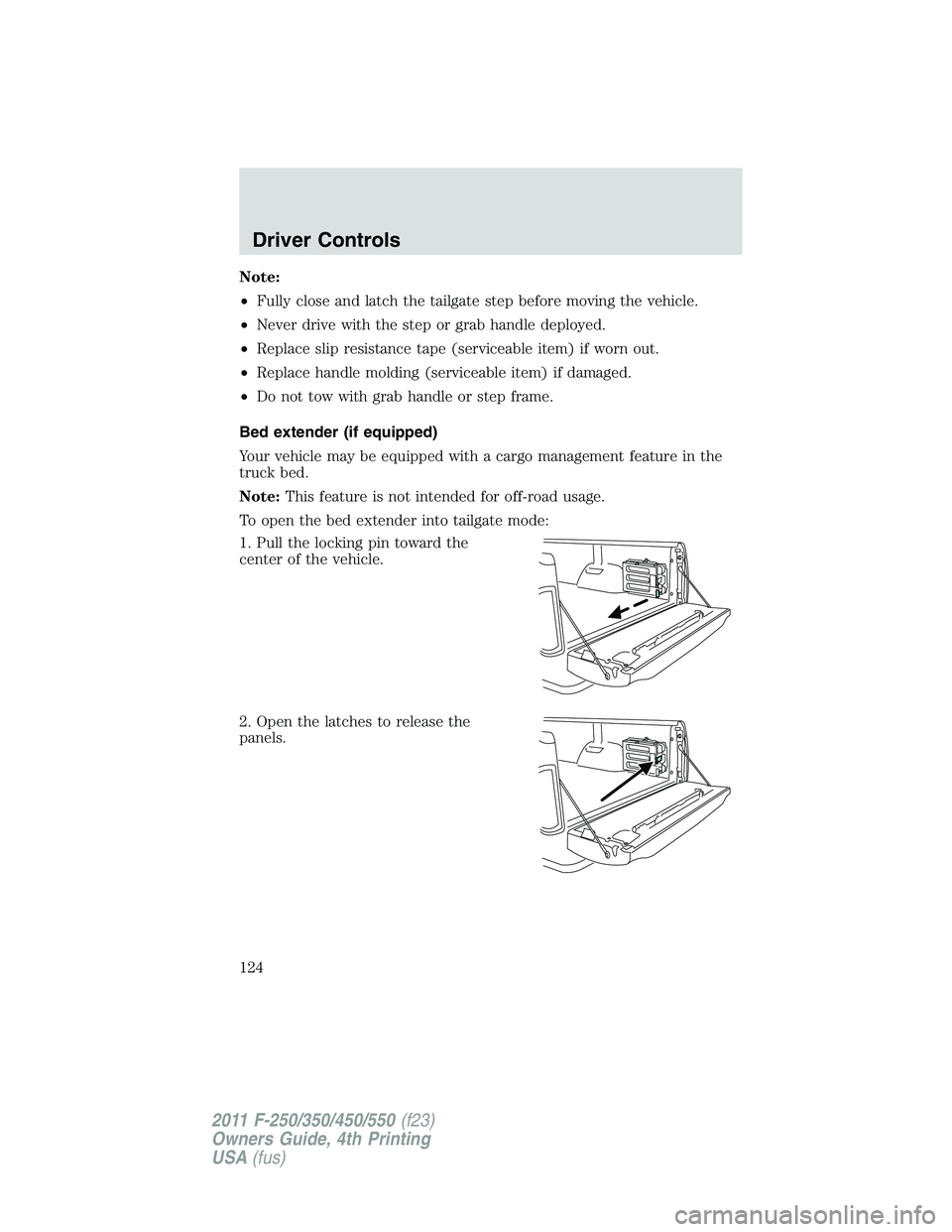

Note:
• Fully close and latch the tailgate step before moving the vehicle.
• Never drive with the step or grab handle deployed.
• Replace slip resistance tape (serviceable item) if worn out.
• Replace handle molding (serviceable item) if damaged.
• Do not tow with grab handle or step frame.
Bed extender (if equipped)
Your vehicle may be equipped with a cargo management feature in the
truck bed.
Note: This feature is not intended for off-road usage.
To open the bed extender into tailgate mode:
1. Pull the locking pin toward the
center of the vehicle.
2. Open the latches to release the
panels.Driver Controls
124
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

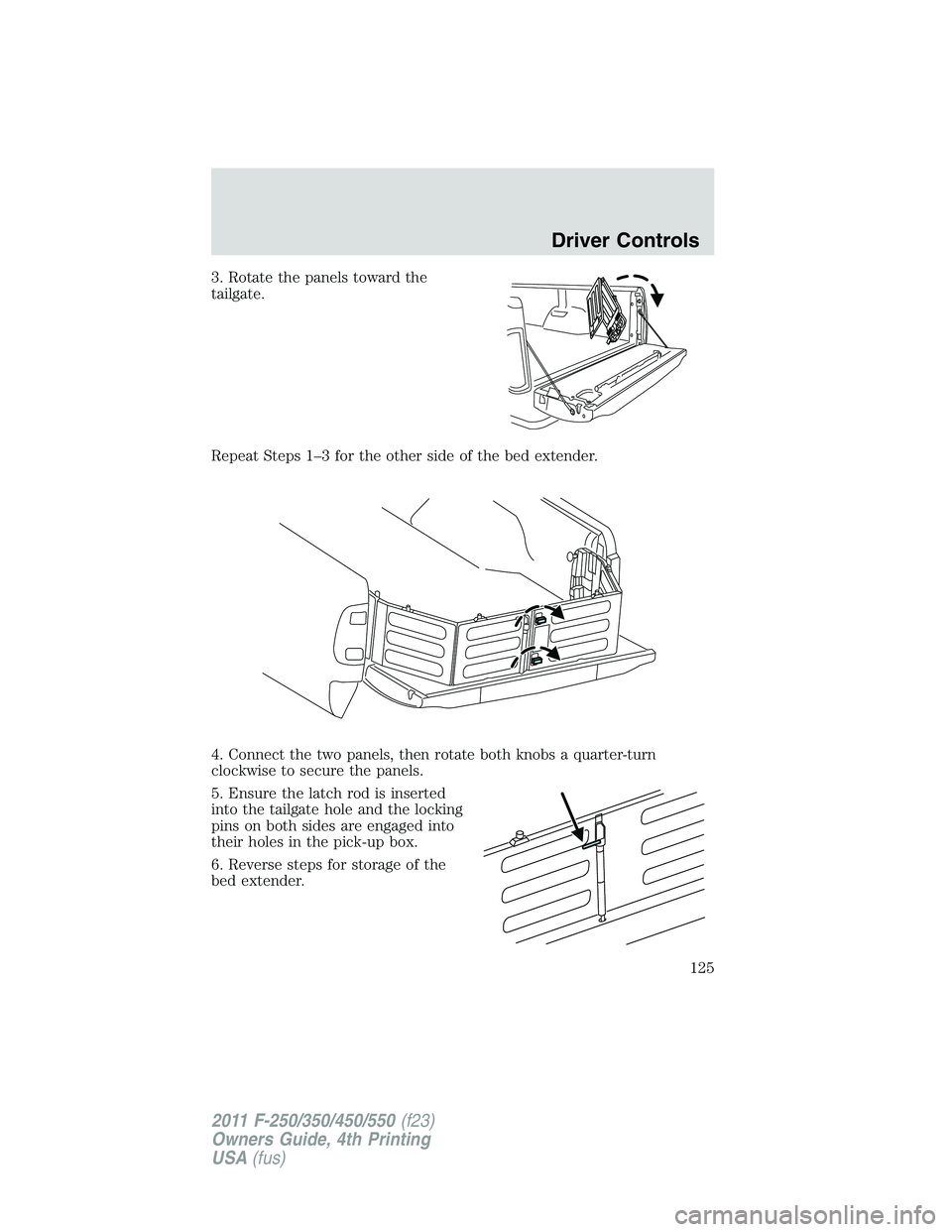

3. Rotate the panels toward the
tailgate.
Repeat Steps 1–3 for the other side of the bed extender.
4. Connect the two panels, then rotate both knobs a quarter-turn
clockwise to secure the panels.
5. Ensure the latch rod is inserted
into the tailgate hole and the locking
pins on both sides are engaged into
their holes in the pick-up box.
6. Reverse steps for storage of the
bed extender. Driver Controls
125
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

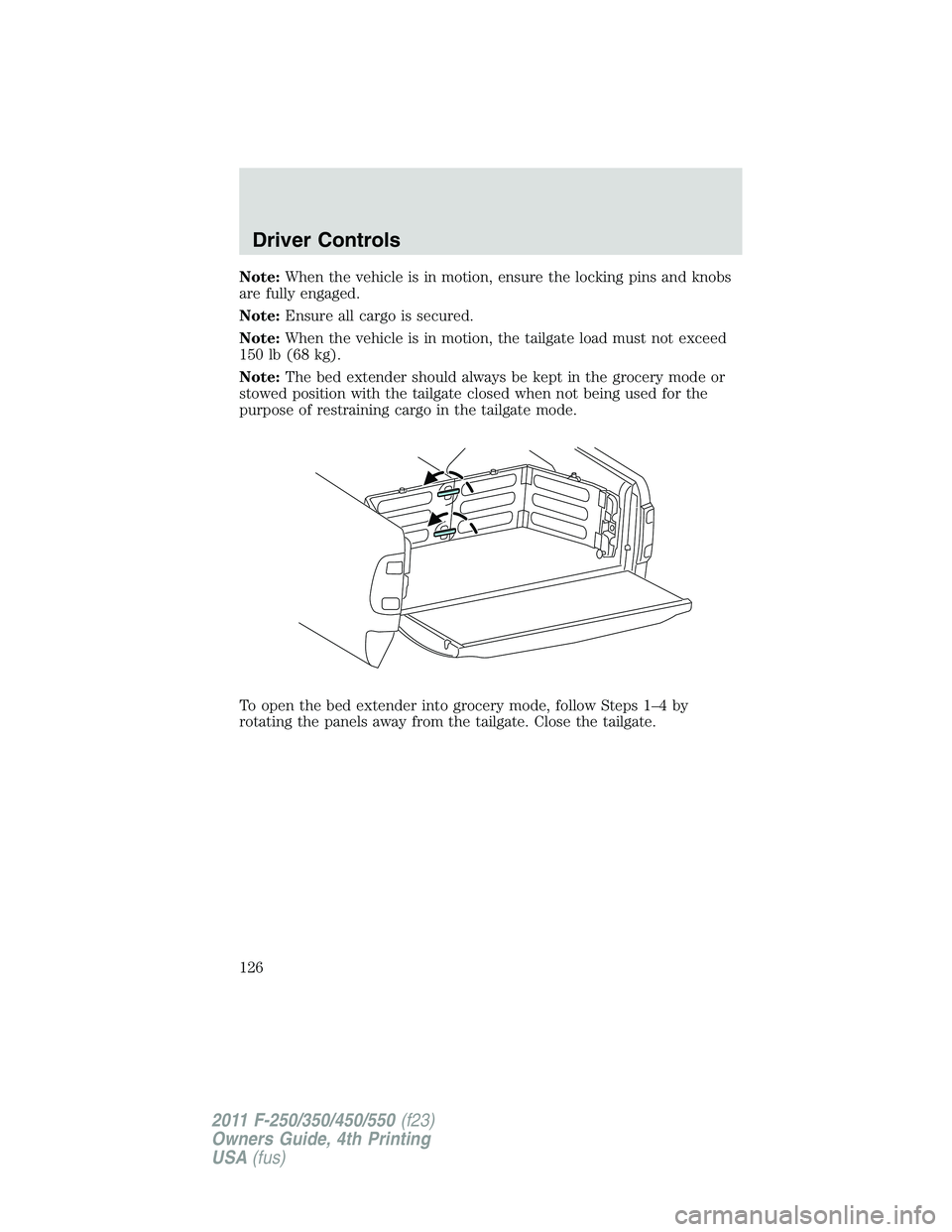

Note: When the vehicle is in motion, ensure the locking pins and knobs
are fully engaged.
Note: Ensure all cargo is secured.
Note: When the vehicle is in motion, the tailgate load must not exceed
150 lb (68 kg).
Note: The bed extender should always be kept in the grocery mode or
stowed position with the tailgate closed when not being used for the
purpose of restraining cargo in the tailgate mode.
To open the bed extender into grocery mode, follow Steps 1–4 by
rotating the panels away from the tailgate. Close the tailgate.Driver Controls
126
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

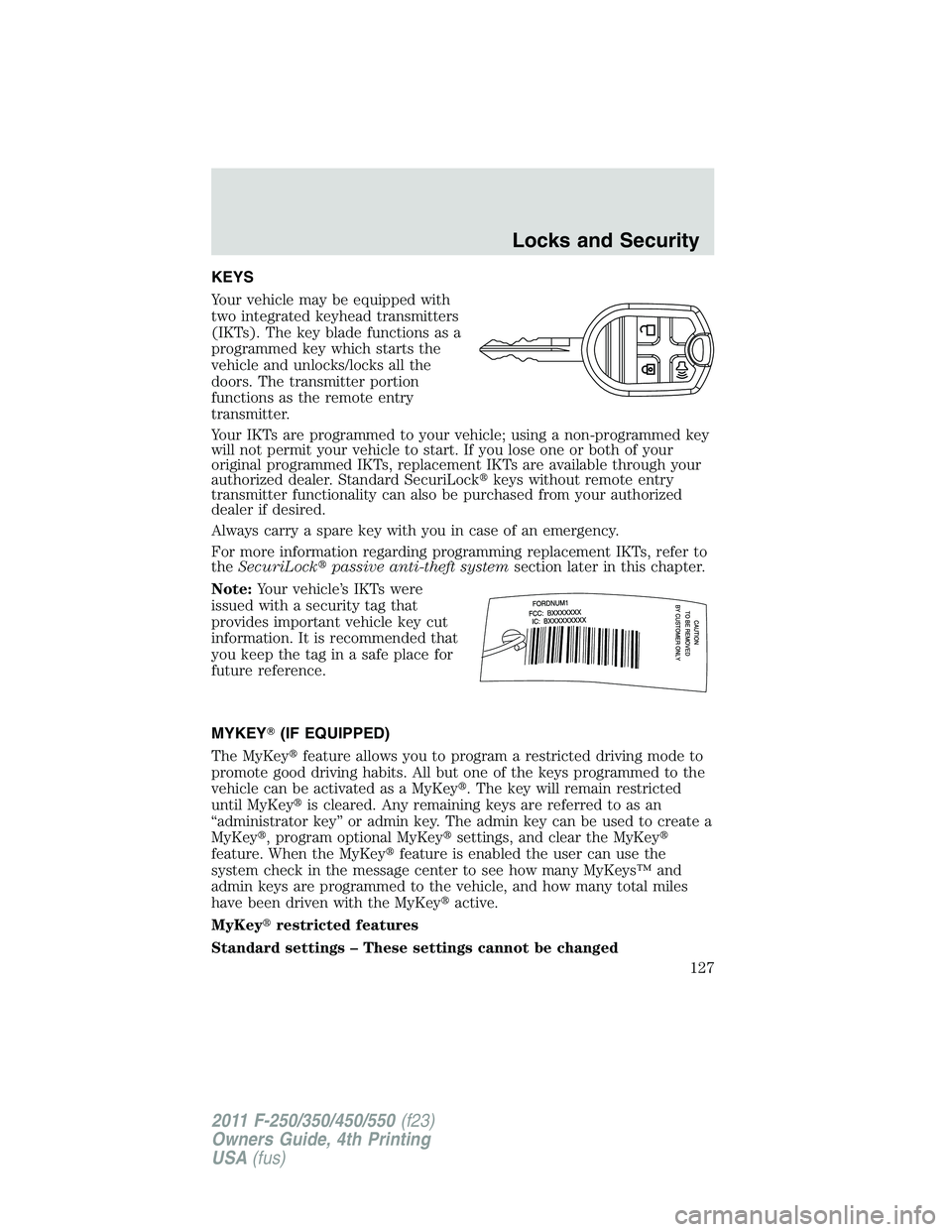

KEYS
Your vehicle may be equipped with
two integrated keyhead transmitters
(IKTs). The key blade functions as a
programmed key which starts the
vehicle and unlocks/locks all the
doors. The transmitter portion
functions as the remote entry
transmitter.
Your IKTs are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose one or both of your
original programmed IKTs, replacement IKTs are available through your
authorized dealer. Standard SecuriLock  keys without remote entry
transmitter functionality can also be purchased from your authorized
dealer if desired.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to
the SecuriLock  passive anti-theft system section later in this chapter.
Note: Your vehicle’s IKTs were
issued with a security tag that
provides important vehicle key cut
information. It is recommended that
you keep the tag in a safe place for
future reference.
MYKEY  (IF EQUIPPED)
The MyKey  feature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey  . The key will remain restricted
until MyKey  is cleared. Any remaining keys are referred to as an
“administrator key” or admin key. The admin key can be used to create a
MyKey  , program optional MyKey  settings, and clear the MyKey
feature. When the MyKey  feature is enabled the user can use the
system check in the message center to see how many MyKeys™ and
admin keys are programmed to the vehicle, and how many total miles
have been driven with the MyKey  active.
MyKey  restricted features
Standard settings – These settings cannot be changed Locks and Security
127
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

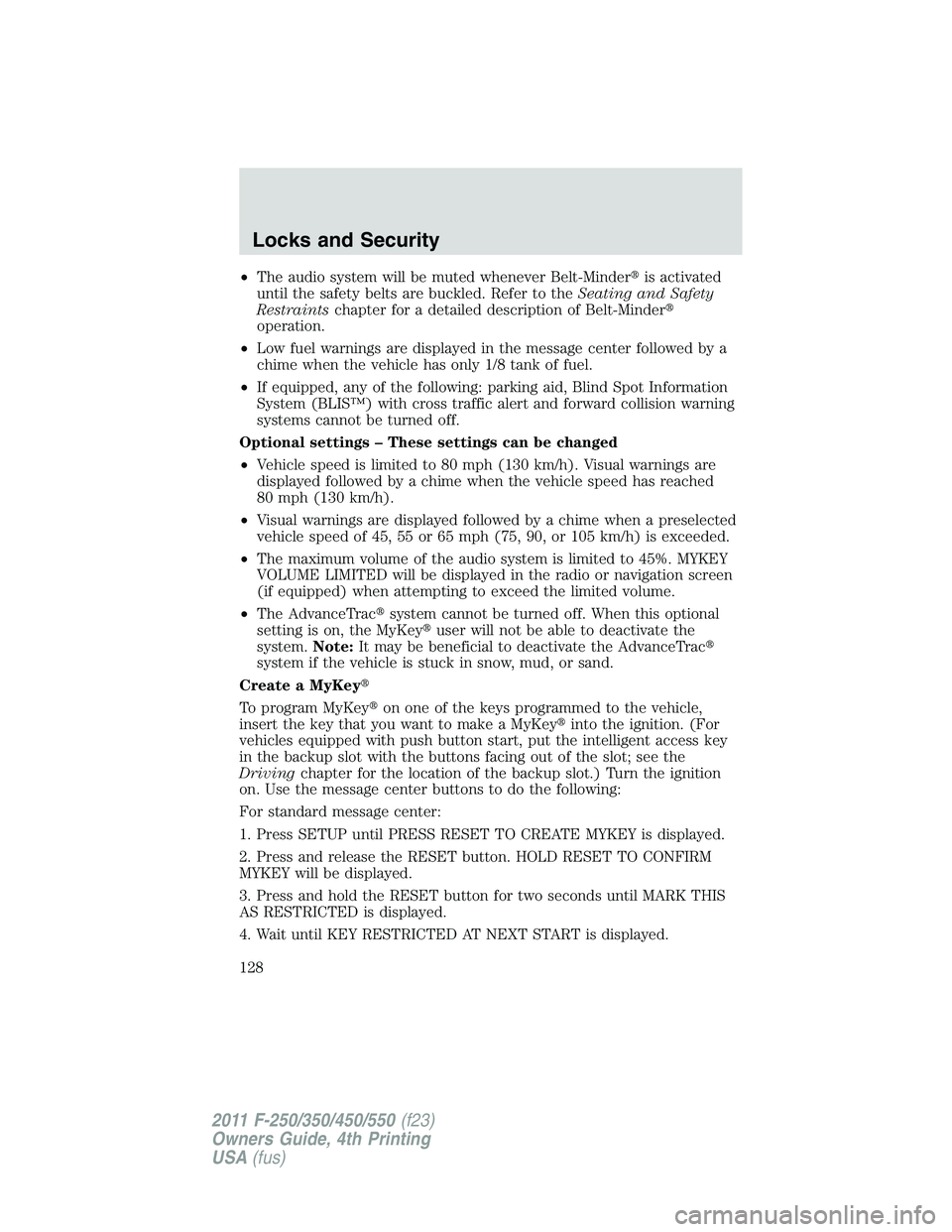

• The audio system will be muted whenever Belt-Minder  is activated
until the safety belts are buckled. Refer to the Seating and Safety
Restraints chapter for a detailed description of Belt-Minder
operation.
• Low fuel warnings are displayed in the message center followed by a
chime when the vehicle has only 1/8 tank of fuel.
• If equipped, any of the following: parking aid, Blind Spot Information
System (BLIS™) with cross traffic alert and forward collision warning
systems cannot be turned off.
Optional settings – These settings can be changed
• Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
• Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
• The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the radio or navigation screen
(if equipped) when attempting to exceed the limited volume.
• The AdvanceTrac  system cannot be turned off. When this optional
setting is on, the MyKey  user will not be able to deactivate the
system. Note: It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Create a MyKey
To program MyKey  on one of the keys programmed to the vehicle,
insert the key that you want to make a MyKey  into the ignition. (For
vehicles equipped with push button start, put the intelligent access key
in the backup slot with the buttons facing out of the slot; see the
Driving chapter for the location of the backup slot.) Turn the ignition
on. Use the message center buttons to do the following:
For standard message center:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.Locks and Security
128
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

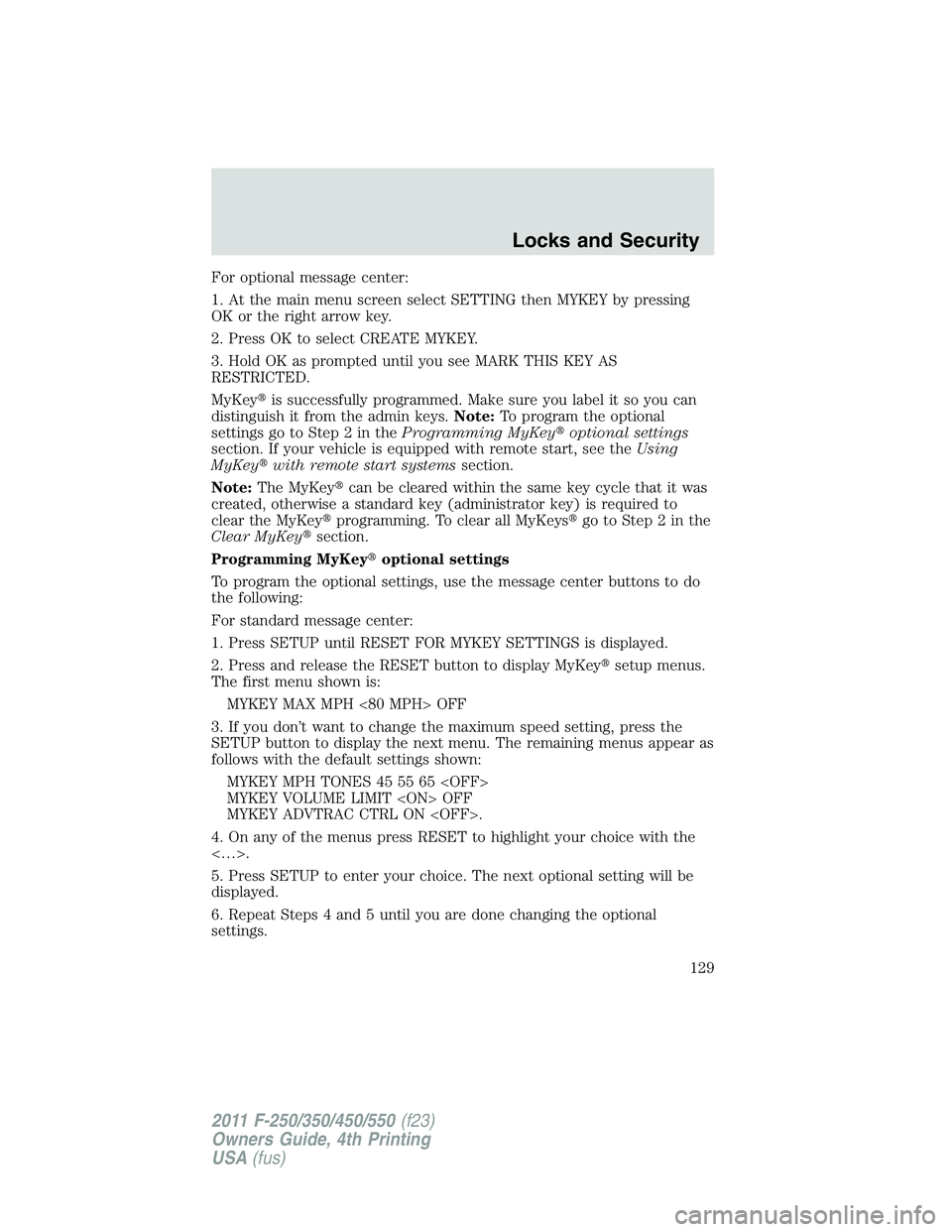

For optional message center:
1. At the main menu screen select SETTING then MYKEY by pressing
OK or the right arrow key.
2. Press OK to select CREATE MYKEY.
3. Hold OK as prompted until you see MARK THIS KEY AS
RESTRICTED.
MyKey  is successfully programmed. Make sure you label it so you can
distinguish it from the admin keys. Note: To program the optional
settings go to Step 2 in the Programming MyKey  optional settings
section. If your vehicle is equipped with remote start, see the Using
MyKey  with remote start systems section.
Note: The MyKey  can be cleared within the same key cycle that it was
created, otherwise a standard key (administrator key) is required to
clear the MyKey  programming. To clear all MyKeys  go to Step 2 in the
Clear MyKey  section.
Programming MyKey  optional settings
To program the optional settings, use the message center buttons to do
the following:
For standard message center:
1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.
2. Press and release the RESET button to display MyKey  setup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
4. On any of the menus press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional
settings. Locks and Security
129
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

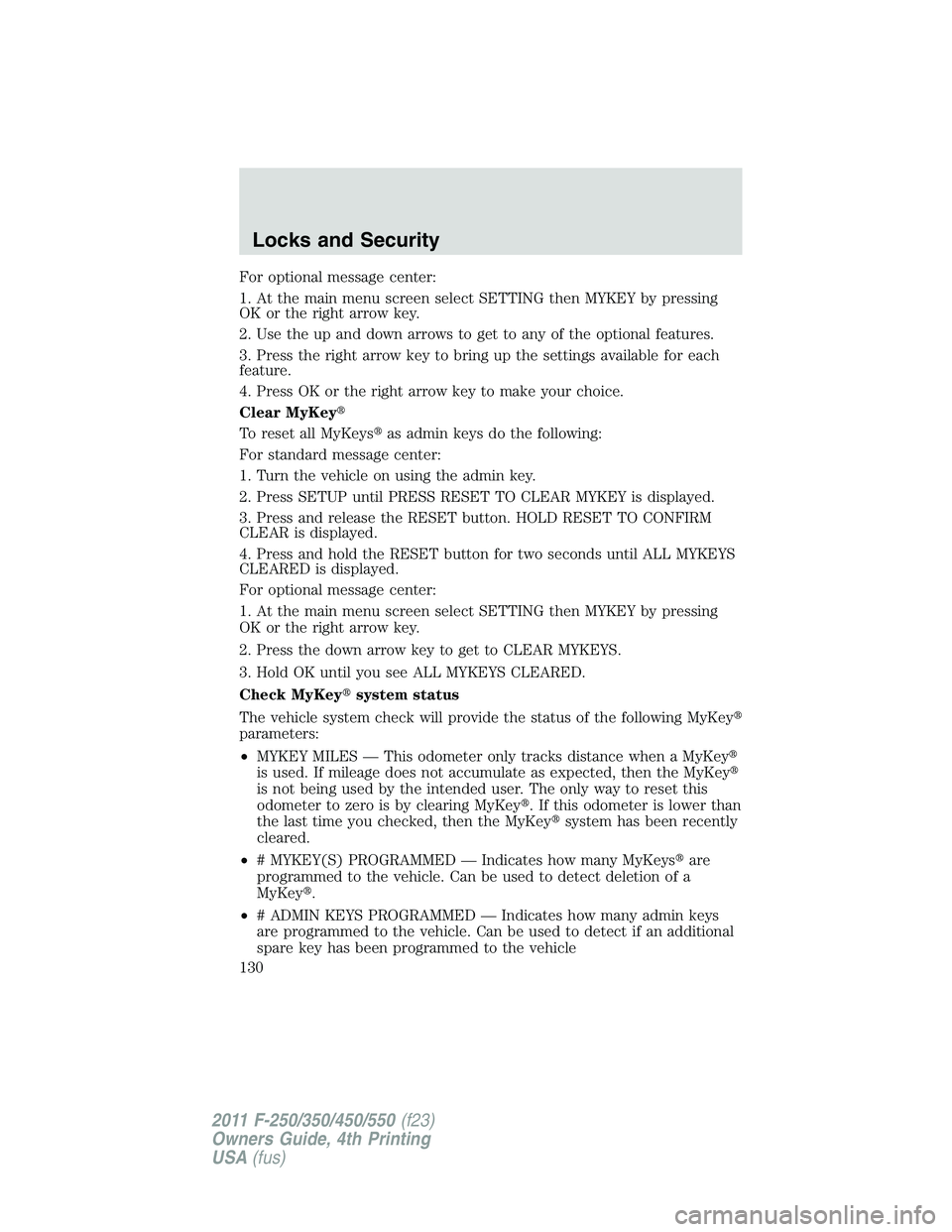

For optional message center:
1. At the main menu screen select SETTING then MYKEY by pressing
OK or the right arrow key.
2. Use the up and down arrows to get to any of the optional features.
3. Press the right arrow key to bring up the settings available for each
feature.
4. Press OK or the right arrow key to make your choice.
Clear MyKey
To reset all MyKeys  as admin keys do the following:
For standard message center:
1. Turn the vehicle on using the admin key.
2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
3. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
4. Press and hold the RESET button for two seconds until ALL MYKEYS
CLEARED is displayed.
For optional message center:
1. At the main menu screen select SETTING then MYKEY by pressing
OK or the right arrow key.
2. Press the down arrow key to get to CLEAR MYKEYS.
3. Hold OK until you see ALL MYKEYS CLEARED.
Check MyKey  system status
The vehicle system check will provide the status of the following MyKey
parameters:
• MYKEY MILES — This odometer only tracks distance when a MyKey
is used. If mileage does not accumulate as expected, then the MyKey
is not being used by the intended user. The only way to reset this
odometer to zero is by clearing MyKey  . If this odometer is lower than
the last time you checked, then the MyKey  system has been recently
cleared.
• # MYKEY(S) PROGRAMMED — Indicates how many MyKeys  are
programmed to the vehicle. Can be used to detect deletion of a
MyKey  .
• # ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicleLocks and Security
130
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
