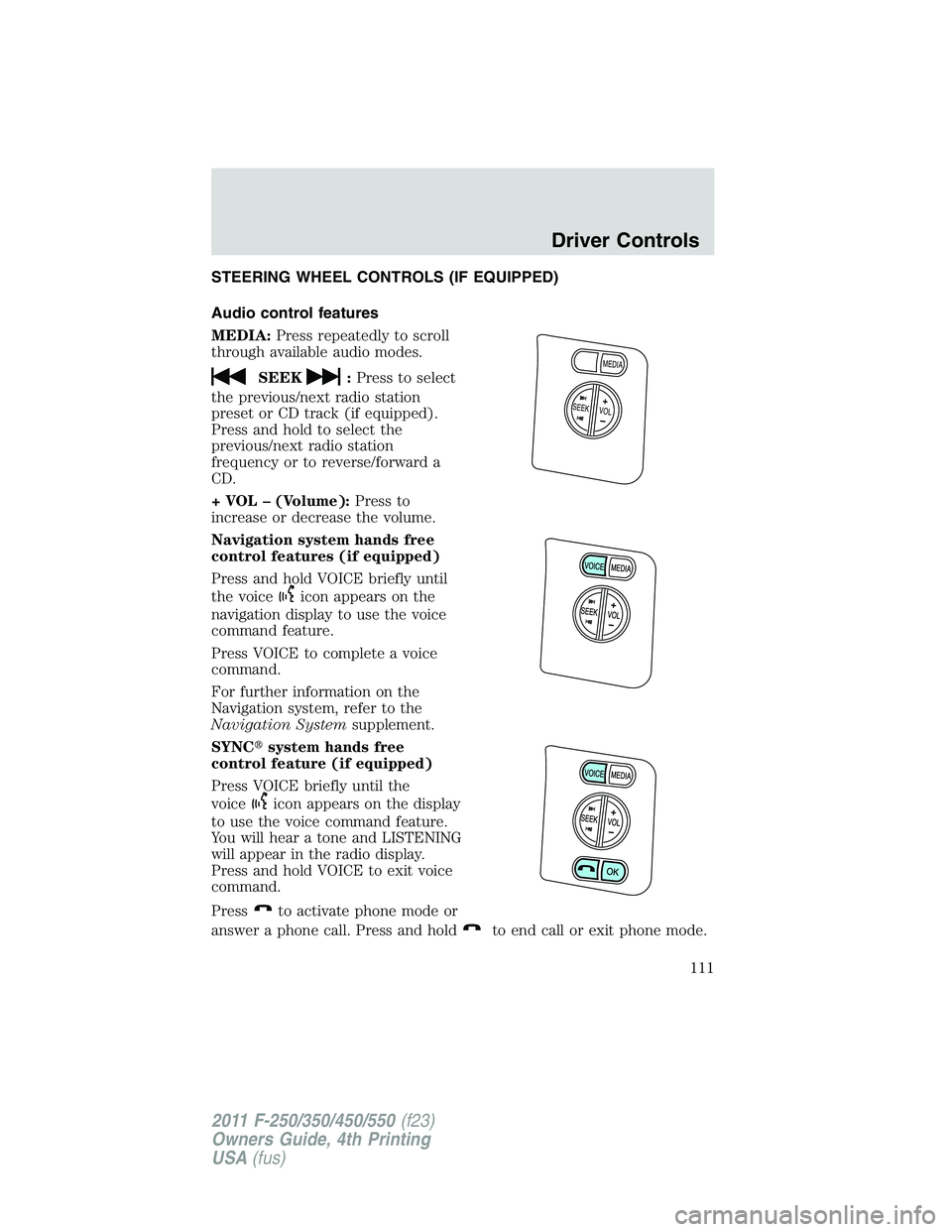

STEERING WHEEL CONTROLS (IF EQUIPPED)
Audio control features
MEDIA: Press repeatedly to scroll
through available audio modes.
SEEK : Press to select
the previous/next radio station
preset or CD track (if equipped).
Press and hold to select the
previous/next radio station
frequency or to reverse/forward a
CD.
+ VOL – (Volume): Press to
increase or decrease the volume.
Navigation system hands free
control features (if equipped)
Press and hold VOICE briefly until
the voice icon appears on the
navigation display to use the voice
command feature.
Press VOICE to complete a voice
command.
For further information on the
Navigation system, refer to the
Navigation System supplement.
SYNC  system hands free
control feature (if equipped)
Press VOICE briefly until the
voice icon appears on the display
to use the voice command feature.
You will hear a tone and LISTENING
will appear in the radio display.
Press and hold VOICE to exit voice
command.
Press to activate phone mode or
answer a phone call. Press and hold to end call or exit phone mode. V O
LS EEK M E D IA
+
Driver Controls
111
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Press to scroll through various menus and selections. Press
OK to confirm your selection.
For further information on the SYNC  system, refer to the SYNC
supplement.
Navigation system/SYNC  hands
free control features (if
equipped)
Press VOICE briefly until the
voice
icon appears on the
navigation display to use the voice
command feature.
Press to activate phone mode or
answer a phone call. Press and
hold to exit phone mode or end
call.
For further information on the Navigation system/SYNC  system, refer to
the Navigation System and SYNC  supplements.

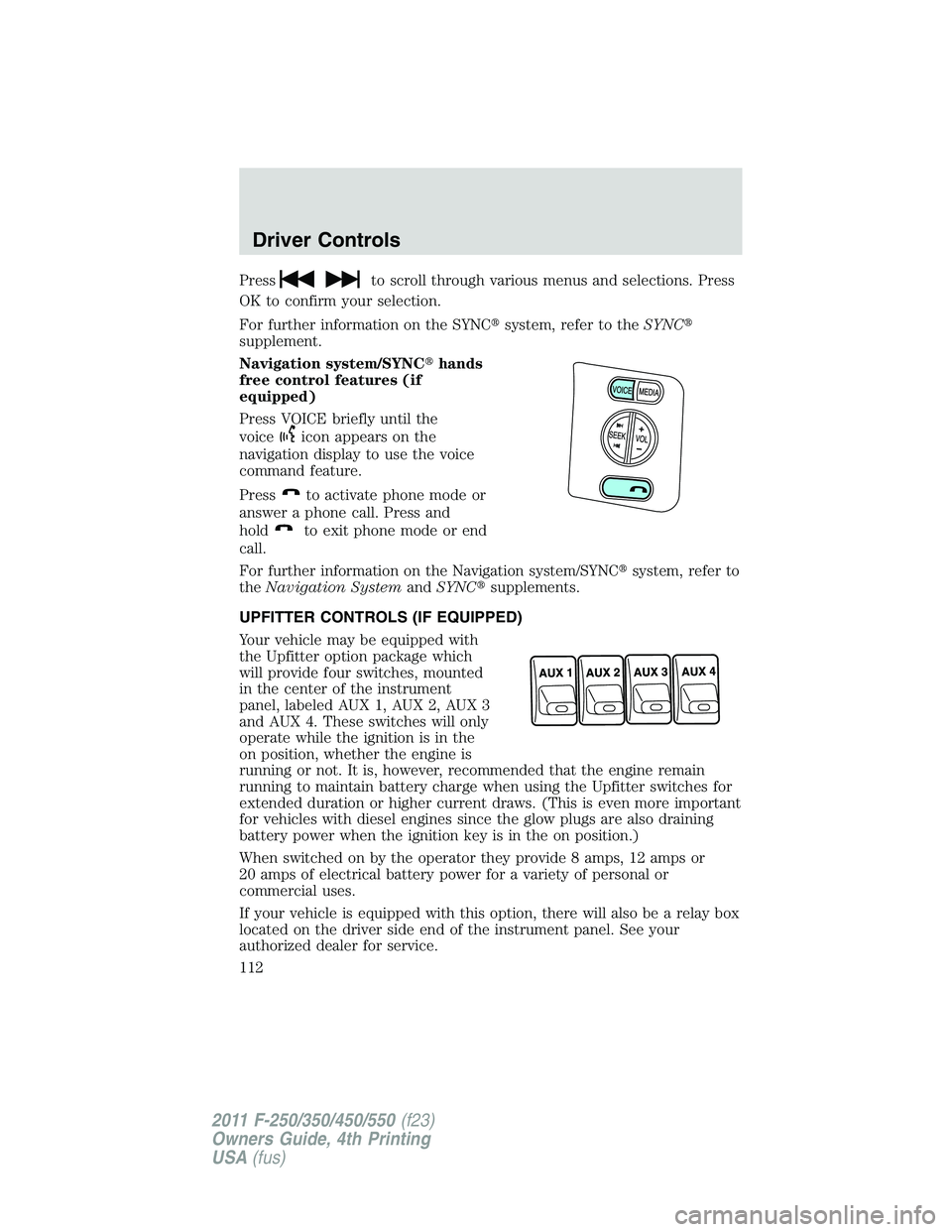

UPFITTER CONTROLS (IF EQUIPPED)
Your vehicle may be equipped with
the Upfitter option package which
will provide four switches, mounted
in the center of the instrument
panel, labeled AUX 1, AUX 2, AUX 3
and AUX 4. These switches will only
operate while the ignition is in the
on position, whether the engine is
running or not. It is, however, recommended that the engine remain
running to maintain battery charge when using the Upfitter switches for
extended duration or higher current draws. (This is even more important
for vehicles with diesel engines since the glow plugs are also draining
battery power when the ignition key is in the on position.)
When switched on by the operator they provide 8 amps, 12 amps or
20 amps of electrical battery power for a variety of personal or
commercial uses.
If your vehicle is equipped with this option, there will also be a relay box
located on the driver side end of the instrument panel. See your
authorized dealer for service.Driver Controls
112
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

The relays are coded as shown in
the accompanying illustration.
There will also be one power lead
for each switch found as a blunt-cut
and sealed wire located below the
instrument panel and to the left of
the steering column.
They are coded as follows:
Switch Circuit number Wire color Fuse
AUX 1 CAC05 Yellow 25A
AUX 2 CAC06 Green with
Brown Trace 25A
AUX 3 CAC07 Violet with
Green Trace 10A
AUX 4 CAC08 Brown 15A
More detailed information about Upfitter switches can be found at
https://www.fleet.ford.com/truckbbas/.
MOON ROOF (IF EQUIPPED)
The moon roof control is located on the overhead console.
WARNING: Do not let children play with the moon roof or leave
children unattended in the vehicle. They may seriously hurt
themselves. RELAY
1RELAY
2RELAY
3RELAY
4
Driver Controls
113
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

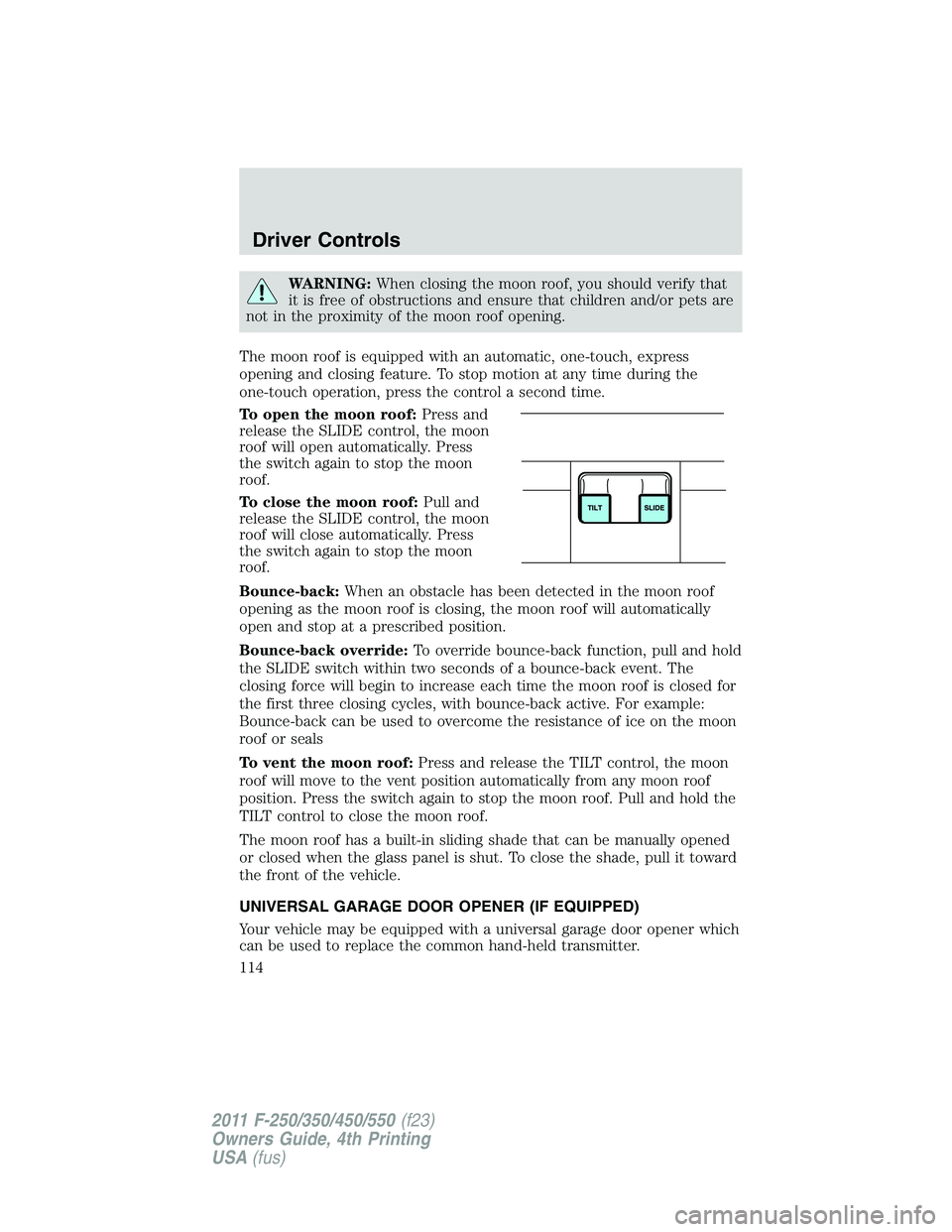

WARNING: When closing the moon roof, you should verify that
it is free of obstructions and ensure that children and/or pets are
not in the proximity of the moon roof opening.
The moon roof is equipped with an automatic, one-touch, express
opening and closing feature. To stop motion at any time during the
one-touch operation, press the control a second time.
To open the moon roof: Press and
release the SLIDE control, the moon
roof will open automatically. Press
the switch again to stop the moon
roof.
To close the moon roof: Pull and
release the SLIDE control, the moon
roof will close automatically. Press
the switch again to stop the moon
roof.
Bounce-back: When an obstacle has been detected in the moon roof
opening as the moon roof is closing, the moon roof will automatically
open and stop at a prescribed position.
Bounce-back override: To override bounce-back function, pull and hold
the SLIDE switch within two seconds of a bounce-back event. The
closing force will begin to increase each time the moon roof is closed for
the first three closing cycles, with bounce-back active. For example:
Bounce-back can be used to overcome the resistance of ice on the moon
roof or seals
To vent the moon roof: Press and release the TILT control, the moon
roof will move to the vent position automatically from any moon roof
position. Press the switch again to stop the moon roof. Pull and hold the
TILT control to close the moon roof.
The moon roof has a built-in sliding shade that can be manually opened
or closed when the glass panel is shut. To close the shade, pull it toward
the front of the vehicle.
UNIVERSAL GARAGE DOOR OPENER (IF EQUIPPED)
Your vehicle may be equipped with a universal garage door opener which
can be used to replace the common hand-held transmitter.Driver Controls
114
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

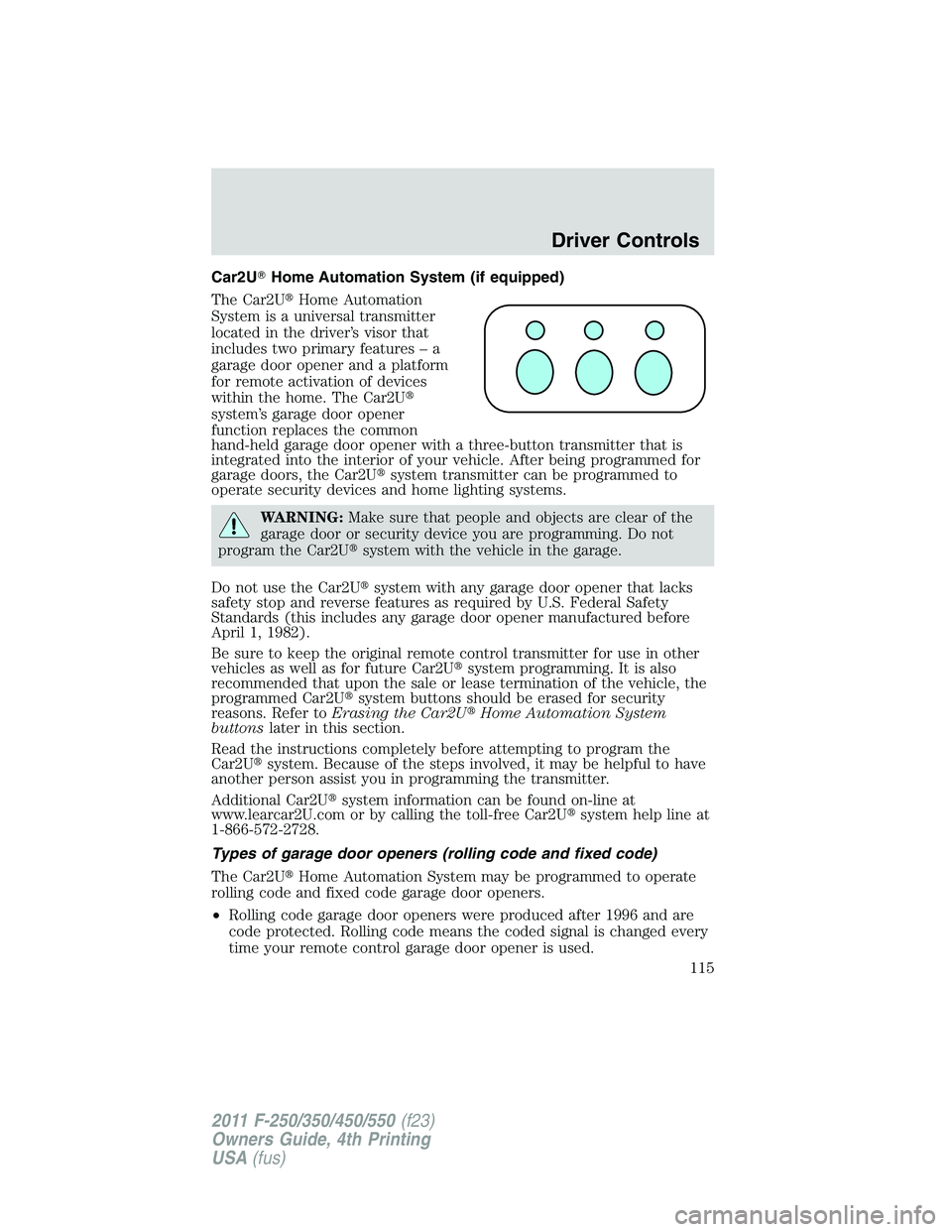

Car2U  Home Automation System (if equipped)
The Car2U  Home Automation
System is a universal transmitter
located in the driver’s visor that
includes two primary features – a
garage door opener and a platform
for remote activation of devices
within the home. The Car2U
system’s garage door opener
function replaces the common
hand-held garage door opener with a three-button transmitter that is
integrated into the interior of your vehicle. After being programmed for
garage doors, the Car2U  system transmitter can be programmed to
operate security devices and home lighting systems.
WARNING: Make sure that people and objects are clear of the
garage door or security device you are programming. Do not
program the Car2U  system with the vehicle in the garage.
Do not use the Car2U  system with any garage door opener that lacks
safety stop and reverse features as required by U.S. Federal Safety
Standards (this includes any garage door opener manufactured before
April 1, 1982).
Be sure to keep the original remote control transmitter for use in other
vehicles as well as for future Car2U  system programming. It is also
recommended that upon the sale or lease termination of the vehicle, the
programmed Car2U  system buttons should be erased for security
reasons. Refer to Erasing the Car2U  Home Automation System
buttons later in this section.
Read the instructions completely before attempting to program the
Car2U  system. Because of the steps involved, it may be helpful to have
another person assist you in programming the transmitter.
Additional Car2U  system information can be found on-line at
www.learcar2U.com or by calling the toll-free Car2U  system help line at
1-866-572-2728.
Types of garage door openers (rolling code and fixed code)
The Car2U  Home Automation System may be programmed to operate
rolling code and fixed code garage door openers.
• Rolling code garage door openers were produced after 1996 and are
code protected. Rolling code means the coded signal is changed every
time your remote control garage door opener is used. Driver Controls
115
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

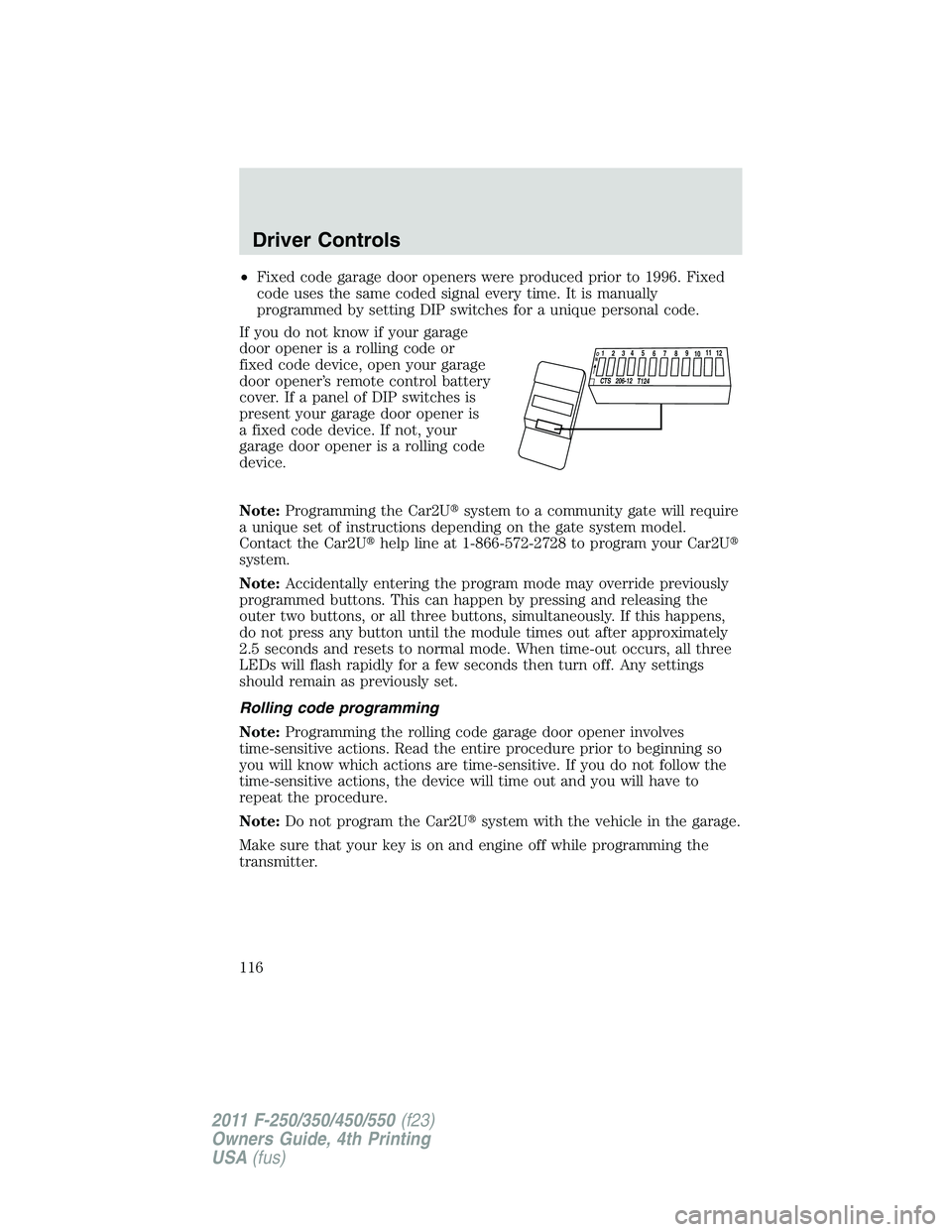

• Fixed code garage door openers were produced prior to 1996. Fixed
code uses the same coded signal every time. It is manually
programmed by setting DIP switches for a unique personal code.
If you do not know if your garage
door opener is a rolling code or
fixed code device, open your garage
door opener’s remote control battery
cover. If a panel of DIP switches is
present your garage door opener is
a fixed code device. If not, your
garage door opener is a rolling code
device.
Note: Programming the Car2U  system to a community gate will require
a unique set of instructions depending on the gate system model.
Contact the Car2U  help line at 1-866-572-2728 to program your Car2U
system.
Note: Accidentally entering the program mode may override previously
programmed buttons. This can happen by pressing and releasing the
outer two buttons, or all three buttons, simultaneously. If this happens,
do not press any button until the module times out after approximately
2.5 seconds and resets to normal mode. When time-out occurs, all three
LEDs will flash rapidly for a few seconds then turn off. Any settings
should remain as previously set.
Rolling code programming
Note: Programming the rolling code garage door opener involves
time-sensitive actions. Read the entire procedure prior to beginning so
you will know which actions are time-sensitive. If you do not follow the
time-sensitive actions, the device will time out and you will have to
repeat the procedure.
Note: Do not program the Car2U  system with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter. 1 2
3
4
5
6
7 8 9
1 0 1 1
1 2
C T S 206-12 T1
24 O
N
Driver Controls
116
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

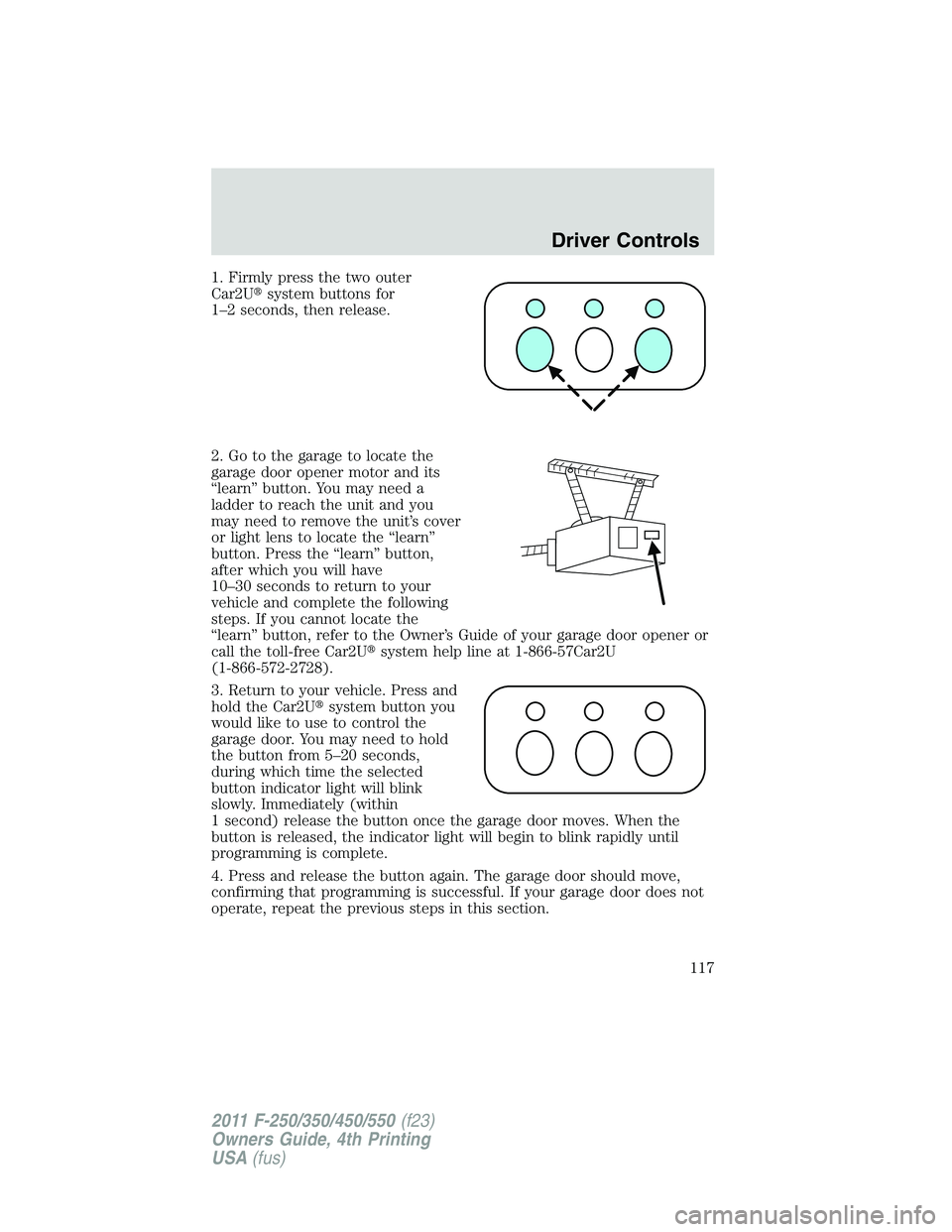

1. Firmly press the two outer
Car2U  system buttons for
1–2 seconds, then release.
2. Go to the garage to locate the
garage door opener motor and its
“learn” button. You may need a
ladder to reach the unit and you
may need to remove the unit’s cover
or light lens to locate the “learn”
button. Press the “learn” button,
after which you will have
10–30 seconds to return to your
vehicle and complete the following
steps. If you cannot locate the
“learn” button, refer to the Owner’s Guide of your garage door opener or
call the toll-free Car2U  system help line at 1-866-57Car2U
(1-866-572-2728).
3. Return to your vehicle. Press and
hold the Car2U  system button you
would like to use to control the
garage door. You may need to hold
the button from 5–20 seconds,
during which time the selected
button indicator light will blink
slowly. Immediately (within
1 second) release the button once the garage door moves. When the
button is released, the indicator light will begin to blink rapidly until
programming is complete.
4. Press and release the button again. The garage door should move,
confirming that programming is successful. If your garage door does not
operate, repeat the previous steps in this section. Driver Controls
117
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

After successful programming, you will be able to operate your Car2U
system by pressing the button you programmed to activate the opener.
The indicator light above the selected button will turn on to confirm that
the Car2U  system is responding to the button command.
To program another rolling code device such as an additional garage door
opener, a security device or home lighting, repeat Steps 1 through 4
substituting a different function button in Step 3 than what you used for
the garage door opener. For example, you could assign the left-most
button to the garage door, the center button to a security device, and
the right-most button to another garage door opener.
Note: The Car2U  system allows for three devices to be programmed. If
you need to change or replace any of the three devices after it has been
initially programmed, it is necessary to erase the current settings using
the Erasing the Car2U  Home Automation System buttons procedure
and then programming all of the devices being used.
Fixed code programming
Note: Do not program the Car2U  system with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.

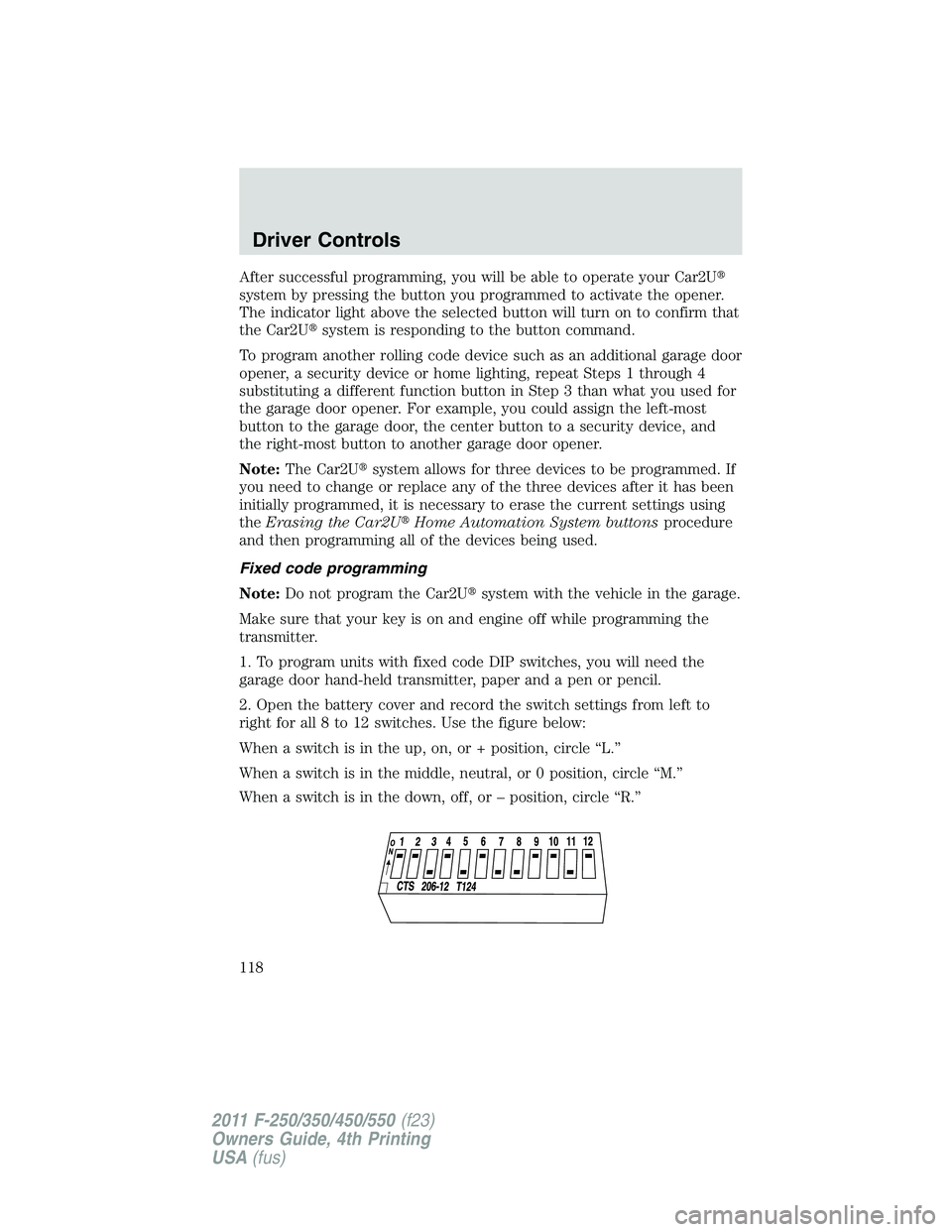

1. To program units with fixed code DIP switches, you will need the
garage door hand-held transmitter, paper and a pen or pencil.
2. Open the battery cover and record the switch settings from left to
right for all 8 to 12 switches. Use the figure below:
When a switch is in the up, on, or + position, circle “L.”
When a switch is in the middle, neutral, or 0 position, circle “M.”
When a switch is in the down, off, or – position, circle “R.”Driver Controls
118
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Switch
position 1234567 8 9101112
Up, on
or + LLLLLLL LLLLL
Middle,
neutral
or 0 MMMMMMM MMMMM
Down,
offor– RRRRRRR RRRRR
L=left; M=middle; R=right

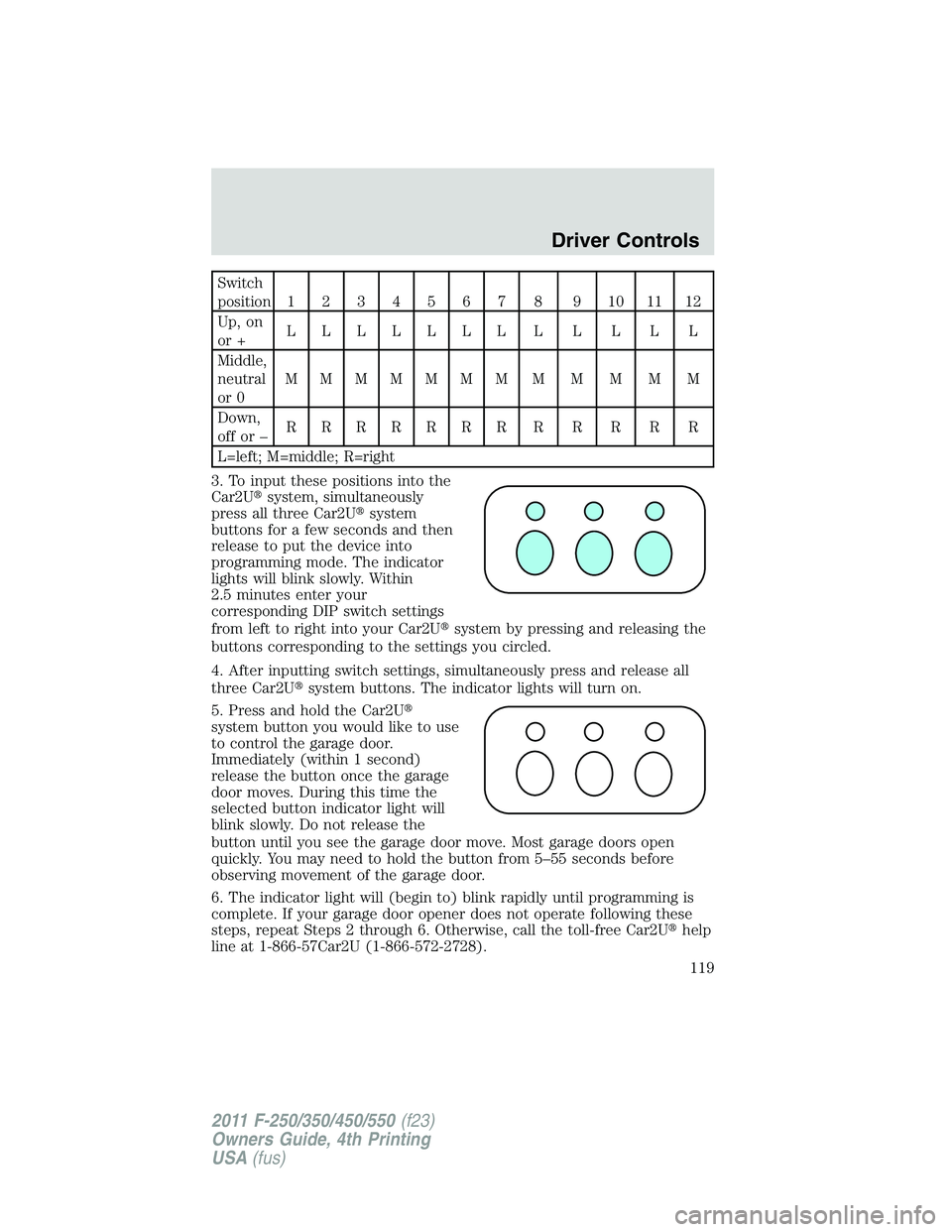

3. To input these positions into the
Car2U  system, simultaneously
press all three Car2U  system
buttons for a few seconds and then
release to put the device into
programming mode. The indicator
lights will blink slowly. Within
2.5 minutes enter your
corresponding DIP switch settings
from left to right into your Car2U  system by pressing and releasing the
buttons corresponding to the settings you circled.
4. After inputting switch settings, simultaneously press and release all
three Car2U  system buttons. The indicator lights will turn on.
5. Press and hold the Car2U
system button you would like to use
to control the garage door.
Immediately (within 1 second)
release the button once the garage
door moves. During this time the
selected button indicator light will
blink slowly. Do not release the
button until you see the garage door move. Most garage doors open
quickly. You may need to hold the button from 5–55 seconds before
observing movement of the garage door.
6. The indicator light will (begin to) blink rapidly until programming is
complete. If your garage door opener does not operate following these
steps, repeat Steps 2 through 6. Otherwise, call the toll-free Car2U  help
line at 1-866-57Car2U (1-866-572-2728). Driver Controls
119
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

After successful programming, you will be able to operate your Car2U
system by pressing the button you programmed to activate the opener.
The indicator light above the selected button will turn on to confirm that
the Car2U  system is responding to the button command.

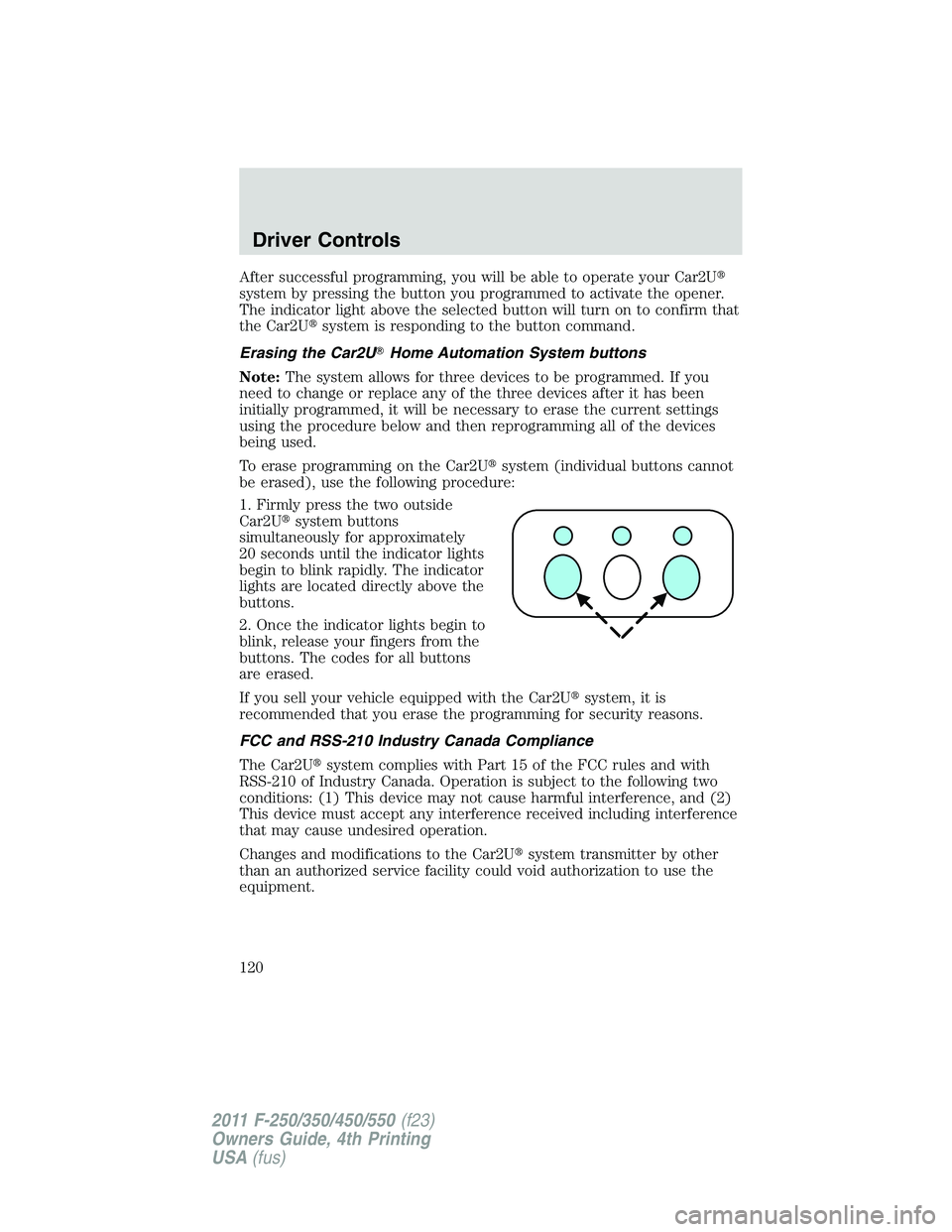

Erasing the Car2U  Home Automation System buttons
Note: The system allows for three devices to be programmed. If you
need to change or replace any of the three devices after it has been
initially programmed, it will be necessary to erase the current settings
using the procedure below and then reprogramming all of the devices
being used.
To erase programming on the Car2U  system (individual buttons cannot
be erased), use the following procedure:
1. Firmly press the two outside
Car2U  system buttons
simultaneously for approximately
20 seconds until the indicator lights
begin to blink rapidly. The indicator
lights are located directly above the
buttons.
2. Once the indicator lights begin to
blink, release your fingers from the
buttons. The codes for all buttons
are erased.
If you sell your vehicle equipped with the Car2U  system, it is
recommended that you erase the programming for security reasons.
FCC and RSS-210 Industry Canada Compliance
The Car2U  system complies with Part 15 of the FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received including interference
that may cause undesired operation.
Changes and modifications to the Car2U  system transmitter by other
than an authorized service facility could void authorization to use the
equipment.Driver Controls
120
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
