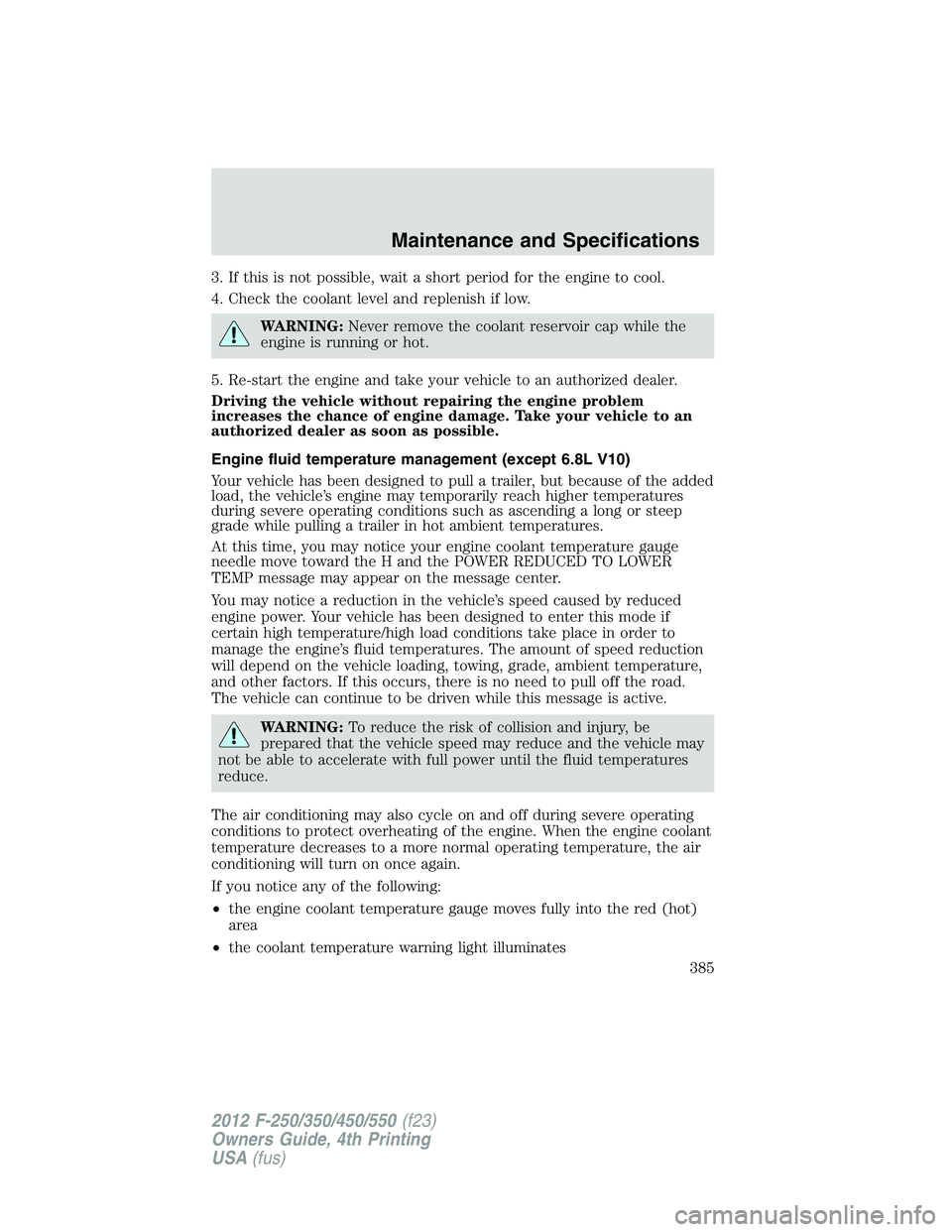

3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot.
5. Re-start the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
Engine fluid temperature management (except 6.8L V10)
Your vehicle has been designed to pull a trailer, but because of the added
load, the vehicle’s engine may temporarily reach higher temperatures
during severe operating conditions such as ascending a long or steep
grade while pulling a trailer in hot ambient temperatures.
At this time, you may notice your engine coolant temperature gauge
needle move toward the H and the POWER REDUCED TO LOWER
TEMP message may appear on the message center.
You may notice a reduction in the vehicle’s speed caused by reduced
engine power. Your vehicle has been designed to enter this mode if
certain high temperature/high load conditions take place in order to
manage the engine’s fluid temperatures. The amount of speed reduction
will depend on the vehicle loading, towing, grade, ambient temperature,
and other factors. If this occurs, there is no need to pull off the road.
The vehicle can continue to be driven while this message is active.
WARNING: To reduce the risk of collision and injury, be
prepared that the vehicle speed may reduce and the vehicle may
not be able to accelerate with full power until the fluid temperatures
reduce.
The air conditioning may also cycle on and off during severe operating
conditions to protect overheating of the engine. When the engine coolant
temperature decreases to a more normal operating temperature, the air
conditioning will turn on once again.
If you notice any of the following:
• the engine coolant temperature gauge moves fully into the red (hot)
area
• the coolant temperature warning light illuminates Maintenance and Specifications
385
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

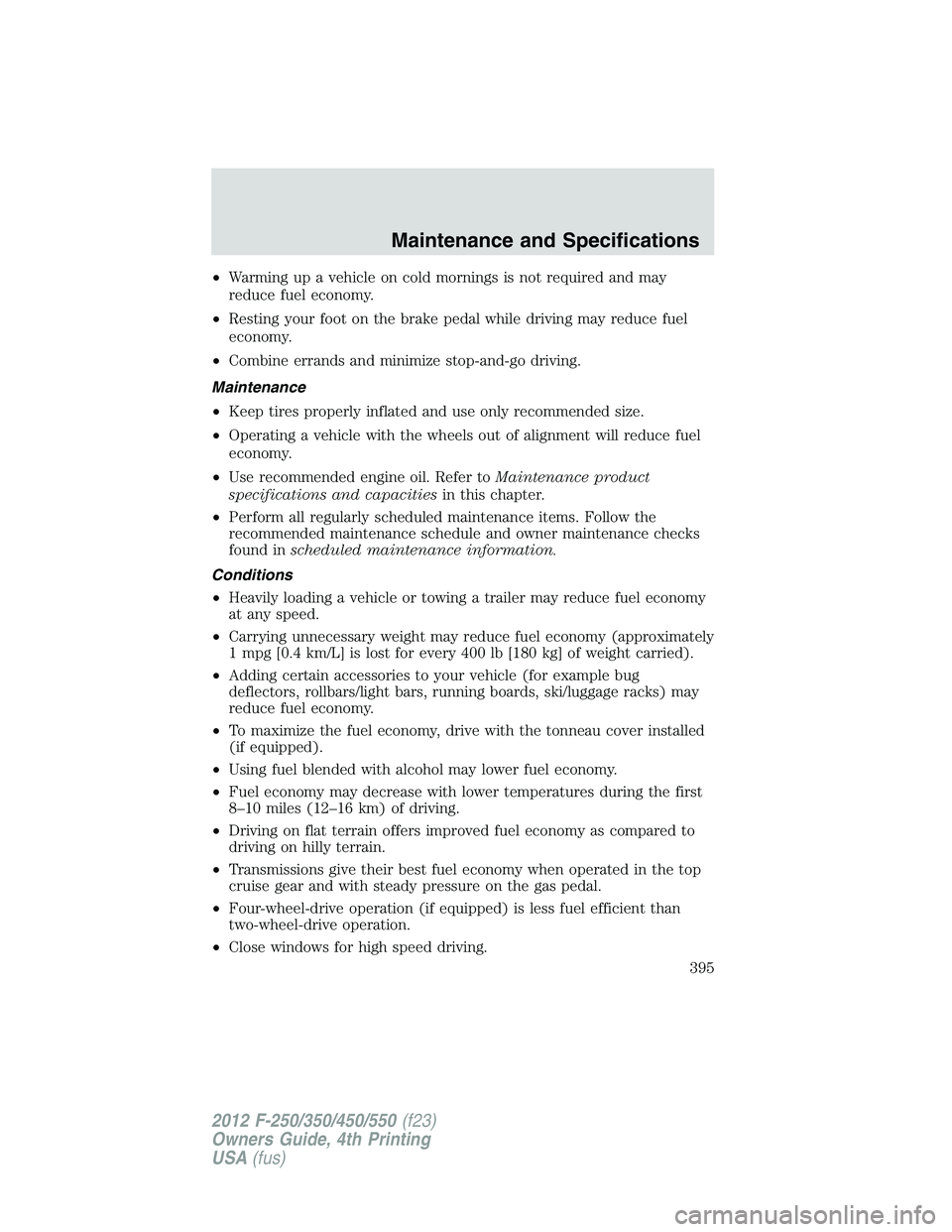

• Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
• Resting your foot on the brake pedal while driving may reduce fuel
economy.
• Combine errands and minimize stop-and-go driving.
Maintenance
• Keep tires properly inflated and use only recommended size.
• Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
• Use recommended engine oil. Refer to Maintenance product
specifications and capacities in this chapter.
• Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found in scheduled maintenance information.
Conditions
• Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
• Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
• Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
• To maximize the fuel economy, drive with the tonneau cover installed
(if equipped).
• Using fuel blended with alcohol may lower fuel economy.
• Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
• Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
• Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
• Four-wheel-drive operation (if equipped) is less fuel efficient than
two-wheel-drive operation.
• Close windows for high speed driving. Maintenance and Specifications
395
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

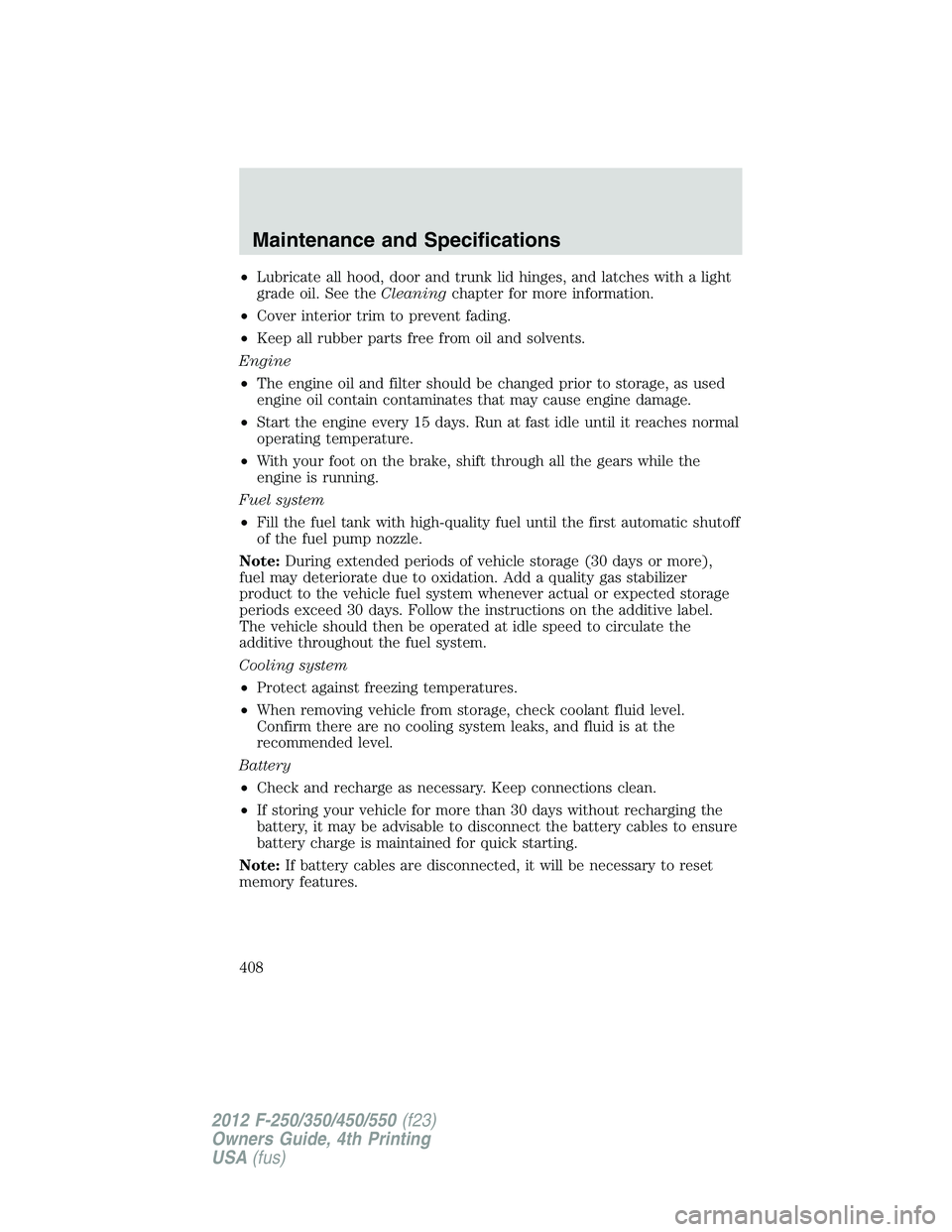

• Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See the Cleaning chapter for more information.
• Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and solvents.
Engine
• The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
• Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
• With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
• Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note: During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add a quality gas stabilizer
product to the vehicle fuel system whenever actual or expected storage
periods exceed 30 days. Follow the instructions on the additive label.
The vehicle should then be operated at idle speed to circulate the
additive throughout the fuel system.
Cooling system
• Protect against freezing temperatures.
• When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
• Check and recharge as necessary. Keep connections clean.
• If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note: If battery cables are disconnected, it will be necessary to reset
memory features.Maintenance and Specifications
408
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

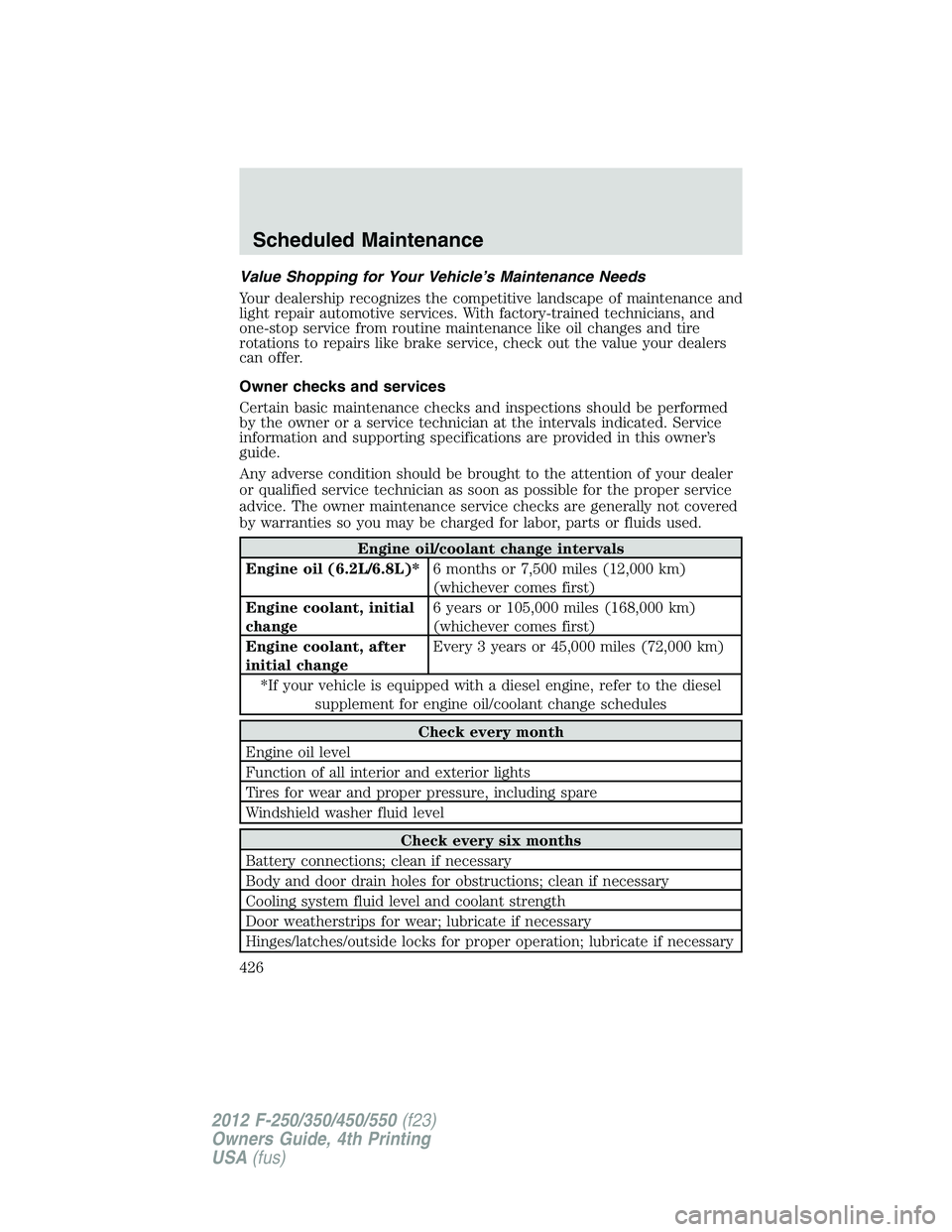

Value Shopping for Your Vehicle’s Maintenance Needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your dealers
can offer.
Owner checks and services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this owner’s
guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Engine oil/coolant change intervals
Engine oil (6.2L/6.8L)* 6 months or 7,500 miles (12,000 km)
(whichever comes first)
Engine coolant, initial
change 6 years or 105,000 miles (168,000 km)
(whichever comes first)
Engine coolant, after
initial change Every 3 years or 45,000 miles (72,000 km)
*If your vehicle is equipped with a diesel engine, refer to the diesel
supplement for engine oil/coolant change schedules
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessaryScheduled Maintenance
426
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

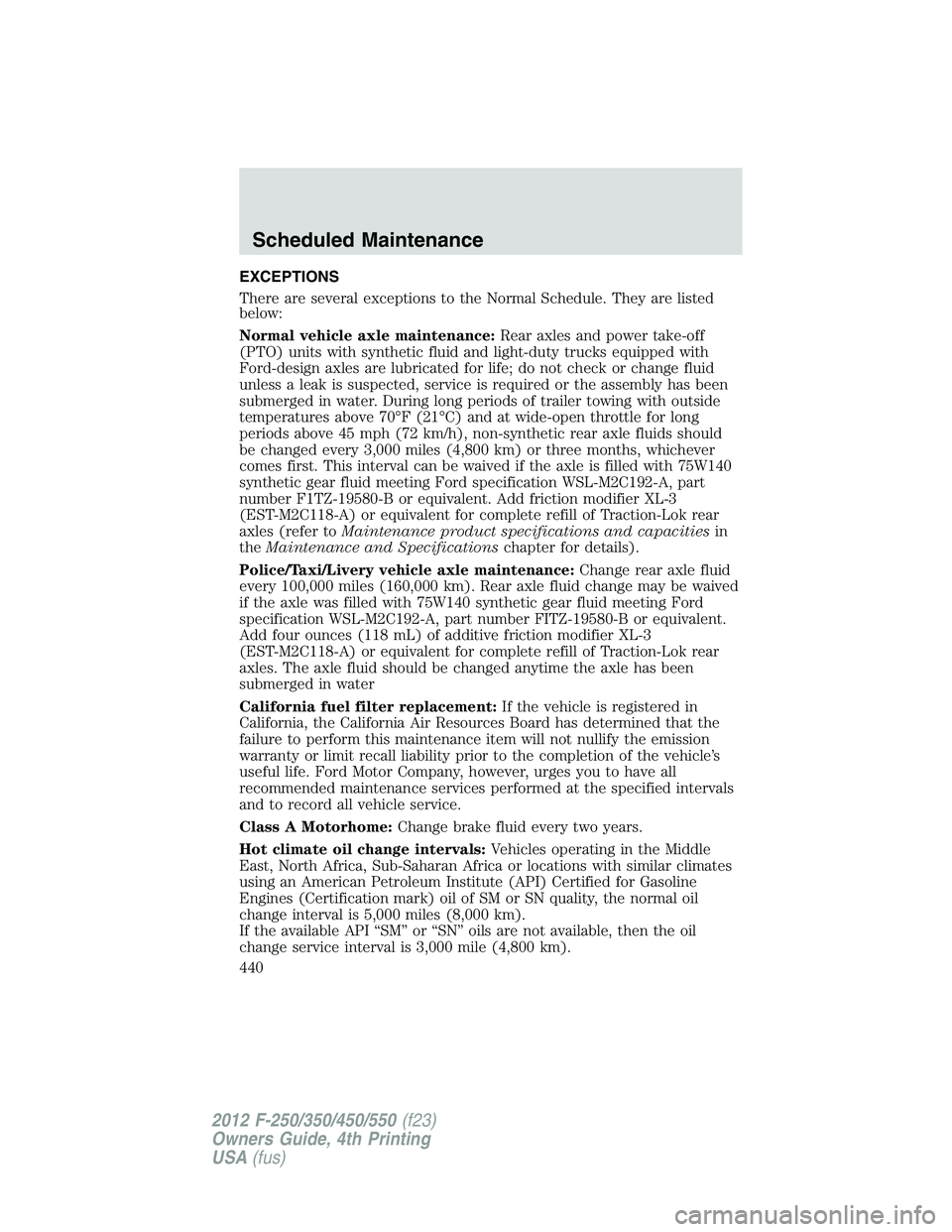

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance: Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer to Maintenance product specifications and capacities in
the Maintenance and Specifications chapter for details).
Police/Taxi/Livery vehicle axle maintenance: Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement: If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome: Change brake fluid every two years.
Hot climate oil change intervals: Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5,000 miles (8,000 km).
If the available API “SM” or “SN” oils are not available, then the oil
change service interval is 3,000 mile (4,800 km).Scheduled Maintenance
440
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

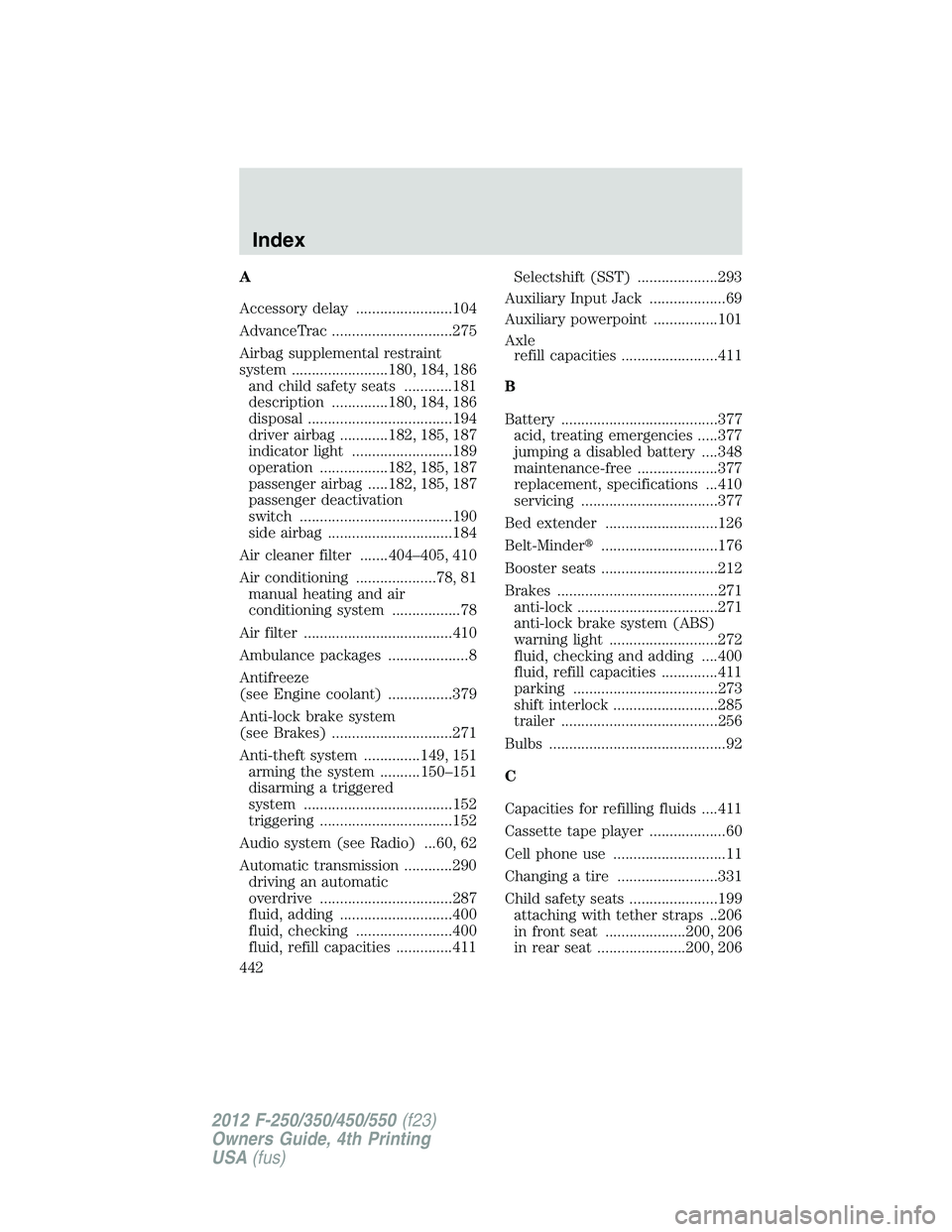

A
Accessory delay ........................104
AdvanceTrac ..............................275
Airbag supplemental restraint
system ........................180, 184, 186
and child safety seats ............181
description ..............180, 184, 186
disposal ....................................194
driver airbag ............182, 185, 187
indicator light .........................189
operation .................182, 185, 187
passenger airbag .....182, 185, 187
passenger deactivation
switch ......................................190
side airbag ...............................184
Air cleaner filter .......404–405, 410
Air conditioning ....................78, 81
manual heating and air
conditioning system .................78
Air filter .....................................410
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................379
Anti-lock brake system
(see Brakes) ..............................271
Anti-theft system ..............149, 151
arming the system ..........150–151
disarming a triggered
system .....................................152
triggering .................................152
Audio system (see Radio) ...60, 62
Automatic transmission ............290
driving an automatic
overdrive .................................287
fluid, adding ............................400
fluid, checking ........................400
fluid, refill capacities ..............411 Selectshift (SST) ....................293
Auxiliary Input Jack ...................69
Auxiliary powerpoint ................101
Axle
refill capacities ........................411
B
Battery .......................................377
acid, treating emergencies .....377
jumping a disabled battery ....348
maintenance-free ....................377
replacement, specifications ...410
servicing ..................................377
Bed extender ............................126
Belt-Minder  .............................176
Booster seats .............................212
Brakes ........................................271
anti-lock ...................................271
anti-lock brake system (ABS)
warning light ...........................272
fluid, checking and adding ....400
fluid, refill capacities ..............411
parking ....................................273
shift interlock ..........................285
trailer .......................................256
Bulbs ............................................92
C
Capacities for refilling fluids ....411
Cassette tape player ...................60
Cell phone use ............................11
Changing a tire .........................331
Child safety seats ......................199
attaching with tether straps ..206
in front seat ....................200, 206
in rear seat ......................200, 206Index
442
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

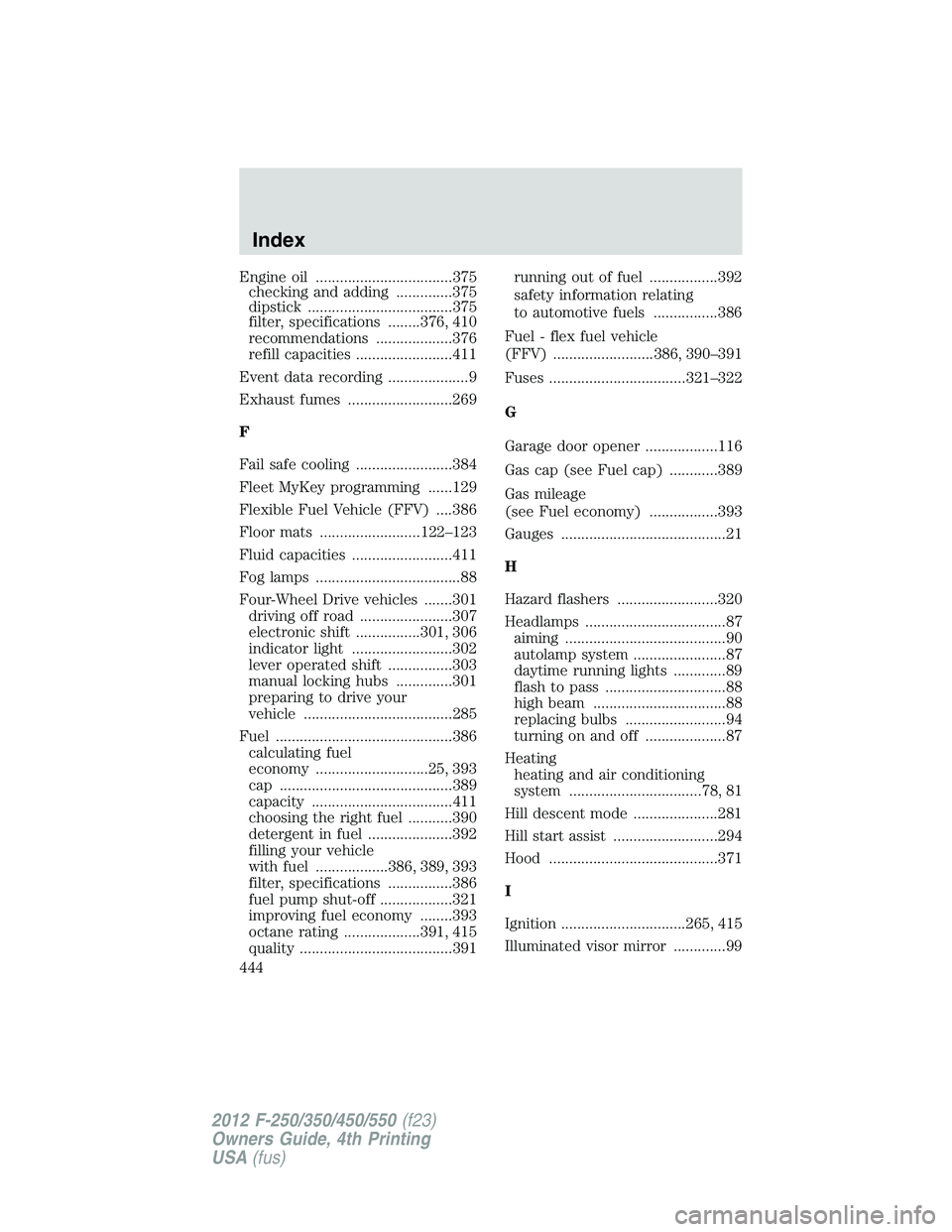

Engine oil ..................................375
checking and adding ..............375
dipstick ....................................375
filter, specifications ........376, 410
recommendations ...................376
refill capacities ........................411
Event data recording ....................9
Exhaust fumes ..........................269
F
Fail safe cooling ........................384
Fleet MyKey programming ......129
Flexible Fuel Vehicle (FFV) ....386
Floor mats .........................122–123
Fluid capacities .........................411
Fog lamps ....................................88
Four-Wheel Drive vehicles .......301
driving off road .......................307
electronic shift ................301, 306
indicator light .........................302
lever operated shift ................303
manual locking hubs ..............301
preparing to drive your
vehicle .....................................285
Fuel ............................................386
calculating fuel
economy ............................25, 393
cap ...........................................389
capacity ...................................411
choosing the right fuel ...........390
detergent in fuel .....................392
filling your vehicle
with fuel ..................386, 389, 393
filter, specifications ................386
fuel pump shut-off ..................321
improving fuel economy ........393
octane rating ...................391, 415
quality ......................................391 running out of fuel .................392
safety information relating
to automotive fuels ................386
Fuel - flex fuel vehicle
(FFV) .........................386, 390–391
Fuses ..................................321–322
G
Garage door opener ..................116
Gas cap (see Fuel cap) ............389
Gas mileage
(see Fuel economy) .................393
Gauges .........................................21
H
Hazard flashers .........................320
Headlamps ...................................87
aiming ........................................90
autolamp system .......................87
daytime running lights .............89
flash to pass ..............................88
high beam .................................88
replacing bulbs .........................94
turning on and off ....................87
Heating
heating and air conditioning
system .................................78, 81
Hill descent mode .....................281
Hill start assist ..........................294
Hood ..........................................371
I
Ignition ...............................265, 415
Illuminated visor mirror .............99Index
444
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Infant seats
(see Safety seats) .....................199
Inspection/maintenance (I/M)
testing ........................................398
Instrument panel
cleaning ...........................365–366
cluster ........................................14
lighting up panel and
interior .......................................89
J
Jack ............................................331
positioning ...............................331
storage .....................................331
Jump-starting your vehicle ......348
K
Keyless entry system
autolock ...................................137
keypad .....................................148
locking and unlocking doors ..149
programming entry code .......148
Keys ...................................129, 150
positions of the ignition .........265
L
Lamps
autolamp system .......................87
daytime running light ...............89
fog lamps ...................................88
headlamps .................................87
headlamps, flash to pass ..........88
instrument panel, dimming .....89
interior lamps ...........................92
replacing bulbs ...................94–97
LATCH anchors .........................206
Lights, warning and indicator ....14 anti-lock brakes (ABS) ..........272
Loading instructions .................251
Load limits .................................244
Locks
autolock ...................................137
childproof ................................141
doors ........................................137
Lug nuts ....................................347
Lumbar support, seats .....160–161
M
Manual transmission
fluid capacities ........................411
Message center ...............22–23, 39
english/metric button ...............27
system check button ................27
warning messages ...............29, 48
Mirrors ...............................105–106
automatic dimming rearview
mirror ......................................105
fold away .........................107–109
heated ........................................81
programmable memory ..........143
side view mirrors (power) .....106
signal .......................................109
Moon roof ..................................115
Motorcraft  parts ......................410
MyKey ........................................129
N
Navigation system .......................77
O
Octane rating ............................391
Oil (see Engine oil) ..................375 Index
445
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
