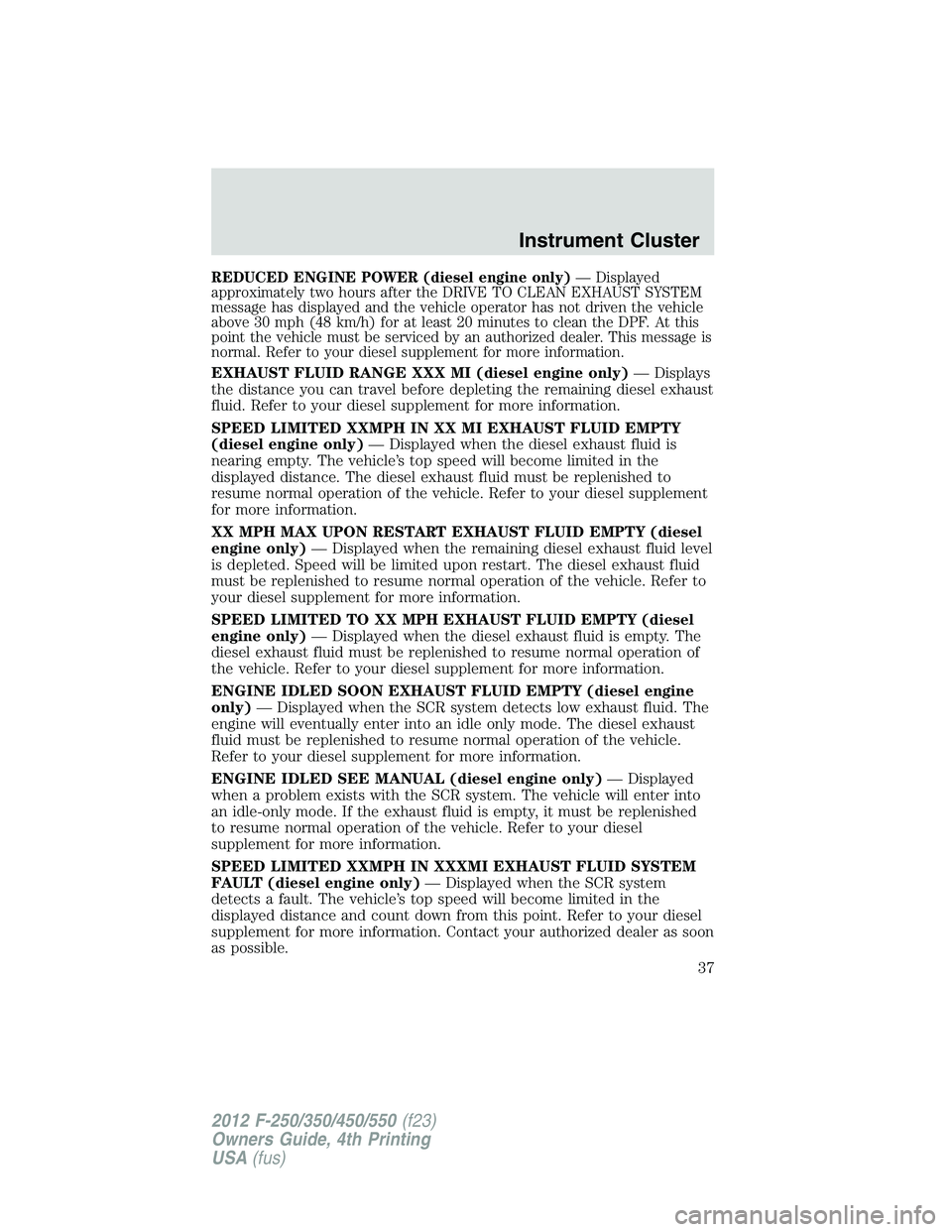

REDUCED ENGINE POWER (diesel engine only) — Displayed
approximately two hours after the DRIVE TO CLEAN EXHAUST SYSTEM
message has displayed and the vehicle operator has not driven the vehicle
above 30 mph (48 km/h) for at least 20 minutes to clean the DPF. At this
point the vehicle must be serviced by an authorized dealer. This message is
normal. Refer to your diesel supplement for more information.
EXHAUST FLUID RANGE XXX MI (diesel engine only) — Displays
the distance you can travel before depleting the remaining diesel exhaust
fluid. Refer to your diesel supplement for more information.
SPEED LIMITED XXMPH IN XX MI EXHAUST FLUID EMPTY
(diesel engine only) — Displayed when the diesel exhaust fluid is
nearing empty. The vehicle’s top speed will become limited in the
displayed distance. The diesel exhaust fluid must be replenished to
resume normal operation of the vehicle. Refer to your diesel supplement
for more information.
XX MPH MAX UPON RESTART EXHAUST FLUID EMPTY (diesel
engine only) — Displayed when the remaining diesel exhaust fluid level
is depleted. Speed will be limited upon restart. The diesel exhaust fluid
must be replenished to resume normal operation of the vehicle. Refer to
your diesel supplement for more information.
SPEED LIMITED TO XX MPH EXHAUST FLUID EMPTY (diesel
engine only) — Displayed when the diesel exhaust fluid is empty. The
diesel exhaust fluid must be replenished to resume normal operation of
the vehicle. Refer to your diesel supplement for more information.
ENGINE IDLED SOON EXHAUST FLUID EMPTY (diesel engine
only) — Displayed when the SCR system detects low exhaust fluid. The
engine will eventually enter into an idle only mode. The diesel exhaust
fluid must be replenished to resume normal operation of the vehicle.
Refer to your diesel supplement for more information.
ENGINE IDLED SEE MANUAL (diesel engine only) — Displayed
when a problem exists with the SCR system. The vehicle will enter into
an idle-only mode. If the exhaust fluid is empty, it must be replenished
to resume normal operation of the vehicle. Refer to your diesel
supplement for more information.
SPEED LIMITED XXMPH IN XXXMI EXHAUST FLUID SYSTEM
FAULT (diesel engine only) — Displayed when the SCR system
detects a fault. The vehicle’s top speed will become limited in the
displayed distance and count down from this point. Refer to your diesel
supplement for more information. Contact your authorized dealer as soon
as possible. Instrument Cluster
37
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

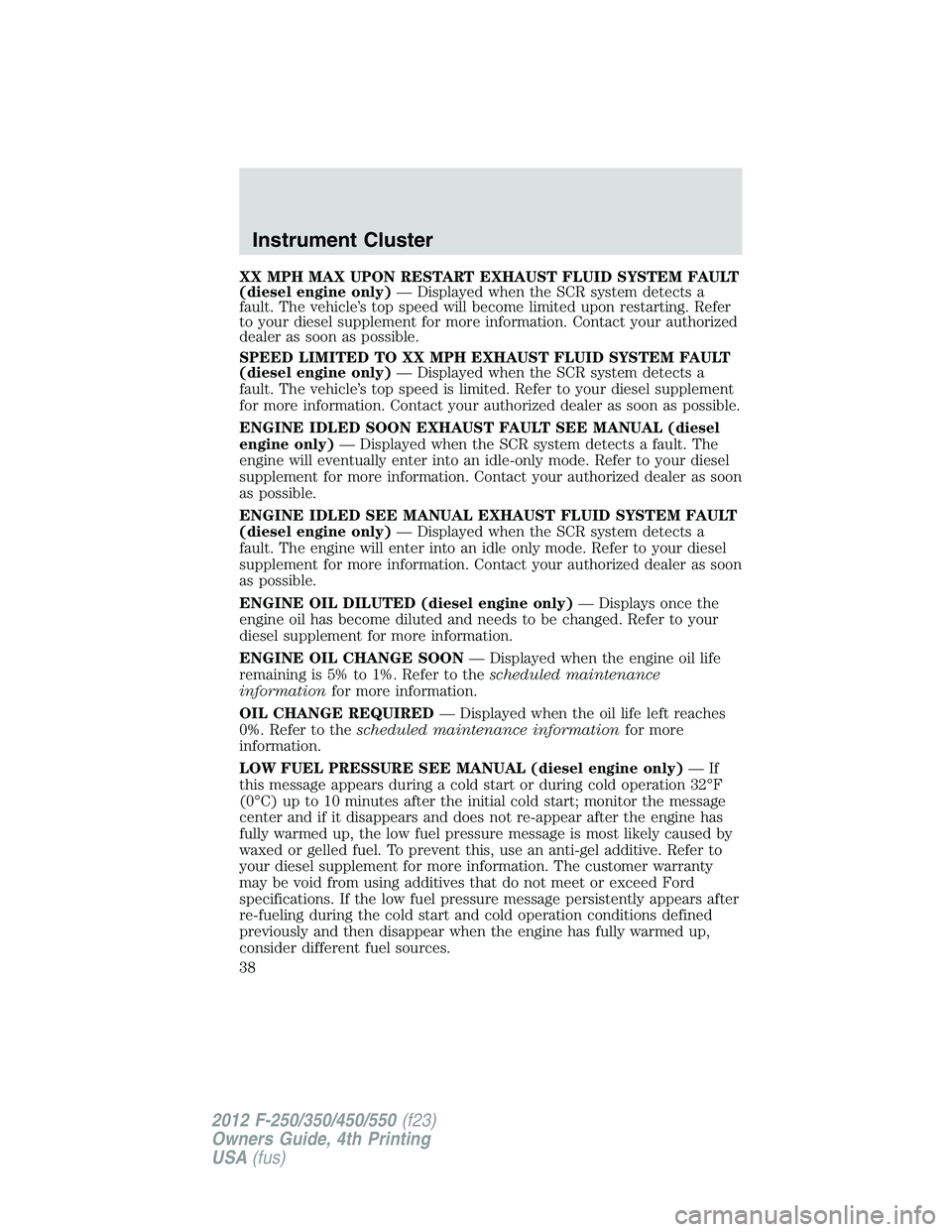

XX MPH MAX UPON RESTART EXHAUST FLUID SYSTEM FAULT
(diesel engine only) — Displayed when the SCR system detects a
fault. The vehicle’s top speed will become limited upon restarting. Refer
to your diesel supplement for more information. Contact your authorized
dealer as soon as possible.
SPEED LIMITED TO XX MPH EXHAUST FLUID SYSTEM FAULT
(diesel engine only) — Displayed when the SCR system detects a
fault. The vehicle’s top speed is limited. Refer to your diesel supplement
for more information. Contact your authorized dealer as soon as possible.
ENGINE IDLED SOON EXHAUST FAULT SEE MANUAL (diesel
engine only) — Displayed when the SCR system detects a fault. The
engine will eventually enter into an idle-only mode. Refer to your diesel
supplement for more information. Contact your authorized dealer as soon
as possible.
ENGINE IDLED SEE MANUAL EXHAUST FLUID SYSTEM FAULT
(diesel engine only) — Displayed when the SCR system detects a
fault. The engine will enter into an idle only mode. Refer to your diesel
supplement for more information. Contact your authorized dealer as soon
as possible.
ENGINE OIL DILUTED (diesel engine only) — Displays once the
engine oil has become diluted and needs to be changed. Refer to your
diesel supplement for more information.
ENGINE OIL CHANGE SOON — Displayed when the engine oil life
remaining is 5% to 1%. Refer to the scheduled maintenance
information for more information.
OIL CHANGE REQUIRED — Displayed when the oil life left reaches
0%. Refer to the scheduled maintenance information for more
information.
LOW FUEL PRESSURE SEE MANUAL (diesel engine only) —If
this message appears during a cold start or during cold operation 32°F
(0°C) up to 10 minutes after the initial cold start; monitor the message
center and if it disappears and does not re-appear after the engine has
fully warmed up, the low fuel pressure message is most likely caused by
waxed or gelled fuel. To prevent this, use an anti-gel additive. Refer to
your diesel supplement for more information. The customer warranty
may be void from using additives that do not meet or exceed Ford
specifications. If the low fuel pressure message persistently appears after
re-fueling during the cold start and cold operation conditions defined
previously and then disappear when the engine has fully warmed up,
consider different fuel sources.Instrument Cluster
38
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

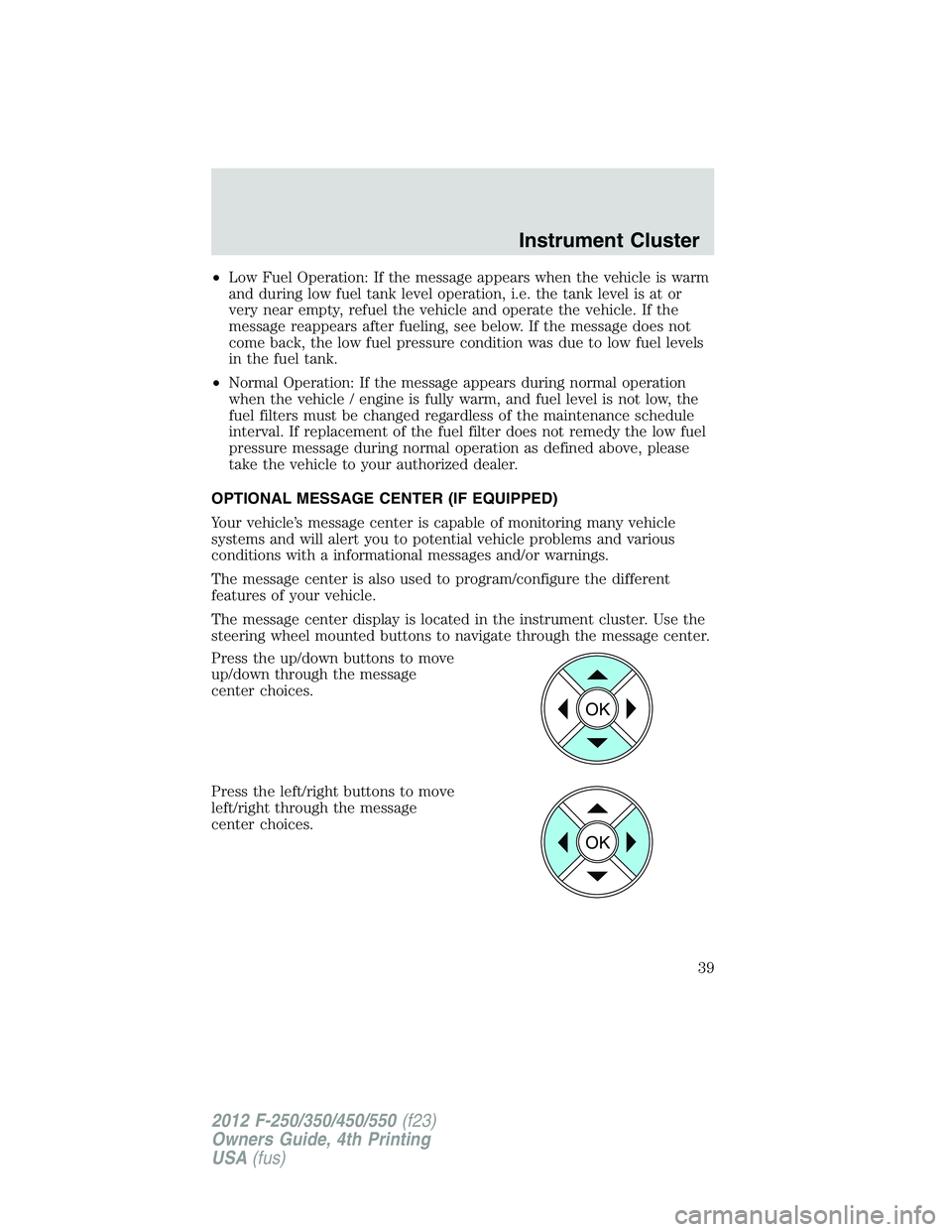

• Low Fuel Operation: If the message appears when the vehicle is warm
and during low fuel tank level operation, i.e. the tank level is at or
very near empty, refuel the vehicle and operate the vehicle. If the
message reappears after fueling, see below. If the message does not
come back, the low fuel pressure condition was due to low fuel levels
in the fuel tank.
• Normal Operation: If the message appears during normal operation
when the vehicle / engine is fully warm, and fuel level is not low, the
fuel filters must be changed regardless of the maintenance schedule
interval. If replacement of the fuel filter does not remedy the low fuel
pressure message during normal operation as defined above, please
take the vehicle to your authorized dealer.
OPTIONAL MESSAGE CENTER (IF EQUIPPED)
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with a informational messages and/or warnings.
The message center is also used to program/configure the different
features of your vehicle.
The message center display is located in the instrument cluster. Use the
steering wheel mounted buttons to navigate through the message center.
Press the up/down buttons to move
up/down through the message
center choices.
Press the left/right buttons to move
left/right through the message
center choices. OK
OKInstrument Cluster
39
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

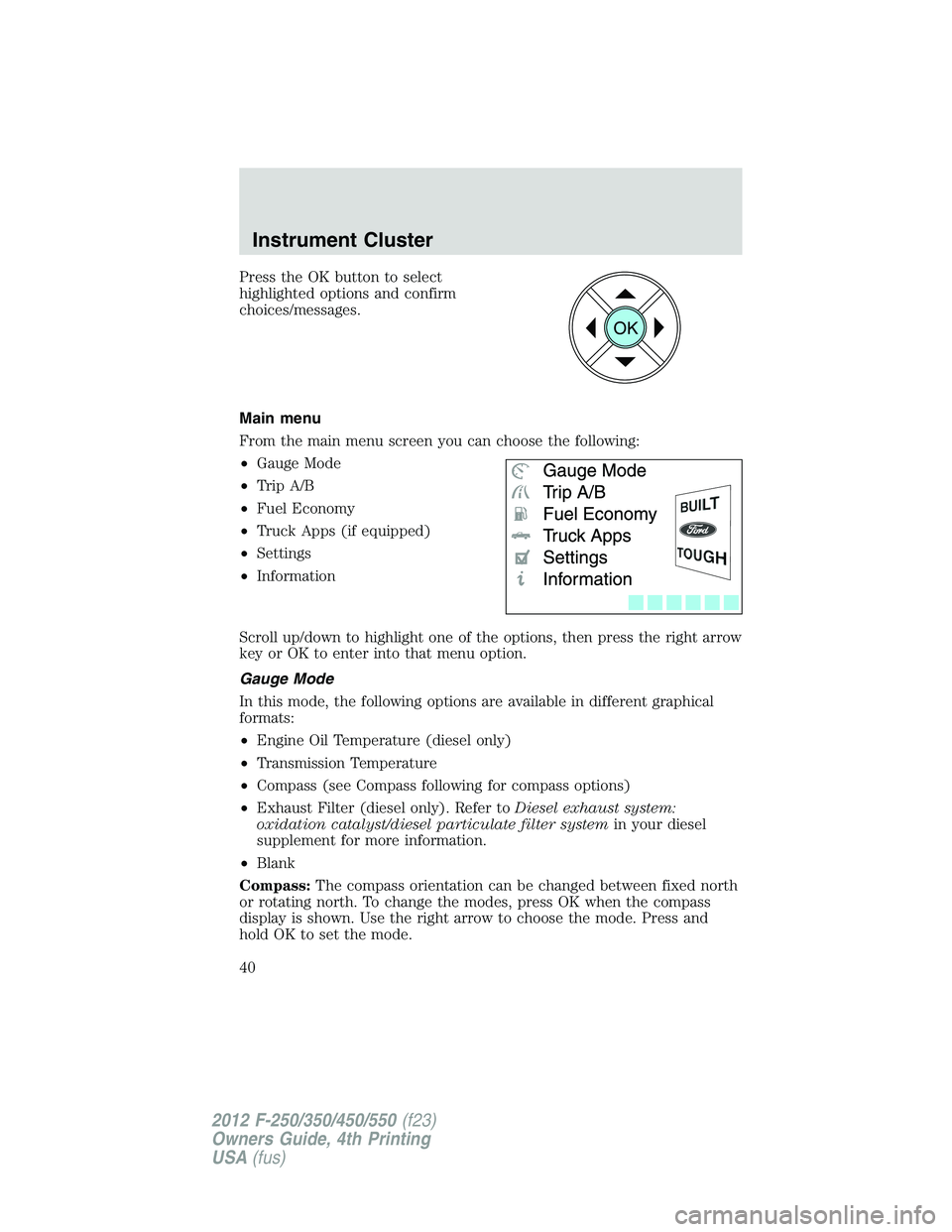

Press the OK button to select
highlighted options and confirm
choices/messages.
Main menu
From the main menu screen you can choose the following:
• Gauge Mode
• Trip A/B
• Fuel Economy
• Truck Apps (if equipped)
• Settings
• Information
Scroll up/down to highlight one of the options, then press the right arrow
key or OK to enter into that menu option.
Gauge Mode
In this mode, the following options are available in different graphical
formats:
• Engine Oil Temperature (diesel only)
• Transmission Temperature
• Compass (see Compass following for compass options)
• Exhaust Filter (diesel only). Refer to Diesel exhaust system:
oxidation catalyst/diesel particulate filter system in your diesel
supplement for more information.
• Blank
Compass: The compass orientation can be changed between fixed north
or rotating north. To change the modes, press OK when the compass
display is shown. Use the right arrow to choose the mode. Press and
hold OK to set the mode. OK
Instrument Cluster
40
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

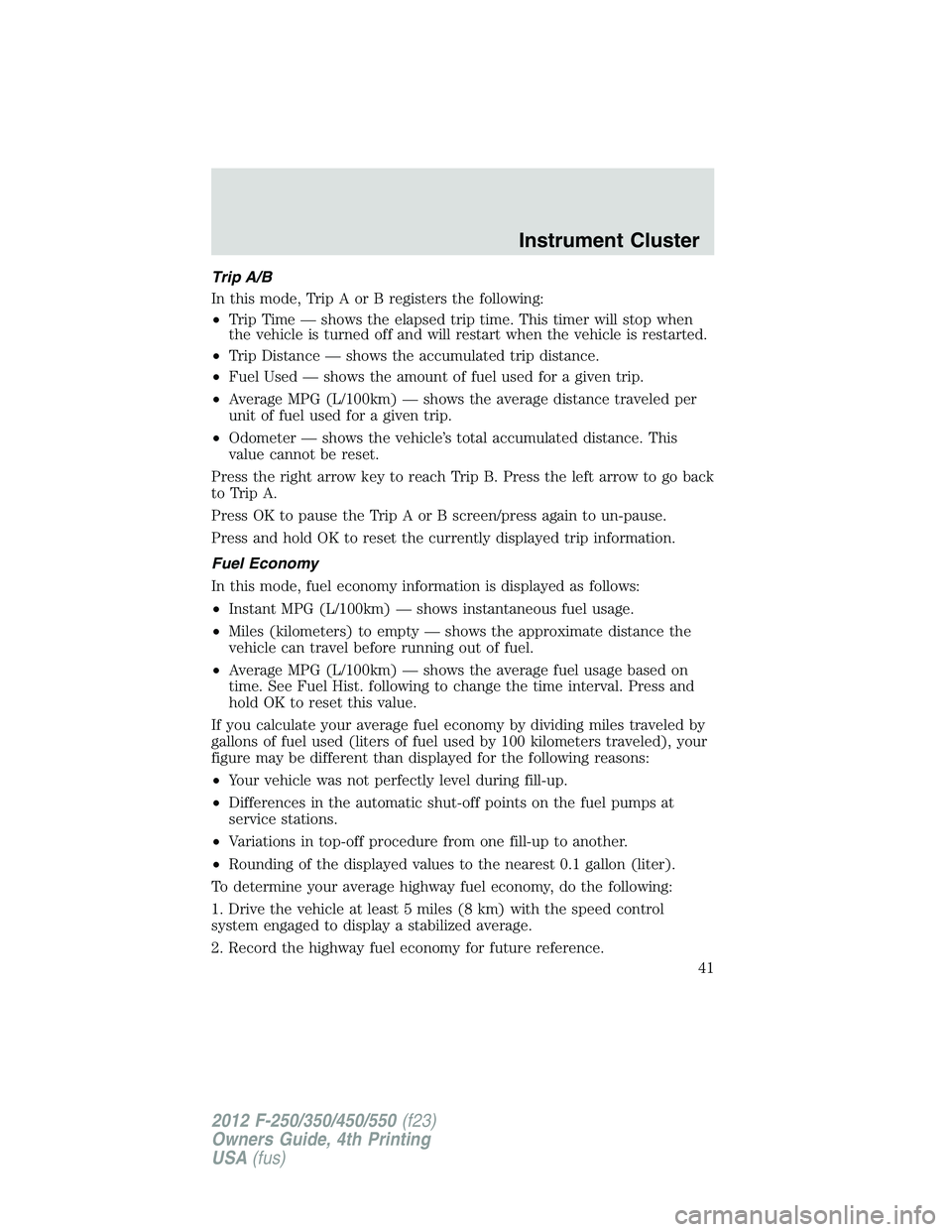

Trip A/B
In this mode, Trip A or B registers the following:
• Trip Time — shows the elapsed trip time. This timer will stop when
the vehicle is turned off and will restart when the vehicle is restarted.
• Trip Distance — shows the accumulated trip distance.
• Fuel Used — shows the amount of fuel used for a given trip.
• Average MPG (L/100km) — shows the average distance traveled per
unit of fuel used for a given trip.
• Odometer — shows the vehicle’s total accumulated distance. This
value cannot be reset.
Press the right arrow key to reach Trip B. Press the left arrow to go back
to Trip A.
Press OK to pause the Trip A or B screen/press again to un-pause.
Press and hold OK to reset the currently displayed trip information.
Fuel Economy
In this mode, fuel economy information is displayed as follows:
• Instant MPG (L/100km) — shows instantaneous fuel usage.
• Miles (kilometers) to empty — shows the approximate distance the
vehicle can travel before running out of fuel.
• Average MPG (L/100km) — shows the average fuel usage based on
time. See Fuel Hist. following to change the time interval. Press and
hold OK to reset this value.
If you calculate your average fuel economy by dividing miles traveled by
gallons of fuel used (liters of fuel used by 100 kilometers traveled), your
figure may be different than displayed for the following reasons:
• Your vehicle was not perfectly level during fill-up.
• Differences in the automatic shut-off points on the fuel pumps at
service stations.
• Variations in top-off procedure from one fill-up to another.
• Rounding of the displayed values to the nearest 0.1 gallon (liter).
To determine your average highway fuel economy, do the following:
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference. Instrument Cluster
41
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

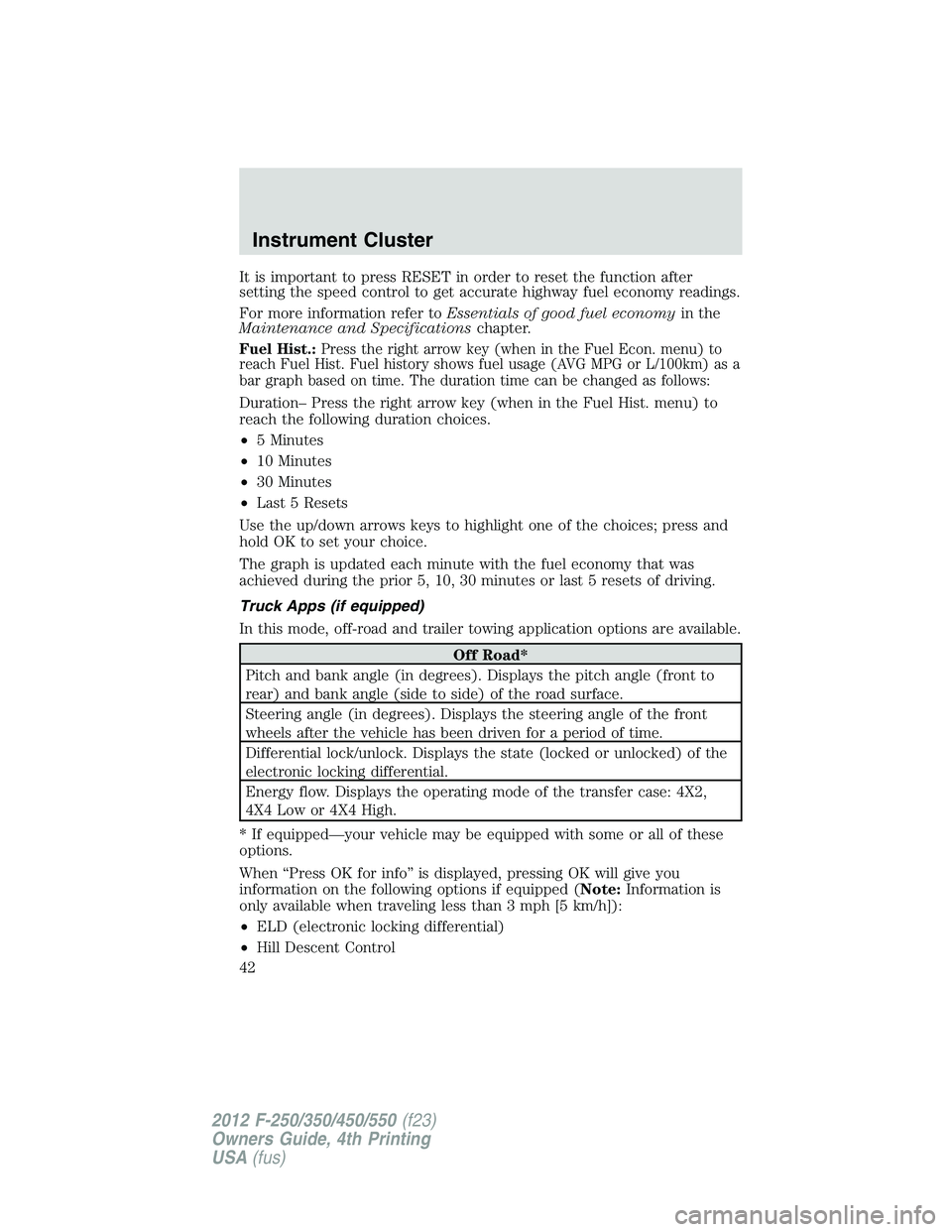

It is important to press RESET in order to reset the function after
setting the speed control to get accurate highway fuel economy readings.
For more information refer to Essentials of good fuel economy in the
Maintenance and Specifications chapter.
Fuel Hist.: Press the right arrow key (when in the Fuel Econ. menu) to
reach Fuel Hist. Fuel history shows fuel usage (AVG MPG or L/100km) as a
bar graph based on time. The duration time can be changed as follows:
Duration– Press the right arrow key (when in the Fuel Hist. menu) to
reach the following duration choices.
• 5 Minutes
• 10 Minutes
• 30 Minutes
• Last 5 Resets
Use the up/down arrows keys to highlight one of the choices; press and
hold OK to set your choice.
The graph is updated each minute with the fuel economy that was
achieved during the prior 5, 10, 30 minutes or last 5 resets of driving.
Truck Apps (if equipped)
In this mode, off-road and trailer towing application options are available.
Off Road*
Pitch and bank angle (in degrees). Displays the pitch angle (front to
rear) and bank angle (side to side) of the road surface.
Steering angle (in degrees). Displays the steering angle of the front
wheels after the vehicle has been driven for a period of time.
Differential lock/unlock. Displays the state (locked or unlocked) of the
electronic locking differential.
Energy flow. Displays the operating mode of the transfer case: 4X2,
4X4 Low or 4X4 High.
* If equipped—your vehicle may be equipped with some or all of these
options.
When “Press OK for info” is displayed, pressing OK will give you
information on the following options if equipped ( Note: Information is
only available when traveling less than 3 mph [5 km/h]):
• ELD (electronic locking differential)
• Hill Descent ControlInstrument Cluster
42
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

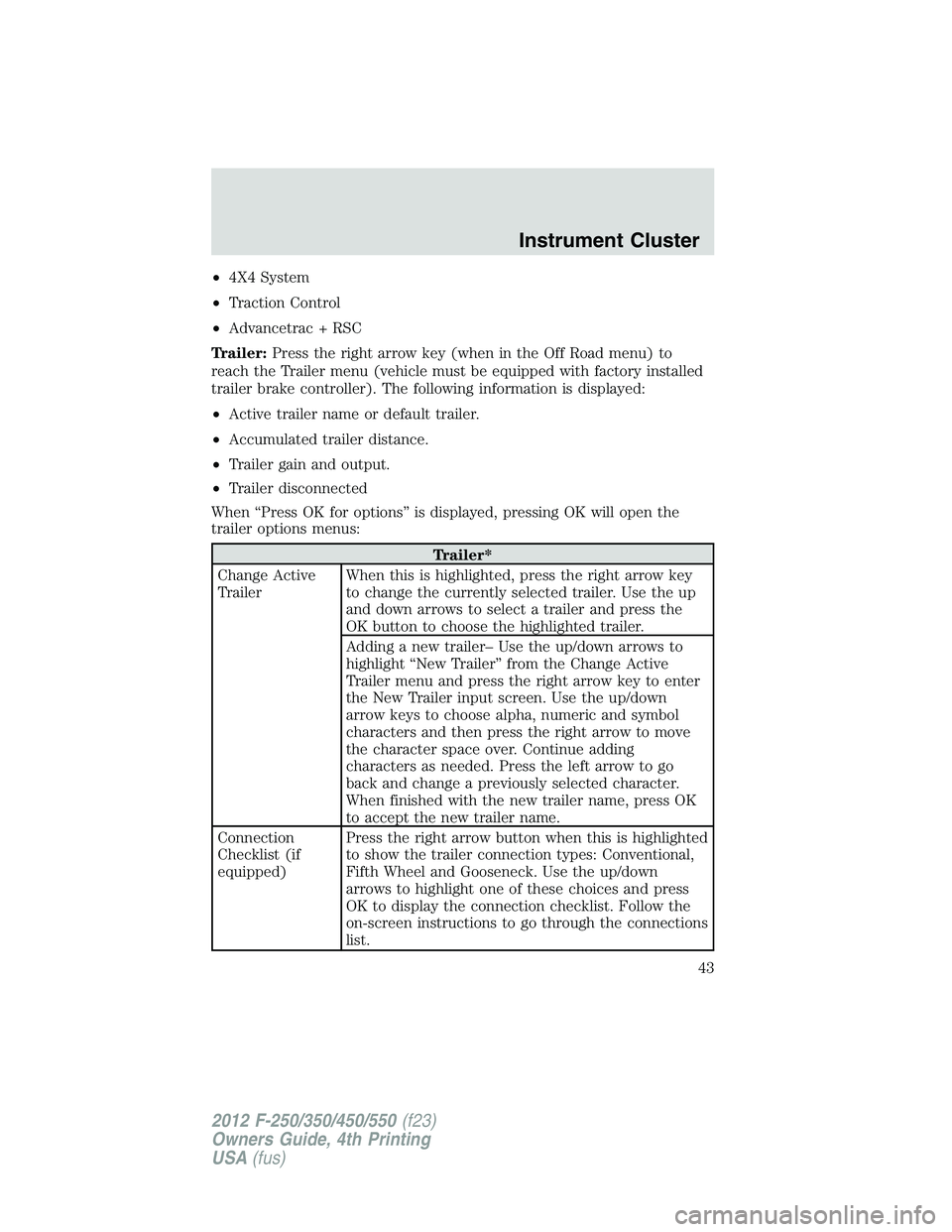

• 4X4 System
• Traction Control
• Advancetrac + RSC
Trailer: Press the right arrow key (when in the Off Road menu) to
reach the Trailer menu (vehicle must be equipped with factory installed
trailer brake controller). The following information is displayed:
• Active trailer name or default trailer.
• Accumulated trailer distance.
• Trailer gain and output.
• Trailer disconnected
When “Press OK for options” is displayed, pressing OK will open the
trailer options menus:
Trailer*
Change Active
Trailer When this is highlighted, press the right arrow key
to change the currently selected trailer. Use the up
and down arrows to select a trailer and press the
OK button to choose the highlighted trailer.
Adding a new trailer– Use the up/down arrows to
highlight “New Trailer” from the Change Active
Trailer menu and press the right arrow key to enter
the New Trailer input screen. Use the up/down
arrow keys to choose alpha, numeric and symbol
characters and then press the right arrow to move
the character space over. Continue adding
characters as needed. Press the left arrow to go
back and change a previously selected character.
When finished with the new trailer name, press OK
to accept the new trailer name.
Connection
Checklist (if
equipped) Press the right arrow button when this is highlighted
to show the trailer connection types: Conventional,
Fifth Wheel and Gooseneck. Use the up/down
arrows to highlight one of these choices and press
OK to display the connection checklist. Follow the
on-screen instructions to go through the connections
list. Instrument Cluster
43
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

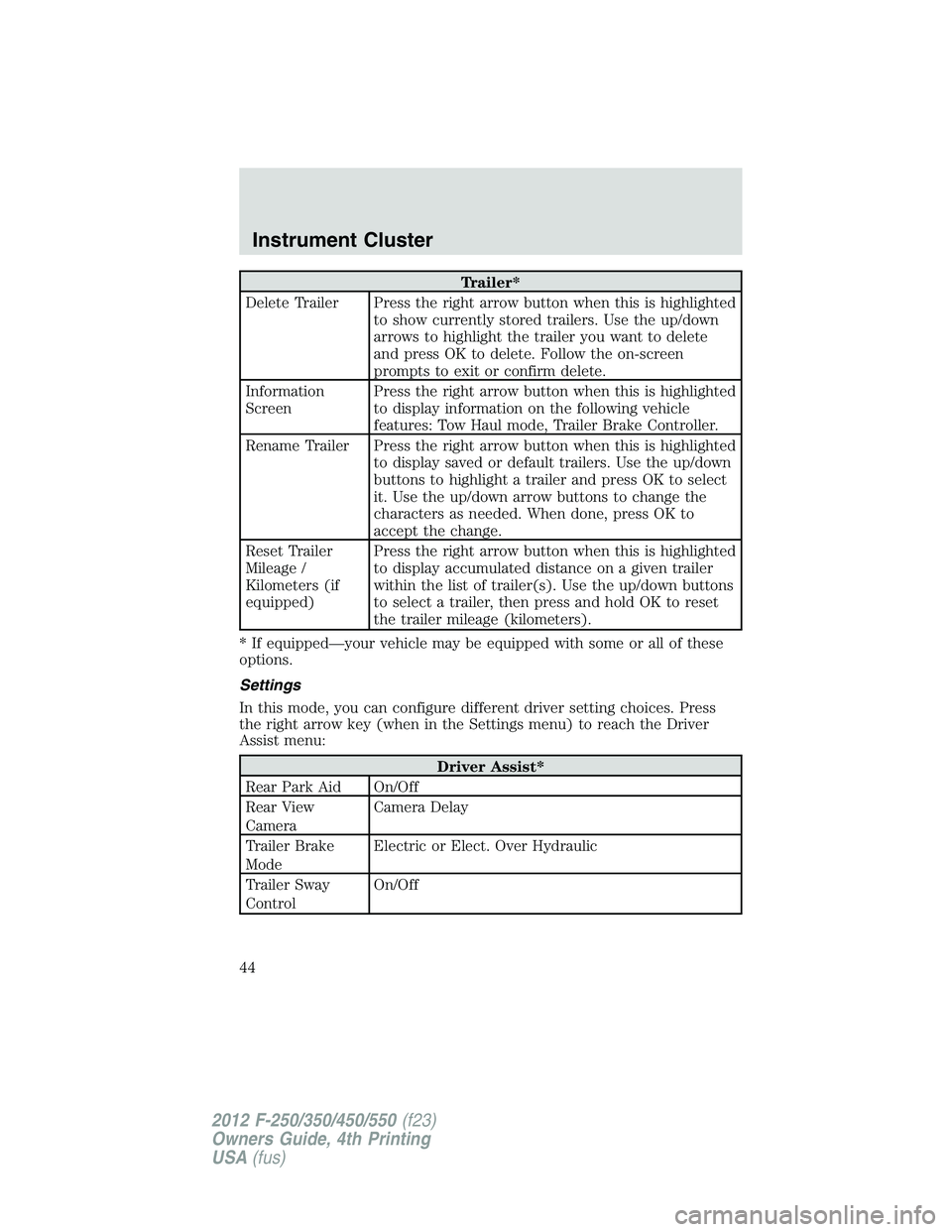

Trailer*
Delete Trailer Press the right arrow button when this is highlighted
to show currently stored trailers. Use the up/down
arrows to highlight the trailer you want to delete
and press OK to delete. Follow the on-screen
prompts to exit or confirm delete.
Information
Screen Press the right arrow button when this is highlighted
to display information on the following vehicle
features: Tow Haul mode, Trailer Brake Controller.
Rename Trailer Press the right arrow button when this is highlighted
to display saved or default trailers. Use the up/down
buttons to highlight a trailer and press OK to select
it. Use the up/down arrow buttons to change the
characters as needed. When done, press OK to
accept the change.
Reset Trailer
Mileage /
Kilometers (if
equipped) Press the right arrow button when this is highlighted
to display accumulated distance on a given trailer
within the list of trailer(s). Use the up/down buttons
to select a trailer, then press and hold OK to reset
the trailer mileage (kilometers).
* If equipped—your vehicle may be equipped with some or all of these
options.
Settings
In this mode, you can configure different driver setting choices. Press
the right arrow key (when in the Settings menu) to reach the Driver
Assist menu:
Driver Assist*
Rear Park Aid On/Off
Rear View
Camera Camera Delay
Trailer Brake
Mode Electric or Elect. Over Hydraulic
Trailer Sway
Control On/OffInstrument Cluster
44
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

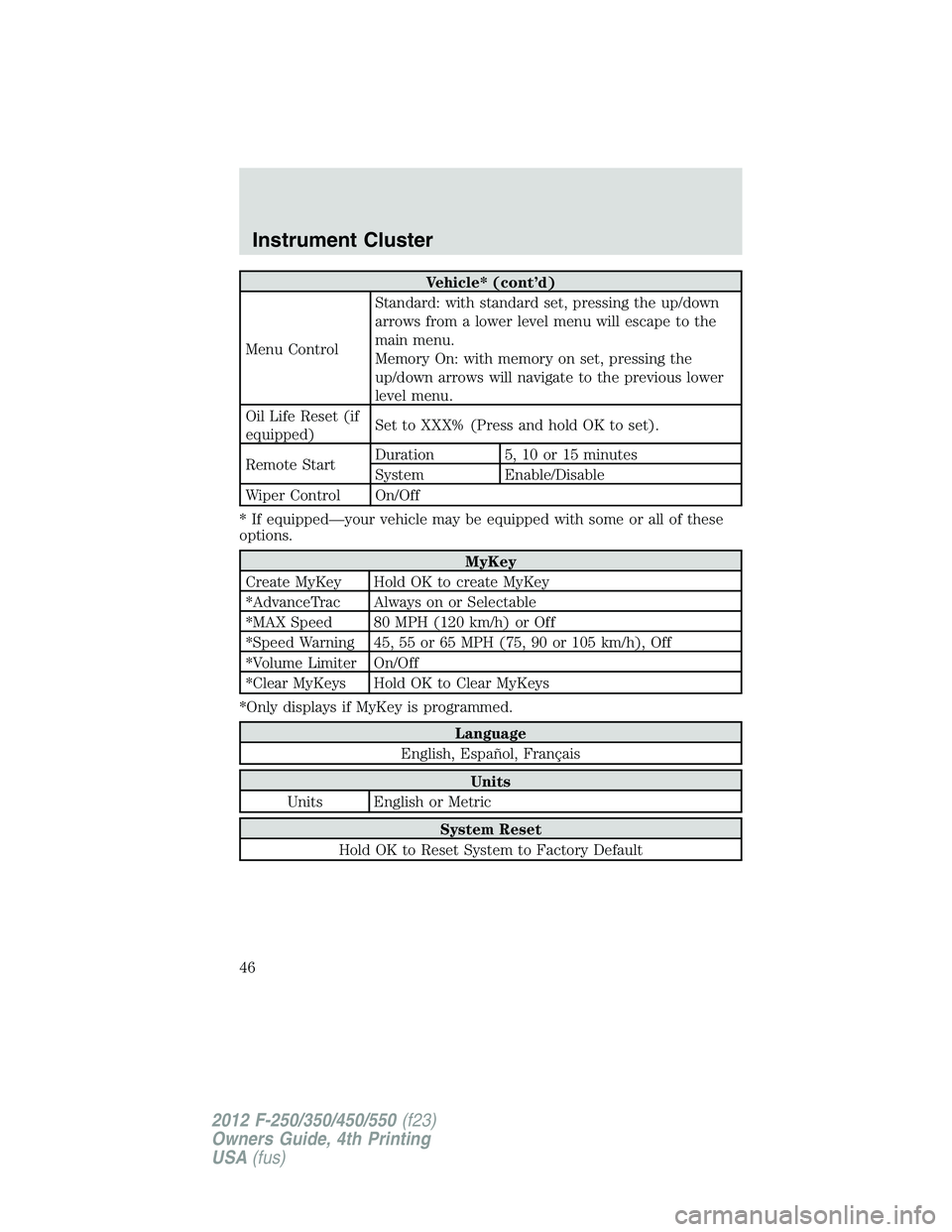

Vehicle* (cont’d)
Menu Control Standard: with standard set, pressing the up/down
arrows from a lower level menu will escape to the
main menu.
Memory On: with memory on set, pressing the
up/down arrows will navigate to the previous lower
level menu.
Oil Life Reset (if
equipped) Set to XXX% (Press and hold OK to set).
Remote Start Duration 5, 10 or 15 minutes
System Enable/Disable
Wiper Control On/Off
* If equipped—your vehicle may be equipped with some or all of these
options.
MyKey
Create MyKey Hold OK to create MyKey
*AdvanceTrac Always on or Selectable
*MAX Speed 80 MPH (120 km/h) or Off
*Speed Warning 45, 55 or 65 MPH (75, 90 or 105 km/h), Off
*Volume Limiter On/Off
*Clear MyKeys Hold OK to Clear MyKeys
*Only displays if MyKey is programmed.
Language
English, Español, Français
Units
Units English or Metric
System Reset
Hold OK to Reset System to Factory DefaultInstrument Cluster
46
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Information
In this mode, you can view different vehicle system information and
perform a system check.
When “Press OK for info” is displayed, pressing OK will give you
information on the currently selected/displayed options. Information is
only available when traveling less than 3 mph (5 km/h).
MyKey
Admin Keys (Number of admin keys)
MyKeys (Number of MyKeys programmed)
MyKey Miles (km) (Distance traveled using a programmed MyKey)
System Check*
Oil Life
Engine Hours
Engine Idle Hours
Doors
Exhaust Fluid Level (diesel only)
Brakes
Trailer Brake
Ctrl. Gain and Output (when trailer is connected)
No trailer (when no trailer is connected)
Trailer Sway
Park Aid Check Rear Park Aid
Fuel Level (distance to empty)
* If equipped—your vehicle may be equipped with some or all of these
options.
Some items will only display during a system check if a problem has
been detected. If an issue exists on one of the monitored systems, the
message center will display the number of warnings that need immediate
attention in red and the number of informational warnings will be listed
in amber. Use the up/down arrow buttons to scroll through the list; press
the right arrow button to display specific information on the highlighted
warning. Instrument Cluster
47
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
