Introduction 5
Instrument Cluster 14Warning lights and chimes 14
Gauges 21
Message center 22
Entertainment Systems 60AM/FM stereo 60
AM/FM stereo with CD 62
Auxiliary input jack 69
USB port 71
Satellite radio information 74
Navigation system 77
SYNC  77
Climate Controls 78Manual heating and air conditioning 78
Dual electronic automatic temperature control 81
Rear window defroster 85
Lights 87Headlamps 87
Turn signal control 91
Interior lamps 92
Bulb replacement 92
Driver Controls 98Windshield wiper/washer control 98
Steering wheel adjustment 99
Power windows 103
Mirrors 105
Speed control 110
Upfitter controls 114Table of Contents
1
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

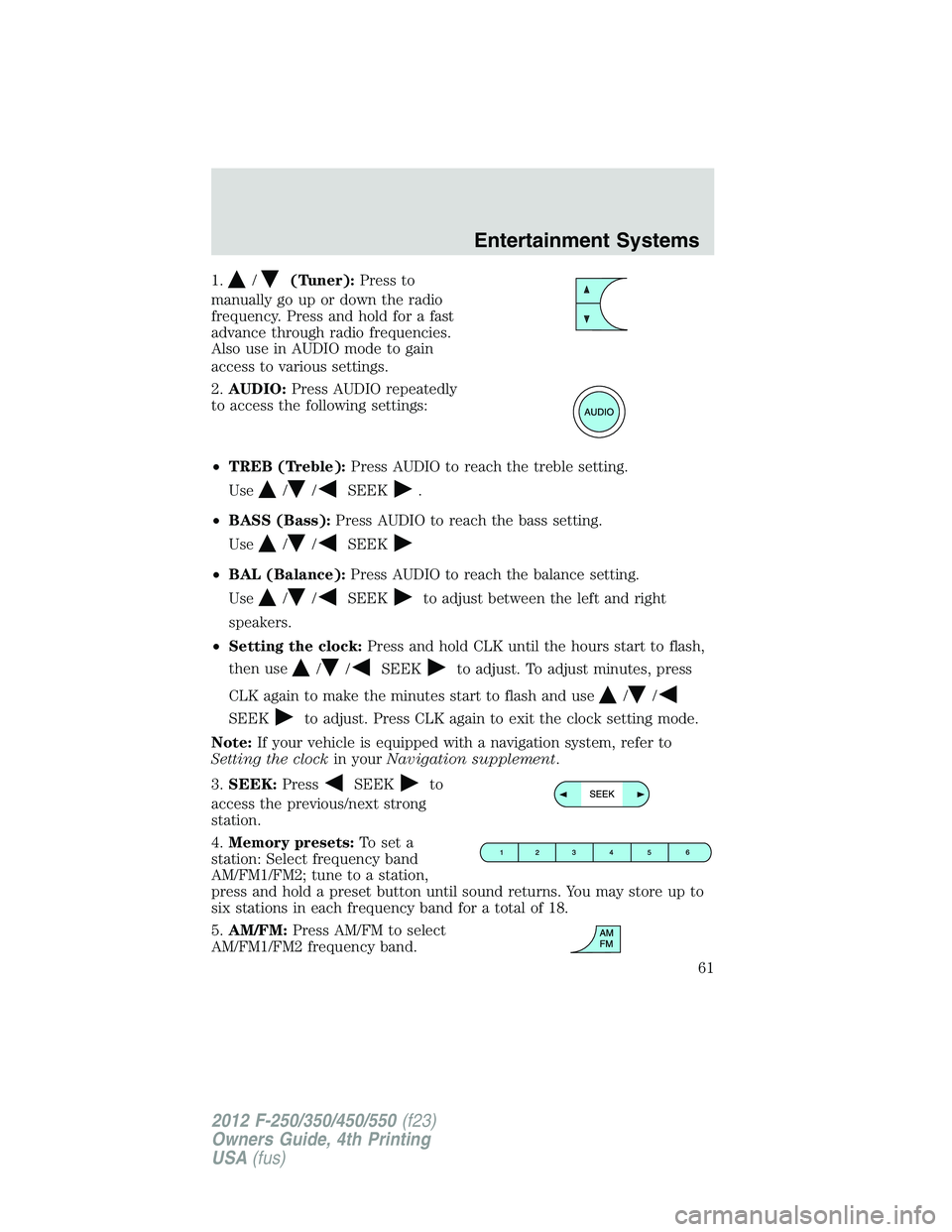

1. / (Tuner): Press to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
Also use in AUDIO mode to gain
access to various settings.
2. AUDIO: Press AUDIO repeatedly
to access the following settings:
• TREB (Treble): Press AUDIO to reach the treble setting.
Use
/ / SEEK .
• BASS (Bass): Press AUDIO to reach the bass setting.
Use
/ / SEEK
• BAL (Balance): Press AUDIO to reach the balance setting.
Use
/ / SEEK to adjust between the left and right
speakers.
• Setting the clock: Press and hold CLK until the hours start to flash,
then use
/ / SEEK to adjust. To adjust minutes, press
CLK again to make the minutes start to flash and use / /
SEEK to adjust. Press CLK again to exit the clock setting mode.
Note: If your vehicle is equipped with a navigation system, refer to
Setting the clock in your Navigation supplement .
3. SEEK: Press SEEK to
access the previous/next strong
station.
4. Memory presets: To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns. You may store up to
six stations in each frequency band for a total of 18.
5. AM/FM: Press AM/FM to select
AM/FM1/FM2 frequency band. Entertainment Systems
61
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

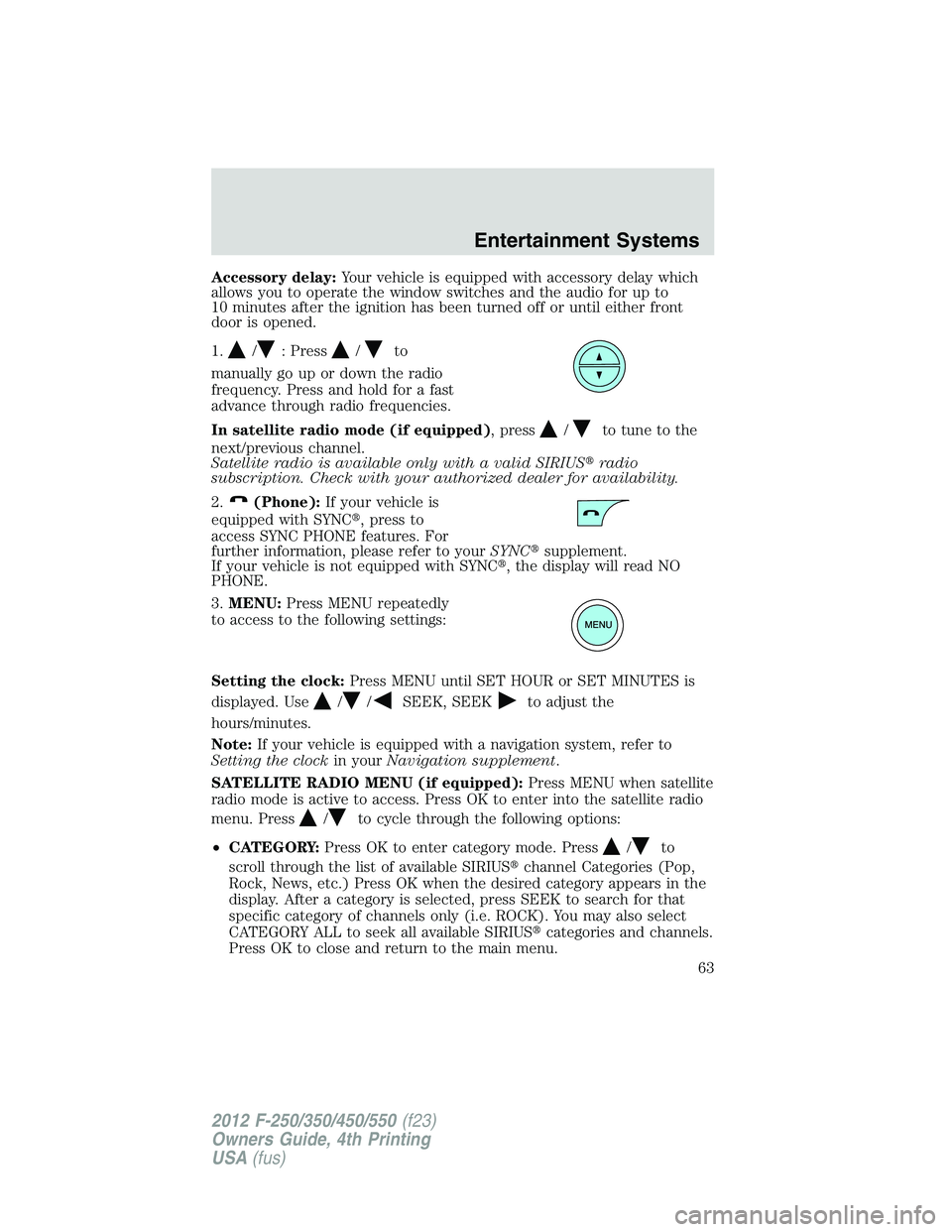

Accessory delay: Your vehicle is equipped with accessory delay which
allows you to operate the window switches and the audio for up to
10 minutes after the ignition has been turned off or until either front
door is opened.
1. / : Press / to
manually go up or down the radio
frequency. Press and hold for a fast
advance through radio frequencies.
In satellite radio mode (if equipped) , press / to tune to the
next/previous channel.
Satellite radio is available only with a valid SIRIUS  radio
subscription. Check with your authorized dealer for availability.
2. (Phone): If your vehicle is
equipped with SYNC  , press to
access SYNC PHONE features. For
further information, please refer to your SYNC  supplement.
If your vehicle is not equipped with SYNC  , the display will read NO
PHONE.
3. MENU: Press MENU repeatedly
to access to the following settings:
Setting the clock: Press MENU until SET HOUR or SET MINUTES is
displayed. Use / / SEEK, SEEK to adjust the
hours/minutes.
Note: If your vehicle is equipped with a navigation system, refer to
Setting the clock in your Navigation supplement .
SATELLITE RADIO MENU (if equipped): Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press / to cycle through the following options:
• CATEGORY: Press OK to enter category mode. Press / to
scroll through the list of available SIRIUS  channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS  categories and channels.
Press OK to close and return to the main menu. Entertainment Systems
63
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

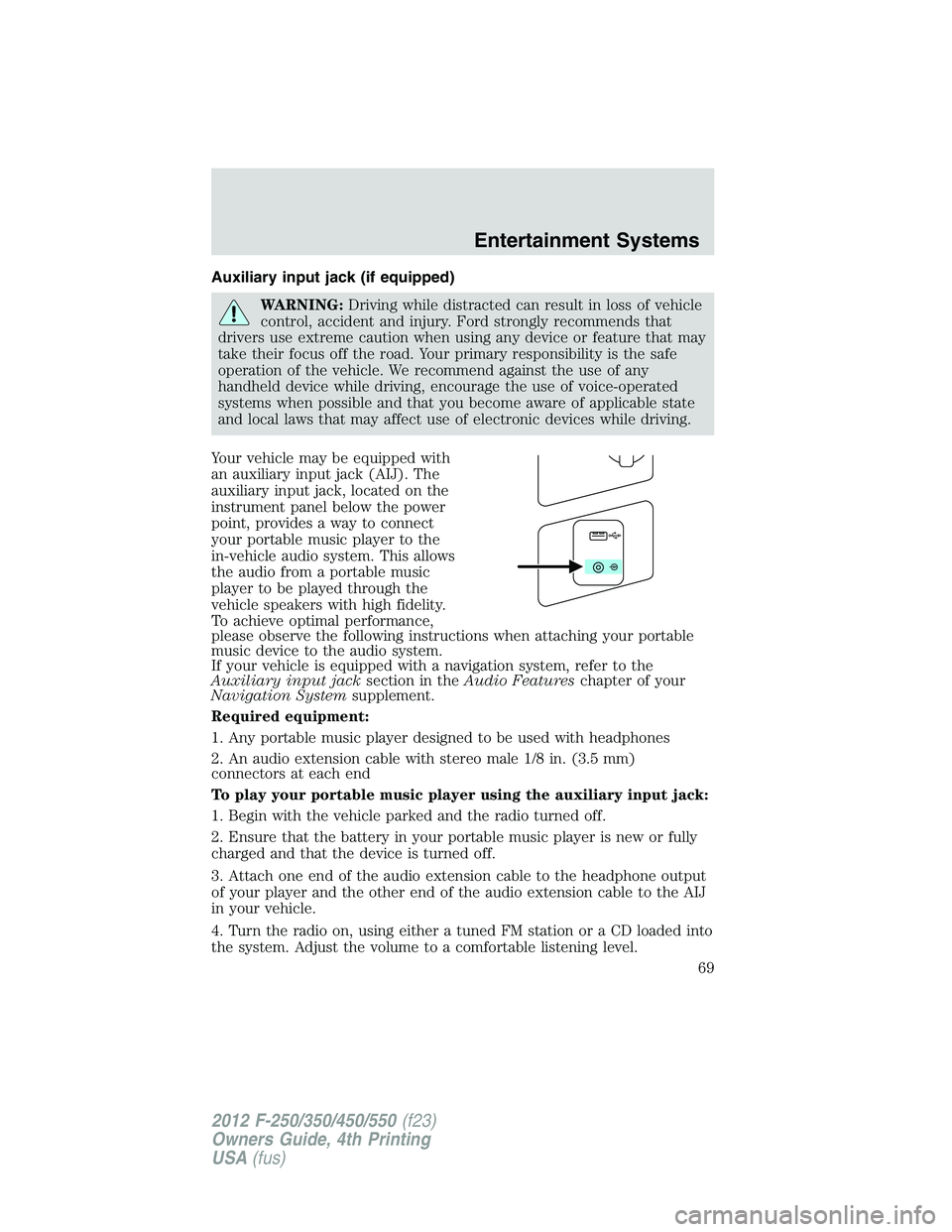

Auxiliary input jack (if equipped)
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Your vehicle may be equipped with
an auxiliary input jack (AIJ). The
auxiliary input jack, located on the
instrument panel below the power
point, provides a way to connect
your portable music player to the
in-vehicle audio system. This allows
the audio from a portable music
player to be played through the
vehicle speakers with high fidelity.
To achieve optimal performance,
please observe the following instructions when attaching your portable
music device to the audio system.
If your vehicle is equipped with a navigation system, refer to the
Auxiliary input jack section in the Audio Features chapter of your
Navigation System supplement.
Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output
of your player and the other end of the audio extension cable to the AIJ
in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into
the system. Adjust the volume to a comfortable listening level. Entertainment Systems
69
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

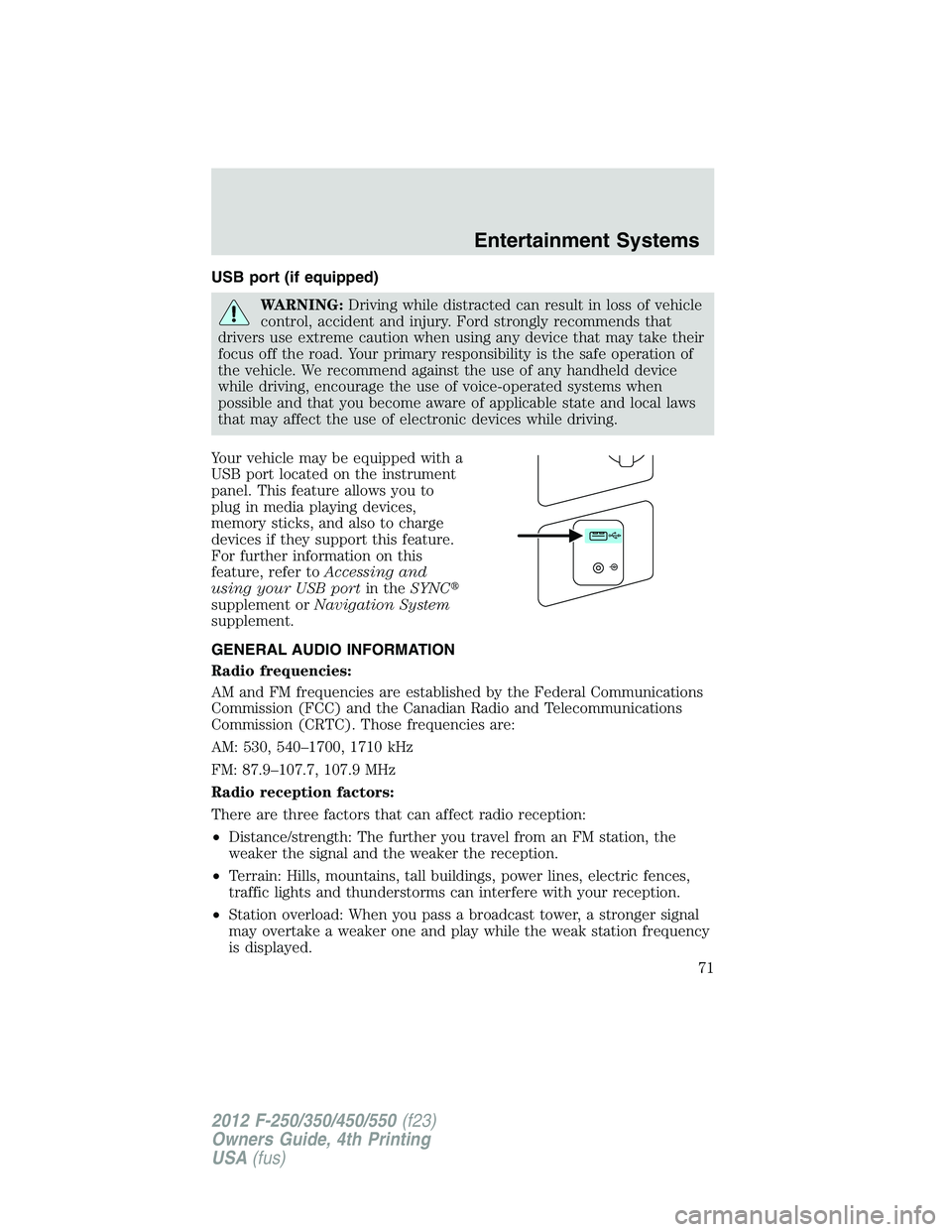

USB port (if equipped)
WARNING: Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. Your primary responsibility is the safe operation of
the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect the use of electronic devices while driving.
Your vehicle may be equipped with a
USB port located on the instrument
panel. This feature allows you to
plug in media playing devices,
memory sticks, and also to charge
devices if they support this feature.
For further information on this
feature, refer to Accessing and
using your USB port in the SYNC
supplement or Navigation System
supplement.
GENERAL AUDIO INFORMATION
Radio frequencies:
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.9–107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
• Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
• Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
• Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed. Entertainment Systems
71
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

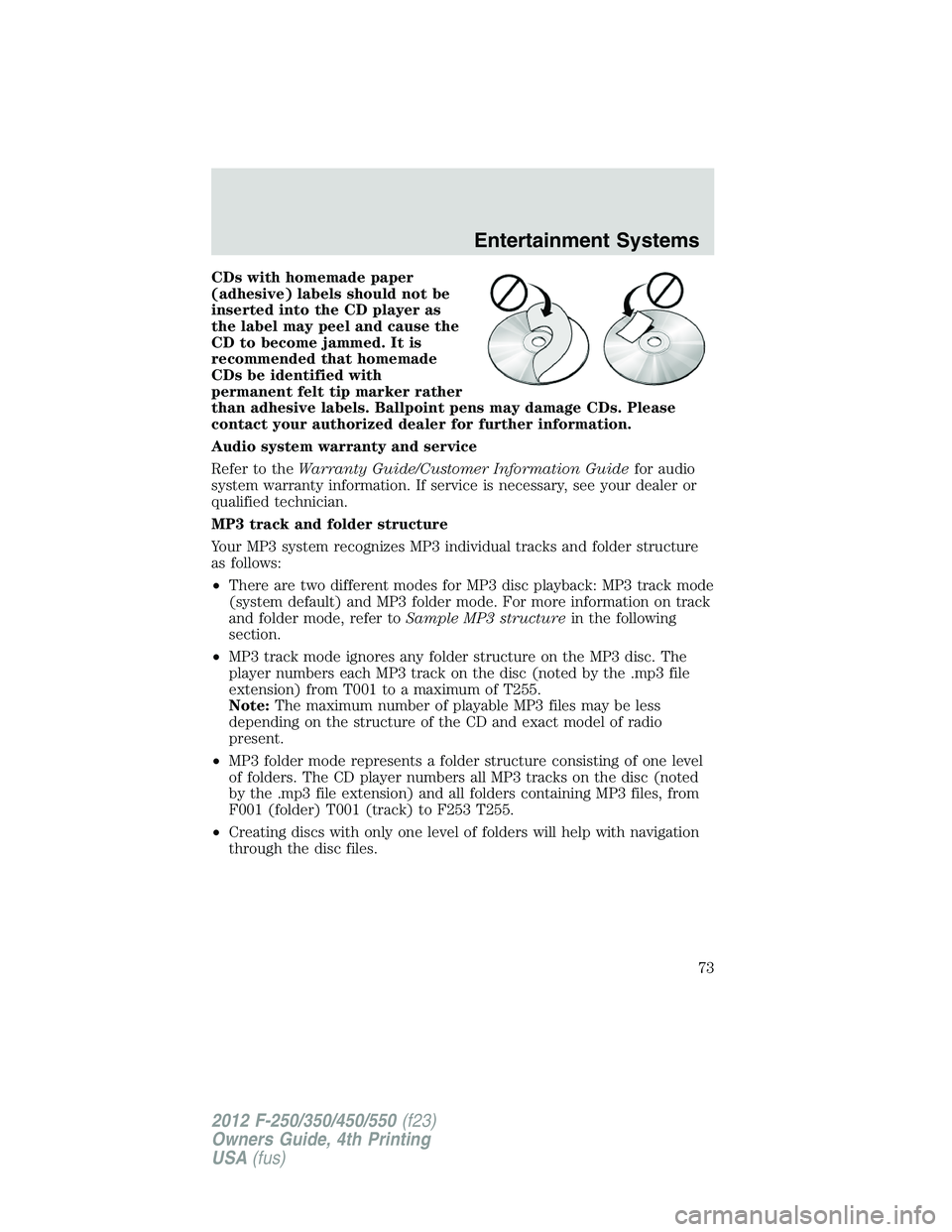

CDs with homemade paper
(adhesive) labels should not be
inserted into the CD player as
the label may peel and cause the
CD to become jammed. It is
recommended that homemade
CDs be identified with
permanent felt tip marker rather
than adhesive labels. Ballpoint pens may damage CDs. Please
contact your authorized dealer for further information.
Audio system warranty and service
Refer to the Warranty Guide/Customer Information Guide for audio
system warranty information. If service is necessary, see your dealer or
qualified technician.
MP3 track and folder structure
Your MP3 system recognizes MP3 individual tracks and folder structure
as follows:
• There are two different modes for MP3 disc playback: MP3 track mode
(system default) and MP3 folder mode. For more information on track
and folder mode, refer to Sample MP3 structure in the following
section.
• MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.
Note: The maximum number of playable MP3 files may be less
depending on the structure of the CD and exact model of radio
present.
• MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
• Creating discs with only one level of folders will help with navigation
through the disc files. Entertainment Systems
73
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

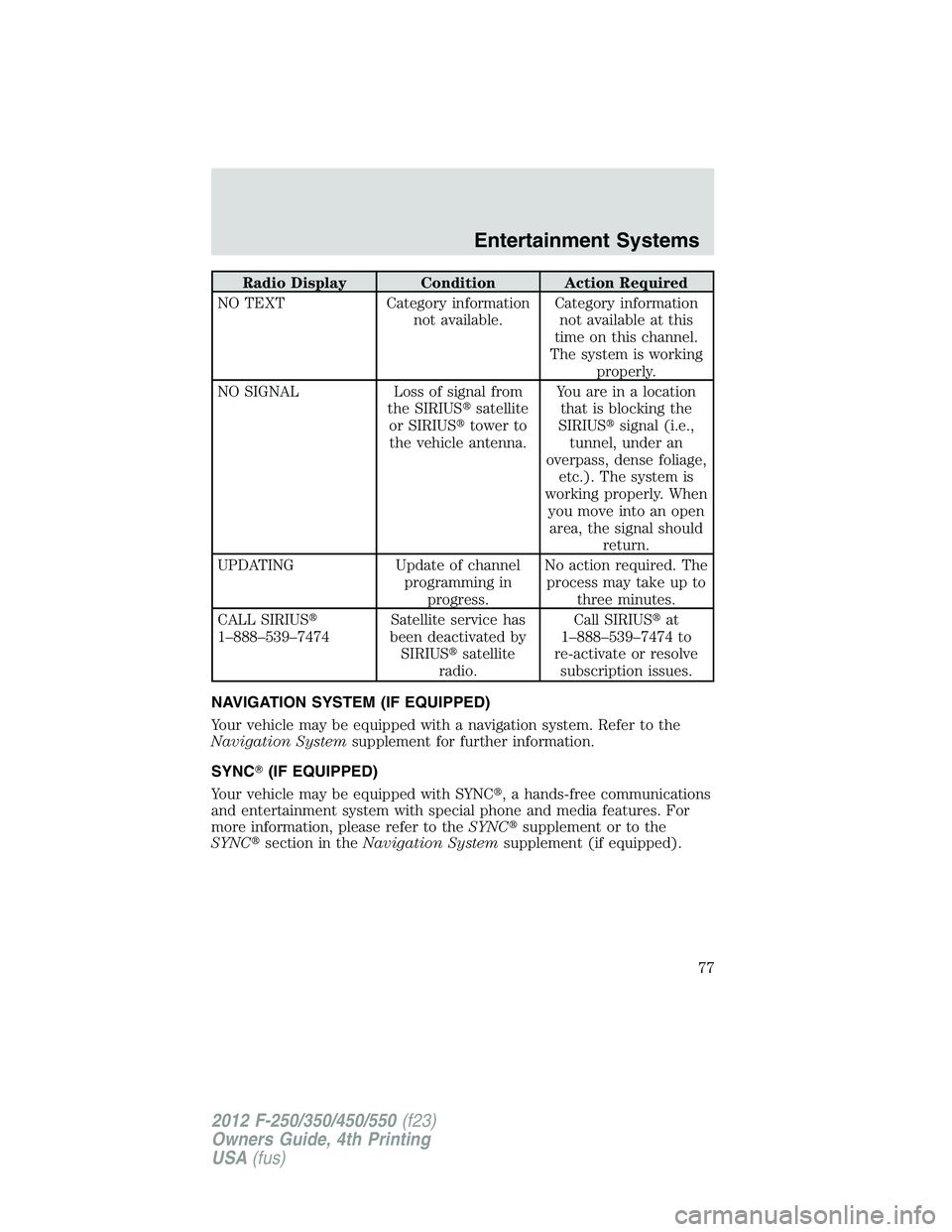

Radio Display Condition Action Required
NO TEXT Category information
not available. Category information
not available at this
time on this channel.
The system is working
properly.
NO SIGNAL Loss of signal from
the SIRIUS  satellite
or SIRIUS  tower to
the vehicle antenna. You are in a location
that is blocking the
SIRIUS  signal (i.e.,
tunnel, under an
overpass, dense foliage,
etc.). The system is
working properly. When
you move into an open
area, the signal should
return.
UPDATING Update of channel
programming in
progress. No action required. The
process may take up to
three minutes.
CALL SIRIUS
1–888–539–7474 Satellite service has
been deactivated by
SIRIUS  satellite
radio. Call SIRIUS  at
1–888–539–7474 to
re-activate or resolve
subscription issues.
NAVIGATION SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a navigation system. Refer to the
Navigation System supplement for further information.
SYNC  (IF EQUIPPED)
Your vehicle may be equipped with SYNC  , a hands-free communications
and entertainment system with special phone and media features. For
more information, please refer to the SYNC  supplement or to the
SYNC  section in the Navigation System supplement (if equipped).Entertainment Systems
77
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

INTERIOR MIRROR
The interior rearview mirror has two pivot points on the support arm
which lets you adjust the mirror up or down and from side to side.
WARNING: Do not adjust the mirror while the vehicle is in
motion.
Automatic dimming interior rear view mirror (if equipped)
The interior rear view mirror has an auto-dimming function. The
electronic day/night mirror will change from the normal (high reflective)
state to the non-glare (darkened) state when bright lights (glare) reach
the mirror. When the mirror detects bright light from behind the vehicle,
it will automatically adjust (darken) to minimize glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Note: A rear center passenger and/or raised rear center headrest (if
equipped) may also block the light from reaching the sensor.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Note: If equipped with a rearview camera system, a video image will
display in the mirror or the navigation system display (if equipped) when
the vehicle is put in R (Reverse). As you shift into any other gear from R
(Reverse), the image will remain for a few seconds and then turn off.
Refer to Rearview camera system in the Driving chapter.Driver Controls
105
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

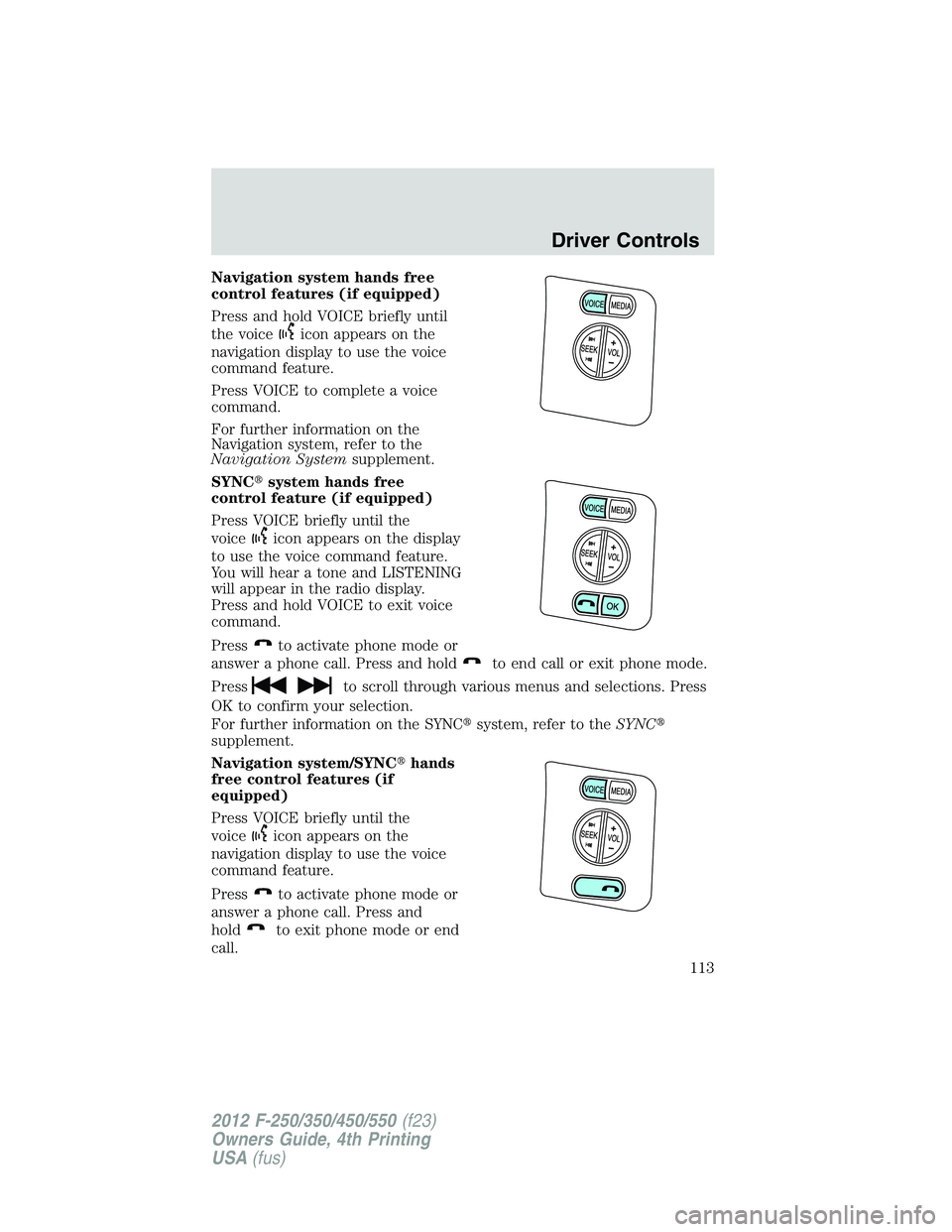

Navigation system hands free
control features (if equipped)
Press and hold VOICE briefly until
the voice icon appears on the
navigation display to use the voice
command feature.
Press VOICE to complete a voice
command.
For further information on the
Navigation system, refer to the
Navigation System supplement.
SYNC  system hands free
control feature (if equipped)
Press VOICE briefly until the
voice icon appears on the display
to use the voice command feature.
You will hear a tone and LISTENING
will appear in the radio display.
Press and hold VOICE to exit voice
command.
Press to activate phone mode or
answer a phone call. Press and hold to end call or exit phone mode.
Press to scroll through various menus and selections. Press
OK to confirm your selection.
For further information on the SYNC  system, refer to the SYNC
supplement.
Navigation system/SYNC  hands
free control features (if
equipped)
Press VOICE briefly until the
voice icon appears on the
navigation display to use the voice
command feature.
Press to activate phone mode or
answer a phone call. Press and
hold to exit phone mode or end
call. Driver Controls
113
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

For further information on the Navigation system/SYNC  system, refer to
the Navigation System and SYNC  supplements.
UPFITTER CONTROLS (IF EQUIPPED)
Your vehicle may be equipped with
the Upfitter option package which
will provide four switches, mounted
in the center of the instrument
panel, labeled AUX 1, AUX 2, AUX 3
and AUX 4. These switches will only
operate while the ignition is in the
on position, whether the engine is
running or not. It is, however, recommended that the engine remain
running to maintain battery charge when using the Upfitter switches for
extended duration or higher current draws. (This is even more important
for vehicles with diesel engines since the glow plugs are also draining
battery power when the ignition key is in the on position.)
When switched on by the operator they provide 8 amps, 12 amps or
20 amps of electrical battery power for a variety of personal or
commercial uses.
If your vehicle is equipped with this option, there will also be a relay box
located on the driver side end of the instrument panel. See your
authorized dealer for service.
The relays are coded as shown in
the accompanying illustration. RELAY
1RELAY
2RELAY
3RELAY
4
Driver Controls
114
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
