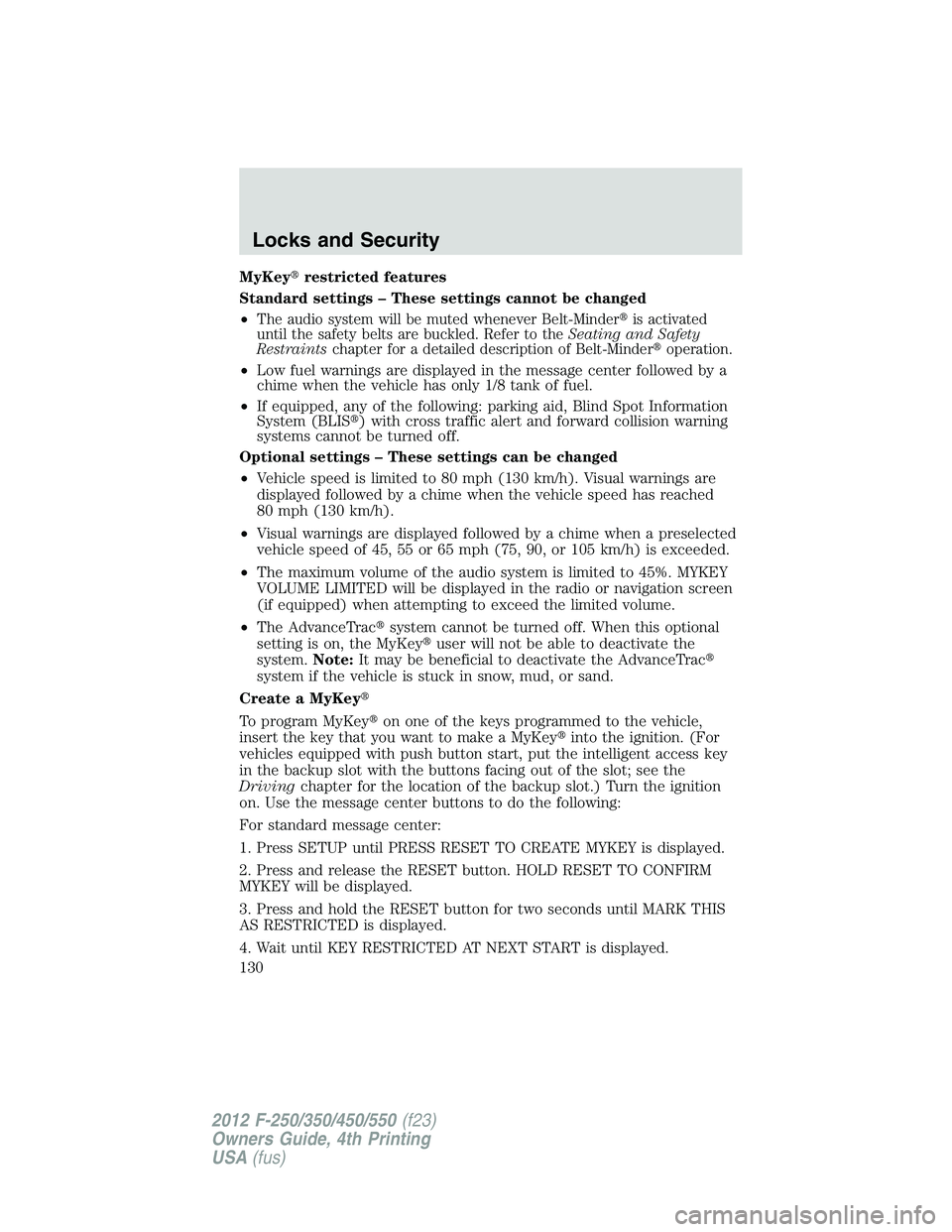

MyKey  restricted features
Standard settings – These settings cannot be changed
• The audio system will be muted whenever Belt-Minder  is activated
until the safety belts are buckled. Refer to the Seating and Safety
Restraints chapter for a detailed description of Belt-Minder  operation.
• Low fuel warnings are displayed in the message center followed by a
chime when the vehicle has only 1/8 tank of fuel.
• If equipped, any of the following: parking aid, Blind Spot Information
System (BLIS  ) with cross traffic alert and forward collision warning
systems cannot be turned off.
Optional settings – These settings can be changed
• Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
• Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
• The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the radio or navigation screen
(if equipped) when attempting to exceed the limited volume.
• The AdvanceTrac  system cannot be turned off. When this optional
setting is on, the MyKey  user will not be able to deactivate the
system. Note: It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Create a MyKey
To program MyKey  on one of the keys programmed to the vehicle,
insert the key that you want to make a MyKey  into the ignition. (For
vehicles equipped with push button start, put the intelligent access key
in the backup slot with the buttons facing out of the slot; see the
Driving chapter for the location of the backup slot.) Turn the ignition
on. Use the message center buttons to do the following:
For standard message center:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.Locks and Security
130
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Keep the RSS sensors (located on the rear bumper/fascia) free
from snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera system,
located on the tailgate, provides a
video image, which appears in the
rearview mirror or on the navigation
screen (if equipped), of the area
behind the vehicle. It adds
assistance to the driver while
reversing or reverse parking the
vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display on the left portion of the rearview mirror or on the
navigation screen (if equipped). The area displayed on the screen may
vary according to the vehicle orientation and/or road condition.Driving
298
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

• (1) Rear bumper
• (2) Red zone
• (3) Yellow zone
• (4) Green zone
• (5) Centerline of vehicle
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as they move from the green zone to
the yellow or red zones.
Use the side mirrors and rearview mirror to get better coverage on both
sides and rear of the vehicle.
Image delay if displayed through the rearview mirror:
When shifting out of R (Reverse) and into any other gear, the image in
the rearview mirror will remain on for a few seconds before it shuts off
to assist in parking or trailer hookup.
Image delay if displayed through the navigation screen:
After shifting out of R (Reverse) and into any gear other than P (Park),
the image in the navigation screen will remain until the vehicle speed
reaches 5 mph (8 km/h), only if the rear camera delay feature is on, or
until any navigation radio button is pressed.
Note: The default setting for the rear camera delay is off. Press the
“Settings” button found on the navigation screen (if equipped) to set the
rear camera delay feature to on or off.
When towing, the camera system will only see what is being towed
behind the vehicle; this might not provide adequate coverage as it
usually provides in normal operation and some objects might not be
seen.
The camera lens for the camera is located on the tailgate. Keep the lens
clean so the video image remains clear and undistorted. Clean the lens
with a soft, lint-free cloth and non-abrasive cleaner.
Note: If the camera system image is not clear or seems distorted, it may
be covered with water droplets, snow, mud or any other substance. If
this occurs, clean the camera lens before using the camera system. Driving
299
2012 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

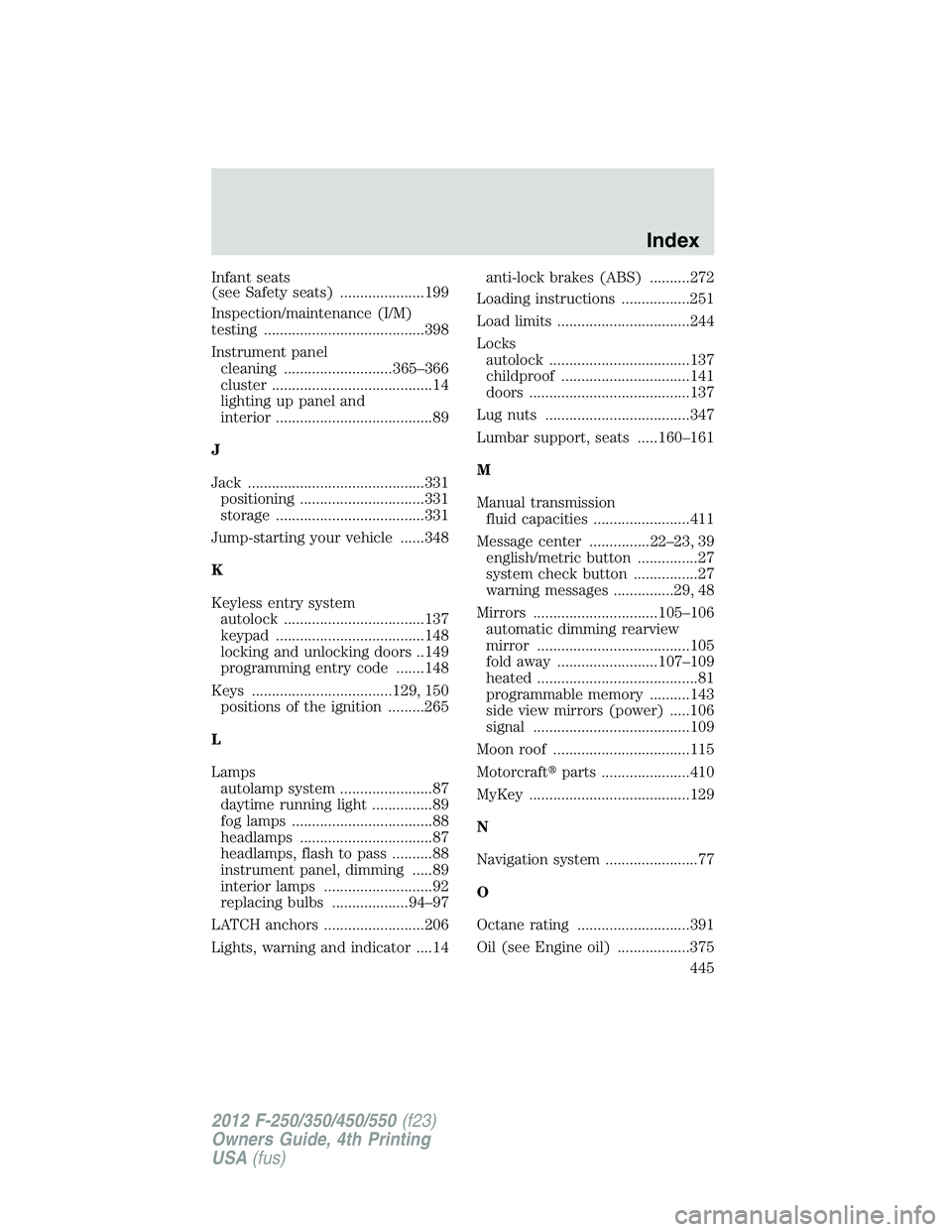

Infant seats
(see Safety seats) .....................199
Inspection/maintenance (I/M)
testing ........................................398
Instrument panel
cleaning ...........................365–366
cluster ........................................14
lighting up panel and
interior .......................................89
J
Jack ............................................331
positioning ...............................331
storage .....................................331
Jump-starting your vehicle ......348
K
Keyless entry system
autolock ...................................137
keypad .....................................148
locking and unlocking doors ..149
programming entry code .......148
Keys ...................................129, 150
positions of the ignition .........265
L
Lamps
autolamp system .......................87
daytime running light ...............89
fog lamps ...................................88
headlamps .................................87
headlamps, flash to pass ..........88
instrument panel, dimming .....89
interior lamps ...........................92
replacing bulbs ...................94–97
LATCH anchors .........................206
Lights, warning and indicator ....14 anti-lock brakes (ABS) ..........272
Loading instructions .................251
Load limits .................................244
Locks
autolock ...................................137
childproof ................................141
doors ........................................137
Lug nuts ....................................347
Lumbar support, seats .....160–161
M
Manual transmission
fluid capacities ........................411
Message center ...............22–23, 39
english/metric button ...............27
system check button ................27
warning messages ...............29, 48
Mirrors ...............................105–106
automatic dimming rearview
mirror ......................................105
fold away .........................107–109
heated ........................................81
programmable memory ..........143
side view mirrors (power) .....106
signal .......................................109
Moon roof ..................................115
Motorcraft  parts ......................410
MyKey ........................................129
N
Navigation system .......................77
O
Octane rating ............................391
Oil (see Engine oil) ..................375 Index
