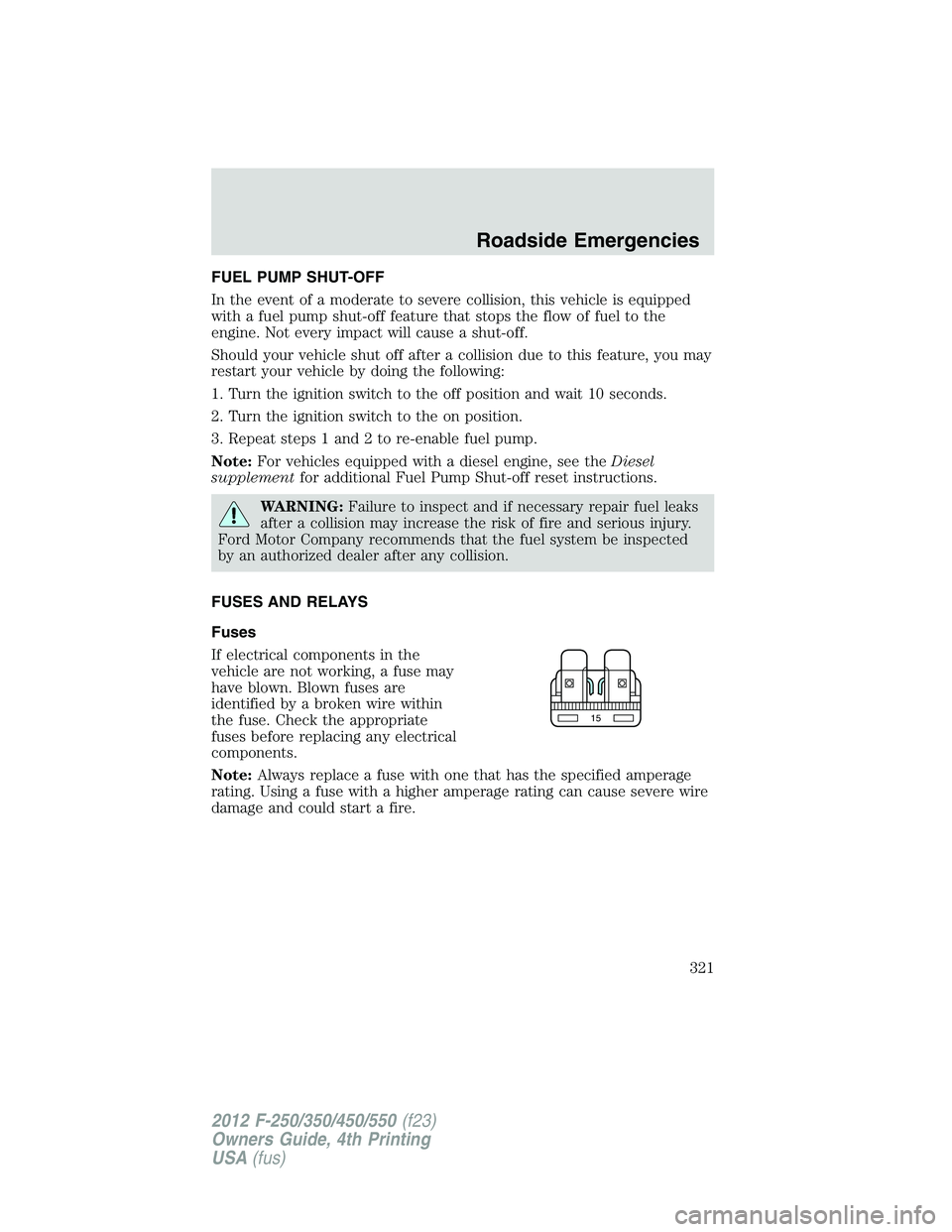

Page 321 of 448

FORD F550 2012  Owners Manual FUEL PUMP SHUT-OFF
In the event of a moderate to severe collision, this vehicle is equipped
with a fuel pump shut-off feature that stops the flow of fuel to the
engine. Not every impact will cause a s

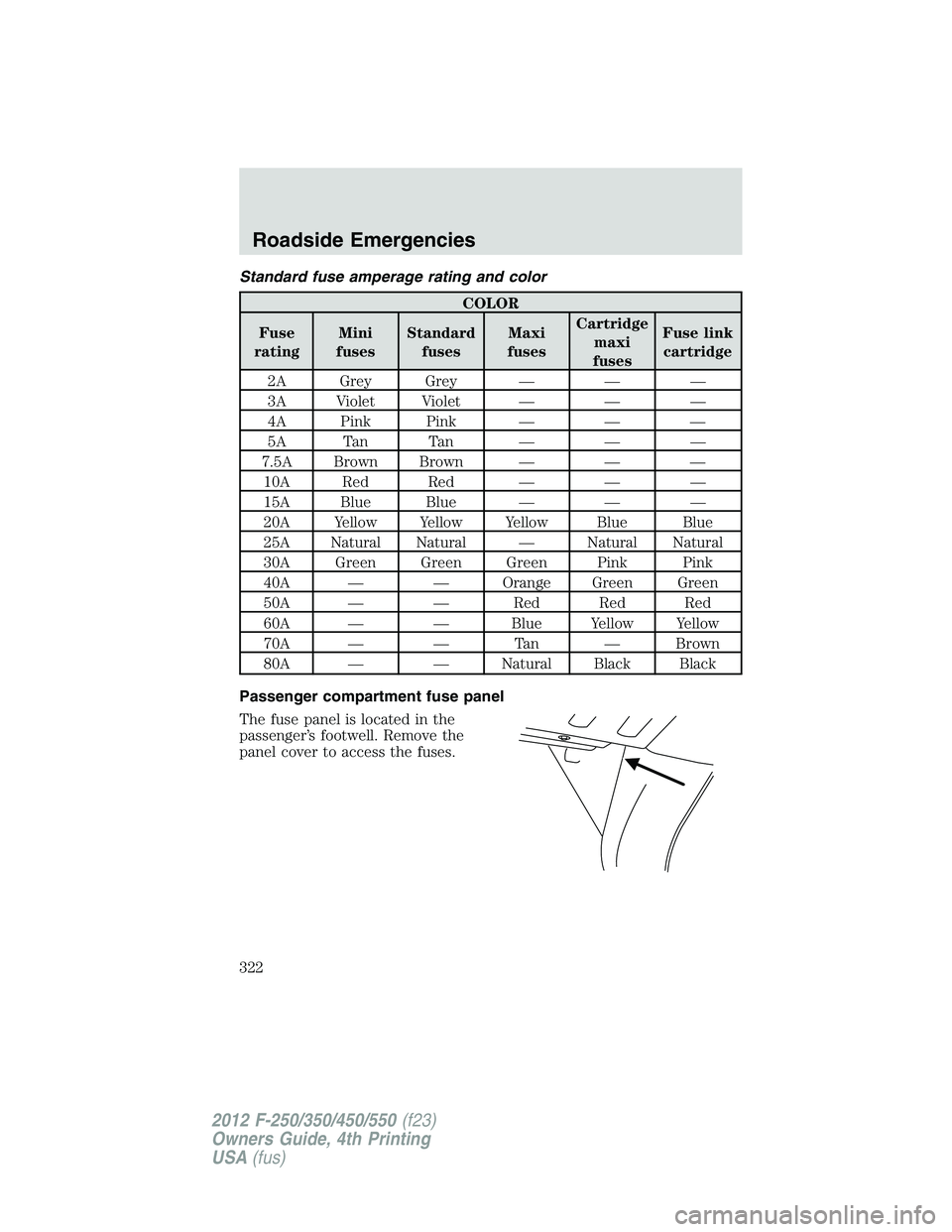

Page 322 of 448

FORD F550 2012  Owners Manual Standard fuse amperage rating and color
COLOR
Fuse
rating Mini
fuses Standard
fuses Maxi
fuses Cartridge
maxi
fuses Fuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pi

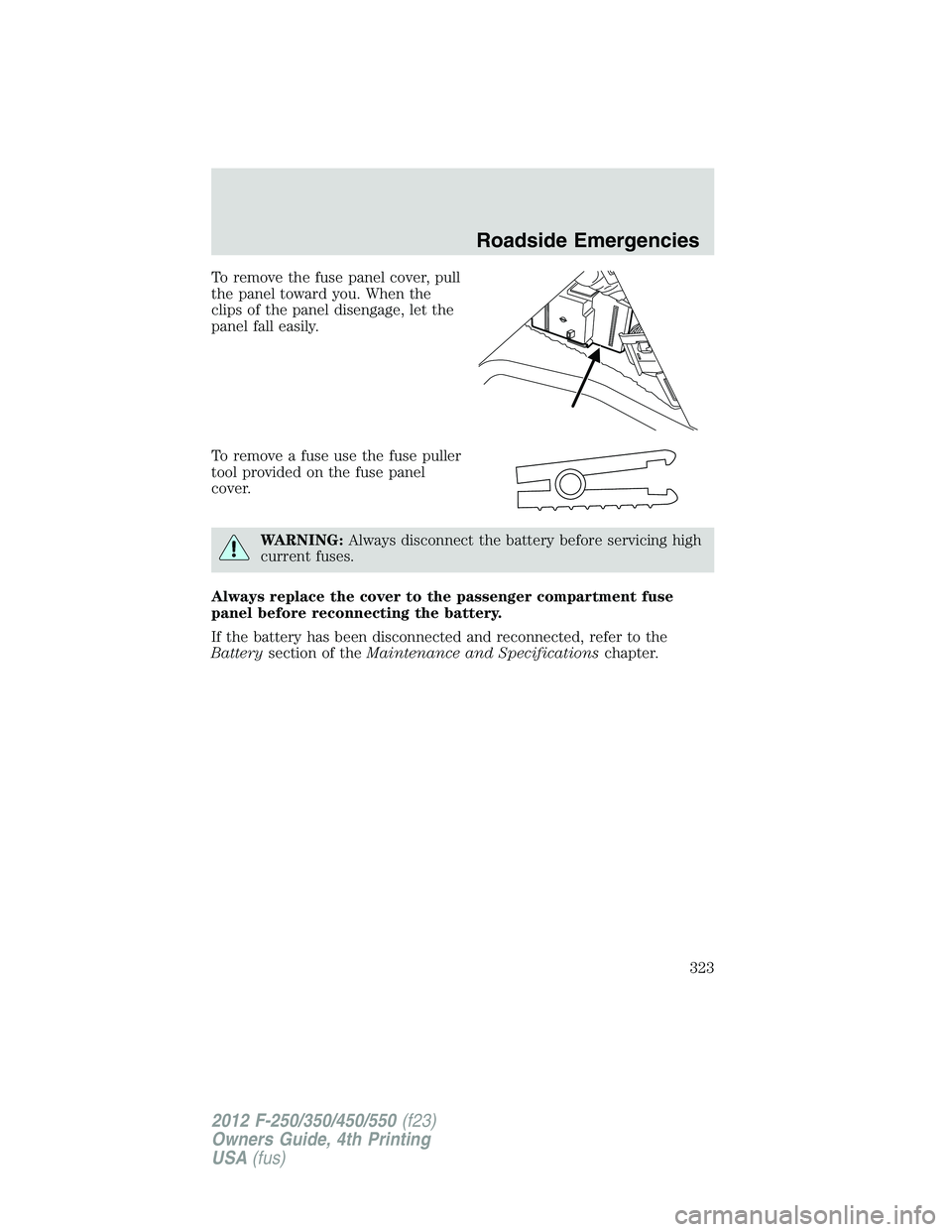

Page 323 of 448

FORD F550 2012  Owners Manual To remove the fuse panel cover, pull
the panel toward you. When the
clips of the panel disengage, let the
panel fall easily.
To remove a fuse use the fuse puller
tool provided on the fuse panel
cover.

Page 324 of 448

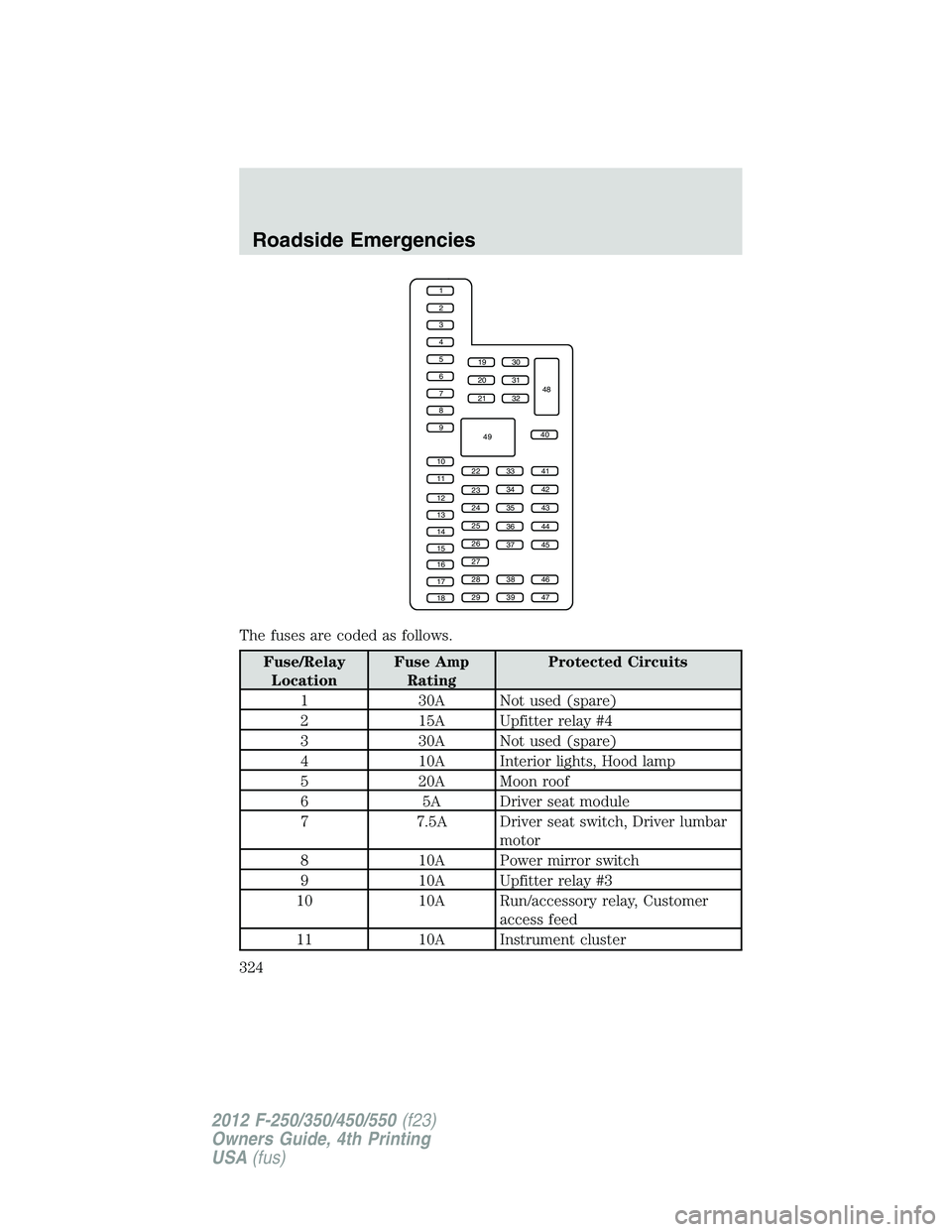

FORD F550 2012  Owners Manual The fuses are coded as follows.
Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
1 30A Not used (spare)
2 15A Upfitter relay #4
3 30A Not used (spare)
4 10A Interior lights, Hood lamp
5 20A Moon

Page 325 of 448

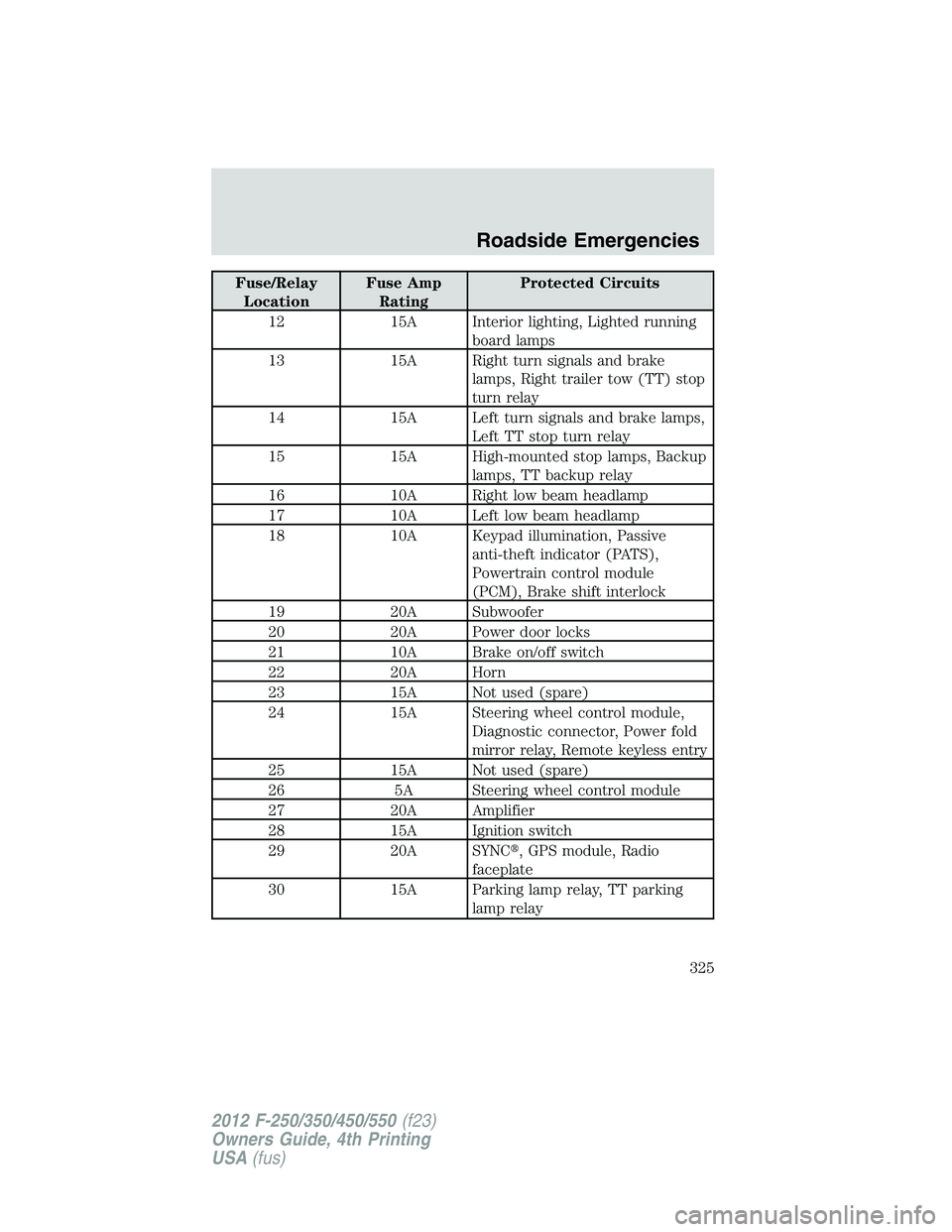

FORD F550 2012  Owners Manual Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
12 15A Interior lighting, Lighted running
board lamps
13 15A Right turn signals and brake
lamps, Right trailer tow (TT) stop
turn relay
14 15A Le

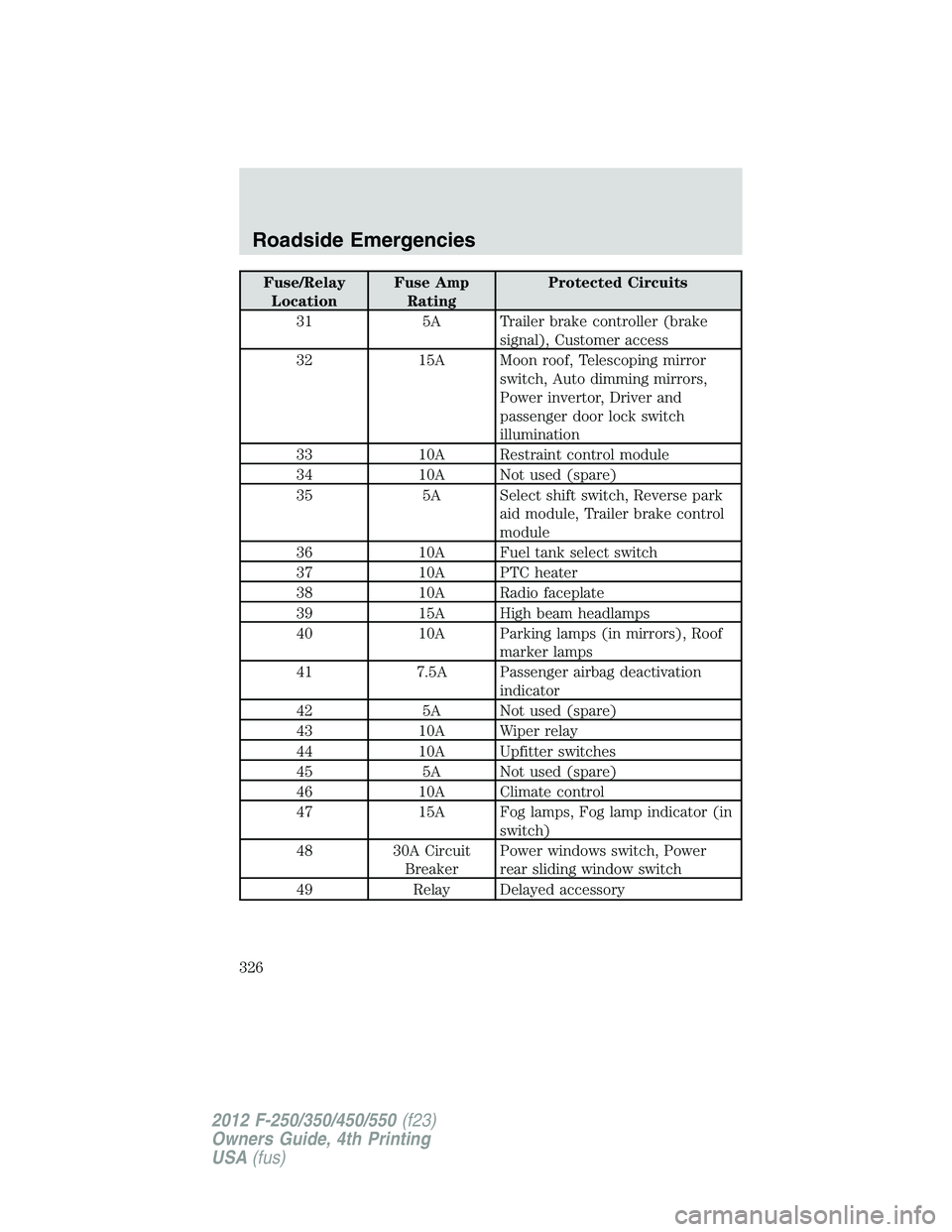

Page 326 of 448

FORD F550 2012  Owners Manual Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
31 5A Trailer brake controller (brake
signal), Customer access
32 15A Moon roof, Telescoping mirror
switch, Auto dimming mirrors,
Power invertor,

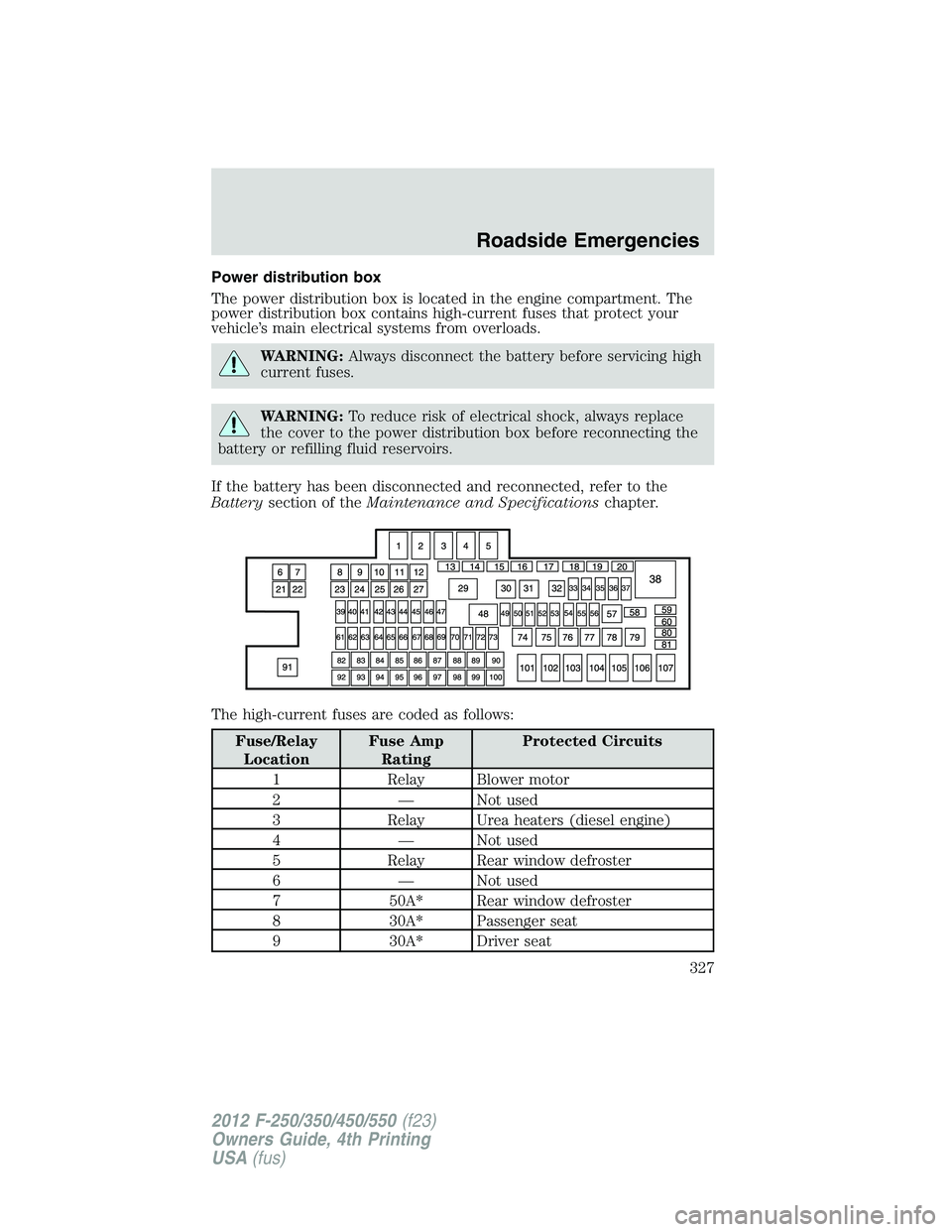

Page 327 of 448

FORD F550 2012  Owners Manual Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems fro

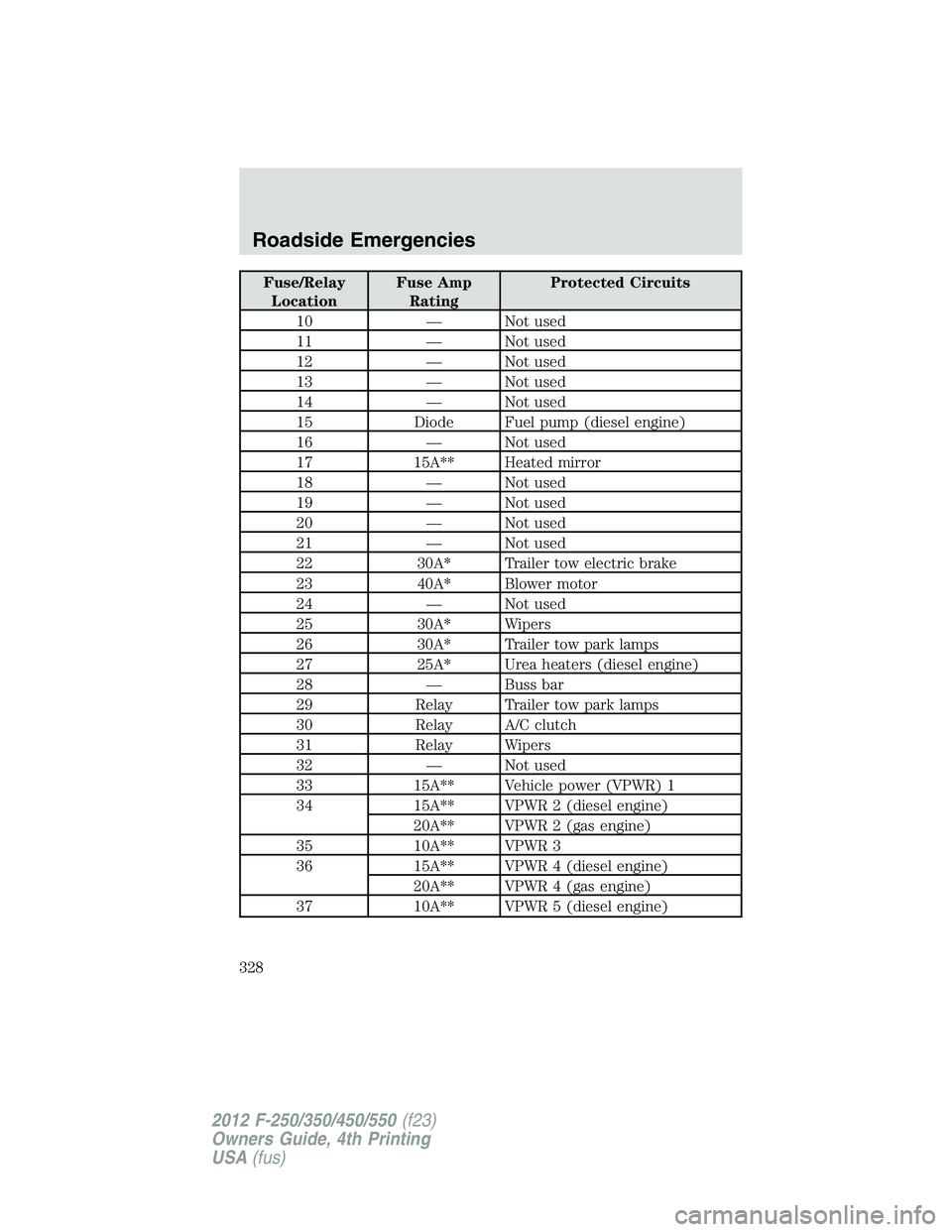

Page 328 of 448

FORD F550 2012  Owners Manual Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
10 — Not used
11 — Not used
12 — Not used
13 — Not used
14 — Not used
15 Diode Fuel pump (diesel engine)
16 — Not used
17 15A** Heate

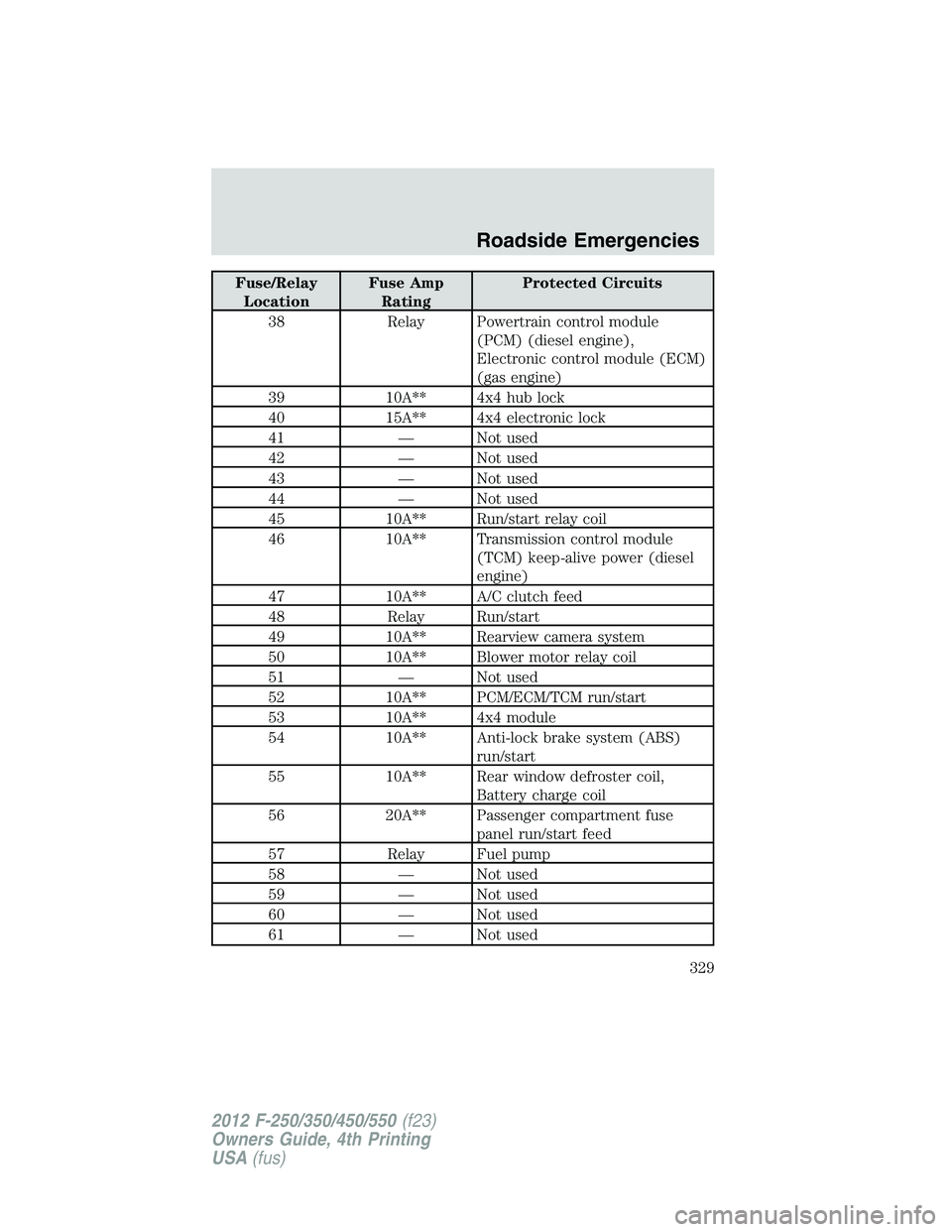

Page 329 of 448

FORD F550 2012  Owners Manual Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
38 Relay Powertrain control module
(PCM) (diesel engine),
Electronic control module (ECM)
(gas engine)
39 10A** 4x4 hub lock
40 15A** 4x4 electro

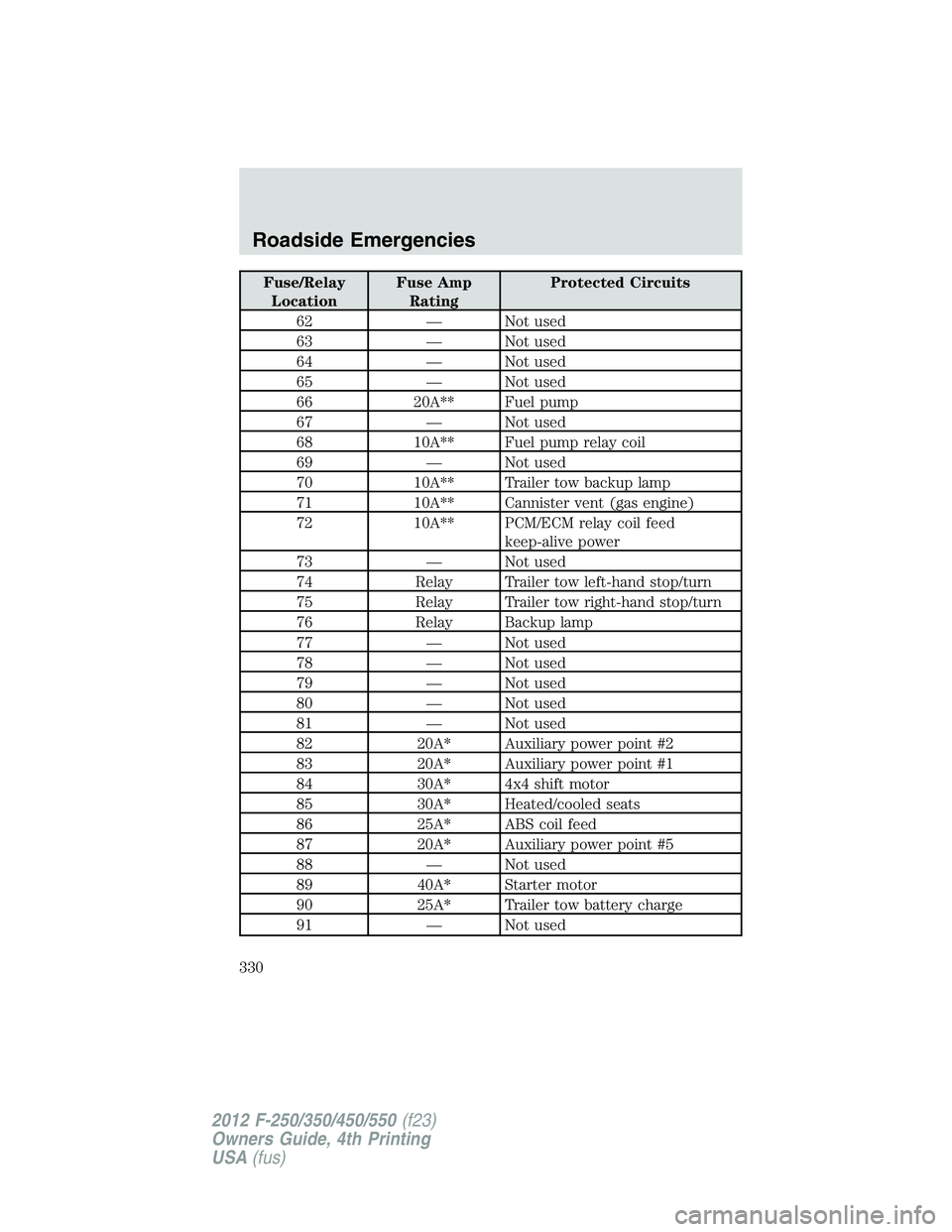

Page 330 of 448

FORD F550 2012  Owners Manual Fuse/Relay
Location Fuse Amp
Rating Protected Circuits
62 — Not used
63 — Not used
64 — Not used
65 — Not used
66 20A** Fuel pump
67 — Not used
68 10A** Fuel pump relay coil
69 — Not used
