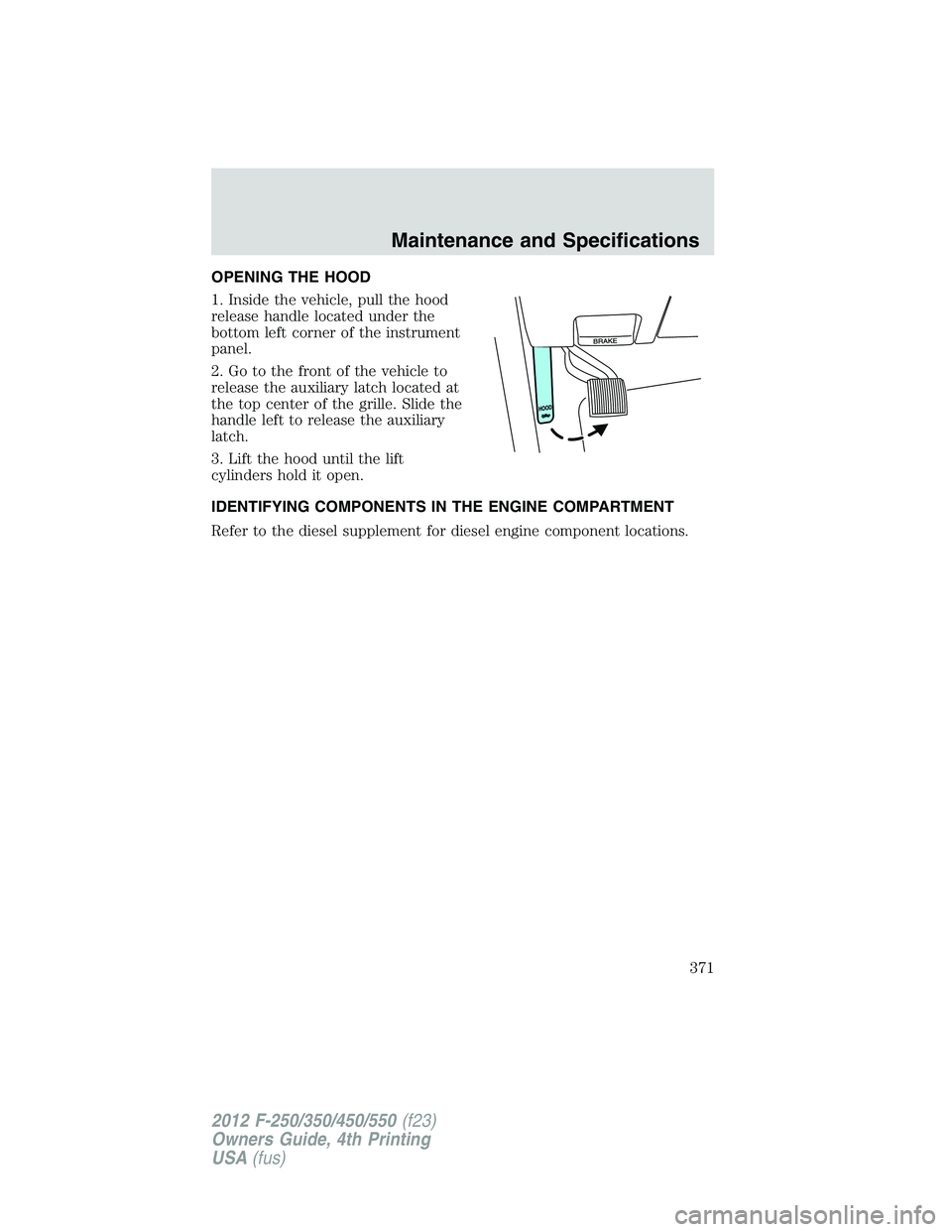

Page 371 of 448

FORD F550 2012  Owners Manual OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located under the
bottom left corner of the instrument
panel.
2. Go to the front of the vehicle to
release the auxiliary latch loca

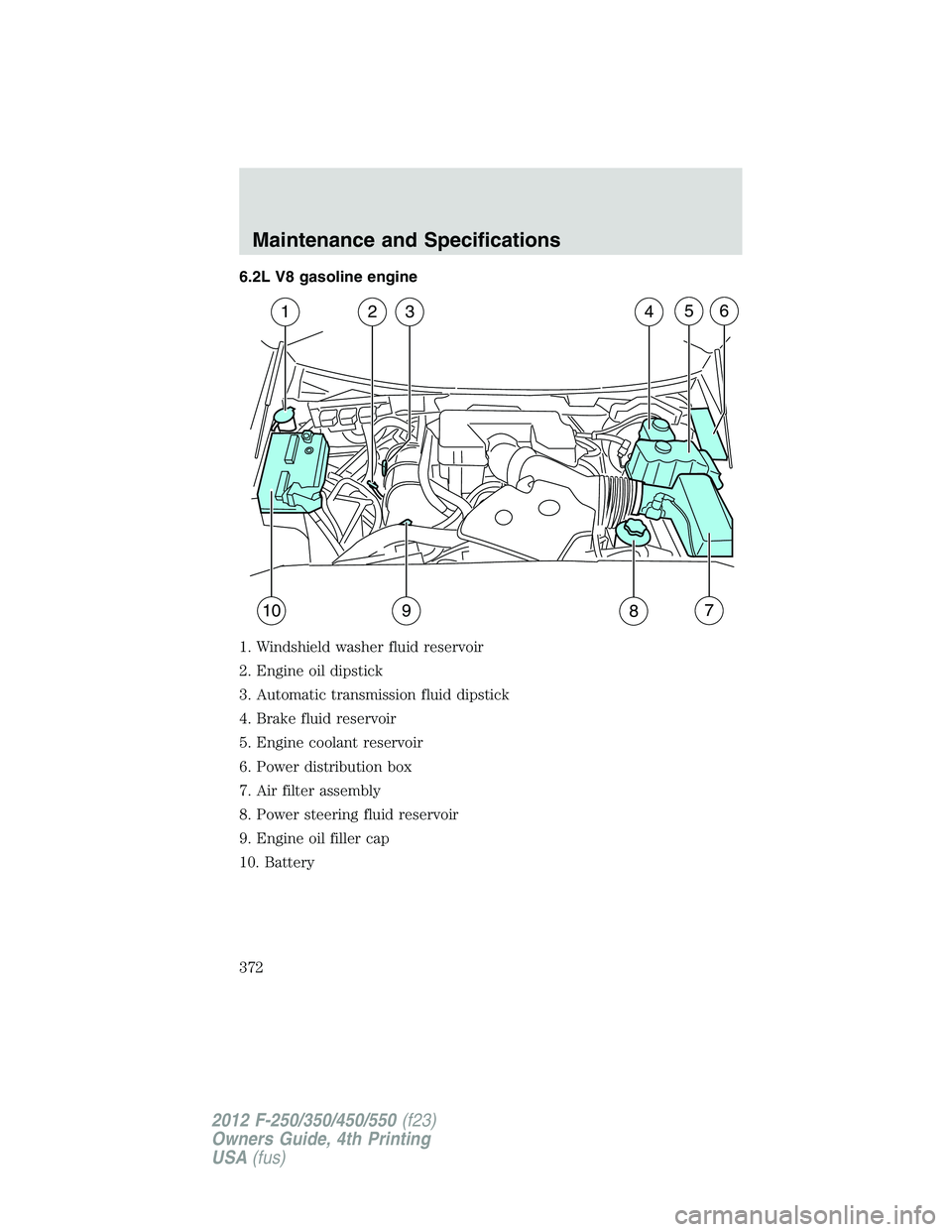

Page 372 of 448

FORD F550 2012  Owners Manual 6.2L V8 gasoline engine
1. Windshield washer fluid reservoir
2. Engine oil dipstick
3. Automatic transmission fluid dipstick
4. Brake fluid reservoir
5. Engine coolant reservoir
6. Power distribution

Page 373 of 448

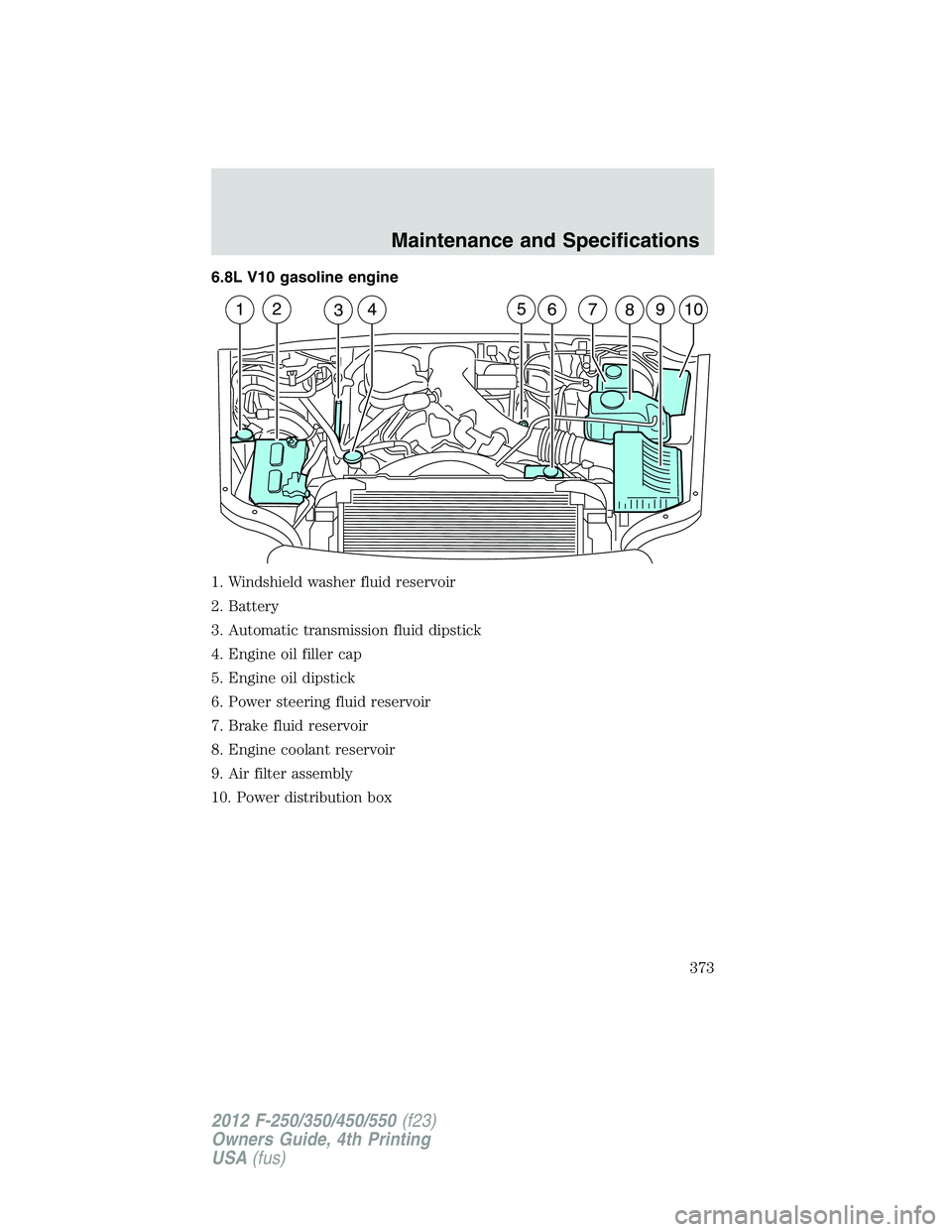

FORD F550 2012  Owners Manual 6.8L V10 gasoline engine
1. Windshield washer fluid reservoir
2. Battery
3. Automatic transmission fluid dipstick
4. Engine oil filler cap
5. Engine oil dipstick
6. Power steering fluid reservoir
7. B

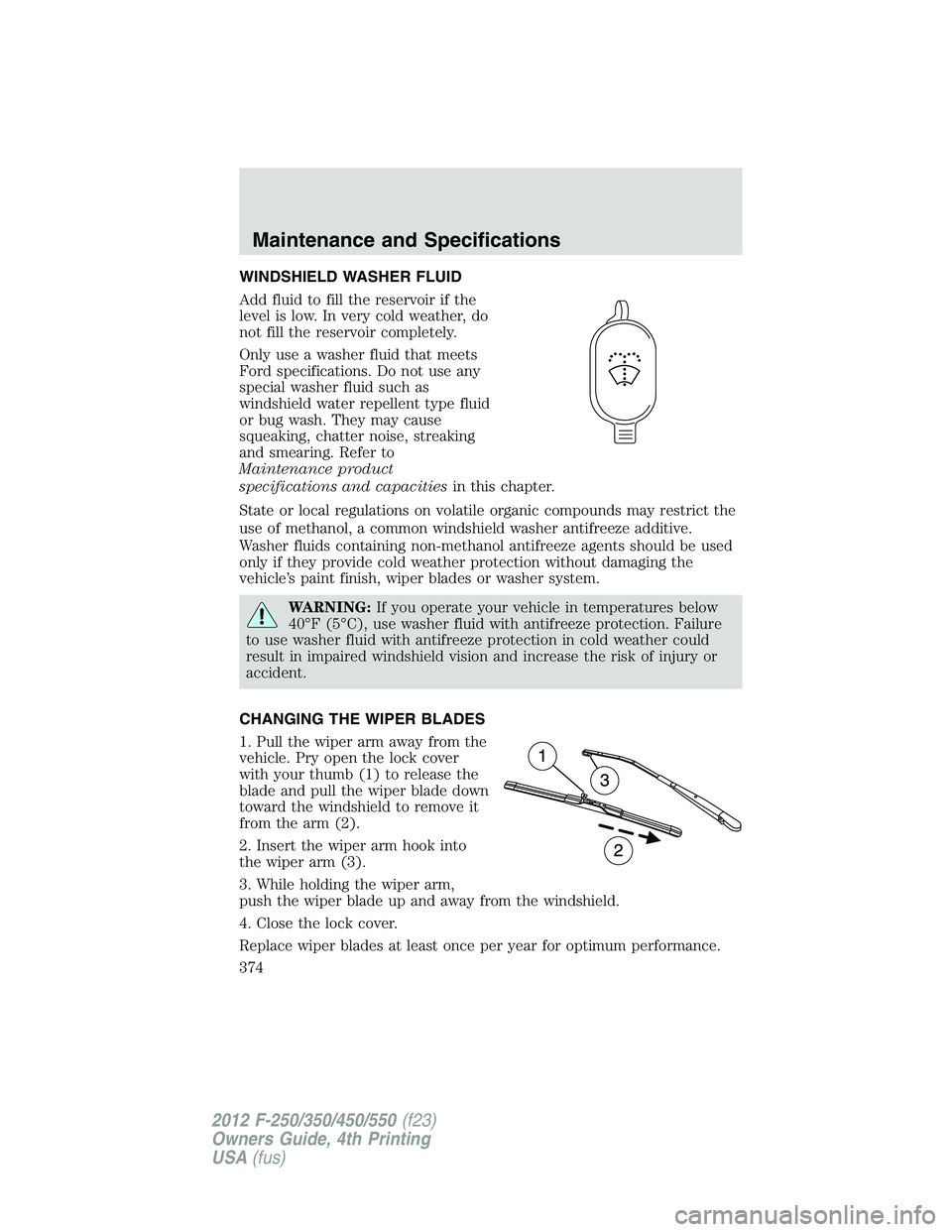

Page 374 of 448

FORD F550 2012  Owners Manual WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specifications. Do not

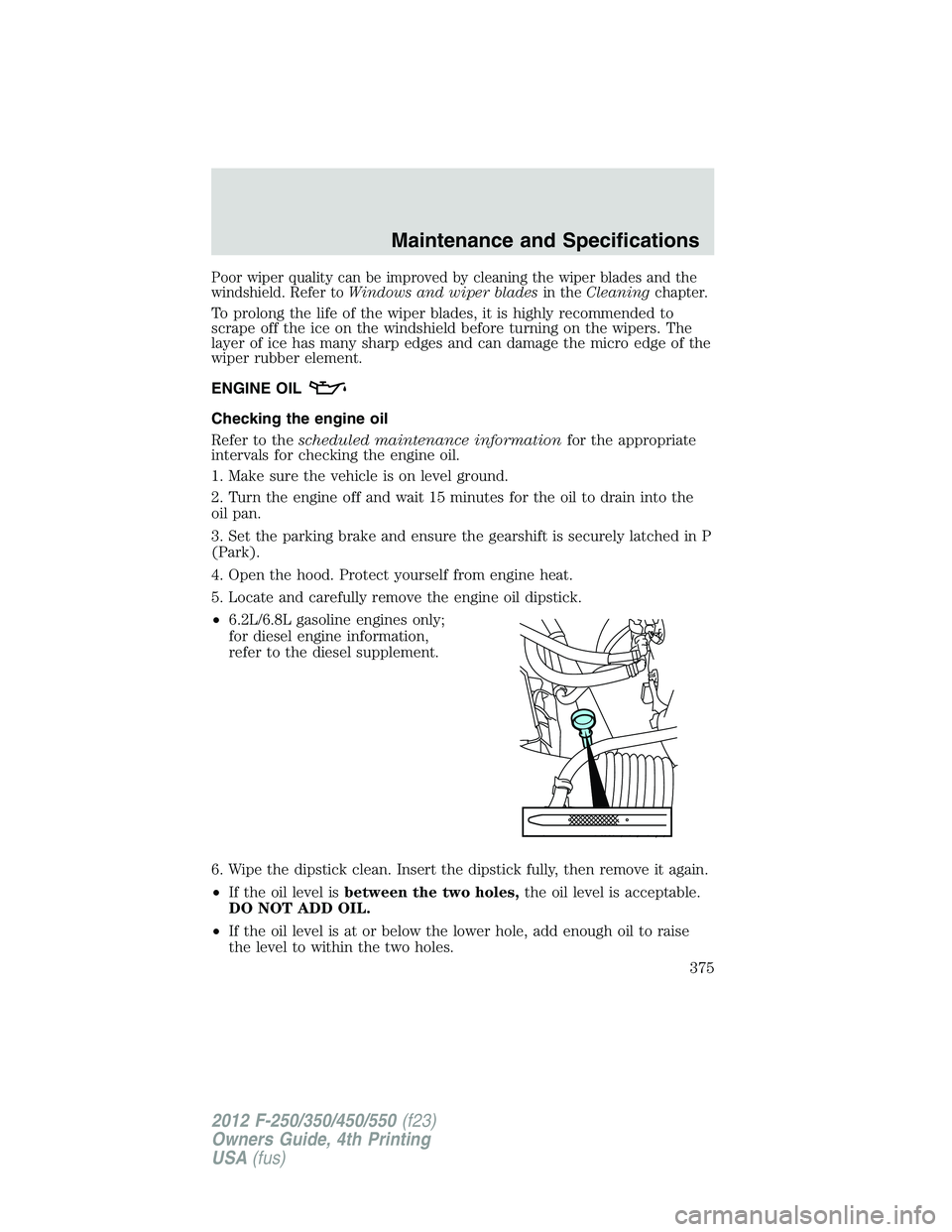

Page 375 of 448

FORD F550 2012  Owners Manual Poor wiper quality can be improved by cleaning the wiper blades and the
windshield. Refer to Windows and wiper blades in the Cleaning chapter.
To prolong the life of the wiper blades, it is highly rec

Page 376 of 448

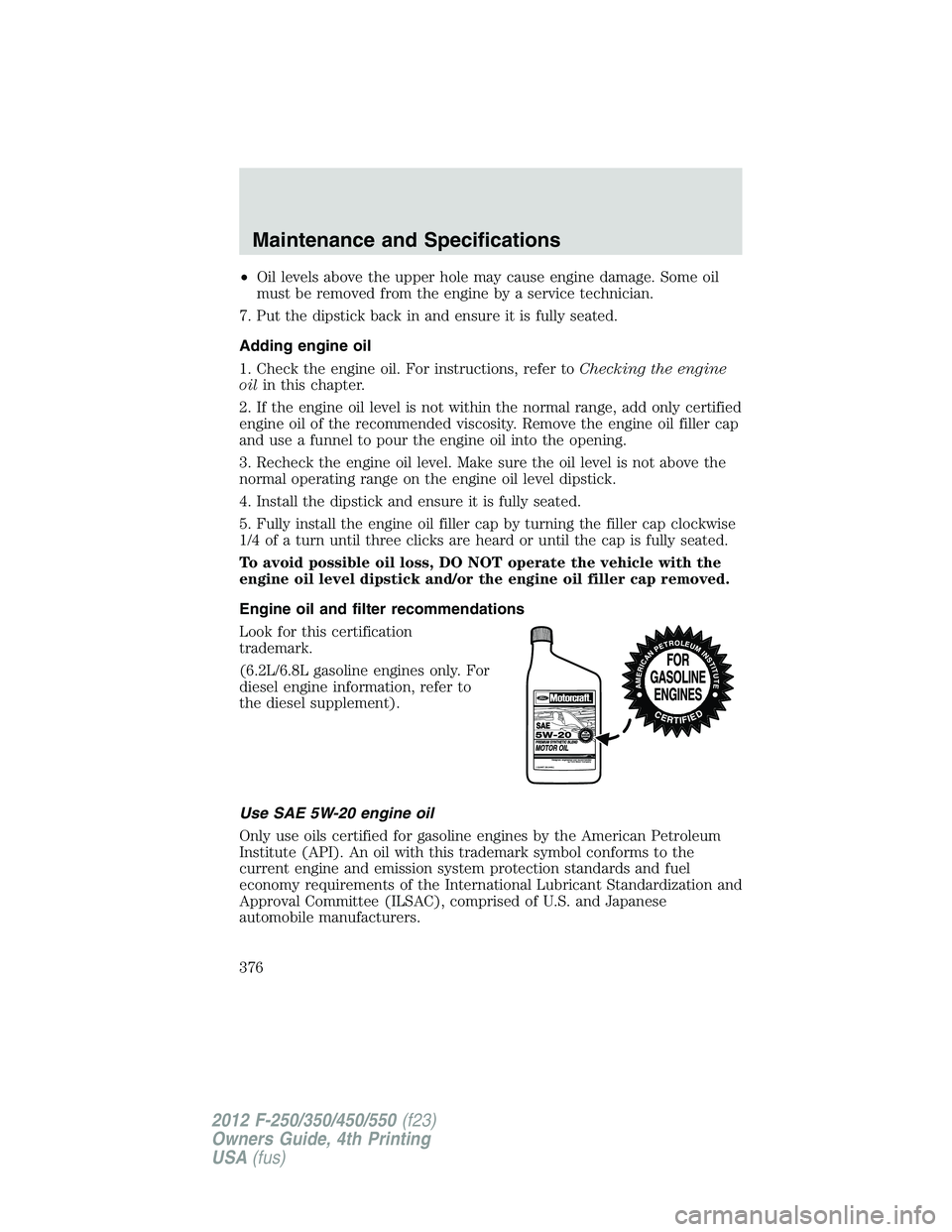

FORD F550 2012  Owners Manual • Oil levels above the upper hole may cause engine damage. Some oil
must be removed from the engine by a service technician.
7. Put the dipstick back in and ensure it is fully seated.
Adding engine

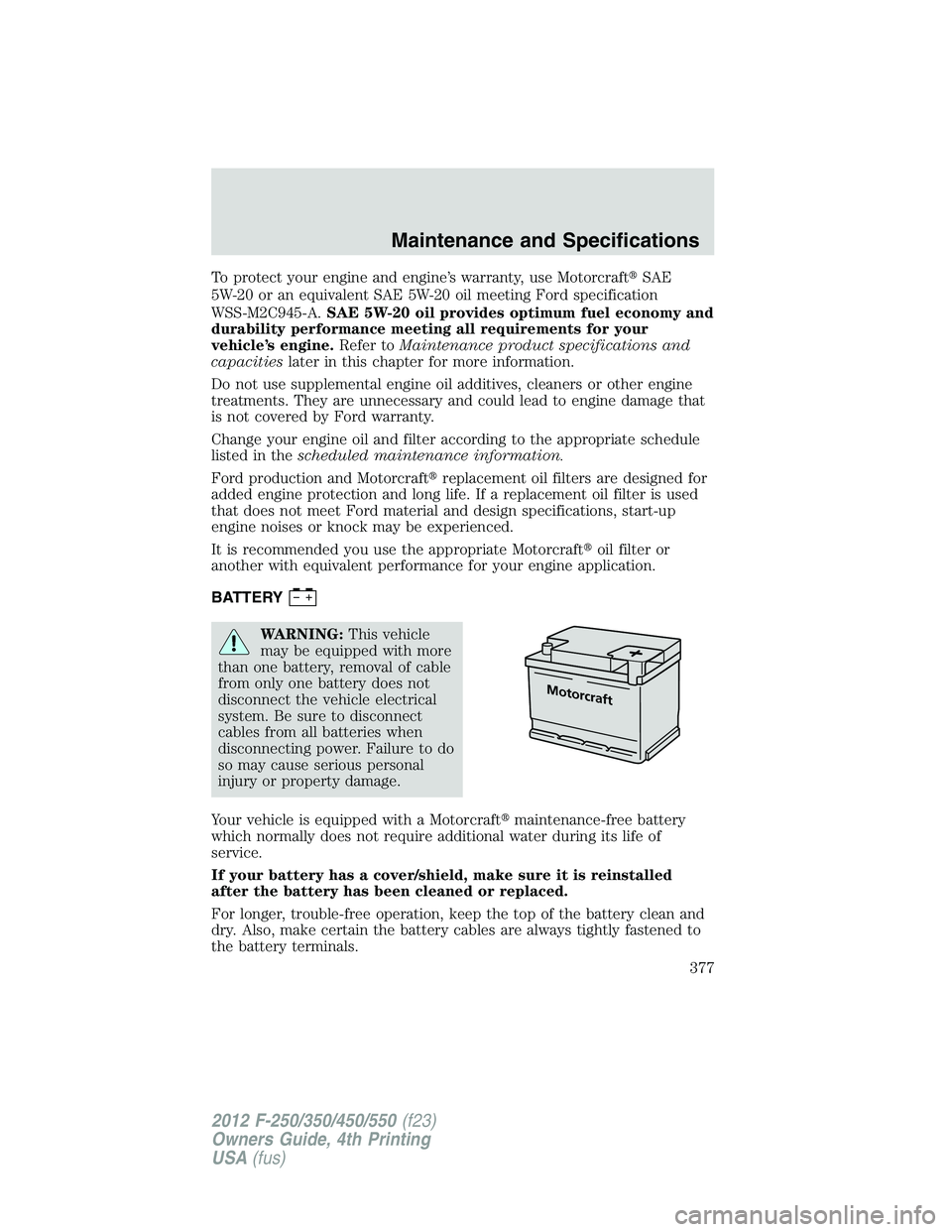

Page 377 of 448

FORD F550 2012  Owners Manual To protect your engine and engine’s warranty, use Motorcraft  SAE
5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C945-A. SAE 5W-20 oil provides optimum fuel economy and
durab

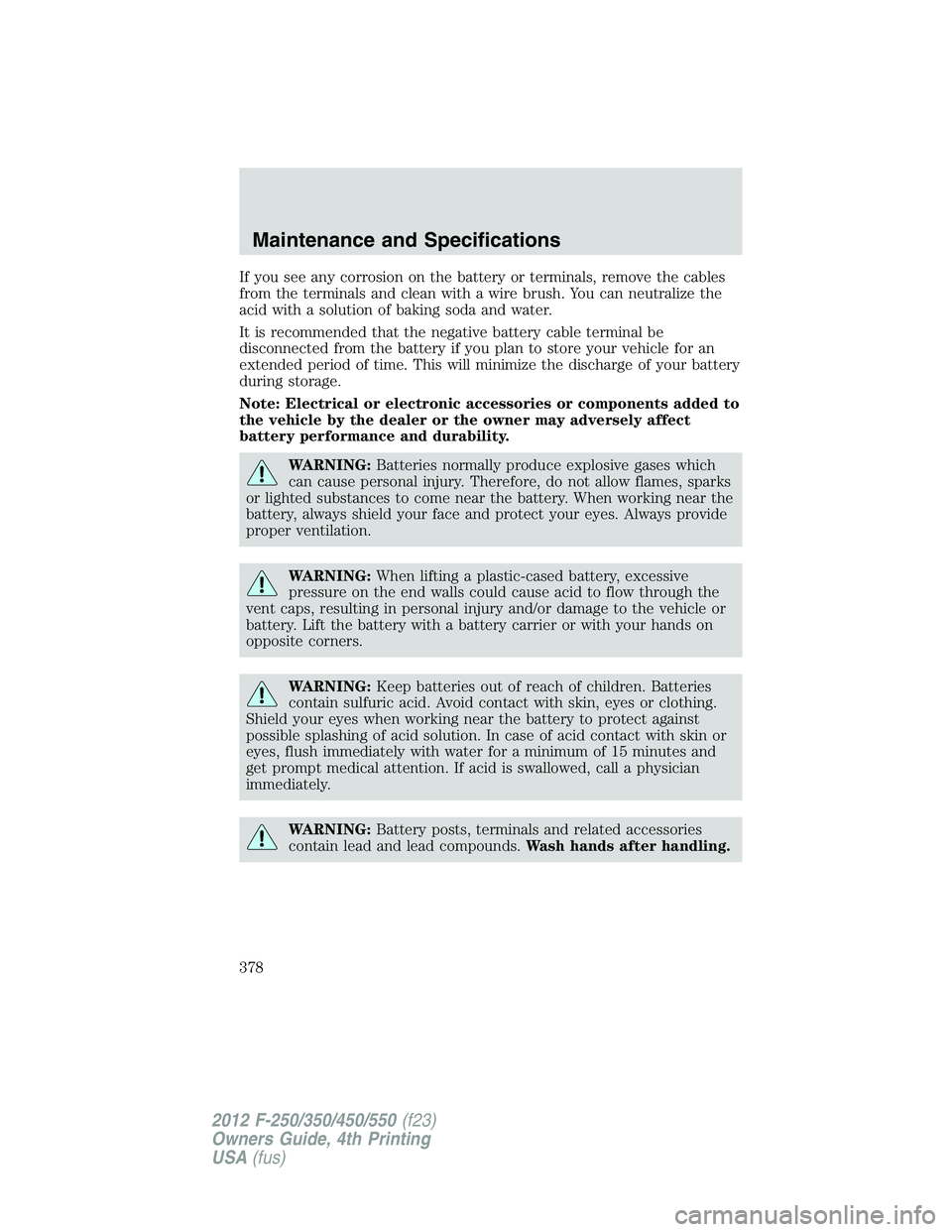

Page 378 of 448

FORD F550 2012  Owners Manual If you see any corrosion on the battery or terminals, remove the cables
from the terminals and clean with a wire brush. You can neutralize the
acid with a solution of baking soda and water.
It is reco

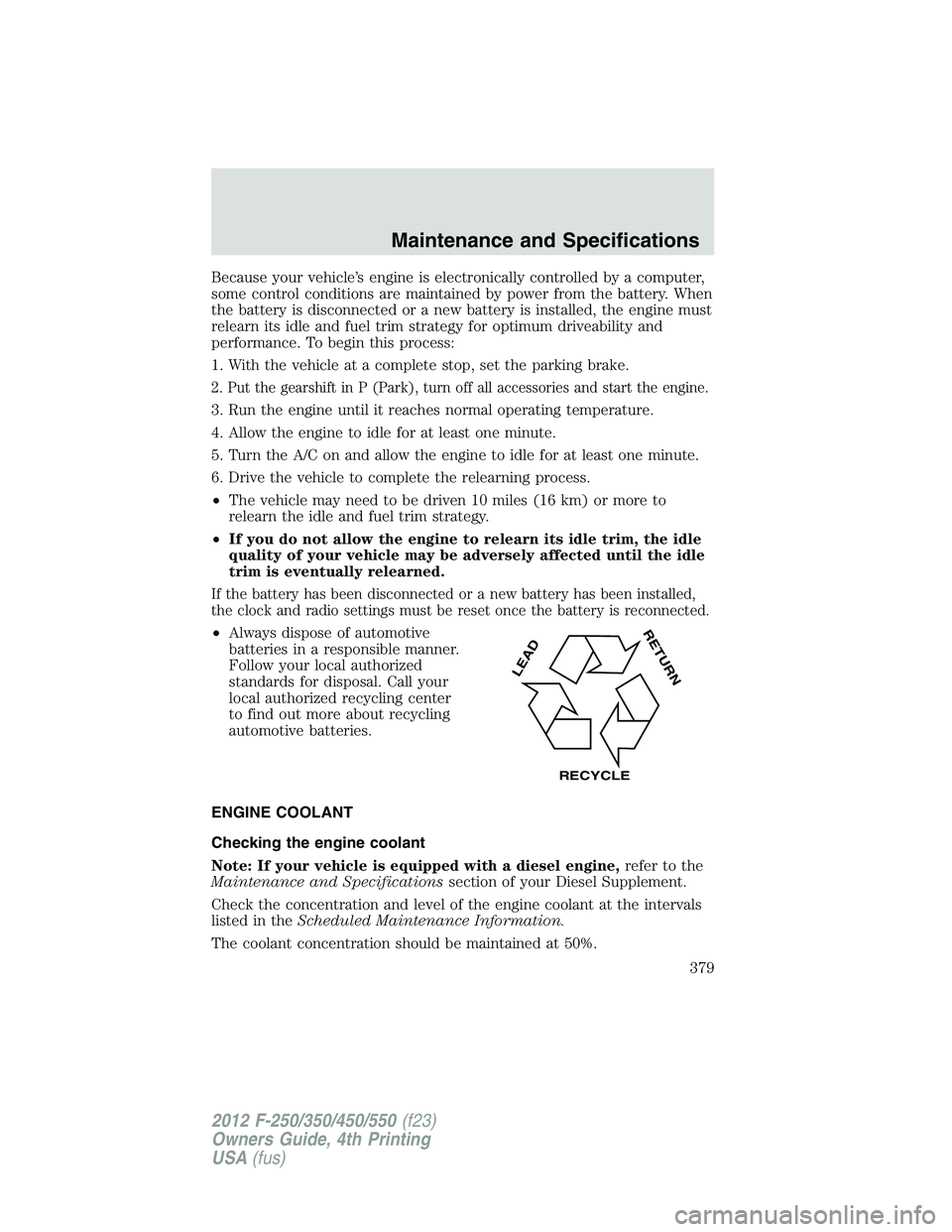

Page 379 of 448

FORD F550 2012  Owners Manual Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is insta

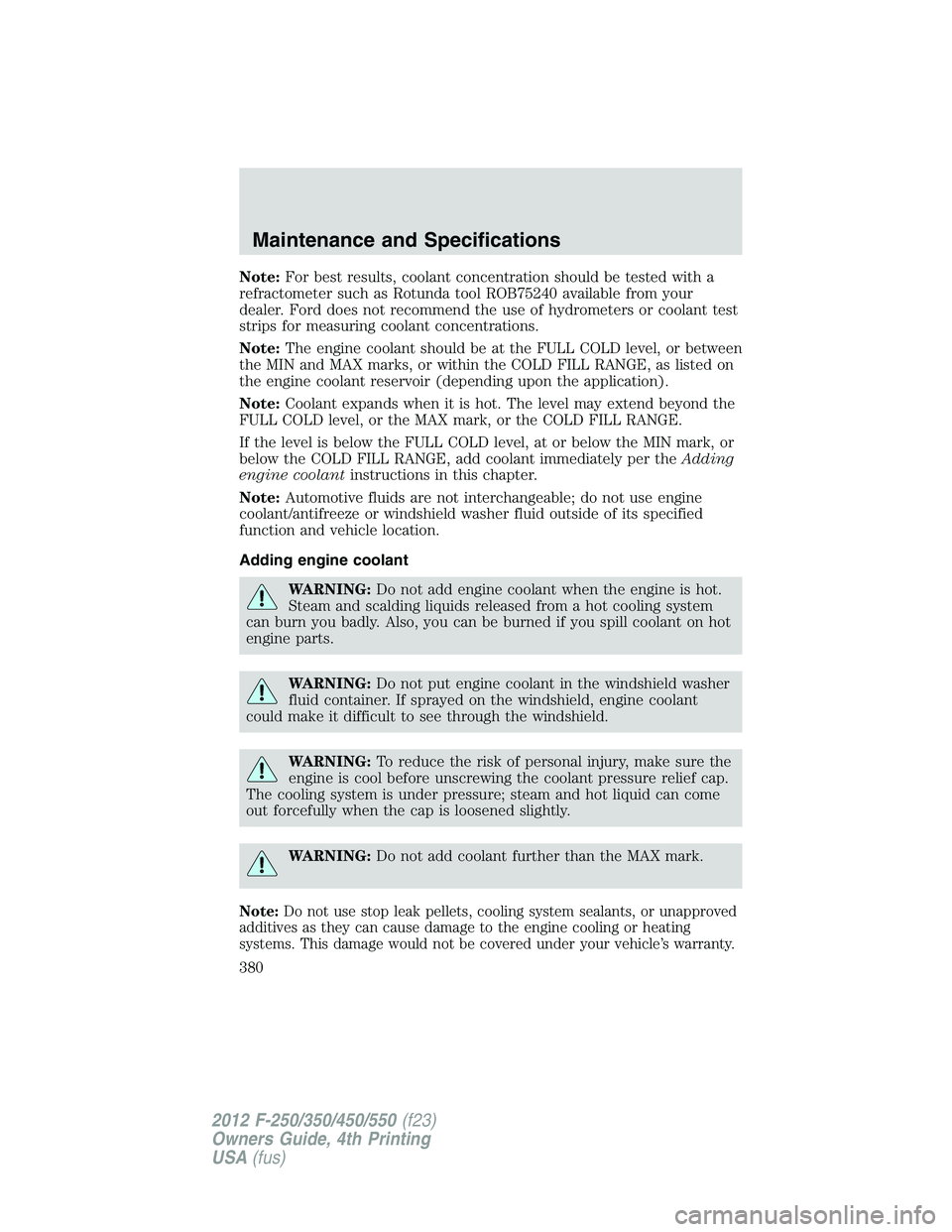

Page 380 of 448

FORD F550 2012  Owners Manual Note: For best results, coolant concentration should be tested with a
refractometer such as Rotunda tool ROB75240 available from your
dealer. Ford does not recommend the use of hydrometers or coolant
