fuse box FORD F650 2002 10.G Owners Manual

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment
Fuse Panel Description
9 5A Switch Illumination (Headlamp, Power
Windows, Power Door Locks), Power
Window Relay, Trailer Hook Up Lamps
(SuperCrewzer only)
10 Ð Not Used
11 30A Wiper Motor, Washer Pump Relay
12 10A Stoplamp Switch (Hydraulic Vehicles Only)
13 20A Radio, Cluster, 7.3L Power Stroke
Powertrain Control Module (PCM), Keep
Alive Memory
14 10A Interior Lamps, Runningboard lamps
(SuperCrewzer only)
15 10A GEM, Interior Lamp Relay, Map Lamps,
Glove Box Lamps (SuperCrewzer only),
Power Mirrors (SuperCrewzer only),
Warning Chime Module (SuperCrewzer
only)
16 15A Highbeams
17 Ð Not Used
18 5A Headlamp switch, GEM
19 15A Engine, Cluster, Cummins PC M, CAT PCM,
7.3L Power Stroke PCM (Idle Valid Switch
Input)
20 15A Starter Relay, GEM
21 10A Daytime Running Lamps (DRL)
22 15A Exhaust Brake (SuperCrewzer only),
Heated Mirrors (SuperCrewzer only), Rear
Air Suspension (SuperCrewzer only)
23 10A Electronic Flasher
24 15A Vacuum Pump, Air Dryer, ABS, Fuel Heater
Relay
25 10A Blower Motor Relay
26 10A Right Low Beam Headlamp
27 Ð Not Used
Roadside Emergencies
154

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment
Fuse Panel Description
28 10A Left Low Beam Headlamp
29 10A Cluster, GEM, 7.3L Power Stroke PCM
(clutch switch input), APCM (7.3L Power
Stroke only), Overhead Console
(SuperCrewzer only), Keyless Entry
Module (SuperCrewzer only), Traxx (Fuel)
Module (SuperCrewzer only)
30 30A 7.3L Power Stroke PCM Diode, 7.3L Power
Stroke Fuel Heater
31 15A Allison MD Transmission, Neutral Start
Relay and PCM (7.3L Power Stroke only)
Relay 1 Ð Interior Lamps
Relay 2 Ð Not Used
Relay 3 Ð Horn
Relay 4 Ð One Touch Down
Relay 5 Ð Not Used
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle's main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
Always replace the cover to the power distribution box before
reconnecting the battery or refilling fluid reservoirs
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and specificationschapter.
Roadside Emergencies
155

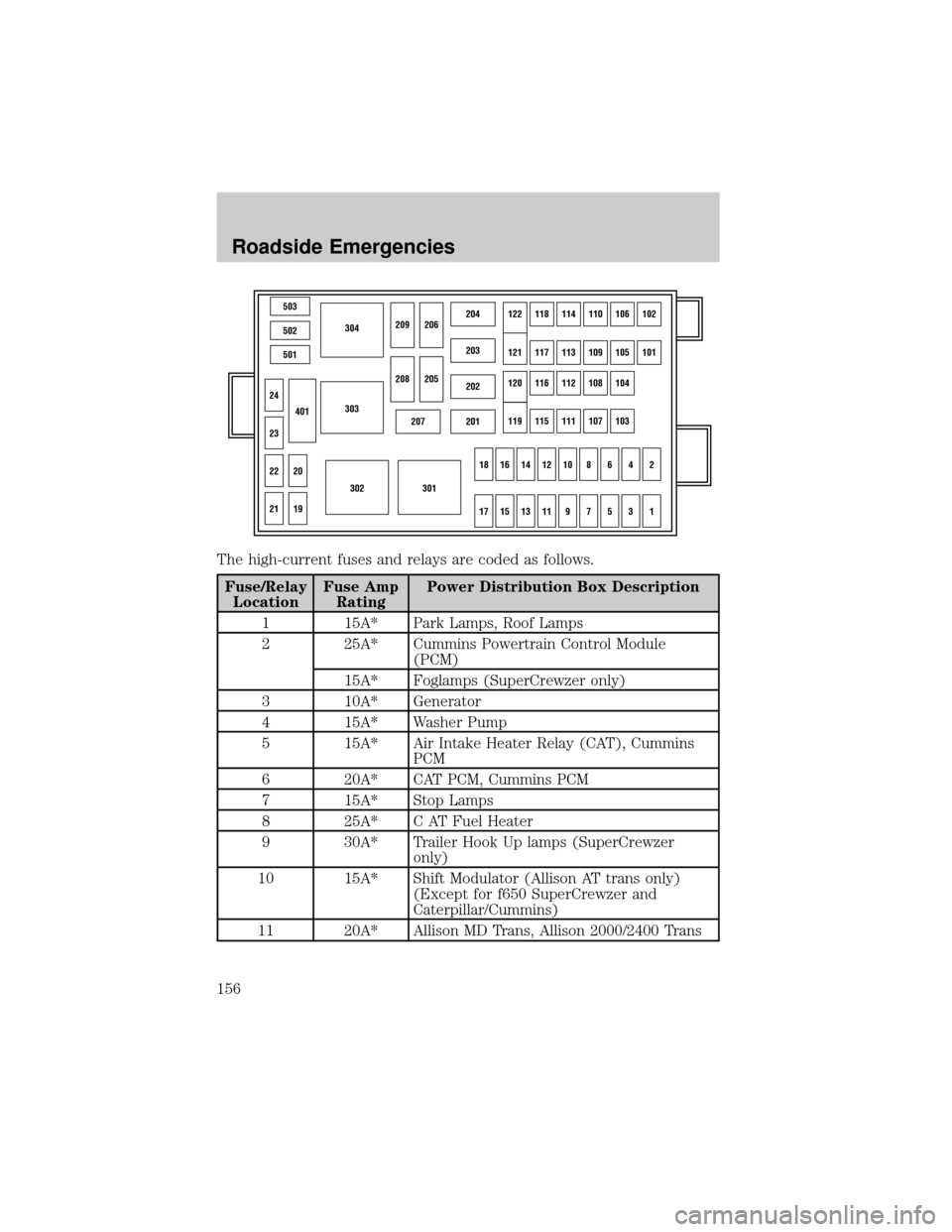

The high-current fuses and relays are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1 15A* Park Lamps, Roof Lamps
2 25A* Cummins Powertrain Control Module
(PCM)
15A* Foglamps (SuperCrewzer only)
3 10A* Generator
4 15A* Washer Pump
5 15A* Air Intake Heater Relay (CAT), Cummins
PCM
6 20A* CAT PCM, Cummins PCM
7 15A* Stop Lamps
8 25A* C AT Fuel Heater
9 30A* Trailer Hook Up lamps (SuperCrewzer
only)
10 15A* Shift Modulator (Allison AT trans only)
(Except for f650 SuperCrewzer and
Caterpillar/Cummins)
11 20A* Allison MD Trans, Allison 2000/2400 Trans
503
304
303
302301
502
501
207201
202
203
204122118114110106102
121117113109105101
120116112108104
119115111107103
24
209206
208
18161412108642
1715131197531
205
23
22
21
401
20
19
Roadside Emergencies
156

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
12 10A* Keyless Entry Module (SuperCrewzer only)
13 10A* Park Brake Adjustment Module
(SuperCrewzer only)
14 Ð Not Used
15 7.5A* Body Builder Prep (Hydraulic Vehicles
Only)
16 10A* Allison 2000/2400 Trans (Except F650
SuperCrewzer)
17 5A* Radio (SuperCrewzer only)
18 Ð Not Used
19 Ð Not Used
20 Ð Not Used
21 10A* GEM (Hydraulic Vehicles Only)
22 Ð Not Used
23 Ð Not Used
24 Ð Not Used
101 40A** ABS (Air Only)
102 20A** Body Builder Prep Run Feed
103 50A** Ignition Switch (JB fuses 8, 9, 11, 19, 20,
22, 23, 24, 25, 29, 30, 31)
104 20A** Power Point
105 20A** Power Door Locks
106 30A** Headlamps
107 50A** Junction Box Battery Feed (fuses 1, 2, 3, 4,
12, 13, 14, 15)
108 40A** Cummins Fuel Heater
109 40A** Power Windows
110 30A** Power Seats (SuperCrewzer only)
111 30A** Body Builder Prep
112 40A** Blower Motor
113 30A** Heated Seats (SuperCrewzer only)
114 30A** E-Brake (SuperCrewzer only)
Roadside Emergencies
157

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
115 40A** Ignition Switch (JB fuses 5, 8, 9, 11, 21)
116 30A** Body Builder Prep
117 20A** 7.3L Power Stroke PCM
118 30A** IDM (7.3L Power Stroke only)
119/120 60A** Hydraulic ABS, Air Brake Trailer Tow Fuse
Block
121/122 60A** Hydromax Motor, Air Brake Trailer Tow
Fuse Block
201 Ð Washer Pump Relay
202 Ð Wiper Speed Relay
203 Ð Wiper Run/Park Relay
204 Ð 7.3L Power Stroke Neutral Start Relay,
Stoplamp Relay (CAT and Cummins only)
205 Ð Right Hand Stop/Turn Relay
206 Ð Left Hand Stop/Turn Relay
207 Ð Shift Modulator Relay (CAT and Power
Stroke only), Cummins VP-44 Relay, A/C
High Pressure Relay (SuperCrewzer only
208 Ð Backup Lamps Relay
209 Ð Stop Lamps Relay, Foglamps Relay
(SuperCrewzer only)
301 Ð Fuel Heater Relay (CAT and Cummins
only)/7.3L Power Stroke PCM Relay
302 Ð Park Lamps Relay
303 Ð Blower Motor Relay
304 Ð Air ABS Relay
401 Ð Not Used
501 Ð Not Used
502 Ð Not Used
503 Diode 7.3L Power Stroke PCM Diode
* Mini Fuses ** Maxi Fuses
Roadside Emergencies
158

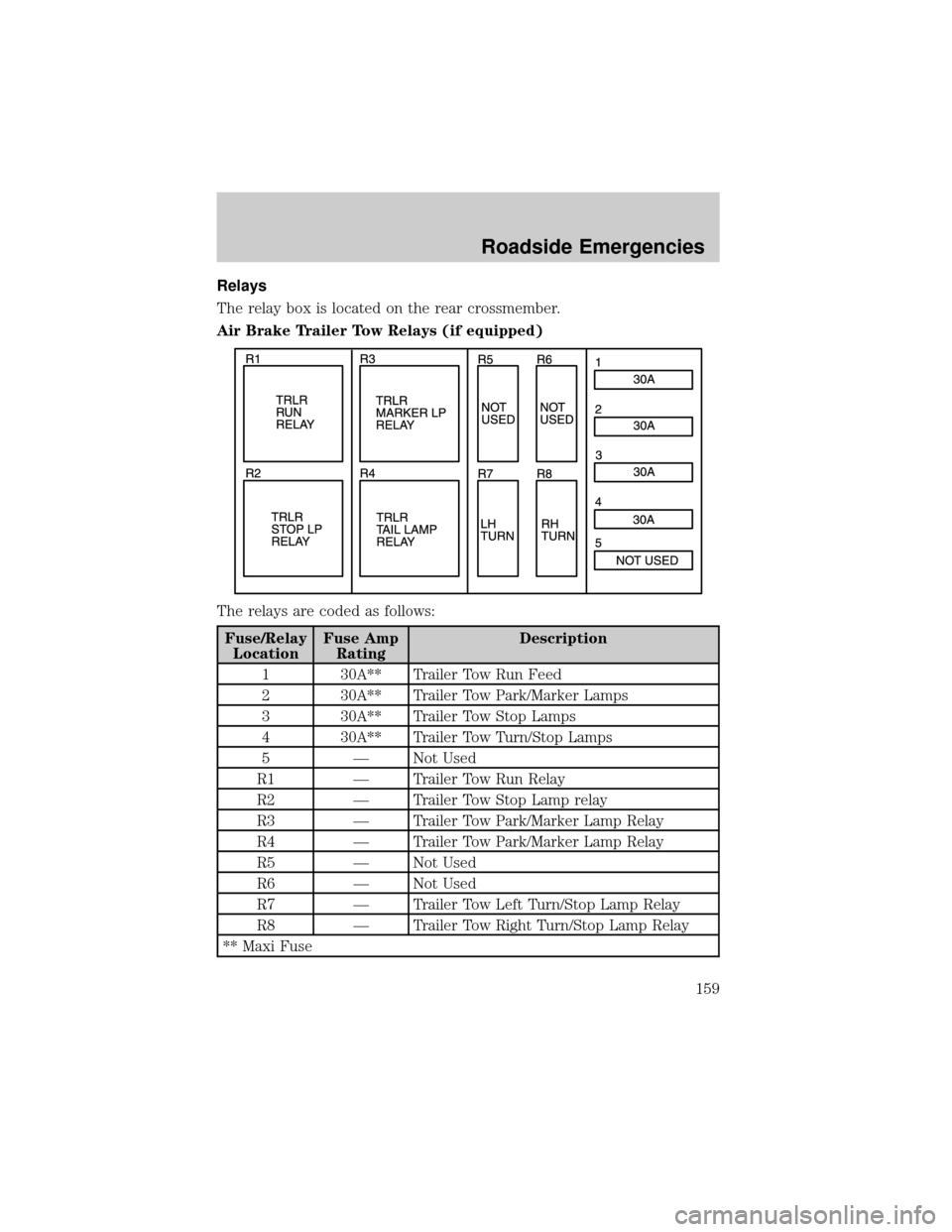

Relays
The relay box is located on the rear crossmember.
Air Brake Trailer Tow Relays (if equipped)
The relays are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingDescription
1 30A** Trailer Tow Run Feed
2 30A** Trailer Tow Park/Marker Lamps
3 30A** Trailer Tow Stop Lamps
4 30A** Trailer Tow Turn/Stop Lamps
5 Ð Not Used
R1 Ð Trailer Tow Run Relay
R2 Ð Trailer Tow Stop Lamp relay
R3 Ð Trailer Tow Park/Marker Lamp Relay
R4 Ð Trailer Tow Park/Marker Lamp Relay
R5 Ð Not Used
R6 Ð Not Used
R7 Ð Trailer Tow Left Turn/Stop Lamp Relay
R8 Ð Trailer Tow Right Turn/Stop Lamp Relay
** Maxi Fuse
Roadside Emergencies
159
