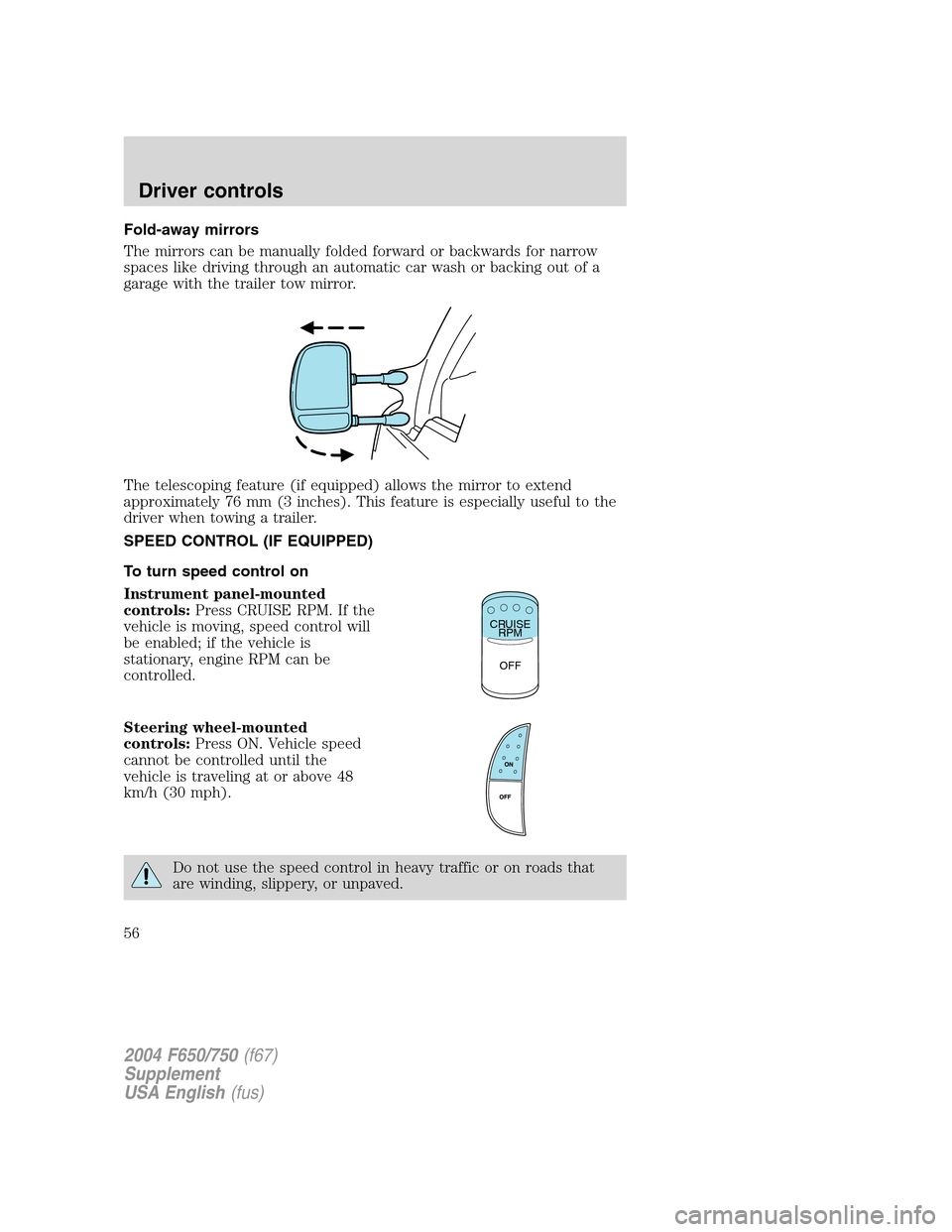

Fold-away mirrors
The mirrors can be manually folded forward or backwards for narrow
spaces like driving through an automatic car wash or backing out of a
garage with the trailer tow mirror.
The telescoping feature (if equipped) allows the mirror to extend
approximately 76 mm (3 inches). This feature is especially useful to the
driver when towing a trailer.
SPEED CONTROL (IF EQUIPPED)
To turn speed control on
Instrument panel-mounted
controls:Press CRUISE RPM. If the
vehicle is moving, speed control will
be enabled; if the vehicle is
stationary, engine RPM can be
controlled.
Steering wheel-mounted
controls:Press ON. Vehicle speed
cannot be controlled until the
vehicle is traveling at or above 48
km/h (30 mph).
Do not use the speed control in heavy traffic or on roads that
are winding, slippery, or unpaved.
CRUISE
RPM
OFF
2004 F650/750(f67)
Supplement
USA English(fus)
Driver controls
56

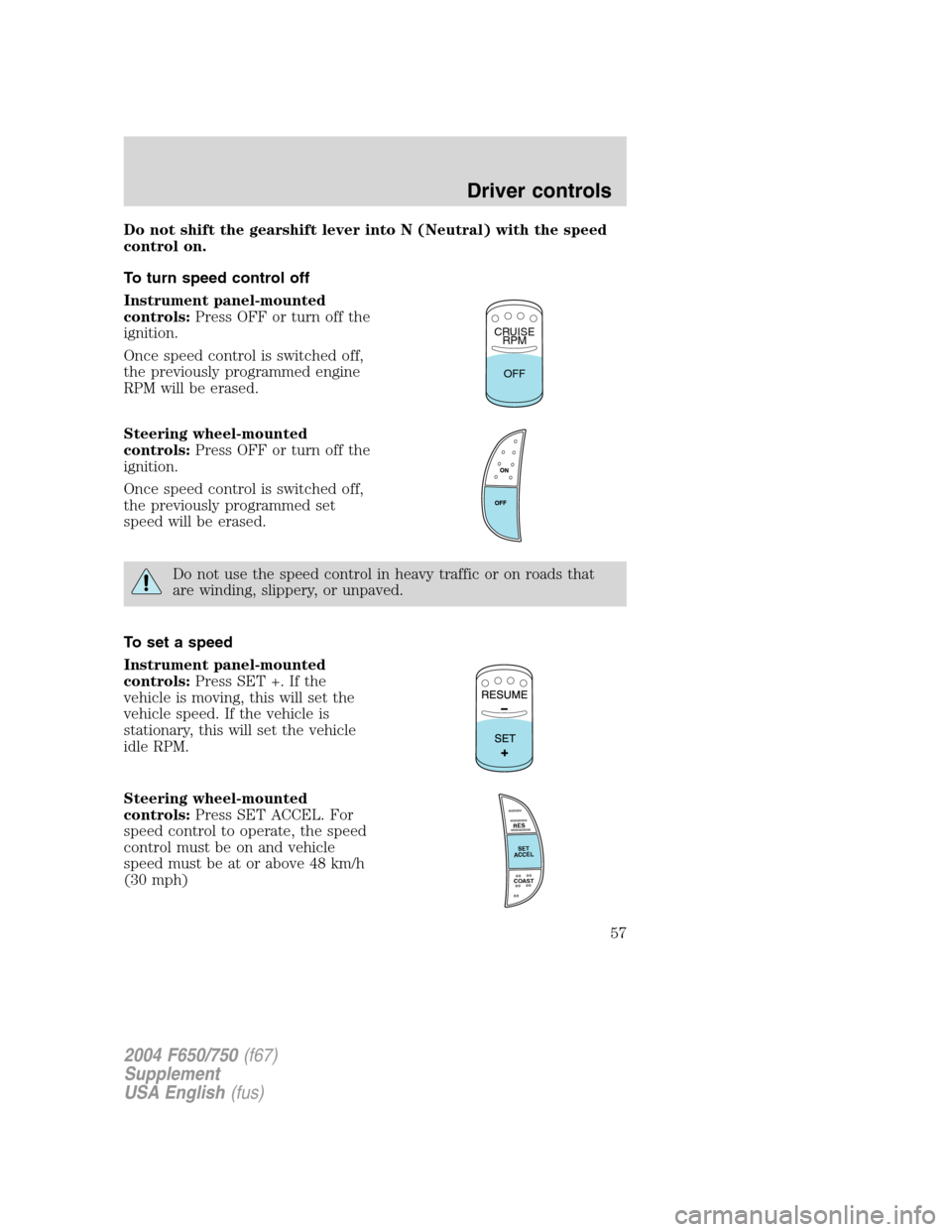

Do not shift the gearshift lever into N (Neutral) with the speed
control on.
To turn speed control off
Instrument panel-mounted
controls:Press OFF or turn off the
ignition.
Once speed control is switched off,
the previously programmed engine
RPM will be erased.
Steering wheel-mounted
controls:Press OFF or turn off the
ignition.
Once speed control is switched off,
the previously programmed set
speed will be erased.
Do not use the speed control in heavy traffic or on roads that
are winding, slippery, or unpaved.
To set a speed
Instrument panel-mounted
controls:Press SET +. If the
vehicle is moving, this will set the
vehicle speed. If the vehicle is
stationary, this will set the vehicle
idle RPM.
Steering wheel-mounted
controls:Press SET ACCEL. For
speed control to operate, the speed
control must be on and vehicle
speed must be at or above 48 km/h
(30 mph)
CRUISE
RPM
OFF
RES
SET
ACCEL
COAST
2004 F650/750(f67)
Supplement
USA English(fus)
Driver controls
57

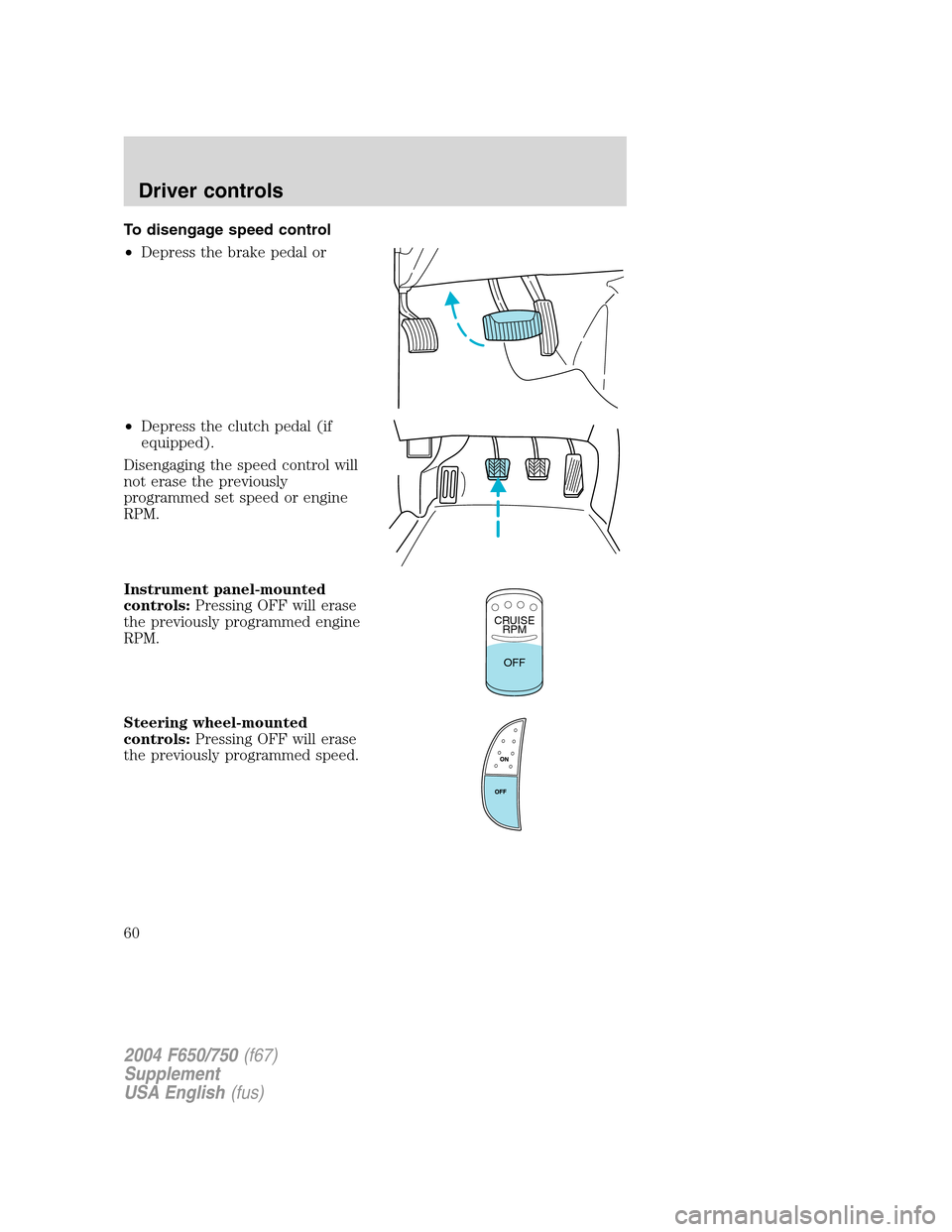

To disengage speed control
•Depress the brake pedal or
•Depress the clutch pedal (if
equipped).
Disengaging the speed control will
not erase the previously
programmed set speed or engine
RPM.
Instrument panel-mounted
controls:Pressing OFF will erase
the previously programmed engine
RPM.
Steering wheel-mounted
controls:Pressing OFF will erase
the previously programmed speed.
CRUISE
RPM
OFF
2004 F650/750(f67)
Supplement
USA English(fus)
Driver controls
60

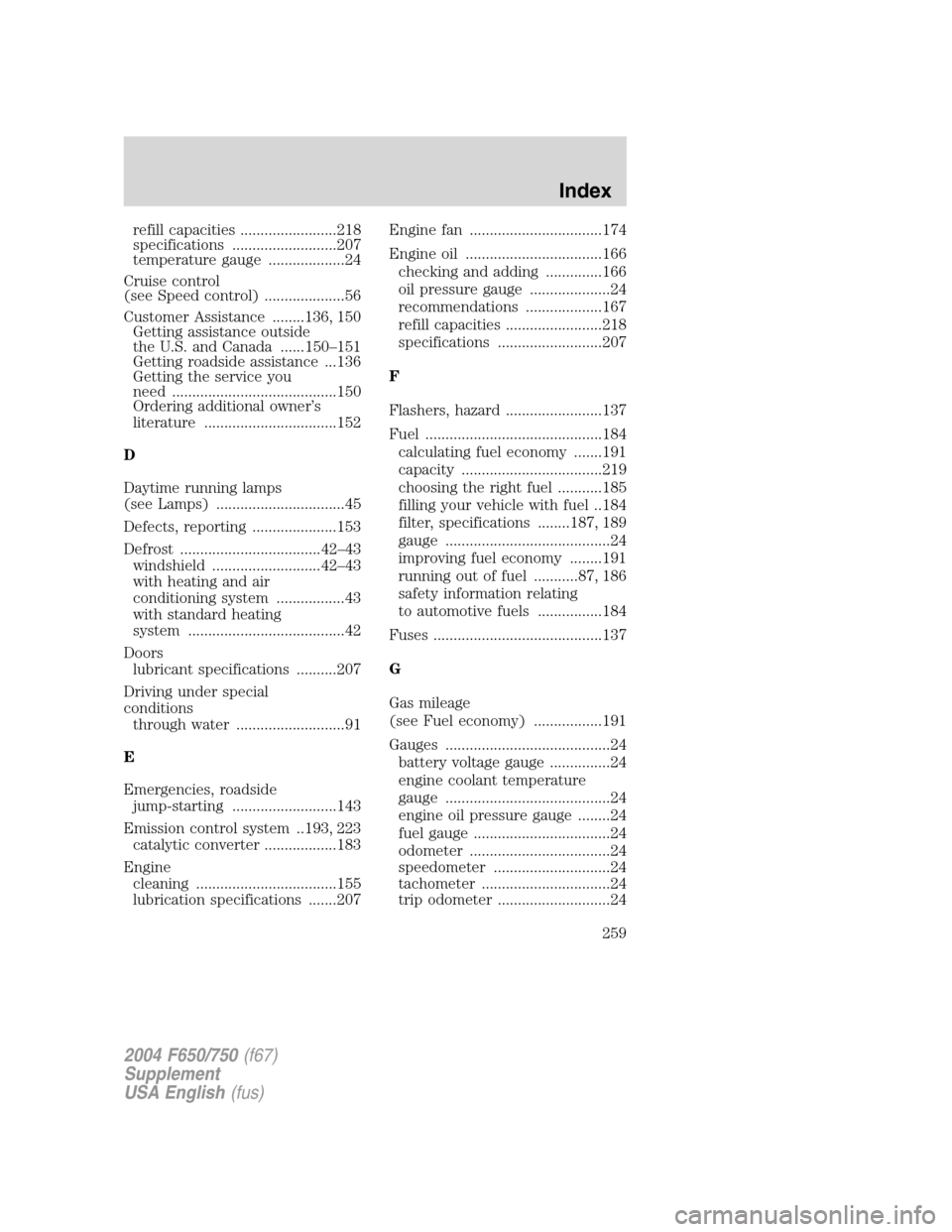

refill capacities ........................218
specifications ..........................207
temperature gauge ...................24
Cruise control
(see Speed control) ....................56
Customer Assistance ........136, 150
Getting assistance outside
the U.S. and Canada ......150–151
Getting roadside assistance ...136
Getting the service you
need .........................................150
Ordering additional owner’s
literature .................................152
D
Daytime running lamps
(see Lamps) ................................45
Defects, reporting .....................153
Defrost ...................................42–43
windshield ...........................42–43
with heating and air
conditioning system .................43
with standard heating
system .......................................42
Doors
lubricant specifications ..........207
Driving under special
conditions
through water ...........................91
E
Emergencies, roadside
jump-starting ..........................143
Emission control system ..193, 223
catalytic converter ..................183
Engine
cleaning ...................................155
lubrication specifications .......207Engine fan .................................174
Engine oil ..................................166
checking and adding ..............166
oil pressure gauge ....................24
recommendations ...................167
refill capacities ........................218
specifications ..........................207
F
Flashers, hazard ........................137
Fuel ............................................184
calculating fuel economy .......191
capacity ...................................219
choosing the right fuel ...........185
filling your vehicle with fuel ..184
filter, specifications ........187, 189
gauge .........................................24
improving fuel economy ........191
running out of fuel ...........87, 186
safety information relating
to automotive fuels ................184
Fuses ..........................................137
G
Gas mileage
(see Fuel economy) .................191
Gauges .........................................24
battery voltage gauge ...............24
engine coolant temperature
gauge .........................................24
engine oil pressure gauge ........24
fuel gauge ..................................24
odometer ...................................24
speedometer .............................24
tachometer ................................24
trip odometer ............................24
2004 F650/750(f67)
Supplement
USA English(fus)
Index
259
