Page 131 of 272

FORD F650 2005 11.G Owners Manual Sudden accelerations on slippery surfaces could cause the
wheels to spin, the vehicle to turn sideways on a crowned road
surface or in a turn, possibly resulting in loss of vehicle control and
persona

Page 132 of 272

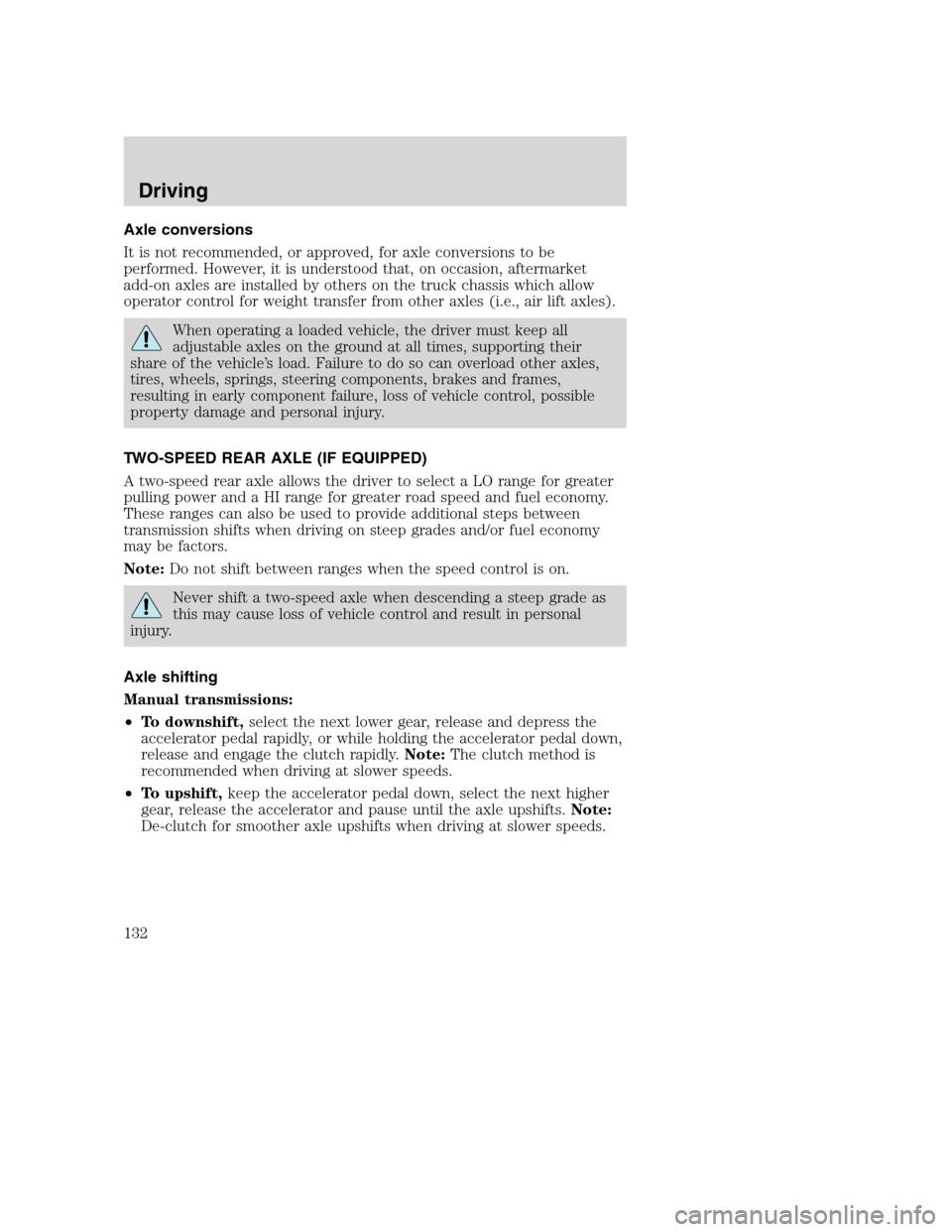

FORD F650 2005 11.G Owners Manual Axle conversions
It is not recommended, or approved, for axle conversions to be
performed. However, it is understood that, on occasion, aftermarket
add-on axles are installed by others on the truck ch

Page 133 of 272

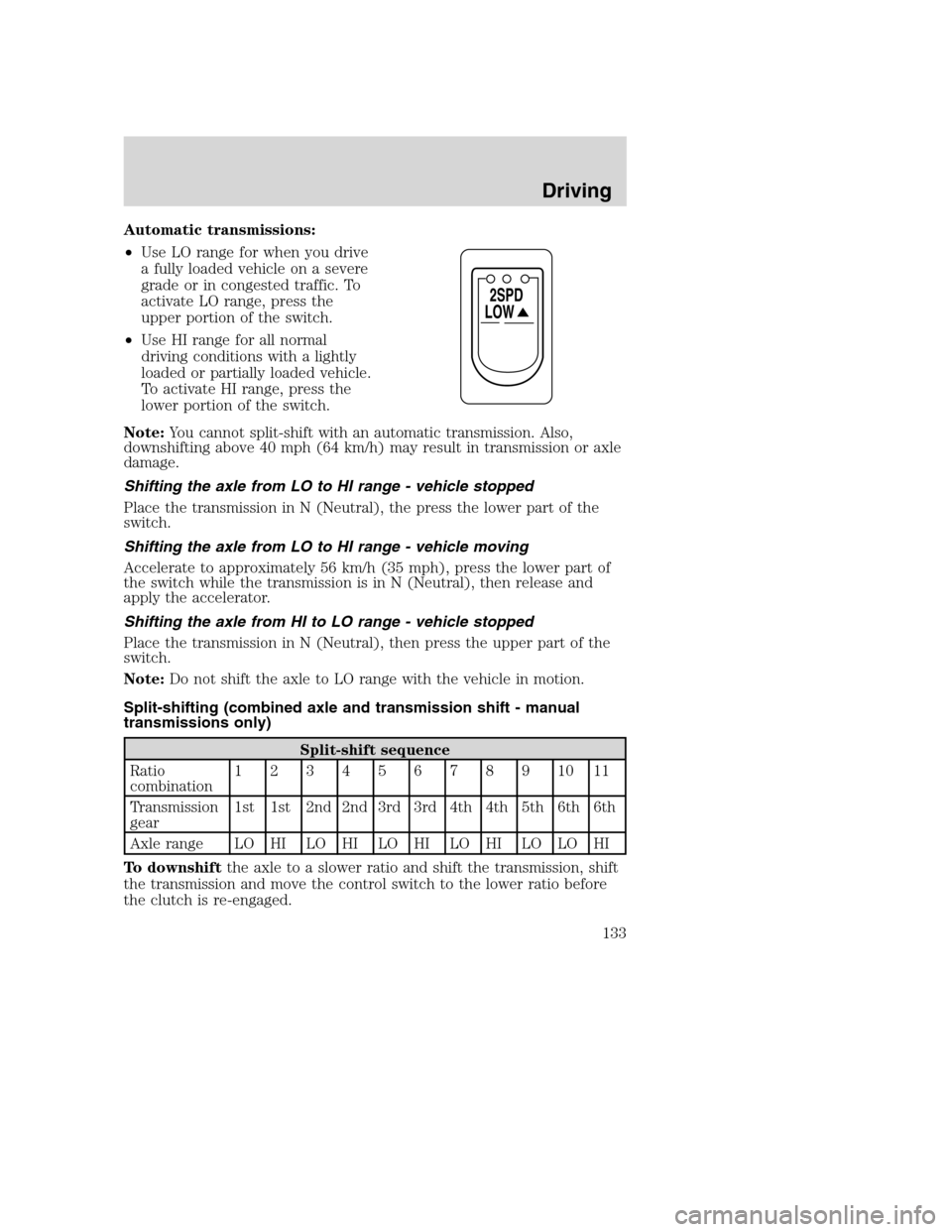

FORD F650 2005 11.G Owners Manual Automatic transmissions:
•Use LO range for when you drive
a fully loaded vehicle on a severe
grade or in congested traffic. To
activate LO range, press the
upper portion of the switch.
•Use HI ran

Page 134 of 272

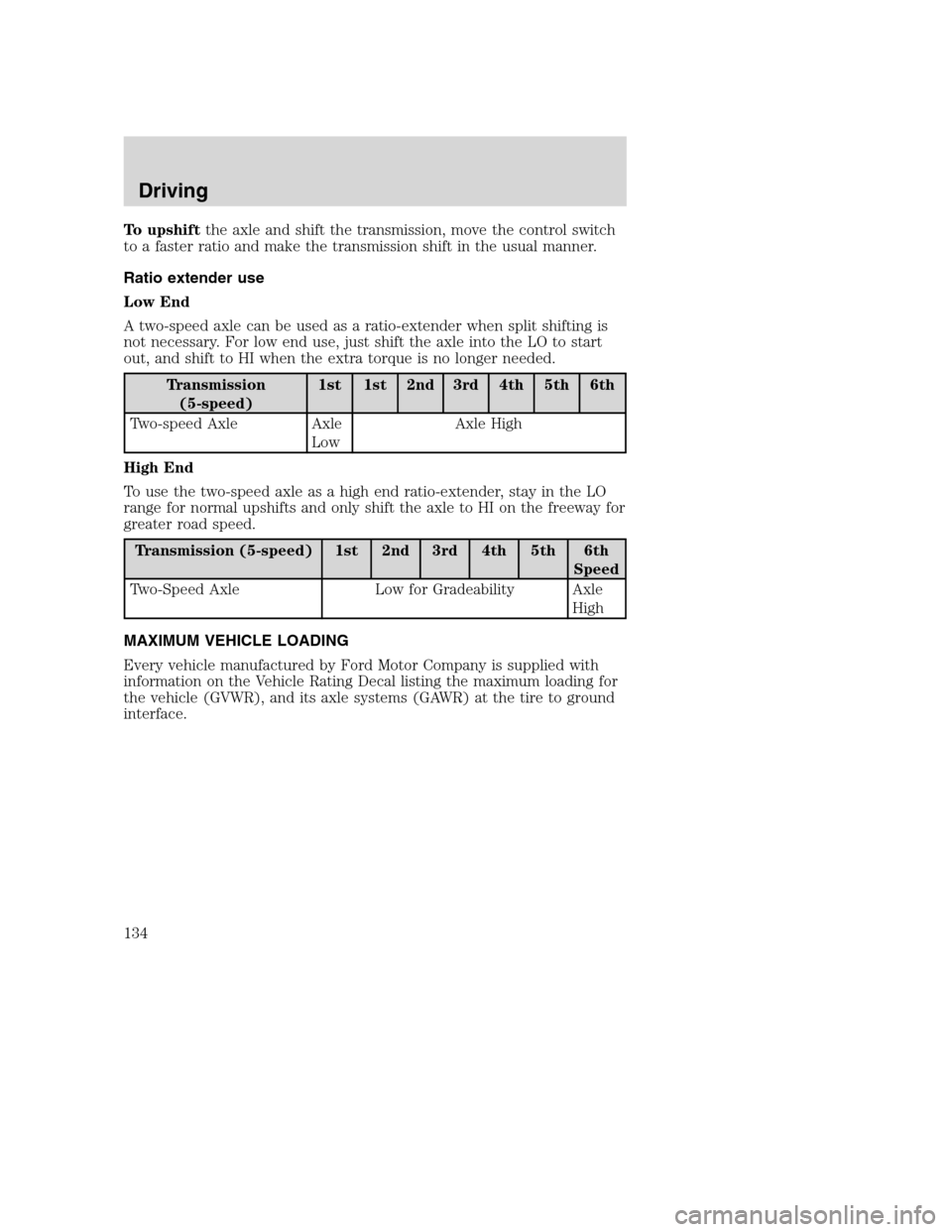

FORD F650 2005 11.G Owners Manual To upshiftthe axle and shift the transmission, move the control switch
to a faster ratio and make the transmission shift in the usual manner.
Ratio extender use
Low End
A two-speed axle can be used as

Page 135 of 272

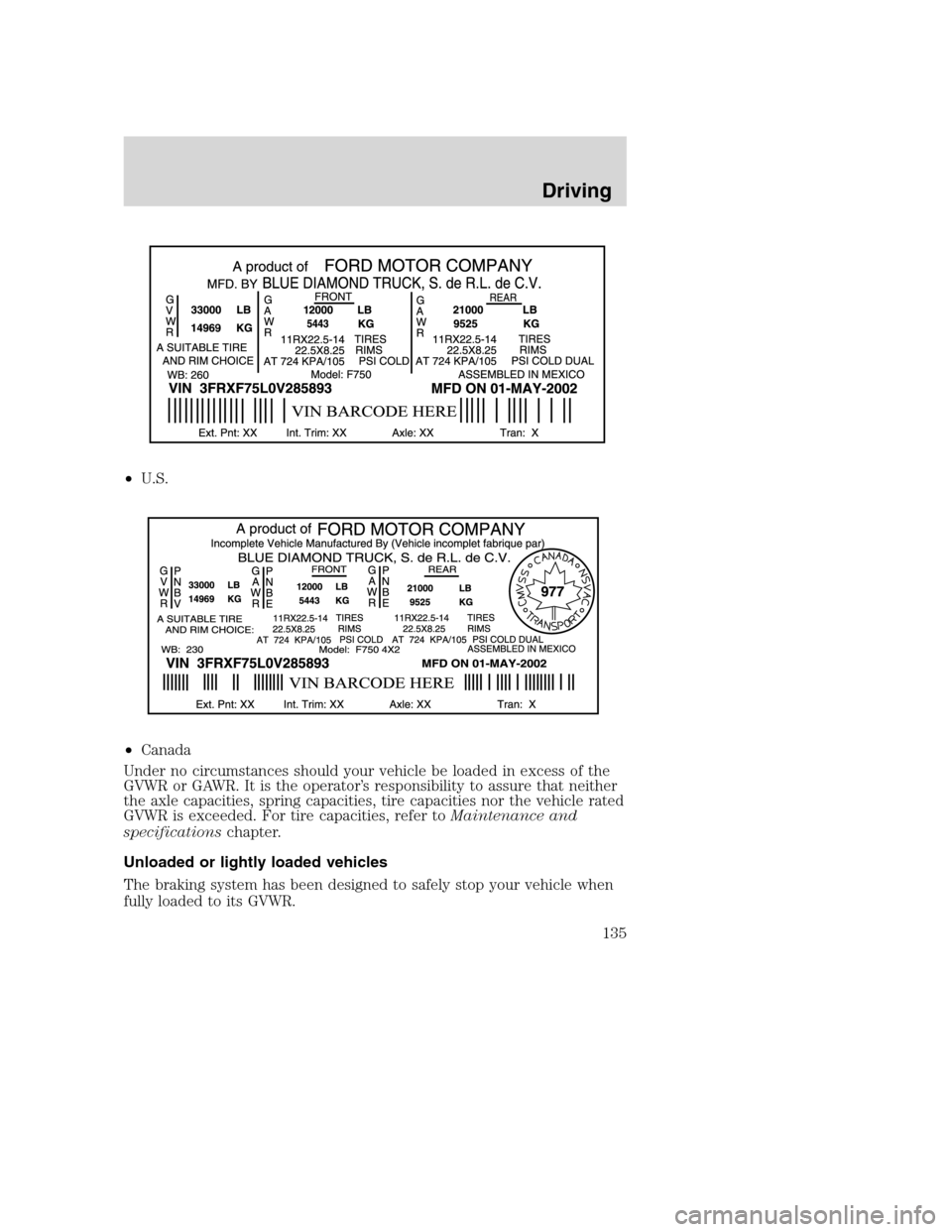

FORD F650 2005 11.G Owners Manual •U.S.
•Canada
Under no circumstances should your vehicle be loaded in excess of the
GVWR or GAWR. It is the operator’s responsibility to assure that neither
the axle capacities, spring capacitie

Page 136 of 272

FORD F650 2005 11.G Owners Manual When operating empty or lightly loaded, sudden or hard braking
may induce wheel lockup with loss of vehicle control and the
possibility of accident and serious injury, especially on wet or slippery
ro

Page 137 of 272

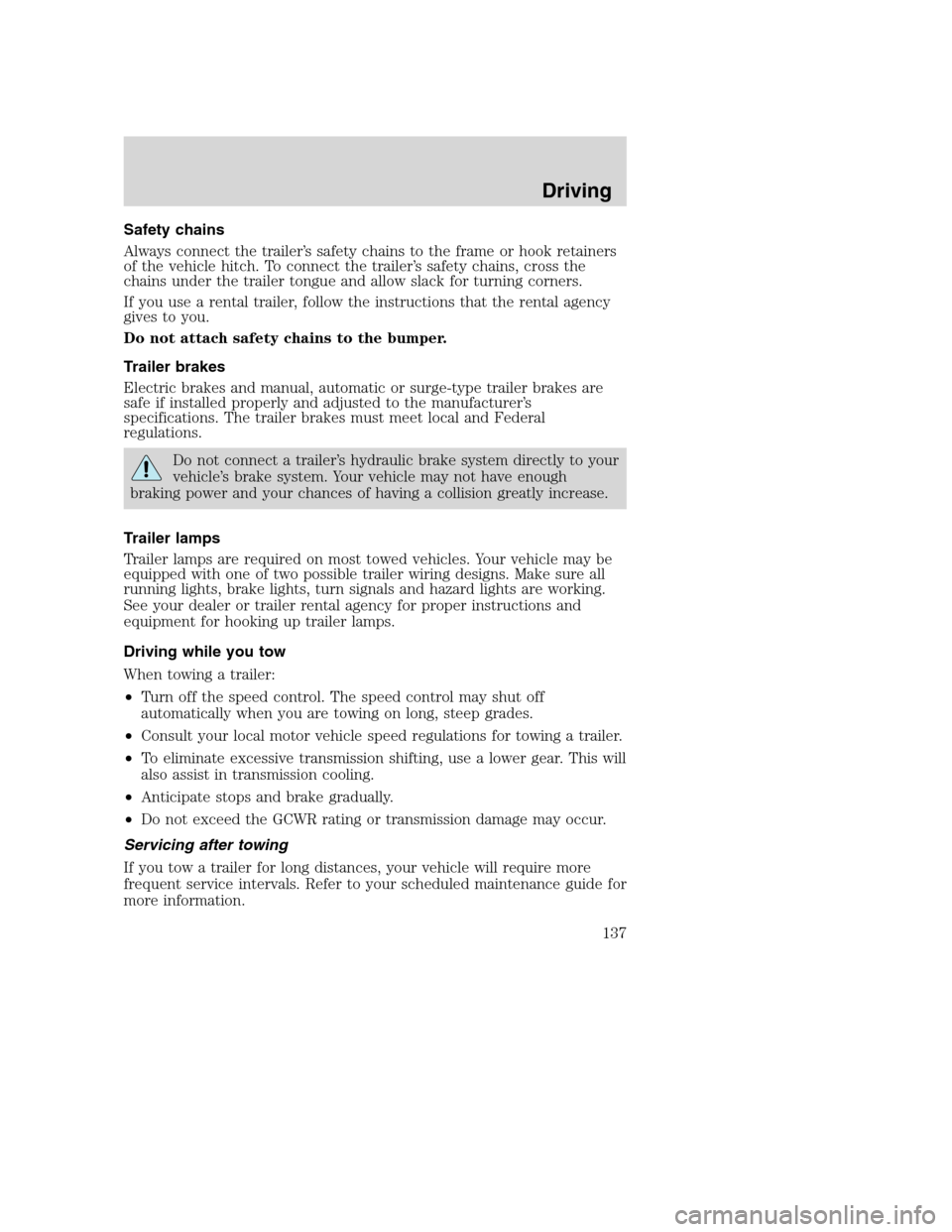

FORD F650 2005 11.G Owners Manual Safety chains
Always connect the trailer’s safety chains to the frame or hook retainers
of the vehicle hitch. To connect the trailer’s safety chains, cross the
chains under the trailer tongue and

Page 138 of 272

FORD F650 2005 11.G Owners Manual Trailer towing tips
•Practice turning, stopping and backing up before starting on a trip to
get the feel of the vehicle trailer combination. When turning, make
wider turns so the trailer wheels will

Page 139 of 272

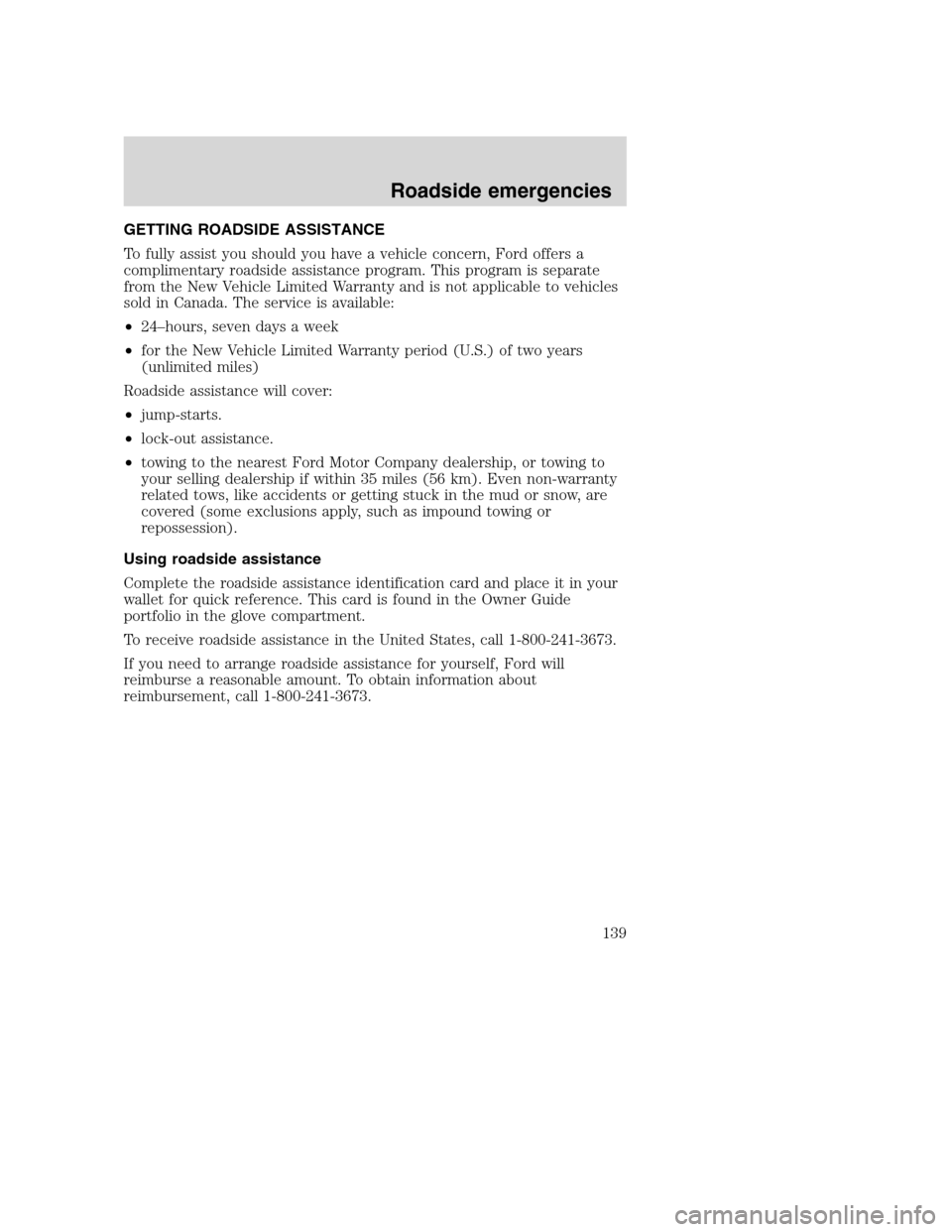

FORD F650 2005 11.G Owners Manual GETTING ROADSIDE ASSISTANCE
To fully assist you should you have a vehicle concern, Ford offers a
complimentary roadside assistance program. This program is separate
from the New Vehicle Limited Warran

Page 140 of 272

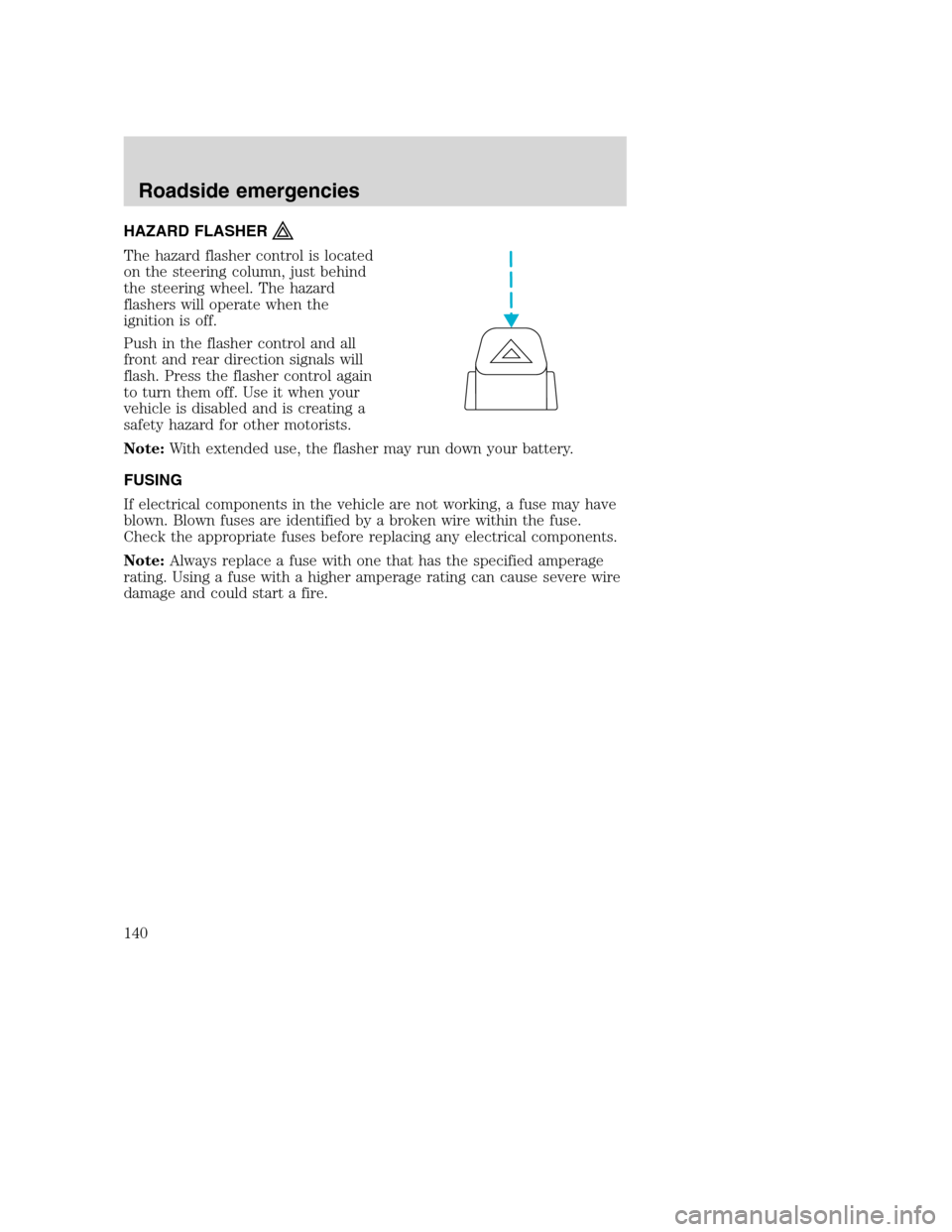

FORD F650 2005 11.G Owners Manual HAZARD FLASHER
The hazard flasher control is located
on the steering column, just behind
the steering wheel. The hazard
flashers will operate when the
ignition is off.
Push in the flasher control and
