FORD F650 2005 11.G Owners Manual

Tire sizeLoad
rangeApproved
rim widthsAxle capacity
Front - lbs.
(kg)/psi (kPa)Rear - lbs.
(kg)/psi (kPa)
12R22.5 H 8.25, 9.0014780 (6704) /
120 (827)27000 (12247) /
120 (827)
245/75R22.5 G 6.75, 7.509350 (4241) /
110 (758)17640 (8002) /
110 (758)
255/70R22.5 H6.75, 7.50,
8.2511020 (4999) /
115 (793)20280 (9199) /
115 (793)
265/75R22.5 G 7.50, 8.2510410 (4722) /
110 (758)19220 (8718) /
100 (690)
275/70R22.5 H 7.50, 8.2513220 (5997) /
125 (862)24700 (11204) /
125 (862)
275/80R22.5 G 7.50, 8.2512350 (5602) /
110 (758)22700 (10297) /
110 (758)
295/75R22.5 G 8.25, 9.0012350 (5602) /
110 (758)22700 (10297) /
100 (690)
295/80R22.5 H 8.25, 9.0014780 (6704) /
115 (793)26440 (11993) /
115 (793)
LUBRICATION AND MAINTENANCE INTERVALS
New vehicles are lubricated at the factory. After the vehicle is placed in
operation, regular lubrication intervals, based on the type of service and
road conditions, should be established. Thorough lubrication at the
specified intervals will insure outstanding life cycle value and will reduce
overall expense.
The lubrication intervals specified should be performed at whatever
interval occurs first, whether it is months, miles (kilometers) or hours.
Only lubricants of superior quality, such as Motorcraft lubricants, should
be used. The use of inferior products will reduce the service life of the
vehicle or result in failure of its components.
Unless otherwise specified, never add lubricant unless it is the same
grade as that which is already being used. If the grade is not known or
not available, drain, flush and refill with new lubricant.
The interval between lubrication periods, oil changes, etc. depends
entirely upon operating conditions. The loads carried, speeds, road and
weather conditions all contribute to the frequency of lubrication periods.
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
211

In some types of operation, and where operating conditions are
extremely severe (such as in deep water, mud or unusually dusty
conditions), the vehicle may require lubrication after every 24 hours of
operation.
Maintenance intervals
Maintenance intervals are provided for three types of general vehicle
environments: On-Highway, City and Severe Service. In all applications,
the actual interval is determined by monitoring kilometers (miles) and
time and when the engine is due for an oil change. When the engine oil
change is required prior to the truck lubrication interval, it is
recommended that the lubrication be performed at the same time in
order to reduce your vehicle’s time out of service.
•On-Highway:60,000 miles (96,000 km) or more annually.
•City:59,000 miles (95,000 km) or less annually.
•Severe Service:20,000 miles (32,000 km) or less annually on/off
road in dirty conditions.
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
212

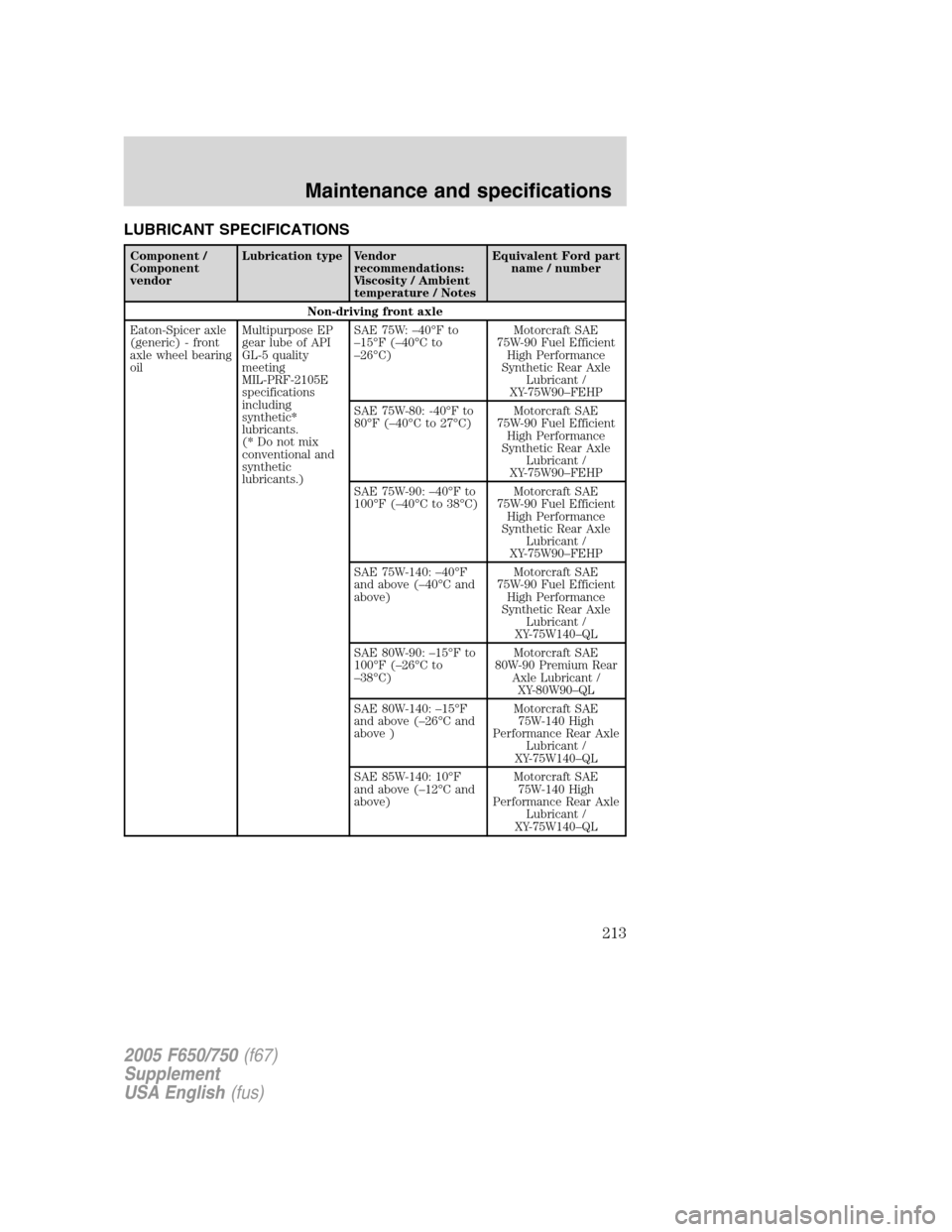

LUBRICANT SPECIFICATIONS
Component /
Component
vendorLubrication type Vendor
recommendations:
Viscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Non-driving front axle
Eaton-Spicer axle
(generic) - front
axle wheel bearing
oilMultipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic*
lubricants.
(* Do not mix
conventional and
synthetic
lubricants.)SAE 75W:–40°Fto
–15°F(–40°Cto
–26°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance
Synthetic Rear Axle
Lubricant /
XY-75W90–FEHP
SAE 75W-80: -40°Fto
80°F(–40°Cto27°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance
Synthetic Rear Axle
Lubricant /
XY-75W90–FEHP
SAE 75W-90:–40°Fto
100°F(–40°Cto38°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance
Synthetic Rear Axle
Lubricant /
XY-75W90–FEHP
SAE 75W-140:–40°F
andabove(–40°Cand
above)Motorcraft SAE
75W-90 Fuel Efficient
High Performance
Synthetic Rear Axle
Lubricant /
XY-75W140–QL
SAE 80W-90:–15°Fto
100°F(–26°Cto
–38°C)Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90–QL
SAE 80W-140:–15°F
andabove(–26°Cand
above )Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140–QL
SAE 85W-140: 10°F
andabove(–12°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140–QL
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
213

Component /
Component

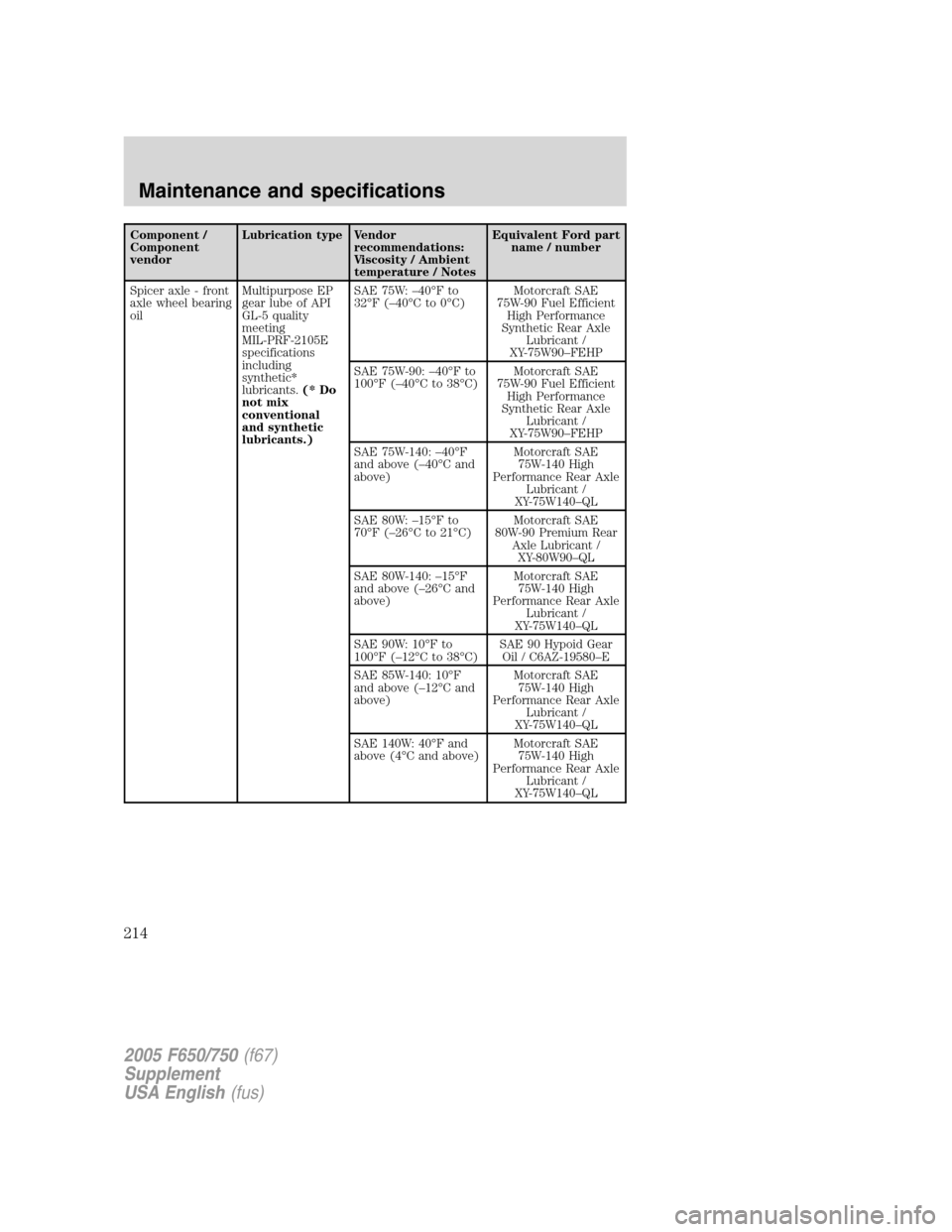

vendorLubrication type Vendor
recommendations:
Viscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Spicer axle - front
axle wheel bearing
oilMultipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic*
lubricants.(* Do
not mix
conventional
and synthetic
lubricants.)SAE 75W:–40°Fto
32°F(–40°Cto0°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance
Synthetic Rear Axle
Lubricant /
XY-75W90–FEHP
SAE 75W-90:–40°Fto
100°F(–40°Cto38°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance
Synthetic Rear Axle
Lubricant /
XY-75W90–FEHP
SAE 75W-140:–40°F
andabove(–40°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140–QL
SAE 80W:–15°Fto
70°F(–26°Cto21°C)Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90–QL
SAE 80W-140:–15°F
andabove(–26°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140–QL
SAE 90W: 10°Fto
100°F(–12°Cto38°C)SAE 90 Hypoid Gear
Oil / C6AZ-19580–E
SAE 85W-140: 10°F
andabove(–12°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140–QL
SAE 140W: 40°Fand
above (4°C and above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140–QL
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
214

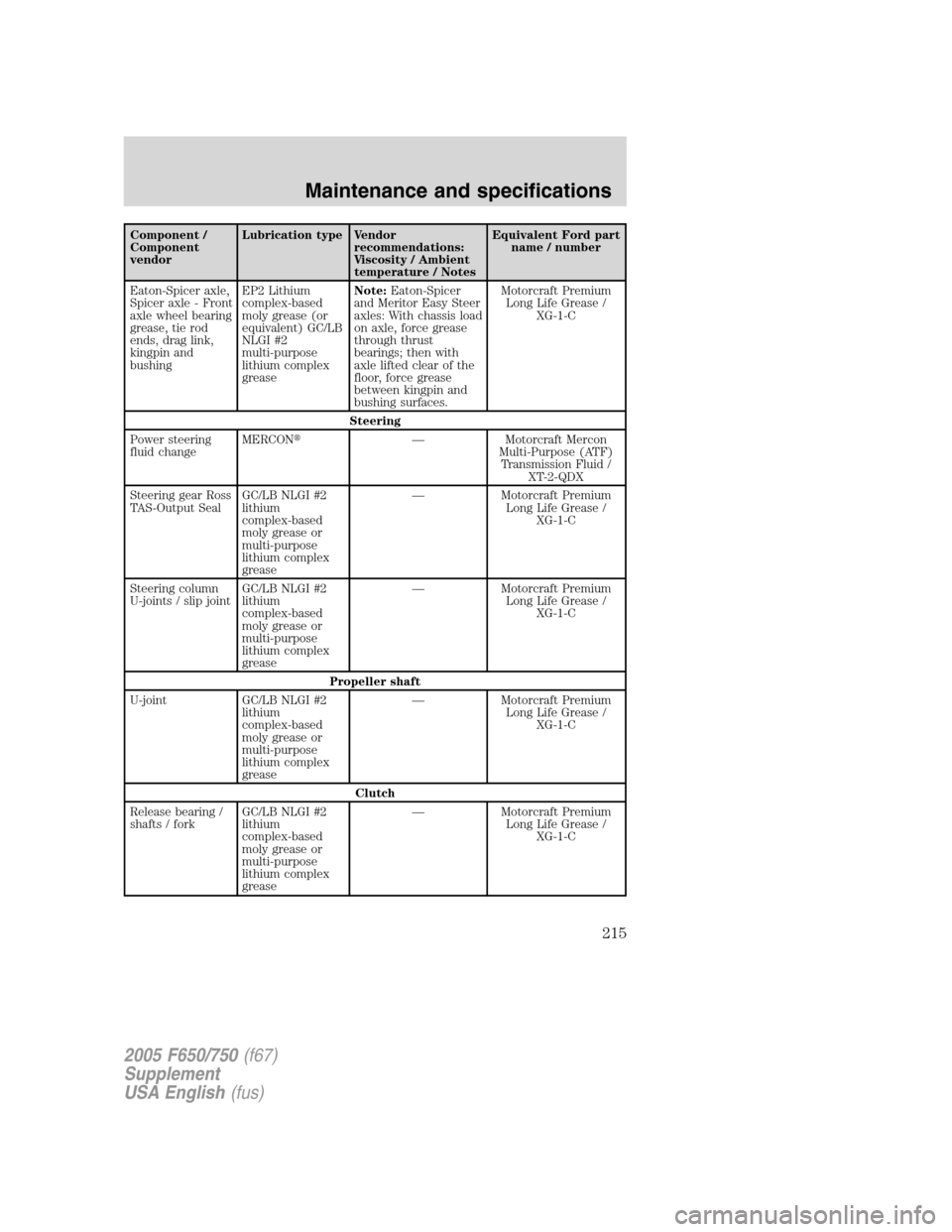

Component /
Component
vendorLubrication type Vendor
recommendations:
Viscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Eaton-Spicer axle,
Spicer axle - Front
axle wheel bearing
grease, tie rod
ends, drag link,
kingpin and
bushingEP2 Lithium
complex-based
moly grease (or
equivalent) GC/LB
NLGI #2
multi-purpose
lithium complex
greaseNote:Eaton-Spicer
and Meritor Easy Steer
axles: With chassis load
on axle, force grease
through thrust
bearings; then with
axle lifted clear of the
floor, force grease
between kingpin and
bushing surfaces.Motorcraft Premium
Long Life Grease /
XG-1-C
Steering
Power steering
fluid changeMERCON
—Motorcraft Mercon
Multi-Purpose (ATF)
Transmission Fluid /
XT-2-QDX
Steering gear Ross
TAS-Output SealGC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease—Motorcraft Premium
Long Life Grease /
XG-1-C
Steering column
U-joints / slip jointGC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease—Motorcraft Premium
Long Life Grease /
XG-1-C
Propeller shaft
U-joint GC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease—Motorcraft Premium
Long Life Grease /
XG-1-C
Clutch
Release bearing /
shafts / forkGC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease—Motorcraft Premium
Long Life Grease /
XG-1-C
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
215

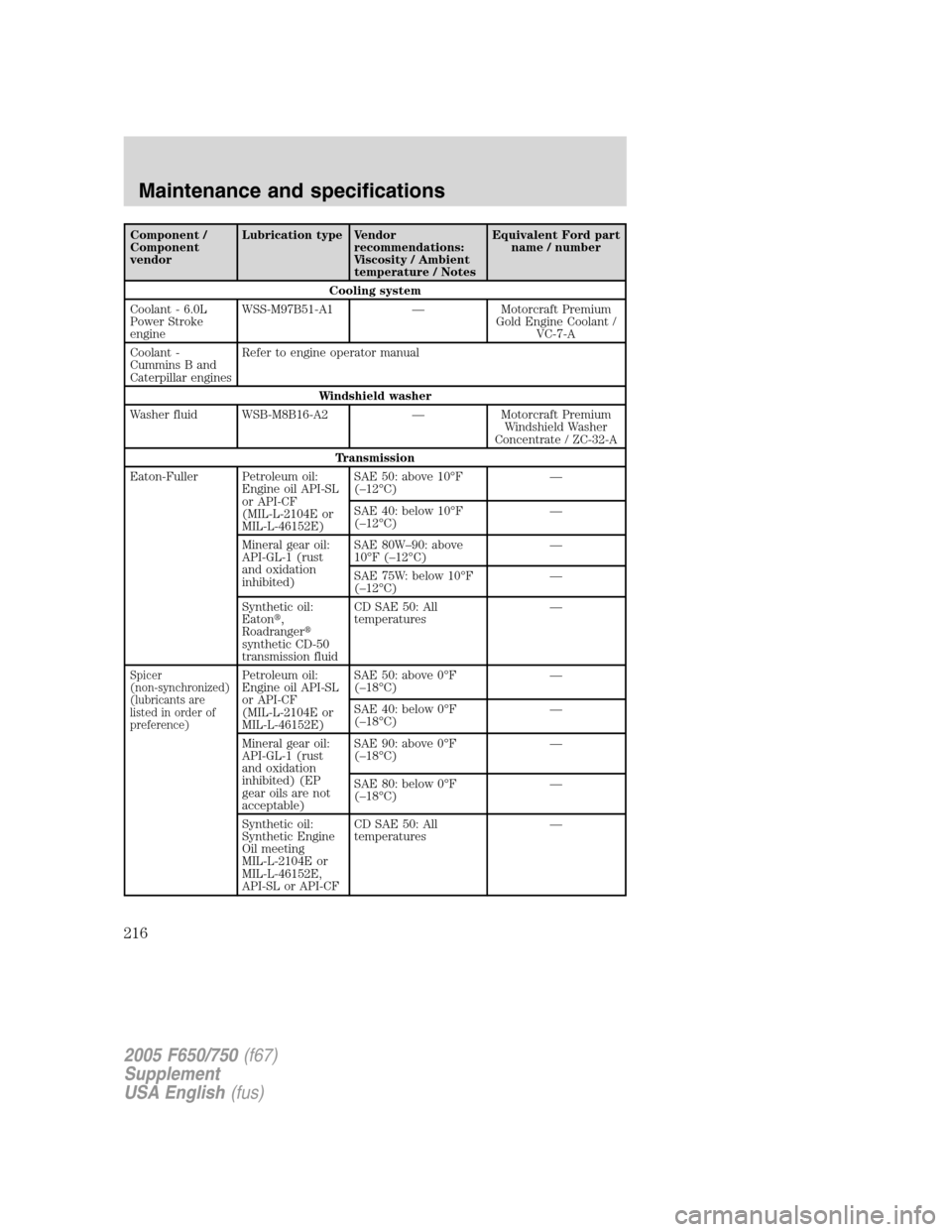

Component /
Component
vendorLubrication type Vendor
recommendations:
Viscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Cooling system
Coolant - 6.0L
Power Stroke
engineWSS-M97B51-A1—Motorcraft Premium
Gold Engine Coolant /
VC-7-A
Coolant -
Cummins B and
Caterpillar enginesRefer to engine operator manual
Windshield washer
Washer fluid WSB-M8B16-A2—Motorcraft Premium
Windshield Washer
Concentrate / ZC-32-A
Transmission
Eaton-Fuller Petroleum oil:
Engine oil API-SL
or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 50: above 10°F
(–12°C)—
SAE 40: below 10°F
(–12°C)—
Mineral gear oil:
API-GL-1 (rust
and oxidation
inhibited)SAE 80W–90: above
10°F(–12°C)—
SAE 75W: below 10°F
(–12°C)—
Synthetic oil:
Eaton
,
Roadranger

synthetic CD-50
transmission fluidCD SAE 50: All
temperatures—
Spicer
(non-synchronized)
(lubricants are
listed in order of
preference)Petroleum oil:
Engine oil API-SL
or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 50: above 0°F
(–18°C)—
SAE 40: below 0°F
(–18°C)—
Mineral gear oil:
API-GL-1 (rust
and oxidation
inhibited) (EP
gear oils are not
acceptable)SAE 90: above 0°F
(–18°C)—
SAE 80: below 0°F
(–18°C)—
Synthetic oil:
Synthetic Engine
Oil meeting
MIL-L-2104E or
MIL-L-46152E,
API-SL or API-CFCD SAE 50: All
temperatures—
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
216

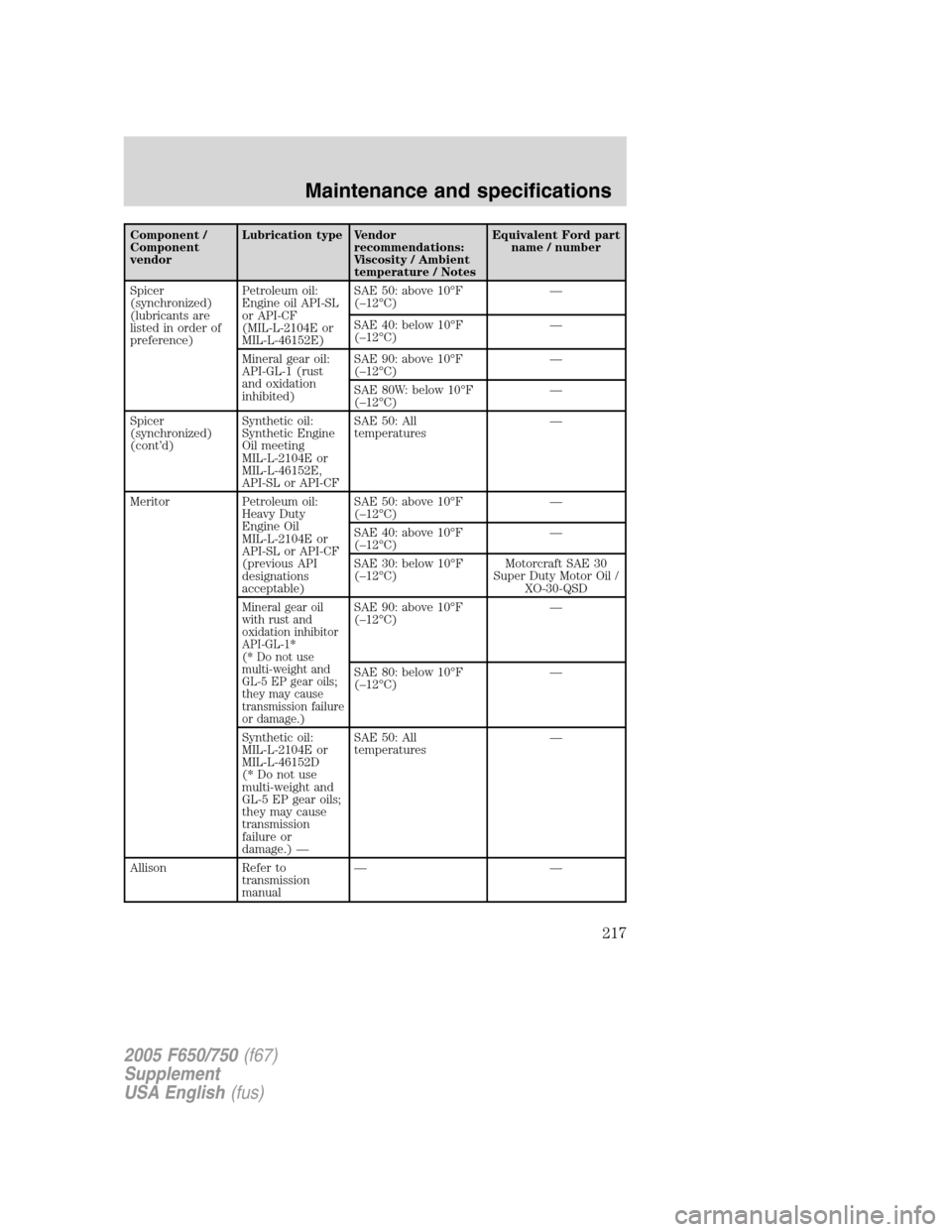

Component /
Component
vendorLubrication type Vendor
recommendations:
Viscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Spicer
(synchronized)
(lubricants are
listed in order of
preference)Petroleum oil:
Engine oil API-SL
or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 50: above 10°F
(–12°C)—
SAE 40: below 10°F
(–12°C)—
Mineral gear oil:
API-GL-1 (rust
and oxidation
inhibited)SAE 90: above 10°F
(–12°C)—
SAE 80W: below 10°F
(–12°C)—
Spicer
(synchronized)
(cont’d)Synthetic oil:
Synthetic Engine
Oil meeting
MIL-L-2104E or
MIL-L-46152E,
API-SL or API-CFSAE 50: All
temperatures—
Meritor Petroleum oil:
Heavy Duty
Engine Oil
MIL-L-2104E or
API-SL or API-CF
(previous API
designations
acceptable)SAE 50: above 10°F
(–12°C)—
SAE 40: above 10°F
(–12°C)—
SAE 30: below 10°F
(–12°C)Motorcraft SAE 30
Super Duty Motor Oil /
XO-30-QSD
Mineral gear oil
with rust and
oxidation inhibitor
API-GL-1*
(* Do not use
multi-weight and
GL-5 EP gear oils;
they may cause
transmission failure
or damage.)SAE 90: above 10°F
(–12°C)—
SAE 80: below 10°F
(–12°C)—
Synthetic oil:
MIL-L-2104E or
MIL-L-46152D
(* Do not use
multi-weight and
GL-5 EP gear oils;
they may cause
transmission
failure or
damage.)—SAE 50: All
temperatures—
Allison Refer to
transmission
manual——
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
217

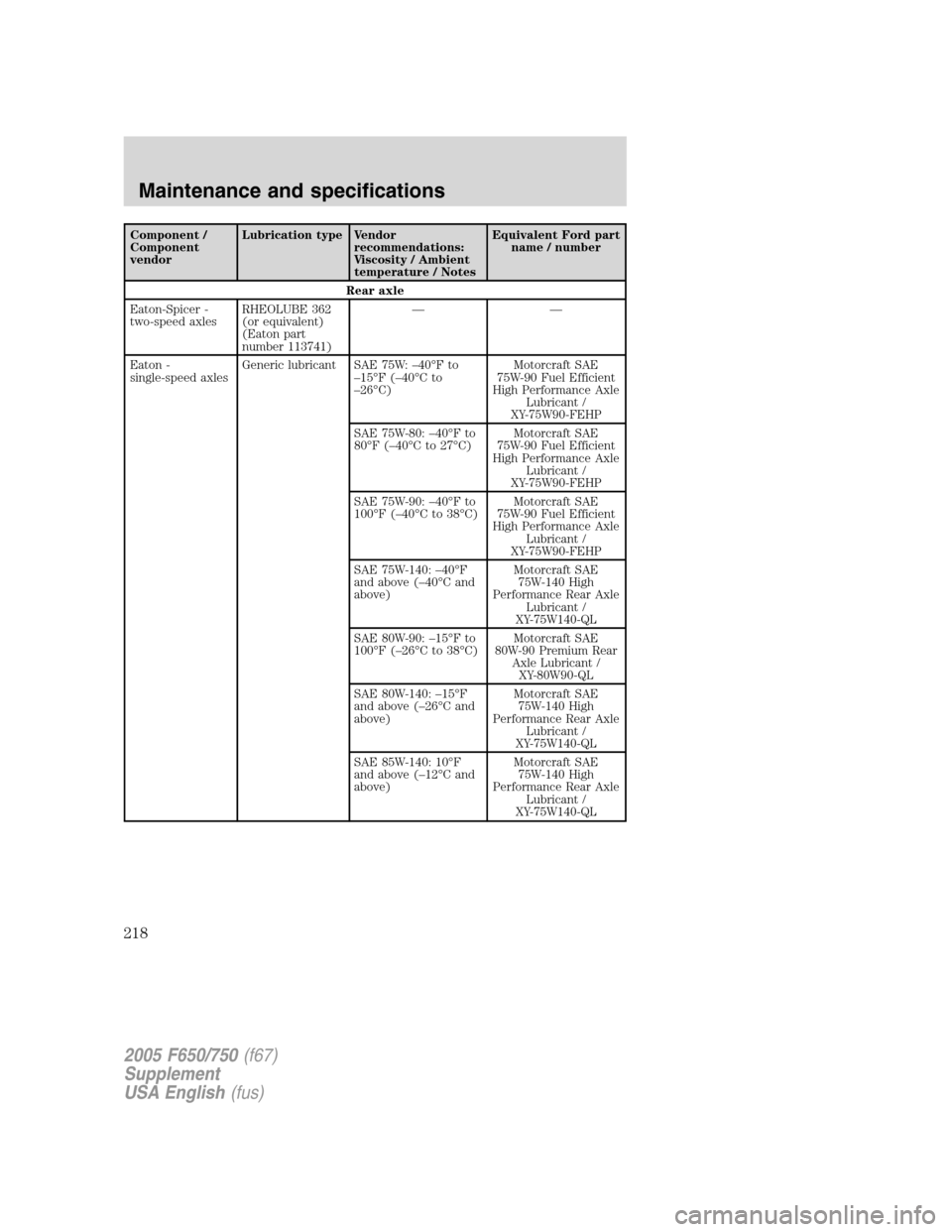

Component /
Component
vendorLubrication type Vendor
recommendations:
Viscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Rear axle
Eaton-Spicer -
two-speed axlesRHEOLUBE 362
(or equivalent)
(Eaton part
number 113741)——
Eaton -
single-speed axlesGeneric lubricant SAE 75W:–40°Fto
–15°F(–40°Cto
–26°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance Axle
Lubricant /
XY-75W90-FEHP
SAE 75W-80:–40°Fto
80°F(–40°Cto27°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance Axle
Lubricant /
XY-75W90-FEHP
SAE 75W-90:–40°Fto
100°F(–40°Cto38°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance Axle
Lubricant /
XY-75W90-FEHP
SAE 75W-140:–40°F
andabove(–40°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
SAE 80W-90:–15°Fto
100°F(–26°Cto38°C)Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
SAE 80W-140:–15°F
andabove(–26°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
SAE 85W-140: 10°F
andabove(–12°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
218

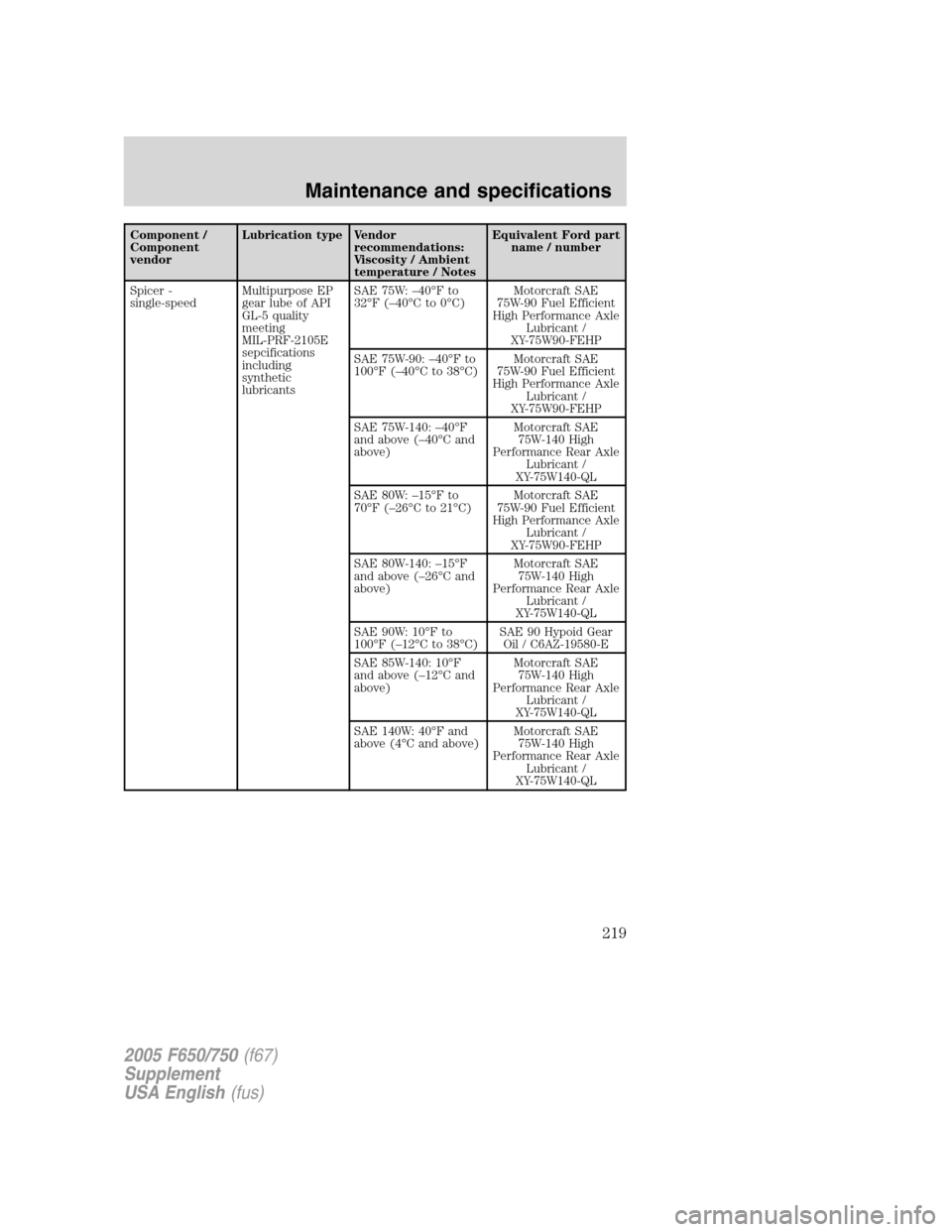

Component /
Component
vendorLubrication type Vendor
recommendations:
Viscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Spicer -
single-speedMultipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
sepcifications
including
synthetic
lubricantsSAE 75W:–40°Fto
32°F(–40°Cto0°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance Axle
Lubricant /
XY-75W90-FEHP
SAE 75W-90:–40°Fto
100°F(–40°Cto38°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance Axle
Lubricant /
XY-75W90-FEHP
SAE 75W-140:–40°F
andabove(–40°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
SAE 80W:–15°Fto
70°F(–26°Cto21°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance Axle
Lubricant /
XY-75W90-FEHP
SAE 80W-140:–15°F
andabove(–26°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
SAE 90W: 10°Fto
100°F(–12°Cto38°C)SAE 90 Hypoid Gear
Oil / C6AZ-19580-E
SAE 85W-140: 10°F
andabove(–12°Cand
above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
SAE 140W: 40°Fand
above (4°C and above)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
219

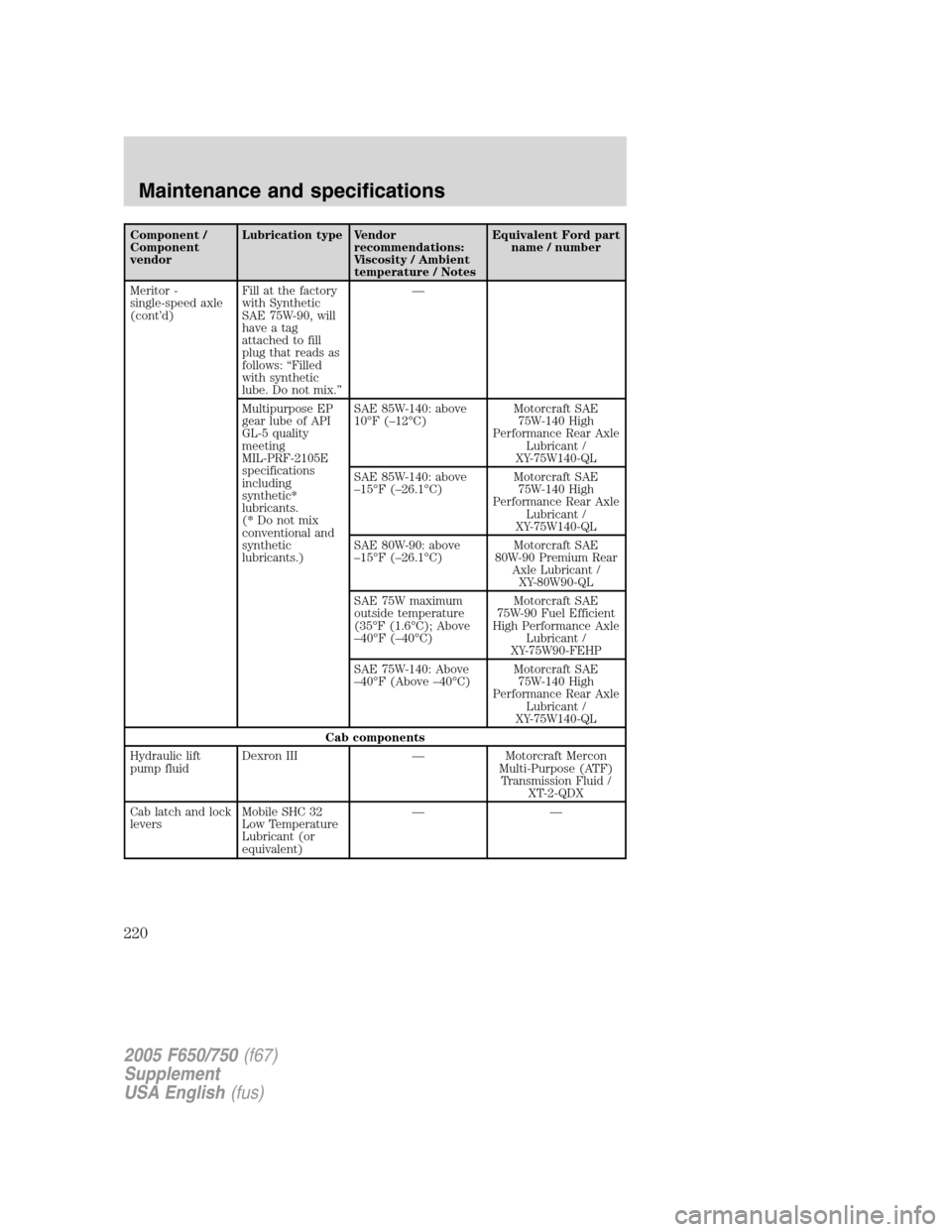

Component /
Component
vendorLubrication type Vendor
recommendations:
Viscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Meritor -
single-speed axle
(cont’d)Fill at the factory
with Synthetic
SAE 75W-90, will
have a tag
attached to fill
plug that reads as
follows:“Filled
with synthetic
lube. Do not mix.”—
Multipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic*
lubricants.
(* Do not mix
conventional and
synthetic
lubricants.)SAE 85W-140: above
10°F(–12°C)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
SAE 85W-140: above
–15°F(–26.1°C)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
SAE 80W-90: above
–15°F(–26.1°C)Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
SAE 75W maximum
outside temperature
(35°F (1.6°C); Above
–40°F(–40°C)Motorcraft SAE
75W-90 Fuel Efficient
High Performance Axle
Lubricant /
XY-75W90-FEHP
SAE 75W-140: Above
–40°F (Above–40°C)Motorcraft SAE
75W-140 High
Performance Rear Axle
Lubricant /
XY-75W140-QL
Cab components
Hydraulic lift
pump fluidDexron III—Motorcraft Mercon
Multi-Purpose (ATF)
Transmission Fluid /
XT-2-QDX
Cab latch and lock
leversMobile SHC 32
Low Temperature
Lubricant (or
equivalent)——
2005 F650/750(f67)
Supplement
USA English(fus)
Maintenance and specifications
220
