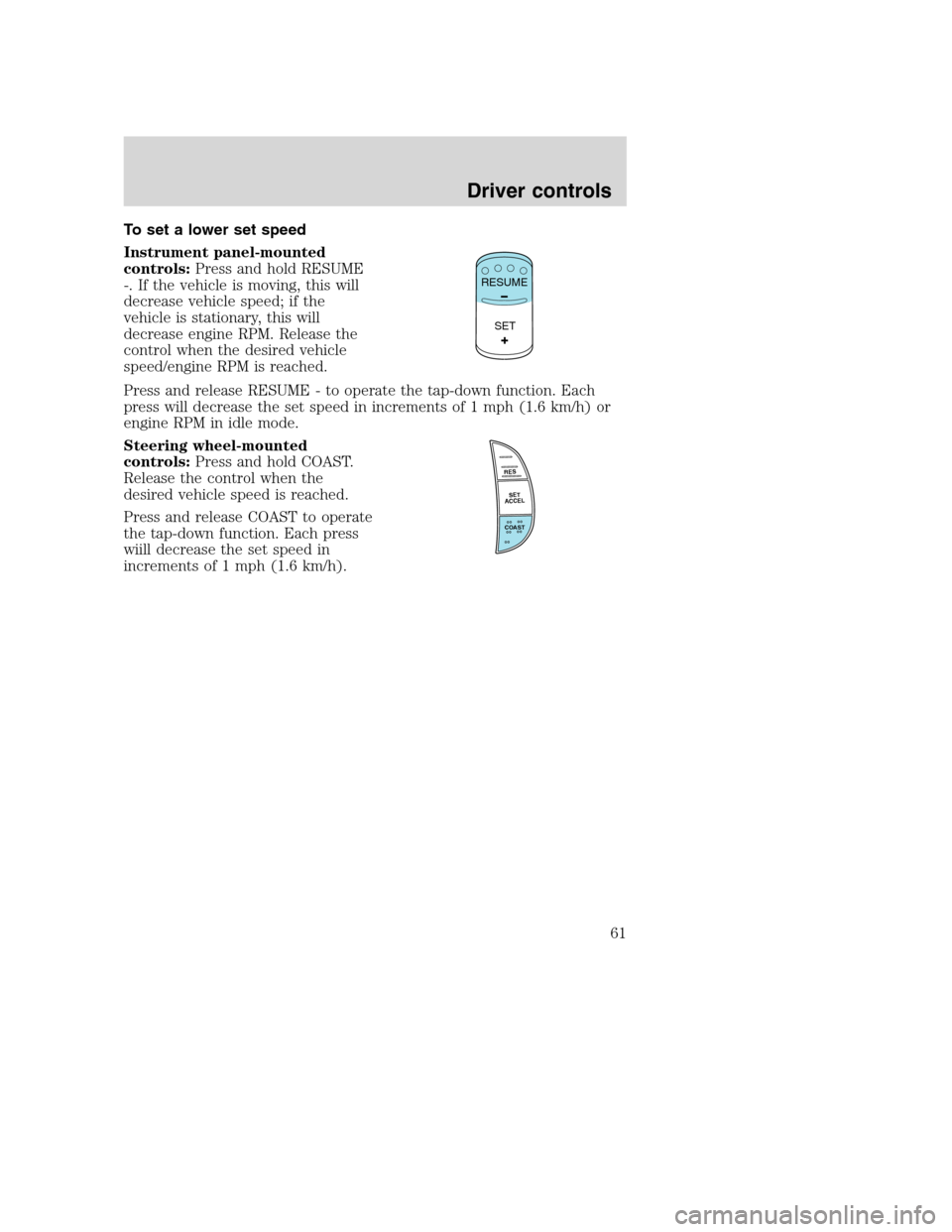

To set a lower set speed
Instrument panel-mounted
controls:Press and hold RESUME
-. If the vehicle is moving, this will
decrease vehicle speed; if the
vehicle is stationary, this will
decrease engine RPM. Release the
control when the desired vehicle
speed/engine RPM is reached.
Press and release RESUME - to operate the tap-down function. Each
press will decrease the set speed in increments of 1 mph (1.6 km/h) or
engine RPM in idle mode.
Steering wheel-mounted
controls:Press and hold COAST.
Release the control when the
desired vehicle speed is reached.
Press and release COAST to operate
the tap-down function. Each press
wiill decrease the set speed in
increments of 1 mph (1.6 km/h).
SET RESUME
RES
SET
ACCEL
COAST
Driver controls
61

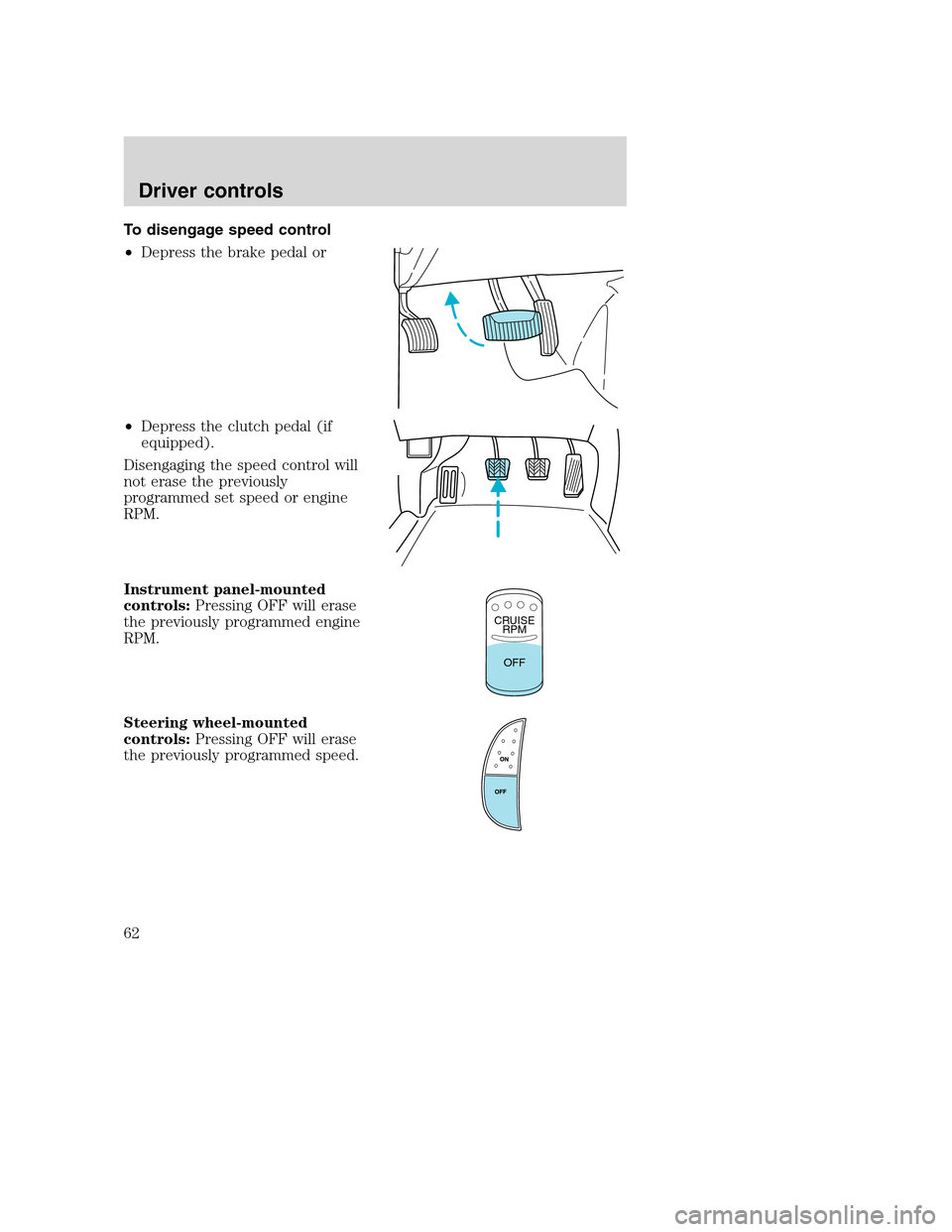

To disengage speed control
•Depress the brake pedal or
•Depress the clutch pedal (if
equipped).
Disengaging the speed control will
not erase the previously
programmed set speed or engine
RPM.
Instrument panel-mounted
controls:Pressing OFF will erase
the previously programmed engine
RPM.
Steering wheel-mounted
controls:Pressing OFF will erase
the previously programmed speed.
CRUISE
RPM
OFF
Driver controls
62

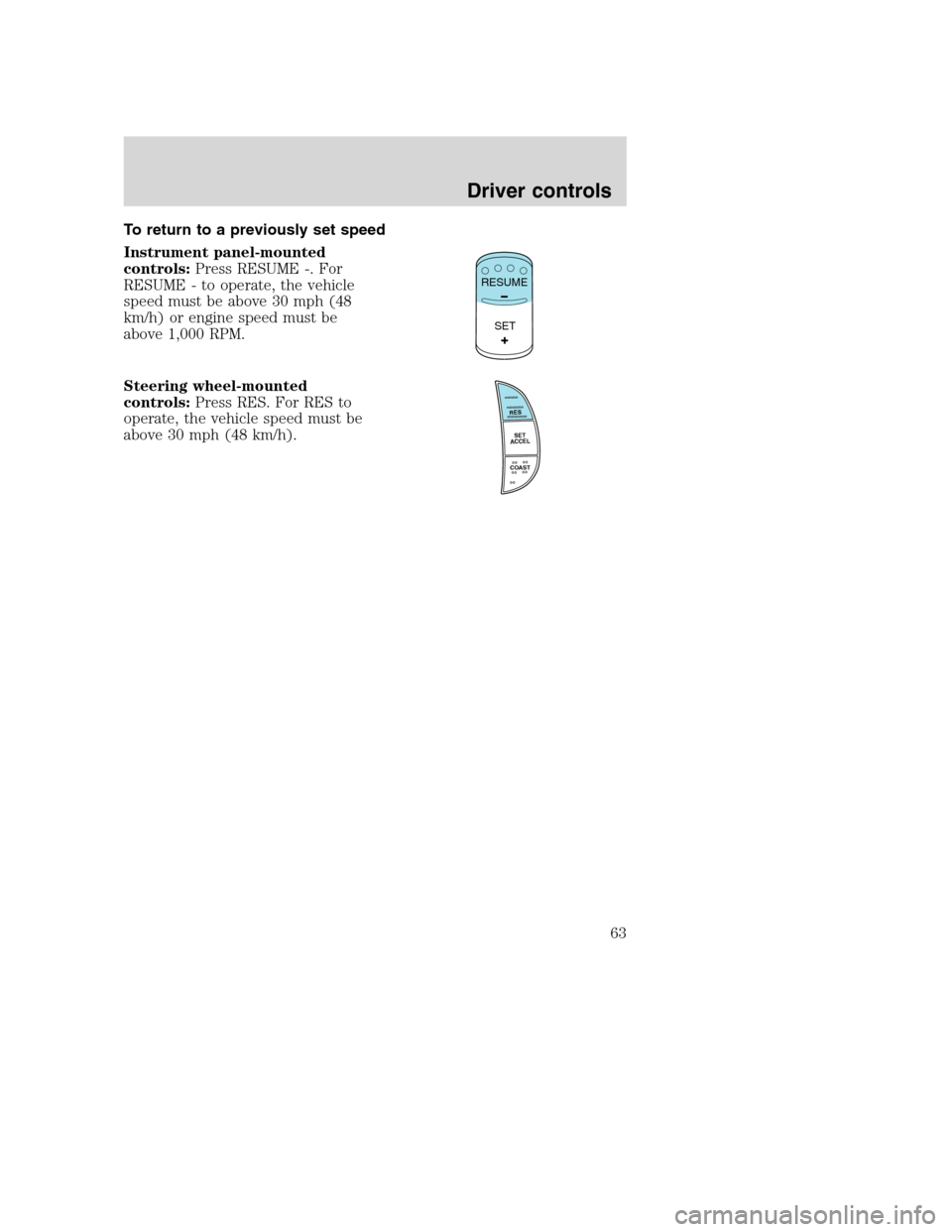

To return to a previously set speed
Instrument panel-mounted
controls:Press RESUME -. For
RESUME - to operate, the vehicle
speed must be above 30 mph (48
km/h) or engine speed must be
above 1,000 RPM.
Steering wheel-mounted
controls:Press RES. For RES to
operate, the vehicle speed must be
above 30 mph (48 km/h).
SET RESUME
RES
SET
ACCEL
COAST
Driver controls
63

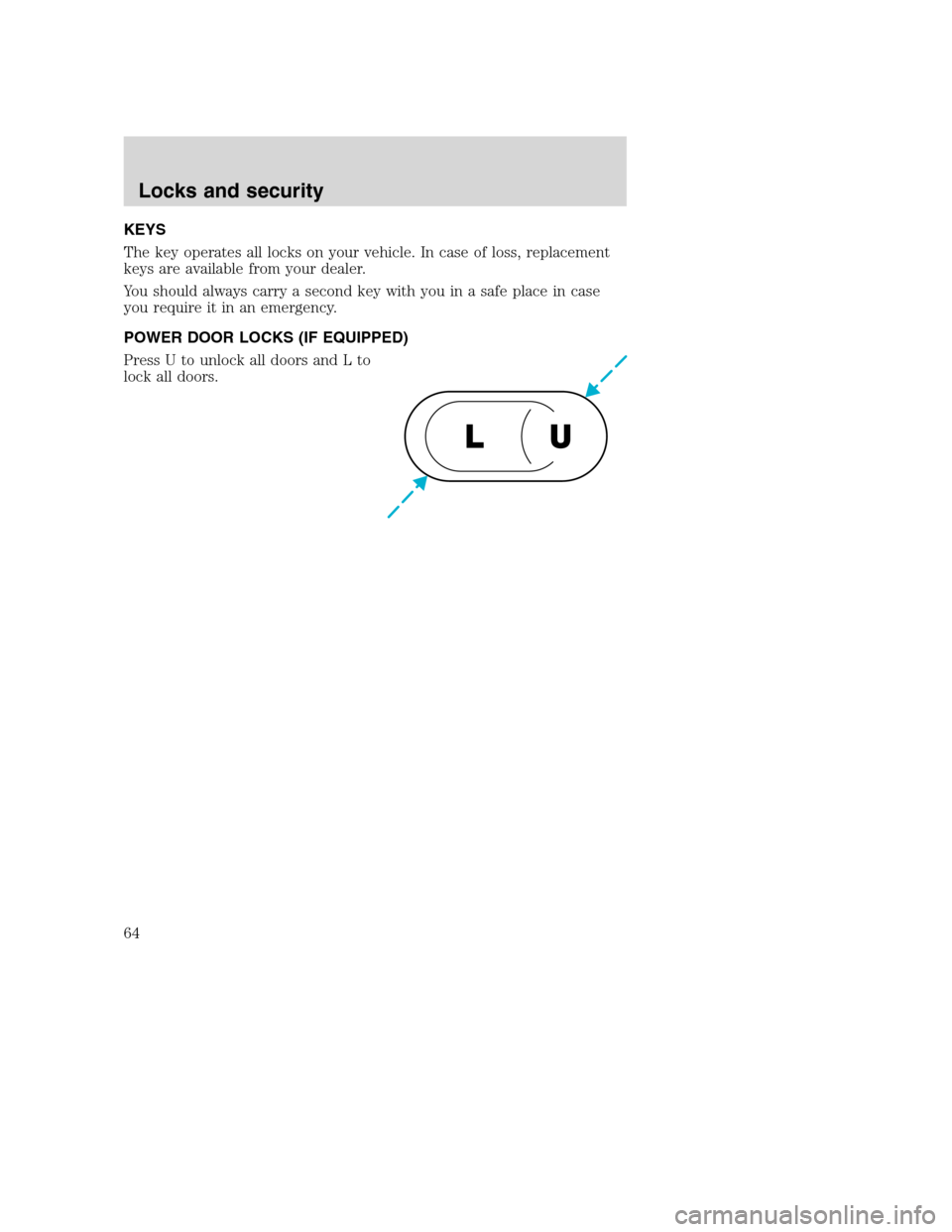

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
POWER DOOR LOCKS (IF EQUIPPED)
Press U to unlock all doors and L to
lock all doors.
U L
Locks and security
Locks and security
64

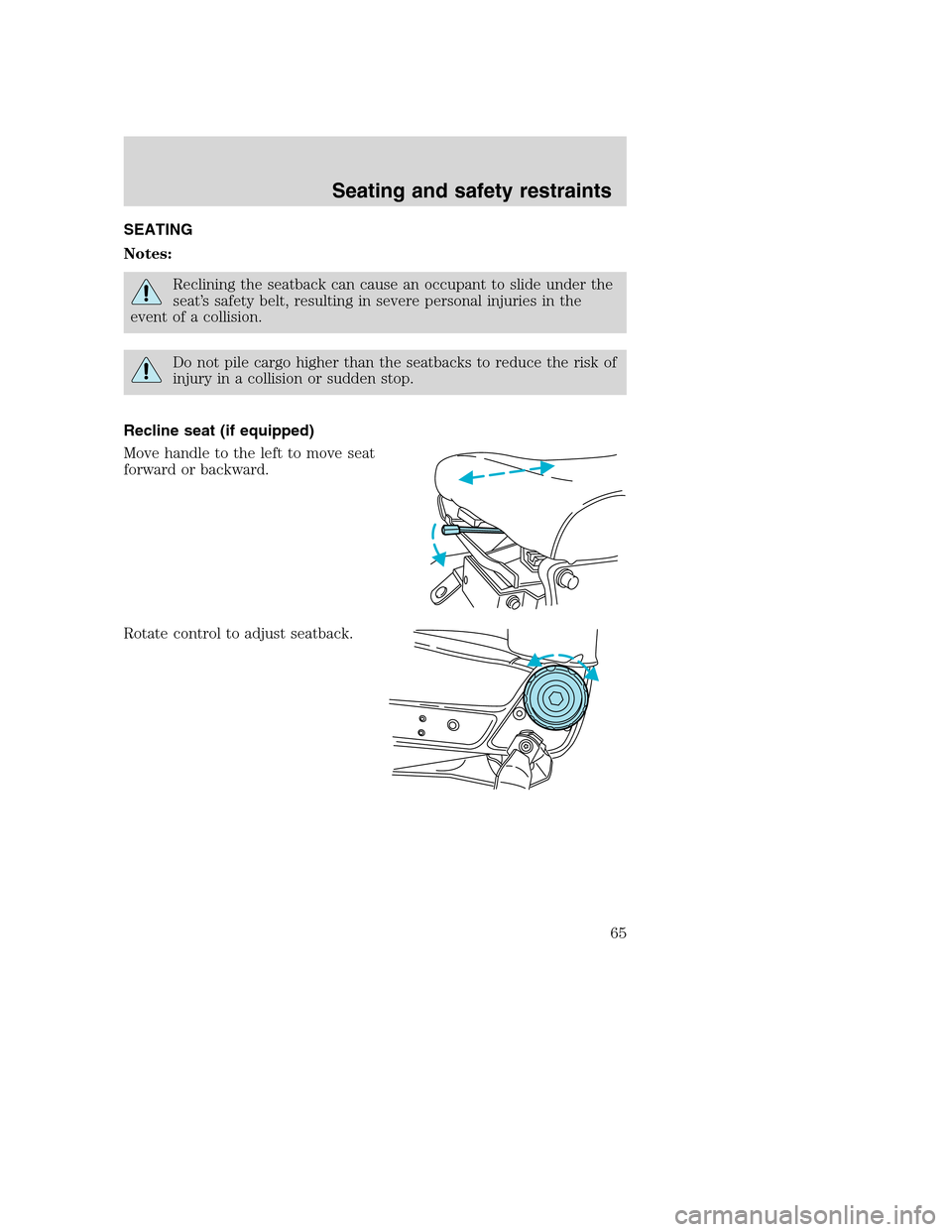

SEATING
Notes:
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.
Recline seat (if equipped)
Move handle to the left to move seat
forward or backward.
Rotate control to adjust seatback.
Seating and safety restraints
Seating and safety restraints
65

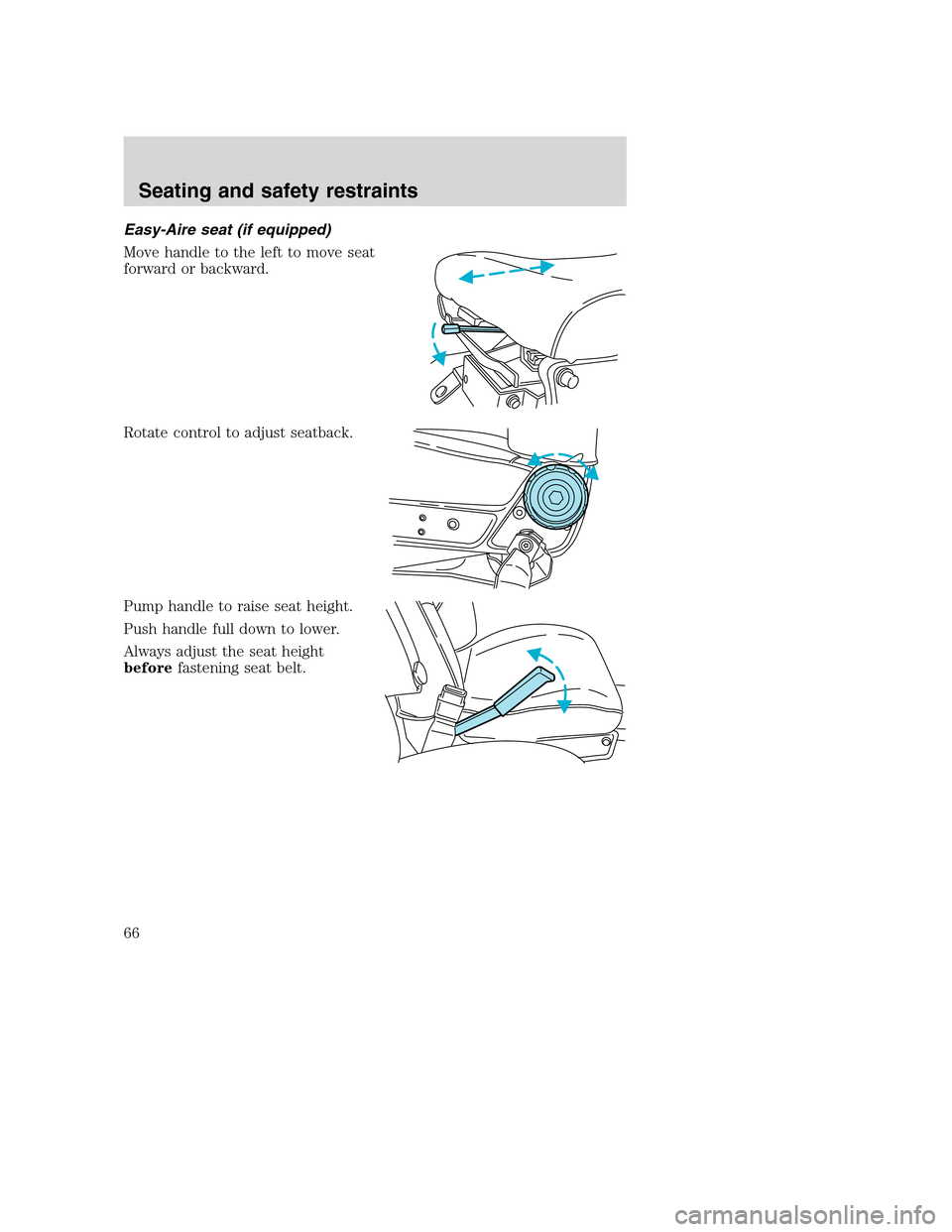

Easy-Aire seat (if equipped)
Move handle to the left to move seat
forward or backward.
Rotate control to adjust seatback.
Pump handle to raise seat height.
Push handle full down to lower.
Always adjust the seat height
beforefastening seat belt.
Seating and safety restraints
66

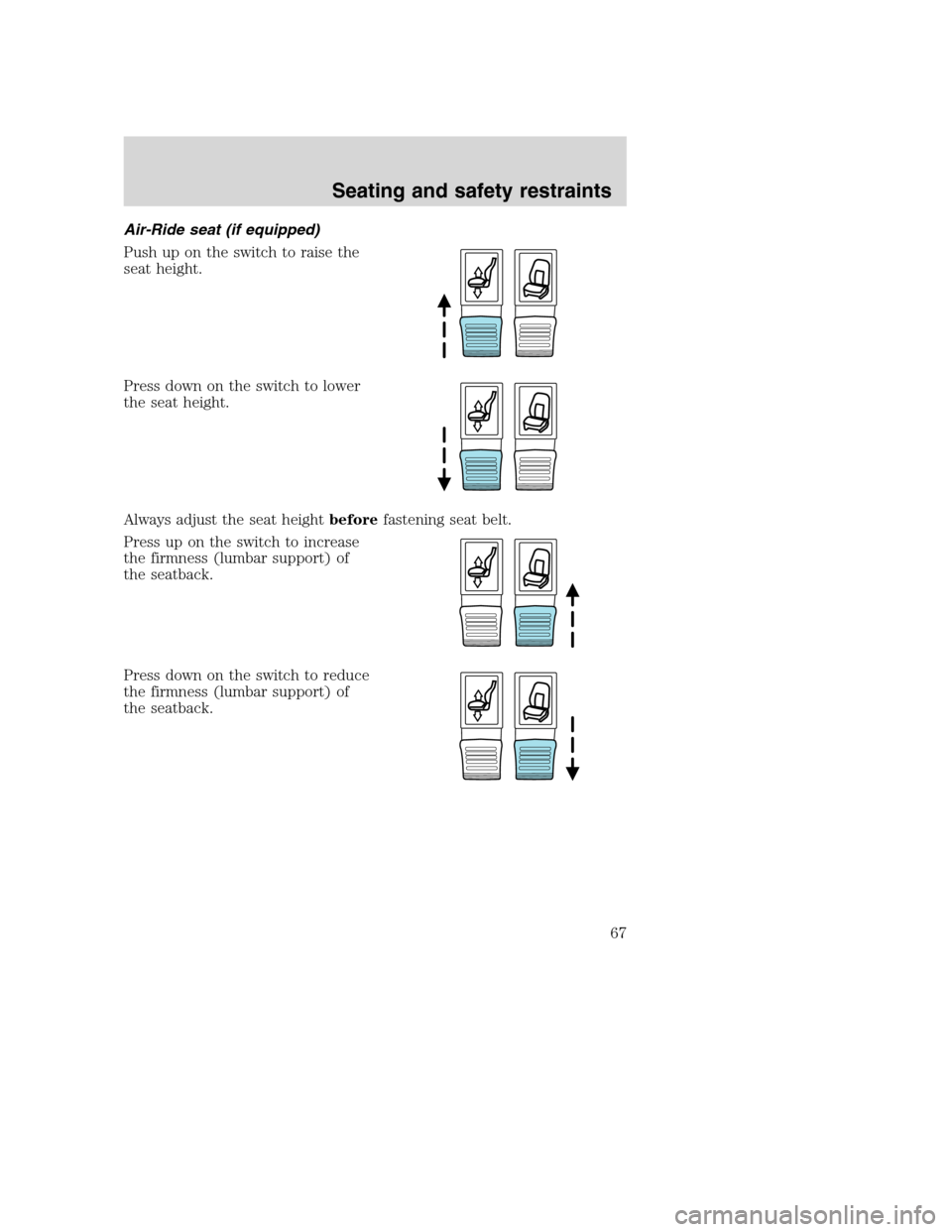

Air-Ride seat (if equipped)
Push up on the switch to raise the
seat height.
Press down on the switch to lower
the seat height.
Always adjust the seat heightbeforefastening seat belt.
Press up on the switch to increase
the firmness (lumbar support) of
the seatback.
Press down on the switch to reduce
the firmness (lumbar support) of
the seatback.
Seating and safety restraints
67

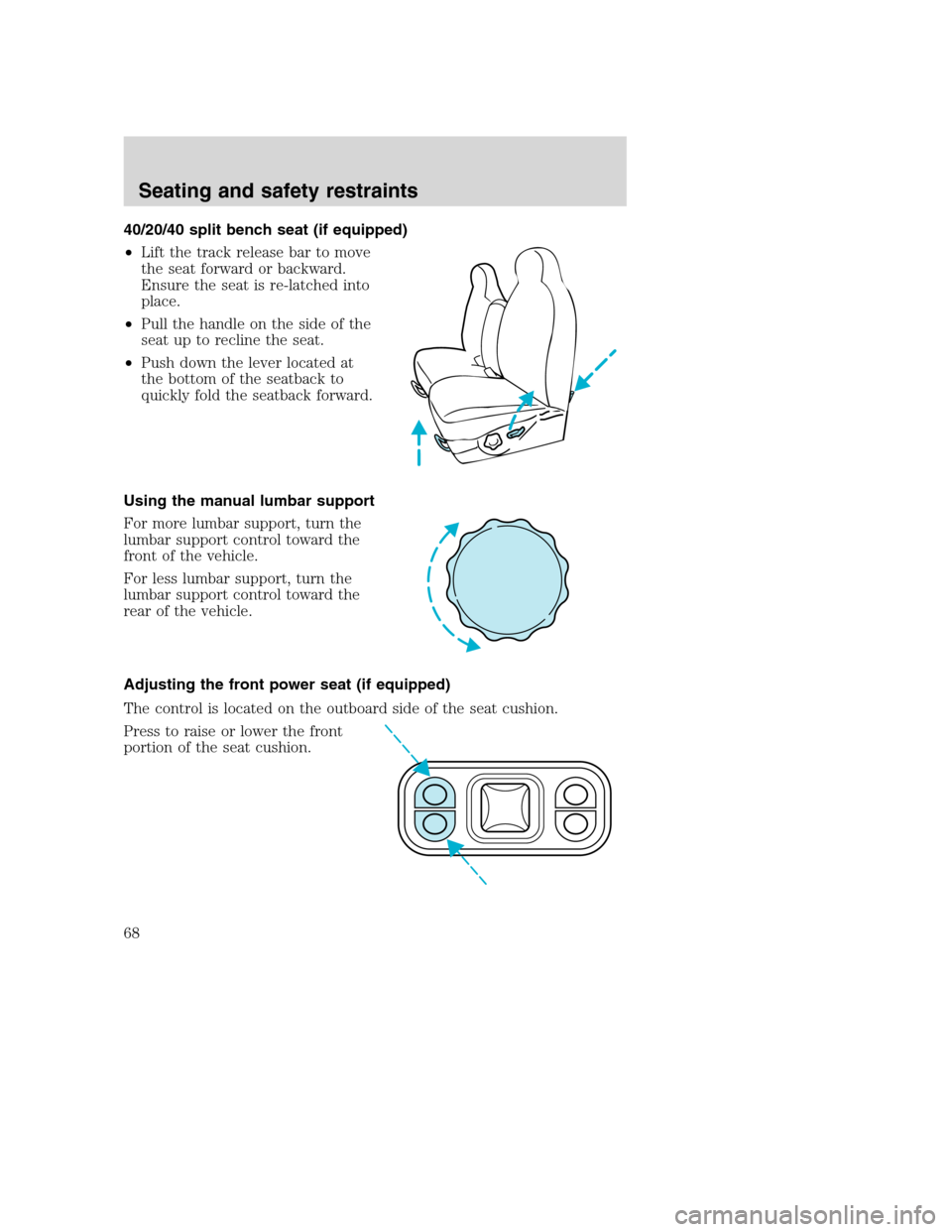

40/20/40 split bench seat (if equipped)
•Lift the track release bar to move
the seat forward or backward.
Ensure the seat is re-latched into
place.
•Pull the handle on the side of the
seat up to recline the seat.
•Push down the lever located at
the bottom of the seatback to
quickly fold the seatback forward.
Using the manual lumbar support
For more lumbar support, turn the
lumbar support control toward the
front of the vehicle.
For less lumbar support, turn the
lumbar support control toward the
rear of the vehicle.
Adjusting the front power seat (if equipped)
The control is located on the outboard side of the seat cushion.
Press to raise or lower the front
portion of the seat cushion.
Seating and safety restraints
68

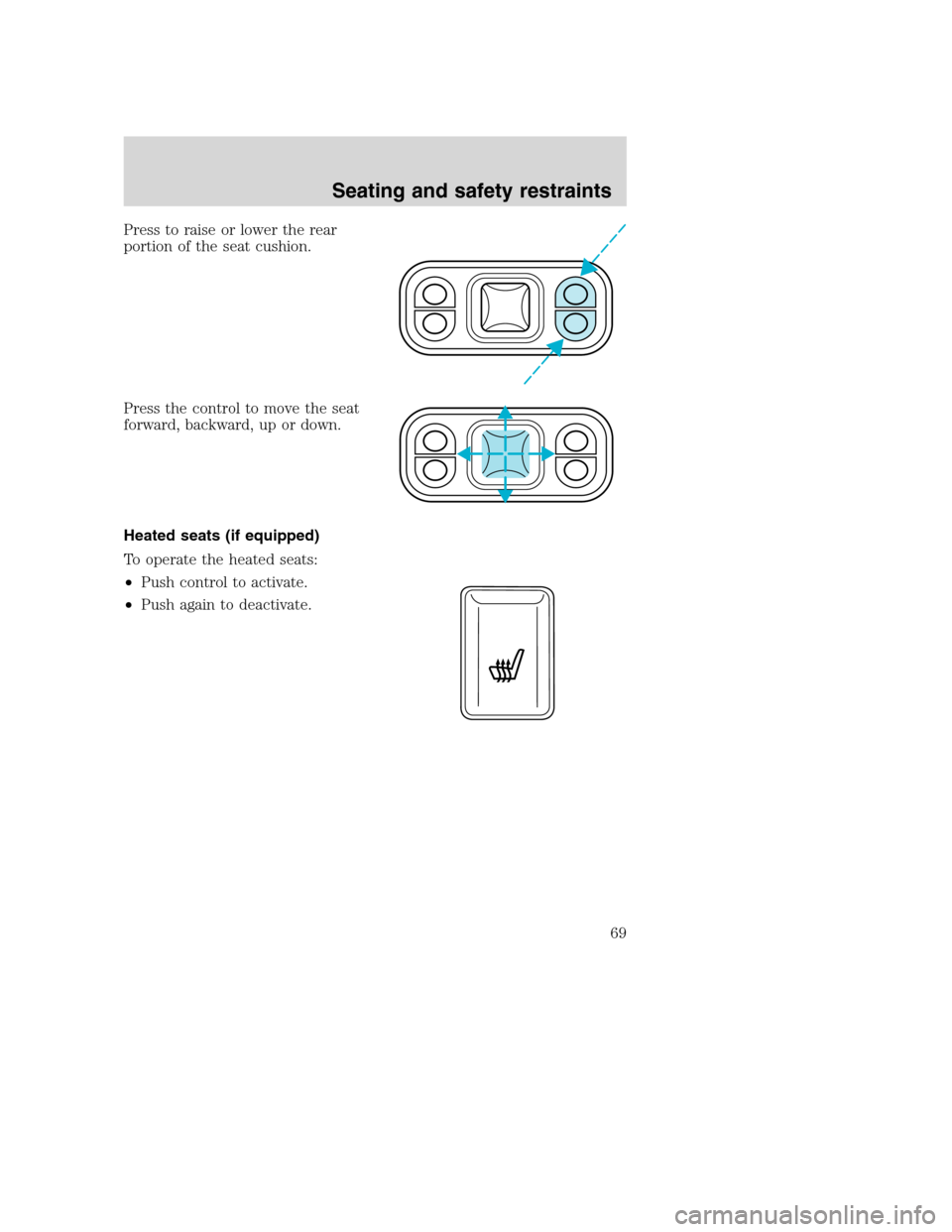

Press to raise or lower the rear
portion of the seat cushion.
Press the control to move the seat
forward, backward, up or down.
Heated seats (if equipped)
To operate the heated seats:
•Push control to activate.
•Push again to deactivate.
Seating and safety restraints
69

REAR FLIP-UP SEAT (IF EQUIPPED)
Flipping-up the seat
The rear seatback has a split 60/40
seat. Each seat cushion can be
flipped-up into the seatback
position.
1. Pull the control to release the
seat cushion.
2. Rotate the seat cushion up until it
locks into the vertical storage
position.
Returning the seat to horizontal position
Always latch the vehicle seat to the floor, whether the seat is
occupied or empty. If not latched, the seat may cause injury
during a sudden stop.
Make sure the safety belts are accessible and not trapped behind
the seat when the seat is returned to its horizontal position.
1. Pull the control on the side of the seat to release the seat cushion
from its storage position.
2. Push the seat cushion down until it locks into the horizontal position.
SAFETY RESTRAINTS
Safety restraints precautions
Always drive and ride with your seatback upright and the lap
belt snug and low across the hips.
To reduce the risk of injury, make sure children sit where they
can be properly restrained.
All occupants of the vehicle, including the driver, should always
properly wear their safety belts.
Seating and safety restraints
