Page 1 of 276
Introduction 4
Safety and environment protection 4
Vehicle Inspection Guide 11
Instrument Cluster 22
Warning lights and chimes 22
Gauges 28
Entertainment Systems 33
AM/FM stereo 33
AM/FM stereo with in-dash six CD 40
Climate Controls 46
Heater only 46
Manual heating and air conditioning 47
Lights 49
Headlamps 49
Turn signal control 50
Interior lamps 51
Bulb replacement 51
Driver Controls 54
Windshield wiper/washer control 54
Steering wheel adjustment 54
Power windows 56
Mirrors 57
Speed control 59
Locks and Security 64
Keys 64
Locks 64
Seating and Safety Restraints 65
Seating 65
Safety restraints 69
Child restraints 79
Table of Contents
1
2009 F-650/750(f67)
Supplement
USA(fus)

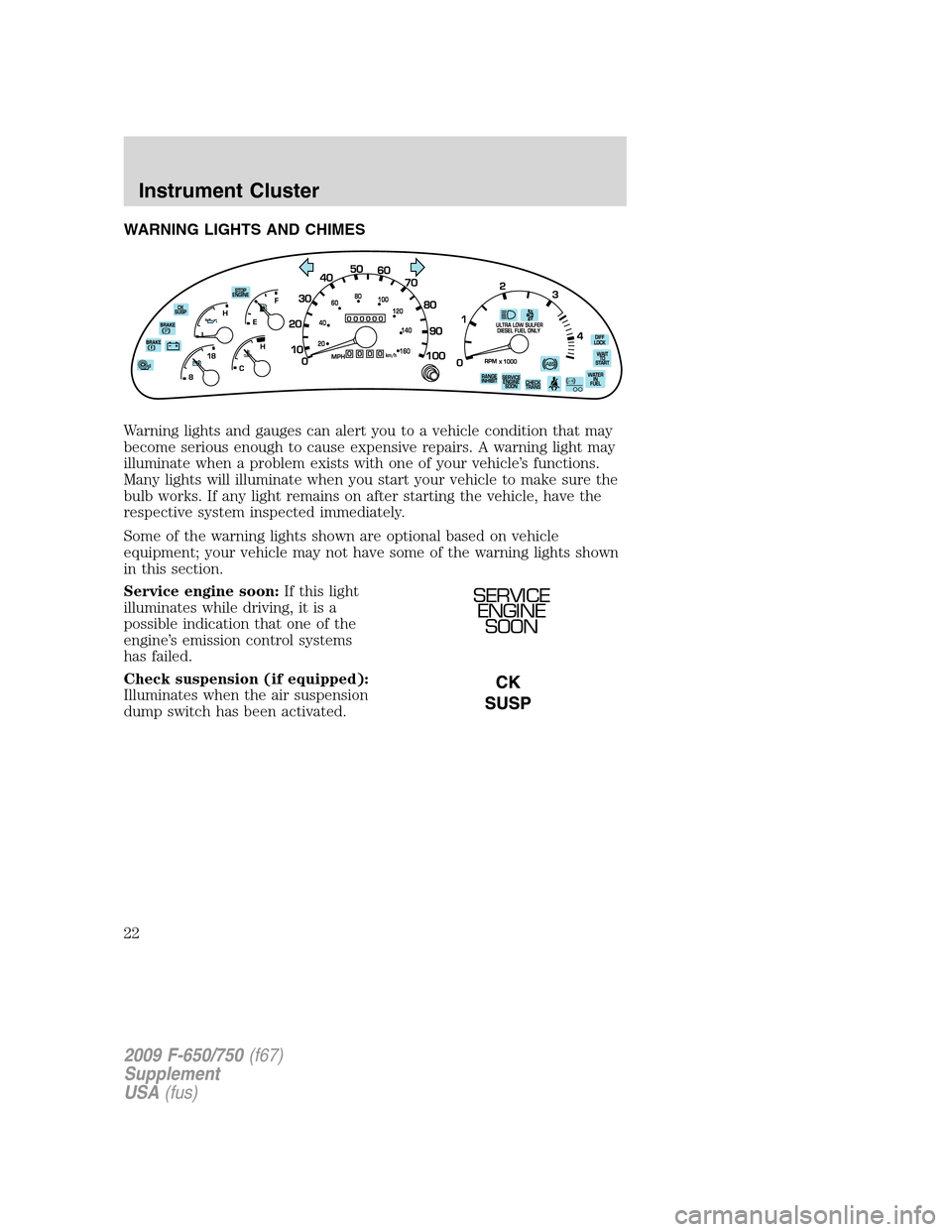

Page 22 of 276
WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, have the
respective system inspected immediately.
Some of the warning lights shown are optional based on vehicle
equipment; your vehicle may not have some of the warning lights shown
in this section.
Service engine soon:If this light
illuminates while driving, it is a
possible indication that one of the
engine’s emission control systems
has failed.
Check suspension (if equipped):
Illuminates when the air suspension
dump switch has been activated.
SERVICE
ENGINE
SOON
2009 F-650/750(f67)
Supplement
USA(fus)
Instrument Cluster
22

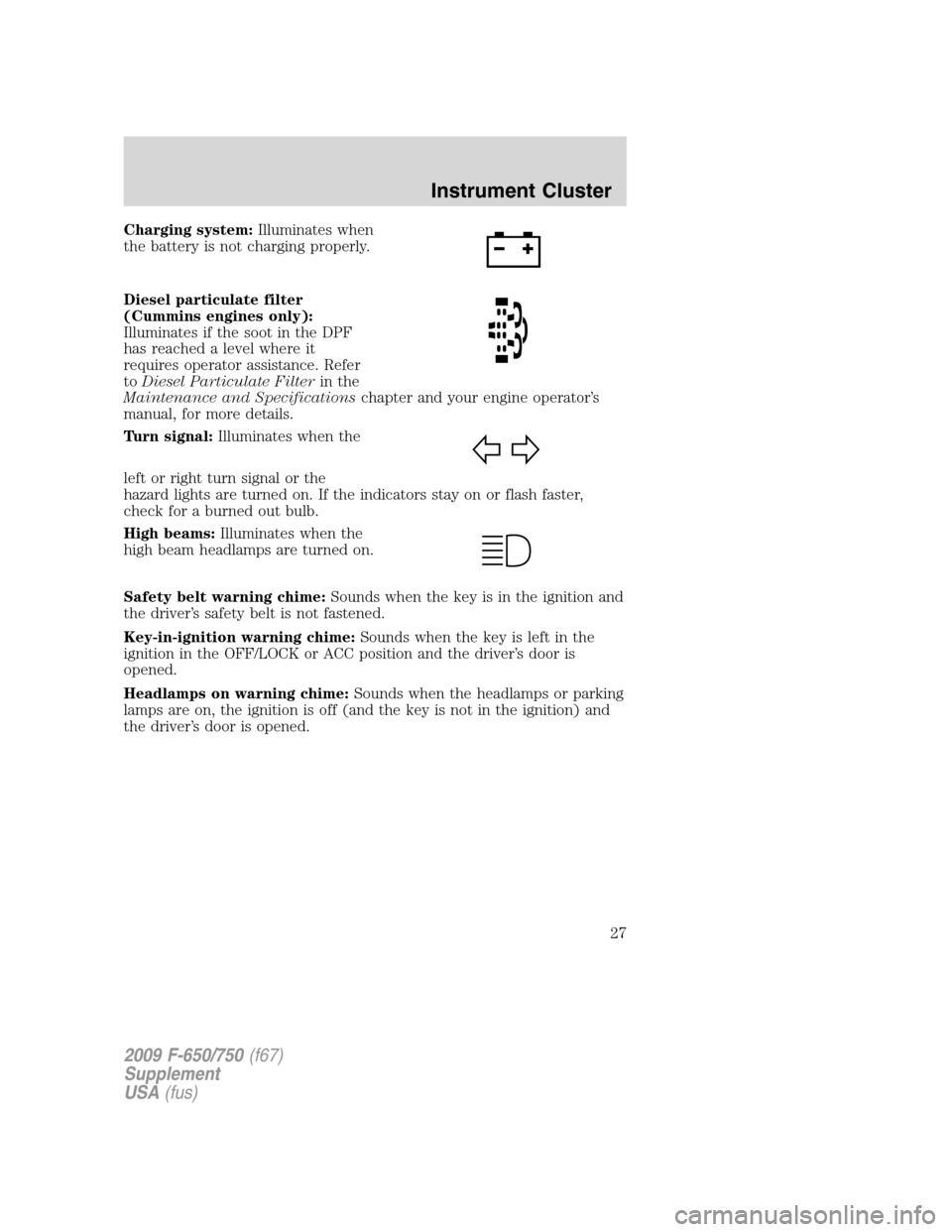

Page 27 of 276
Charging system:Illuminates when
the battery is not charging properly.
Diesel particulate filter
(Cummins engines only):
Illuminates if the soot in the DPF
has reached a level where it
requires operator assistance. Refer
toDiesel Particulate Filterin the
Maintenance and Specificationschapter and your engine operator’s
manual, for more details.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the indicators stay on or flash faster,
check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Safety belt warning chime:Sounds when the key is in the ignition and
the driver’s safety belt is not fastened.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACC position and the driver’s door is
opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (and the key is not in the ignition) and
the driver’s door is opened.
2009 F-650/750(f67)
Supplement
USA(fus)
Instrument Cluster
27

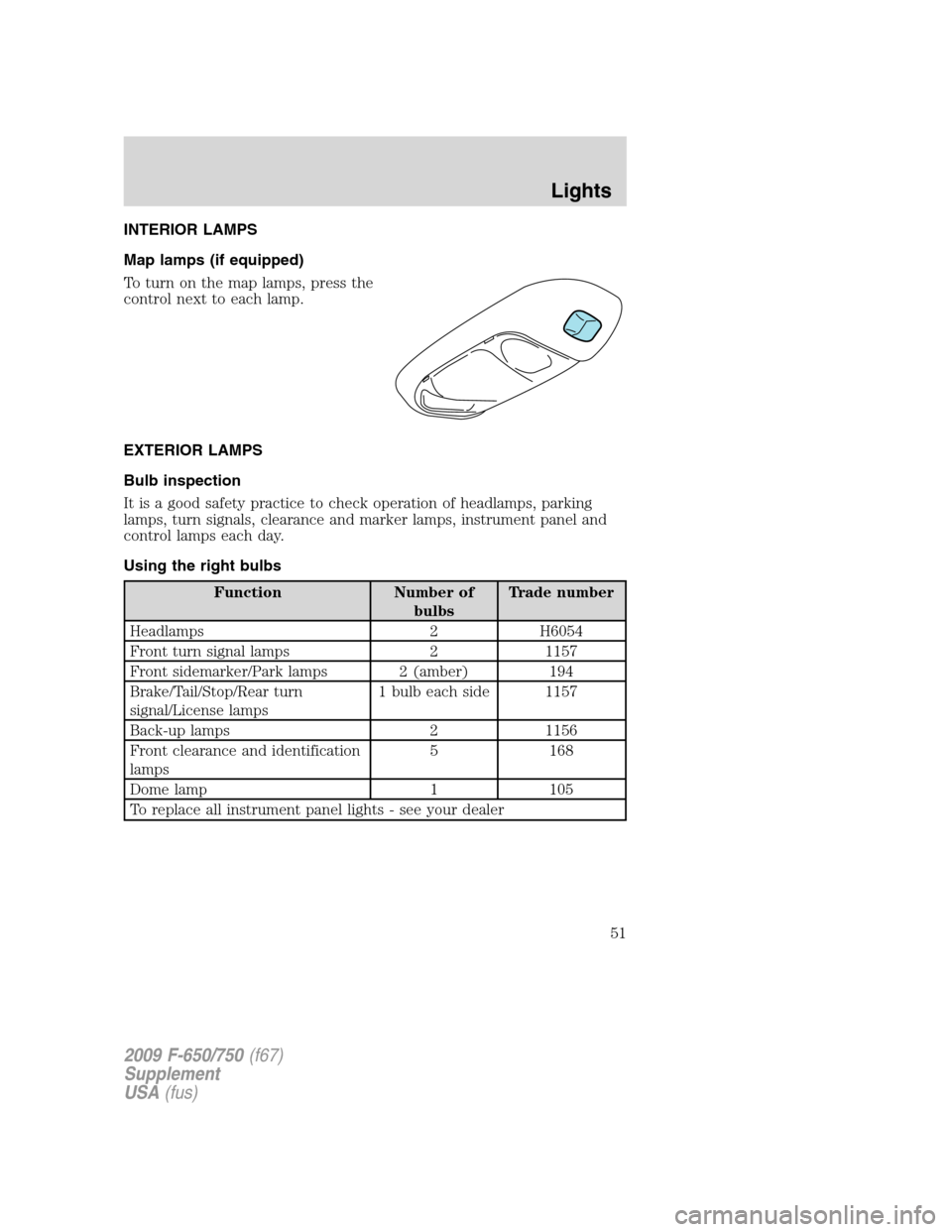

Page 51 of 276
INTERIOR LAMPS
Map lamps (if equipped)
To turn on the map lamps, press the
control next to each lamp.
EXTERIOR LAMPS
Bulb inspection
It is a good safety practice to check operation of headlamps, parking
lamps, turn signals, clearance and marker lamps, instrument panel and
control lamps each day.
Using the right bulbs
Function Number of
bulbsTrade number
Headlamps 2 H6054
Front turn signal lamps 2 1157
Front sidemarker/Park lamps 2 (amber) 194
Brake/Tail/Stop/Rear turn
signal/License lamps1 bulb each side 1157
Back-up lamps 2 1156
Front clearance and identification
lamps5 168
Dome lamp 1 105
To replace all instrument panel lights - see your dealer
2009 F-650/750(f67)
Supplement
USA(fus)
Lights
51

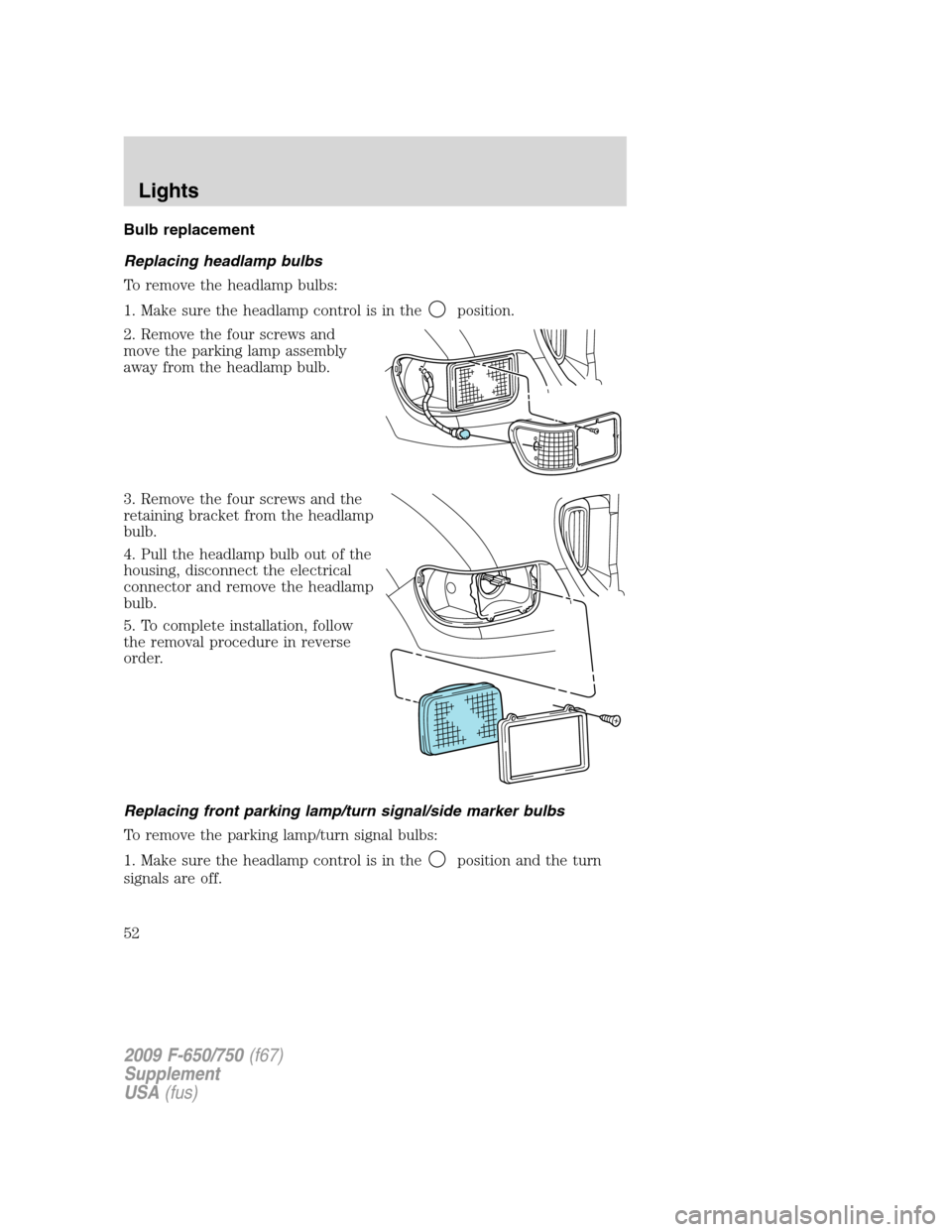

Page 52 of 276
Bulb replacement
Replacing headlamp bulbs
To remove the headlamp bulbs:
1. Make sure the headlamp control is in the
position.
2. Remove the four screws and
move the parking lamp assembly
away from the headlamp bulb.
3. Remove the four screws and the
retaining bracket from the headlamp
bulb.
4. Pull the headlamp bulb out of the
housing, disconnect the electrical
connector and remove the headlamp
bulb.
5. To complete installation, follow
the removal procedure in reverse
order.
Replacing front parking lamp/turn signal/side marker bulbs
To remove the parking lamp/turn signal bulbs:
1. Make sure the headlamp control is in the
position and the turn
signals are off.
2009 F-650/750(f67)
Supplement
USA(fus)
Lights
52

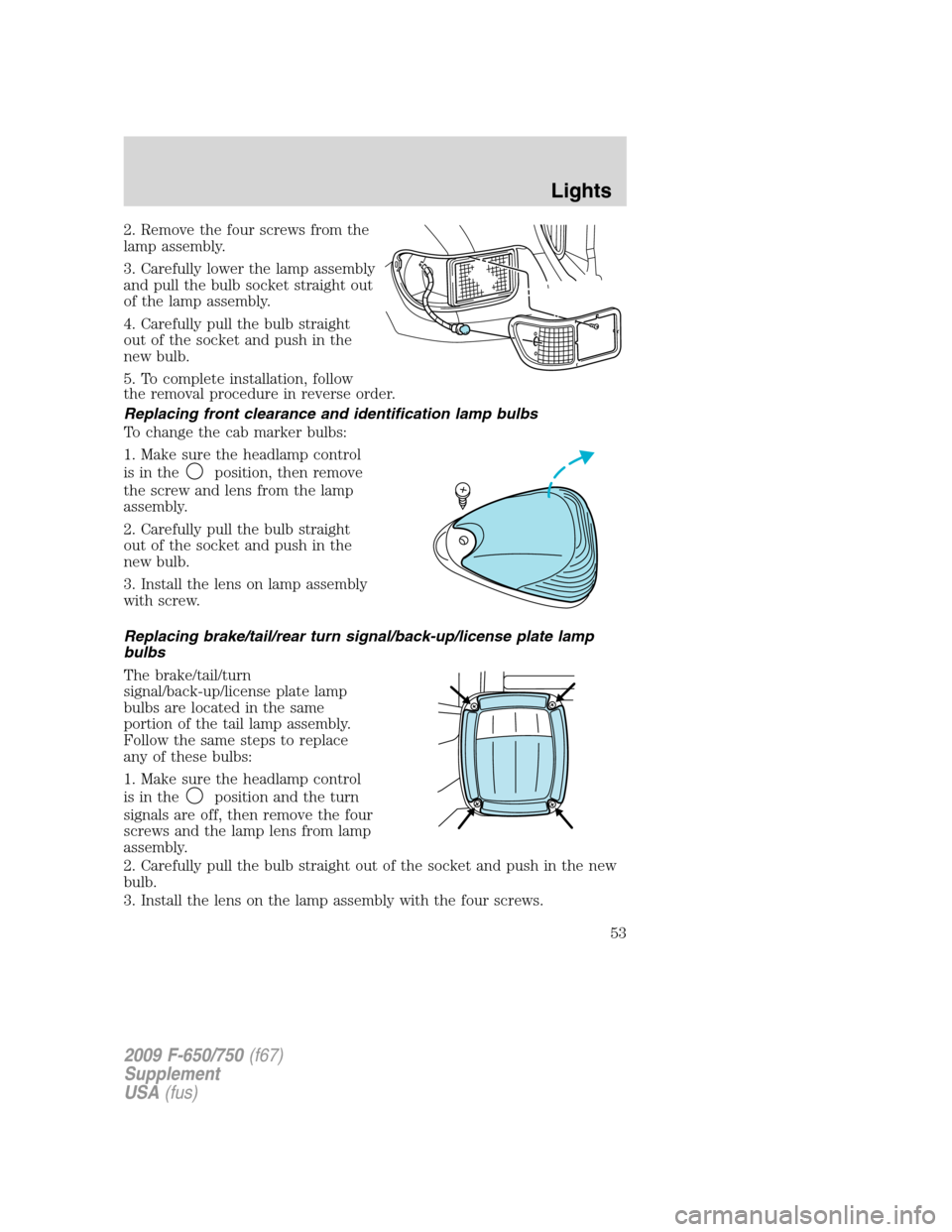

Page 53 of 276
2. Remove the four screws from the
lamp assembly.
3. Carefully lower the lamp assembly
and pull the bulb socket straight out
of the lamp assembly.
4. Carefully pull the bulb straight
out of the socket and push in the
new bulb.
5. To complete installation, follow
the removal procedure in reverse order.
Replacing front clearance and identification lamp bulbs
To change the cab marker bulbs:
1. Make sure the headlamp control
is in the
position, then remove
the screw and lens from the lamp
assembly.
2. Carefully pull the bulb straight
out of the socket and push in the
new bulb.
3. Install the lens on lamp assembly
with screw.
Replacing brake/tail/rear turn signal/back-up/license plate lamp
bulbs
The brake/tail/turn
signal/back-up/license plate lamp
bulbs are located in the same
portion of the tail lamp assembly.
Follow the same steps to replace
any of these bulbs:
1. Make sure the headlamp control
is in the
position and the turn
signals are off, then remove the four
screws and the lamp lens from lamp
assembly.
2. Carefully pull the bulb straight out of the socket and push in the new
bulb.
3. Install the lens on the lamp assembly with the four screws.
2009 F-650/750(f67)
Supplement
USA(fus)
Lights
53

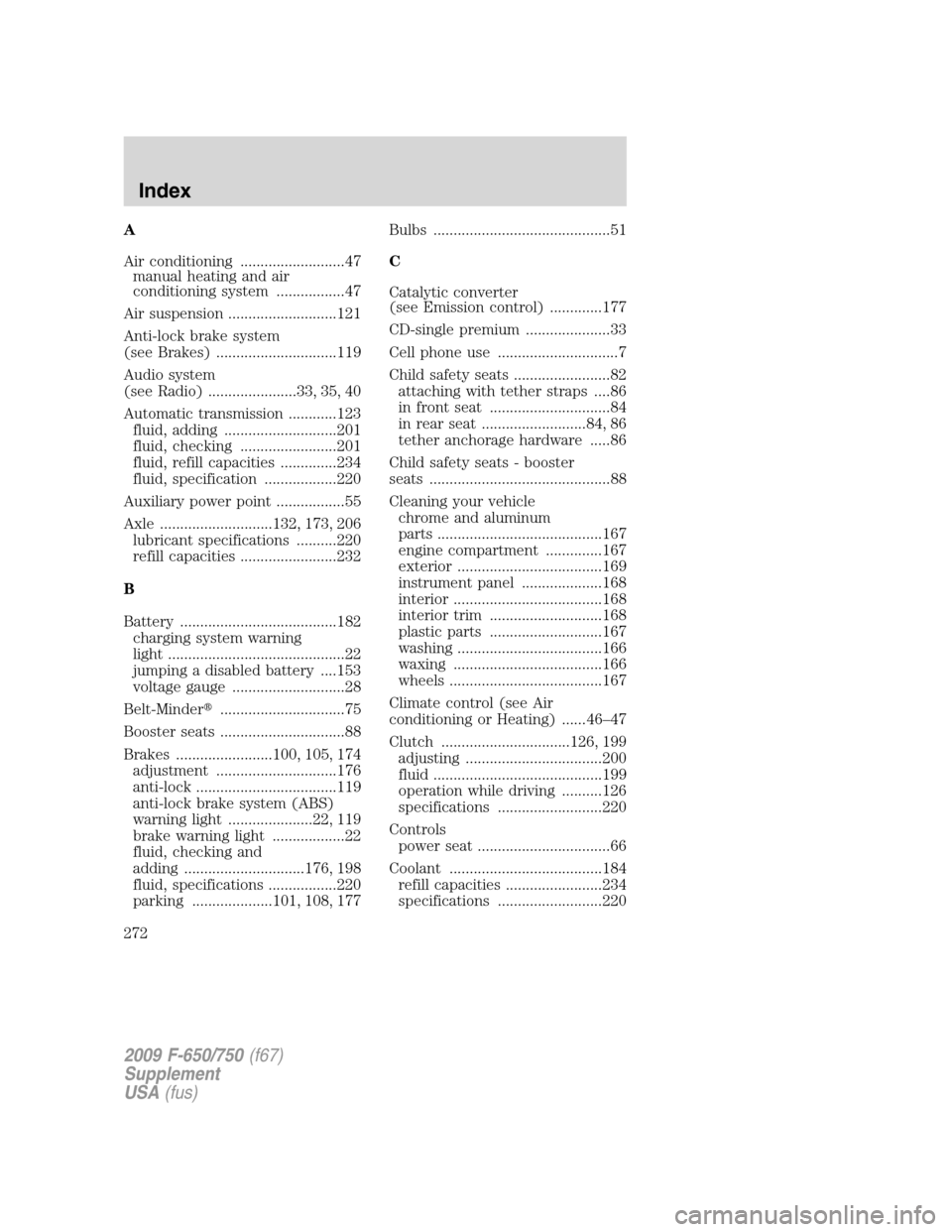

Page 272 of 276
A
Air conditioning ..........................47
manual heating and air
conditioning system .................47
Air suspension ...........................121
Anti-lock brake system
(see Brakes) ..............................119
Audio system
(see Radio) ......................33, 35, 40
Automatic transmission ............123
fluid, adding ............................201
fluid, checking ........................201
fluid, refill capacities ..............234
fluid, specification ..................220
Auxiliary power point .................55
Axle ............................132, 173, 206
lubricant specifications ..........220
refill capacities ........................232
B
Battery .......................................182
charging system warning
light ............................................22
jumping a disabled battery ....153
voltage gauge ............................28
Belt-Minder...............................75
Booster seats ...............................88
Brakes ........................100, 105, 174
adjustment ..............................176
anti-lock ...................................119
anti-lock brake system (ABS)
warning light .....................22, 119
brake warning light ..................22
fluid, checking and
adding ..............................176, 198
fluid, specifications .................220
parking ....................101, 108, 177Bulbs ............................................51
C
Catalytic converter
(see Emission control) .............177
CD-single premium .....................33
Cell phone use ..............................7
Child safety seats ........................82
attaching with tether straps ....86
in front seat ..............................84
in rear seat ..........................84, 86
tether anchorage hardware .....86
Child safety seats - booster
seats .............................................88
Cleaning your vehicle
chrome and aluminum
parts .........................................167
engine compartment ..............167
exterior ....................................169
instrument panel ....................168
interior .....................................168
interior trim ............................168
plastic parts ............................167
washing ....................................166
waxing .....................................166
wheels ......................................167
Climate control (see Air
conditioning or Heating) ......46–47
Clutch ................................126, 199
adjusting ..................................200
fluid ..........................................199
operation while driving ..........126
specifications ..........................220
Controls
power seat .................................66
Coolant ......................................184
refill capacities ........................234
specifications ..........................220
2009 F-650/750(f67)
Supplement
USA(fus)
Index
272

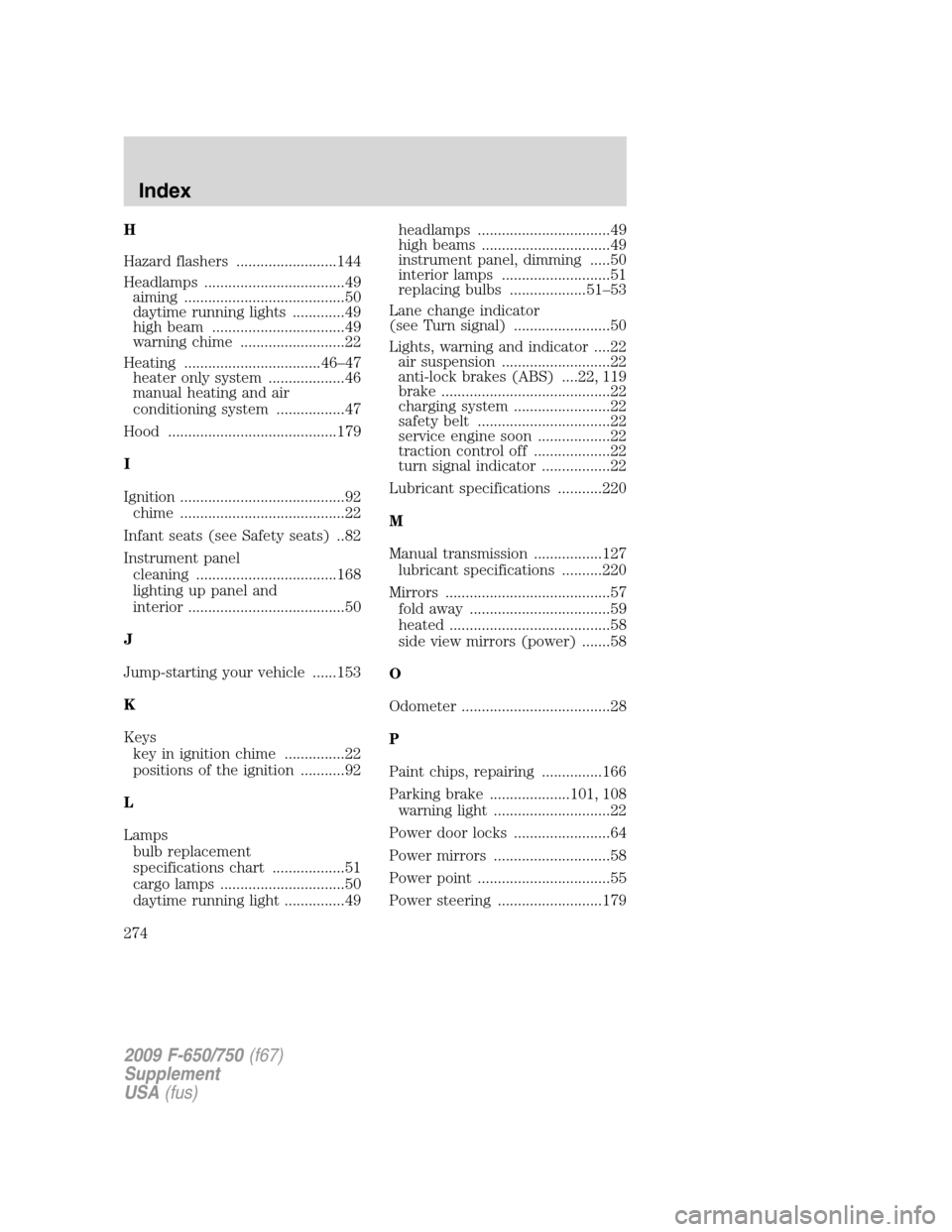

Page 274 of 276
H
Hazard flashers .........................144
Headlamps ...................................49
aiming ........................................50
daytime running lights .............49
high beam .................................49
warning chime ..........................22
Heating ..................................46–47
heater only system ...................46
manual heating and air
conditioning system .................47
Hood ..........................................179
I
Ignition .........................................92
chime .........................................22
Infant seats (see Safety seats) ..82
Instrument panel
cleaning ...................................168
lighting up panel and
interior .......................................50
J
Jump-starting your vehicle ......153
K
Keys
key in ignition chime ...............22
positions of the ignition ...........92
L
Lamps
bulb replacement
specifications chart ..................51
cargo lamps ...............................50
daytime running light ...............49headlamps .................................49
high beams ................................49
instrument panel, dimming .....50
interior lamps ...........................51
replacing bulbs ...................51–53
Lane change indicator
(see Turn signal) ........................50
Lights, warning and indicator ....22
air suspension ...........................22
anti-lock brakes (ABS) ....22, 119
brake ..........................................22
charging system ........................22
safety belt .................................22
service engine soon ..................22
traction control off ...................22
turn signal indicator .................22
Lubricant specifications ...........220
M
Manual transmission .................127
lubricant specifications ..........220
Mirrors .........................................57
fold away ...................................59
heated ........................................58
side view mirrors (power) .......58
O
Odometer .....................................28
P
Paint chips, repairing ...............166
Parking brake ....................101, 108
warning light .............................22
Power door locks ........................64
Power mirrors .............................58
Power point .................................55
Power steering ..........................179
2009 F-650/750(f67)
Supplement
USA(fus)
Index
274
