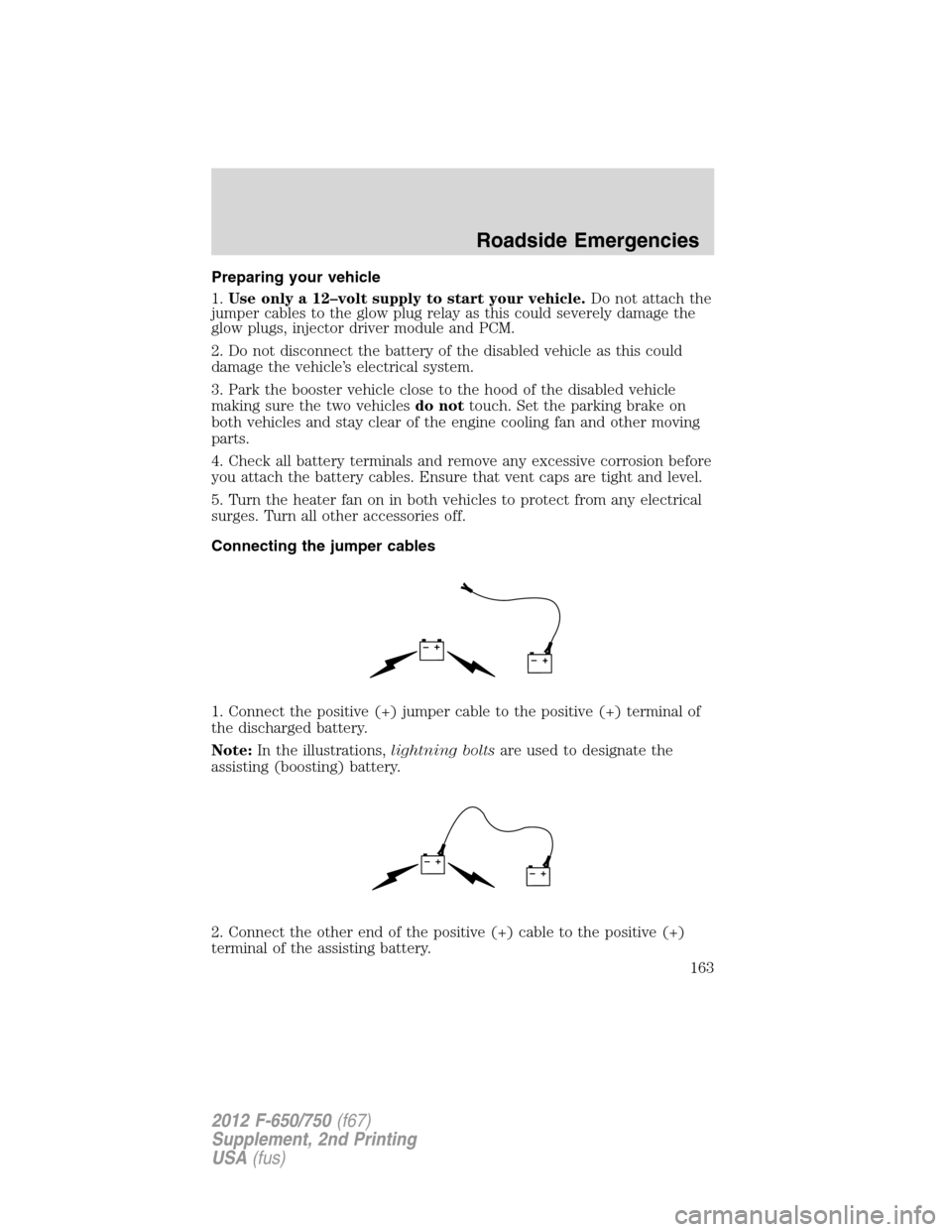

Preparing your vehicle
1.Use only a 12–volt supply to start your vehicle.Do not attach the
jumper cables to the glow plug relay as this could severely damage the
glow plugs, injector driver module and PCM.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Connect the other end of the positive (+) cable to the positive (+)
terminal of the assisting battery.
+–+–
+–+–
Roadside Emergencies
163
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

If you see any corrosion on the battery or terminals, remove the cables
from the terminals and clean with a wire brush. You can neutralize the
acid with a solution of baking soda and water.
It is recommended that the negative battery cable terminal be
disconnected from the battery if you plan to store your vehicle for an
extended period of time; this minimizes the discharge of your battery
during storage.
If the engine cranks but does not start, remove the battery box cover
and check the 40A inline fuse located on the battery cable above the
battery.
WARNING:Batteries normally produce explosive gases which
can cause personal injury. Therefore, do not allow flames, sparks
or lighted substances to come near the battery. When working near the
battery, always shield your face and protect your eyes. Always provide
proper ventilation.
WARNING:When lifting a plastic-cased battery, excessive
pressure on the end walls could cause acid to flow through the
vent caps, resulting in personal injury and/or damage to the vehicle or
battery. Lift the battery with a battery carrier or with your hands on
opposite corners.
WARNING:Keep batteries out of reach of children. Batteries
contain sulfuric acid. Avoid contact with skin, eyes or clothing.
Shield your eyes when working near the battery to protect against
possible splashing of acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and
get prompt medical attention. If acid is swallowed, call a physician
immediately.
WARNING:Battery posts, terminals and related accessories
contain lead and lead compounds.Wash hands after handling.
Maintenance and Specifications
196
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

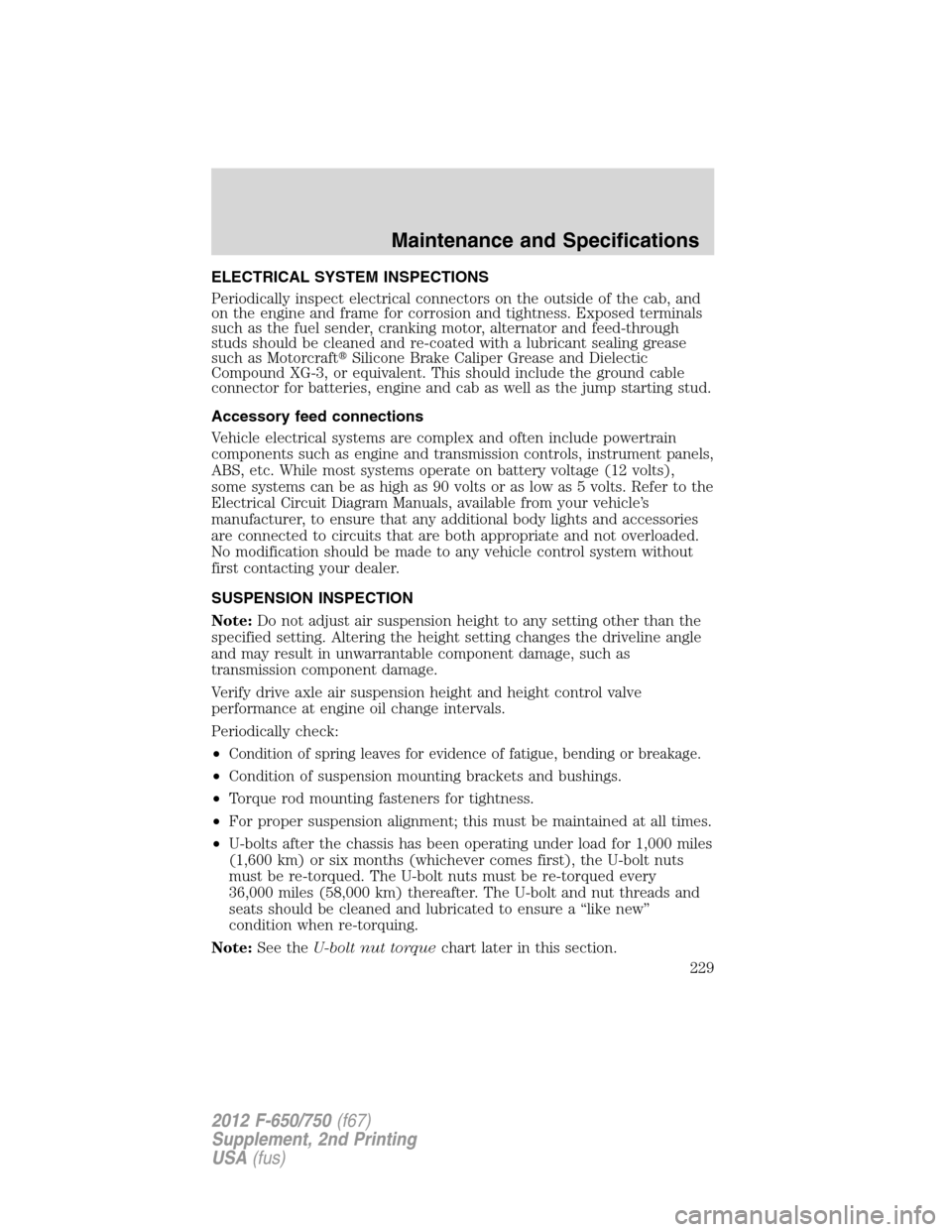

ELECTRICAL SYSTEM INSPECTIONS
Periodically inspect electrical connectors on the outside of the cab, and
on the engine and frame for corrosion and tightness. Exposed terminals
such as the fuel sender, cranking motor, alternator and feed-through
studs should be cleaned and re-coated with a lubricant sealing grease
such as MotorcraftSilicone Brake Caliper Grease and Dielectic
Compound XG-3, or equivalent. This should include the ground cable
connector for batteries, engine and cab as well as the jump starting stud.
Accessory feed connections
Vehicle electrical systems are complex and often include powertrain
components such as engine and transmission controls, instrument panels,
ABS, etc. While most systems operate on battery voltage (12 volts),
some systems can be as high as 90 volts or as low as 5 volts. Refer to the
Electrical Circuit Diagram Manuals, available from your vehicle’s
manufacturer, to ensure that any additional body lights and accessories
are connected to circuits that are both appropriate and not overloaded.
No modification should be made to any vehicle control system without
first contacting your dealer.
SUSPENSION INSPECTION
Note:Do not adjust air suspension height to any setting other than the
specified setting. Altering the height setting changes the driveline angle
and may result in unwarrantable component damage, such as
transmission component damage.
Verify drive axle air suspension height and height control valve
performance at engine oil change intervals.
Periodically check:
•
Condition of spring leaves for evidence of fatigue, bending or breakage.
•Condition of suspension mounting brackets and bushings.
•Torque rod mounting fasteners for tightness.
•For proper suspension alignment; this must be maintained at all times.
•U-bolts after the chassis has been operating under load for 1,000 miles
(1,600 km) or six months (whichever comes first), the U-bolt nuts
must be re-torqued. The U-bolt nuts must be re-torqued every
36,000 miles (58,000 km) thereafter. The U-bolt and nut threads and
seats should be cleaned and lubricated to ensure a “like new”
condition when re-torquing.
Note:See theU-bolt nut torquechart later in this section.
Maintenance and Specifications
229
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

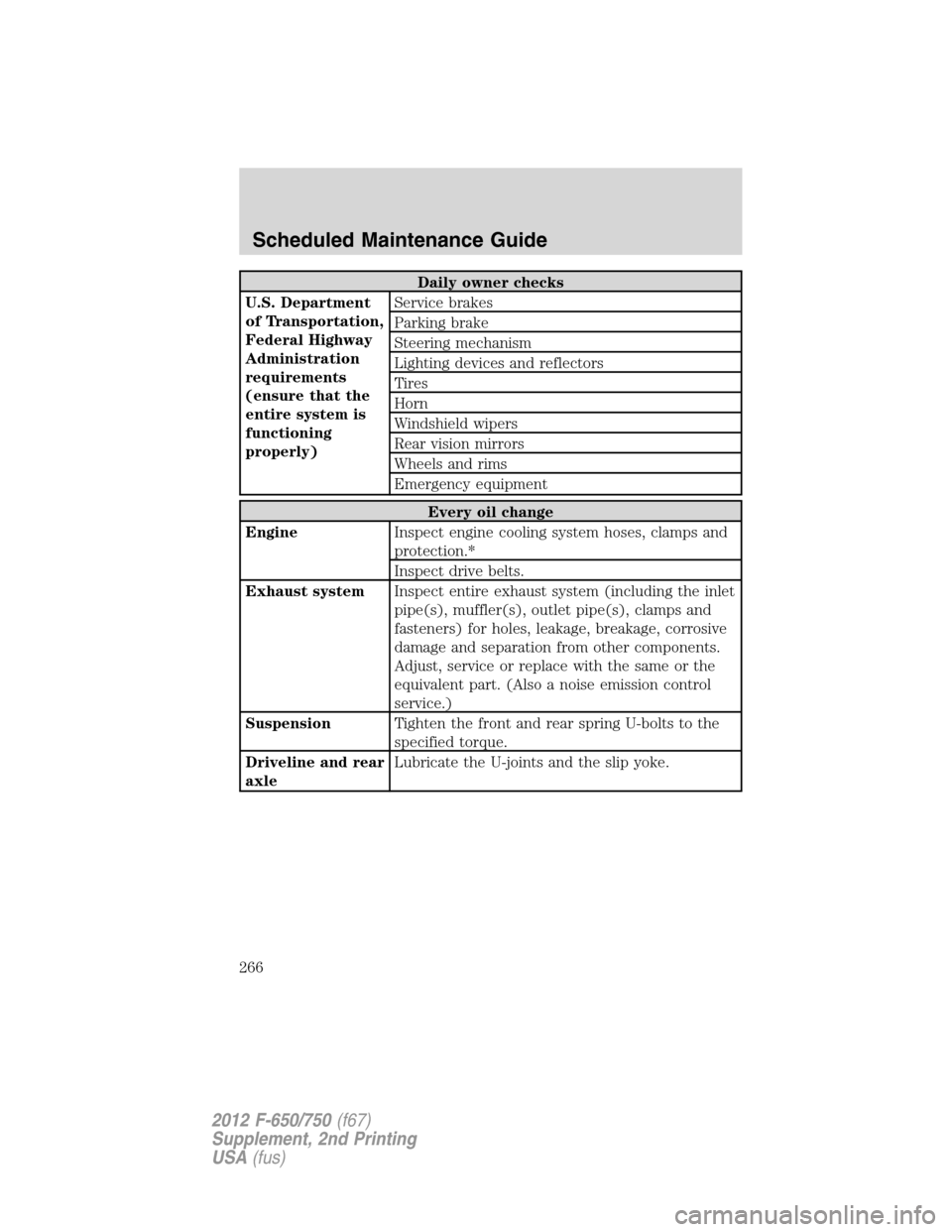

Daily owner checks
U.S. Department
of Transportation,
Federal Highway
Administration
requirements
(ensure that the
entire system is
functioning
properly)Service brakes
Parking brake
Steering mechanism
Lighting devices and reflectors
Tires
Horn
Windshield wipers
Rear vision mirrors
Wheels and rims
Emergency equipment
Every oil change
EngineInspect engine cooling system hoses, clamps and
protection.*
Inspect drive belts.
Exhaust systemInspect entire exhaust system (including the inlet
pipe(s), muffler(s), outlet pipe(s), clamps and
fasteners) for holes, leakage, breakage, corrosive
damage and separation from other components.
Adjust, service or replace with the same or the
equivalent part. (Also a noise emission control
service.)
SuspensionTighten the front and rear spring U-bolts to the
specified torque.
Driveline and rear
axleLubricate the U-joints and the slip yoke.
Scheduled Maintenance Guide
266
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

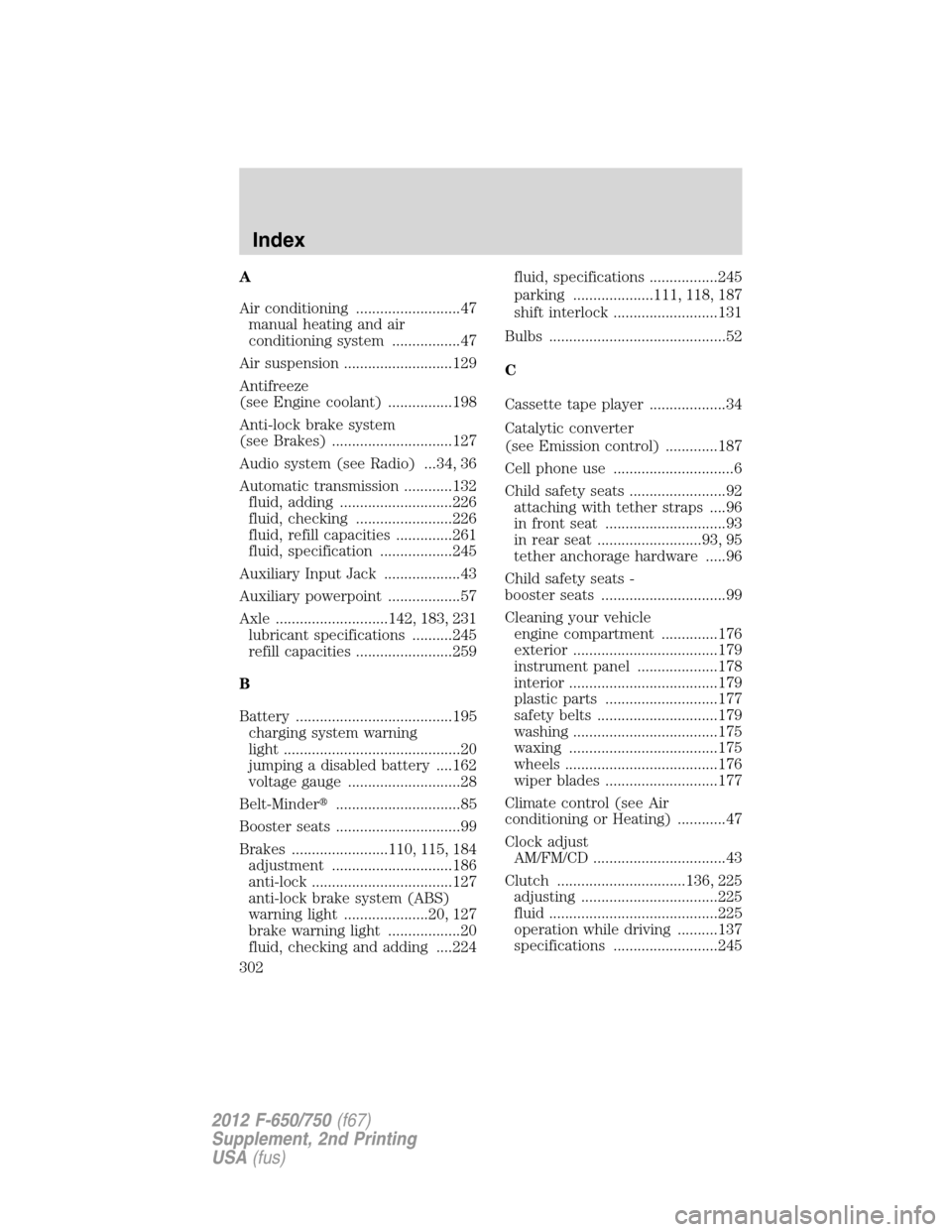

A
Air conditioning ..........................47
manual heating and air
conditioning system .................47
Air suspension ...........................129
Antifreeze
(see Engine coolant) ................198
Anti-lock brake system
(see Brakes) ..............................127
Audio system (see Radio) ...34, 36
Automatic transmission ............132
fluid, adding ............................226
fluid, checking ........................226
fluid, refill capacities ..............261
fluid, specification ..................245
Auxiliary Input Jack ...................43
Auxiliary powerpoint ..................57
Axle ............................142, 183, 231
lubricant specifications ..........245
refill capacities ........................259
B
Battery .......................................195
charging system warning
light ............................................20
jumping a disabled battery ....162
voltage gauge ............................28
Belt-Minder...............................85
Booster seats ...............................99
Brakes ........................110, 115, 184
adjustment ..............................186
anti-lock ...................................127
anti-lock brake system (ABS)
warning light .....................20, 127
brake warning light ..................20
fluid, checking and adding ....224fluid, specifications .................245
parking ....................111, 118, 187
shift interlock ..........................131
Bulbs ............................................52
C
Cassette tape player ...................34
Catalytic converter
(see Emission control) .............187
Cell phone use ..............................6
Child safety seats ........................92
attaching with tether straps ....96
in front seat ..............................93
in rear seat ..........................93, 95
tether anchorage hardware .....96
Child safety seats -
booster seats ...............................99
Cleaning your vehicle
engine compartment ..............176
exterior ....................................179
instrument panel ....................178
interior .....................................179
plastic parts ............................177
safety belts ..............................179
washing ....................................175
waxing .....................................175
wheels ......................................176
wiper blades ............................177
Climate control (see Air
conditioning or Heating) ............47
Clock adjust
AM/FM/CD .................................43
Clutch ................................136, 225
adjusting ..................................225
fluid ..........................................225
operation while driving ..........137
specifications ..........................245
Index
302
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
