FORD F650 2013 12.G Owners Manual

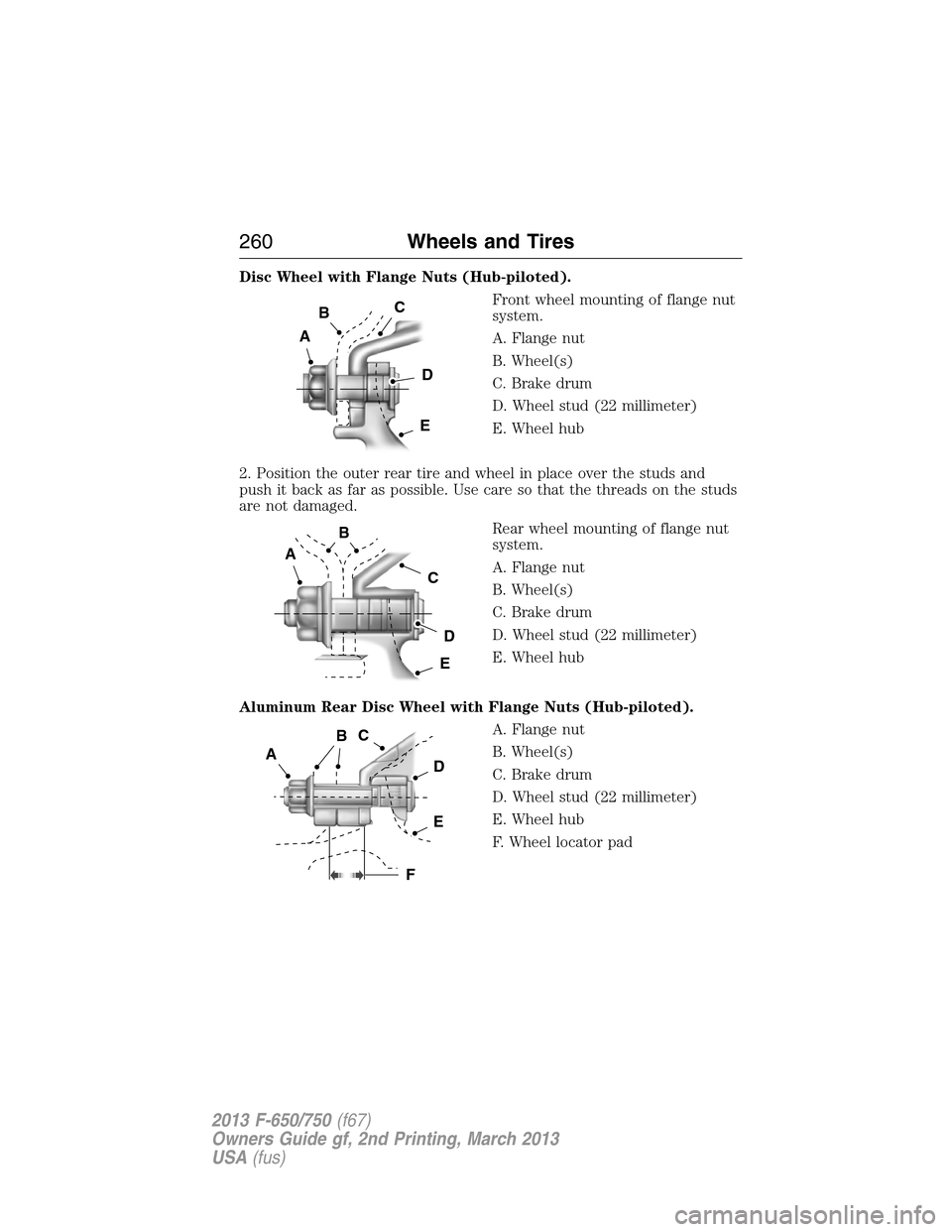

Disc Wheel with Flange Nuts (Hub-piloted).
Front wheel mounting of flange nut
system.
A. Flange nut
B. Wheel(s)
C. Brake drum
D. Wheel stud (22 millimeter)
E. Wheel hub
2. Position the outer rear tire and wheel in place over the studs and
push it back as far as possible. Use care so that the threads on the studs
are not damaged.
Rear wheel mounting of flange nut
system.
A. Flange nut
B. Wheel(s)
C. Brake drum
D. Wheel stud (22 millimeter)
E. Wheel hub
Aluminum Rear Disc Wheel with Flange Nuts (Hub-piloted).
A. Flange nut
B. Wheel(s)
C. Brake drum
D. Wheel stud (22 millimeter)
E. Wheel hub
F. Wheel locator pad
A
BC
D
E
E
D
C
A
B
A
C
D
E
F
B
260Wheels and Tires
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

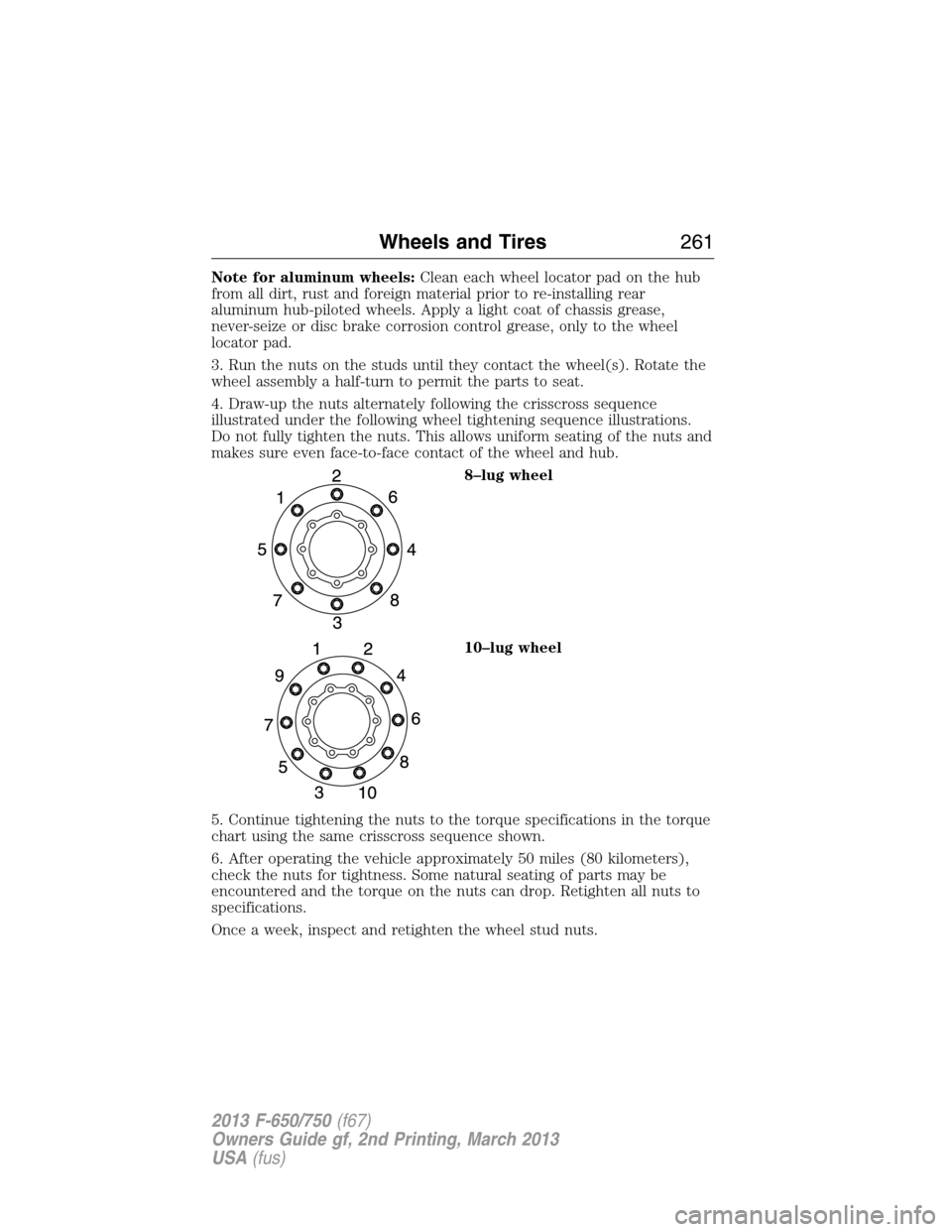

Note for aluminum wheels:Clean each wheel locator pad on the hub
from all dirt, rust and foreign material prior to re-installing rear
aluminum hub-piloted wheels. Apply a light coat of chassis grease,
never-seize or disc brake corrosion control grease, only to the wheel
locator pad.
3. Run the nuts on the studs until they contact the wheel(s). Rotate the
wheel assembly a half-turn to permit the parts to seat.
4. Draw-up the nuts alternately following the crisscross sequence
illustrated under the following wheel tightening sequence illustrations.
Do not fully tighten the nuts. This allows uniform seating of the nuts and
makes sure even face-to-face contact of the wheel and hub.
8–lug wheel
10–lug wheel
5. Continue tightening the nuts to the torque specifications in the torque
chart using the same crisscross sequence shown.
6. After operating the vehicle approximately 50 miles (80 kilometers),
check the nuts for tightness. Some natural seating of parts may be
encountered and the torque on the nuts can drop. Retighten all nuts to
specifications.
Once a week, inspect and retighten the wheel stud nuts.
Wheels and Tires261
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

Note:Make sure the tire valve stem clears the brake caliper when
installing the tire and rim assembly on disc-brake equipped axles. The
use of a tire manufacturer’s stem forming tool is the only acceptable
method of obtaining clearance when necessary.
Proper Torque
It is important to tighten and maintain wheel and rim mounting nuts to
the proper torque. Loose nuts or over-tightened nuts can lead to
premature wear and possible failure of the wheel or mounting hardware.
Changing Wheel Types
WARNING:Use only the same type and style wheels and
mounting hardware to replace original parts. Failure to do so may
result in an assembly that looks fine, but does not fit together properly.
This could possibly cause wheel or fastener failures which could result
in property damage, personal injury or death.
Note:Do not attempt to mix stud-piloted wheels or fasteners with
hub-piloted wheels or fasteners.
Note:Do not change from aluminum wheels to steel wheels or
vice-versa without changing the mounting hardware required or, with
flange nut mounting systems, changing the hub and stud assembly.
Consult your dealer or wheel or rim distributor before attempting any
wheel or fastener changes.
TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
Note:Do not use lubrication on dry threads. Where excessive corrosion
exists, a light coat of lubricant on the first three threads of the stud bolt
is permitted. Keep lubricant away from:
•Hex nut and rim clamp contact surfaces.
•Cap nut ball face and ball seat on the disc wheel.
•Flange nut washer surface and flat on the disc wheel.
Size Nut MountingTorque
ft-lb N•m
22 mm Flange 450–500 610–678
262Wheels and Tires
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

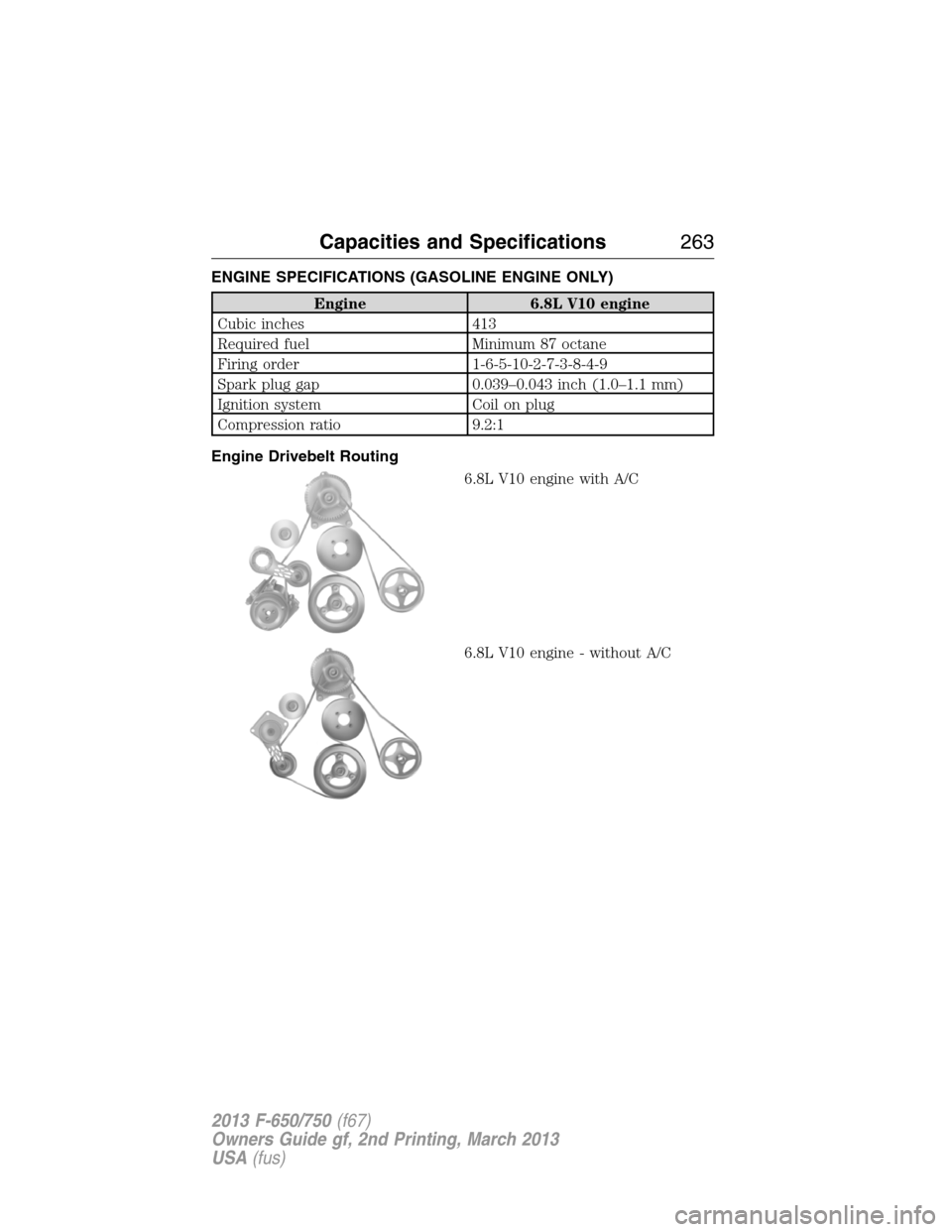

ENGINE SPECIFICATIONS (GASOLINE ENGINE ONLY)
Engine 6.8L V10 engine
Cubic inches 413
Required fuel Minimum 87 octane
Firing order 1-6-5-10-2-7-3-8-4-9
Spark plug gap 0.039–0.043 inch (1.0–1.1 mm)
Ignition system Coil on plug
Compression ratio 9.2:1
Engine Drivebelt Routing
6.8L V10 engine with A/C
6.8L V10 engine - without A/C
Capacities and Specifications263
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

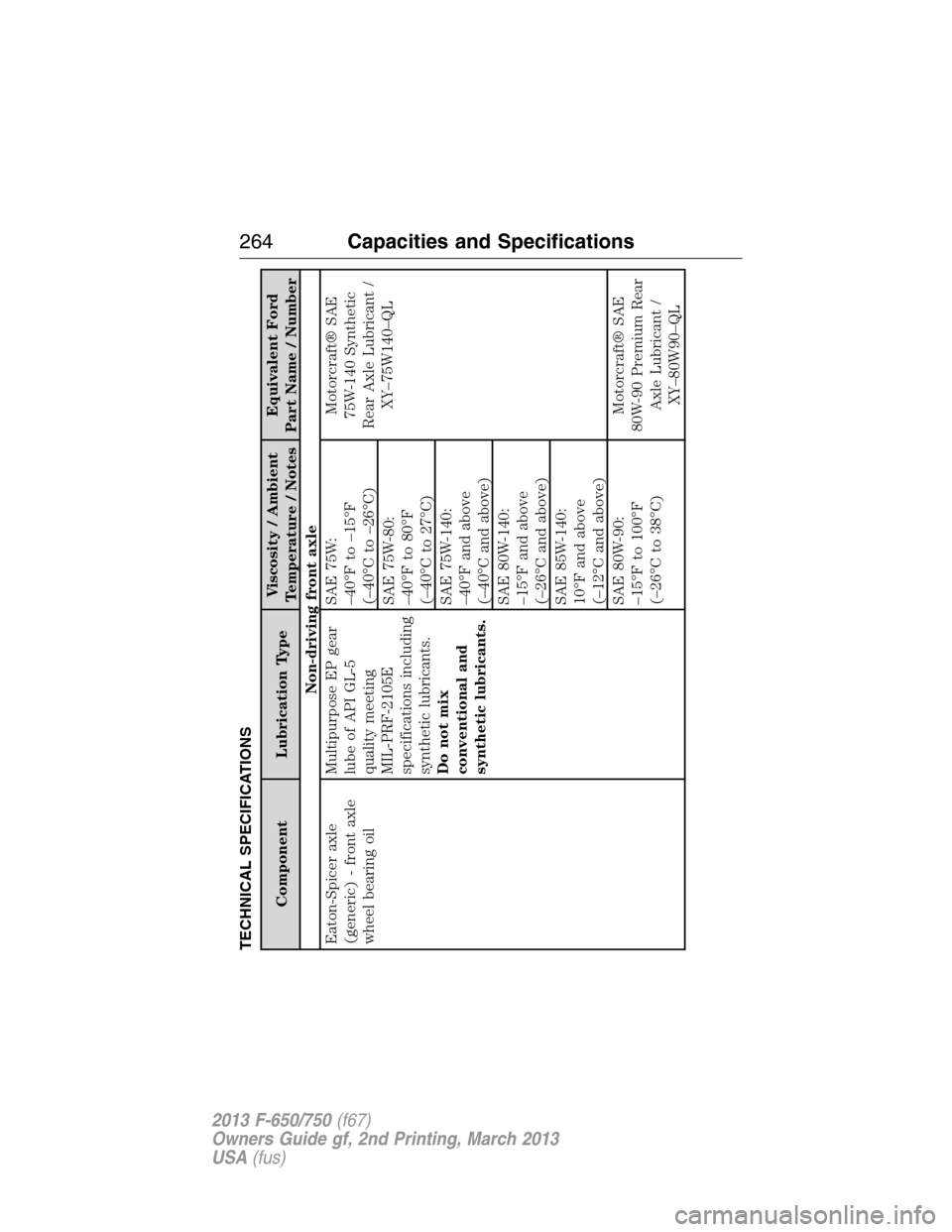

TECHNICAL SPECIFICATIONS
Component Lubrication TypeViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Non-driving front axle
Eaton-Spicer axle
(generic) - front axle
wheel bearing oilMultipurpose EP gear
lube of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricants.
Do not mix
conventional and
synthetic lubricants.SAE 75W:
–40°F to –15°F
(–40°C to –26°C)Motorcraft® SAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-80:
–40°F to 80°F
(–40°C to 27°C)
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 80W-90:
–15°F to 100°F
(–26°C to 38°C)Motorcraft® SAE
80W-90 Premium Rear
Axle Lubricant /
XY–80W90–QL
264Capacities and Specifications
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

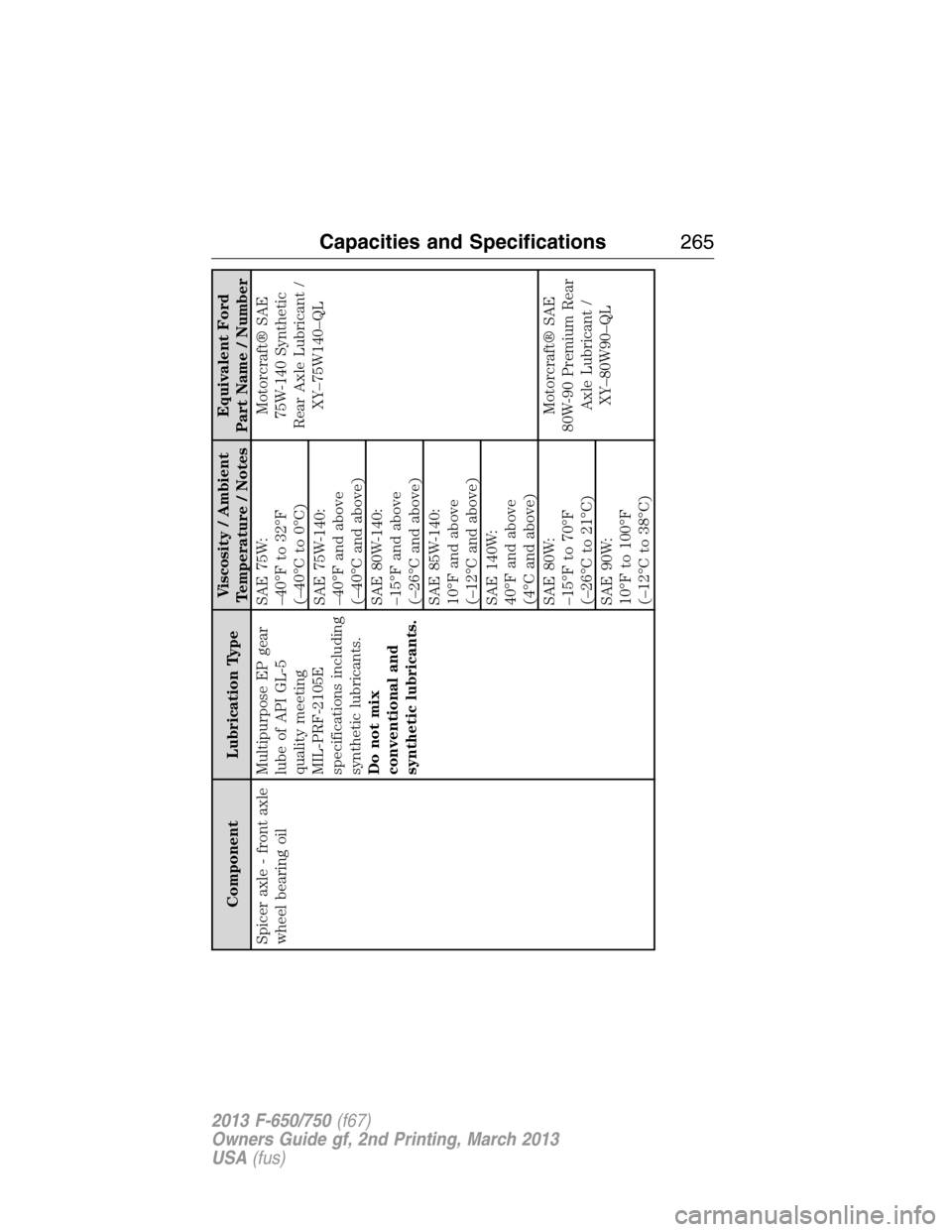

Component Lubrication TypeViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Spicer axle - front axle
wheel bearing oilMultipurpose EP gear
lube of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricants.
Do not mix
conventional and
synthetic lubricants.SAE 75W:
–40°F to 32°F
(–40°C to 0°C)Motorcraft® SAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 140W:
40°F and above
(4°C and above)
SAE 80W:
–15°F to 70°F
(–26°C to 21°C)Motorcraft® SAE
80W-90 Premium Rear
Axle Lubricant /
XY–80W90–QL
SAE 90W:
10°F to 100°F
(–12°C to 38°C)
Capacities and Specifications265
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

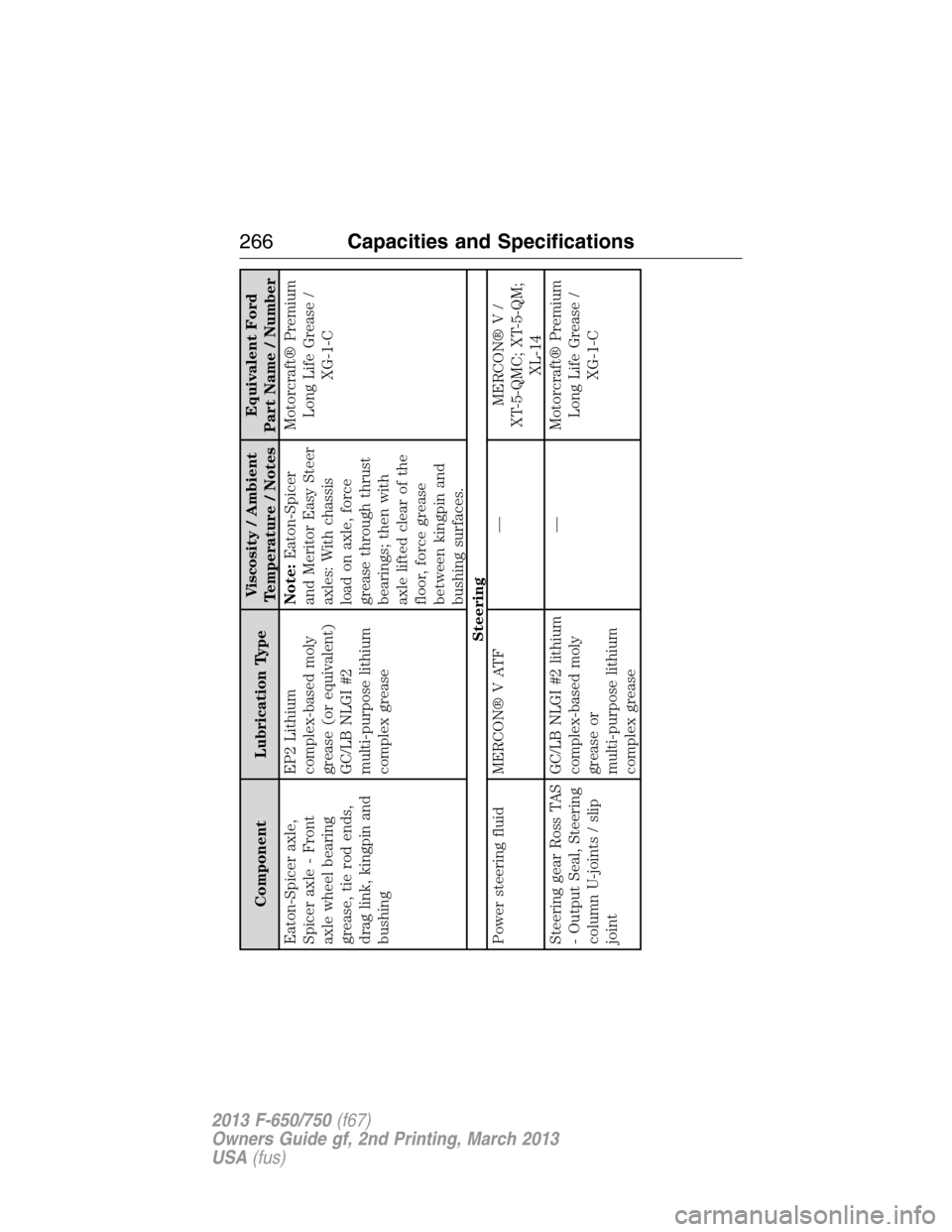

Component Lubrication TypeViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Eaton-Spicer axle,
Spicer axle - Front
axle wheel bearing
grease, tie rod ends,
drag link, kingpin and
bushingEP2 Lithium
complex-based moly
grease (or equivalent)
GC/LB NLGI #2
multi-purpose lithium
complex greaseNote:Eaton-Spicer
and Meritor Easy Steer
axles: With chassis
load on axle, force
grease through thrust
bearings; then with
axle lifted clear of the
floor, force grease
between kingpin and
bushing surfaces.Motorcraft® Premium
Long Life Grease /
XG-1-C
Steering
Power steering fluid MERCON® V ATF — MERCON® V /
XT-5-QMC; XT-5-QM;
XL-14
Steering gear Ross TAS
- Output Seal, Steering
column U-joints / slip
jointGC/LB NLGI #2 lithium
complex-based moly
grease or
multi-purpose lithium
complex grease— Motorcraft® Premium
Long Life Grease /
XG-1-C
266Capacities and Specifications
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

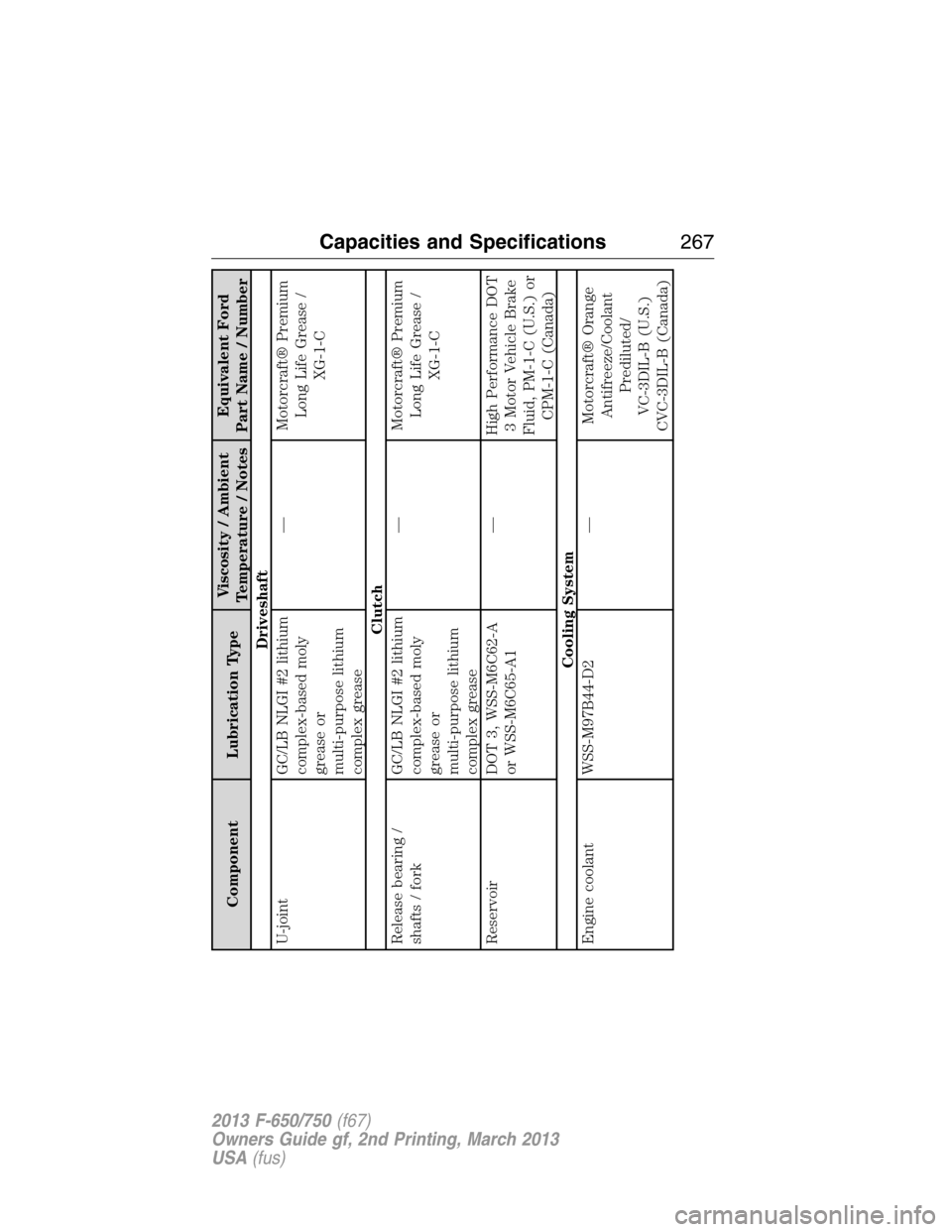

Component Lubrication TypeViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Driveshaft
U-joint GC/LB NLGI #2 lithium
complex-based moly
grease or
multi-purpose lithium
complex grease— Motorcraft® Premium
Long Life Grease /
XG-1-C
Clutch
Release bearing /
shafts / forkGC/LB NLGI #2 lithium
complex-based moly
grease or
multi-purpose lithium
complex grease— Motorcraft® Premium
Long Life Grease /
XG-1-C
Reservoir DOT 3, WSS-M6C62-A
or WSS-M6C65-A1— High Performance DOT
3 Motor Vehicle Brake
Fluid, PM-1-C (U.S.) or
CPM-1-C (Canada)
Cooling System
Engine coolant WSS-M97B44-D2 — Motorcraft® Orange
Antifreeze/Coolant
Prediluted/
VC-3DIL-B (U.S.)
CVC-3DIL-B (Canada)
Capacities and Specifications267
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

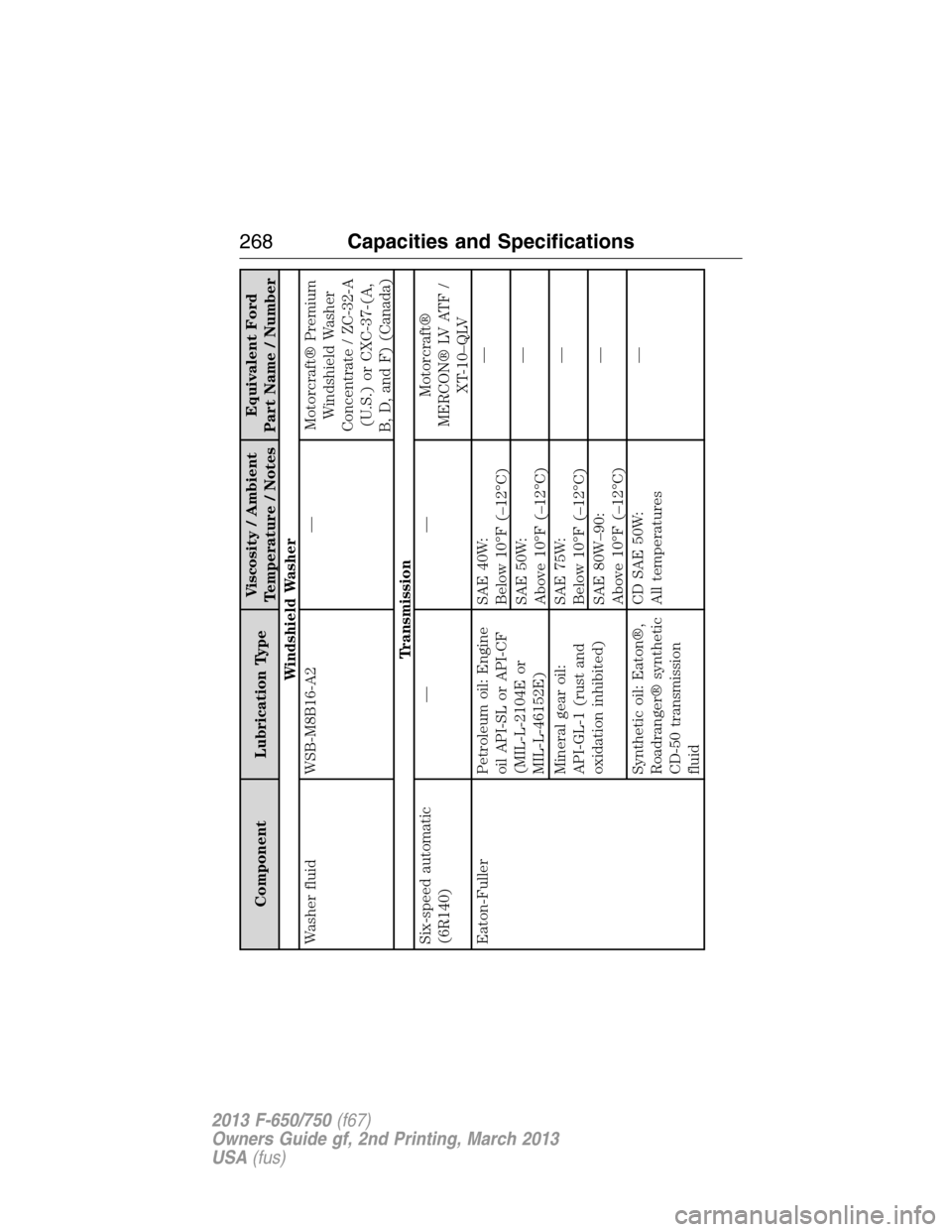

Component Lubrication TypeViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Windshield Washer
Washer fluid WSB-M8B16-A2 — Motorcraft® Premium
Windshield Washer
Concentrate / ZC-32-A
(U.S.) or CXC-37-(A,
B, D, and F) (Canada)
Transmission
Six-speed automatic
(6R140)— — Motorcraft®
MERCON® LV ATF /
XT-10–QLV
Eaton-Fuller Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 10°F (–12°C)—
SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)SAE 75W:
Below 10°F (–12°C)—
SAE 80W–90:
Above 10°F (–12°C)—
Synthetic oil: Eaton®,
Roadranger® synthetic
CD-50 transmission
fluidCD SAE 50W:
All temperatures—
268Capacities and Specifications
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

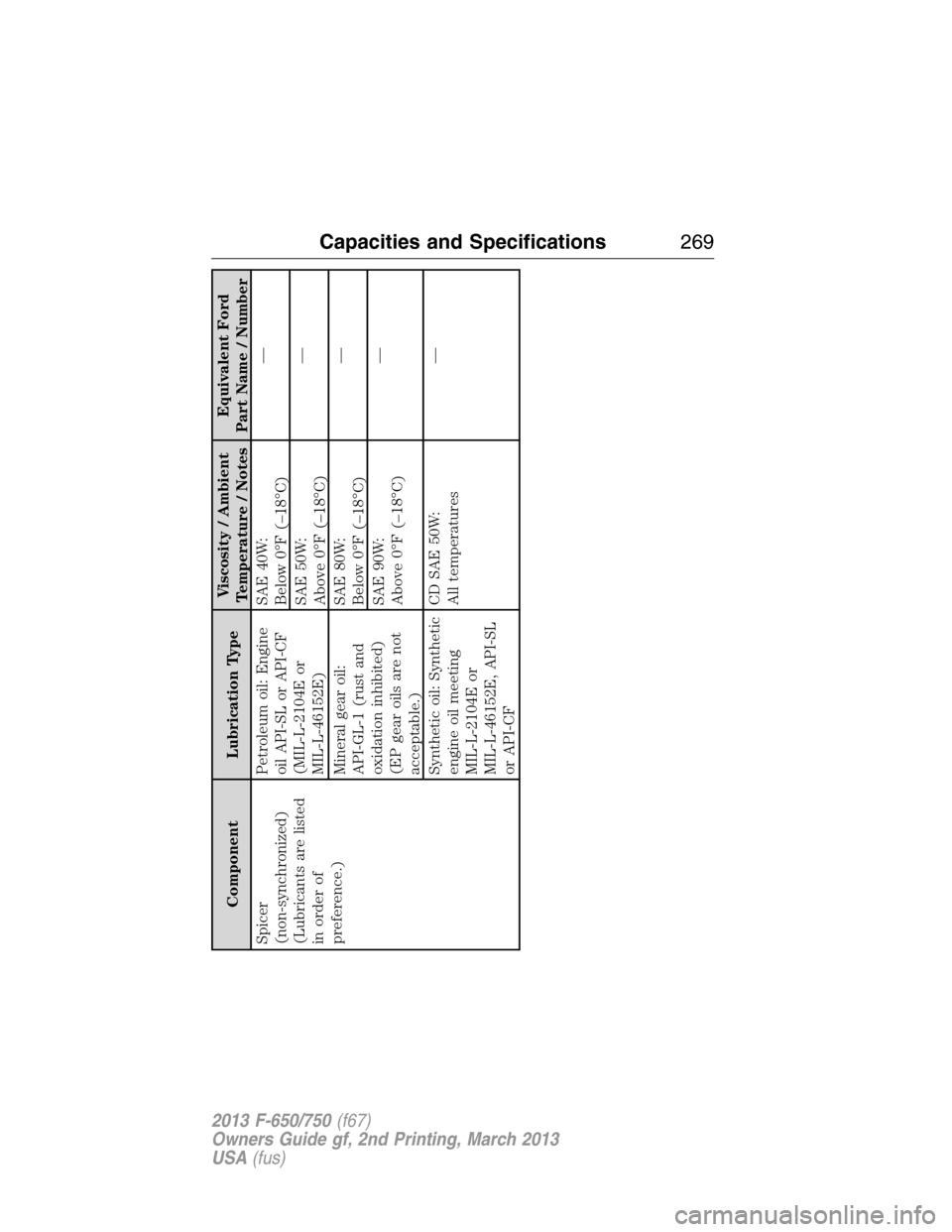

Component Lubrication TypeViscosity / Ambient
Temperature / NotesEquivalent Ford
Part Name / Number
Spicer
(non-synchronized)
(Lubricants are listed
in order of
preference.)Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 0°F (–18°C)—
SAE 50W:
Above 0°F (–18°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)
(EP gear oils are not
acceptable.)SAE 80W:
Below 0°F (–18°C)—
SAE 90W:
Above 0°F (–18°C)—
Synthetic oil: Synthetic
engine oil meeting
MIL-L-2104E or
MIL-L-46152E, API-SL
or API-CFCD SAE 50W:
All temperatures—
Capacities and Specifications269
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)
