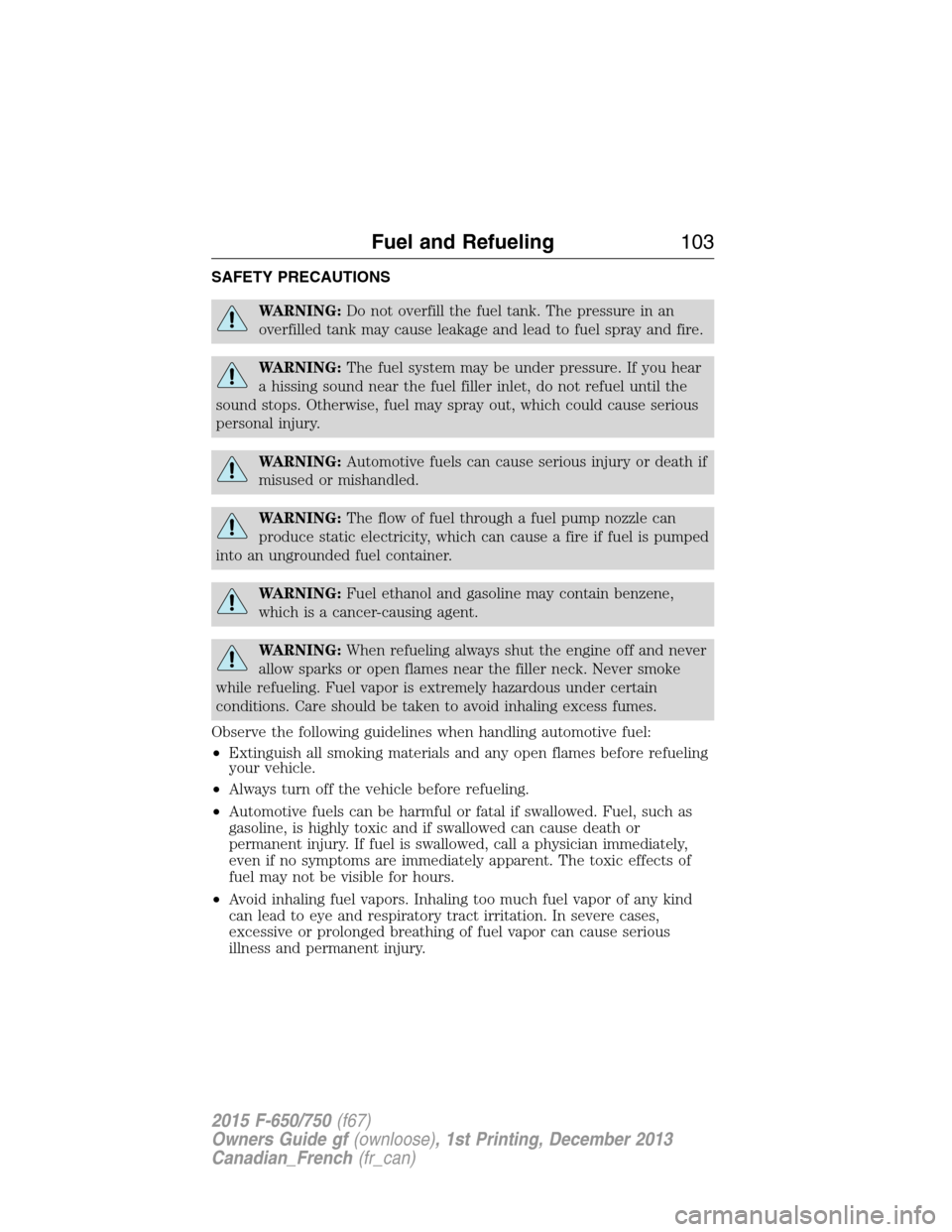

SAFETY PRECAUTIONS
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
WARNING:The fuel system may be under pressure. If you hear
a hissing sound near the fuel filler inlet, do not refuel until the
sound stops. Otherwise, fuel may spray out, which could cause serious
personal injury.
WARNING:Automotive fuels can cause serious injury or death if
misused or mishandled.
WARNING:The flow of fuel through a fuel pump nozzle can
produce static electricity, which can cause a fire if fuel is pumped
into an ungrounded fuel container.
WARNING:Fuel ethanol and gasoline may contain benzene,
which is a cancer-causing agent.
WARNING:When refueling always shut the engine off and never
allow sparks or open flames near the filler neck. Never smoke
while refueling. Fuel vapor is extremely hazardous under certain
conditions. Care should be taken to avoid inhaling excess fumes.
Observe the following guidelines when handling automotive fuel:
•Extinguish all smoking materials and any open flames before refueling
your vehicle.
•Always turn off the vehicle before refueling.
•Automotive fuels can be harmful or fatal if swallowed. Fuel, such as
gasoline, is highly toxic and if swallowed can cause death or
permanent injury. If fuel is swallowed, call a physician immediately,
even if no symptoms are immediately apparent. The toxic effects of
fuel may not be visible for hours.
•Avoid inhaling fuel vapors. Inhaling too much fuel vapor of any kind
can lead to eye and respiratory tract irritation. In severe cases,
excessive or prolonged breathing of fuel vapor can cause serious
illness and permanent injury.
Fuel and Refueling103
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

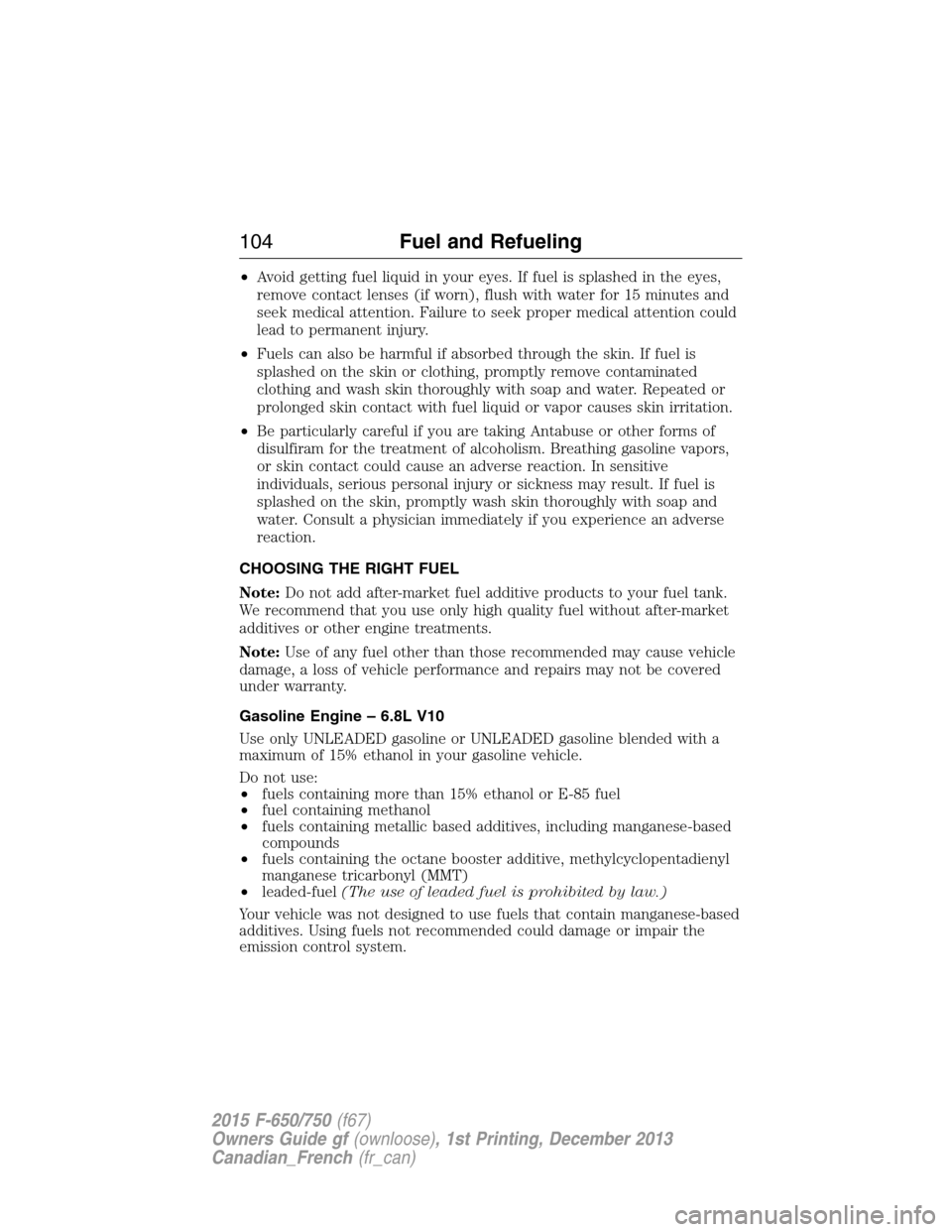

•Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes,
remove contact lenses (if worn), flush with water for 15 minutes and
seek medical attention. Failure to seek proper medical attention could
lead to permanent injury.
•Fuels can also be harmful if absorbed through the skin. If fuel is
splashed on the skin or clothing, promptly remove contaminated
clothing and wash skin thoroughly with soap and water. Repeated or
prolonged skin contact with fuel liquid or vapor causes skin irritation.
•Be particularly careful if you are taking Antabuse or other forms of
disulfiram for the treatment of alcoholism. Breathing gasoline vapors,
or skin contact could cause an adverse reaction. In sensitive
individuals, serious personal injury or sickness may result. If fuel is
splashed on the skin, promptly wash skin thoroughly with soap and
water. Consult a physician immediately if you experience an adverse
reaction.
CHOOSING THE RIGHT FUEL
Note:Do not add after-market fuel additive products to your fuel tank.
We recommend that you use only high quality fuel without after-market
additives or other engine treatments.
Note:Use of any fuel other than those recommended may cause vehicle
damage, a loss of vehicle performance and repairs may not be covered
under warranty.
Gasoline Engine – 6.8L V10
Use only UNLEADED gasoline or UNLEADED gasoline blended with a
maximum of 15% ethanol in your gasoline vehicle.
Do not use:
•fuels containing more than 15% ethanol or E-85 fuel
•fuel containing methanol
•fuels containing metallic based additives, including manganese-based
compounds
•fuels containing the octane booster additive, methylcyclopentadienyl
manganese tricarbonyl (MMT)
•leaded-fuel(The use of leaded fuel is prohibited by law.)
Your vehicle was not designed to use fuels that contain manganese-based
additives. Using fuels not recommended could damage or impair the
emission control system.
104Fuel and Refueling
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

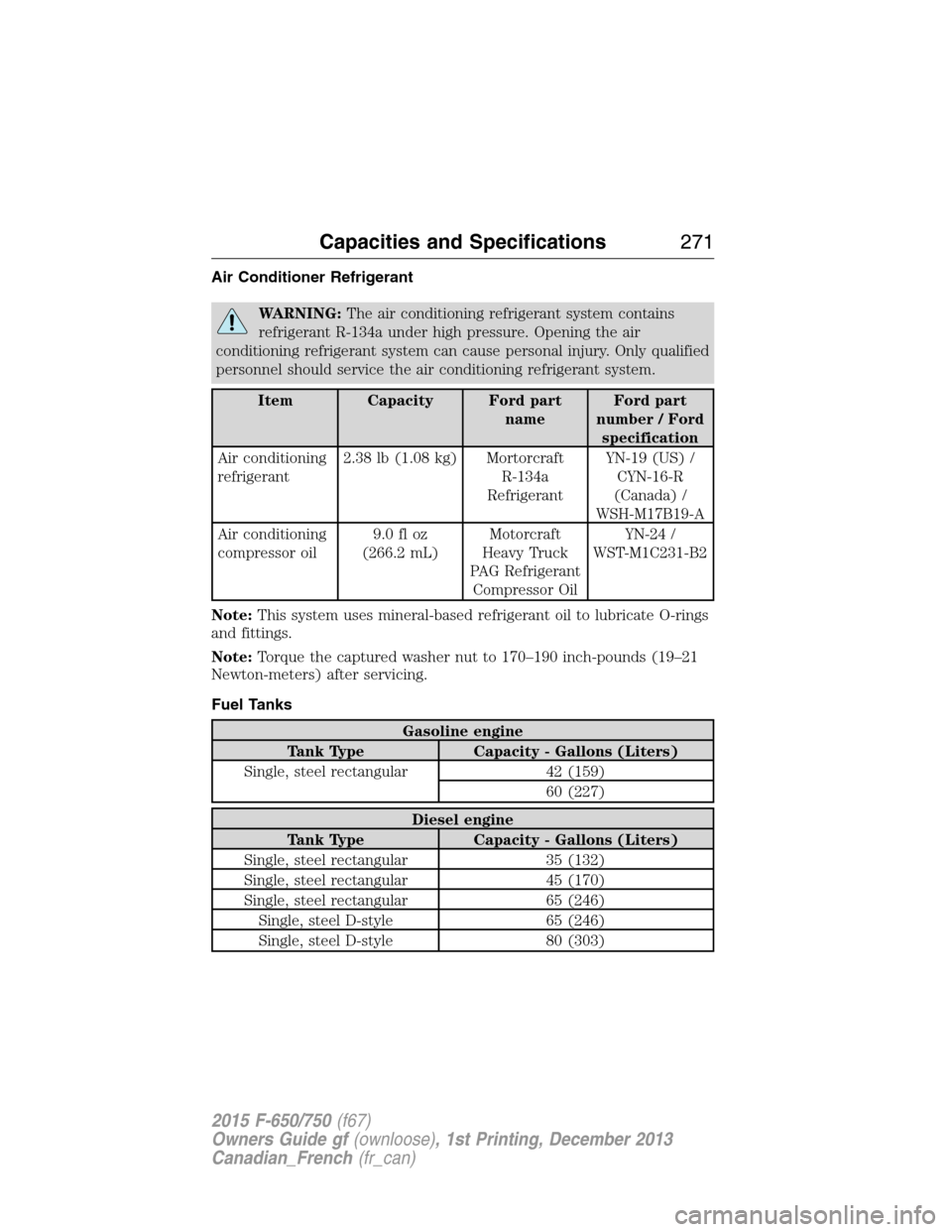

Air Conditioner Refrigerant
WARNING:The air conditioning refrigerant system contains
refrigerant R-134a under high pressure. Opening the air
conditioning refrigerant system can cause personal injury. Only qualified
personnel should service the air conditioning refrigerant system.
Item Capacity Ford part
nameFord part
number / Ford
specification
Air conditioning
refrigerant2.38 lb (1.08 kg) Mortorcraft
R-134a
RefrigerantYN-19 (US) /
CYN-16-R
(Canada) /
WSH-M17B19-A
Air conditioning
compressor oil9.0floz
(266.2 mL)Motorcraft
Heavy Truck
PAG Refrigerant
Compressor OilYN-24 /
WST-M1C231-B2
Note:This system uses mineral-based refrigerant oil to lubricate O-rings
and fittings.
Note:Torque the captured washer nut to 170–190 inch-pounds (19–21
Newton-meters) after servicing.
Fuel Tanks
Gasoline engine
Tank Type Capacity - Gallons (Liters)
Single, steel rectangular 42 (159)
60 (227)
Diesel engine
Tank Type Capacity - Gallons (Liters)
Single, steel rectangular 35 (132)
Single, steel rectangular 45 (170)
Single, steel rectangular 65 (246)
Single, steel D-style 65 (246)
Single, steel D-style 80 (303)
Capacities and Specifications271
