technical specifications FORD F650 2017 13.G Owners Manual

Fuel Filter - 6.8L...........................................202
Changing the 12V Battery.........................203
Checking the Wiper Blades.....................205
Changing the Wiper Blades.....................205
Adjusting the Headlamps........................205
Removing a Headlamp..............................207
Changing a Bulb...........................................207
Bulb Specification Chart..........................208
Changing the Engine Air Filter - 6.8L....209
Changing the Engine Air Filter - 6.7L Diesel............................................................210
Changing the Engine-Mounted and Diesel Fuel Conditioner Module Fuel
Filters.............................................................214
Electrical System Inspection....................217
Air Induction System Inspection.............217
Exhaust System Inspection......................218
Brake System Inspection
...........................219
Axle Inspection
.............................................222
Steering System Inspection
.....................222
Suspension System Inspection
..............223
Frame and Tow Hook Inspection
...........223
Rear Axle Fluid Check
.................................223
Spring U-Bolt Check...................................224
Vehicle Care
General Information...................................225
Cleaning Products.......................................225
Cleaning the Exterior..................................226
Waxing..............................................................227
Cleaning the Engine
....................................227
Cleaning the Windows and Wiper Blades..........................................................228
Cleaning the Interior...................................228
Cleaning the Instrument Panel and Instrument Cluster Lens.......................229
Repairing Minor Paint Damage..............229
Cleaning the Alloy Wheels.......................230
Vehicle Storage
............................................230 Wheels and Tires
Tire Care..........................................................233
Using Snow Chains.....................................247
Changing a Road Wheel...........................248
Technical Specifications...........................250
Capacities and Specific-
ations
Engine Specifications - 6.8L
....................252
Engine Specifications - 6.7L Diesel
.......252
Motorcraft Parts - 6.8L..............................254
Motorcraft Parts - 6.7L Diesel.................255
Vehicle Identification Number
................256
Vehicle Certification Label
........................257
Transmission Code Designation.............257
Capacities and Specifications - 6.8L...............................................................258
Capacities and Specifications - 6.7L Diesel...........................................................263
Audio System
General Information
....................................272
Audio Unit - Vehicles With: AM/FM.......273
Audio Unit - Vehicles With: AM/FM/CD/ SYNC............................................................274
Satellite Radio
...............................................277
Audio Input Jack...........................................279
USB Port
..........................................................279
SYNC™
General Information
....................................281
Using Voice Recognition...........................283
Using SYNC™ With Your Phone............285
Using SYNC™ With Your Media Player............................................................297
SYNC™ Troubleshooting.........................306
Accessories
Auxiliary Switches
........................................312
4
F-650/750 (TBC) , enUSA, First Printing Table of Contents

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of
the following could cause a decrease in
operating range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
The radio frequency used by your remote
control can also be used by other short
distance radio transmissions, for example
amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems. If the frequencies are
jammed, you will not be able to use your
remote control. You can lock and unlock
the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally. Note:
The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage.
REMOTE CONTROL
Integrated Keyhead Transmitters
(If Equipped) Use the key blade to start your vehicle and
unlock or lock the driver door from outside
your vehicle. The transmitter portion
functions as the remote control.
Note:
Your vehicle ’s keys came with a
security label that provides important
vehicle key cut information. Keep the label
in a safe place for future reference.
Replacing the Battery
Note: Refer to local regulations when
disposing of transmitter batteries.
Note: Do not wipe off any grease on the
battery terminals or on the back surface of
the circuit board.
38
F-650/750 (TBC) , enUSA, First Printing Keys and Remote ControlsE163046 E163047

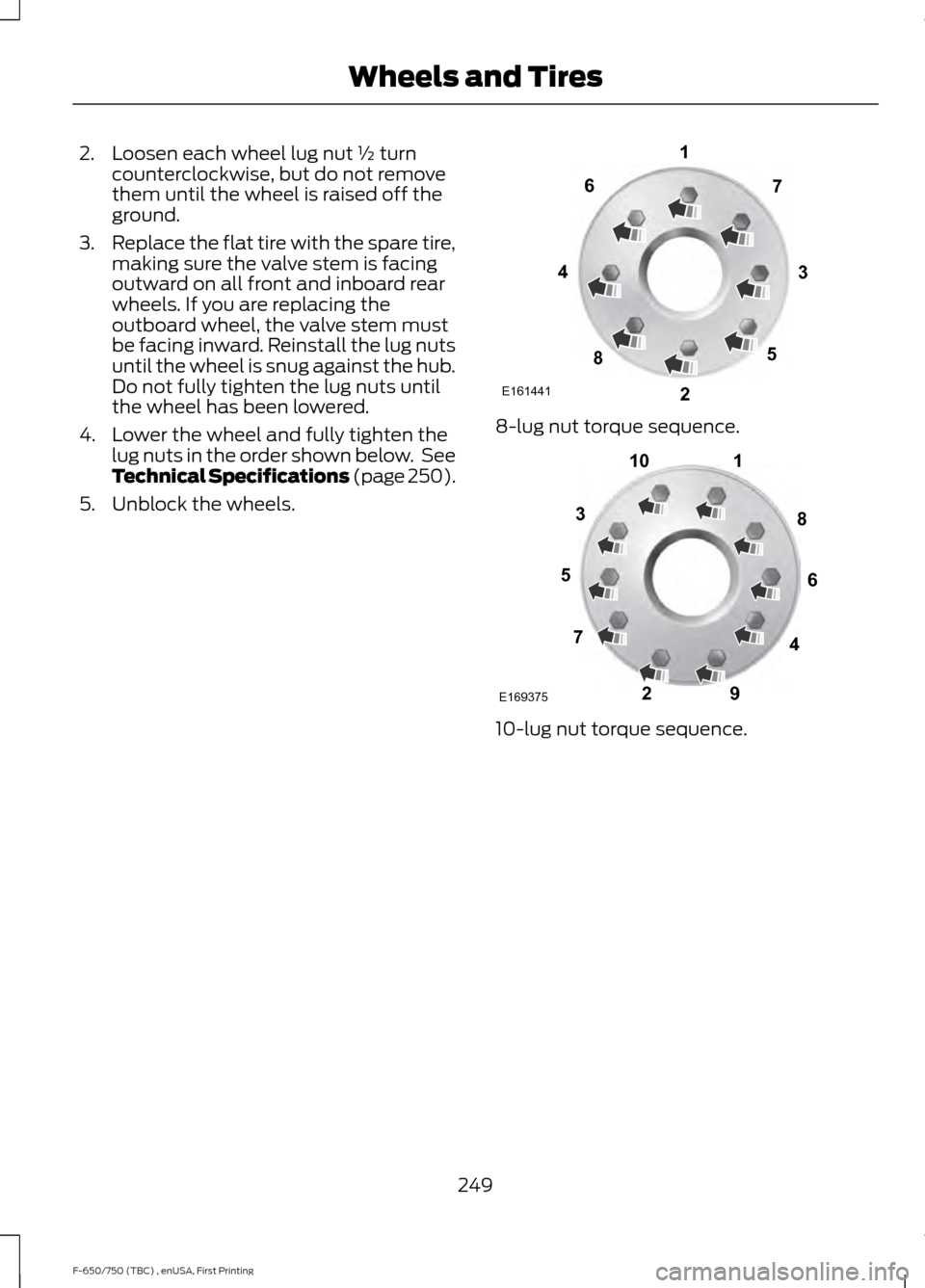

2. Loosen each wheel lug nut ½ turn
counterclockwise, but do not remove
them until the wheel is raised off the
ground.
3. Replace the flat tire with the spare tire,
making sure the valve stem is facing
outward on all front and inboard rear
wheels. If you are replacing the
outboard wheel, the valve stem must
be facing inward. Reinstall the lug nuts
until the wheel is snug against the hub.
Do not fully tighten the lug nuts until
the wheel has been lowered.
4. Lower the wheel and fully tighten the lug nuts in the order shown below. See
Technical Specifications (page 250).
5. Unblock the wheels. 8-lug nut torque sequence.
10-lug nut torque sequence.
249
F-650/750 (TBC) , enUSA, First Printing Wheels and TiresE161441
13
4
27
6
5
8 1
2
3
4
5
6
7 8
9
10
E169375

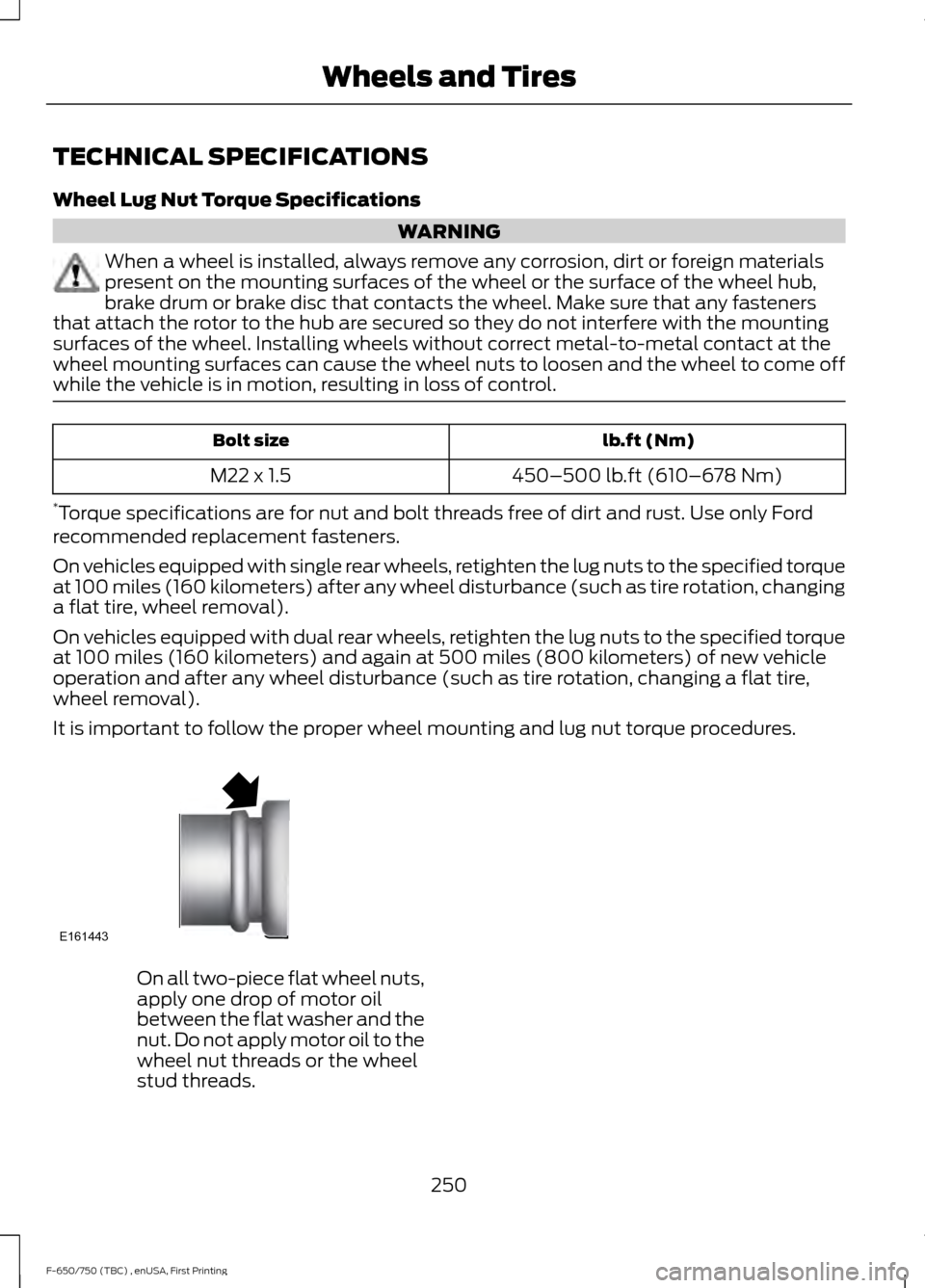

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners
that attach the rotor to the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off
while the vehicle is in motion, resulting in loss of control. lb.ft (Nm)
Bolt size
450–500 lb.ft (610–678 Nm)
M22 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
On vehicles equipped with single rear wheels, retighten the lug nuts to the specified torque
at 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing
a flat tire, wheel removal).
On vehicles equipped with dual rear wheels, retighten the lug nuts to the specified torque
at 100 miles (160 kilometers) and again at 500 miles (800 kilometers) of new vehicle
operation and after any wheel disturbance (such as tire rotation, changing a flat tire,
wheel removal).
It is important to follow the proper wheel mounting and lug nut torque procedures. On all two-piece flat wheel nuts,
apply one drop of motor oil
between the flat washer and the
nut. Do not apply motor oil to the
wheel nut threads or the wheel
stud threads.
250
F-650/750 (TBC) , enUSA, First Printing Wheels and TiresE161443

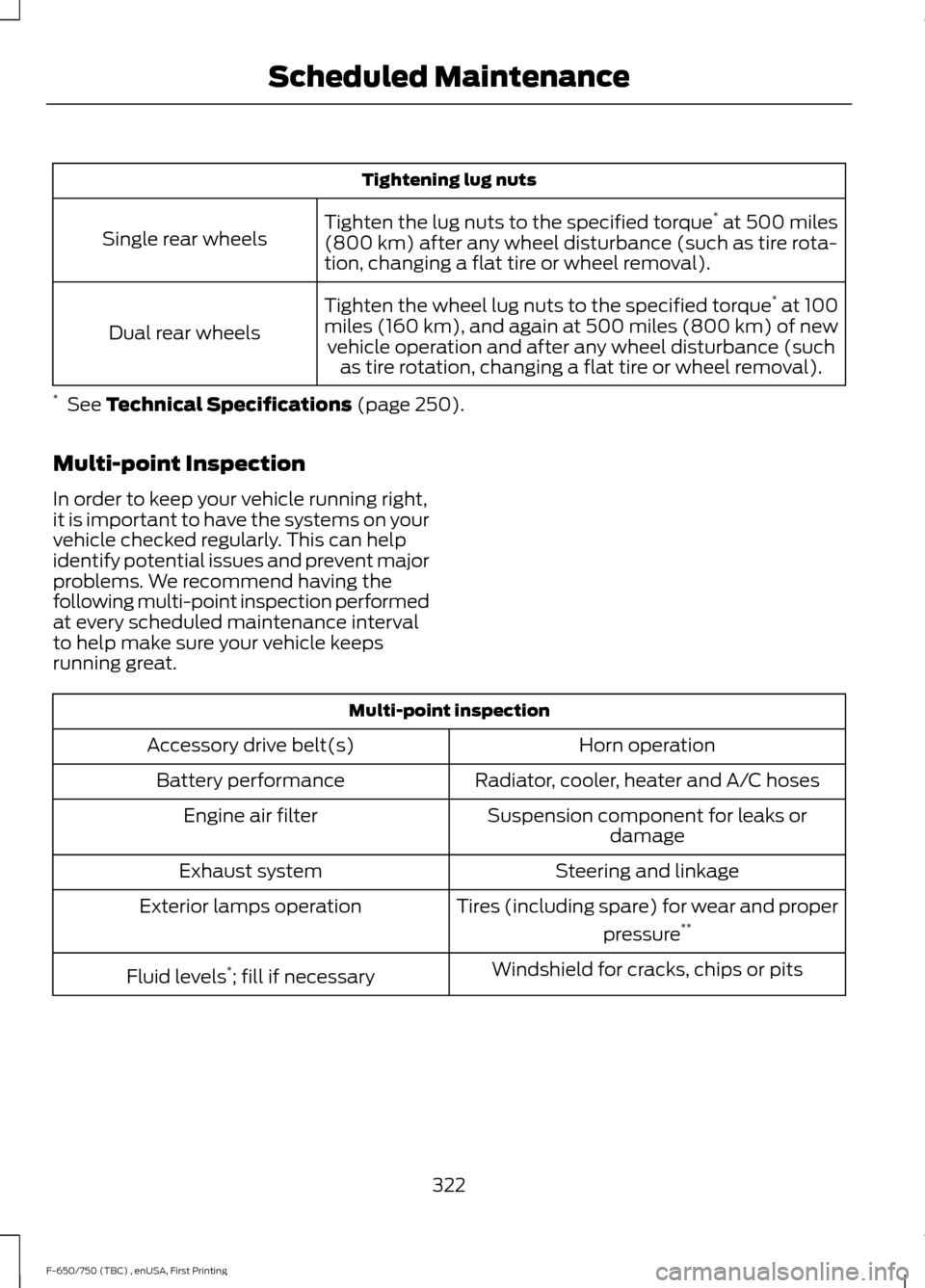

Tightening lug nuts
Tighten the lug nuts to the specified torque *
at 500 miles
(800 km) after any wheel disturbance (such as tire rota-
tion, changing a flat tire or wheel removal).
Single rear wheels
Tighten the wheel lug nuts to the specified torque *
at 100
miles (160 km), and again at 500 miles (800 km) of new vehicle operation and after any wheel disturbance (such as tire rotation, changing a flat tire or wheel removal).
Dual rear wheels
* See Technical Specifications (page 250).
Multi-point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great. Multi-point inspection
Horn operation
Accessory drive belt(s)
Radiator, cooler, heater and A/C hoses
Battery performance
Suspension component for leaks ordamage
Engine air filter
Steering and linkage
Exhaust system
Tires (including spare) for wear and properpressure**
Exterior lamps operation
Windshield for cracks, chips or pits
Fluid levels *
; fill if necessary
322
F-650/750 (TBC) , enUSA, First Printing Scheduled Maintenance

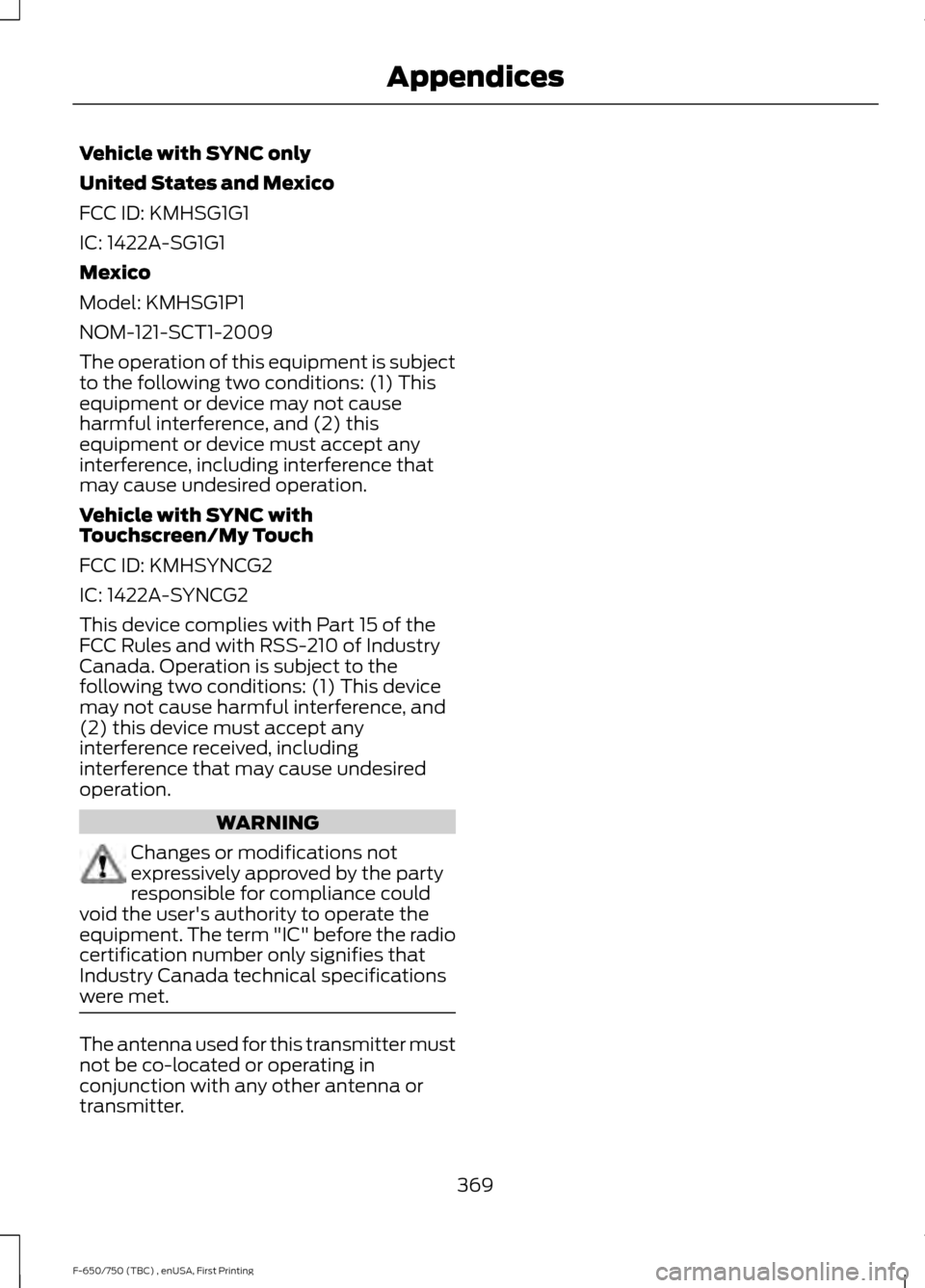

Vehicle with SYNC only
United States and Mexico
FCC ID: KMHSG1G1
IC: 1422A-SG1G1
Mexico
Model: KMHSG1P1
NOM-121-SCT1-2009
The operation of this equipment is subject
to the following two conditions: (1) This
equipment or device may not cause
harmful interference, and (2) this
equipment or device must accept any
interference, including interference that
may cause undesired operation.
Vehicle with SYNC with
Touchscreen/My Touch
FCC ID: KMHSYNCG2
IC: 1422A-SYNCG2
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could
void the user's authority to operate the
equipment. The term "IC" before the radio
certification number only signifies that
Industry Canada technical specifications
were met. The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter.
369
F-650/750 (TBC) , enUSA, First Printing Appendices

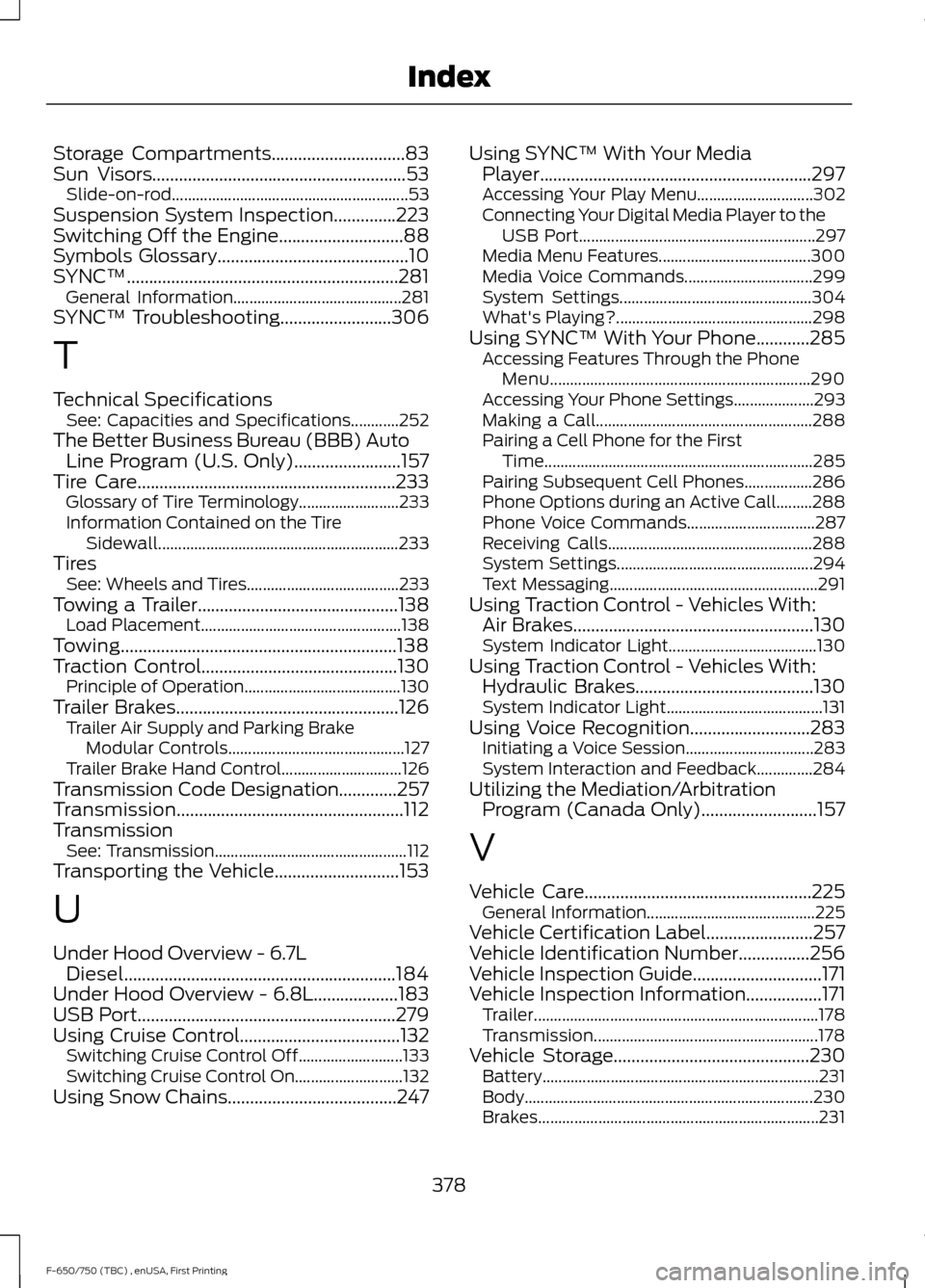

Storage Compartments..............................83
Sun Visors.........................................................53
Slide-on-rod........................................................... 53
Suspension System Inspection
..............223
Switching Off the Engine............................88
Symbols Glossary
...........................................10
SYNC™.............................................................281 General Information.......................................... 281
SYNC™ Troubleshooting.........................306
T
Technical Specifications See: Capacities and Specifications............252
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)........................157
Tire Care..........................................................233 Glossary of Tire Terminology......................... 233
Information Contained on the Tire Sidewall............................................................ 233
Tires See: Wheels and Tires...................................... 233
Towing a Trailer.............................................138 Load Placement.................................................. 138
Towing..............................................................138
Traction Control
............................................130
Principle of Operation....................................... 130
Trailer Brakes
..................................................126
Trailer Air Supply and Parking Brake
Modular Controls............................................ 127
Trailer Brake Hand Control.............................. 126
Transmission Code Designation.............257
Transmission...................................................112
Transmission See: Transmission................................................ 112
Transporting the Vehicle
............................153
U
Under Hood Overview - 6.7L Diesel.............................................................184
Under Hood Overview - 6.8L...................183
USB Port
..........................................................279
Using Cruise Control....................................132 Switching Cruise Control Off.......................... 133
Switching Cruise Control On........................... 132
Using Snow Chains......................................247 Using SYNC™ With Your Media
Player.............................................................297
Accessing Your Play Menu............................. 302
Connecting Your Digital Media Player to the USB Port........................................................... 297
Media Menu Features...................................... 300
Media Voice Commands................................ 299
System Settings................................................ 304
What's Playing?................................................. 298
Using SYNC™ With Your Phone............285 Accessing Features Through the Phone
Menu................................................................. 290
Accessing Your Phone Settings.................... 293
Making a Call...................................................... 288
Pairing a Cell Phone for the First Time................................................................... 285
Pairing Subsequent Cell Phones.................286
Phone Options during an Active Call.........288
Phone Voice Commands................................ 287
Receiving Calls................................................... 288
System Settings................................................. 294
Text Messaging.................................................... 291
Using Traction Control - Vehicles With: Air Brakes
......................................................130
System Indicator Light..................................... 130
Using Traction Control - Vehicles With: Hydraulic Brakes........................................130
System Indicator Light....................................... 131
Using Voice Recognition...........................283 Initiating a Voice Session................................ 283
System Interaction and Feedback..............284
Utilizing the Mediation/Arbitration Program (Canada Only)..........................157
V
Vehicle Care...................................................225 General Information.......................................... 225
Vehicle Certification Label........................257
Vehicle Identification Number
................256
Vehicle Inspection Guide.............................171
Vehicle Inspection Information.................171 Trailer....................................................................... 178
Transmission........................................................ 178
Vehicle Storage
............................................230
Battery..................................................................... 231
Body........................................................................\
230
Brakes...................................................................... 231
378
F-650/750 (TBC) , enUSA, First Printing Index

Cooling system....................................................
231
Engine...................................................................... 231
Fuel system........................................................... 231
General.................................................................. 230
Miscellaneous...................................................... 231
Removing Vehicle From Storage................... 231
Tires........................................................................\
.. 231
Ventilation See: Climate Control........................................... 70
VIN See: Vehicle Identification Number............256
Voice Control...................................................45
W
Warning Lamps and Indicators................58 Anti-Lock Braking System................................ 58
Automatic Regeneration Control................... 58
Battery...................................................................... 58
Brake System......................................................... 58
Check Fuel Cap..................................................... 58
Check Suspension............................................... 58
Cruise Control........................................................ 58
Diesel Exhaust Fluid (Diesel Engine Only).................................................................... 58
Diesel Particulate Filter (Diesel Engine Only).................................................................... 59
Direction Indicator............................................... 59
Door Ajar.................................................................. 59
Electronic Locking Differential........................ 59
Engine Oil Pressure............................................. 59
Exhaust Brake On................................................ 59
Fasten Seatbelt.................................................... 59
High Beam.............................................................. 59
Hydromax............................................................... 59
Low Fuel Level (Gasoline Engine Only).................................................................... 59
Parking Brake Warning....................................... 59
Powertrain Malfunction/Reduced Power/Electronic Throttle Control
(Gasoline Engine Only)................................ 60
Service Engine Soon........................................... 60
Traction Control (Diesel Engine Only).........60
Trailer Anti-Lock Brake System (ABS).................................................................. 60
Transmission Tow/Haul.................................... 60
Two Speed Axle................................................... 60
Wait to Start (Diesel Engine Only)................60 Water in Fuel...........................................................
61
Washer Fluid Check
.....................................201
Washers See: Cleaning the Exterior.............................. 226
See: Wipers and Washers................................. 46
Waxing..............................................................227
Wheel Nuts See: Changing a Road Wheel....................... 248
Wheels and Tires
.........................................233
Technical Specifications................................. 250
Windows and Mirrors...................................50
Windshield Washers
.....................................46
Windshield Wipers........................................46
Wiper Blades See: Checking the Wiper Blades.................205
Wipers and Washers.....................................46

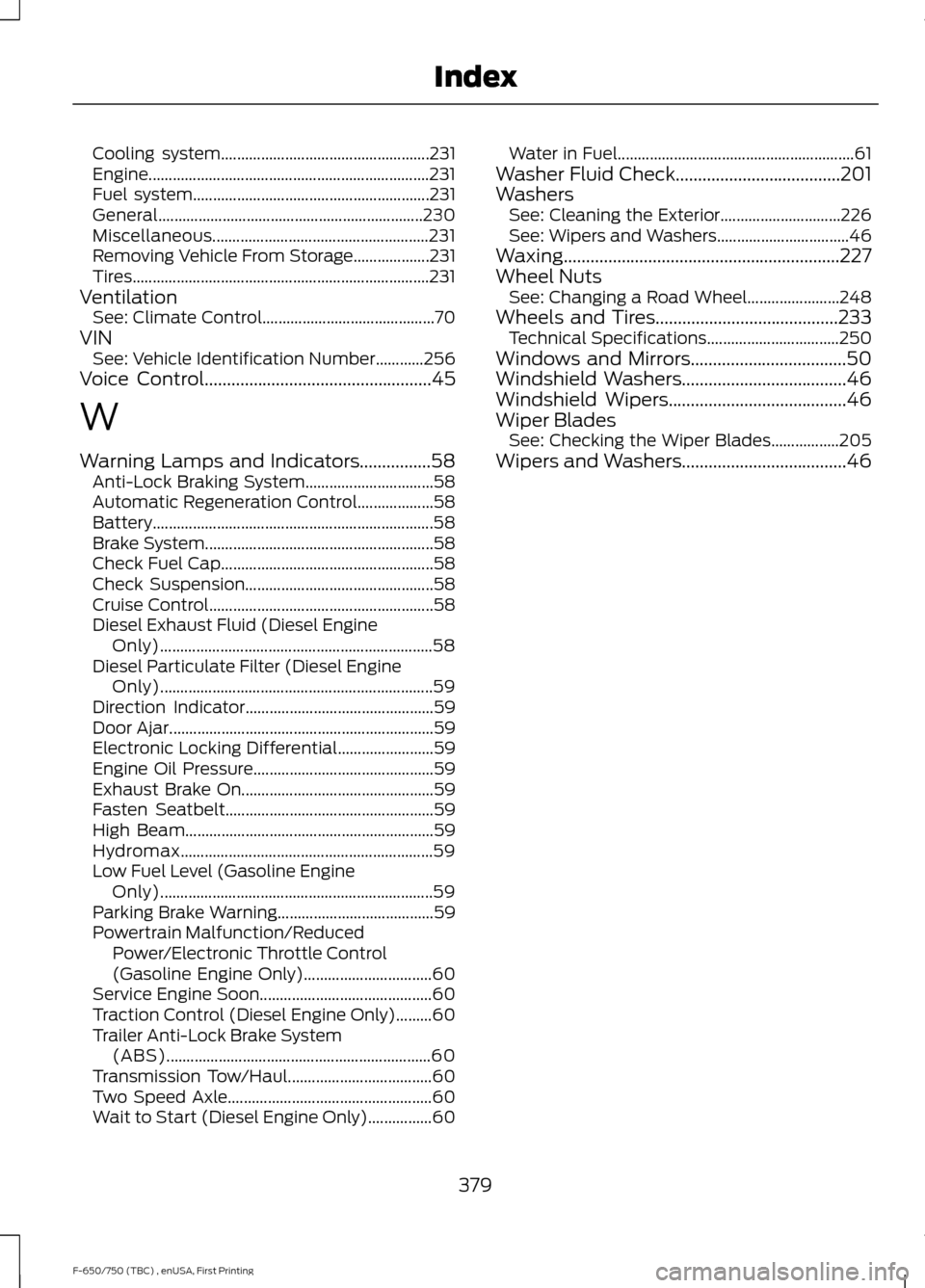

379
F-650/750 (TBC) , enUSA, First Printing Index
