FUSE SPECIFICATION CHART

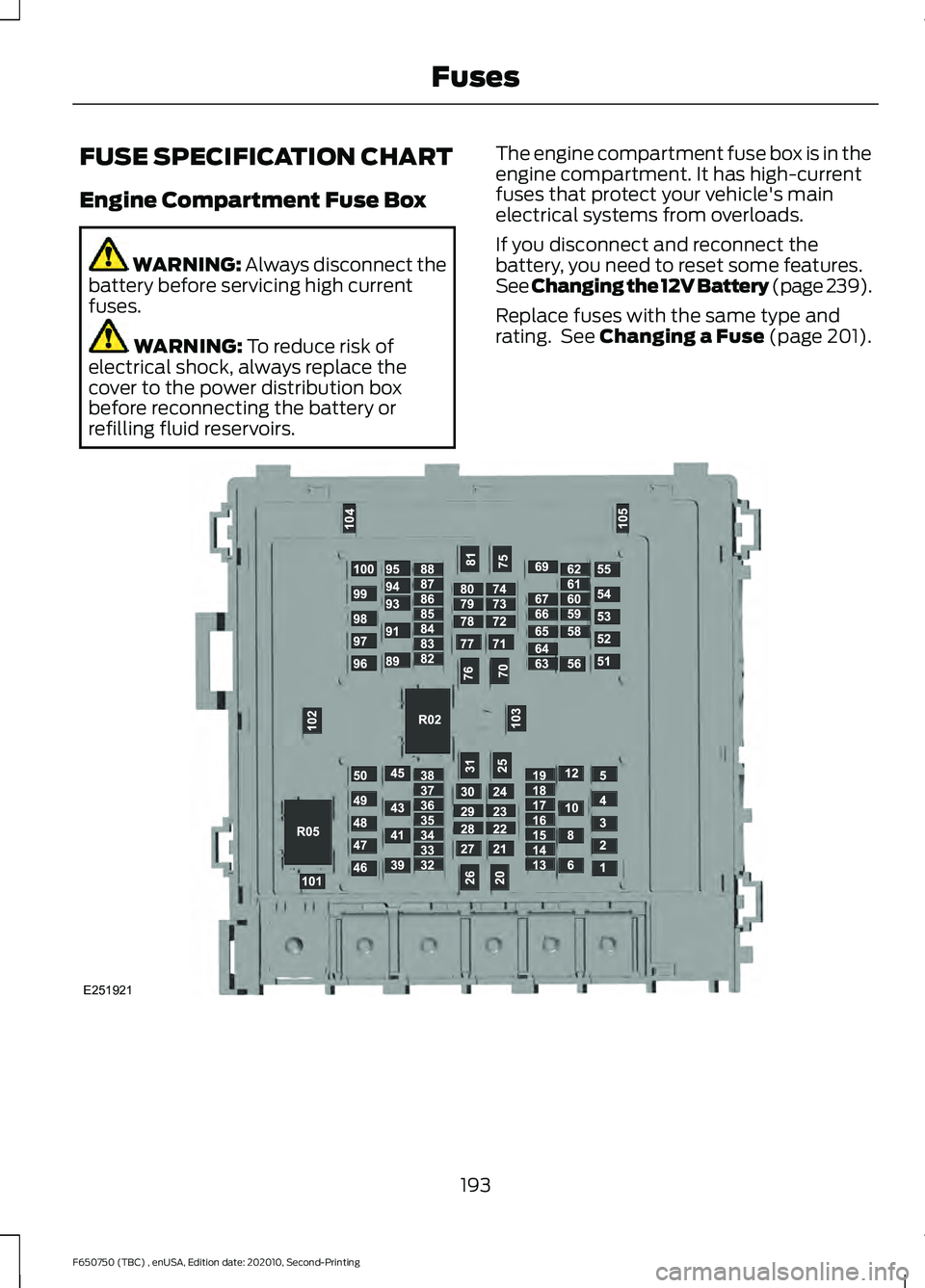

Engine Compartment Fuse Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The engine compartment fuse box is in the
engine compartment. It has high-current
fuses that protect your vehicle's main
electrical systems from overloads.
If you disconnect and reconnect the
battery, you need to reset some features.
See
Changing the 12V Battery (page 239).
Replace fuses with the same type and
rating. See
Changing a Fuse (page 201). 193
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing FusesE251921
Page 201 of 390

Protected Component
Fuse
Rating
Fuse
Number
Not used.
—
104
Trailer tow stop and turn relay.
15 A
105
Note: Spare fuse amperage may vary. Protected Component
Fuse
Rating
Relay
Number
Not used.
—
R02
Not used.
—
R05

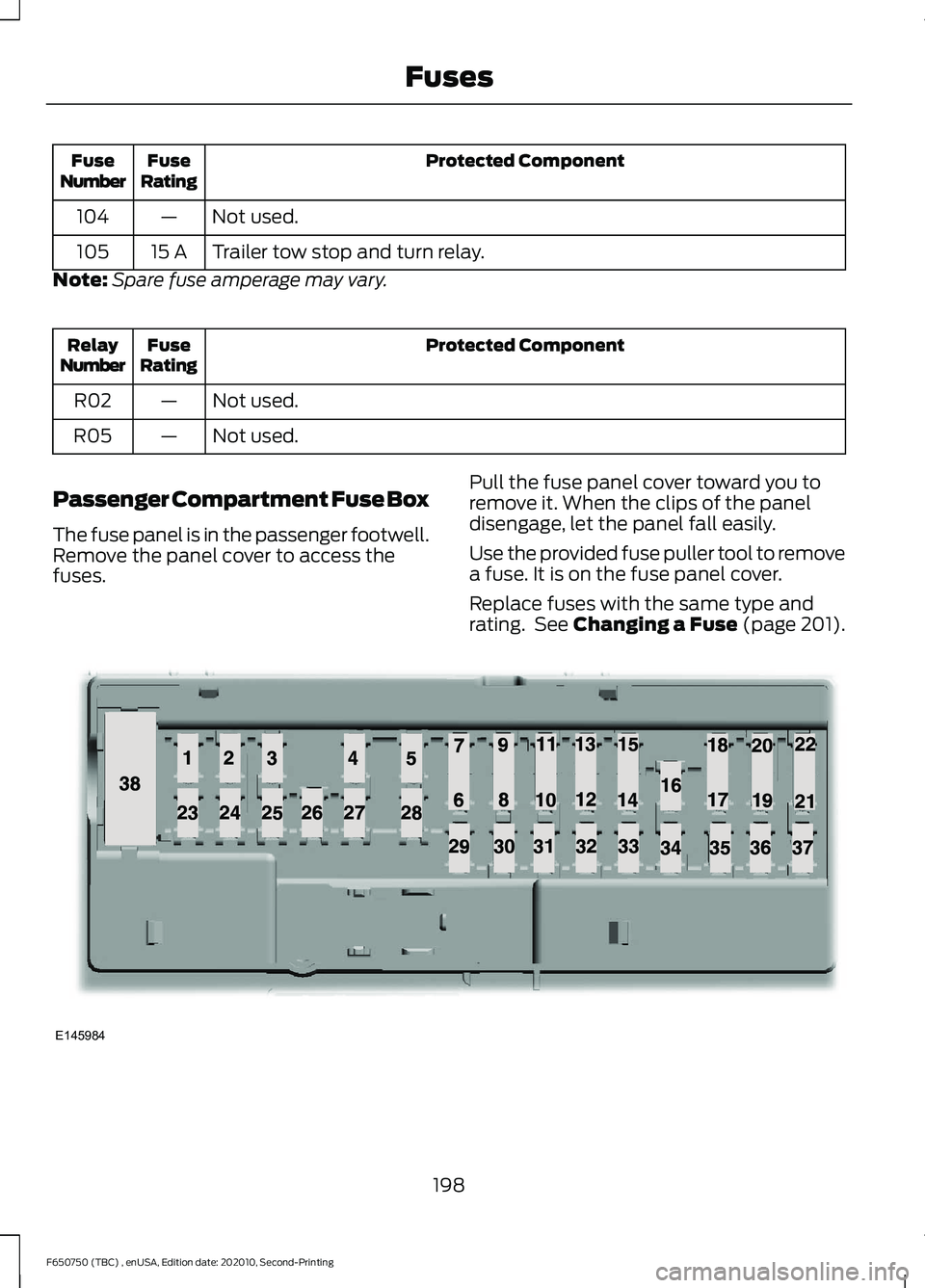

Passenger Compartment Fuse Box
The fuse panel is in the passenger footwell.
Remove the panel cover to access the
fuses. Pull the fuse panel cover toward you to
remove it. When the clips of the panel
disengage, let the panel fall easily.
Use the provided fuse puller tool to remove
a fuse. It is on the fuse panel cover.
Replace fuses with the same type and
rating. See Changing a Fuse (page 201).
198
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing FusesE145984
Page 218 of 390

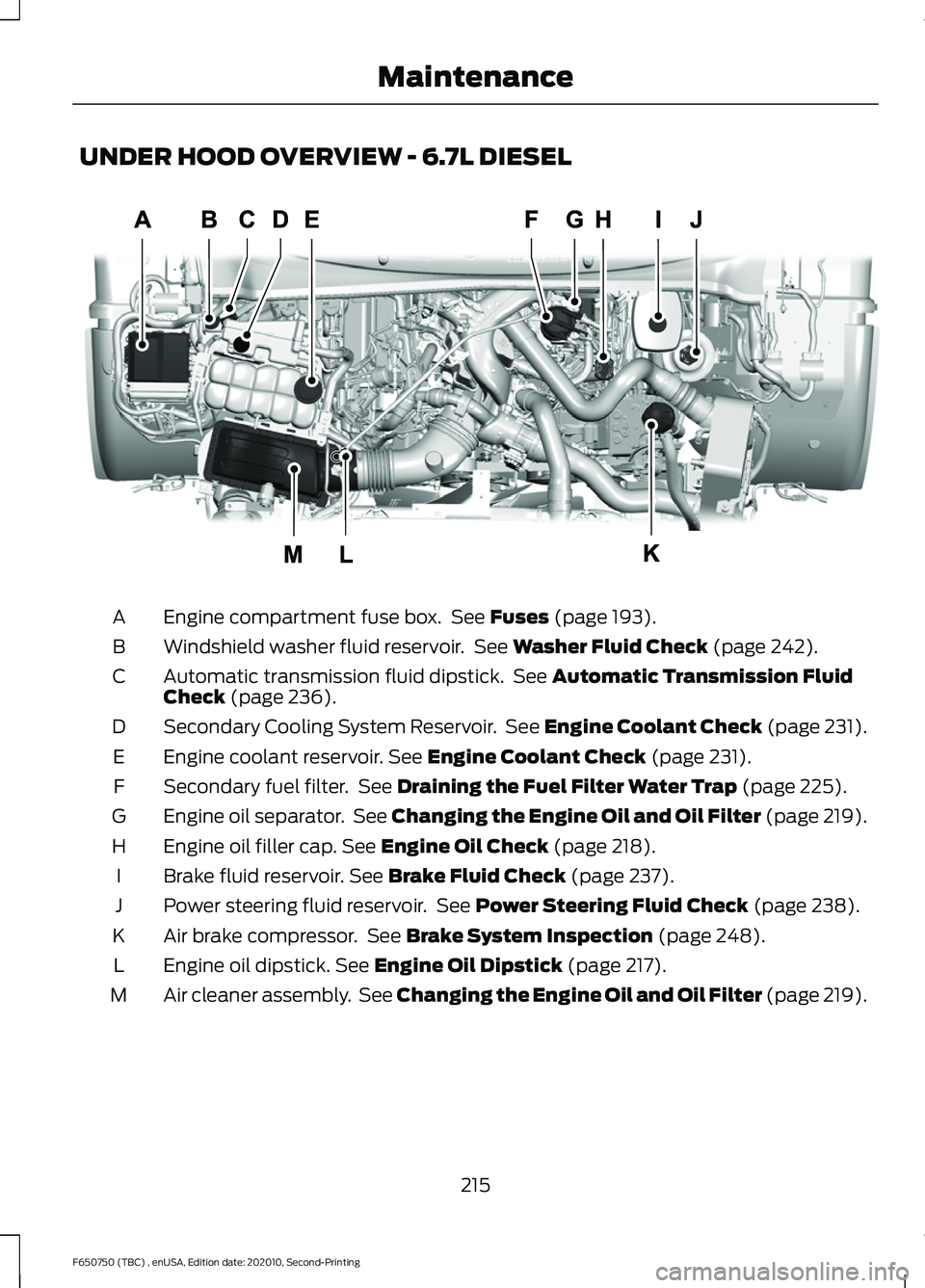

UNDER HOOD OVERVIEW - 6.7L DIESEL
Engine compartment fuse box. See Fuses (page 193).
A
Windshield washer fluid reservoir. See
Washer Fluid Check (page 242).
B
Automatic transmission fluid dipstick. See
Automatic Transmission Fluid
Check (page 236).
C
Secondary Cooling System Reservoir. See Engine Coolant Check (page 231).
D
Engine coolant reservoir.
See Engine Coolant Check (page 231).
E
Secondary fuel filter. See
Draining the Fuel Filter Water Trap (page 225).
F
Engine oil separator. See Changing the Engine Oil and Oil Filter (page 219).
G
Engine oil filler cap.
See Engine Oil Check (page 218).
H
Brake fluid reservoir.
See Brake Fluid Check (page 237).
I
Power steering fluid reservoir. See
Power Steering Fluid Check (page 238).
J
Air brake compressor. See
Brake System Inspection (page 248).
K
Engine oil dipstick.
See Engine Oil Dipstick (page 217).
L
Air cleaner assembly. See Changing the Engine Oil and Oil Filter (page 219).
M
215
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing MaintenanceE313700
Page 219 of 390

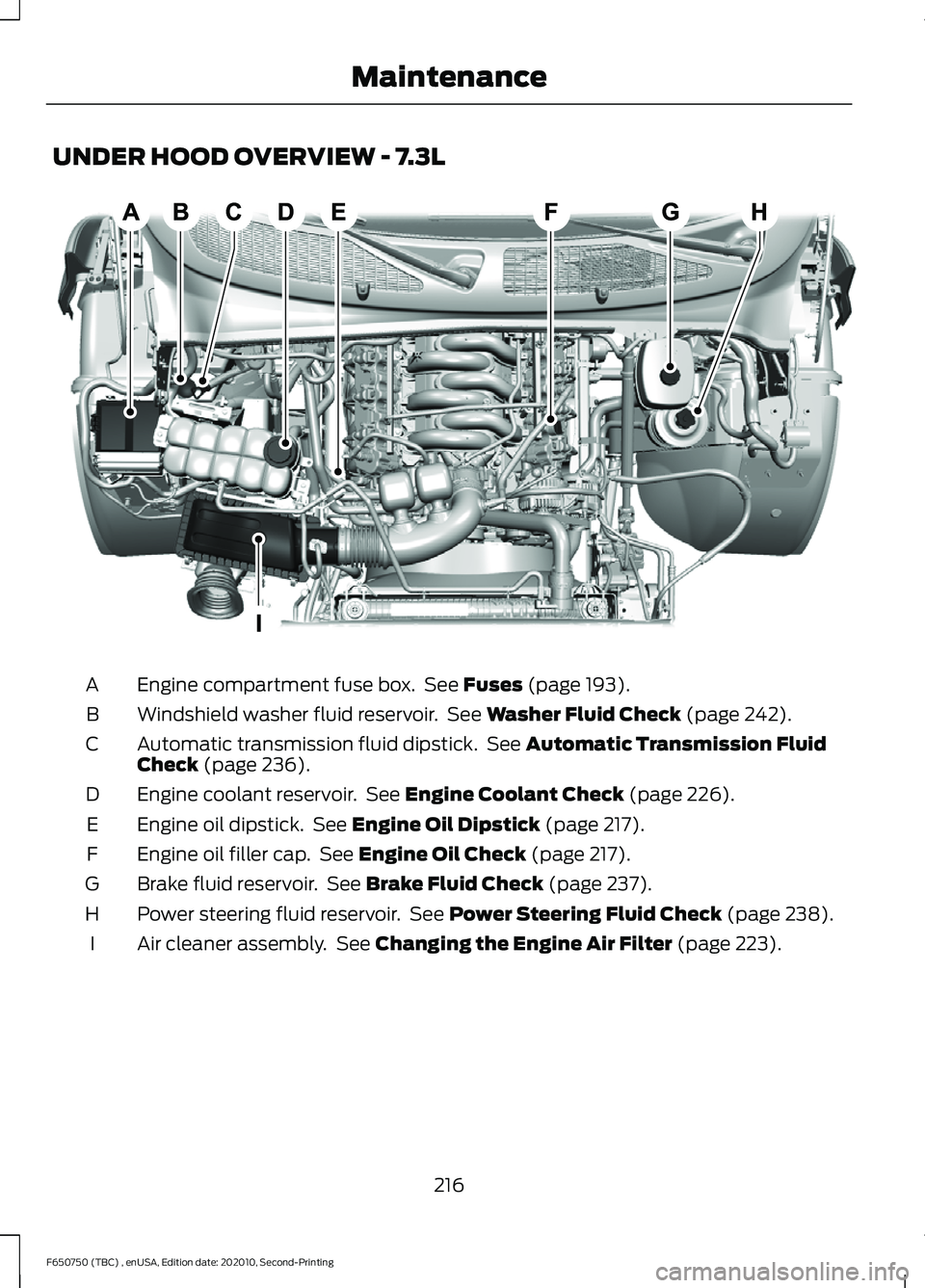

UNDER HOOD OVERVIEW - 7.3L
Engine compartment fuse box. See Fuses (page 193).
A
Windshield washer fluid reservoir. See
Washer Fluid Check (page 242).
B
Automatic transmission fluid dipstick. See
Automatic Transmission Fluid
Check (page 236).
C
Engine coolant reservoir. See
Engine Coolant Check (page 226).
D
Engine oil dipstick. See
Engine Oil Dipstick (page 217).
E
Engine oil filler cap. See
Engine Oil Check (page 217).
F
Brake fluid reservoir. See
Brake Fluid Check (page 237).
G
Power steering fluid reservoir. See
Power Steering Fluid Check (page 238).
H
Air cleaner assembly. See
Changing the Engine Air Filter (page 223).
I
216
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing MaintenanceE314523
Page 318 of 390

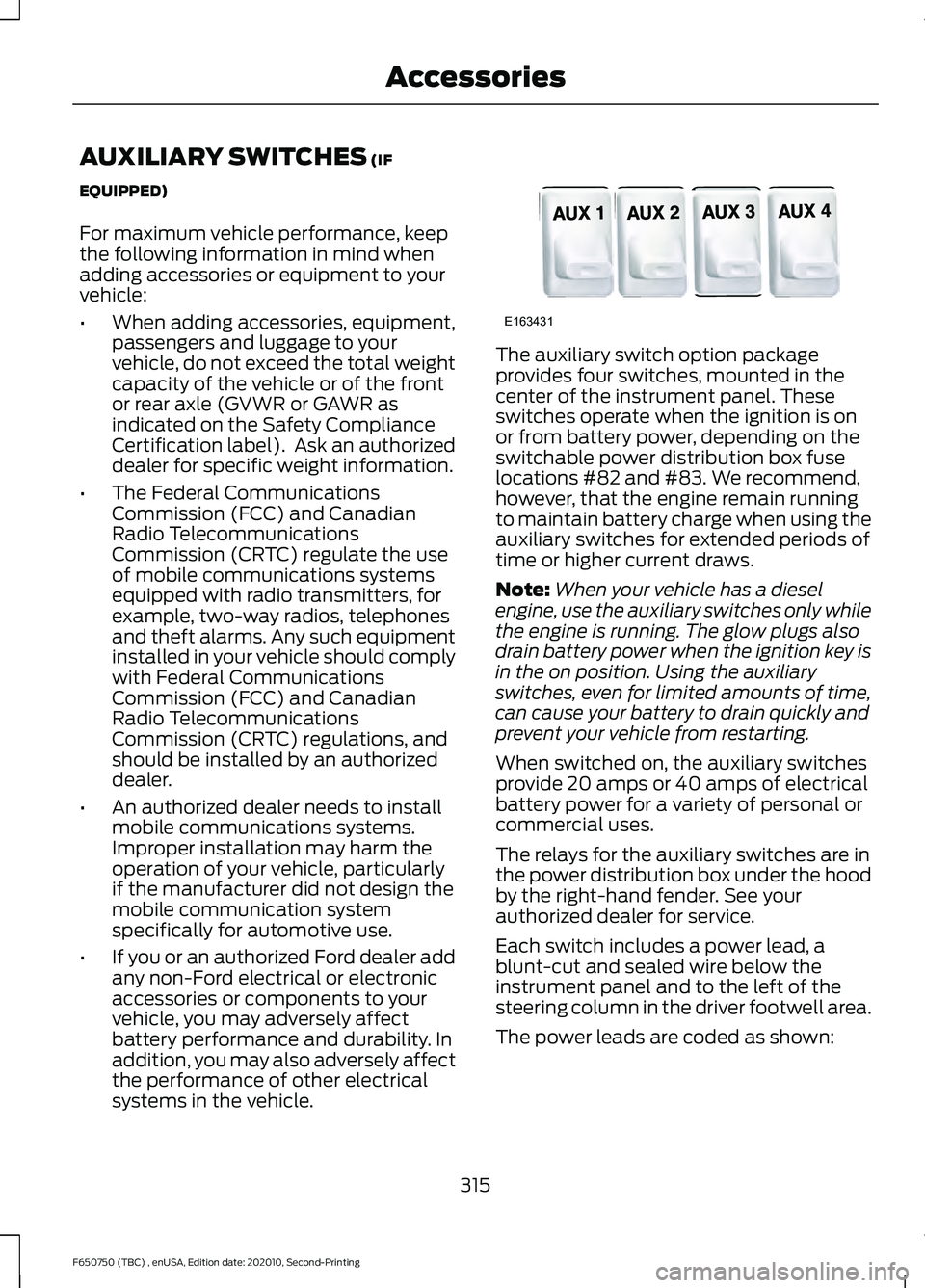

AUXILIARY SWITCHES (IF
EQUIPPED)
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
• When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Ask an authorized
dealer for specific weight information.
• The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
equipped with radio transmitters, for
example, two-way radios, telephones
and theft alarms. Any such equipment
installed in your vehicle should comply
with Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulations, and
should be installed by an authorized
dealer.
• An authorized dealer needs to install
mobile communications systems.
Improper installation may harm the
operation of your vehicle, particularly
if the manufacturer did not design the
mobile communication system
specifically for automotive use.
• If you or an authorized Ford dealer add
any non-Ford electrical or electronic
accessories or components to your
vehicle, you may adversely affect
battery performance and durability. In
addition, you may also adversely affect
the performance of other electrical
systems in the vehicle. The auxiliary switch option package
provides four switches, mounted in the
center of the instrument panel. These
switches operate when the ignition is on
or from battery power, depending on the
switchable power distribution box fuse
locations #82 and #83. We recommend,
however, that the engine remain running
to maintain battery charge when using the
auxiliary switches for extended periods of
time or higher current draws.
Note:
When your vehicle has a diesel
engine, use the auxiliary switches only while
the engine is running. The glow plugs also
drain battery power when the ignition key is
in the on position. Using the auxiliary
switches, even for limited amounts of time,
can cause your battery to drain quickly and
prevent your vehicle from restarting.
When switched on, the auxiliary switches
provide 20 amps or 40 amps of electrical
battery power for a variety of personal or
commercial uses.
The relays for the auxiliary switches are in
the power distribution box under the hood
by the right-hand fender. See your
authorized dealer for service.
Each switch includes a power lead, a
blunt-cut and sealed wire below the
instrument panel and to the left of the
steering column in the driver footwell area.
The power leads are coded as shown:
315
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing AccessoriesE163431
Page 384 of 390

F
Fastening the Seatbelts..............................38
Energy Management Feature........................... 41
Fastening the Cinch Tongue............................ 39
Lap Belts.................................................................. 39
Seatbelt Locking Modes................................... 40
Using Seatbelts During Pregnancy...............40
Using the Seatbelt with Cinch Tongue (Front Center and Rear Center Seats
Only).................................................................... 38
Federal Highway Administration Regulation......................................................20
Fifth Wheel Operation.................................174
Hook-up.................................................................. 174
Un-hook.................................................................. 174
Flat Tire See: Changing a Road Wheel........................ 277
Ford Credit
..........................................................17
US Only...................................................................... 17
Ford Protect
....................................................317
Ford Protect Extended Service Plan
(CANADA ONLY)........................................... 318
Ford Protect Extended Service Plans (U.S. Only).................................................................... 317
Frame and Tow Hook Inspection...........253
Front Seat Armrest........................................87 20% Seat Cushion Storage............................. 88
Fuel and Refueling........................................99
Fuel Consumption
.......................................106
Calculating Fuel Economy.............................. 107
Filling the Fuel Tank........................................... 107
Fuel Filter - 7.3L.............................................242
Fuel Quality - Diesel....................................100 Biodiesel................................................................. 101
Diesel Fuel Additives......................................... 102
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Not Required ..........101
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Required (United
States/Canada/Puerto Rico/U.S. Virgin
Islands And Other Locales) ..................... 100
Fuel Quality - Gasoline...............................103 Choosing the Right Fuel.................................. 103
Fuel Shutoff....................................................182
Fuel Tank Selector Switch........................108 Fuses.................................................................193
Fuse Specification Chart...........................193
Engine Compartment Fuse Box.................... 193
Passenger Compartment Fuse Box............198
