FORD F750 2004 11.G Owners Manual

In addition to the items to be performed daily or at each oil change, the
following need to be completed as specified:
Maintenance Operation Frequency — ObservationClean body/door drain holes.
Clean windshield wiper blades.
Replace windshield wiper blades.
Lubricate body lock cylinders, door and hood hinges.
Check headlamp alignment.
Check windshield washer fluid level. Add fluid if required.At least twice annually.
As required.
If wiping the blades with a clean cloth and mild detergent
and washing the windshield with a cleaner does not restore
a clean wipe.
Difficult to operate or noisy.
Lamp beams in wrong position when vehicle operating
loaded.
If washers do not spray fluid when operated. GENERAL MAINTENANCE SERVICES
Listed below are vehicle checks that should be made periodically either by the owner or a qualified technician. It is recommended
that deficiencies be brought to the attention of your dealer or another qualified service outlet as soon as possible in order that
advice regarding the need for service or replacement can be obtained.
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
231

Maintenance Operation Frequency - Observation
Inspect the automatic slack
adjuster functionInsufficient power shown in loaded
practice stop
Check the operation of the
brakes, the clutch, and the
steering (*a,b)Vehicle handling qualities not up to
par
Inspect the vehicle for missing,
damaged, or mislocated noise
shieldsExcessive noise emanates from under
the cab or engine compartment
Check the engine performance
and the engine governorExcessive engine noise
Inspect the fan, the fan shroud,
and the fan clutchEngine overheats, fans runs at high
speed constantly, excessive fan noise,
or fan wobble due to worn bearings
Check for operation of ABS
warning lampAt each engine start up
Inspect the entire exhaust
system (including inlet pipe,
muffler, outlet pipe and all
exhaust clamps and fasteners)
for holes, leakage, breakage,
looseness and corrosive
damageExcessive noise or the smell of fumes
is experienced
Inspect the engine air
induction system (including the
air ducts, the air cleaner, and
the air cleaner element) for
loose fitting, damaged or
missing componentsExcessive noise emanates from the
engine compartment
Inspect the tires and check the
air pressure (*c)Poor steering, wandering or excessive
tire wear
Balance the wheels and the
tiresVibration or abnormal tire wear
indicates imbalance
Check the front end alignment
(*c)Poor steering, wandering or excessive
tire wear
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
232

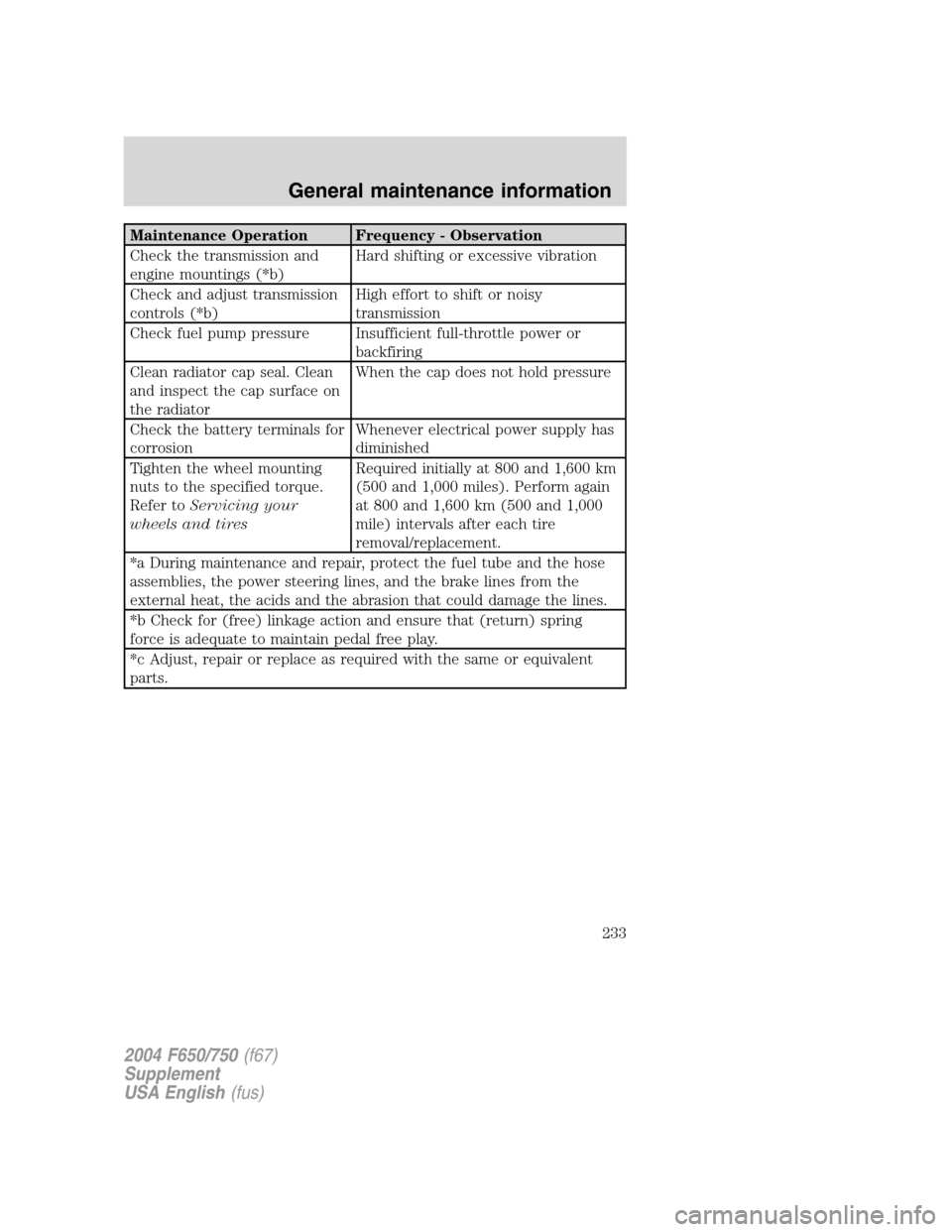

Maintenance Operation Frequency - Observation
Check the transmission and
engine mountings (*b)Hard shifting or excessive vibration
Check and adjust transmission
controls (*b)High effort to shift or noisy
transmission
Check fuel pump pressure Insufficient full-throttle power or
backfiring
Clean radiator cap seal. Clean
and inspect the cap surface on
the radiatorWhen the cap does not hold pressure
Check the battery terminals for
corrosionWhenever electrical power supply has
diminished
Tighten the wheel mounting
nuts to the specified torque.
Refer toServicing your
wheels and tiresRequired initially at 800 and 1,600 km
(500 and 1,000 miles). Perform again
at 800 and 1,600 km (500 and 1,000
mile) intervals after each tire
removal/replacement.
*a During maintenance and repair, protect the fuel tube and the hose
assemblies, the power steering lines, and the brake lines from the
external heat, the acids and the abrasion that could damage the lines.
*b Check for (free) linkage action and ensure that (return) spring
force is adequate to maintain pedal free play.
*c Adjust, repair or replace as required with the same or equivalent
parts.
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
233

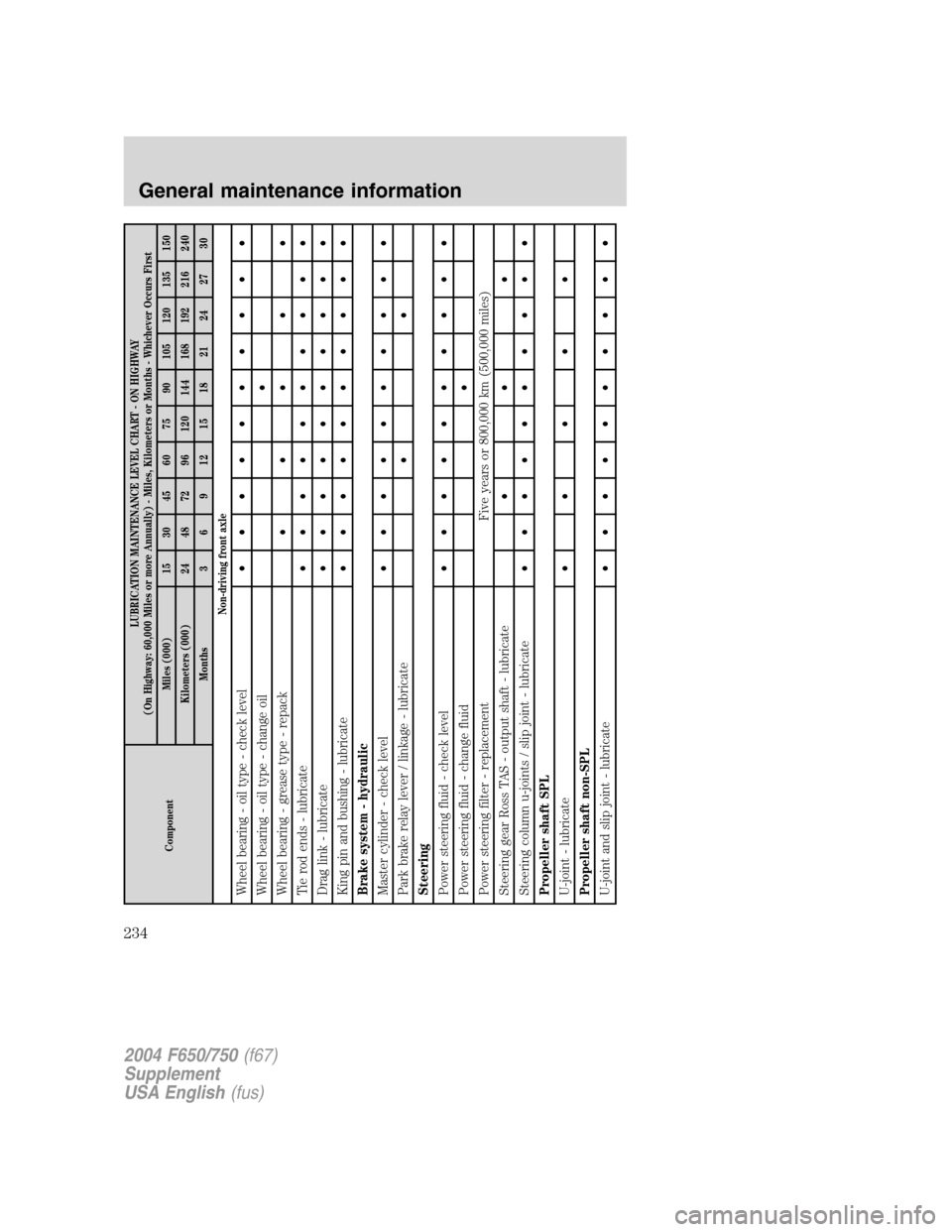

ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 15 30 45 60 75 90 105 120 135 150
Kilometers (000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•
Wheel bearing - grease type - repack•••••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check level••••••••••
Park brake relay lever / linkage - lubricate••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•
Power steering filter - replacement Five years or 800,000 km (500,000 miles)
Steering gear Ross TAS - output shaft - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Propeller shaft SPL
U-joint - lubricate•••••
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
234

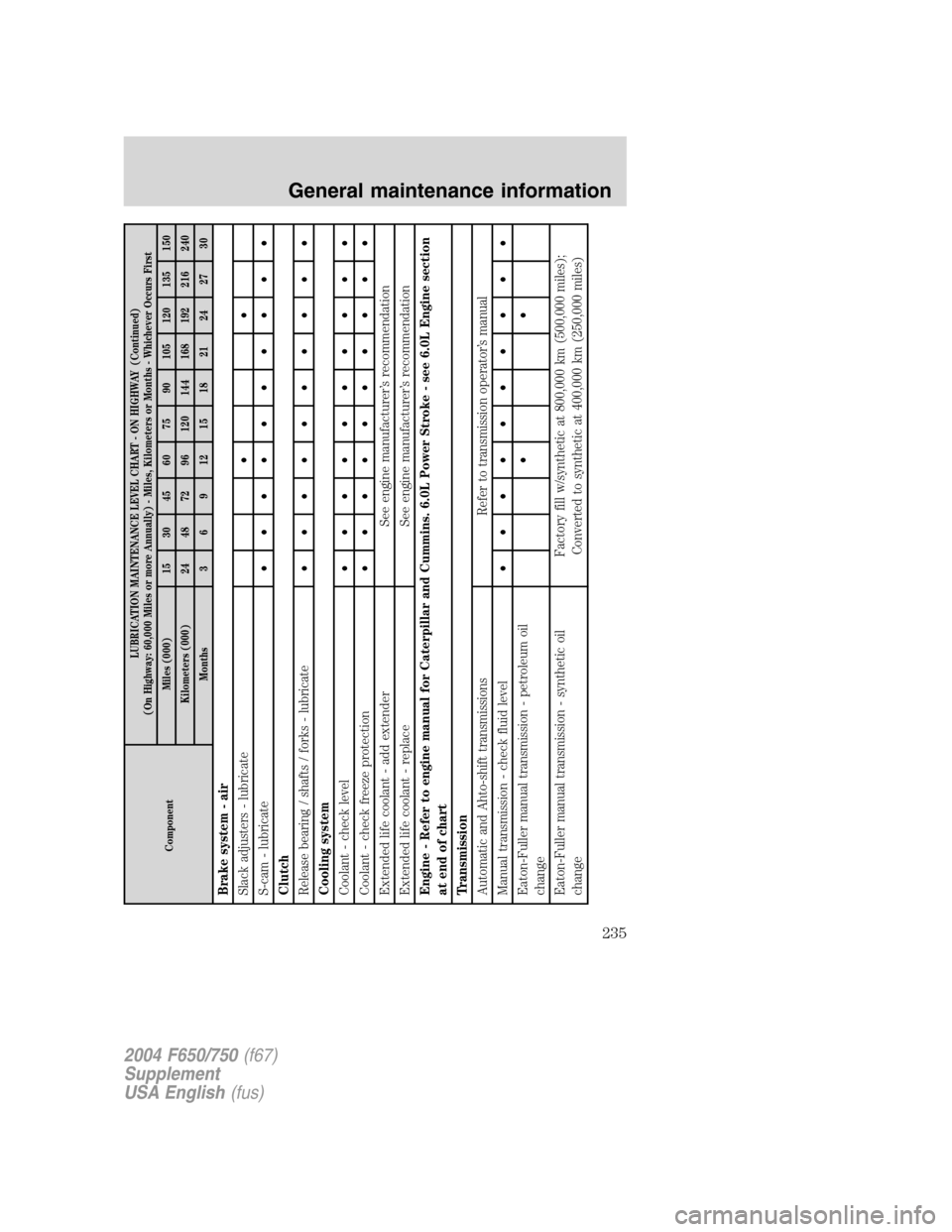

ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY (Continued)
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 15 30 45 60 75 90 105 120 135 150
Kilometers (000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / forks - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - Refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke - see 6.0L Engine section
at end of chart
Transmission
Automatic and Ahto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission - petroleum oil
change••
Eaton-Fuller manual transmission - synthetic oil
changeFactory fill w/synthetic at 800,000 km (500,000 miles);
Converted to synthetic at 400,000 km (250,000 miles)
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
235

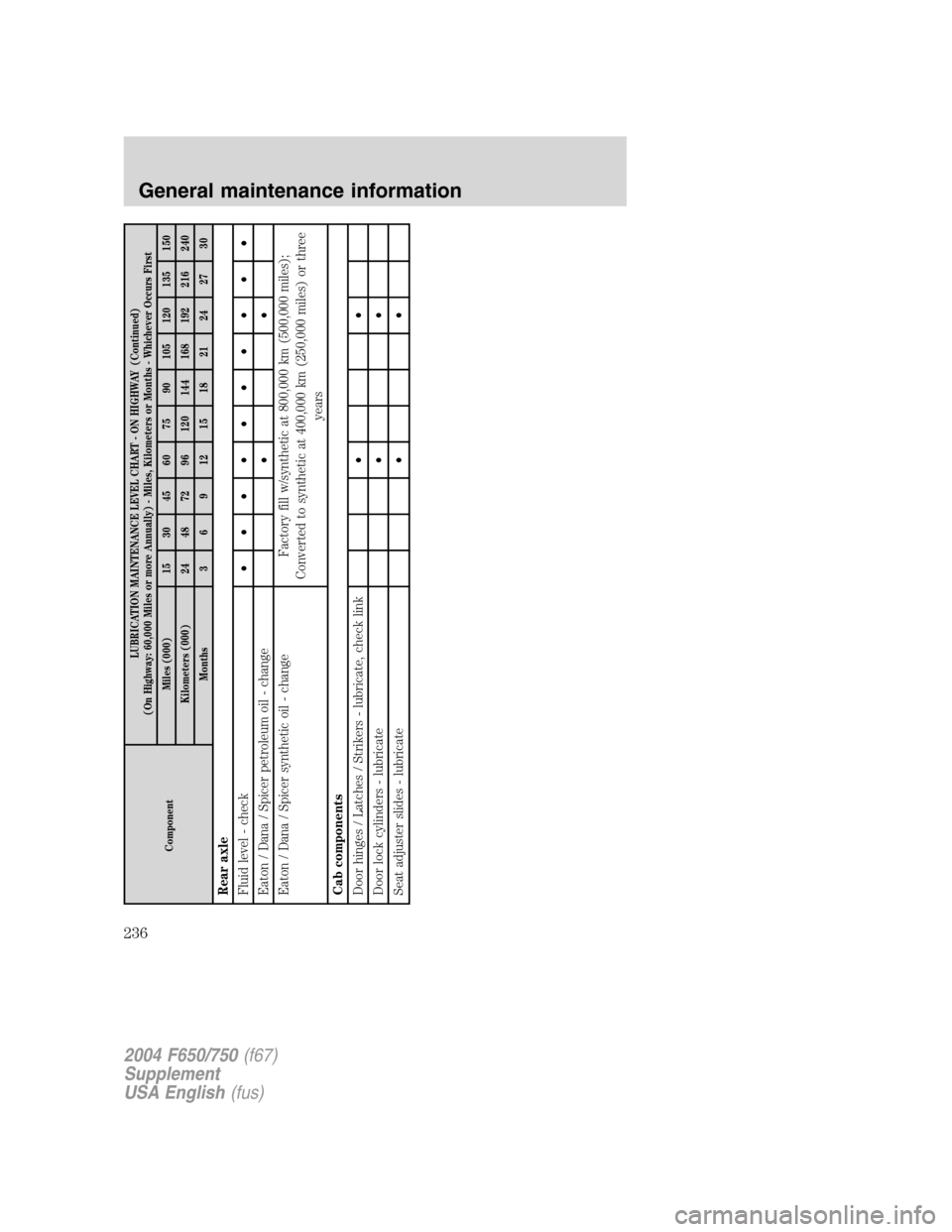

ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY (Continued)
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 15 30 45 60 75 90 105 120 135 150
Kilometers (000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change••
Eaton / Dana / Spicer synthetic oil - change Factory fill w/synthetic at 800,000 km (500,000 miles);
Converted to synthetic at 400,000 km (250,000 miles) or three
years
Cab components
Door hinges / Latches / Strikers - lubricate, check link••
Door lock cylinders - lubricate••
Seat adjuster slides - lubricate••
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
236

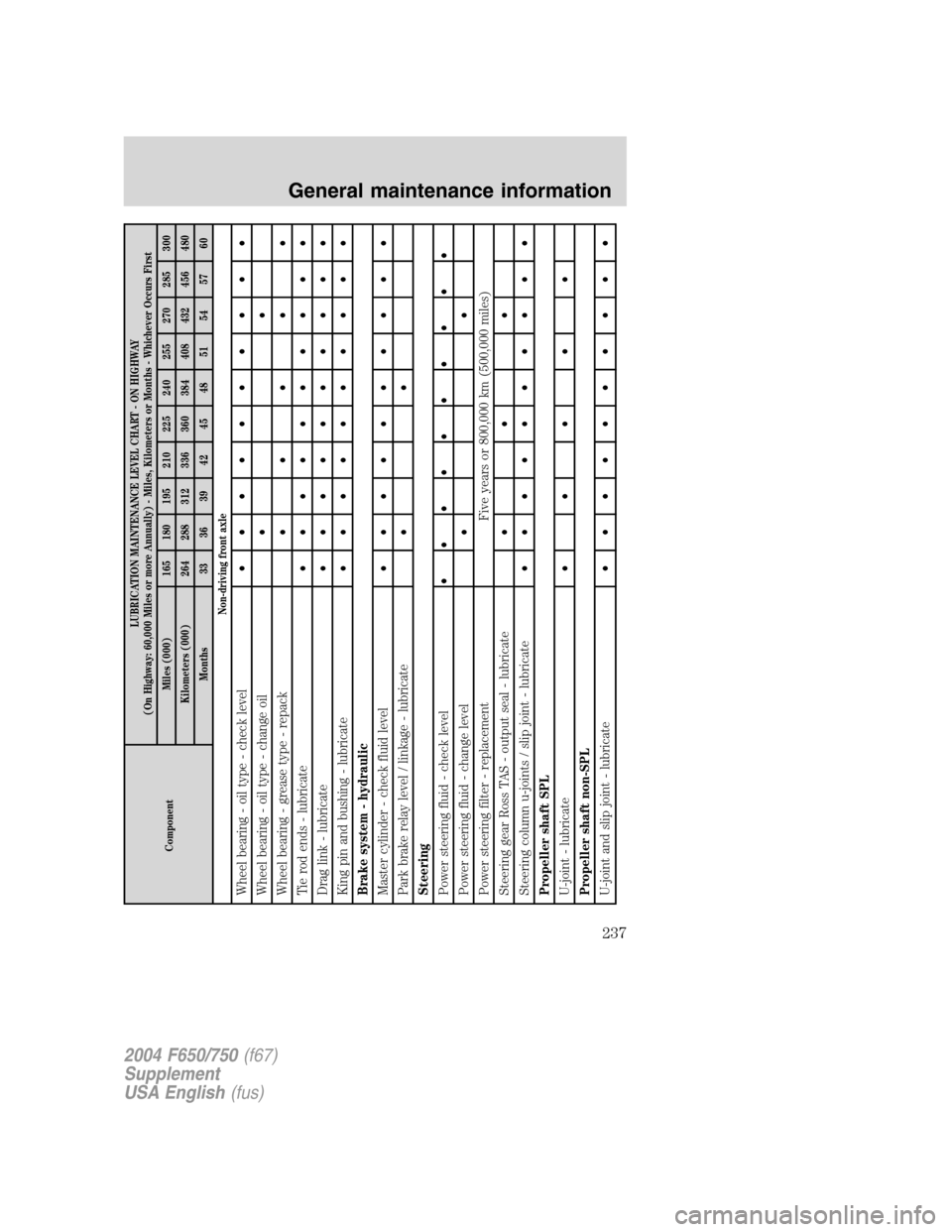

ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 165 180 195 210 225 240 255 270 285 300
Kilometers (000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack•••••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay level / linkage - lubricate••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change level••
Power steering filter - replacement Five years or 800,000 km (500,000 miles)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Propeller shaft SPL
U-joint - lubricate•••••
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
237

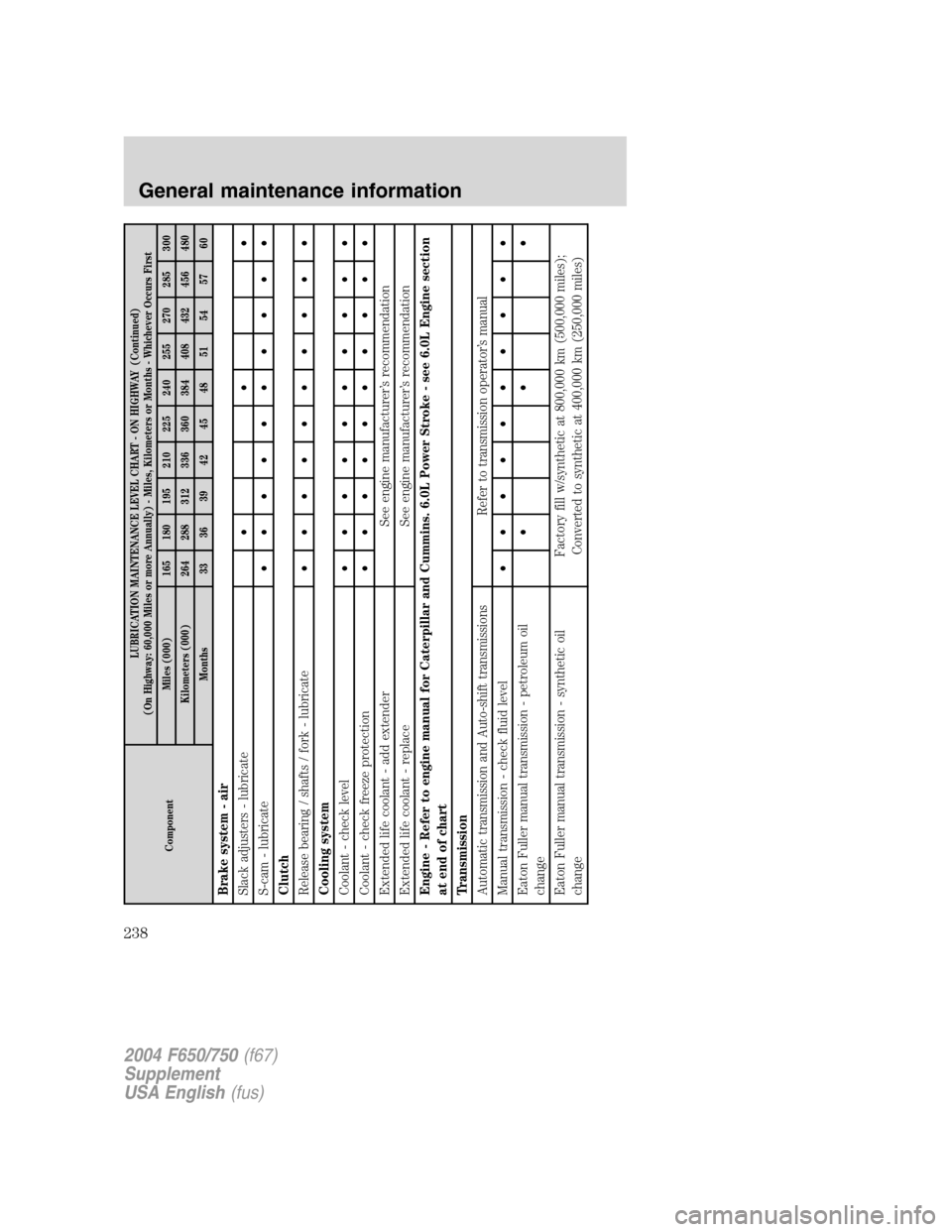

ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY (Continued)
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 165 180 195 210 225 240 255 270 285 300
Kilometers (000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - Refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke - see 6.0L Engine section
at end of chart
Transmission
Automatic transmission and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton Fuller manual transmission - petroleum oil
change•••
Eaton Fuller manual transmission - synthetic oil
changeFactory fill w/synthetic at 800,000 km (500,000 miles);
Converted to synthetic at 400,000 km (250,000 miles)
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
238

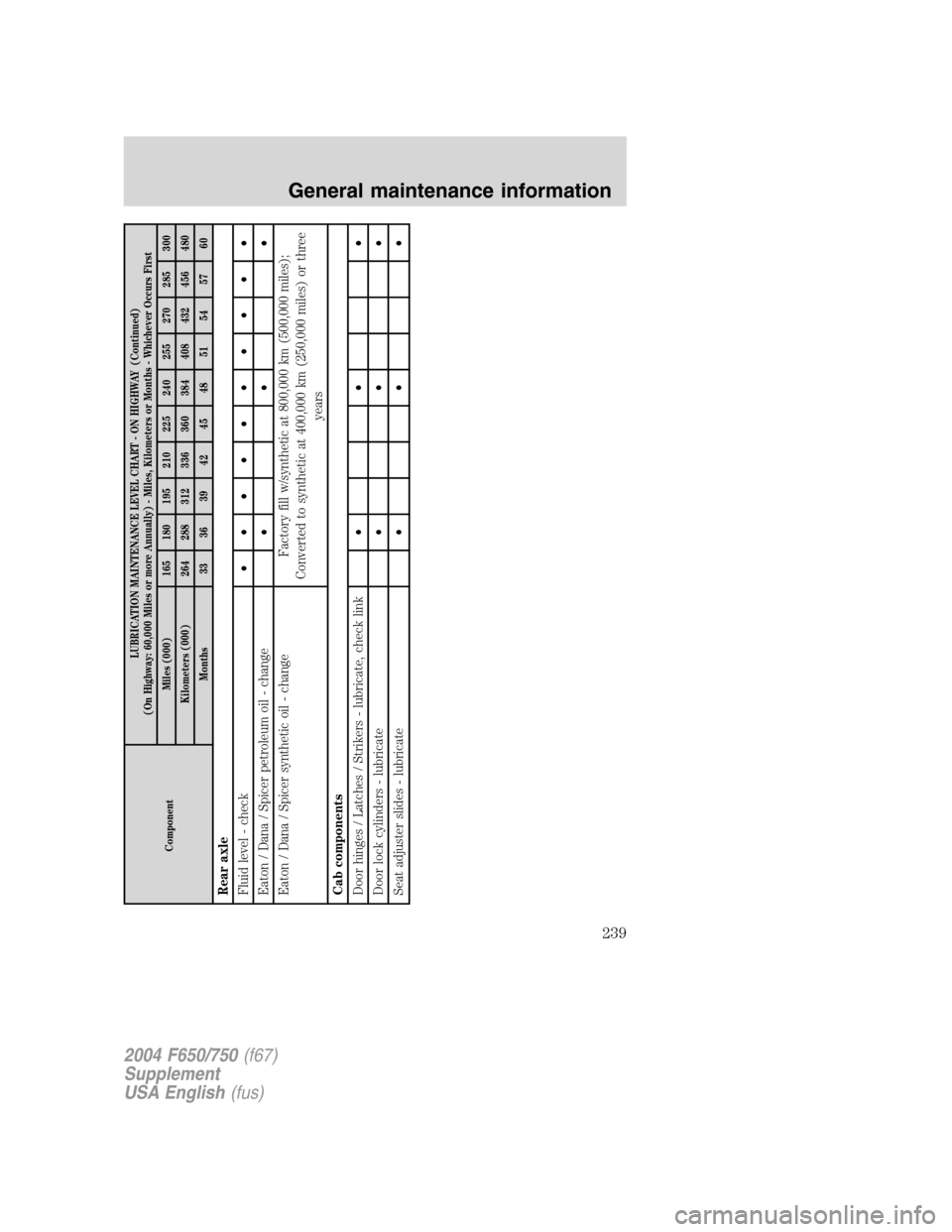

ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY (Continued)
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 165 180 195 210 225 240 255 270 285 300
Kilometers (000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change•••
Eaton / Dana / Spicer synthetic oil - change Factory fill w/synthetic at 800,000 km (500,000 miles);
Converted to synthetic at 400,000 km (250,000 miles) or three
years
Cab components
Door hinges / Latches / Strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
239

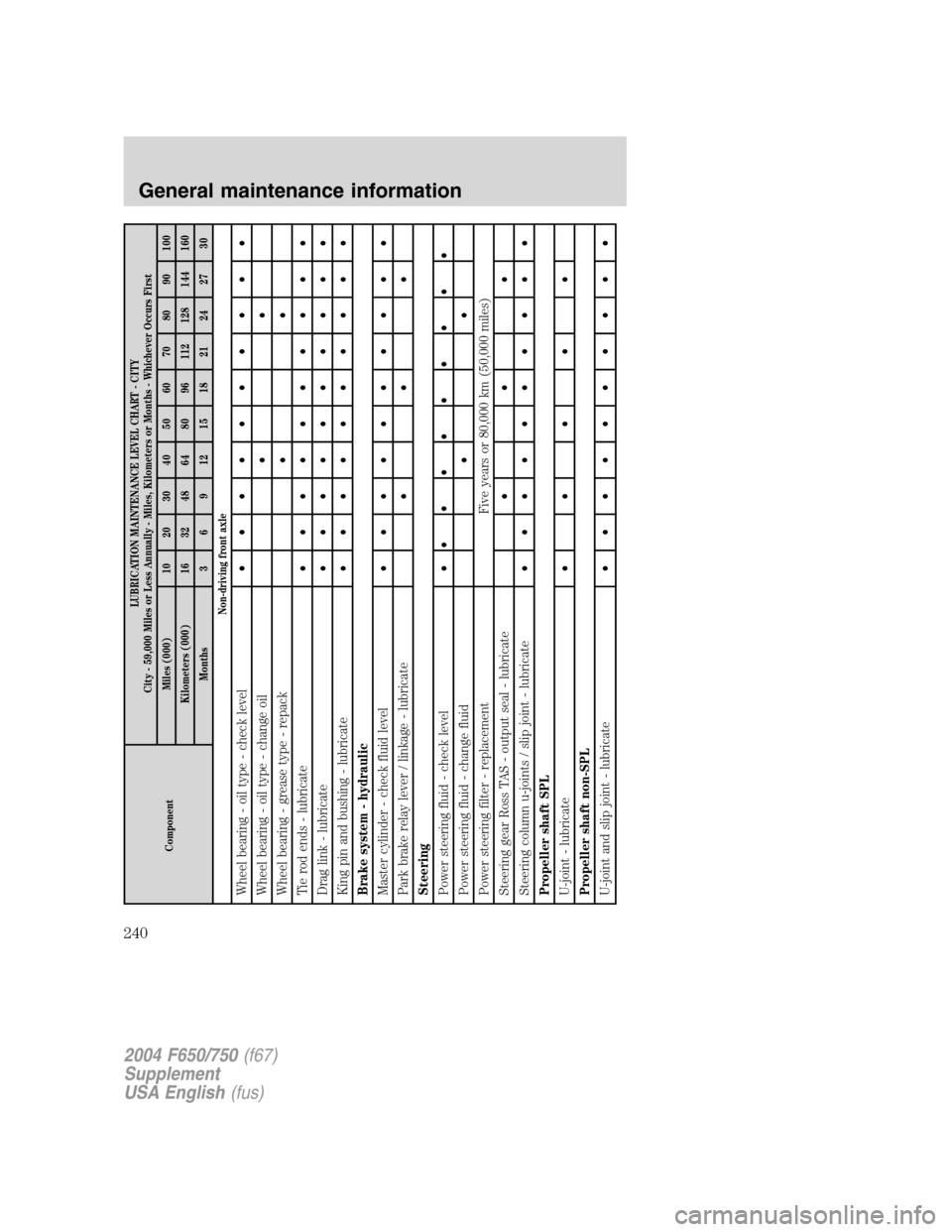

ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 10 20 30 40 50 60 70 80 90 100
Kilometers (000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid••
Power steering filter - replacement Five years or 80,000 km (50,000 miles)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Propeller shaft SPL
U-joint - lubricate•••••
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
240
