FORD F750 2004 11.G Owners Manual

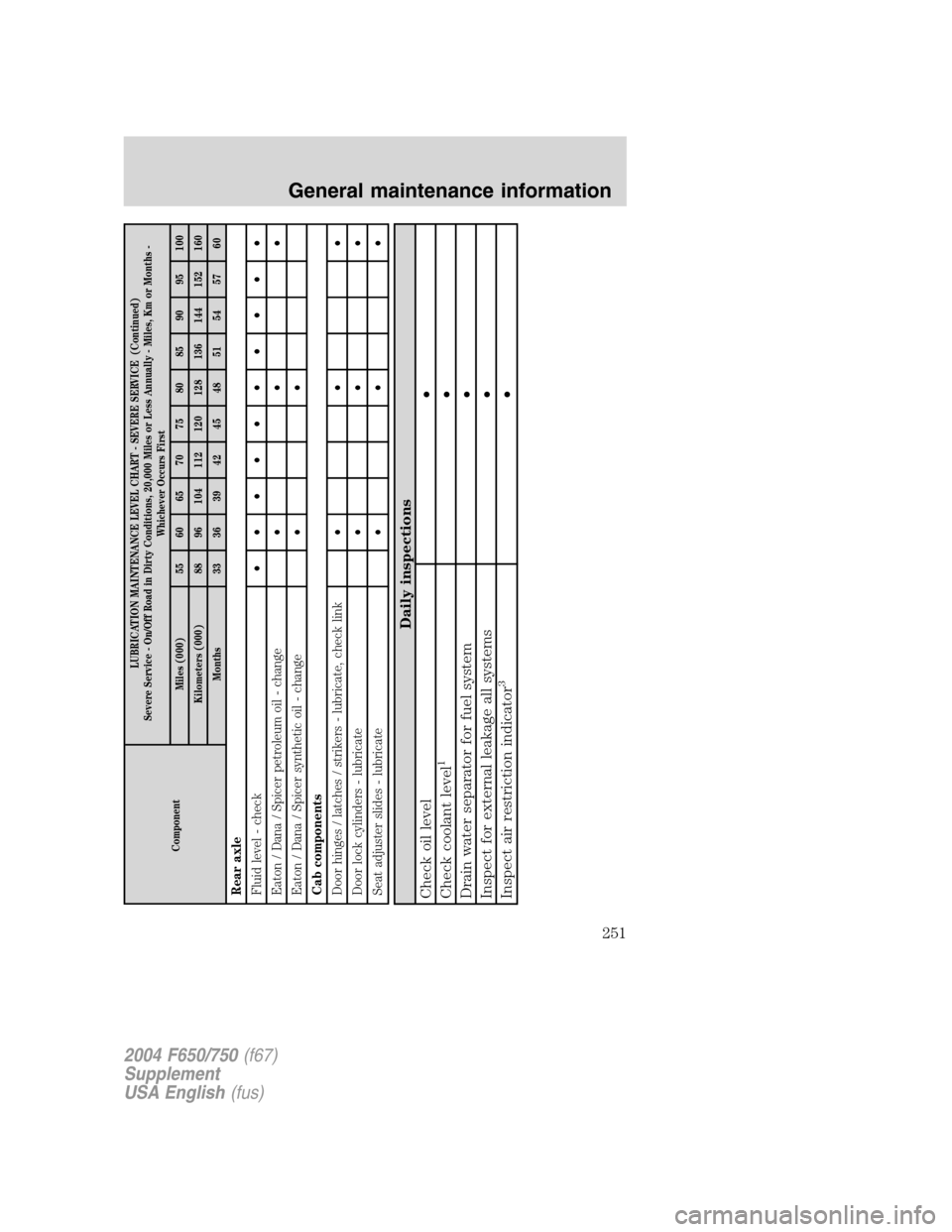

ComponentLUBRICATION MAINTENANCE LEVEL CHART - SEVERE SERVICE (Continued)
Severe Service - On/Off Road in Dirty Conditions, 20,000 Miles or Less Annually - Miles, Km or Months -
Whichever Occurs First
Miles (000) 55 60 65 70 75 80 85 90 95 100
Kilometers (000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change•••
Eaton / Dana / Spicer synthetic oil - change••
Cab components
Door hinges / latches / strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
Daily inspections
Check oil level•
Check coolant level
1
•
Drain water separator for fuel system•
Inspect for external leakage all systems•
Inspect air restriction indicator
3
•
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
251

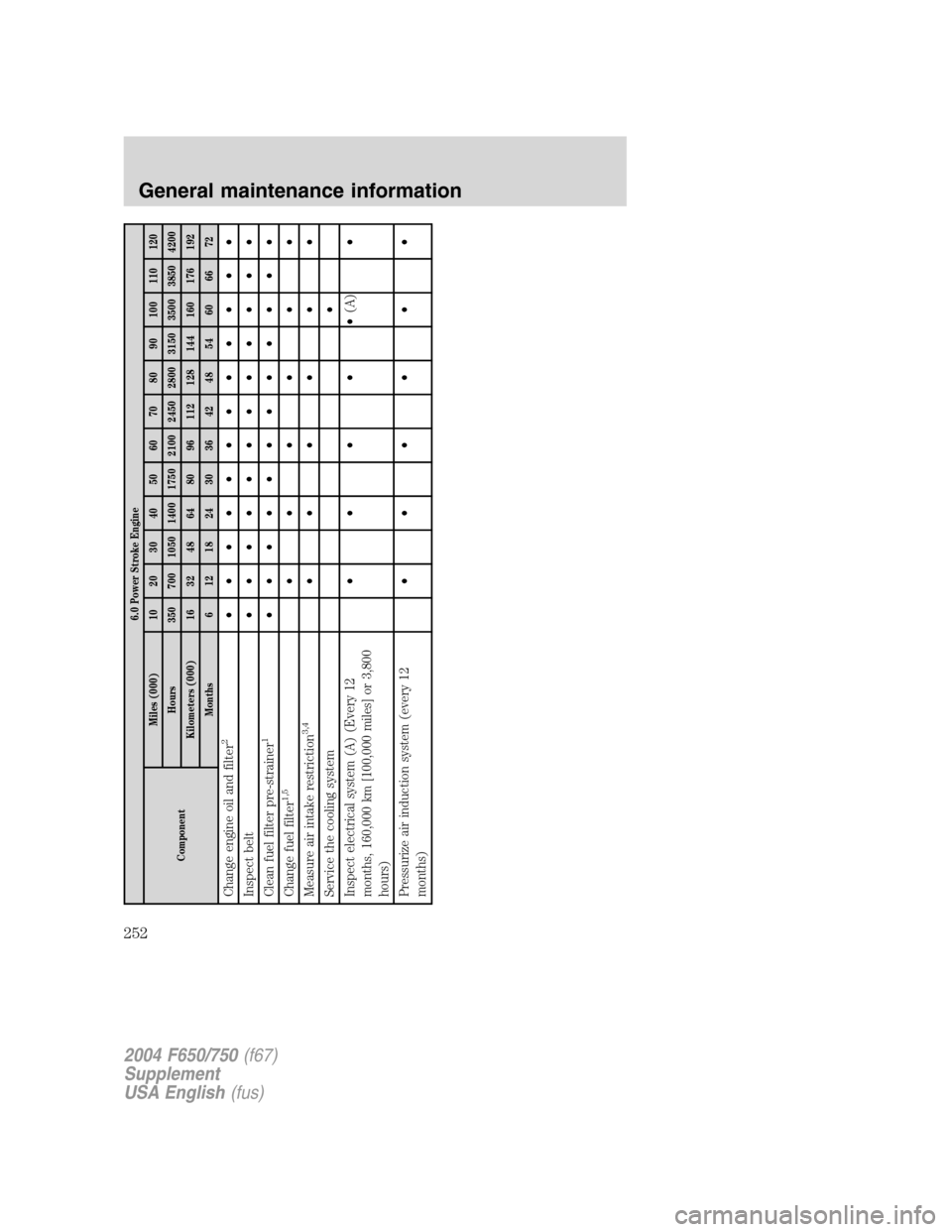

6.0 Power Stroke Engine
ComponentMiles (000) 10 20 30 40 50 60 70 80 90 100 110 120
Hours 350 700 1050 1400 1750 2100 2450 2800 3150 3500 3850 4200
Kilometers (000) 16 32 48 64 80 96 112 128 144 160 176 192
Months 6 12 18 24 30 36 42 48 54 60 66 72
Change engine oil and filter
2
••••••••••••
Inspect belt••••••••••••
Clean fuel filter pre-strainer
1
••••••••••••
Change fuel filter
1,5
••••••
Measure air intake restriction
3,4
••••••
Service the cooling system•
Inspect electrical system (A) (Every 12
months, 160,000 km [100,000 miles] or 3,800
hours)•••••(A)•
Pressurize air induction system (every 12
months)••••••
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
252

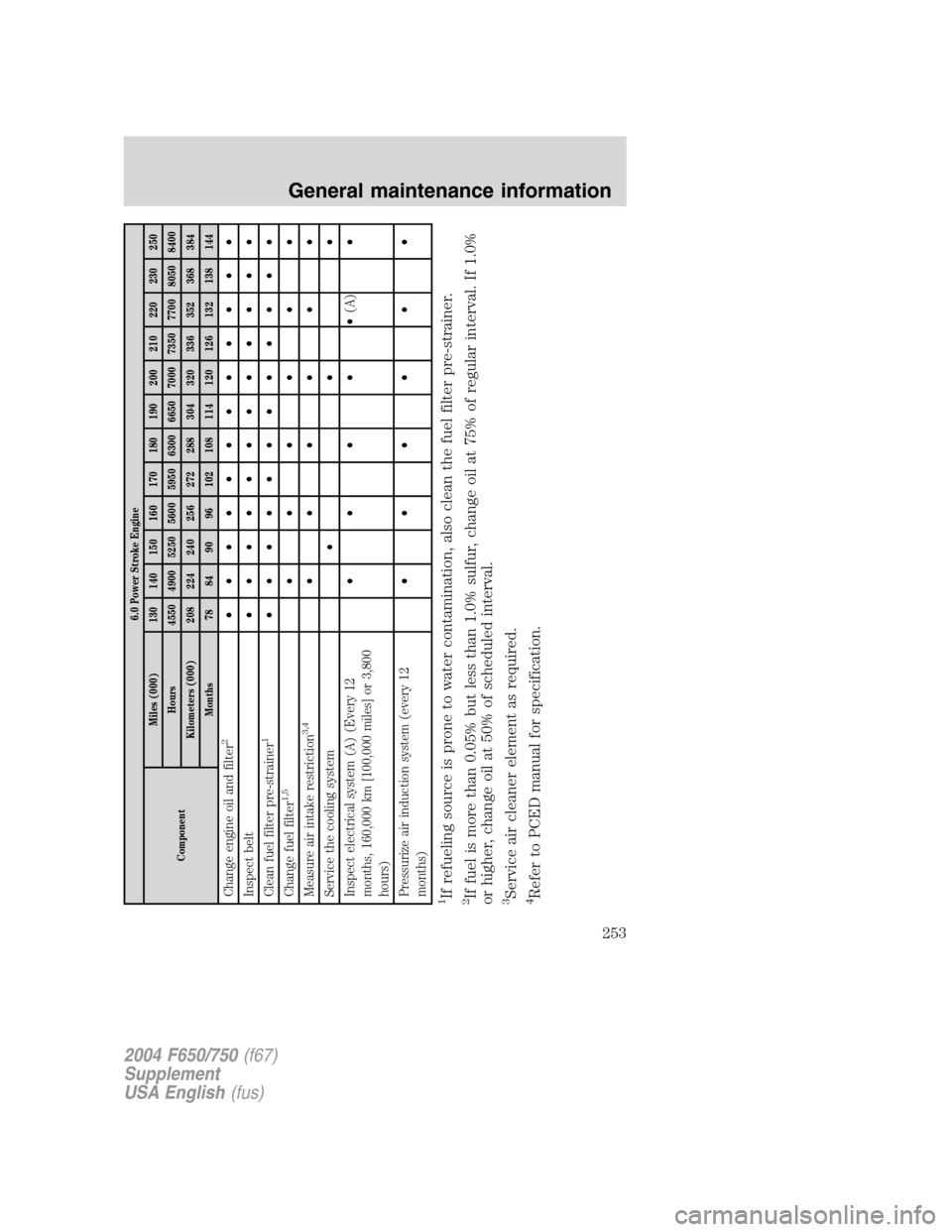

6.0 Power Stroke Engine
ComponentMiles (000) 130 140 150 160 170 180 190 200 210 220 230 250
Hours 4550 4900 5250 5600 5950 6300 6650 7000 7350 7700 8050 8400
Kilometers (000) 208 224 240 256 272 288 304 320 336 352 368 384
Months 78 84 90 96 102 108 114 120 126 132 138 144
Change engine oil and filter
2
••••••••••••
Inspect belt••••••••••••
Clean fuel filter pre-strainer
1
••••••••••••
Change fuel filter
1,5
••••••
Measure air intake restriction
3,4
••••••
Service the cooling system•••
Inspect electrical system (A) (Every 12
months, 160,000 km [100,000 miles] or 3,800
hours)•••••(A)•
Pressurize air induction system (every 12
months)••••••
1If refueling source is prone to water contamination, also clean the fuel filter pre-strainer.2If fuel is more than 0.05% but less than 1.0% sulfur, change oil at 75% of regular interval. If 1.0%
or higher, change oil at 50% of scheduled interval.3Service air cleaner element as required.4Refer to PCED manual for specification.
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
253

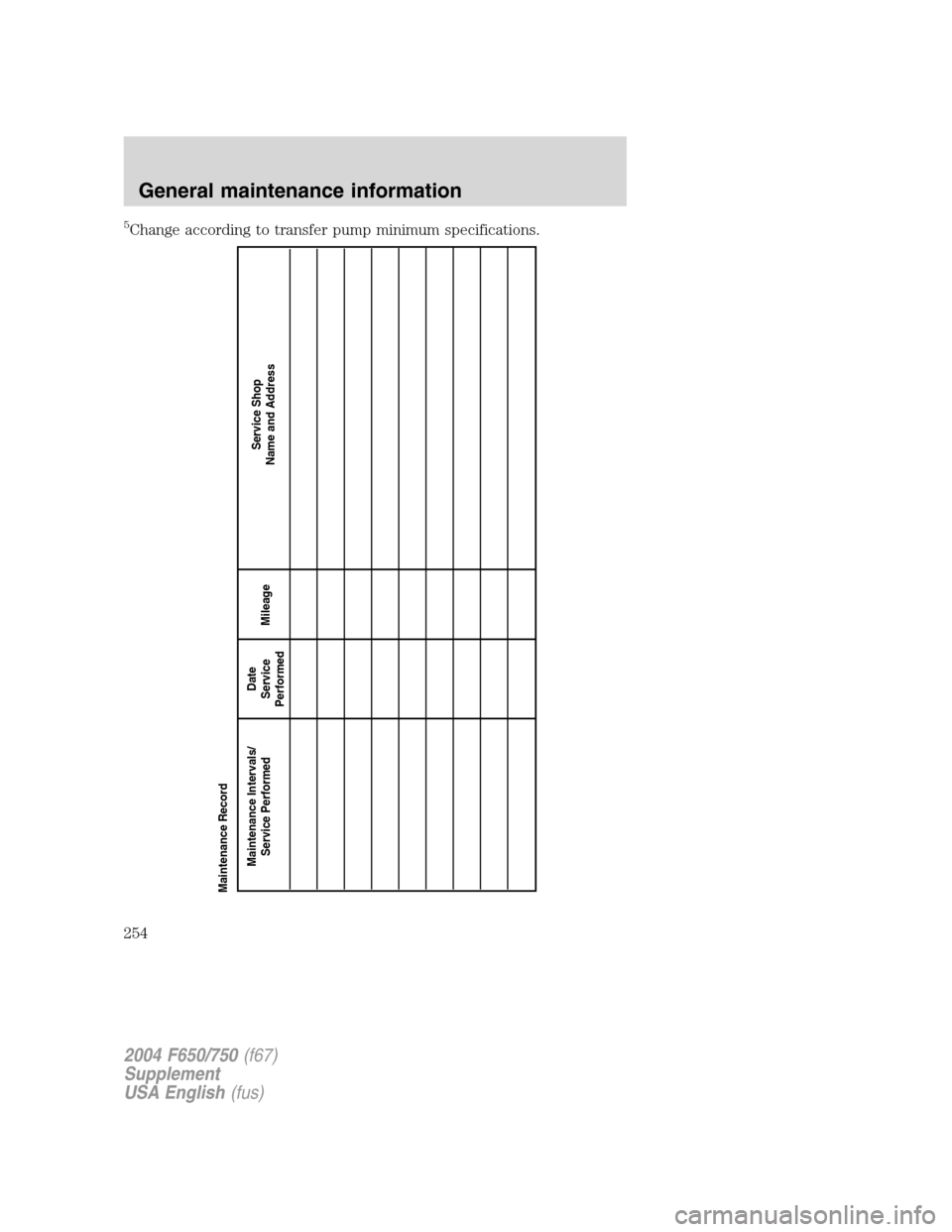

5Change according to transfer pump minimum specifications.
Maintenance Intervals/
Service PerformedService Shop
Name and Address Date
Service
PerformedMileage Maintenance Record
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
254

Maintenance Intervals/
Service PerformedService Shop
Name and Address Date
Service
PerformedMileage Maintenance Record
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
255

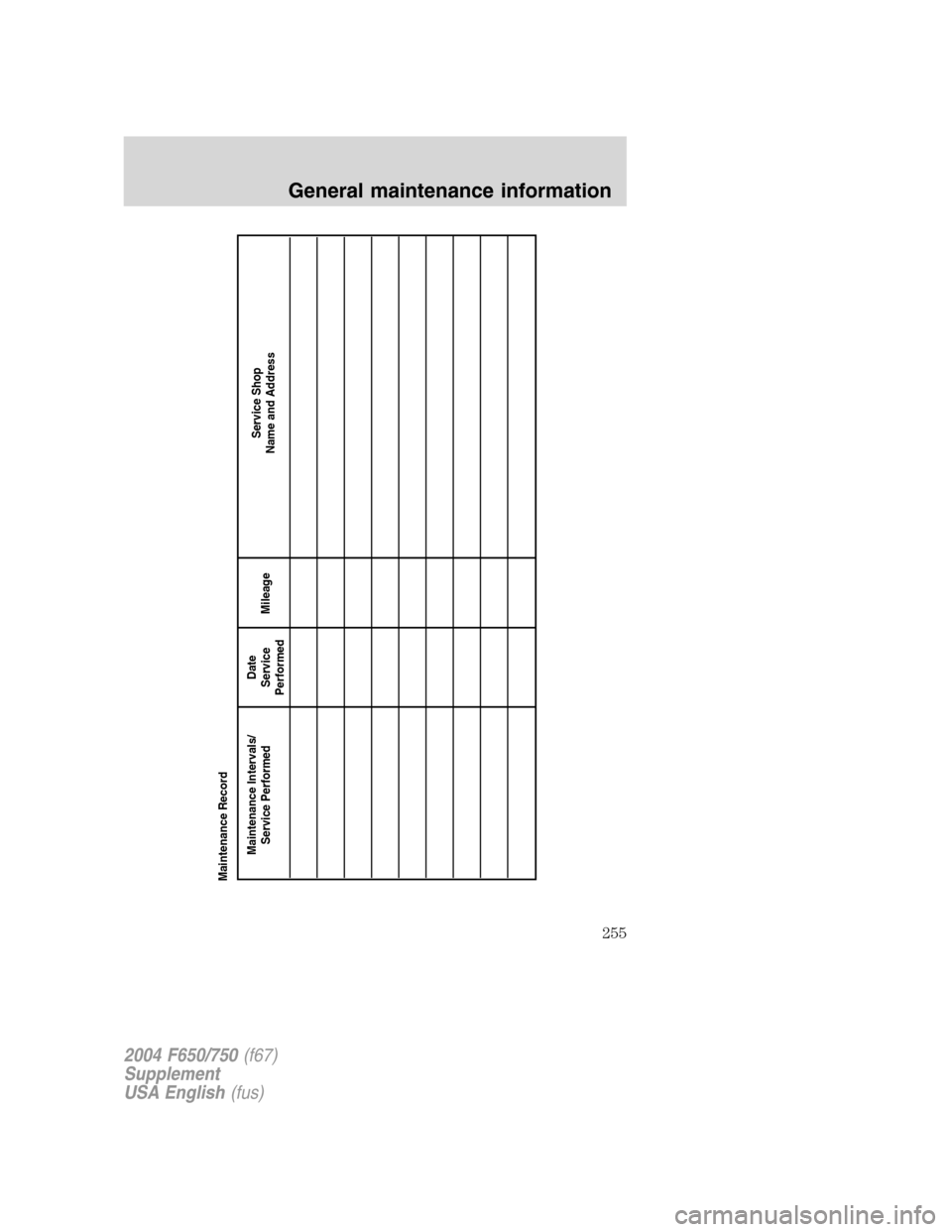

Maintenance Intervals/
Service PerformedService Shop
Name and Address Date
Service
PerformedMileage Maintenance Record
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
256

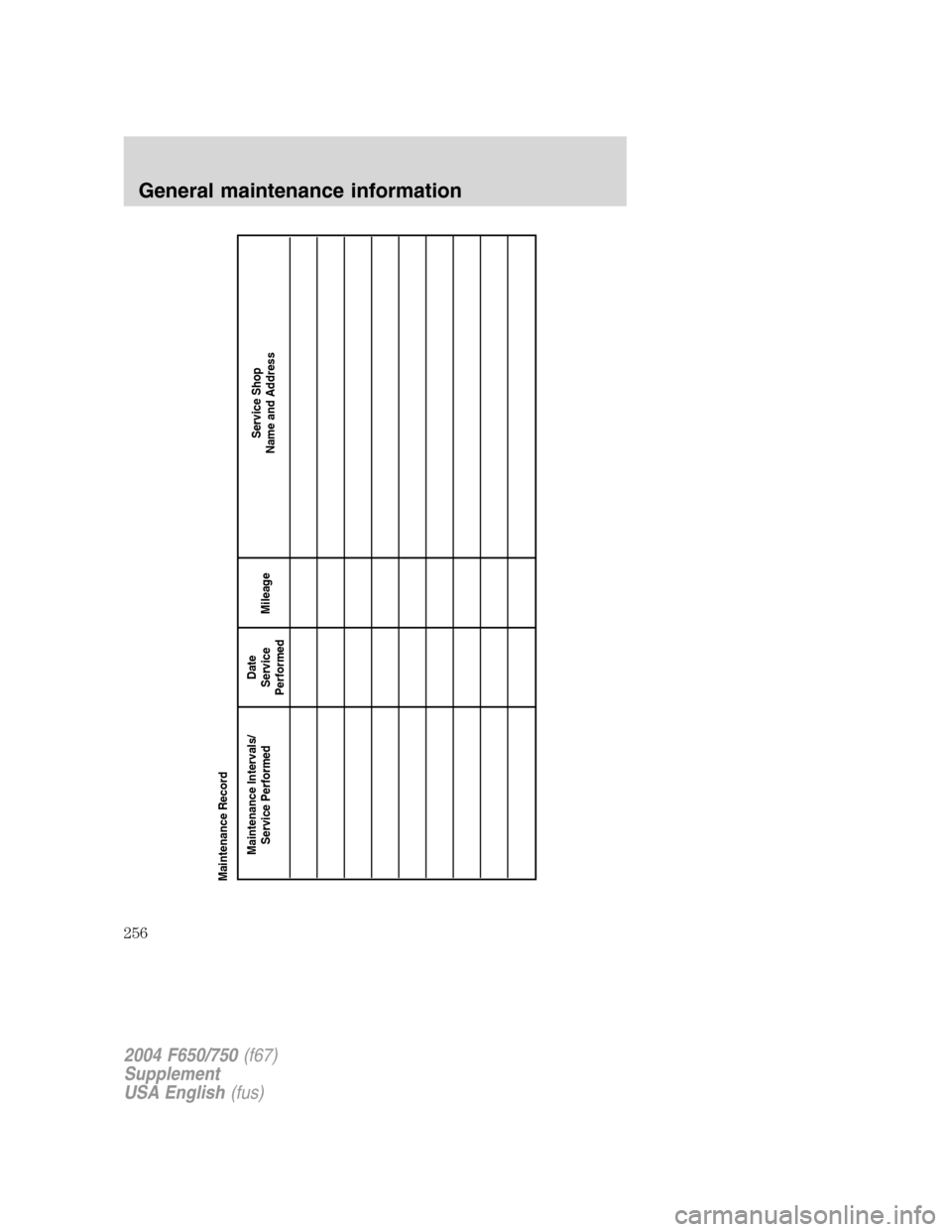

Maintenance Intervals/
Service PerformedService Shop
Name and Address Date
Service
PerformedMileage Maintenance Record
2004 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
257

A
Air conditioning ..........................43
manual heating and air
conditioning system .................43
Air suspension ...........................112
Anti-lock brake system
(see Brakes) ..............................110
Audio system
(see Radio) ................28, 30, 33, 37
Automatic transmission ............115
fluid, adding ............................181
fluid, checking ........................181
fluid, refill capacities ..............218
fluid, specification ..................207
Auxiliary power point .................52
Axle ............................127, 160, 198
lubricant specifications ..........207
refill capacities ........................217
B
Battery .......................................176
charging system warning
light ............................................20
jumping a disabled battery ....143
voltage gauge ............................24
BeltMinder ...................................73
Brakes ......................91–92, 97, 160
adjustment ..............................163
anti-lock ...........................110–111
anti-lock brake system (ABS)
warning light .....................20, 111
brake warning light ..................20
fluid, checking and
adding ..............................163, 175
fluid, specifications .................207
parking ................93–94, 100, 164
Bulbs ............................................47C
Cassette tape player ...................37
Catalytic converter
(see Emission control) .............183
CD-single premium .........28, 30, 33
Cell phone use ............................52
Child safety restraints ................78
child safety belts ......................78
Child safety seats ........................81
attaching with tether straps ....85
in front seat ..............................83
in rear seat ................................83
tether anchorage hardware .....85
Child safety seats - booster
seats .............................................79
Cleaning your vehicle
chrome and aluminum parts..155
engine compartment ..............155
exterior ....................................157
instrument panel ....................156
interior .....................................156
interior trim ............................156
plastic parts ............................156
washing ....................................154
waxing .....................................154
wheels ......................................155
Climate control (see Air
conditioning or Heating) ......42–43
Clutch ................................119, 180
adjusting ..................................180
fluid ..........................................180
operation while driving ..........119
specifications ..........................207
Controls
power seat .................................66
Coolant ......................................170
checking and adding ..............170
2004 F650/750(f67)
Supplement
USA English(fus)
Index
258

refill capacities ........................218
specifications ..........................207
temperature gauge ...................24
Cruise control
(see Speed control) ....................56
Customer Assistance ........136, 150
Getting assistance outside
the U.S. and Canada ......150–151
Getting roadside assistance ...136
Getting the service you
need .........................................150
Ordering additional owner’s
literature .................................152
D
Daytime running lamps
(see Lamps) ................................45
Defects, reporting .....................153
Defrost ...................................42–43
windshield ...........................42–43
with heating and air
conditioning system .................43
with standard heating
system .......................................42
Doors
lubricant specifications ..........207
Driving under special
conditions
through water ...........................91
E
Emergencies, roadside
jump-starting ..........................143
Emission control system ..193, 223
catalytic converter ..................183
Engine
cleaning ...................................155
lubrication specifications .......207Engine fan .................................174
Engine oil ..................................166
checking and adding ..............166
oil pressure gauge ....................24
recommendations ...................167
refill capacities ........................218
specifications ..........................207
F
Flashers, hazard ........................137
Fuel ............................................184
calculating fuel economy .......191
capacity ...................................219
choosing the right fuel ...........185
filling your vehicle with fuel ..184
filter, specifications ........187, 189
gauge .........................................24
improving fuel economy ........191
running out of fuel ...........87, 186
safety information relating
to automotive fuels ................184
Fuses ..........................................137
G
Gas mileage
(see Fuel economy) .................191
Gauges .........................................24
battery voltage gauge ...............24
engine coolant temperature
gauge .........................................24
engine oil pressure gauge ........24
fuel gauge ..................................24
odometer ...................................24
speedometer .............................24
tachometer ................................24
trip odometer ............................24
2004 F650/750(f67)
Supplement
USA English(fus)
Index
259

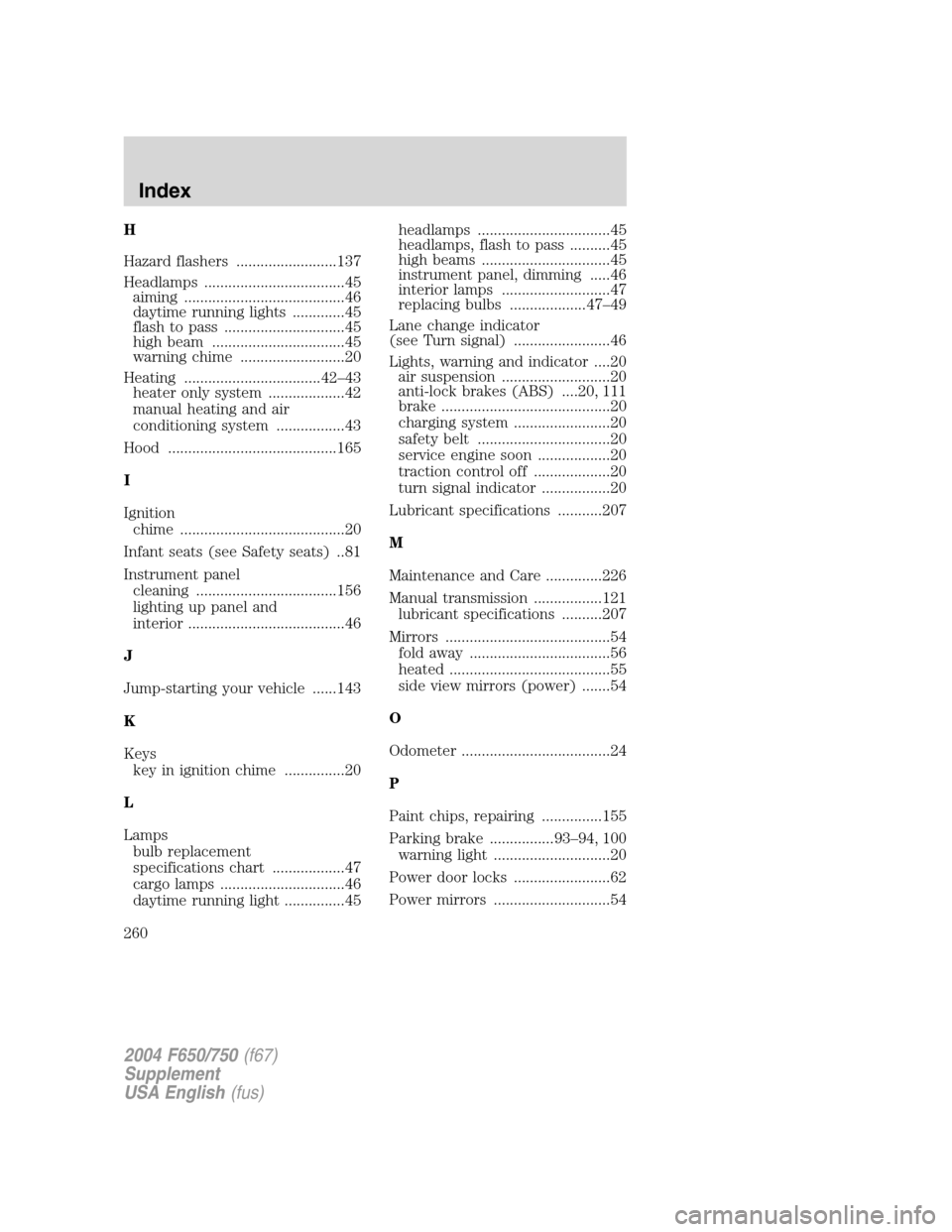

H
Hazard flashers .........................137
Headlamps ...................................45
aiming ........................................46
daytime running lights .............45
flash to pass ..............................45
high beam .................................45
warning chime ..........................20
Heating ..................................42–43
heater only system ...................42
manual heating and air
conditioning system .................43
Hood ..........................................165
I
Ignition
chime .........................................20
Infant seats (see Safety seats) ..81
Instrument panel
cleaning ...................................156
lighting up panel and
interior .......................................46
J
Jump-starting your vehicle ......143
K
Keys
key in ignition chime ...............20
L
Lamps
bulb replacement
specifications chart ..................47
cargo lamps ...............................46
daytime running light ...............45headlamps .................................45
headlamps, flash to pass ..........45
high beams ................................45
instrument panel, dimming .....46
interior lamps ...........................47
replacing bulbs ...................47–49
Lane change indicator
(see Turn signal) ........................46
Lights, warning and indicator ....20
air suspension ...........................20
anti-lock brakes (ABS) ....20, 111
brake ..........................................20
charging system ........................20
safety belt .................................20
service engine soon ..................20
traction control off ...................20
turn signal indicator .................20
Lubricant specifications ...........207
M
Maintenance and Care ..............226
Manual transmission .................121
lubricant specifications ..........207
Mirrors .........................................54
fold away ...................................56
heated ........................................55
side view mirrors (power) .......54
O
Odometer .....................................24
P
Paint chips, repairing ...............155
Parking brake ................93–94, 100
warning light .............................20
Power door locks ........................62
Power mirrors .............................54
2004 F650/750(f67)
Supplement
USA English(fus)
Index
260
