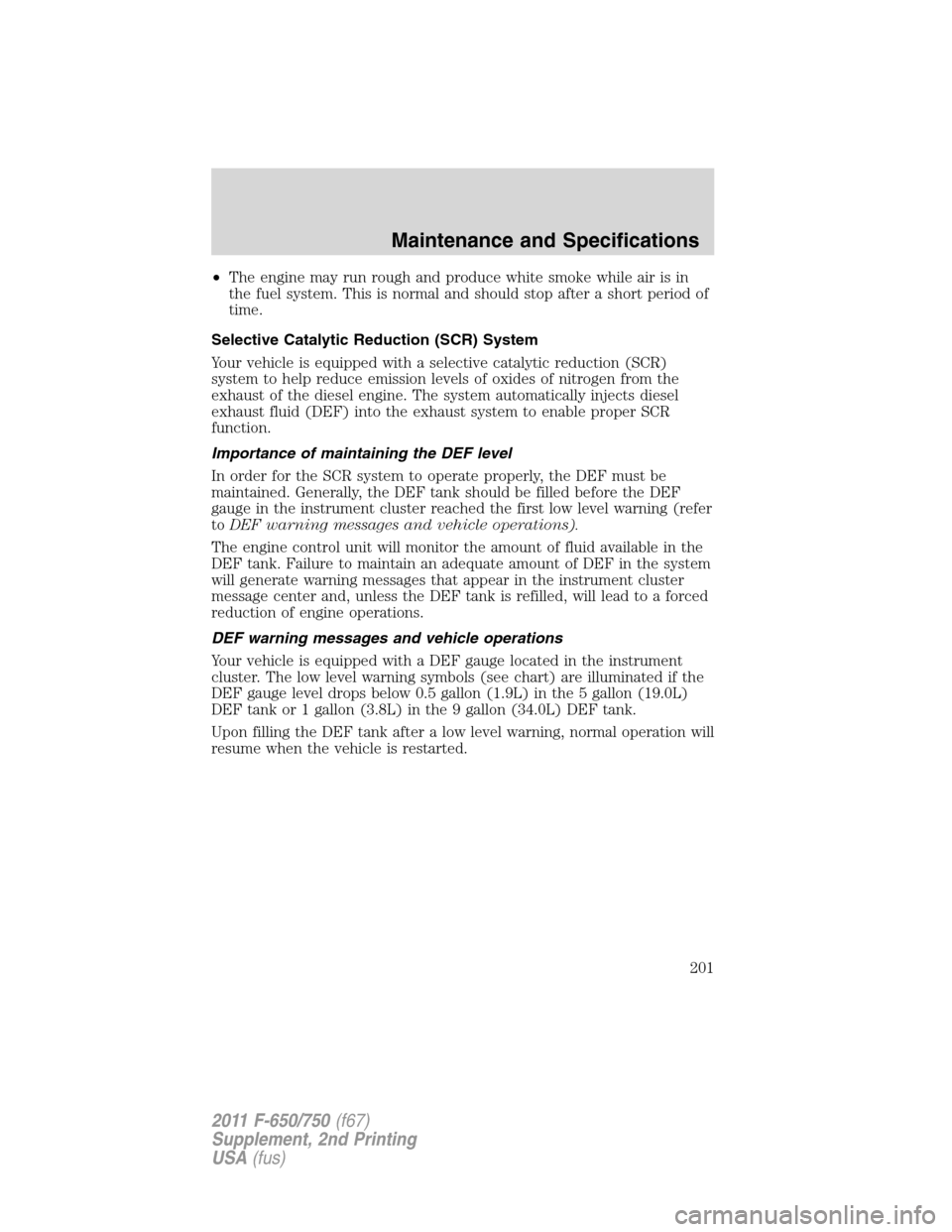

•The engine may run rough and produce white smoke while air is in
the fuel system. This is normal and should stop after a short period of
time.
Selective Catalytic Reduction (SCR) System
Your vehicle is equipped with a selective catalytic reduction (SCR)
system to help reduce emission levels of oxides of nitrogen from the
exhaust of the diesel engine. The system automatically injects diesel
exhaust fluid (DEF) into the exhaust system to enable proper SCR
function.
Importance of maintaining the DEF level
In order for the SCR system to operate properly, the DEF must be
maintained. Generally, the DEF tank should be filled before the DEF
gauge in the instrument cluster reached the first low level warning (refer
toDEF warning messages and vehicle operations).
The engine control unit will monitor the amount of fluid available in the
DEF tank. Failure to maintain an adequate amount of DEF in the system
will generate warning messages that appear in the instrument cluster
message center and, unless the DEF tank is refilled, will lead to a forced
reduction of engine operations.
DEF warning messages and vehicle operations
Your vehicle is equipped with a DEF gauge located in the instrument
cluster. The low level warning symbols (see chart) are illuminated if the
DEF gauge level drops below 0.5 gallon (1.9L) in the 5 gallon (19.0L)
DEF tank or 1 gallon (3.8L) in the 9 gallon (34.0L) DEF tank.
Upon filling the DEF tank after a low level warning, normal operation will
resume when the vehicle is restarted.
Maintenance and Specifications
201
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

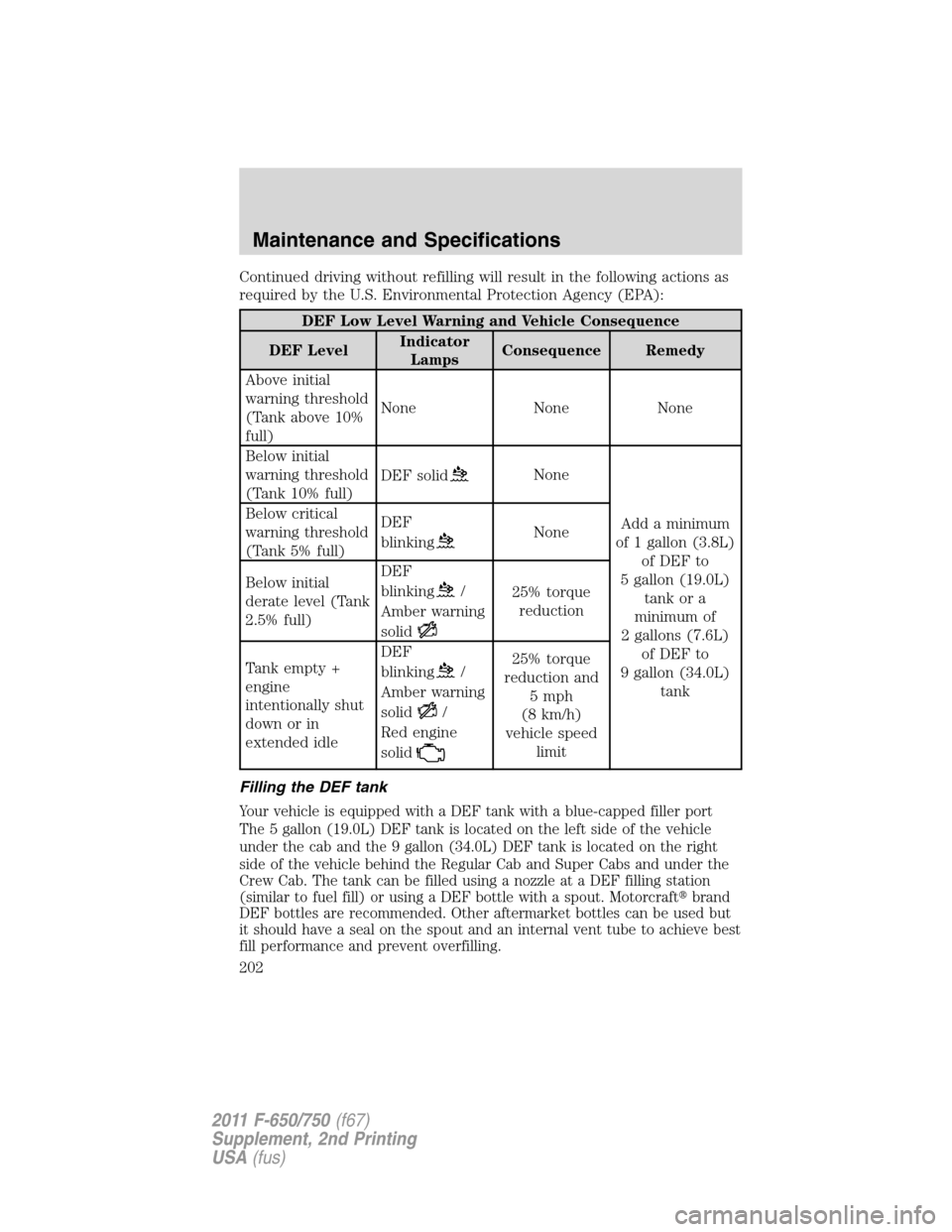

Continued driving without refilling will result in the following actions as
required by the U.S. Environmental Protection Agency (EPA):
DEF Low Level Warning and Vehicle Consequence
DEF LevelIndicator
LampsConsequence Remedy
Above initial
warning threshold
(Tank above 10%
full)None None None
Below initial
warning threshold
(Tank 10% full)DEF solid
None
Add a minimum
of 1 gallon (3.8L)
of DEF to
5 gallon (19.0L)
tank or a
minimum of
2 gallons (7.6L)
of DEF to
9 gallon (34.0L)
tank Below critical
warning threshold
(Tank 5% full)DEF
blinking
None
Below initial
derate level (Tank
2.5% full)DEF
blinking
/
Amber warning
solid25% torque
reduction
Tank empty +
engine
intentionally shut
down or in
extended idleDEF
blinking
/
Amber warning
solid
/
Red engine
solid
25% torque
reduction and
5 mph
(8 km/h)
vehicle speed
limit
Filling the DEF tank
Your vehicle is equipped with a DEF tank with a blue-capped filler port
The 5 gallon (19.0L) DEF tank is located on the left side of the vehicle
under the cab and the 9 gallon (34.0L) DEF tank is located on the right
side of the vehicle behind the Regular Cab and Super Cabs and under the
Crew Cab. The tank can be filled using a nozzle at a DEF filling station
(similar to fuel fill) or using a DEF bottle with a spout. Motorcraftbrand
DEF bottles are recommended. Other aftermarket bottles can be used but
it should have a seal on the spout and an internal vent tube to achieve best
fill performance and prevent overfilling.
Maintenance and Specifications
202
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

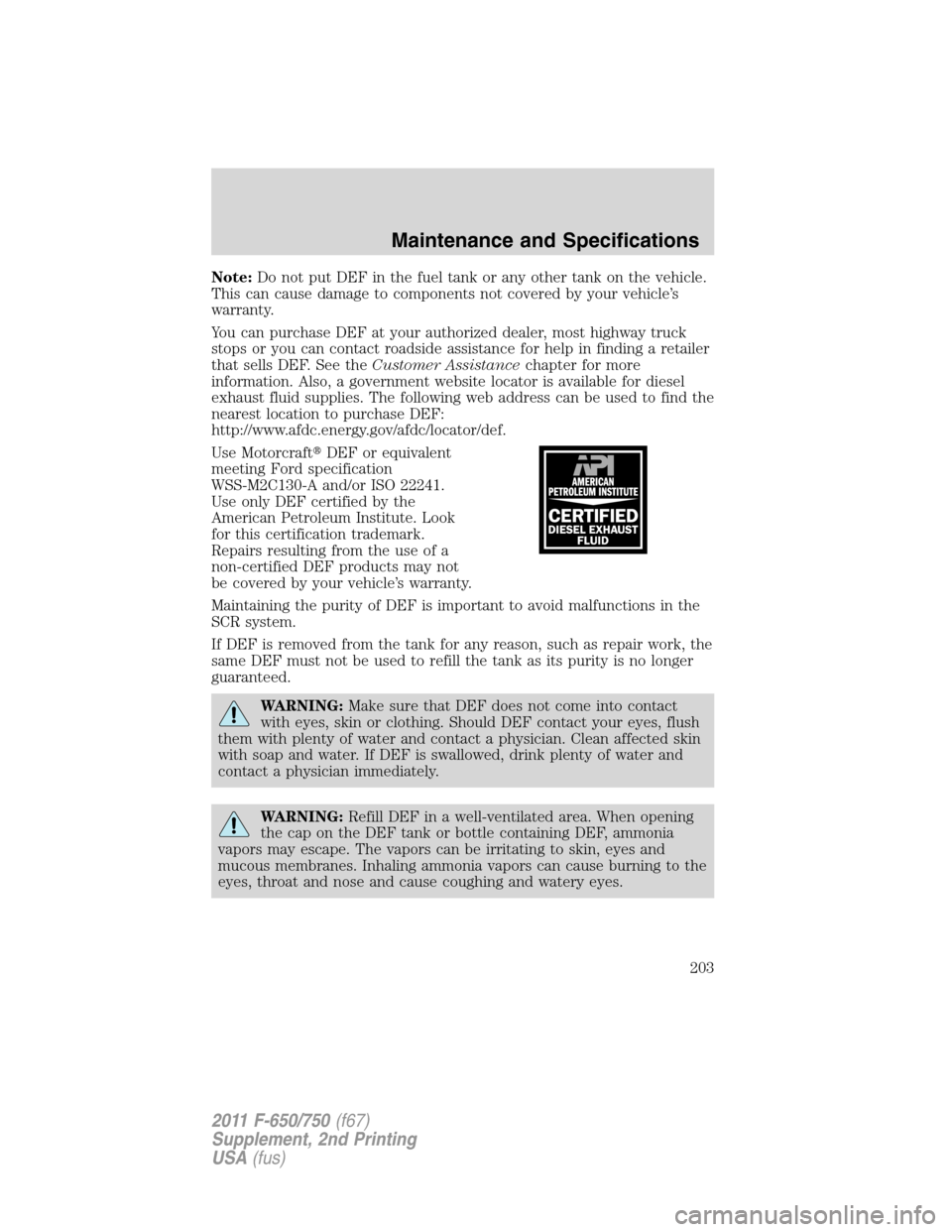

Note:Do not put DEF in the fuel tank or any other tank on the vehicle.
This can cause damage to components not covered by your vehicle’s
warranty.
You can purchase DEF at your authorized dealer, most highway truck
stops or you can contact roadside assistance for help in finding a retailer
that sells DEF. See theCustomer Assistancechapter for more
information. Also, a government website locator is available for diesel
exhaust fluid supplies. The following web address can be used to find the
nearest location to purchase DEF:
http://www.afdc.energy.gov/afdc/locator/def.
Use MotorcraftDEF or equivalent
meeting Ford specification
WSS-M2C130-A and/or ISO 22241.
Use only DEF certified by the
American Petroleum Institute. Look
for this certification trademark.
Repairs resulting from the use of a
non-certified DEF products may not
be covered by your vehicle’s warranty.
Maintaining the purity of DEF is important to avoid malfunctions in the
SCR system.
If DEF is removed from the tank for any reason, such as repair work, the
same DEF must not be used to refill the tank as its purity is no longer
guaranteed.
WARNING:Make sure that DEF does not come into contact
with eyes, skin or clothing. Should DEF contact your eyes, flush
them with plenty of water and contact a physician. Clean affected skin
with soap and water. If DEF is swallowed, drink plenty of water and
contact a physician immediately.
WARNING:Refill DEF in a well-ventilated area. When opening
the cap on the DEF tank or bottle containing DEF, ammonia
vapors may escape. The vapors can be irritating to skin, eyes and
mucous membranes. Inhaling ammonia vapors can cause burning to the
eyes, throat and nose and cause coughing and watery eyes.
Maintenance and Specifications
203
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

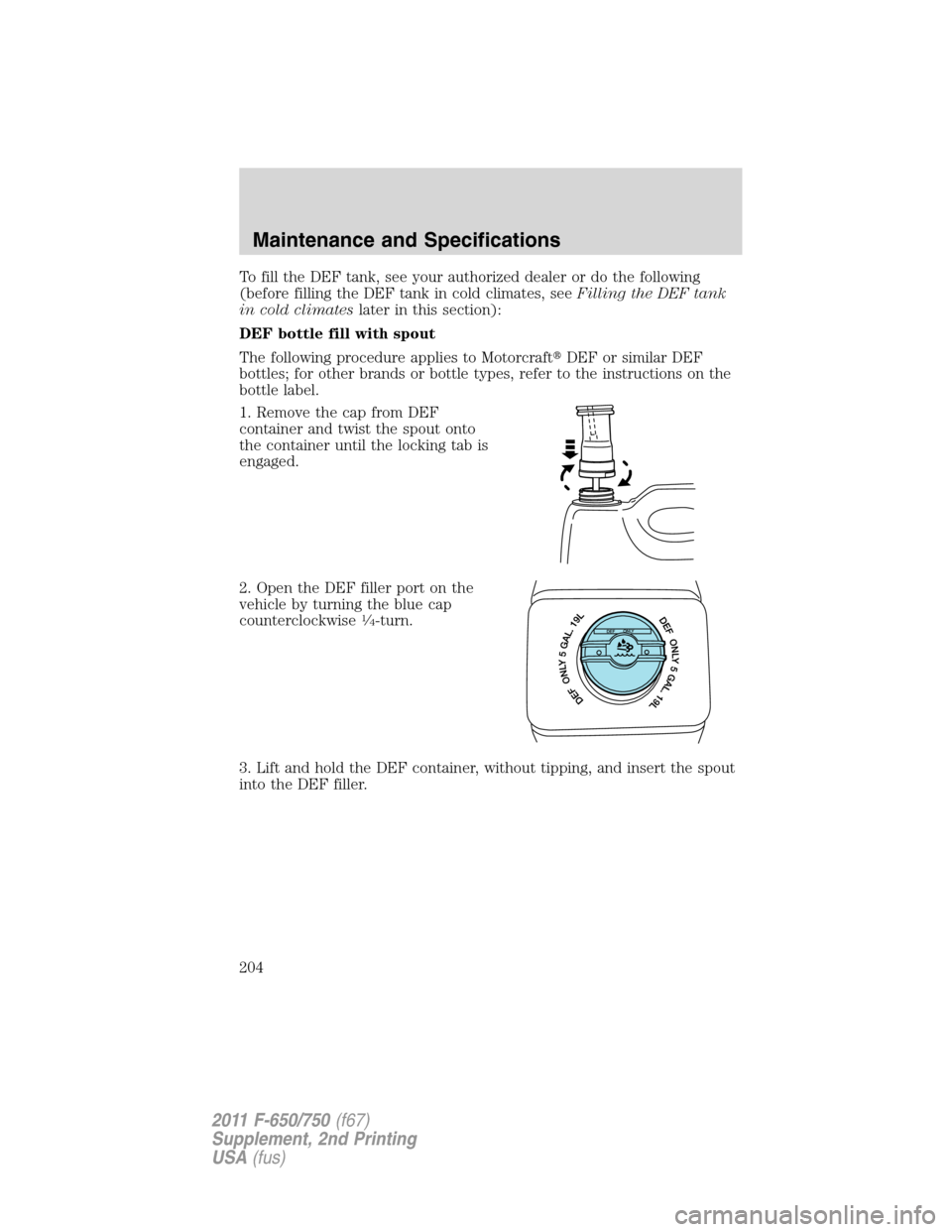

To fill the DEF tank, see your authorized dealer or do the following
(before filling the DEF tank in cold climates, seeFilling the DEF tank
in cold climateslater in this section):
DEF bottle fill with spout
The following procedure applies to MotorcraftDEF or similar DEF
bottles; for other brands or bottle types, refer to the instructions on the
bottle label.
1. Remove the cap from DEF
container and twist the spout onto
the container until the locking tab is
engaged.
2. Open the DEF filler port on the
vehicle by turning the blue cap
counterclockwise
14-turn.
3. Lift and hold the DEF container, without tipping, and insert the spout
into the DEF filler.
Maintenance and Specifications
204
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

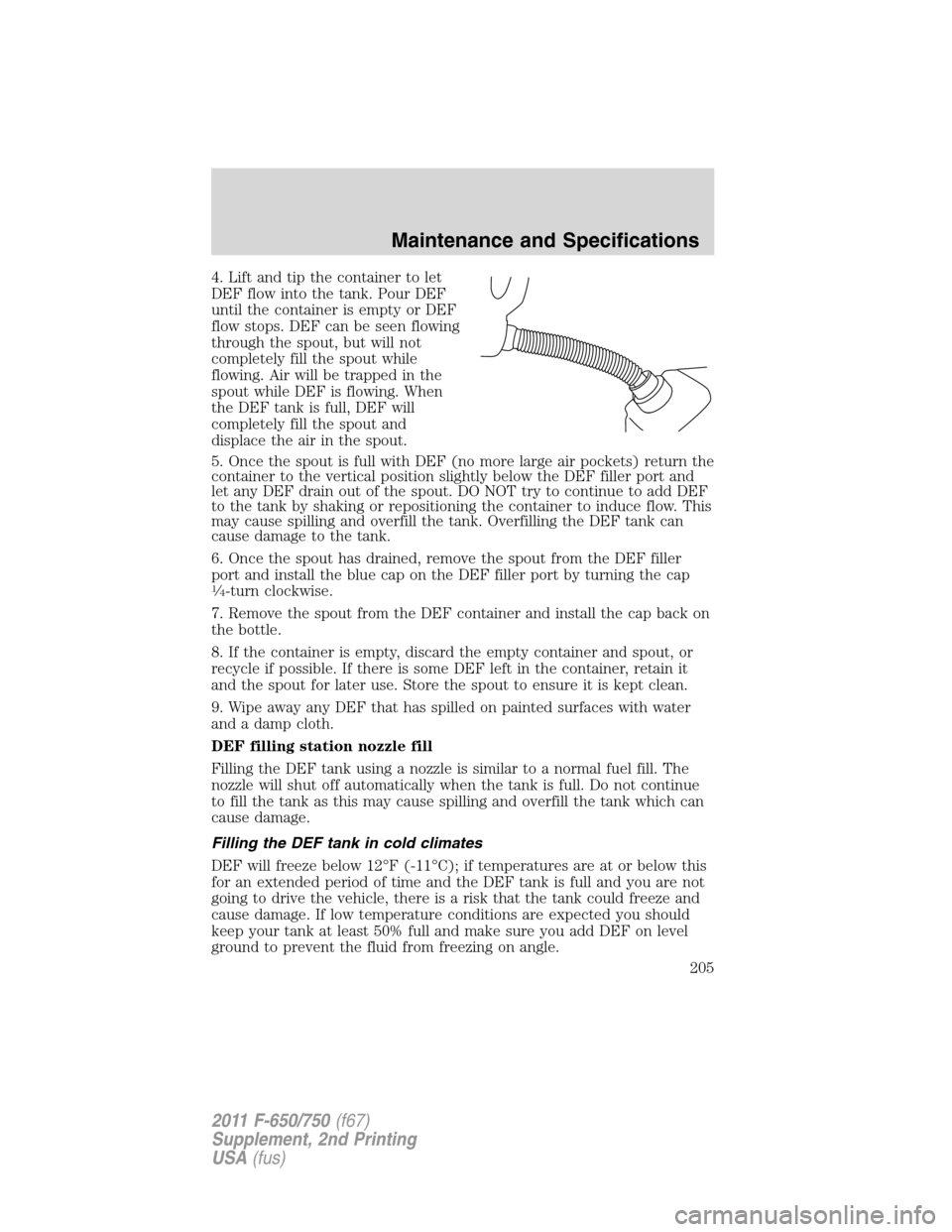

4. Lift and tip the container to let
DEF flow into the tank. Pour DEF
until the container is empty or DEF
flow stops. DEF can be seen flowing
through the spout, but will not
completely fill the spout while
flowing. Air will be trapped in the
spout while DEF is flowing. When
the DEF tank is full, DEF will
completely fill the spout and
displace the air in the spout.
5. Once the spout is full with DEF (no more large air pockets) return the
container to the vertical position slightly below the DEF filler port and
let any DEF drain out of the spout. DO NOT try to continue to add DEF
to the tank by shaking or repositioning the container to induce flow. This
may cause spilling and overfill the tank. Overfilling the DEF tank can
cause damage to the tank.
6. Once the spout has drained, remove the spout from the DEF filler
port and install the blue cap on the DEF filler port by turning the cap
14-turn clockwise.
7. Remove the spout from the DEF container and install the cap back on
the bottle.
8. If the container is empty, discard the empty container and spout, or
recycle if possible. If there is some DEF left in the container, retain it
and the spout for later use. Store the spout to ensure it is kept clean.
9. Wipe away any DEF that has spilled on painted surfaces with water
and a damp cloth.
DEF filling station nozzle fill
Filling the DEF tank using a nozzle is similar to a normal fuel fill. The
nozzle will shut off automatically when the tank is full. Do not continue
to fill the tank as this may cause spilling and overfill the tank which can
cause damage.
Filling the DEF tank in cold climates
DEF will freeze below 12°F (-11°C); if temperatures are at or below this
for an extended period of time and the DEF tank is full and you are not
going to drive the vehicle, there is a risk that the tank could freeze and
cause damage. If low temperature conditions are expected you should
keep your tank at least 50% full and make sure you add DEF on level
ground to prevent the fluid from freezing on angle.
Maintenance and Specifications
205
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

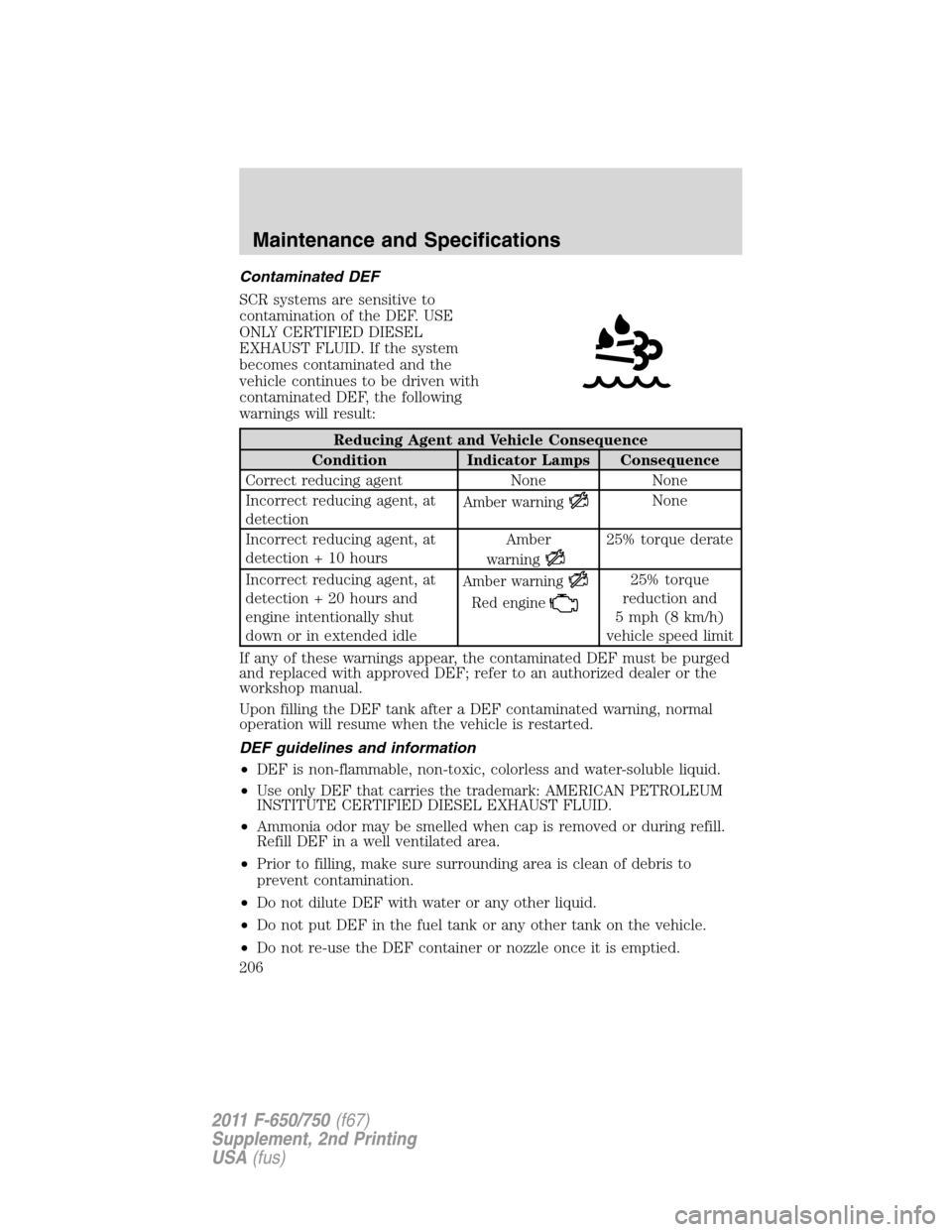

Contaminated DEF
SCR systems are sensitive to
contamination of the DEF. USE
ONLY CERTIFIED DIESEL
EXHAUST FLUID. If the system
becomes contaminated and the
vehicle continues to be driven with
contaminated DEF, the following
warnings will result:
Reducing Agent and Vehicle Consequence
Condition Indicator Lamps Consequence
Correct reducing agent None None
Incorrect reducing agent, at
detection
Amber warningNone
Incorrect reducing agent, at
detection + 10 hoursAmber
warning
25% torque derate
Incorrect reducing agent, at
detection + 20 hours and
engine intentionally shut
down or in extended idle
Amber warning
Red engine
25% torque
reduction and
5 mph (8 km/h)
vehicle speed limit
If any of these warnings appear, the contaminated DEF must be purged
and replaced with approved DEF; refer to an authorized dealer or the
workshop manual.
Upon filling the DEF tank after a DEF contaminated warning, normal
operation will resume when the vehicle is restarted.
DEF guidelines and information
•DEF is non-flammable, non-toxic, colorless and water-soluble liquid.
•Use only DEF that carries the trademark: AMERICAN PETROLEUM
INSTITUTE CERTIFIED DIESEL EXHAUST FLUID.
•Ammonia odor may be smelled when cap is removed or during refill.
Refill DEF in a well ventilated area.
•Prior to filling, make sure surrounding area is clean of debris to
prevent contamination.
•Do not dilute DEF with water or any other liquid.
•Do not put DEF in the fuel tank or any other tank on the vehicle.
•Do not re-use the DEF container or nozzle once it is emptied.
Maintenance and Specifications
206
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

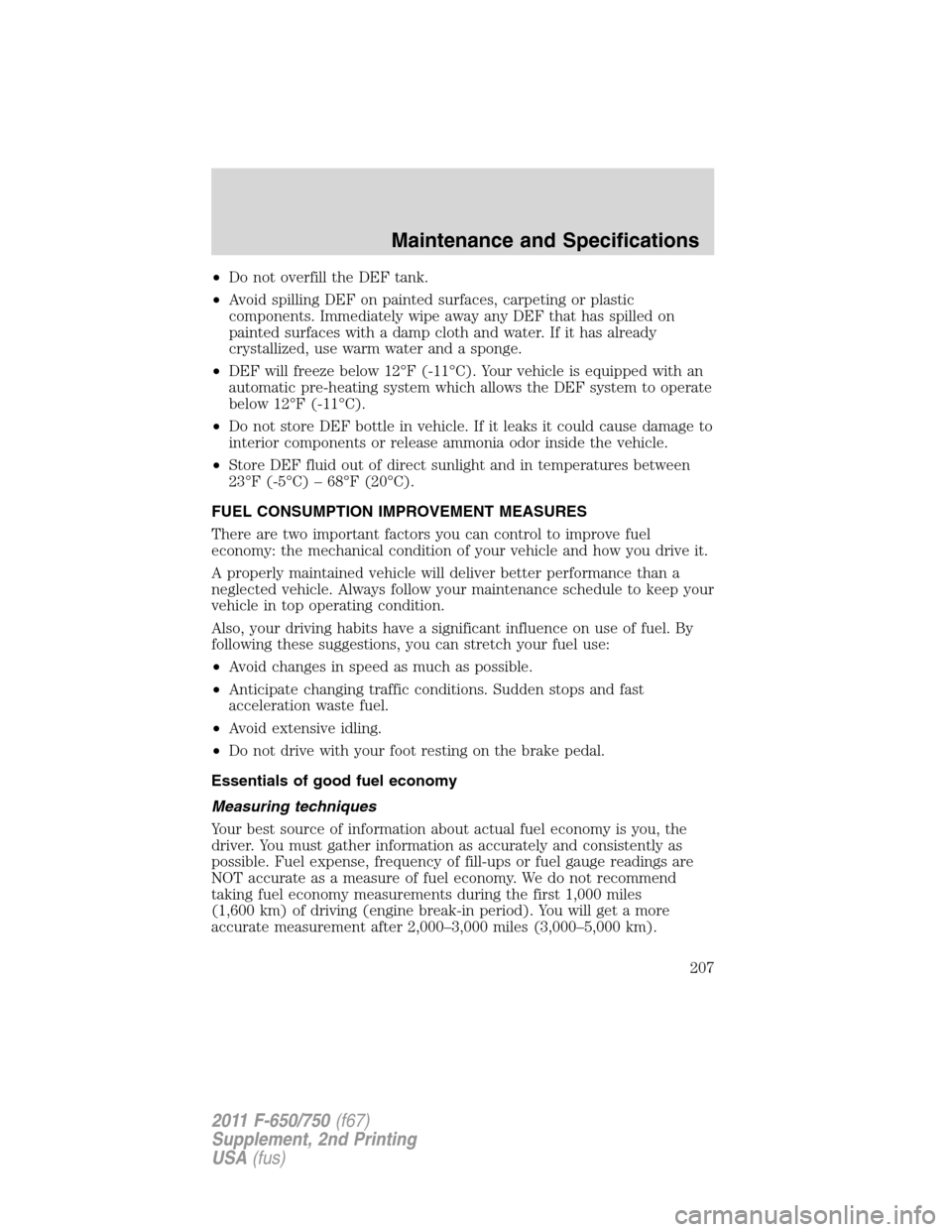

•Do not overfill the DEF tank.
•Avoid spilling DEF on painted surfaces, carpeting or plastic
components. Immediately wipe away any DEF that has spilled on
painted surfaces with a damp cloth and water. If it has already
crystallized, use warm water and a sponge.
•DEF will freeze below 12°F (-11°C). Your vehicle is equipped with an
automatic pre-heating system which allows the DEF system to operate
below 12°F (-11°C).
•Do not store DEF bottle in vehicle. If it leaks it could cause damage to
interior components or release ammonia odor inside the vehicle.
•Store DEF fluid out of direct sunlight and in temperatures between
23°F (-5°C) – 68°F (20°C).
FUEL CONSUMPTION IMPROVEMENT MEASURES
There are two important factors you can control to improve fuel
economy: the mechanical condition of your vehicle and how you drive it.
A properly maintained vehicle will deliver better performance than a
neglected vehicle. Always follow your maintenance schedule to keep your
vehicle in top operating condition.
Also, your driving habits have a significant influence on use of fuel. By
following these suggestions, you can stretch your fuel use:
•Avoid changes in speed as much as possible.
•Anticipate changing traffic conditions. Sudden stops and fast
acceleration waste fuel.
•Avoid extensive idling.
•Do not drive with your foot resting on the brake pedal.
Essentials of good fuel economy
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles
(1,600 km) of driving (engine break-in period). You will get a more
accurate measurement after 2,000–3,000 miles (3,000–5,000 km).
Maintenance and Specifications
207
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

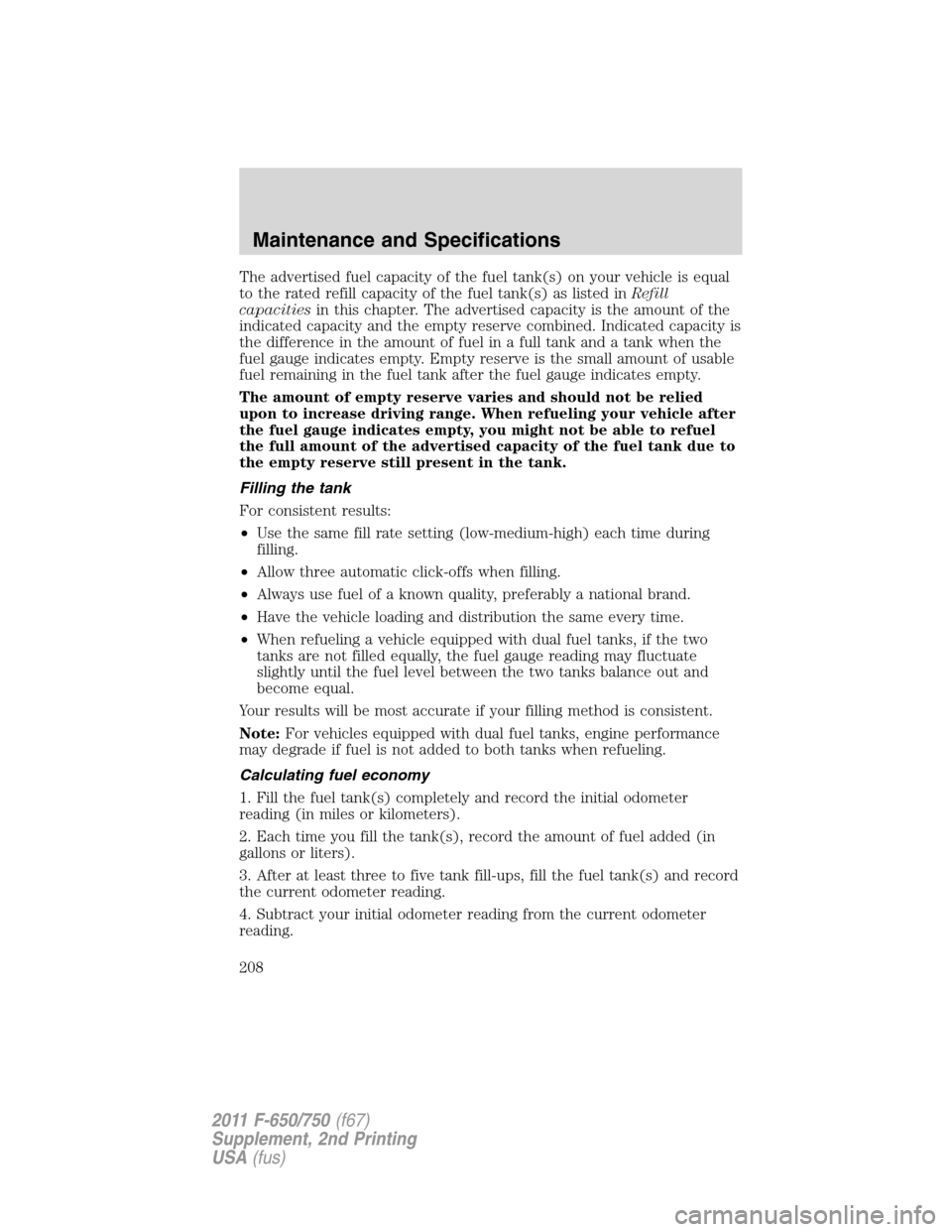

The advertised fuel capacity of the fuel tank(s) on your vehicle is equal
to the rated refill capacity of the fuel tank(s) as listed inRefill
capacitiesin this chapter. The advertised capacity is the amount of the
indicated capacity and the empty reserve combined. Indicated capacity is
the difference in the amount of fuel in a full tank and a tank when the
fuel gauge indicates empty. Empty reserve is the small amount of usable
fuel remaining in the fuel tank after the fuel gauge indicates empty.
The amount of empty reserve varies and should not be relied
upon to increase driving range. When refueling your vehicle after
the fuel gauge indicates empty, you might not be able to refuel
the full amount of the advertised capacity of the fuel tank due to
the empty reserve still present in the tank.
Filling the tank
For consistent results:
•Use the same fill rate setting (low-medium-high) each time during
filling.
•Allow three automatic click-offs when filling.
•Always use fuel of a known quality, preferably a national brand.
•Have the vehicle loading and distribution the same every time.
•When refueling a vehicle equipped with dual fuel tanks, if the two
tanks are not filled equally, the fuel gauge reading may fluctuate
slightly until the fuel level between the two tanks balance out and
become equal.
Your results will be most accurate if your filling method is consistent.
Note:For vehicles equipped with dual fuel tanks, engine performance
may degrade if fuel is not added to both tanks when refueling.
Calculating fuel economy
1. Fill the fuel tank(s) completely and record the initial odometer
reading (in miles or kilometers).
2. Each time you fill the tank(s), record the amount of fuel added (in
gallons or liters).
3. After at least three to five tank fill-ups, fill the fuel tank(s) and record
the current odometer reading.
4. Subtract your initial odometer reading from the current odometer
reading.
Maintenance and Specifications
208
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

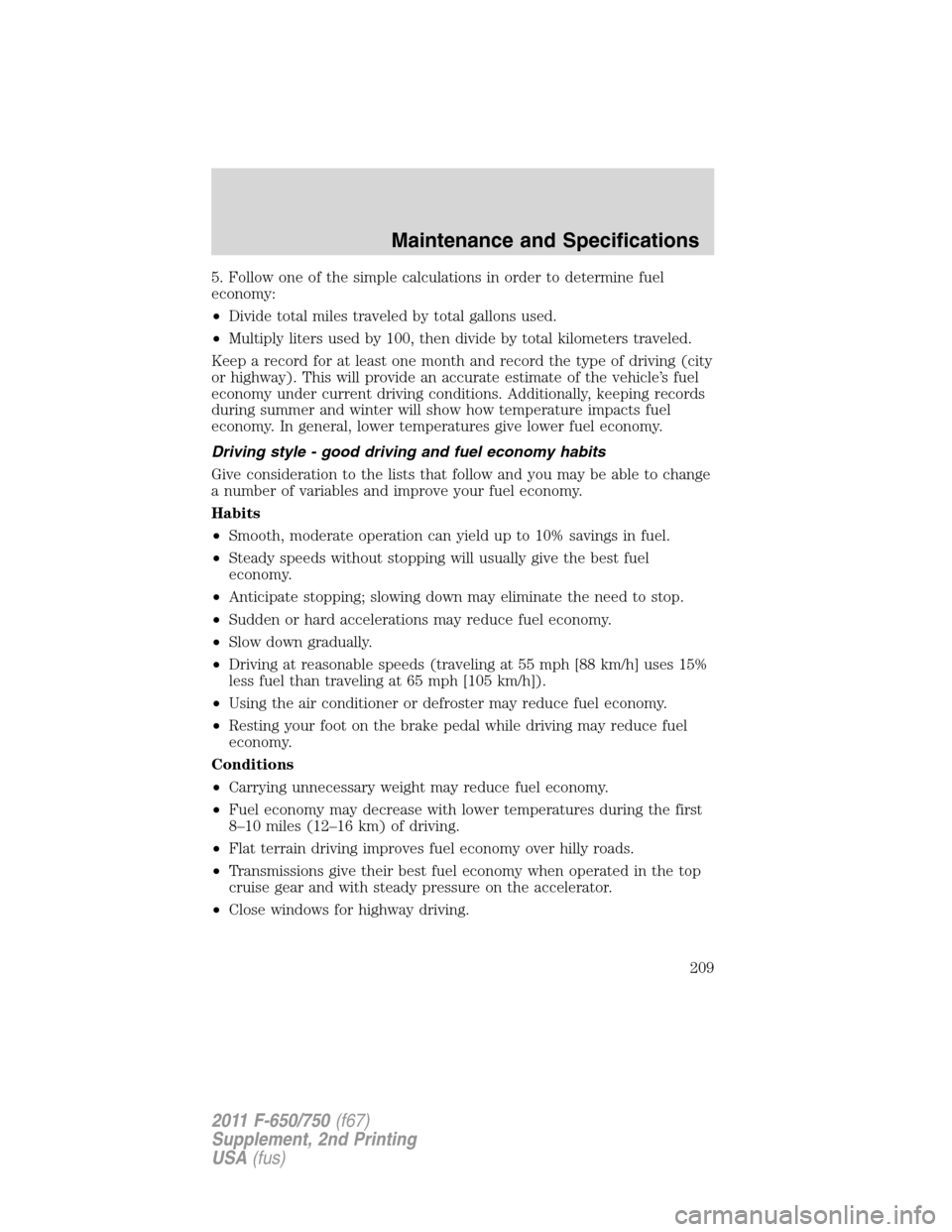

5. Follow one of the simple calculations in order to determine fuel
economy:
•Divide total miles traveled by total gallons used.
•Multiply liters used by 100, then divide by total kilometers traveled.
Keep a record for at least one month and record the type of driving (city
or highway). This will provide an accurate estimate of the vehicle’s fuel
economy under current driving conditions. Additionally, keeping records
during summer and winter will show how temperature impacts fuel
economy. In general, lower temperatures give lower fuel economy.
Driving style - good driving and fuel economy habits
Give consideration to the lists that follow and you may be able to change
a number of variables and improve your fuel economy.
Habits
•Smooth, moderate operation can yield up to 10% savings in fuel.
•Steady speeds without stopping will usually give the best fuel
economy.
•Anticipate stopping; slowing down may eliminate the need to stop.
•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
•Using the air conditioner or defroster may reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
Conditions
•Carrying unnecessary weight may reduce fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Flat terrain driving improves fuel economy over hilly roads.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the accelerator.
•Close windows for highway driving.
Maintenance and Specifications
209
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

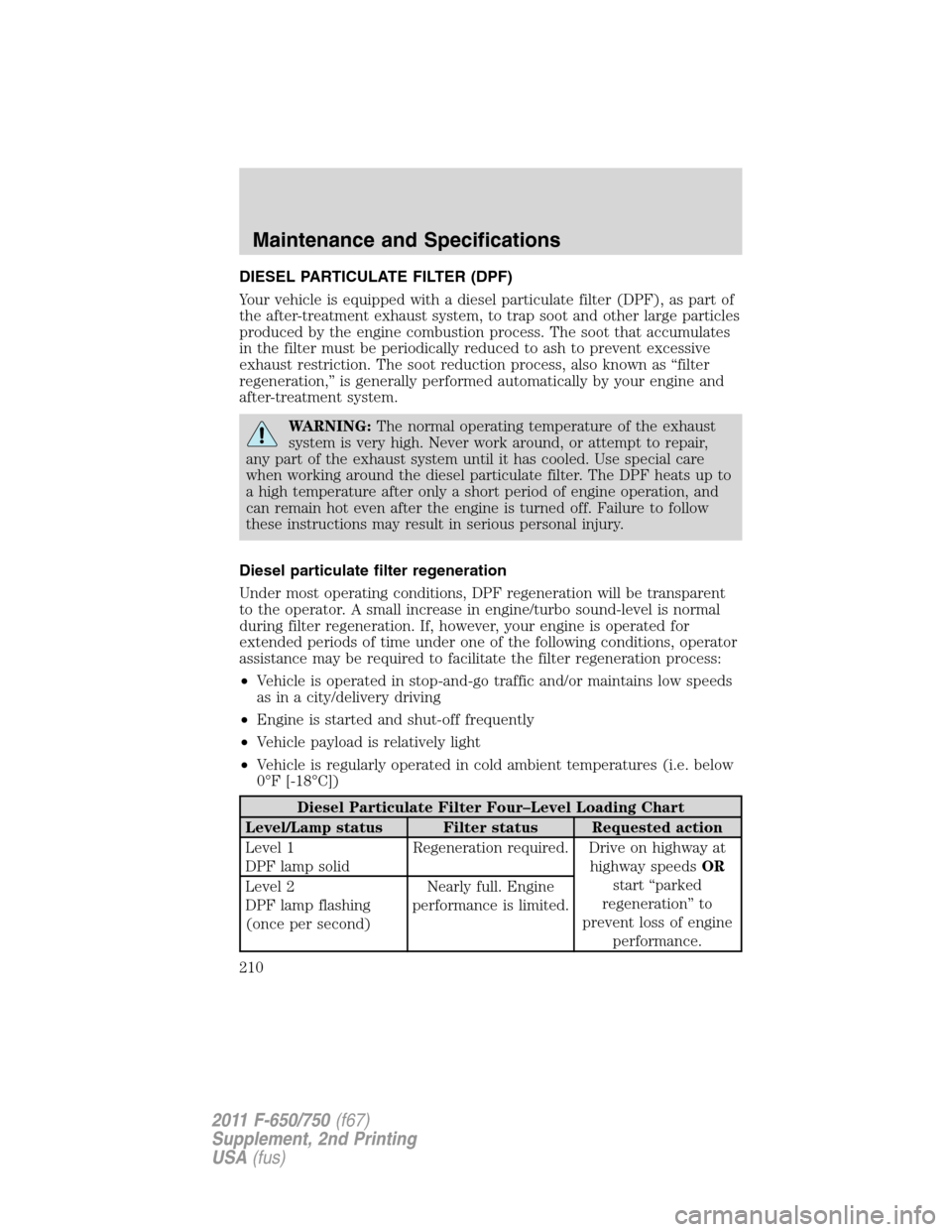

DIESEL PARTICULATE FILTER (DPF)
Your vehicle is equipped with a diesel particulate filter (DPF), as part of
the after-treatment exhaust system, to trap soot and other large particles
produced by the engine combustion process. The soot that accumulates
in the filter must be periodically reduced to ash to prevent excessive
exhaust restriction. The soot reduction process, also known as “filter
regeneration,” is generally performed automatically by your engine and
after-treatment system.
WARNING:The normal operating temperature of the exhaust
system is very high. Never work around, or attempt to repair,
any part of the exhaust system until it has cooled. Use special care
when working around the diesel particulate filter. The DPF heats up to
a high temperature after only a short period of engine operation, and
can remain hot even after the engine is turned off. Failure to follow
these instructions may result in serious personal injury.
Diesel particulate filter regeneration
Under most operating conditions, DPF regeneration will be transparent
to the operator. A small increase in engine/turbo sound-level is normal
during filter regeneration. If, however, your engine is operated for
extended periods of time under one of the following conditions, operator
assistance may be required to facilitate the filter regeneration process:
•Vehicle is operated in stop-and-go traffic and/or maintains low speeds
as in a city/delivery driving
•Engine is started and shut-off frequently
•Vehicle payload is relatively light
•Vehicle is regularly operated in cold ambient temperatures (i.e. below
0°F [-18°C])
Diesel Particulate Filter Four–Level Loading Chart
Level/Lamp status Filter status Requested action
Level 1
DPF lamp solidRegeneration required. Drive on highway at
highway speedsOR
start “parked
regeneration” to
prevent loss of engine
performance. Level 2
DPF lamp flashing
(once per second)Nearly full. Engine
performance is limited.
Maintenance and Specifications
210
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
