FORD F750 2011 12.G Owners Manual

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

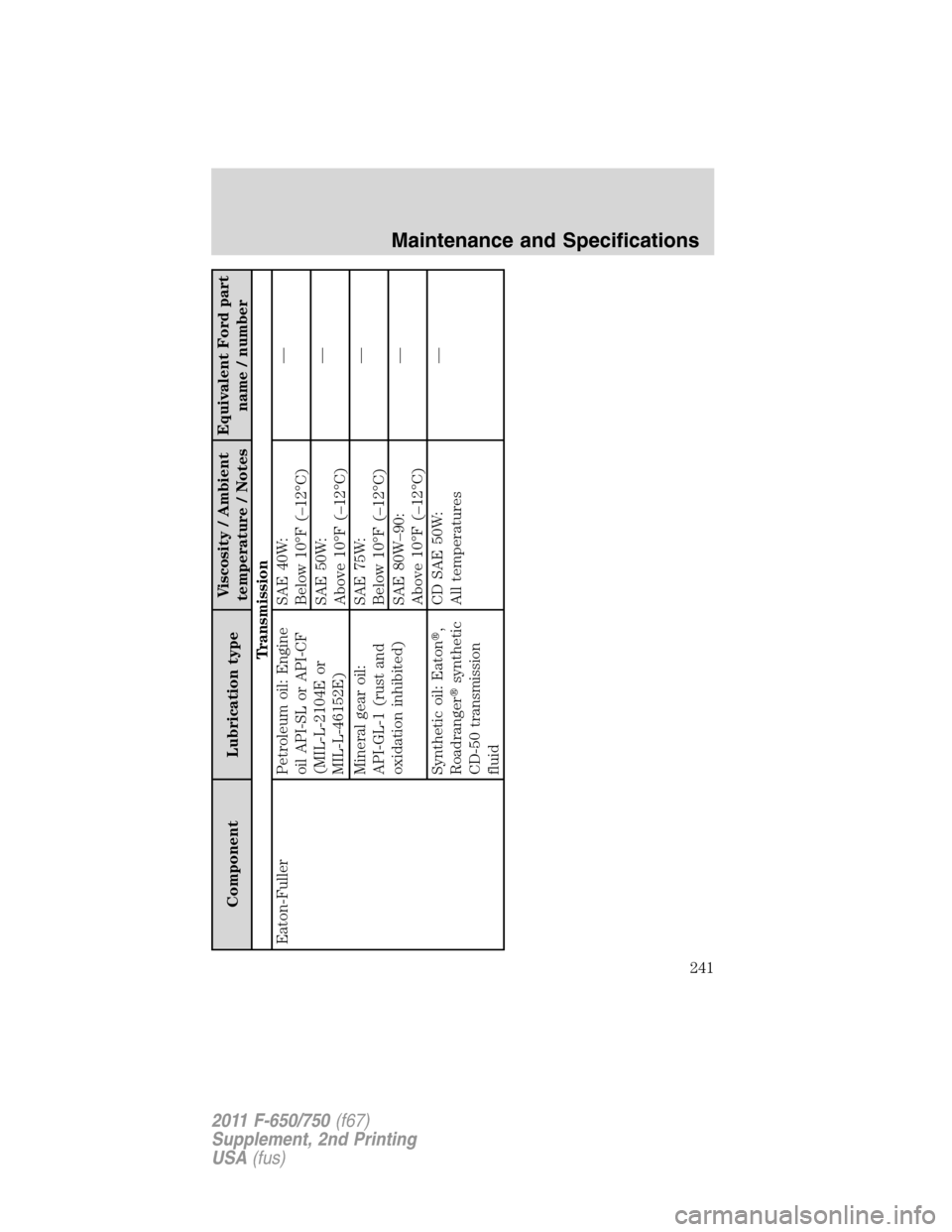

Transmission
Eaton-Fuller Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 10°F (–12°C)—
SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)SAE 75W:
Below 10°F (–12°C)—
SAE 80W–90:
Above 10°F (–12°C)—
Synthetic oil: Eaton,
Roadrangersynthetic
CD-50 transmission
fluidCD SAE 50W:
All temperatures—
Maintenance and Specifications
241
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

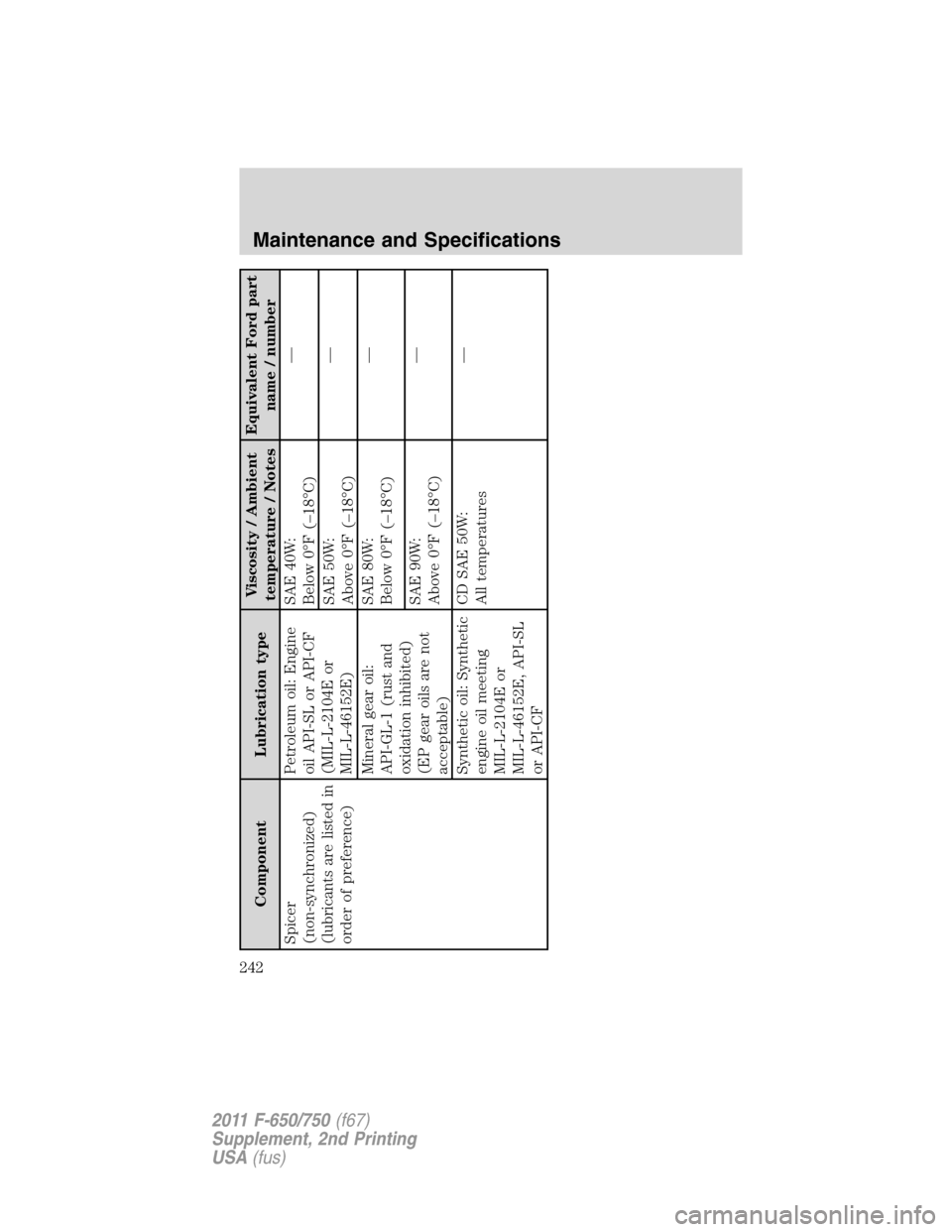

Spicer
(non-synchronized)
(lubricants are listed in
order of preference)Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 0°F (–18°C)—
SAE 50W:
Above 0°F (–18°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)
(EP gear oils are not
acceptable)SAE 80W:
Below 0°F (–18°C)—
SAE 90W:
Above 0°F (–18°C)—
Synthetic oil: Synthetic
engine oil meeting
MIL-L-2104E or
MIL-L-46152E, API-SL
or API-CFCD SAE 50W:
All temperatures—
Maintenance and Specifications
242
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

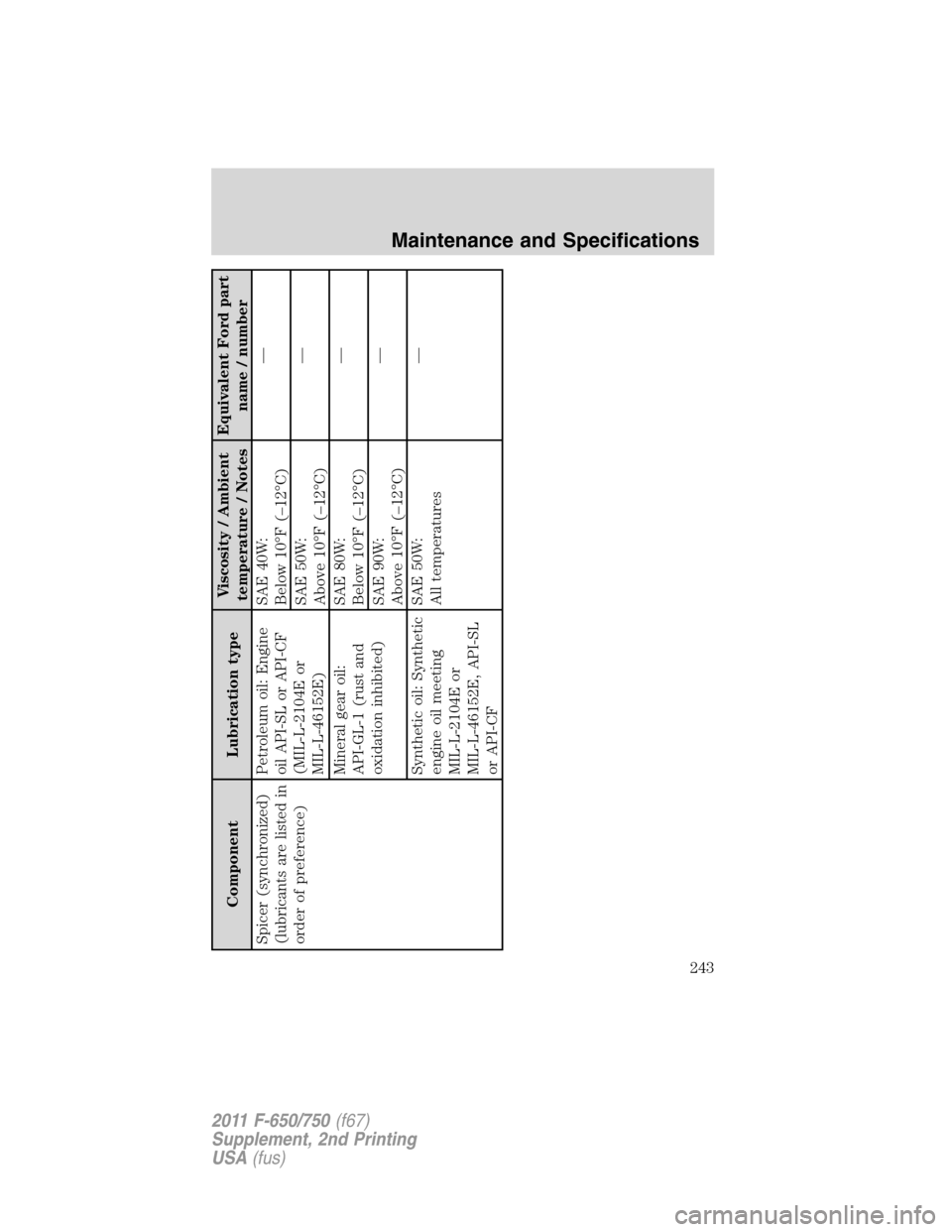

Spicer (synchronized)
(lubricants are listed in
order of preference)Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 10°F (–12°C)—
SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)SAE 80W:
Below 10°F (–12°C)—
SAE 90W:
Above 10°F (–12°C)—
Synthetic oil: Synthetic
engine oil meeting
MIL-L-2104E or
MIL-L-46152E, API-SL
or API-CFSAE 50W:
All temperatures—
Maintenance and Specifications
243
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

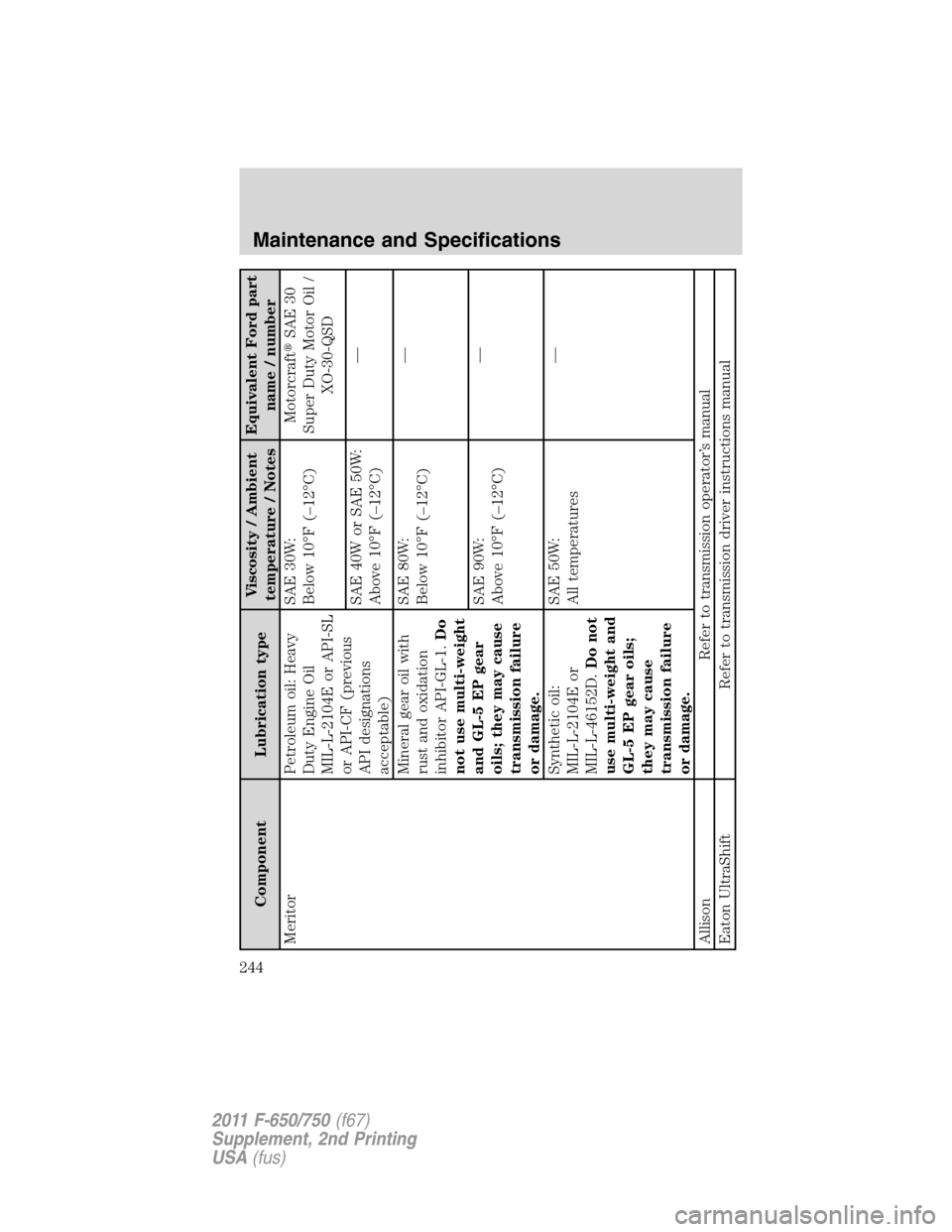

Meritor Petroleum oil: Heavy
Duty Engine Oil
MIL-L-2104E or API-SL
or API-CF (previous
API designations
acceptable)SAE 30W:
Below 10°F (–12°C)MotorcraftSAE 30
Super Duty Motor Oil /
XO-30-QSD
SAE 40W or SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil with
rust and oxidation
inhibitor API-GL-1.Do
not use multi-weight
and GL-5 EP gear
oils; they may cause
transmission failure
or damage.SAE 80W:
Below 10°F (–12°C)—
SAE 90W:
Above 10°F (–12°C)—
Synthetic oil:
MIL-L-2104E or
MIL-L-46152D.Do not
use multi-weight and
GL-5 EP gear oils;
they may cause
transmission failure
or damage.SAE 50W:
All temperatures—
Allison Refer to transmission operator’s manual
Eaton UltraShift Refer to transmission driver instructions manual
Maintenance and Specifications
244
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

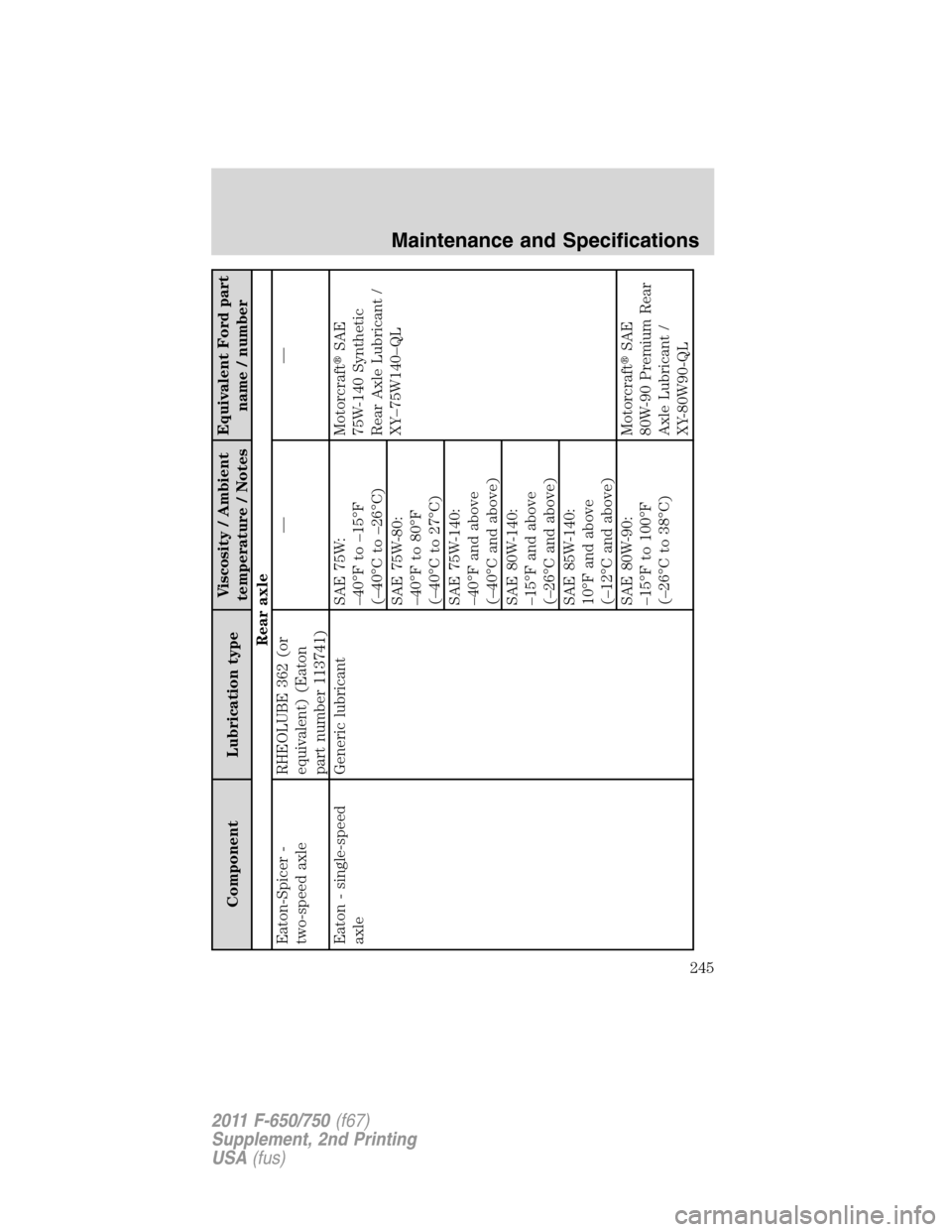

Rear axle
Eaton-Spicer -
two-speed axleRHEOLUBE 362 (or
equivalent) (Eaton
part number 113741)——
Eaton - single-speed
axleGeneric lubricant SAE 75W:
–40°F to –15°F
(–40°C to –26°C)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-80:
–40°F to 80°F
(–40°C to 27°C)
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 80W-90:
–15°F to 100°F
(–26°C to 38°C)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
Maintenance and Specifications
245
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

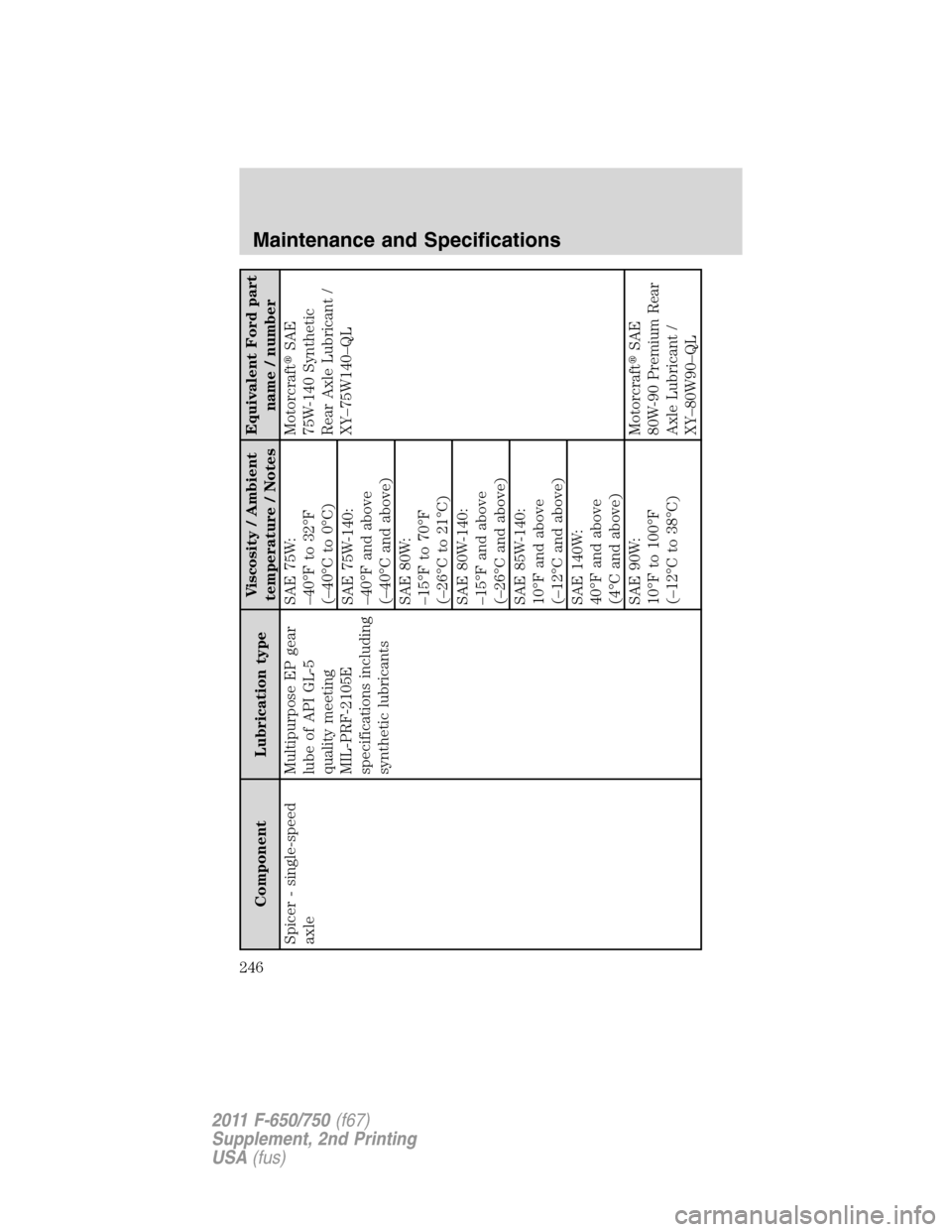

Spicer - single-speed
axleMultipurpose EP gear
lube of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricantsSAE 75W:
–40°F to 32°F
(–40°C to 0°C)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W:
–15°F to 70°F
(–26°C to 21°C)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 140W:
40°F and above
(4°C and above)
SAE 90W:
10°F to 100°F
(–12°C to 38°C)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY–80W90–QL
Maintenance and Specifications
246
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

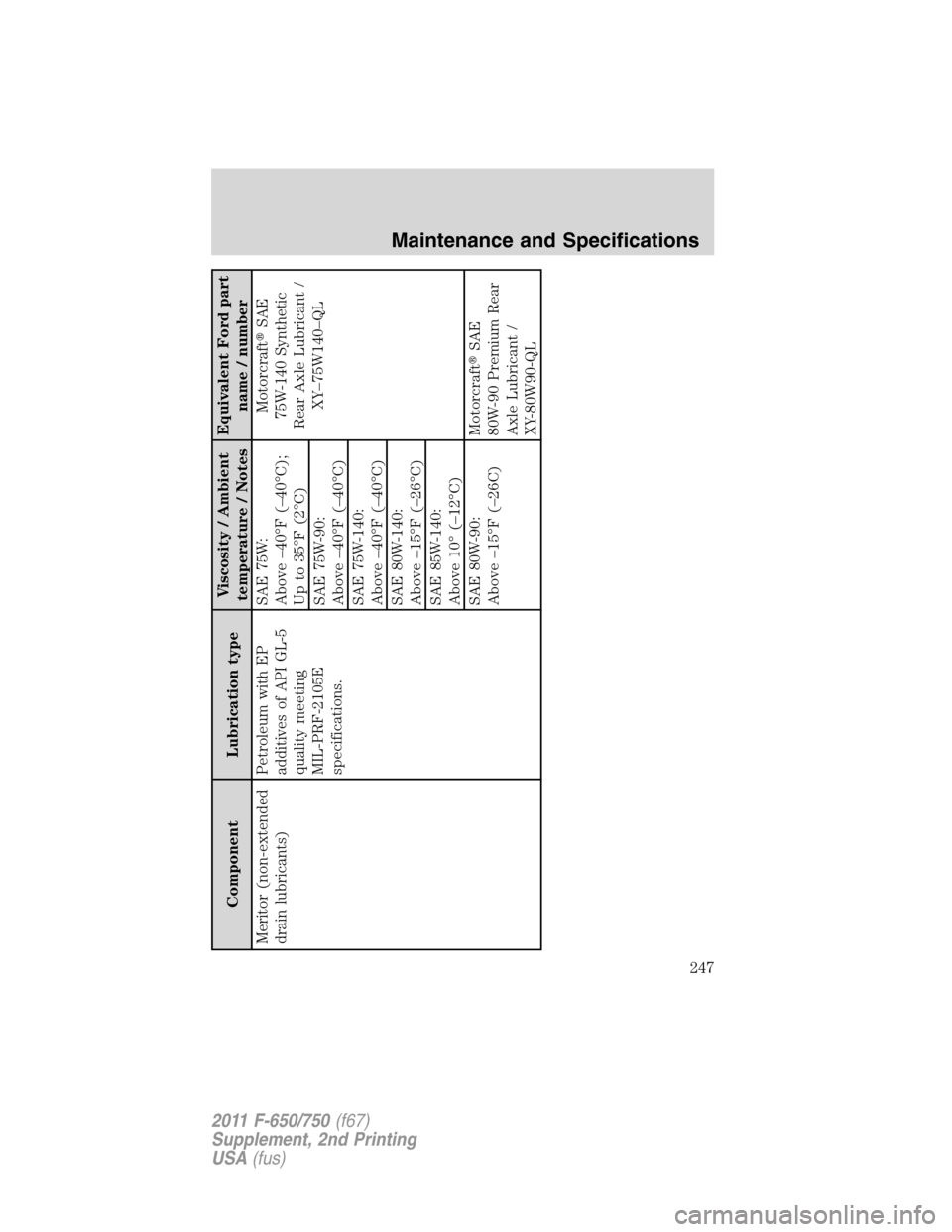

Meritor (non-extended
drain lubricants)Petroleum with EP
additives of API GL-5
quality meeting
MIL-PRF-2105E
specifications.SAE 75W:
Above –40°F (–40°C);
Up to 35°F (2°C)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-90:
Above –40°F (–40°C)
SAE 75W-140:
Above –40°F (–40°C)
SAE 80W-140:
Above –15°F (–26°C)
SAE 85W-140:
Above 10° (–12°C)
SAE 80W-90:
Above –15°F (–26C)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
Maintenance and Specifications
247
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

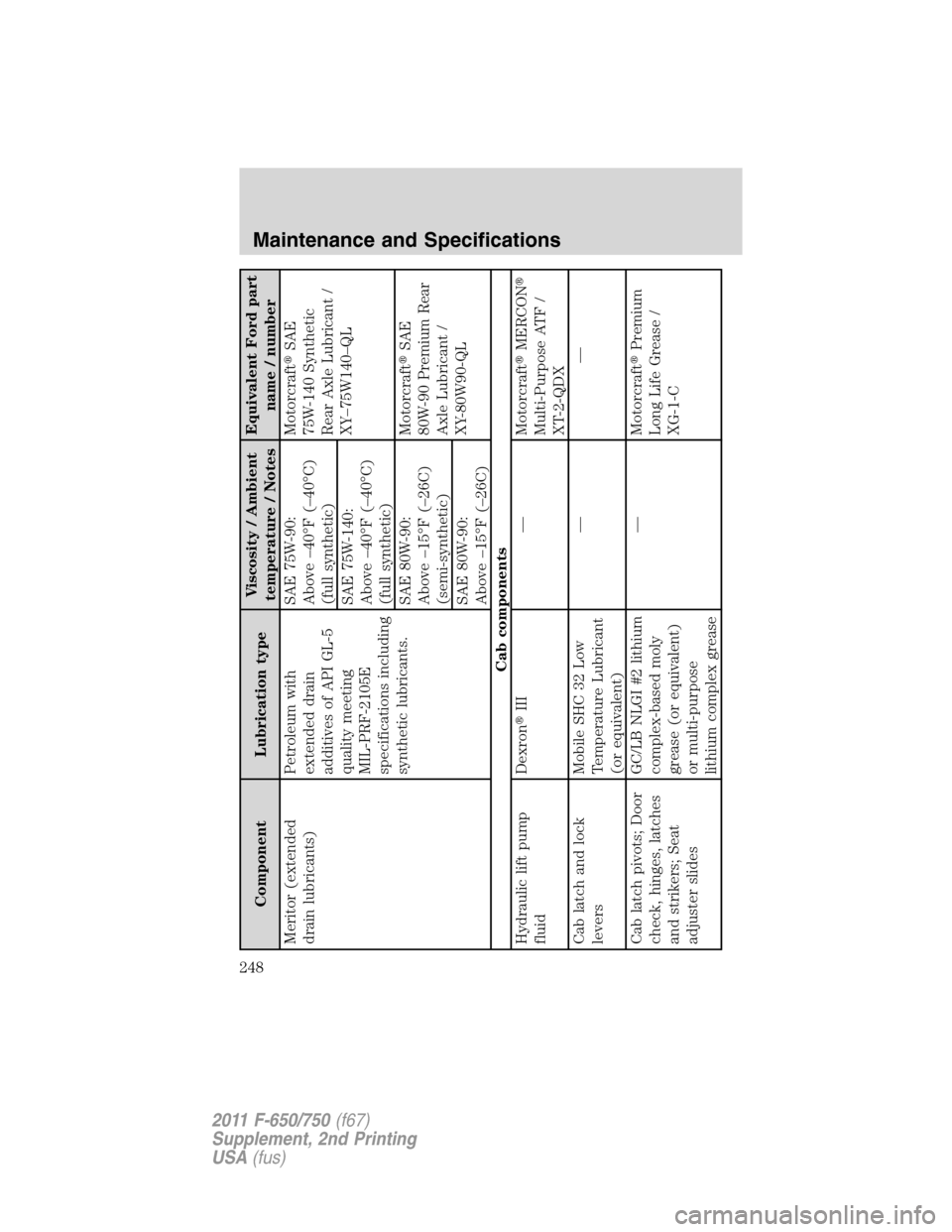

Meritor (extended
drain lubricants)Petroleum with
extended drain
additives of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricants.SAE 75W-90:
Above –40°F (–40°C)
(full synthetic)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-140:
Above –40°F (–40°C)
(full synthetic)
SAE 80W-90:
Above –15°F (–26C)
(semi-synthetic)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
SAE 80W-90:
Above –15°F (–26C)
Cab components
Hydraulic lift pump
fluidDexronIII — MotorcraftMERCON
Multi-Purpose ATF /
XT-2-QDX
Cab latch and lock
leversMobile SHC 32 Low
Temperature Lubricant
(or equivalent)——
Cab latch pivots; Door
check, hinges, latches
and strikers; Seat
adjuster slidesGC/LB NLGI #2 lithium
complex-based moly
grease (or equivalent)
or multi-purpose
lithium complex grease— MotorcraftPremium
Long Life Grease /
XG-1-C
Maintenance and Specifications
248
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

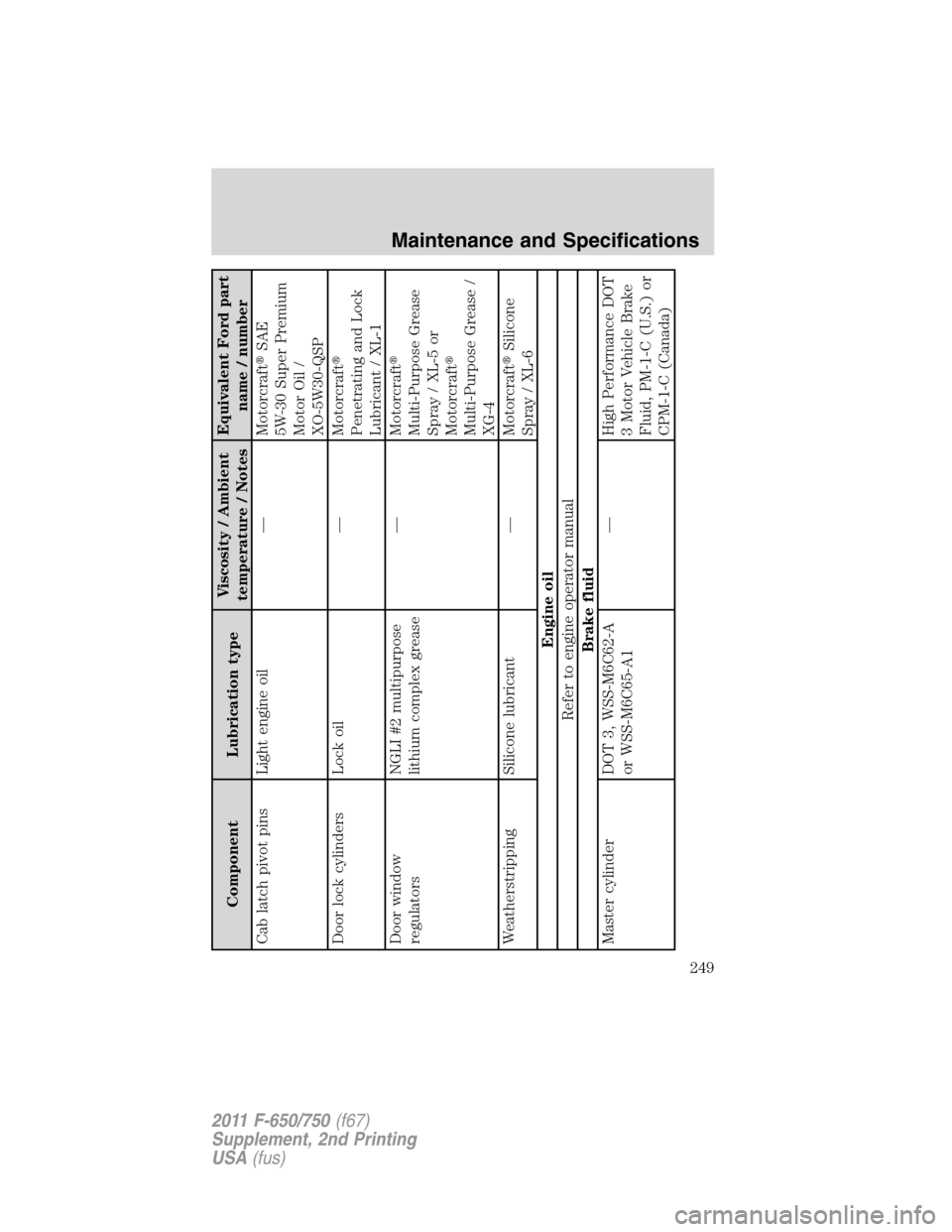

Cab latch pivot pins Light engine oil — MotorcraftSAE
5W-30 Super Premium
Motor Oil /
XO-5W30-QSP
Door lock cylinders Lock oil — Motorcraft
Penetrating and Lock
Lubricant / XL-1
Door window
regulatorsNGLI #2 multipurpose
lithium complex grease— Motorcraft
Multi-Purpose Grease
Spray / XL-5 or
Motorcraft
Multi-Purpose Grease /
XG-4
Weatherstripping Silicone lubricant — MotorcraftSilicone
Spray / XL-6
Engine oil
Refer to engine operator manual
Brake fluid
Master cylinder DOT 3, WSS-M6C62-A
or WSS-M6C65-A1— High Performance DOT
3 Motor Vehicle Brake
Fluid, PM-1-C (U.S.) or
CPM-1-C (Canada)
Maintenance and Specifications
249
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

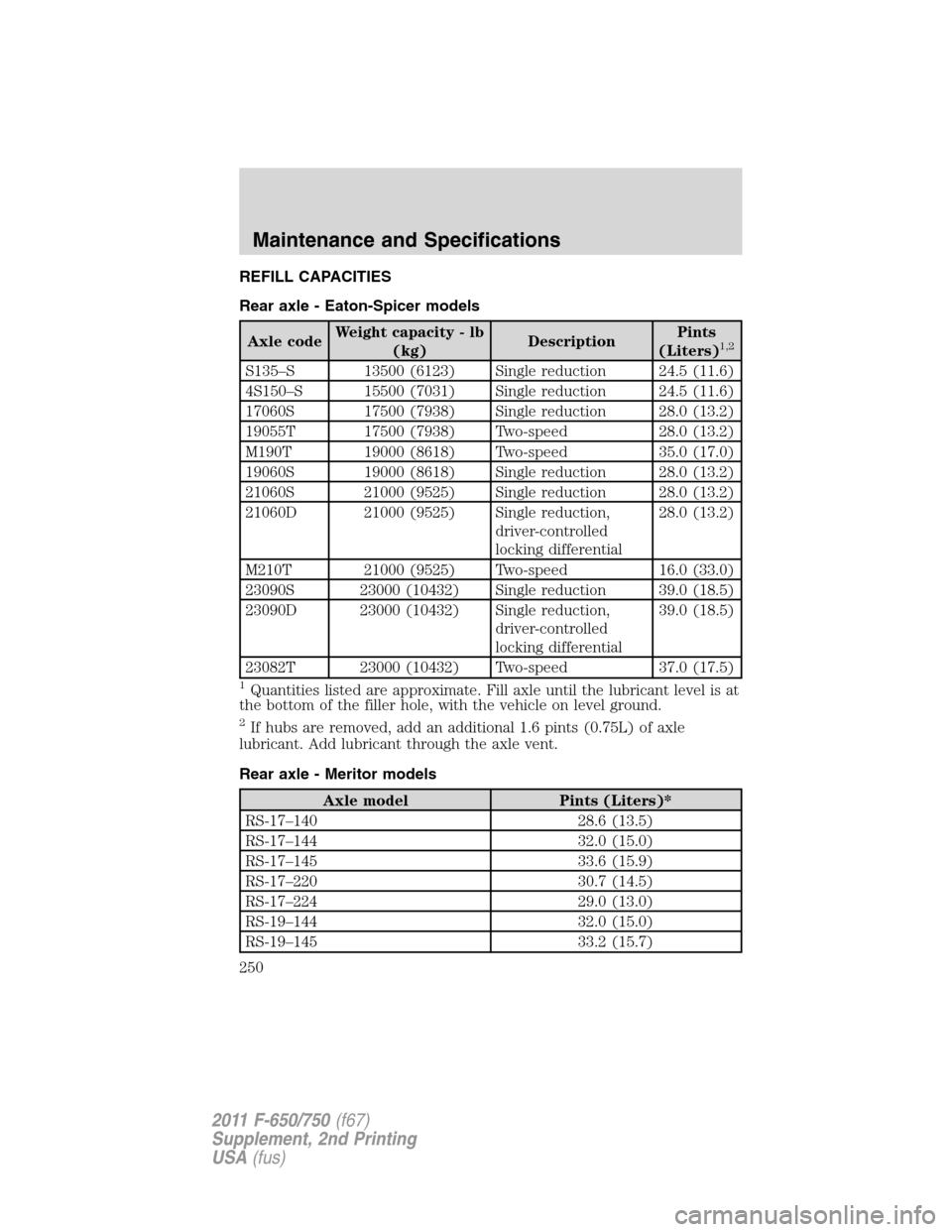

REFILL CAPACITIES
Rear axle - Eaton-Spicer models
Axle codeWeight capacity - lb
(kg)DescriptionPints
(Liters)1,2
S135–S 13500 (6123) Single reduction 24.5 (11.6)
4S150–S 15500 (7031) Single reduction 24.5 (11.6)
17060S 17500 (7938) Single reduction 28.0 (13.2)
19055T 17500 (7938) Two-speed 28.0 (13.2)
M190T 19000 (8618) Two-speed 35.0 (17.0)
19060S 19000 (8618) Single reduction 28.0 (13.2)
21060S 21000 (9525) Single reduction 28.0 (13.2)
21060D 21000 (9525) Single reduction,
driver-controlled
locking differential28.0 (13.2)
M210T 21000 (9525) Two-speed 16.0 (33.0)
23090S 23000 (10432) Single reduction 39.0 (18.5)
23090D 23000 (10432) Single reduction,
driver-controlled
locking differential39.0 (18.5)
23082T 23000 (10432) Two-speed 37.0 (17.5)
1Quantities listed are approximate. Fill axle until the lubricant level is at
the bottom of the filler hole, with the vehicle on level ground.
2If hubs are removed, add an additional 1.6 pints (0.75L) of axle
lubricant. Add lubricant through the axle vent.
Rear axle - Meritor models
Axle model Pints (Liters)*
RS-17–140 28.6 (13.5)
RS-17–144 32.0 (15.0)
RS-17–145 33.6 (15.9)
RS-17–220 30.7 (14.5)
RS-17–224 29.0 (13.0)
RS-19–144 32.0 (15.0)
RS-19–145 33.2 (15.7)
Maintenance and Specifications
250
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
