FORD F750 2011 12.G Owners Manual

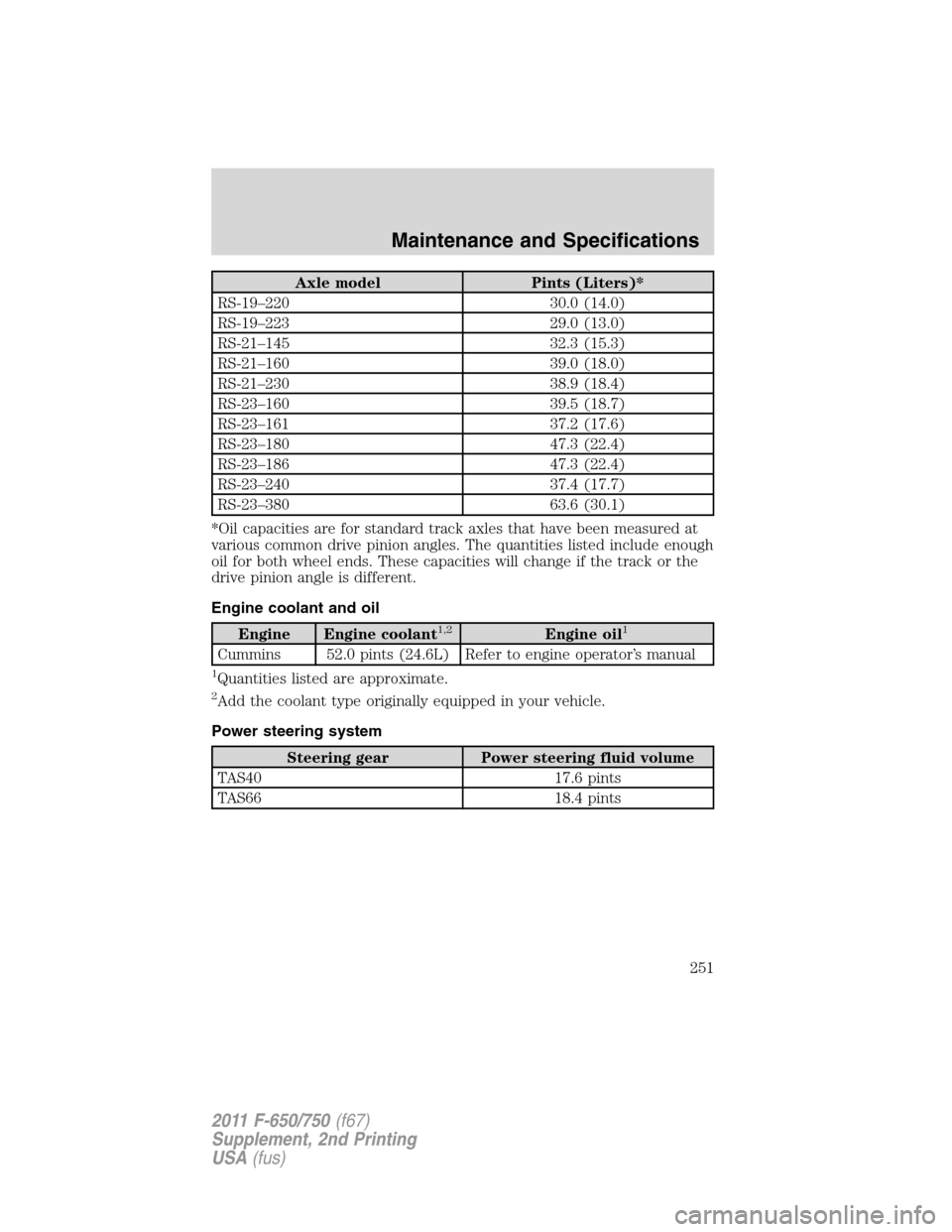

Axle model Pints (Liters)*
RS-19–220 30.0 (14.0)
RS-19–223 29.0 (13.0)
RS-21–145 32.3 (15.3)
RS-21–160 39.0 (18.0)
RS-21–230 38.9 (18.4)
RS-23–160 39.5 (18.7)
RS-23–161 37.2 (17.6)
RS-23–180 47.3 (22.4)
RS-23–186 47.3 (22.4)
RS-23–240 37.4 (17.7)
RS-23–380 63.6 (30.1)
*Oil capacities are for standard track axles that have been measured at
various common drive pinion angles. The quantities listed include enough
oil for both wheel ends. These capacities will change if the track or the
drive pinion angle is different.
Engine coolant and oil
Engine Engine coolant1,2Engine oil1
Cummins 52.0 pints (24.6L) Refer to engine operator’s manual
1Quantities listed are approximate.
2Add the coolant type originally equipped in your vehicle.
Power steering system
Steering gear Power steering fluid volume
TAS40 17.6 pints
TAS66 18.4 pints
Maintenance and Specifications
251
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

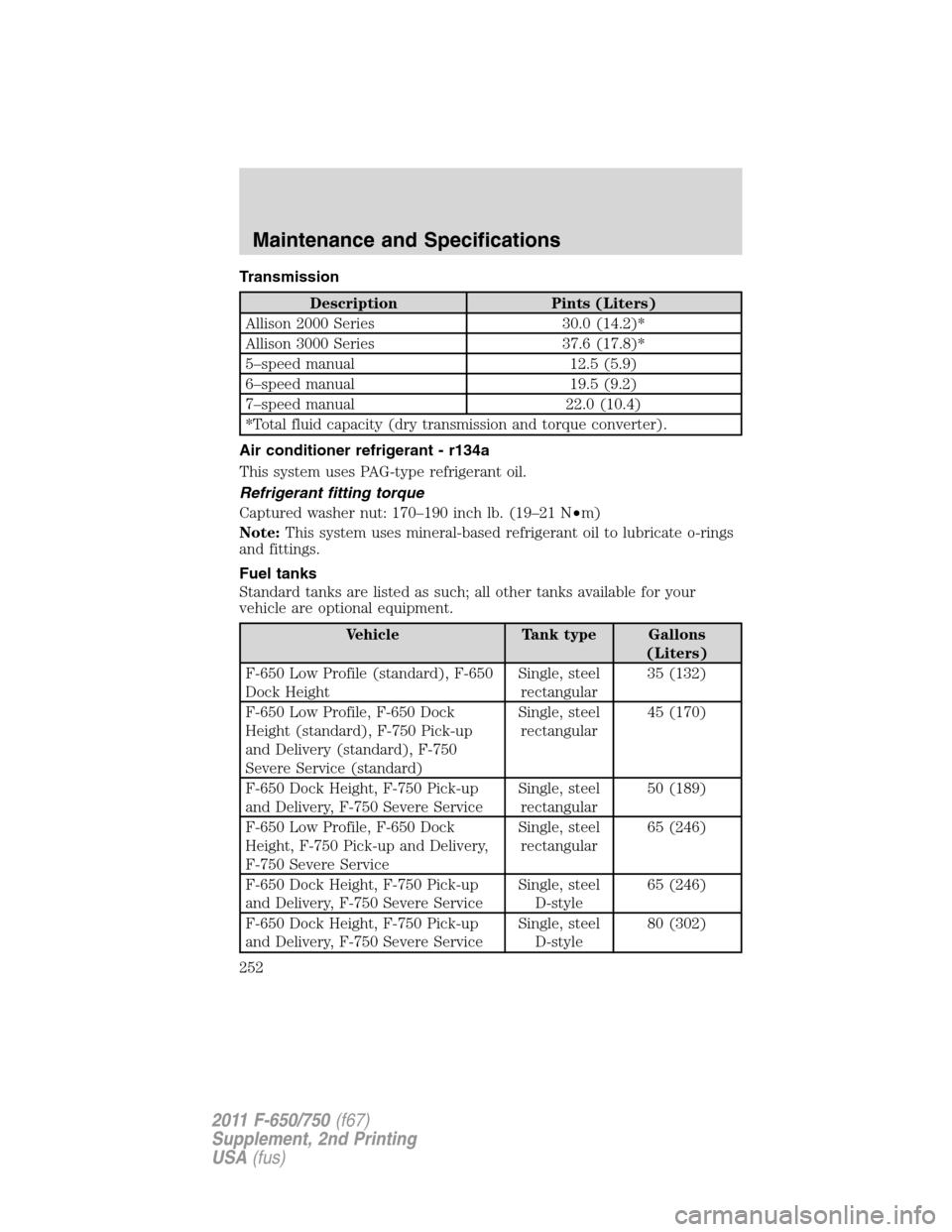

Transmission
Description Pints (Liters)
Allison 2000 Series 30.0 (14.2)*
Allison 3000 Series 37.6 (17.8)*
5–speed manual 12.5 (5.9)
6–speed manual 19.5 (9.2)
7–speed manual 22.0 (10.4)
*Total fluid capacity (dry transmission and torque converter).
Air conditioner refrigerant - r134a
This system uses PAG-type refrigerant oil.
Refrigerant fitting torque
Captured washer nut: 170–190 inch lb. (19–21 N•m)
Note:This system uses mineral-based refrigerant oil to lubricate o-rings
and fittings.
Fuel tanks
Standard tanks are listed as such; all other tanks available for your
vehicle are optional equipment.
Vehicle Tank type Gallons
(Liters)
F-650 Low Profile (standard), F-650
Dock HeightSingle, steel
rectangular35 (132)
F-650 Low Profile, F-650 Dock
Height (standard), F-750 Pick-up
and Delivery (standard), F-750
Severe Service (standard)Single, steel
rectangular45 (170)
F-650 Dock Height, F-750 Pick-up
and Delivery, F-750 Severe ServiceSingle, steel
rectangular50 (189)
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and Delivery,
F-750 Severe ServiceSingle, steel
rectangular65 (246)
F-650 Dock Height, F-750 Pick-up
and Delivery, F-750 Severe ServiceSingle, steel
D-style65 (246)
F-650 Dock Height, F-750 Pick-up
and Delivery, F-750 Severe ServiceSingle, steel
D-style80 (302)
Maintenance and Specifications
252
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

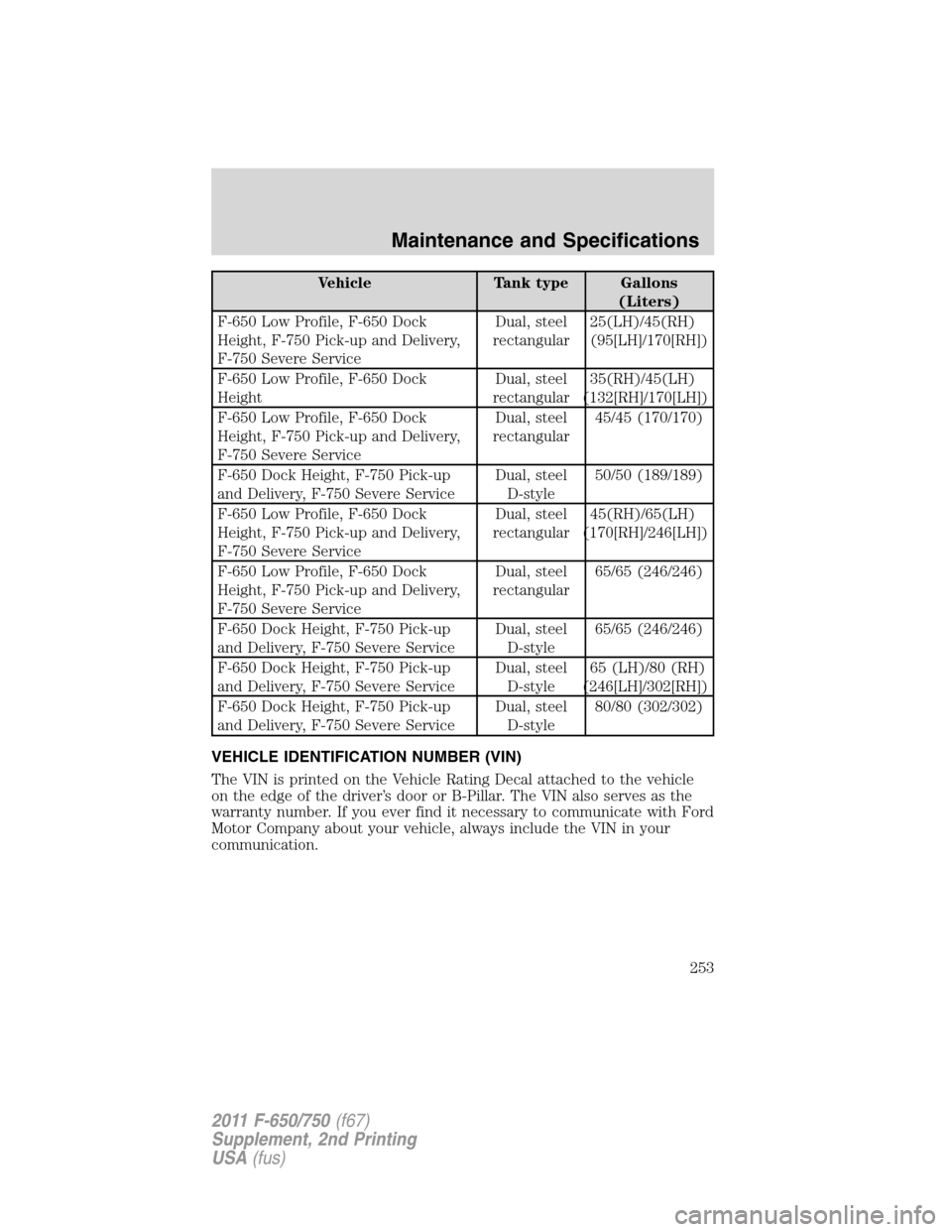

Vehicle Tank type Gallons
(Liters)
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and Delivery,
F-750 Severe ServiceDual, steel
rectangular25(LH)/45(RH)
(95[LH]/170[RH])
F-650 Low Profile, F-650 Dock
HeightDual, steel
rectangular35(RH)/45(LH)
(132[RH]/170[LH])
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and Delivery,
F-750 Severe ServiceDual, steel
rectangular45/45 (170/170)
F-650 Dock Height, F-750 Pick-up
and Delivery, F-750 Severe ServiceDual, steel
D-style50/50 (189/189)
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and Delivery,
F-750 Severe ServiceDual, steel
rectangular45(RH)/65(LH)
(170[RH]/246[LH])
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and Delivery,
F-750 Severe ServiceDual, steel
rectangular65/65 (246/246)
F-650 Dock Height, F-750 Pick-up
and Delivery, F-750 Severe ServiceDual, steel
D-style65/65 (246/246)
F-650 Dock Height, F-750 Pick-up
and Delivery, F-750 Severe ServiceDual, steel
D-style65 (LH)/80 (RH)
(246[LH]/302[RH])
F-650 Dock Height, F-750 Pick-up
and Delivery, F-750 Severe ServiceDual, steel
D-style80/80 (302/302)
VEHICLE IDENTIFICATION NUMBER (VIN)
The VIN is printed on the Vehicle Rating Decal attached to the vehicle
on the edge of the driver’s door or B-Pillar. The VIN also serves as the
warranty number. If you ever find it necessary to communicate with Ford
Motor Company about your vehicle, always include the VIN in your
communication.
Maintenance and Specifications
253
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

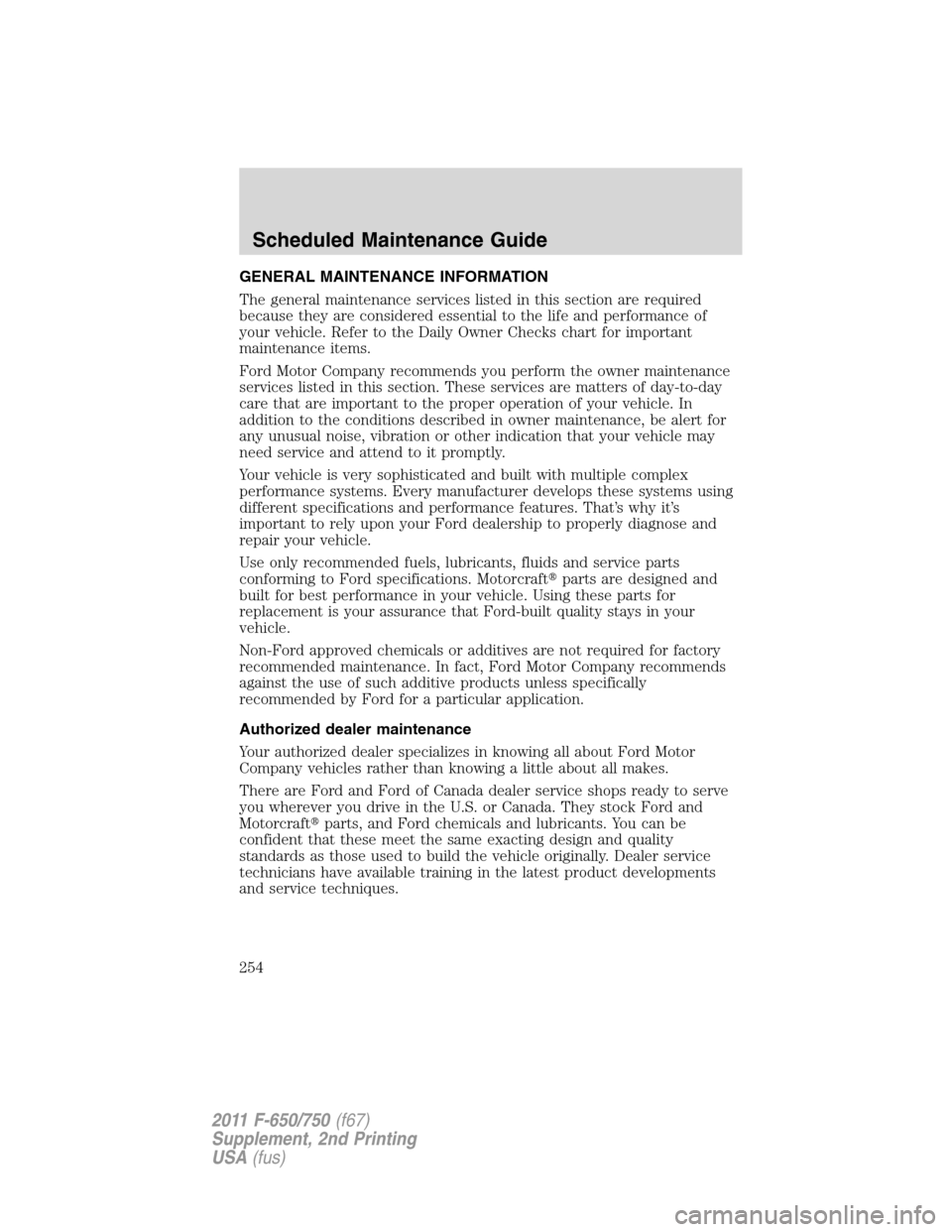

GENERAL MAINTENANCE INFORMATION
The general maintenance services listed in this section are required
because they are considered essential to the life and performance of
your vehicle. Refer to the Daily Owner Checks chart for important
maintenance items.
Ford Motor Company recommends you perform the owner maintenance
services listed in this section. These services are matters of day-to-day
care that are important to the proper operation of your vehicle. In
addition to the conditions described in owner maintenance, be alert for
any unusual noise, vibration or other indication that your vehicle may
need service and attend to it promptly.
Your vehicle is very sophisticated and built with multiple complex
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That’s why it’s
important to rely upon your Ford dealership to properly diagnose and
repair your vehicle.
Use only recommended fuels, lubricants, fluids and service parts
conforming to Ford specifications. Motorcraftparts are designed and
built for best performance in your vehicle. Using these parts for
replacement is your assurance that Ford-built quality stays in your
vehicle.
Non-Ford approved chemicals or additives are not required for factory
recommended maintenance. In fact, Ford Motor Company recommends
against the use of such additive products unless specifically
recommended by Ford for a particular application.
Authorized dealer maintenance
Your authorized dealer specializes in knowing all about Ford Motor
Company vehicles rather than knowing a little about all makes.
There are Ford and Ford of Canada dealer service shops ready to serve
you wherever you drive in the U.S. or Canada. They stock Ford and
Motorcraftparts, and Ford chemicals and lubricants. You can be
confident that these meet the same exacting design and quality
standards as those used to build the vehicle originally. Dealer service
technicians have available training in the latest product developments
and service techniques.
Scheduled Maintenance Guide
254
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

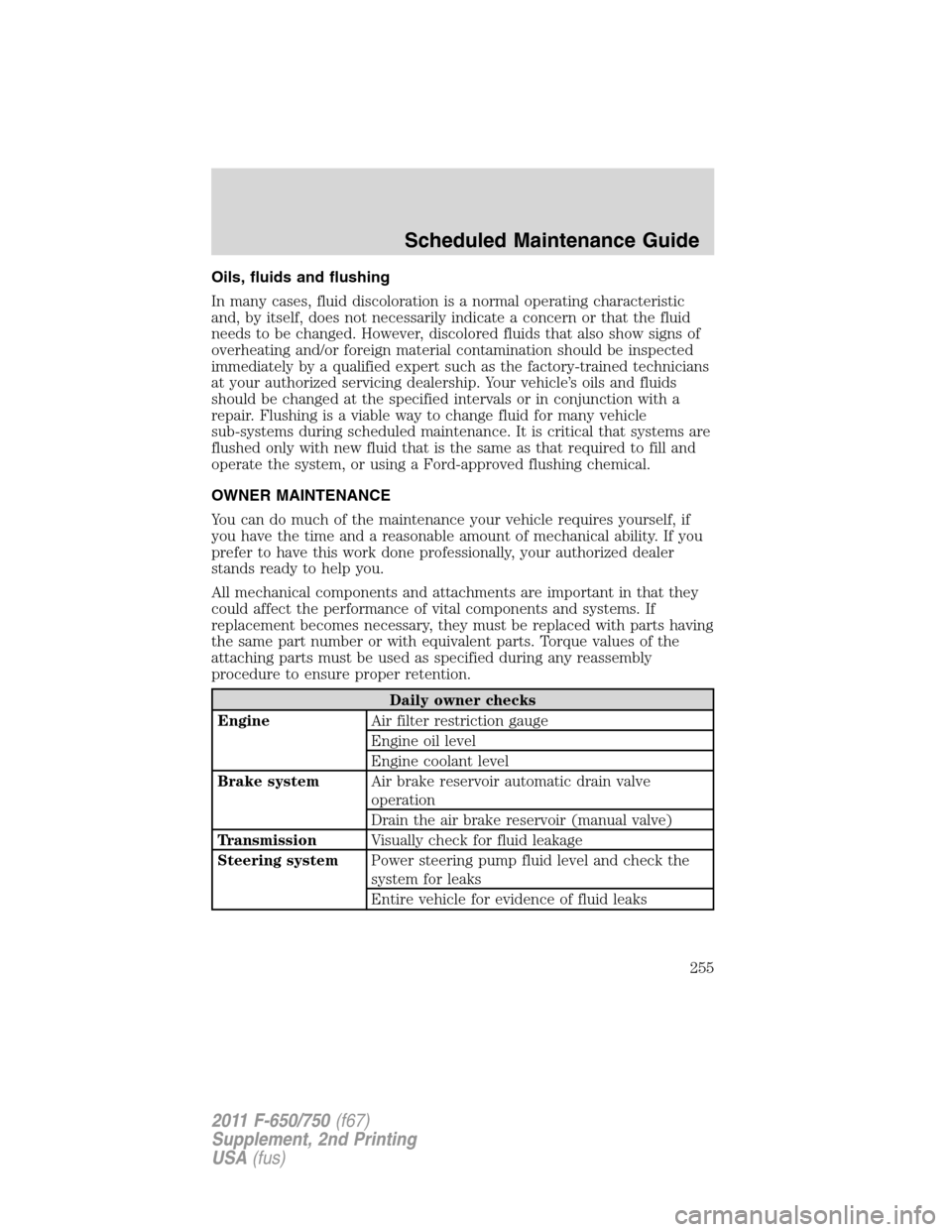

Oils, fluids and flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and/or foreign material contamination should be inspected
immediately by a qualified expert such as the factory-trained technicians
at your authorized servicing dealership. Your vehicle’s oils and fluids
should be changed at the specified intervals or in conjunction with a
repair. Flushing is a viable way to change fluid for many vehicle
sub-systems during scheduled maintenance. It is critical that systems are
flushed only with new fluid that is the same as that required to fill and
operate the system, or using a Ford-approved flushing chemical.
OWNER MAINTENANCE
You can do much of the maintenance your vehicle requires yourself, if
you have the time and a reasonable amount of mechanical ability. If you
prefer to have this work done professionally, your authorized dealer
stands ready to help you.
All mechanical components and attachments are important in that they
could affect the performance of vital components and systems. If
replacement becomes necessary, they must be replaced with parts having
the same part number or with equivalent parts. Torque values of the
attaching parts must be used as specified during any reassembly
procedure to ensure proper retention.
Daily owner checks
EngineAir filter restriction gauge
Engine oil level
Engine coolant level
Brake systemAir brake reservoir automatic drain valve
operation
Drain the air brake reservoir (manual valve)
TransmissionVisually check for fluid leakage
Steering systemPower steering pump fluid level and check the
system for leaks
Entire vehicle for evidence of fluid leaks
Scheduled Maintenance Guide
255
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

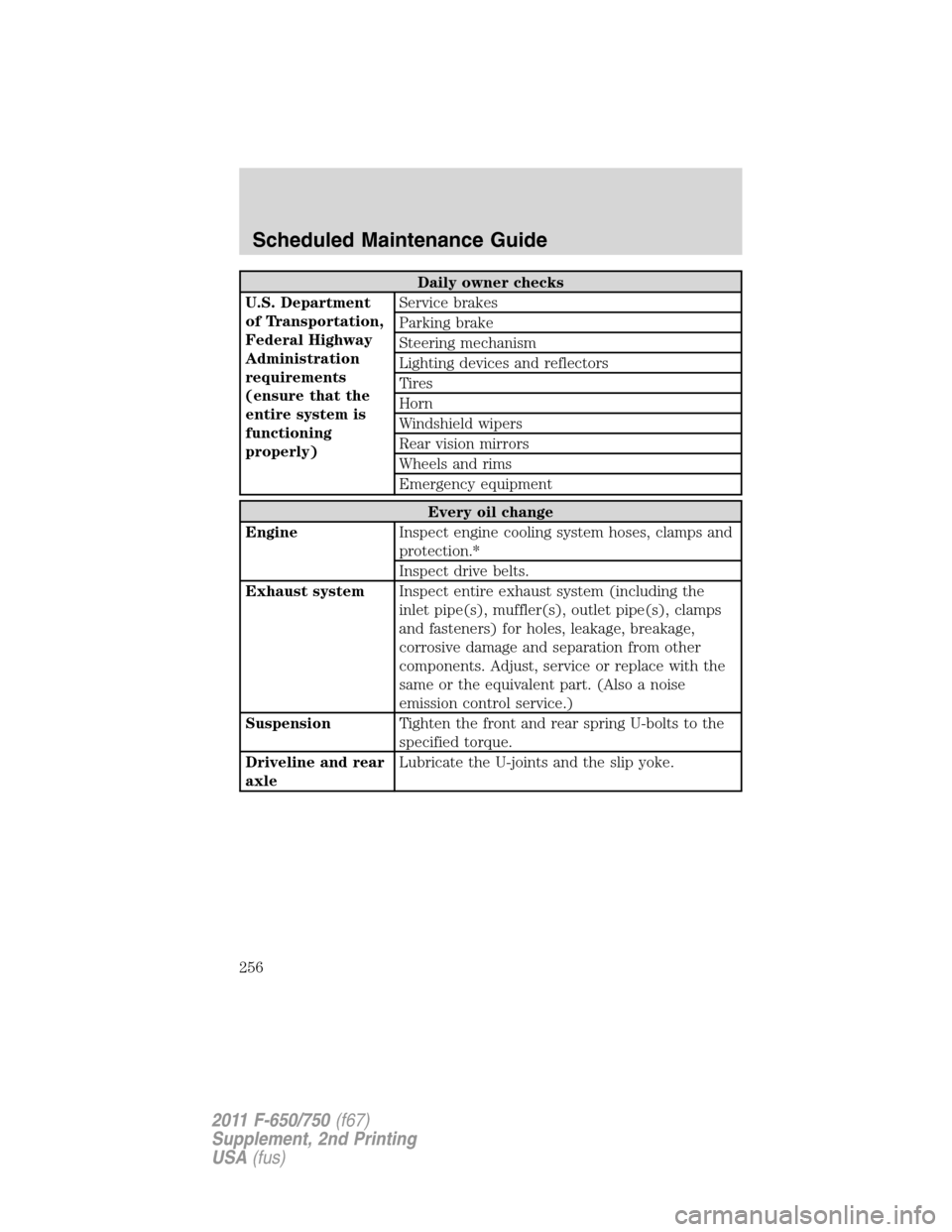

Daily owner checks
U.S. Department
of Transportation,
Federal Highway
Administration
requirements
(ensure that the
entire system is
functioning
properly)Service brakes
Parking brake
Steering mechanism
Lighting devices and reflectors
Tires
Horn
Windshield wipers
Rear vision mirrors
Wheels and rims
Emergency equipment
Every oil change
EngineInspect engine cooling system hoses, clamps and
protection.*
Inspect drive belts.
Exhaust systemInspect entire exhaust system (including the
inlet pipe(s), muffler(s), outlet pipe(s), clamps
and fasteners) for holes, leakage, breakage,
corrosive damage and separation from other
components. Adjust, service or replace with the
same or the equivalent part. (Also a noise
emission control service.)
SuspensionTighten the front and rear spring U-bolts to the
specified torque.
Driveline and rear
axleLubricate the U-joints and the slip yoke.
Scheduled Maintenance Guide
256
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

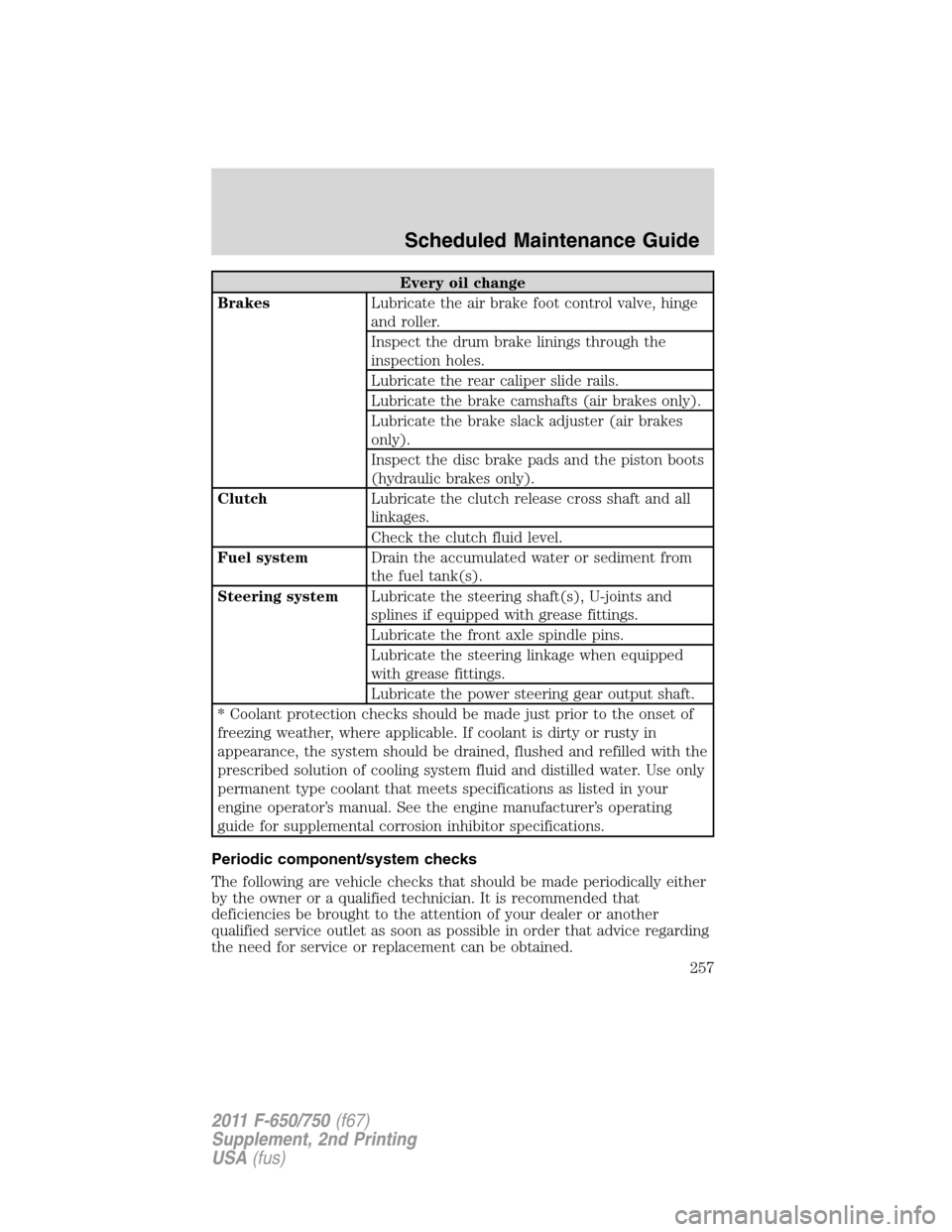

Every oil change
BrakesLubricate the air brake foot control valve, hinge
and roller.
Inspect the drum brake linings through the
inspection holes.
Lubricate the rear caliper slide rails.
Lubricate the brake camshafts (air brakes only).
Lubricate the brake slack adjuster (air brakes
only).
Inspect the disc brake pads and the piston boots
(hydraulic brakes only).
ClutchLubricate the clutch release cross shaft and all
linkages.
Check the clutch fluid level.
Fuel systemDrain the accumulated water or sediment from
the fuel tank(s).
Steering systemLubricate the steering shaft(s), U-joints and
splines if equipped with grease fittings.
Lubricate the front axle spindle pins.
Lubricate the steering linkage when equipped
with grease fittings.
Lubricate the power steering gear output shaft.
* Coolant protection checks should be made just prior to the onset of
freezing weather, where applicable. If coolant is dirty or rusty in
appearance, the system should be drained, flushed and refilled with the
prescribed solution of cooling system fluid and distilled water. Use only
permanent type coolant that meets specifications as listed in your
engine operator’s manual. See the engine manufacturer’s operating
guide for supplemental corrosion inhibitor specifications.
Periodic component/system checks
The following are vehicle checks that should be made periodically either
by the owner or a qualified technician. It is recommended that
deficiencies be brought to the attention of your dealer or another
qualified service outlet as soon as possible in order that advice regarding
the need for service or replacement can be obtained.
Scheduled Maintenance Guide
257
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

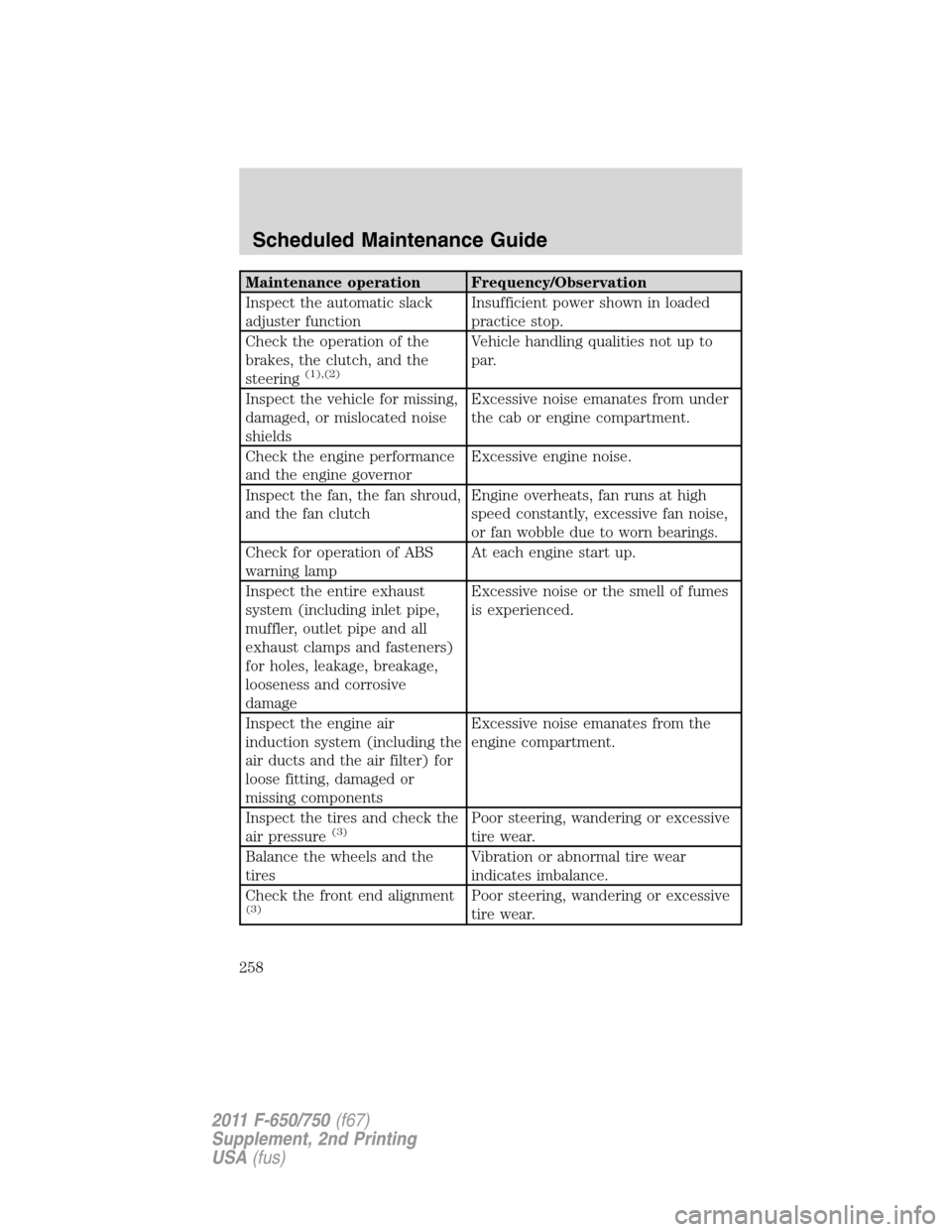

Maintenance operation Frequency/Observation
Inspect the automatic slack
adjuster functionInsufficient power shown in loaded
practice stop.
Check the operation of the
brakes, the clutch, and the
steering
(1),(2)
Vehicle handling qualities not up to
par.
Inspect the vehicle for missing,
damaged, or mislocated noise
shieldsExcessive noise emanates from under
the cab or engine compartment.
Check the engine performance
and the engine governorExcessive engine noise.
Inspect the fan, the fan shroud,
and the fan clutchEngine overheats, fan runs at high
speed constantly, excessive fan noise,
or fan wobble due to worn bearings.
Check for operation of ABS
warning lampAt each engine start up.
Inspect the entire exhaust
system (including inlet pipe,
muffler, outlet pipe and all
exhaust clamps and fasteners)
for holes, leakage, breakage,
looseness and corrosive
damageExcessive noise or the smell of fumes
is experienced.
Inspect the engine air
induction system (including the
air ducts and the air filter) for
loose fitting, damaged or
missing componentsExcessive noise emanates from the
engine compartment.
Inspect the tires and check the
air pressure
(3)Poor steering, wandering or excessive
tire wear.
Balance the wheels and the
tiresVibration or abnormal tire wear
indicates imbalance.
Check the front end alignment
(3)Poor steering, wandering or excessive
tire wear.
Scheduled Maintenance Guide
258
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

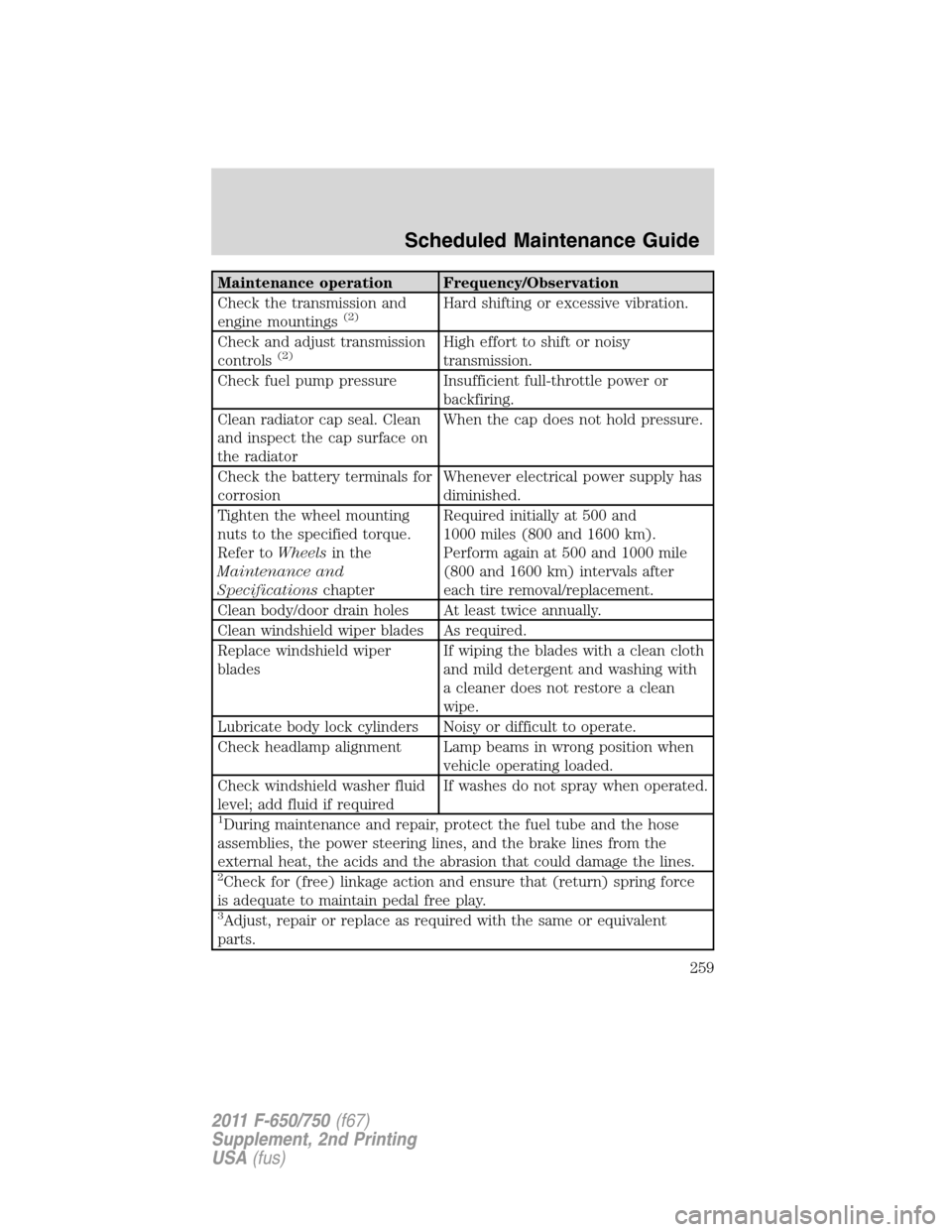

Maintenance operation Frequency/Observation
Check the transmission and
engine mountings
(2)Hard shifting or excessive vibration.
Check and adjust transmission
controls
(2)High effort to shift or noisy
transmission.
Check fuel pump pressure Insufficient full-throttle power or
backfiring.
Clean radiator cap seal. Clean
and inspect the cap surface on
the radiatorWhen the cap does not hold pressure.
Check the battery terminals for
corrosionWhenever electrical power supply has
diminished.
Tighten the wheel mounting
nuts to the specified torque.
Refer toWheelsin the
Maintenance and
SpecificationschapterRequired initially at 500 and
1000 miles (800 and 1600 km).
Perform again at 500 and 1000 mile
(800 and 1600 km) intervals after
each tire removal/replacement.
Clean body/door drain holes At least twice annually.
Clean windshield wiper blades As required.
Replace windshield wiper
bladesIf wiping the blades with a clean cloth
and mild detergent and washing with
a cleaner does not restore a clean
wipe.
Lubricate body lock cylinders Noisy or difficult to operate.
Check headlamp alignment Lamp beams in wrong position when
vehicle operating loaded.
Check windshield washer fluid
level; add fluid if requiredIf washes do not spray when operated.
1During maintenance and repair, protect the fuel tube and the hose
assemblies, the power steering lines, and the brake lines from the
external heat, the acids and the abrasion that could damage the lines.
2Check for (free) linkage action and ensure that (return) spring force
is adequate to maintain pedal free play.
3Adjust, repair or replace as required with the same or equivalent
parts.
Scheduled Maintenance Guide
259
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

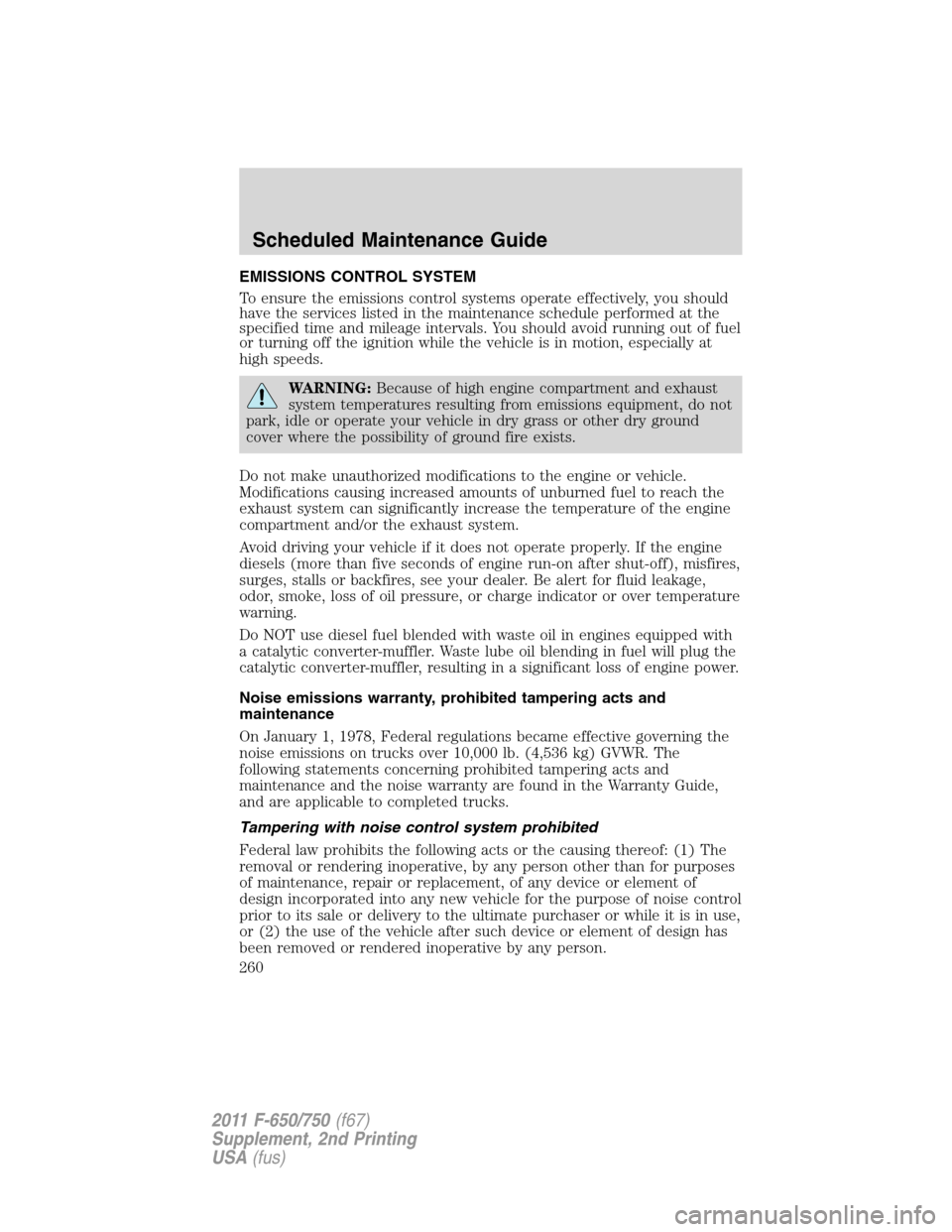

EMISSIONS CONTROL SYSTEM
To ensure the emissions control systems operate effectively, you should
have the services listed in the maintenance schedule performed at the
specified time and mileage intervals. You should avoid running out of fuel
or turning off the ignition while the vehicle is in motion, especially at
high speeds.
WARNING:Because of high engine compartment and exhaust
system temperatures resulting from emissions equipment, do not
park, idle or operate your vehicle in dry grass or other dry ground
cover where the possibility of ground fire exists.
Do not make unauthorized modifications to the engine or vehicle.
Modifications causing increased amounts of unburned fuel to reach the
exhaust system can significantly increase the temperature of the engine
compartment and/or the exhaust system.
Avoid driving your vehicle if it does not operate properly. If the engine
diesels (more than five seconds of engine run-on after shut-off), misfires,
surges, stalls or backfires, see your dealer. Be alert for fluid leakage,
odor, smoke, loss of oil pressure, or charge indicator or over temperature
warning.
Do NOT use diesel fuel blended with waste oil in engines equipped with
a catalytic converter-muffler. Waste lube oil blending in fuel will plug the
catalytic converter-muffler, resulting in a significant loss of engine power.
Noise emissions warranty, prohibited tampering acts and
maintenance
On January 1, 1978, Federal regulations became effective governing the
noise emissions on trucks over 10,000 lb. (4,536 kg) GVWR. The
following statements concerning prohibited tampering acts and
maintenance and the noise warranty are found in the Warranty Guide,
and are applicable to completed trucks.
Tampering with noise control system prohibited
Federal law prohibits the following acts or the causing thereof: (1) The
removal or rendering inoperative, by any person other than for purposes
of maintenance, repair or replacement, of any device or element of
design incorporated into any new vehicle for the purpose of noise control
prior to its sale or delivery to the ultimate purchaser or while it is in use,
or (2) the use of the vehicle after such device or element of design has
been removed or rendered inoperative by any person.
Scheduled Maintenance Guide
260
2011 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
