engine FORD FIESTA 2007 Workshop Manual

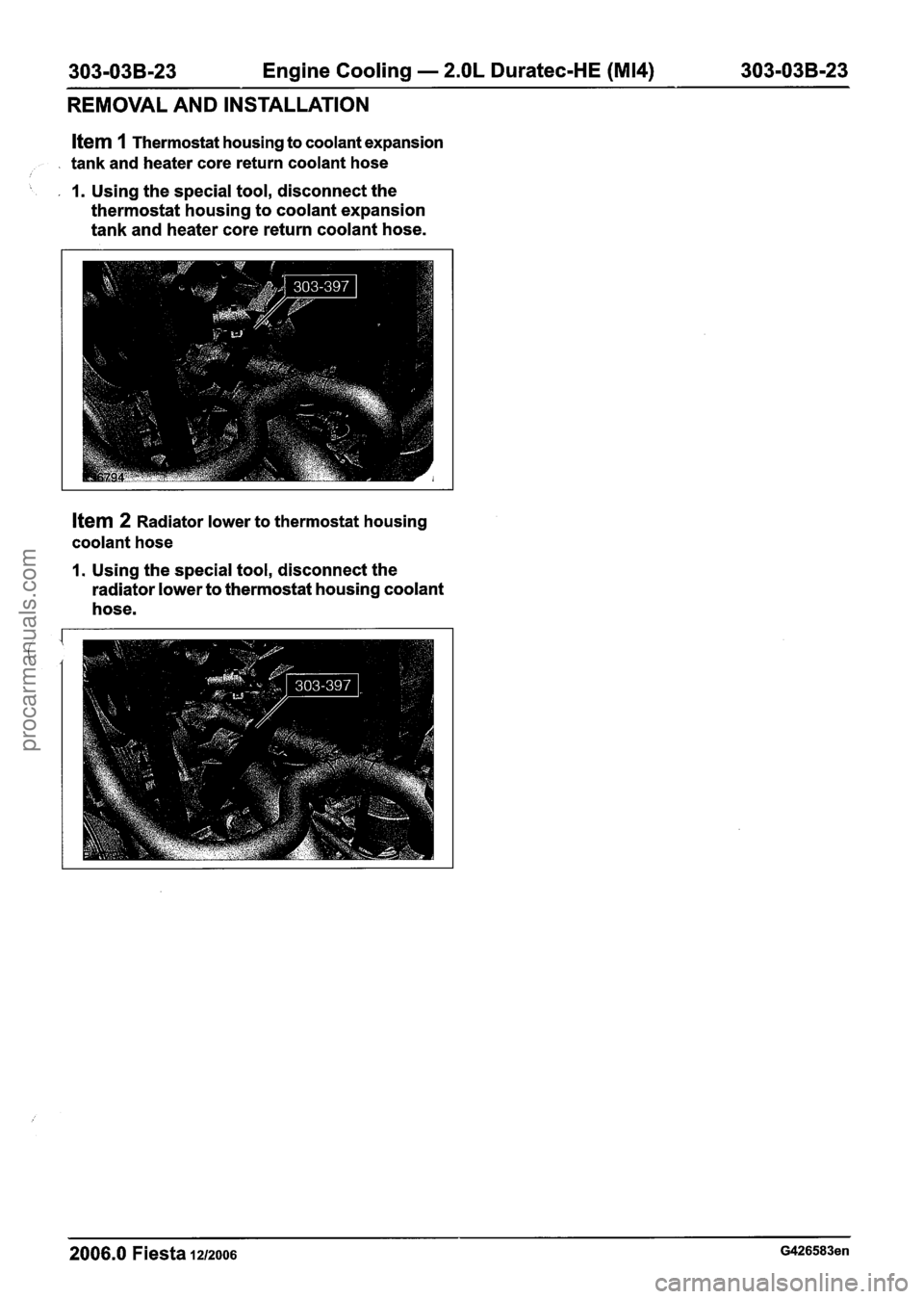

303-03B-23 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-23
REMOVAL AND INSTALLATION
Item 1 Thermostat housing to coolant expansion
tank and heater core return coolant hose
' . I. Using the special tool, disconnect the
thermostat housing to coolant expansion
tank and heater core return coolant hose.
Item 2 Radiator lower to thermostat housing
coolant hose
1. Using the special tool, disconnect the
radiator lower to thermostat housing coolant
hose.
2006.0 Fiesta 1212006 G426583en
procarmanuals.com

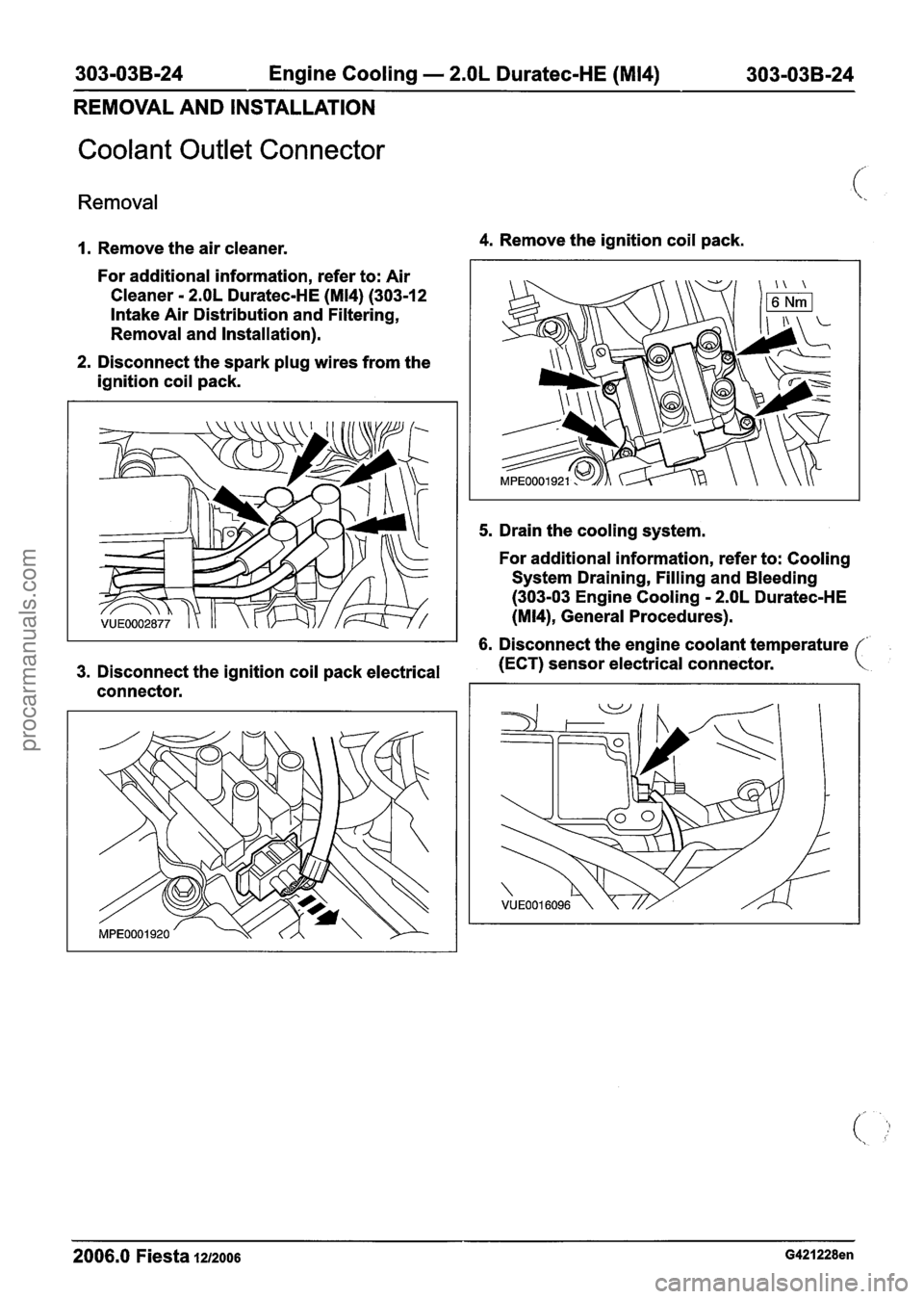

303-03B-24 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-24
REMOVAL AND INSTALLATION
Coolant Outlet Connector
Removal
1. Remove the air cleaner.
For additional information, refer to: Air
Cleaner
- 2.OL Duratec-HE (M14) (303-12
Intake Air Distribution and Filtering,
Removal and Installation).
2. Disconnect the spark plug wires from the
ignition coil pack.
4. Remove the ignition coil pack.
5. Drain the cooling system.
For additional information, refer to: Cooling
System Draining, Filling and Bleeding
(303-03 Engine Cooling
- 2.OL Duratec-HE
(M14), General Procedures).
6. Disconnect the engine coolant temperature
3. Disconnect the ignition coil pack electrical
(ECT) sensor electrical connector.
connector.
2006.0 Fiesta 1212006 G421228en
procarmanuals.com

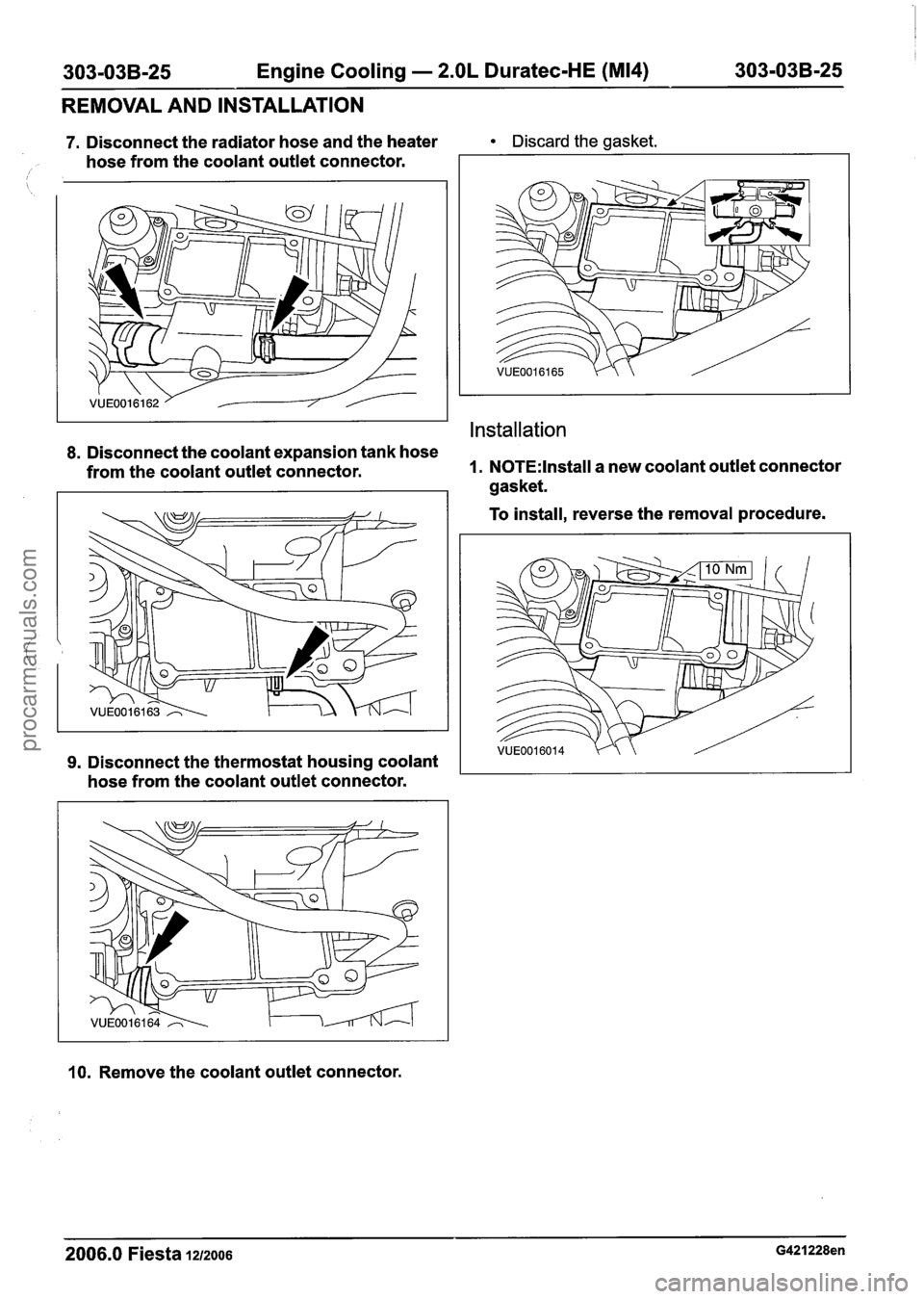

303-03B-25 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-25
REMOVAL AND INSTALLATION
7. Disconnect the radiator hose and the heater Discard the gasket.
hose from the coolant outlet connector. ,
Installation
8. Disconnect the coolant expansion tank hose
from the coolant outlet connector. 1. N0TE:lnstall a new coolant outlet connector
gasket.
9. Disconnect the thermostat housing coolant
hose from the coolant outlet connector. To
install, reverse the removal procedure.
10. Remove the coolant outlet connector.
2006.0 Fiesta 1212006 G421228en
procarmanuals.com

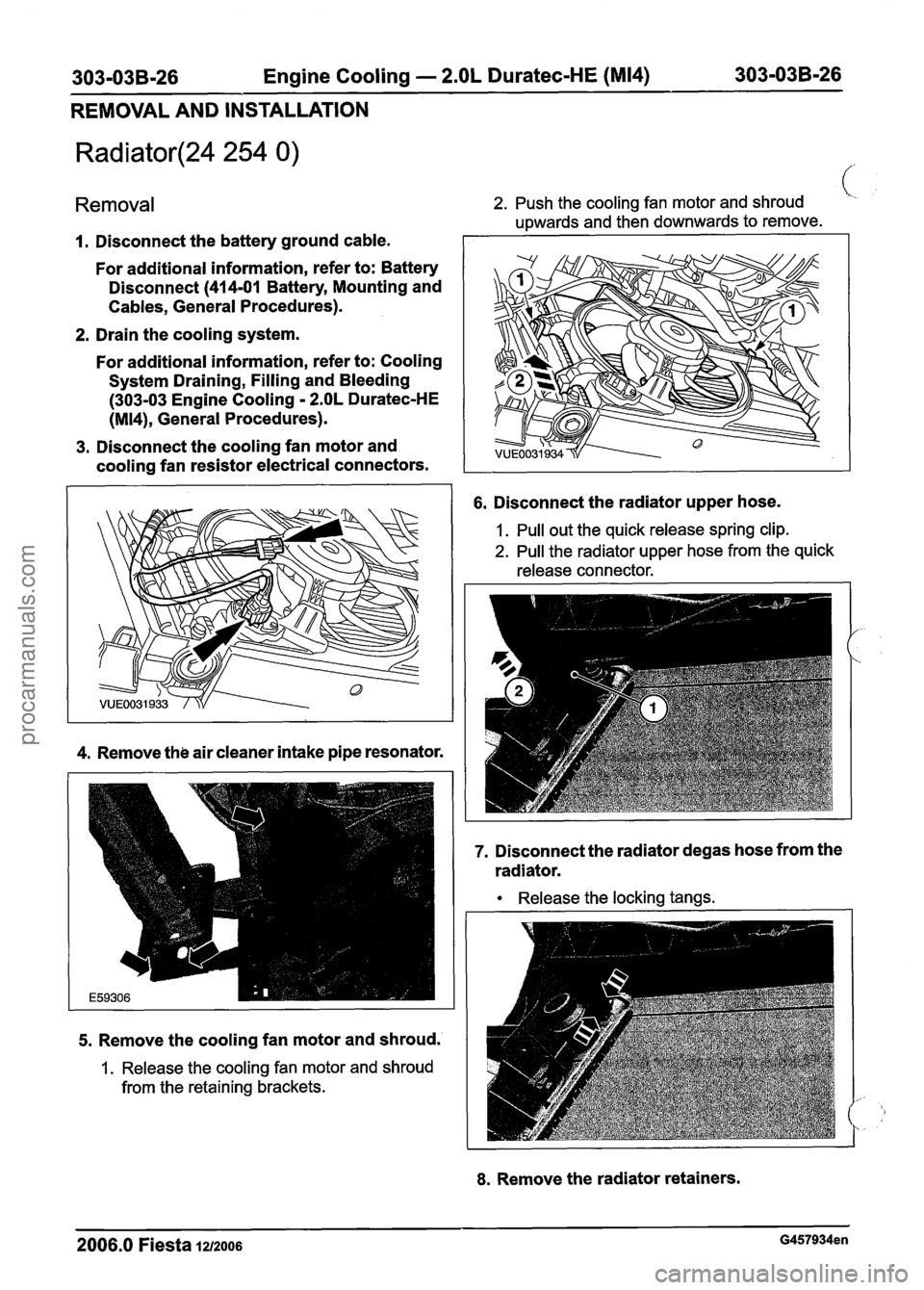

303-03B-26 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-26
REMOVAL AND INSTALLATION
Removal 2. Push the cooling fan motor and shroud l.
upwards and then downwards to remove.
1. Disconnect the battery ground cable. I
For additional information, refer to: Battery
Disconnect
(414-01 Battery, Mounting and
Cables, General Procedures).
2. Drain the cooling system.
For additional information, refer to: Cooling
System Draining, Filling and Bleeding
(303-03 Engine Cooling - 2.OL Duratec-HE
(M14), General Procedures).
3. Disconnect the cooling fan motor and
cooling fan resistor electrical connectors.
4. Remove
the air cleaner intake pipe resonator.
5. Remove the cooling fan motor and shroud.
1. Release the cooling fan motor and shroud
from the retaining brackets.
6. Disconnect the radiator upper hose.
1. Pull out the quick release spring clip.
2. Pull the radiator upper hose from the quick
release connector.
7. Disconnect the radiator degas hose from the
radiator.
Release the locking tangs.
8. Remove the radiator retainers.
2006.0 Fiesta 1212006 G457934en
procarmanuals.com

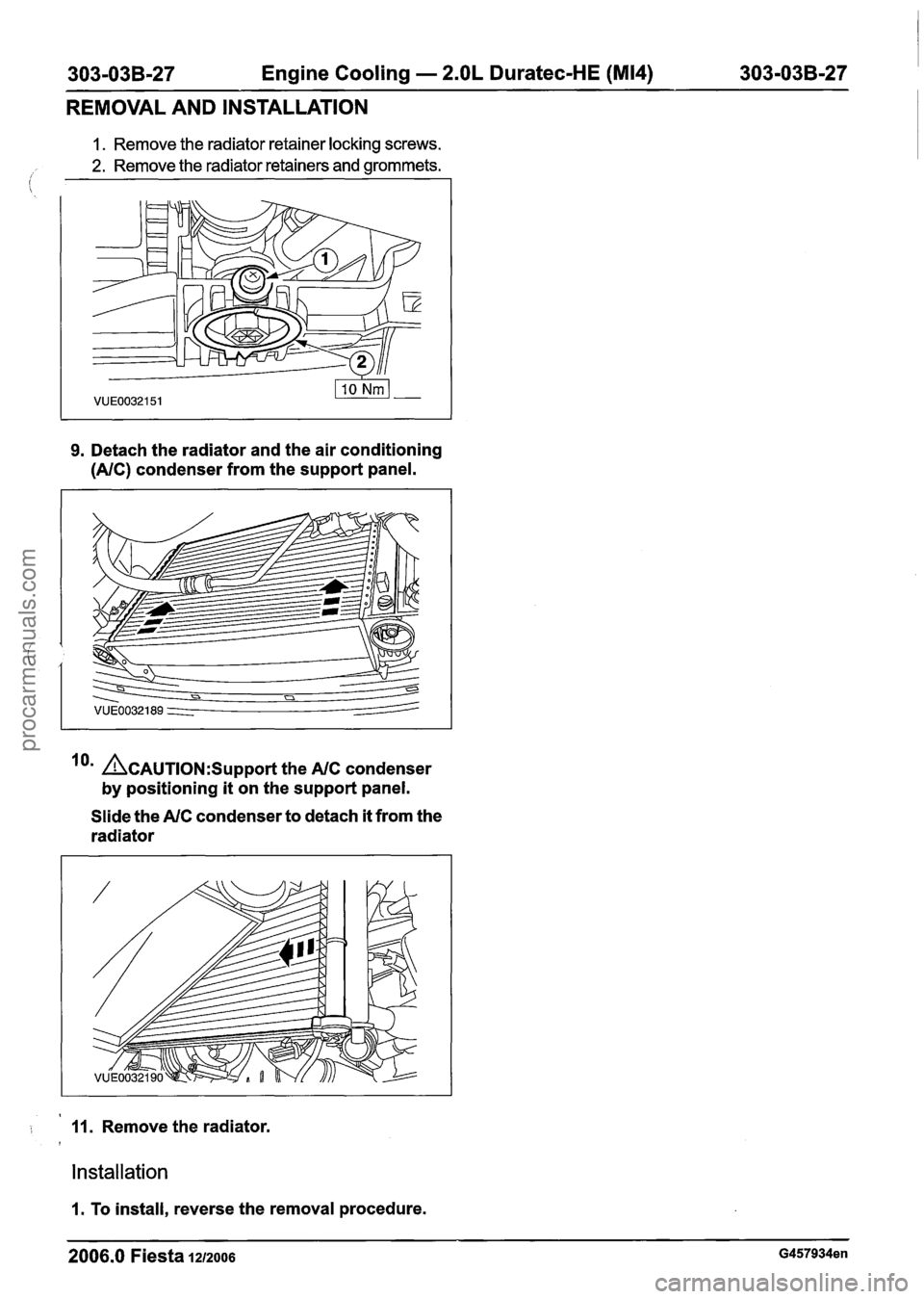

303-03B-27 Engine Cooling - 2.OL Duratec-HE (M14) 303-03B-27
REMOVAL AND INSTALLATION
I. Remove the radiator retainer locking screws.
2. Remove the radiator retainers and grommets.
9. Detach the radiator and the air conditioning
(NC) condenser from the support panel.
Om ACAUTION:S~~~~~~ the AIC condenser
by positioning it on the support panel.
Slide the
NC condenser to detach it from the
radiator
, 11. Remove the radiator. I
Installation
I. To install, reverse the removal procedure.
2006.0 Fiesta 1212006 G457934en
procarmanuals.com

Fuel Charging and Controls - 1.25L
Duratec-1 6V (Sigma)llI4L Duratec-1 6V
(Sigma)llI6L Duratec-1 6V (Sigma)
REMOVAL AND INSTALLATION
Fuel Charging Wiring Harness(36 437 0)
Removal
1. Remove the air cleaner. For additional
5. N0TE:lt is necessary to lift the red locking
tab before the electrical connector can be
disconnected.
information, refer to Section
303-12 [Intake the throttle body electrical Air Distribution and Filtering].
connector.
2. Disconnect the spark plug wires from the
ignition coil.
6. Disconnect the fuel charging wiring harness
electrical connector.
3. Disconnect the engine coolant temperature
(ECT) sensor electrical connector.
(
7. Remove the positive crankcase ventilation
(PCV) hose.
4. Disconnect the camshaft position (CMP)
sensor electrical connector.
2006.0 Fiesta 1212006 GI 89082en
procarmanuals.com

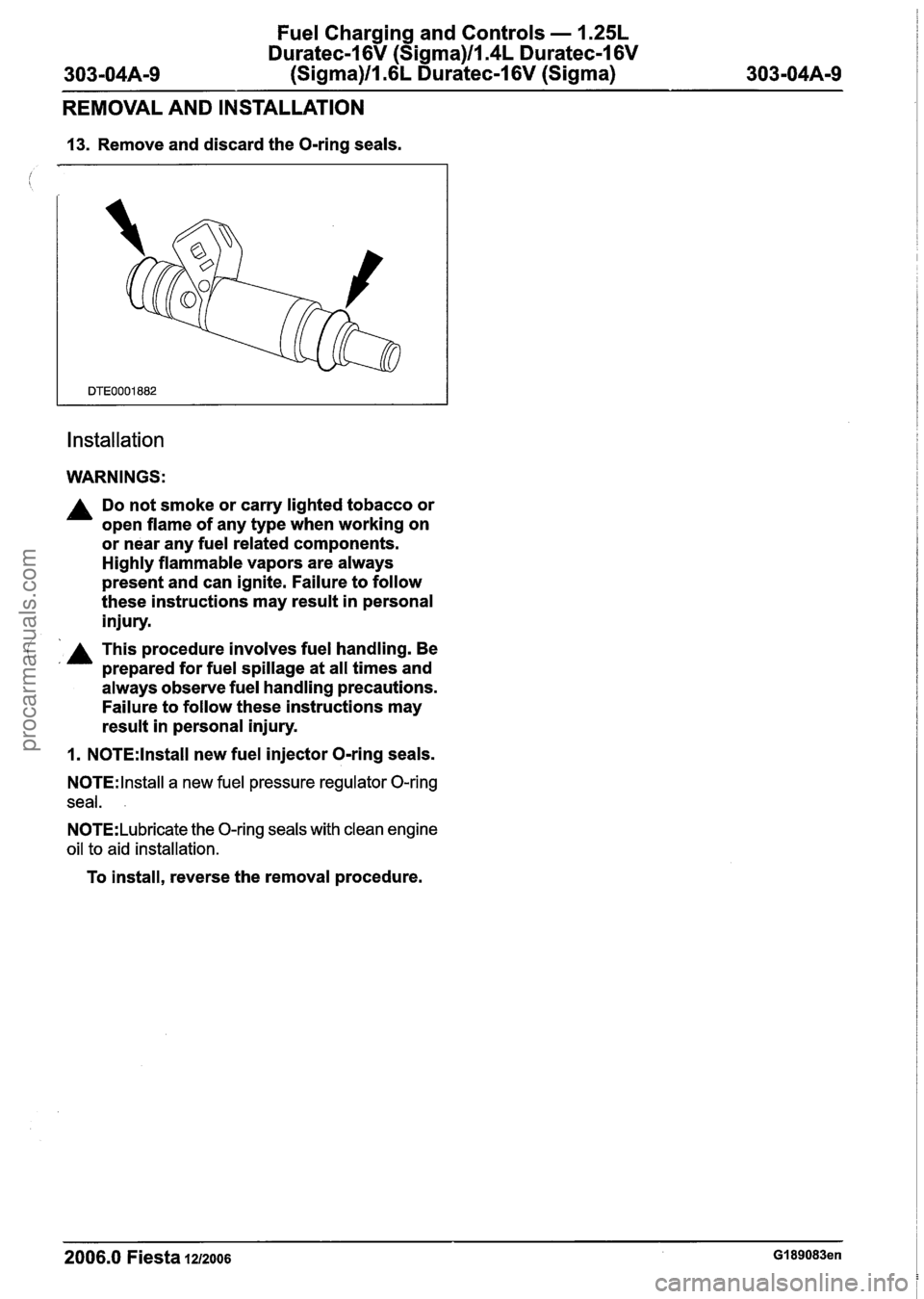

Fuel Charging and Controls - 1.25L
Duratec-I 6V (Sigma)llI4L Duratec-1 6V
303-04A-9 (Sigma)ll .6L Duratec-1 6V (Sigma) 303-04A-9
REMOVAL AND INSTALLATION
13. Remove and discard the O-ring seals.
Installation
WARNINGS:
A Do not smoke or carry lighted tobacco or
open flame of any type when working on
or near any fuel related components.
Highly flammable vapors are always
present and can ignite. Failure to follow
these instructions may result in personal
injury.
( A This procedure involves fuel handling. Be ' prepared for fuel spillage at all times and
always observe fuel handling precautions.
Failure to follow these instructions may
result in personal injury.
1. N0TE:lnstall new fuel injector O-ring seals.
N0TE:lnstall a new fuel pressure regulator O-ring
seal.
.
N0TE:Lubricate the O-ring seals with clean engine
oil to aid installation.
To install, reverse the removal procedure.
2006.0 Fiesta IZIZOO~ GI 89083en
procarmanuals.com

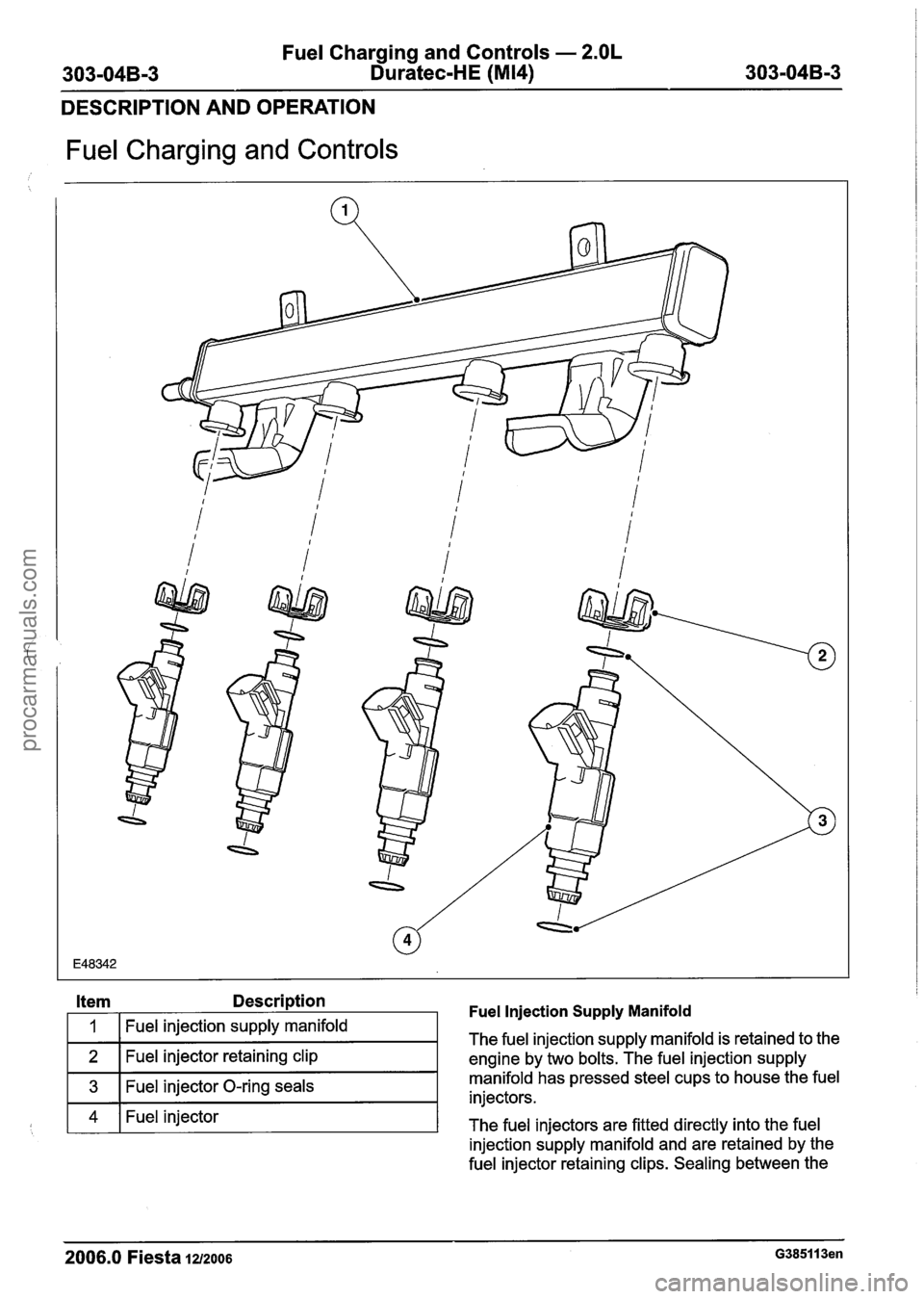

Fuel Charging and Controls - 2.OL
Duratec-HE (M14)
DESCRIPTION AND OPERATION
Fuel Charging and Controls
Item Description Fuel Injection Supply Manifold
4 1 Fuel injector
The fuel injectors are fitted directly into the fuel
injection supply manifold and are retained by the
3
fuel injector retaining clips. Sealing between the
The fuel
injection supply manifold is retained to the
engine by two bolts. The fuel injection supply
1
2
2006.0 Fiesta 1212006 G385113en
Fuel injection supply manifold
Fuel injector retaining clip
Fuel injector O-ring seals manifold-has pressed steel
cups to
house the fuel
injectors.
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-04B-4 Duratec-HE (M14) 303-04B-4
DESCRIPTION AND OPERATION
fuel injector to fuel injection supply manifold and
The fuel injectors are activated sequentially by the
the intake manifold is achieved by means of upper
powertrain control module (PCM) which modifies
and lower O-ring seals.
the fuel quantity by adjusting fuel injector opening
times according to the engine operating conditions.
Throttle Body The throttle body also gives inputs back to the
Item Description The signal from the PCM is used to control a DC
The throttle butterfly position is controlled by a
signal from the PCM which receives an input from
the accelerator pedal position sensor. The system
is fully electronic and does not use any cables.
I
PCM. This information allows the PCM to
compensate for factors such as carbon build up
within the throttle body and throttle body wear. The
throttle body also provides information to the PCM
to enable the flagging of a DTC.
Throttle
body
2006.0 Fiesta 1212006 G385113en
motor within the throttle body which is connected
to the throttle butterfly through gears.
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-04B-6 Duratec-HE (M14) 303-04B-6
DIAGNOSIS AND TESTING
1 6 1 Heated Oxygen sensor (H02s) I
Item Description Fuel supply
1 7 1 Intake manifold I
5
Fuel injectors
Throttle body
The fuel supply for all petrol fueled variants is
equipped with a return-less fuel system. This
means that the fuel delivery pressure at the fuel
injectors, is monitored and controlled by the fuel
tank module. This control is achived by switching
the fuel pump on and off.
The fuel pump module for both the Ethanol E85
TO maintain the same or similar power output to variant vehicle and the unleaded fueled vehicle are
that of the unleaded fuel vehicle, the fuel injectors
very similar, visual^ the only difference is the fuel
have been replaced with high flow fuel injectors. pump electrical connections which on the Ethanol
E85 variant is sealed. This is not the only
differance, both fuel pump modules have different
(
Fuel composition monitoring fuel level sensor resistor card values.
The quantity of Ethanol E85 in relation to the
quantity of unleaded fuel contained in the fuel tank
at any one time is not monitored at the fuel tank.
The Ethanol percentage volume can only decrease
from its maximum 85% (pure Ethanol
E85), to zero
(1 00% unleaded fuel).
The fuel charging system compensates for the
changes in fuel composition using the signal
received by the power train control module (PCM)
from the
H02s. The PCM adapts the fueling and
ignition calibrations to suit the current fuel tank
content composition.
Cold start
To overcome the problems relating to cold start
inherent with Ethanol E85 vehicles (temperatures
down to -29 degrees centigrade), a block heater
has been installed into the engine coolant system.
The block heater is located to the rear of the engine
under the exhaust manifold. The block heater is
fitted with a dedicated harness which terminates at an external plug connector fitted into the radiator
grill.
2006.0 Fiesta 1212006
