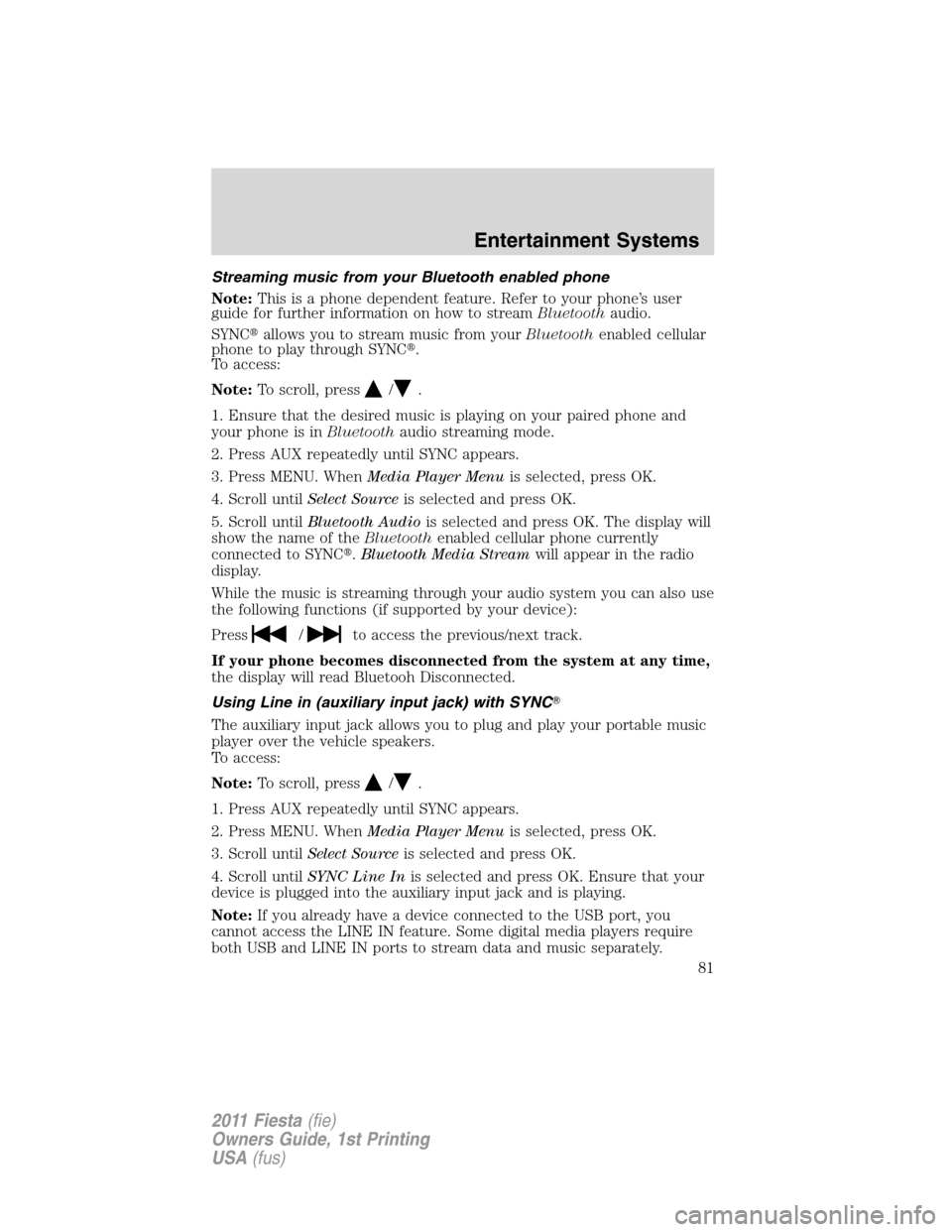

Page 81 of 357
Streaming music from your Bluetooth enabled phone
Note:This is a phone dependent feature. Refer to your phone’s user
guide for further information on how to streamBluetoothaudio.
SYNCallows you to stream music from yourBluetoothenabled cellular
phone to play through SYNC.
To access:
Note:To scroll, press
/.
1. Ensure that the desired music is playing on your paired phone and
your phone is inBluetoothaudio streaming mode.
2. Press AUX repeatedly until SYNC appears.
3. Press MENU. WhenMedia Player Menuis selected, press OK.
4. Scroll untilSelect Sourceis selected and press OK.
5. Scroll untilBluetooth Audiois selected and press OK. The display will
show the name of theBluetoothenabled cellular phone currently
connected to SYNC.Bluetooth Media Streamwill appear in the radio
display.
While the music is streaming through your audio system you can also use
the following functions (if supported by your device):
Press
/to access the previous/next track.
If your phone becomes disconnected from the system at any time,
the display will read Bluetooh Disconnected.
Using Line in (auxiliary input jack) with SYNC
The auxiliary input jack allows you to plug and play your portable music
player over the vehicle speakers.
To access:
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSelect Sourceis selected and press OK.
4. Scroll untilSYNC Line Inis selected and press OK. Ensure that your
device is plugged into the auxiliary input jack and is playing.
Note:If you already have a device connected to the USB port, you
cannot access the LINE IN feature. Some digital media players require
both USB and LINE IN ports to stream data and music separately.
Entertainment Systems
81
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

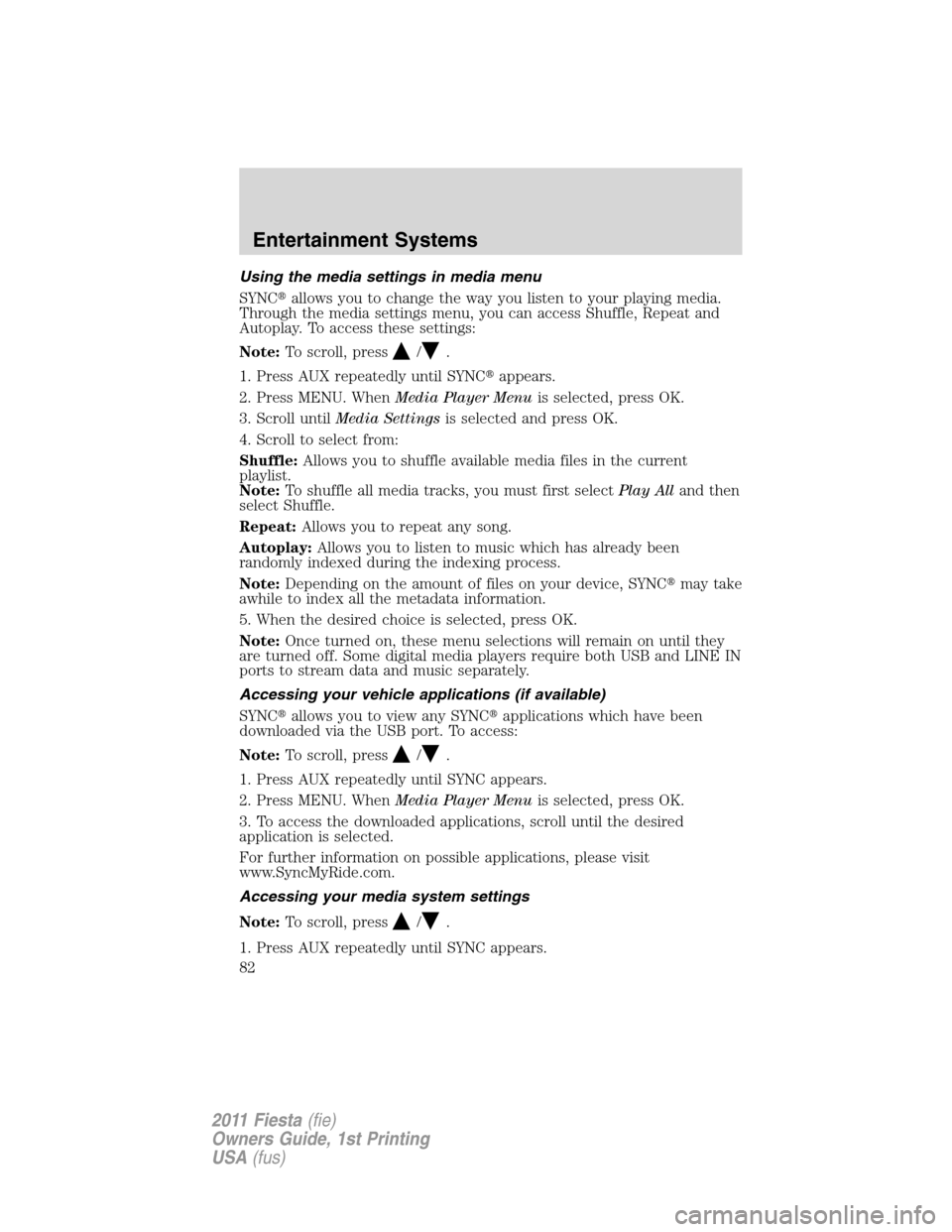

Page 82 of 357
Using the media settings in media menu
SYNCallows you to change the way you listen to your playing media.
Through the media settings menu, you can access Shuffle, Repeat and
Autoplay. To access these settings:
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNCappears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilMedia Settingsis selected and press OK.
4. Scroll to select from:
Shuffle:Allows you to shuffle available media files in the current
playlist.
Note:To shuffle all media tracks, you must first selectPlay Alland then
select Shuffle.
Repeat:Allows you to repeat any song.
Autoplay:Allows you to listen to music which has already been
randomly indexed during the indexing process.
Note:Depending on the amount of files on your device, SYNCmay take
awhile to index all the metadata information.
5. When the desired choice is selected, press OK.
Note:Once turned on, these menu selections will remain on until they
are turned off. Some digital media players require both USB and LINE IN
ports to stream data and music separately.
Accessing your vehicle applications (if available)
SYNCallows you to view any SYNCapplications which have been
downloaded via the USB port. To access:
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. To access the downloaded applications, scroll until the desired
application is selected.
For further information on possible applications, please visit
www.SyncMyRide.com.
Accessing your media system settings
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
Entertainment Systems
82
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

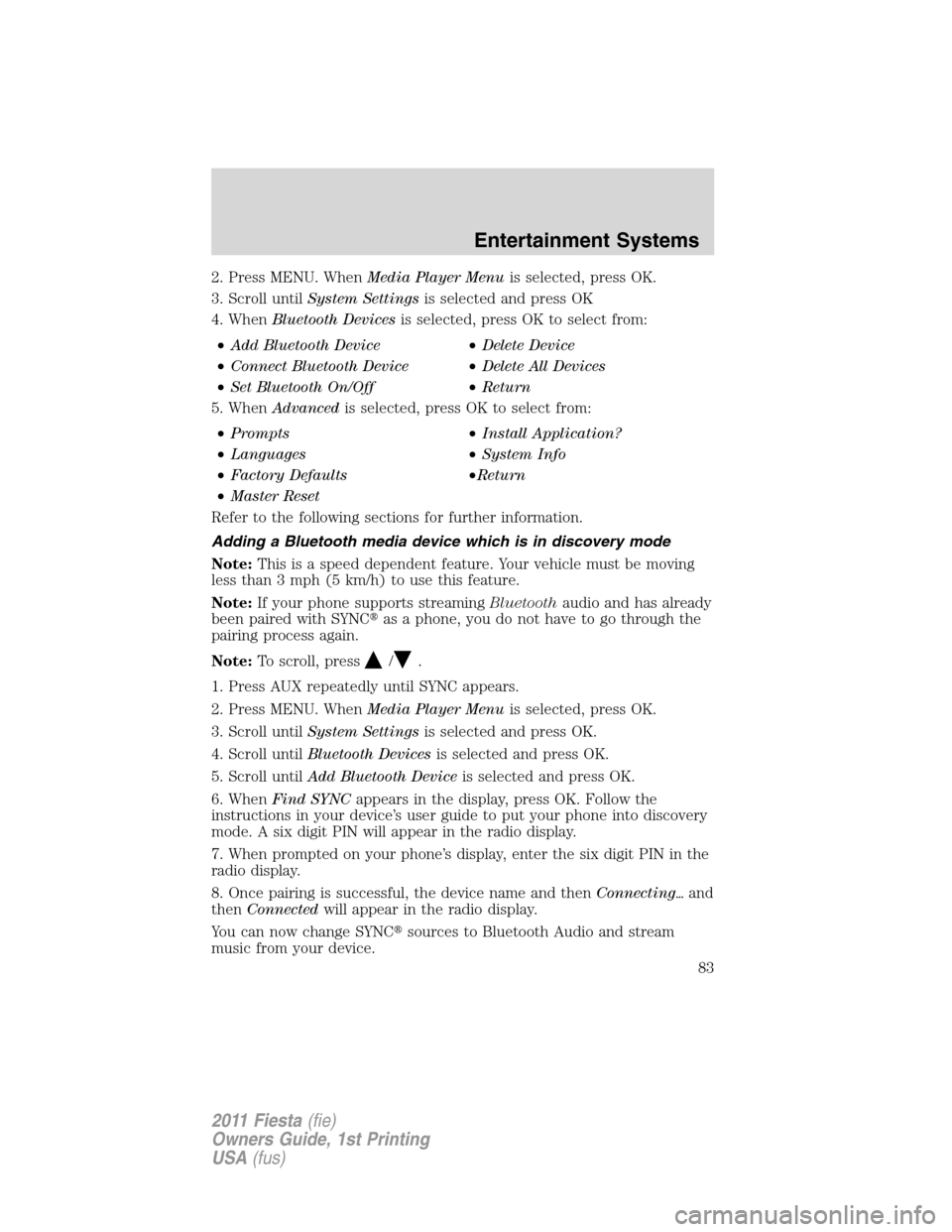

Page 83 of 357
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK
4. WhenBluetooth Devicesis selected, press OK to select from:
•Add Bluetooth Device•Delete Device
•Connect Bluetooth Device•Delete All Devices
•Set Bluetooth On/Off•Return
5. WhenAdvancedis selected, press OK to select from:
•Prompts•Install Application?
•Languages•System Info
•Factory Defaults•Return
•Master Reset
Refer to the following sections for further information.
Adding a Bluetooth media device which is in discovery mode
Note:This is a speed dependent feature. Your vehicle must be moving
less than 3 mph (5 km/h) to use this feature.
Note:If your phone supports streamingBluetoothaudio and has already
been paired with SYNCas a phone, you do not have to go through the
pairing process again.
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilBluetooth Devicesis selected and press OK.
5. Scroll untilAdd Bluetooth Deviceis selected and press OK.
6. WhenFind SYNCappears in the display, press OK. Follow the
instructions in your device’s user guide to put your phone into discovery
mode. A six digit PIN will appear in the radio display.
7. When prompted on your phone’s display, enter the six digit PIN in the
radio display.
8. Once pairing is successful, the device name and thenConnectingand
thenConnectedwill appear in the radio display.
You can now change SYNCsources to Bluetooth Audio and stream
music from your device.
Entertainment Systems
83
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 84 of 357
Adding a Bluetooth media device which is in discoverable mode
Note:This is a speed dependent feature. Your vehicle must be moving
less than 3 mph (5 km/h) to use this feature.
Note:If your phone supports streamingBluetoothaudio and has already
been paired with SYNCas a phone, you do not have to go through the
pairing process again.
Note:Use this process when your device generates the PIN instead of
SYNC.
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilBluetooth Devicesis selected and press OK.
5. Scroll untilAdd Bluetooth Deviceis selected and press OK.
6. WhenFind SYNCappears in your radio display, press OK.
7. After the search for activeBluetooth Devicesis complete, scroll to
find the desired device. Press OK to confirm.
8. Refer to your device’s user guide for instructions on how to put your
device into discoverable mode. When your media device gives you a PIN,
enter that PIN into SYNCusing voice commands (or using the 0–9
memory presets on your audio system, if equipped), when prompted.
9. When you have entered your last digit via voice, say “Enter”.
10. When the process is complete, SYNCwill displayConnectedand the
name of the device will appear in the radio display.
You can now change SYNCsources to Bluetooth Audio and stream
music from your device.
Connecting a Bluetooth media device
To connect a previously pairedBluetoothdevice:
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilBluetooth Devicesis selected and press OK.
Entertainment Systems
84
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

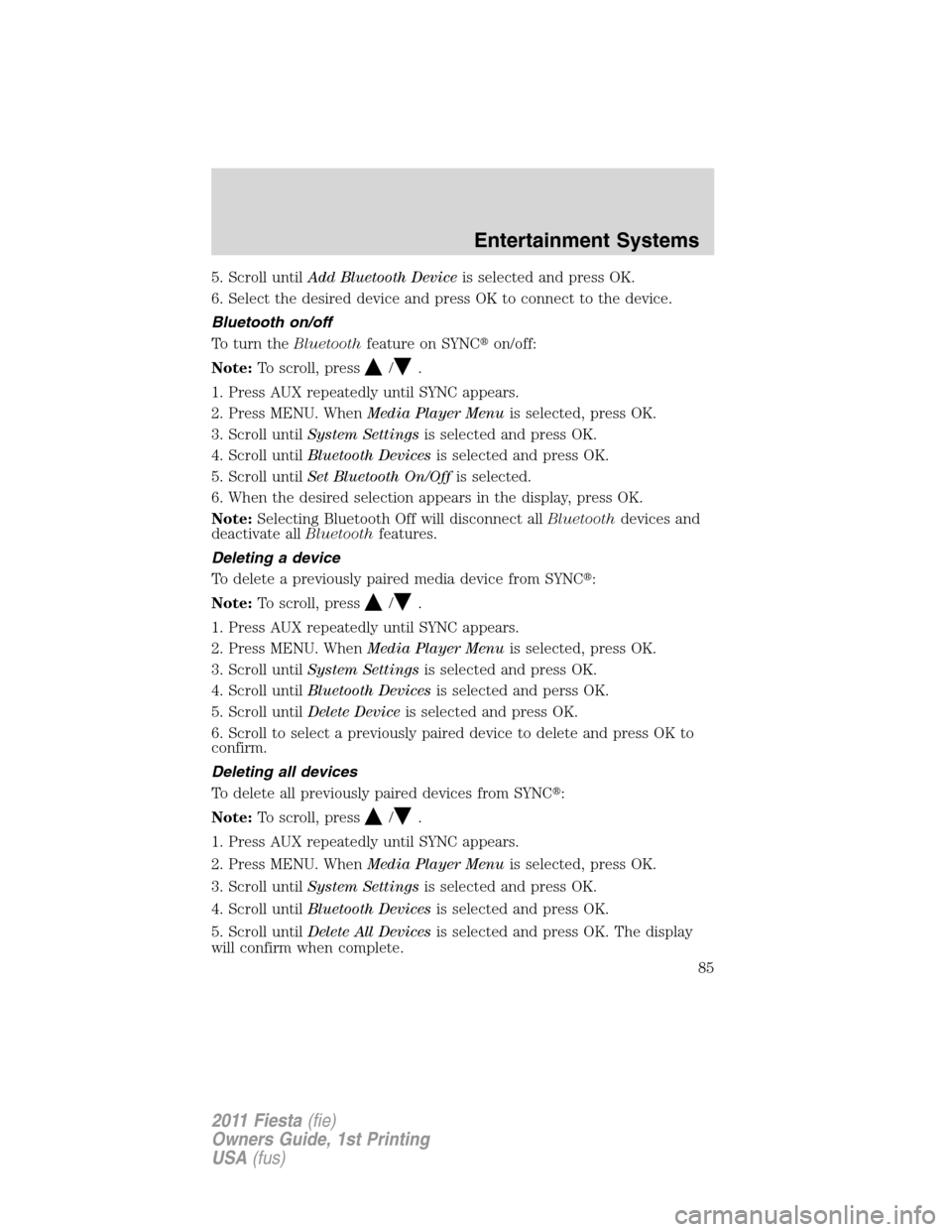

Page 85 of 357
5. Scroll untilAdd Bluetooth Deviceis selected and press OK.
6. Select the desired device and press OK to connect to the device.
Bluetooth on/off
To turn theBluetoothfeature on SYNCon/off:
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilBluetooth Devicesis selected and press OK.
5. Scroll untilSet Bluetooth On/Offis selected.
6. When the desired selection appears in the display, press OK.
Note:Selecting Bluetooth Off will disconnect allBluetoothdevices and
deactivate allBluetoothfeatures.
Deleting a device
To delete a previously paired media device from SYNC:
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilBluetooth Devicesis selected and perss OK.
5. Scroll untilDelete Deviceis selected and press OK.
6. Scroll to select a previously paired device to delete and press OK to
confirm.
Deleting all devices
To delete all previously paired devices from SYNC:
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilBluetooth Devicesis selected and press OK.
5. Scroll untilDelete All Devicesis selected and press OK. The display
will confirm when complete.
Entertainment Systems
85
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

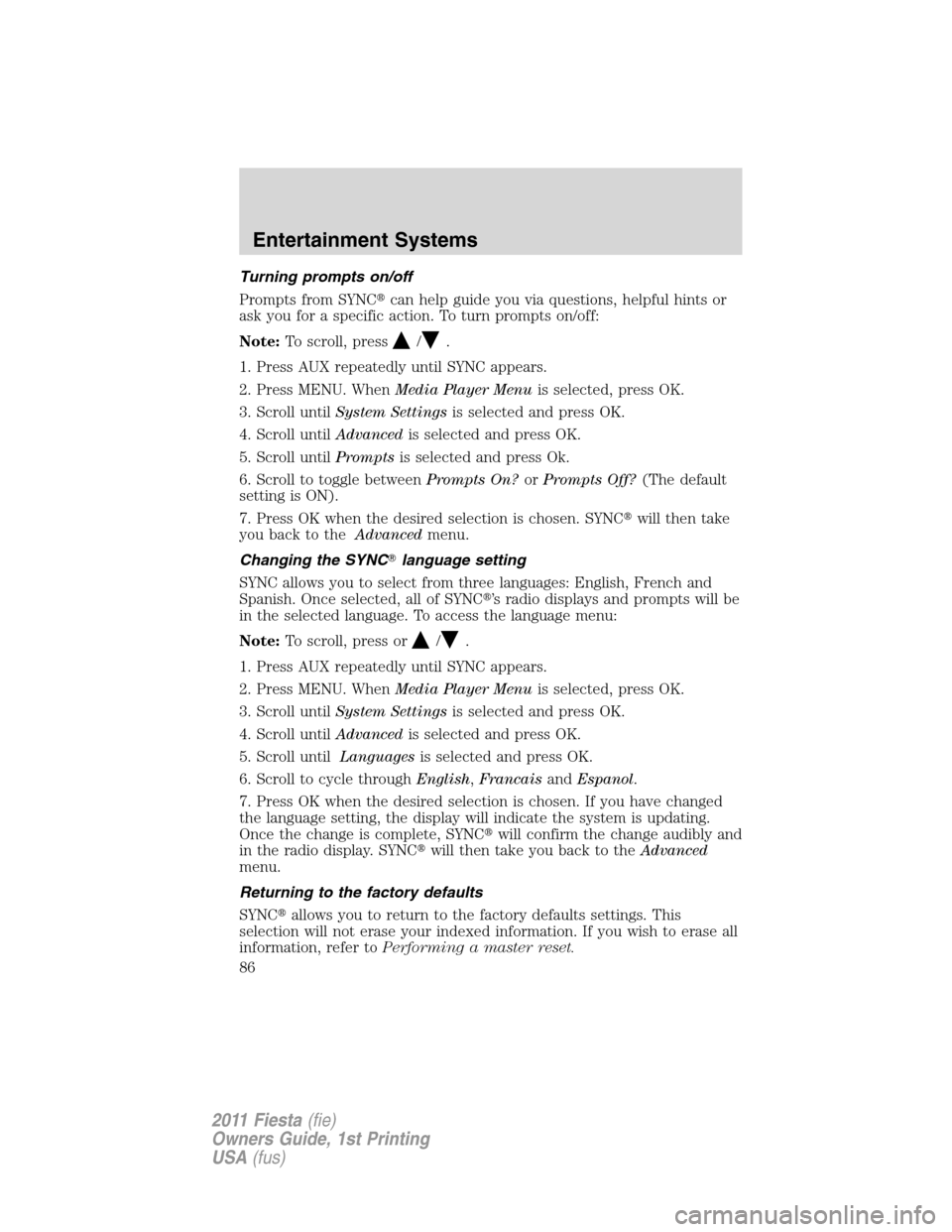

Page 86 of 357
Turning prompts on/off
Prompts from SYNCcan help guide you via questions, helpful hints or
ask you for a specific action. To turn prompts on/off:
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilAdvancedis selected and press OK.
5. Scroll untilPromptsis selected and press Ok.
6. Scroll to toggle betweenPrompts On?orPrompts Off?(The default
setting is ON).
7. Press OK when the desired selection is chosen. SYNCwill then take
you back to theAdvancedmenu.
Changing the SYNClanguage setting
SYNC allows you to select from three languages: English, French and
Spanish. Once selected, all of SYNC’s radio displays and prompts will be
in the selected language. To access the language menu:
Note:To scroll, press or
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilAdvancedis selected and press OK.
5. Scroll untilLanguagesis selected and press OK.
6. Scroll to cycle throughEnglish,FrancaisandEspanol.
7. Press OK when the desired selection is chosen. If you have changed
the language setting, the display will indicate the system is updating.
Once the change is complete, SYNCwill confirm the change audibly and
in the radio display. SYNCwill then take you back to theAdvanced
menu.
Returning to the factory defaults
SYNCallows you to return to the factory defaults settings. This
selection will not erase your indexed information. If you wish to erase all
information, refer toPerforming a master reset.
Entertainment Systems
86
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

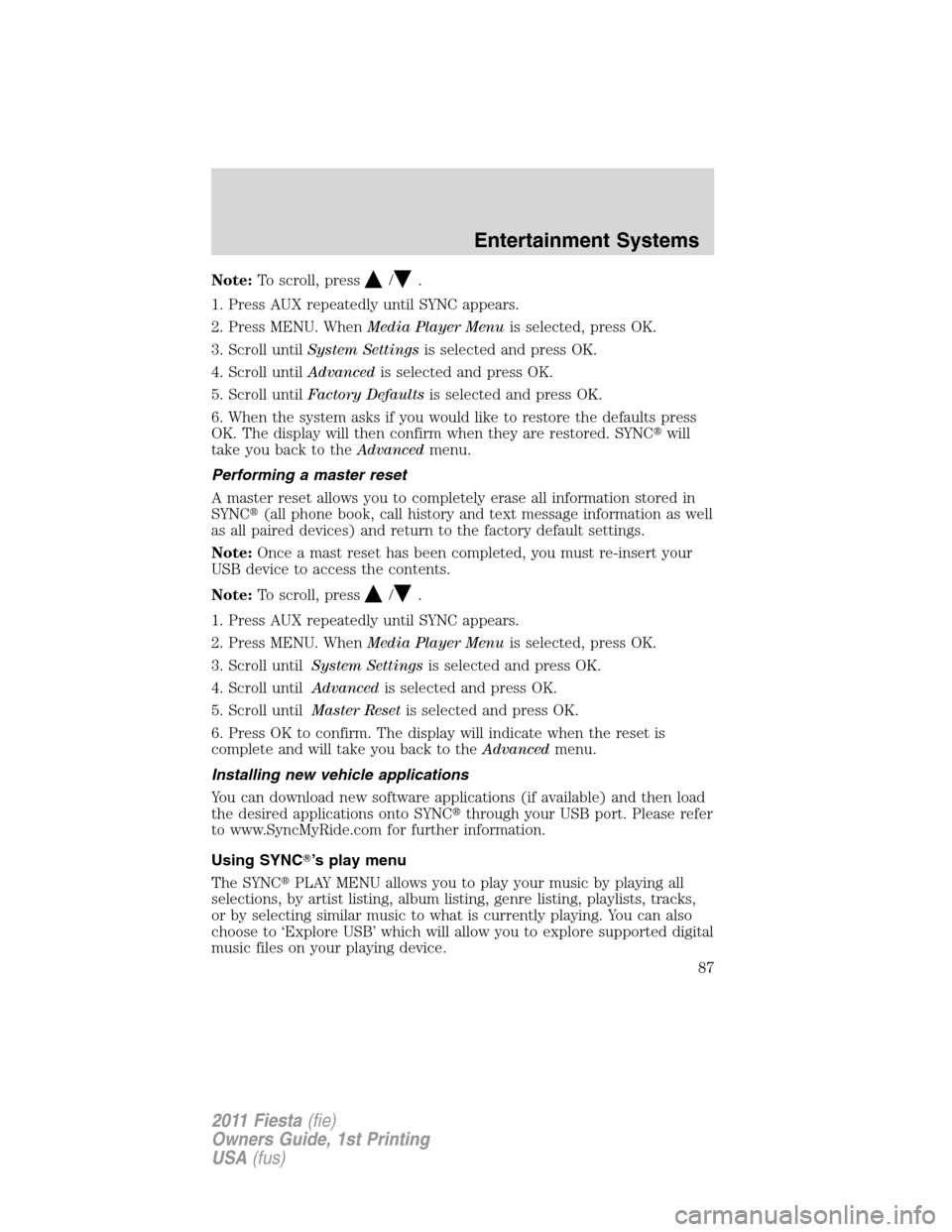

Page 87 of 357
Note:To scroll, press/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilAdvancedis selected and press OK.
5. Scroll untilFactory Defaultsis selected and press OK.
6. When the system asks if you would like to restore the defaults press
OK. The display will then confirm when they are restored. SYNCwill
take you back to theAdvancedmenu.
Performing a master reset
A master reset allows you to completely erase all information stored in
SYNC(all phone book, call history and text message information as well
as all paired devices) and return to the factory default settings.
Note:Once a mast reset has been completed, you must re-insert your
USB device to access the contents.
Note:To scroll, press
/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. WhenMedia Player Menuis selected, press OK.
3. Scroll untilSystem Settingsis selected and press OK.
4. Scroll untilAdvancedis selected and press OK.
5. Scroll untilMaster Resetis selected and press OK.
6. Press OK to confirm. The display will indicate when the reset is
complete and will take you back to theAdvancedmenu.
Installing new vehicle applications
You can download new software applications (if available) and then load
the desired applications onto SYNCthrough your USB port. Please refer
to www.SyncMyRide.com for further information.
Using SYNC’s play menu
The SYNCPLAY MENU allows you to play your music by playing all
selections, by artist listing, album listing, genre listing, playlists, tracks,
or by selecting similar music to what is currently playing. You can also
choose to ‘Explore USB’ which will allow you to explore supported digital
music files on your playing device.
Entertainment Systems
87
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 88 of 357

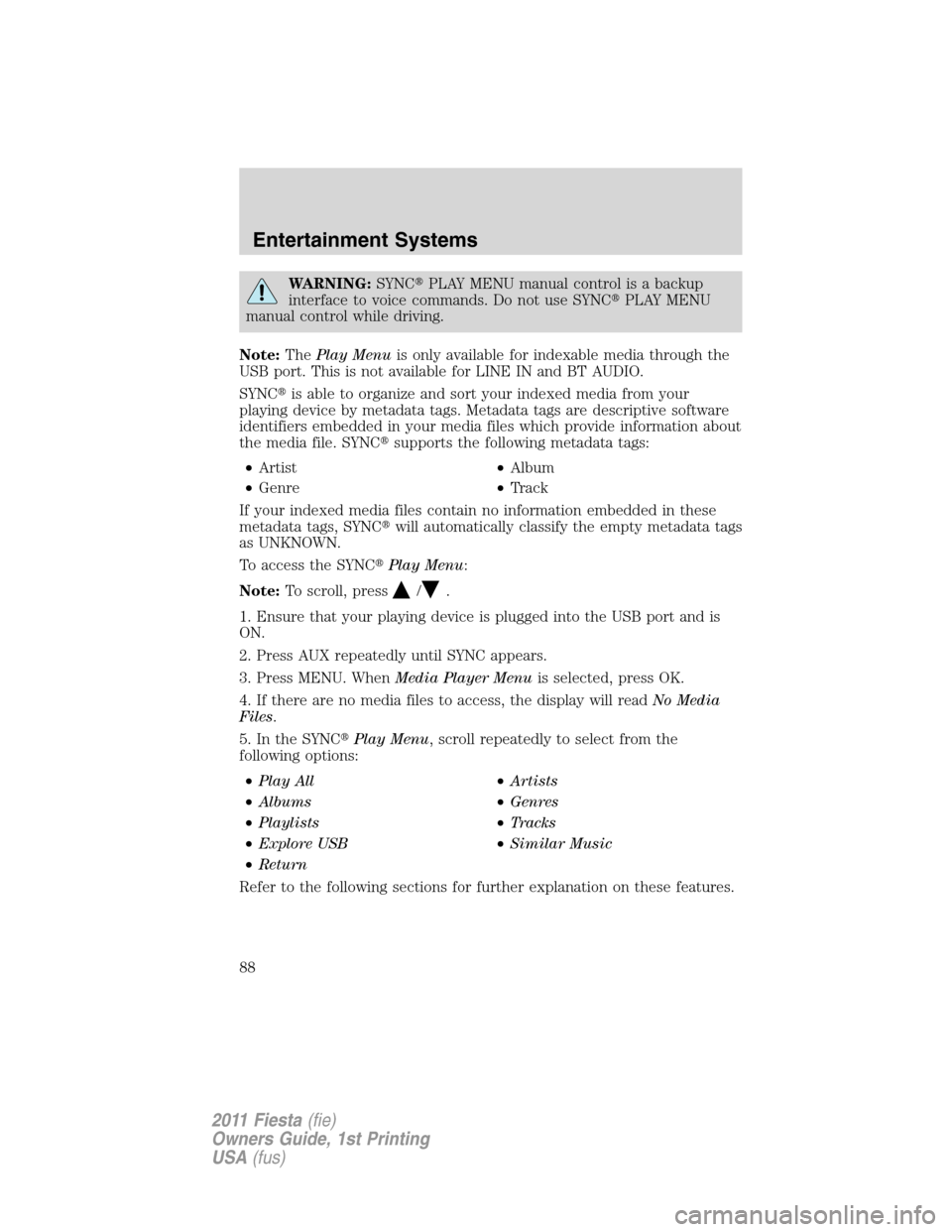

WARNING:SYNCPLAY MENU manual control is a backup
interface to voice commands. Do not use SYNCPLAY MENU
manual control while driving.
Note:ThePlay Menuis only available for indexable media through the
USB port. This is not available for LINE IN and BT AUDIO.
SYNCis able to organize and sort your indexed media from your
playing device by metadata tags. Metadata tags are descriptive software
identifiers embedded in your media files which provide information about
the media file. SYNCsupports the following metadata tags:
•Artist•Album
•Genre•Track
If your indexed media files contain no information embedded in these
metadata tags, SYNCwill automatically classify the empty metadata tags
as UNKNOWN.
To access the SYNCPlay Menu:
Note:To scroll, press
/.
1. Ensure that your playing device is plugged into the USB port and is
ON.
2. Press AUX repeatedly until SYNC appears.
3. Press MENU. WhenMedia Player Menuis selected, press OK.
4. If there are no media files to access, the display will readNo Media
Files.
5. In the SYNCPlay Menu, scroll repeatedly to select from the
following options:
•Play All•Artists
•Albums•Genres
•Playlists•Tracks
•Explore USB•Similar Music
•Return
Refer to the following sections for further explanation on these features.
Entertainment Systems
88
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 89 of 357

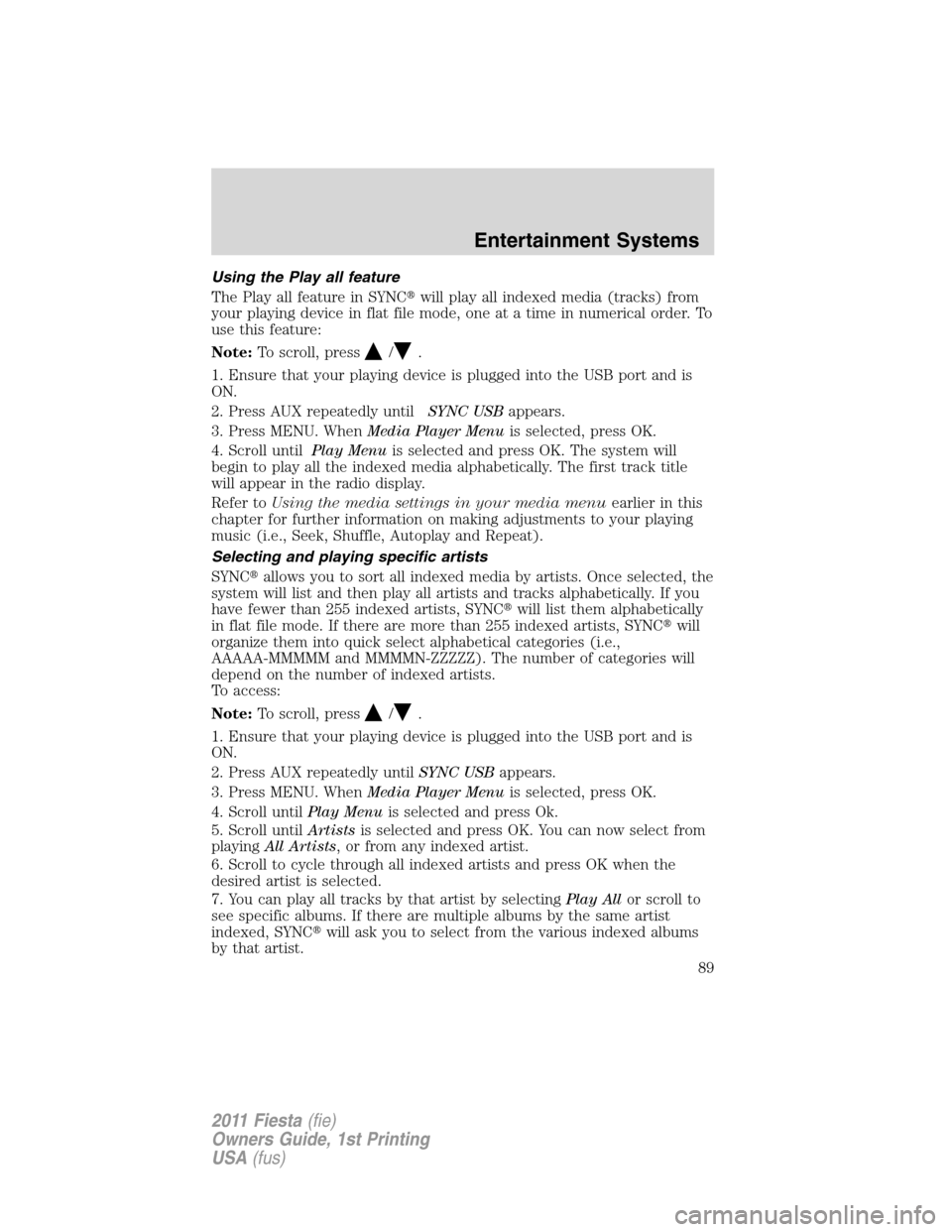

Using the Play all feature
The Play all feature in SYNCwill play all indexed media (tracks) from
your playing device in flat file mode, one at a time in numerical order. To
use this feature:
Note:To scroll, press
/.
1. Ensure that your playing device is plugged into the USB port and is
ON.
2. Press AUX repeatedly untilSYNC USBappears.
3. Press MENU. WhenMedia Player Menuis selected, press OK.
4. Scroll untilPlay Menuis selected and press OK. The system will
begin to play all the indexed media alphabetically. The first track title
will appear in the radio display.
Refer toUsing the media settings in your media menuearlier in this
chapter for further information on making adjustments to your playing
music (i.e., Seek, Shuffle, Autoplay and Repeat).
Selecting and playing specific artists
SYNCallows you to sort all indexed media by artists. Once selected, the
system will list and then play all artists and tracks alphabetically. If you
have fewer than 255 indexed artists, SYNCwill list them alphabetically
in flat file mode. If there are more than 255 indexed artists, SYNCwill
organize them into quick select alphabetical categories (i.e.,
AAAAA-MMMMM and MMMMN-ZZZZZ). The number of categories will
depend on the number of indexed artists.
To access:
Note:To scroll, press
/.
1. Ensure that your playing device is plugged into the USB port and is
ON.
2. Press AUX repeatedly untilSYNC USBappears.
3. Press MENU. WhenMedia Player Menuis selected, press OK.
4. Scroll untilPlay Menuis selected and press Ok.
5. Scroll untilArtistsis selected and press OK. You can now select from
playingAll Artists, or from any indexed artist.
6. Scroll to cycle through all indexed artists and press OK when the
desired artist is selected.
7. You can play all tracks by that artist by selectingPlay Allor scroll to
see specific albums. If there are multiple albums by the same artist
indexed, SYNCwill ask you to select from the various indexed albums
by that artist.
Entertainment Systems
89
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 90 of 357

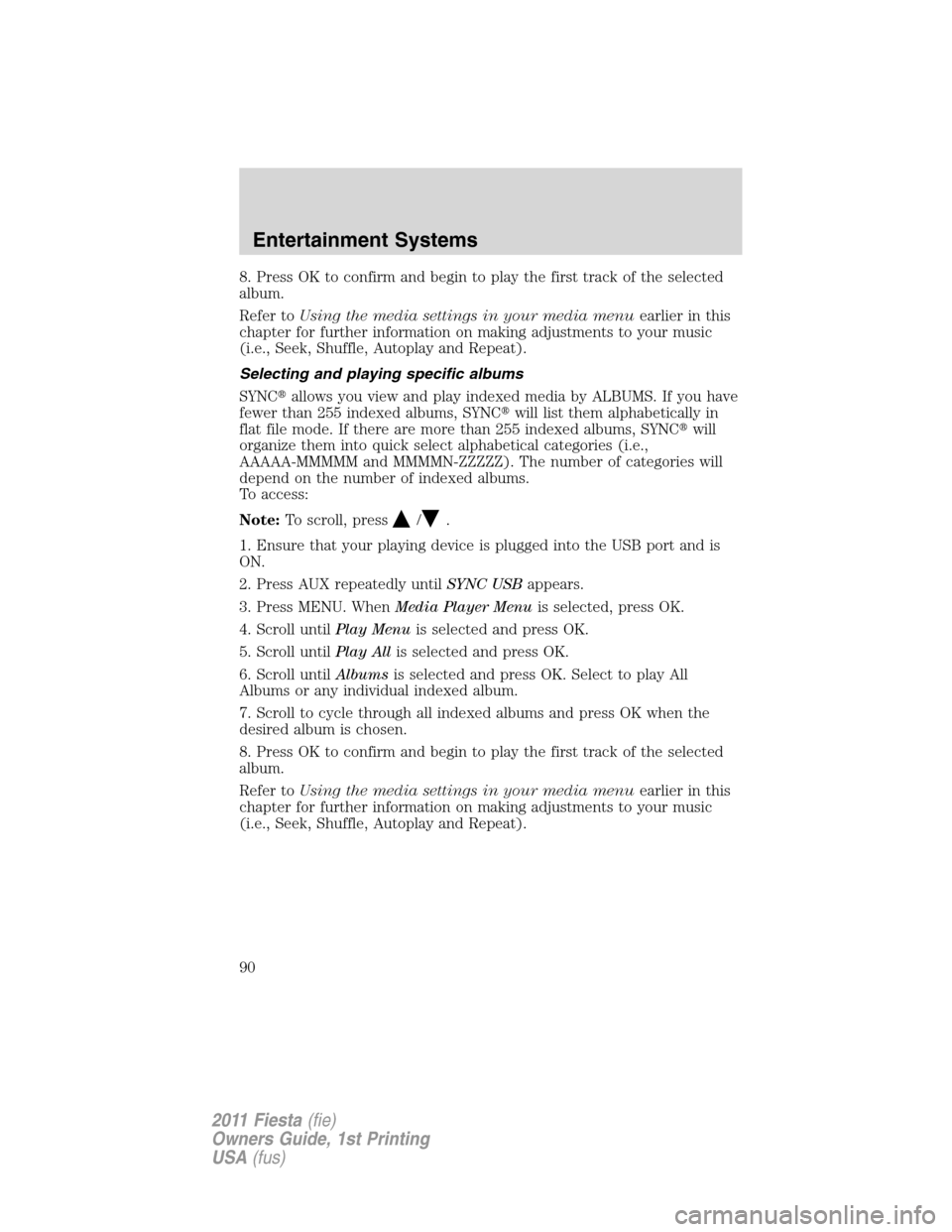

8. Press OK to confirm and begin to play the first track of the selected
album.
Refer toUsing the media settings in your media menuearlier in this
chapter for further information on making adjustments to your music
(i.e., Seek, Shuffle, Autoplay and Repeat).
Selecting and playing specific albums
SYNCallows you view and play indexed media by ALBUMS. If you have
fewer than 255 indexed albums, SYNCwill list them alphabetically in
flat file mode. If there are more than 255 indexed albums, SYNCwill
organize them into quick select alphabetical categories (i.e.,
AAAAA-MMMMM and MMMMN-ZZZZZ). The number of categories will
depend on the number of indexed albums.
To access:
Note:To scroll, press
/.
1. Ensure that your playing device is plugged into the USB port and is
ON.
2. Press AUX repeatedly untilSYNC USBappears.
3. Press MENU. WhenMedia Player Menuis selected, press OK.
4. Scroll untilPlay Menuis selected and press OK.
5. Scroll untilPlay Allis selected and press OK.
6. Scroll untilAlbumsis selected and press OK. Select to play All
Albums or any individual indexed album.
7. Scroll to cycle through all indexed albums and press OK when the
desired album is chosen.
8. Press OK to confirm and begin to play the first track of the selected
album.
Refer toUsing the media settings in your media menuearlier in this
chapter for further information on making adjustments to your music
(i.e., Seek, Shuffle, Autoplay and Repeat).
Entertainment Systems
90
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
