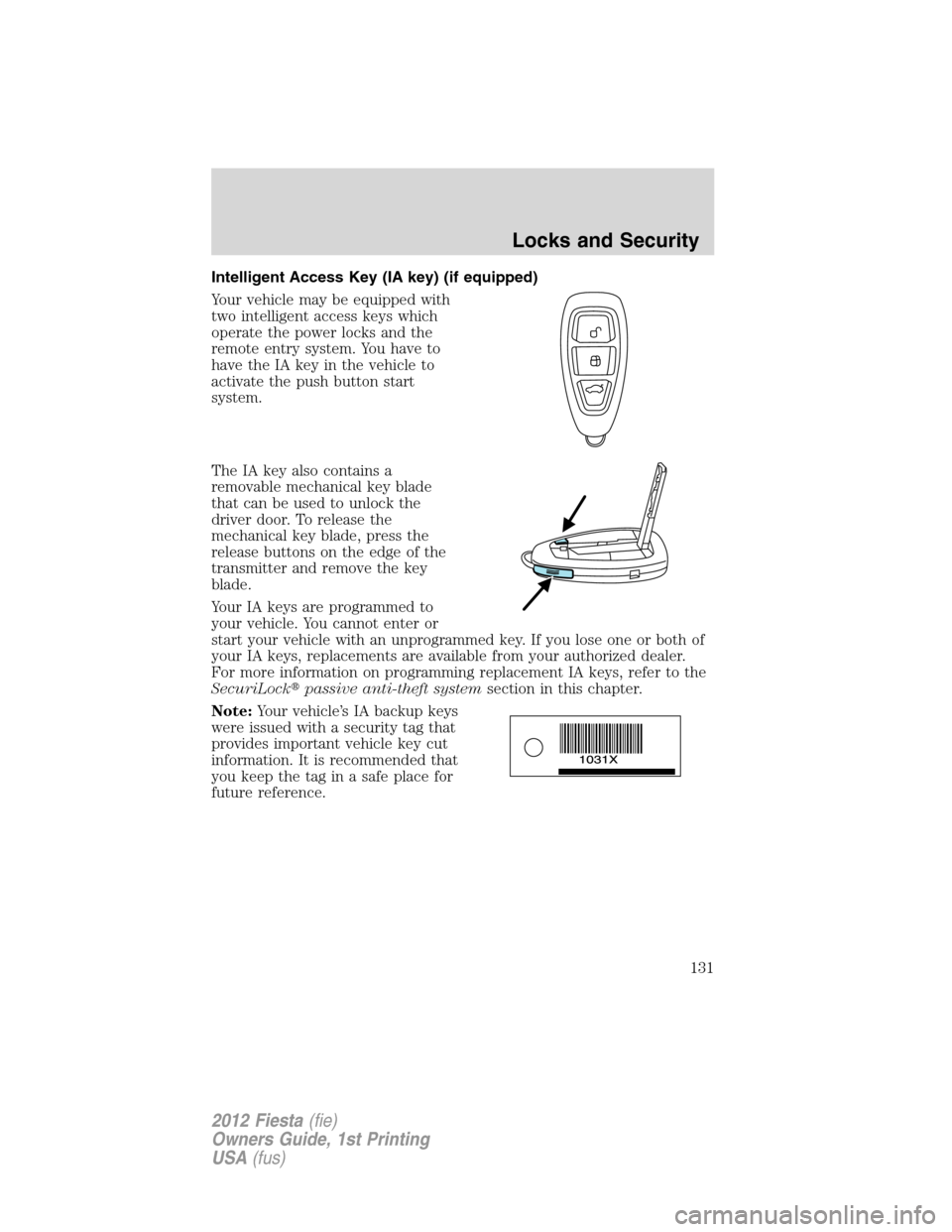

Intelligent Access Key (IA key) (if equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks and the
remote entry system. You have to
have the IA key in the vehicle to
activate the push button start
system.
The IA key also contains a
removable mechanical key blade
that can be used to unlock the
driver door. To release the
mechanical key blade, press the
release buttons on the edge of the
transmitter and remove the key
blade.
Your IA keys are programmed to
your vehicle. You cannot enter or
start your vehicle with an unprogrammed key. If you lose one or both of
your IA keys, replacements are available from your authorized dealer.
For more information on programming replacement IA keys, refer to the
SecuriLockpassive anti-theft systemsection in this chapter.
Note:Your vehicle’s IA backup keys
were issued with a security tag that
provides important vehicle key cut
information. It is recommended that
you keep the tag in a safe place for
future reference.
Locks and Security
131
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

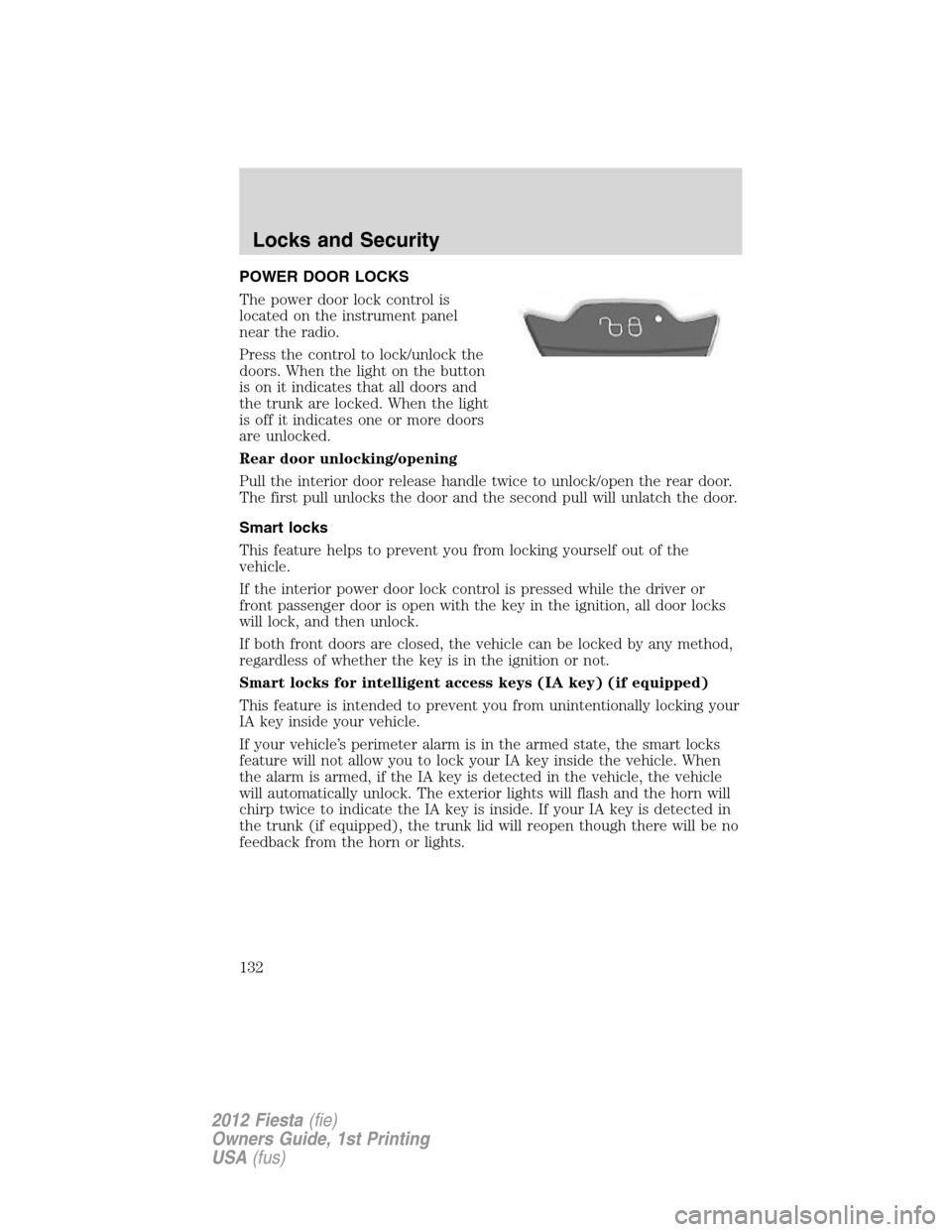

POWER DOOR LOCKS
The power door lock control is
located on the instrument panel
near the radio.
Press the control to lock/unlock the
doors. When the light on the button
is on it indicates that all doors and
the trunk are locked. When the light
is off it indicates one or more doors
are unlocked.
Rear door unlocking/opening
Pull the interior door release handle twice to unlock/open the rear door.
The first pull unlocks the door and the second pull will unlatch the door.
Smart locks
This feature helps to prevent you from locking yourself out of the
vehicle.
If the interior power door lock control is pressed while the driver or
front passenger door is open with the key in the ignition, all door locks
will lock, and then unlock.
If both front doors are closed, the vehicle can be locked by any method,
regardless of whether the key is in the ignition or not.
Smart locks for intelligent access keys (IA key) (if equipped)
This feature is intended to prevent you from unintentionally locking your
IA key inside your vehicle.
If your vehicle’s perimeter alarm is in the armed state, the smart locks
feature will not allow you to lock your IA key inside the vehicle. When
the alarm is armed, if the IA key is detected in the vehicle, the vehicle
will automatically unlock. The exterior lights will flash and the horn will
chirp twice to indicate the IA key is inside. If your IA key is detected in
the trunk (if equipped), the trunk lid will reopen though there will be no
feedback from the horn or lights.
Locks and Security
132
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

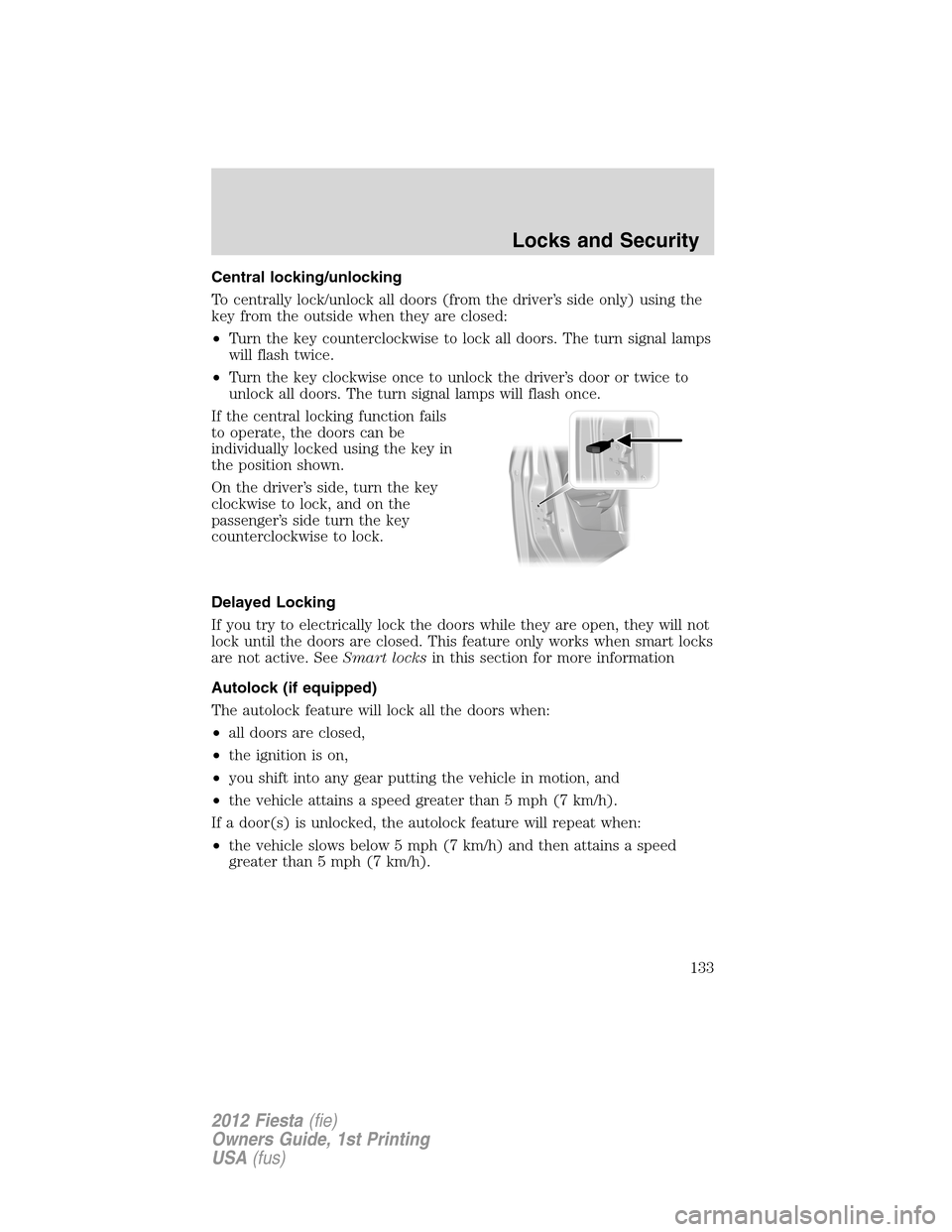

Central locking/unlocking
To centrally lock/unlock all doors (from the driver’s side only) using the
key from the outside when they are closed:
•Turn the key counterclockwise to lock all doors. The turn signal lamps
will flash twice.
•Turn the key clockwise once to unlock the driver’s door or twice to
unlock all doors. The turn signal lamps will flash once.
If the central locking function fails
to operate, the doors can be
individually locked using the key in
the position shown.
On the driver’s side, turn the key
clockwise to lock, and on the
passenger’s side turn the key
counterclockwise to lock.
Delayed Locking
If you try to electrically lock the doors while they are open, they will not
lock until the doors are closed. This feature only works when smart locks
are not active. SeeSmart locksin this section for more information
Autolock (if equipped)
The autolock feature will lock all the doors when:
•all doors are closed,
•the ignition is on,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 5 mph (7 km/h).
If a door(s) is unlocked, the autolock feature will repeat when:
•the vehicle slows below 5 mph (7 km/h) and then attains a speed
greater than 5 mph (7 km/h).
Locks and Security
133
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

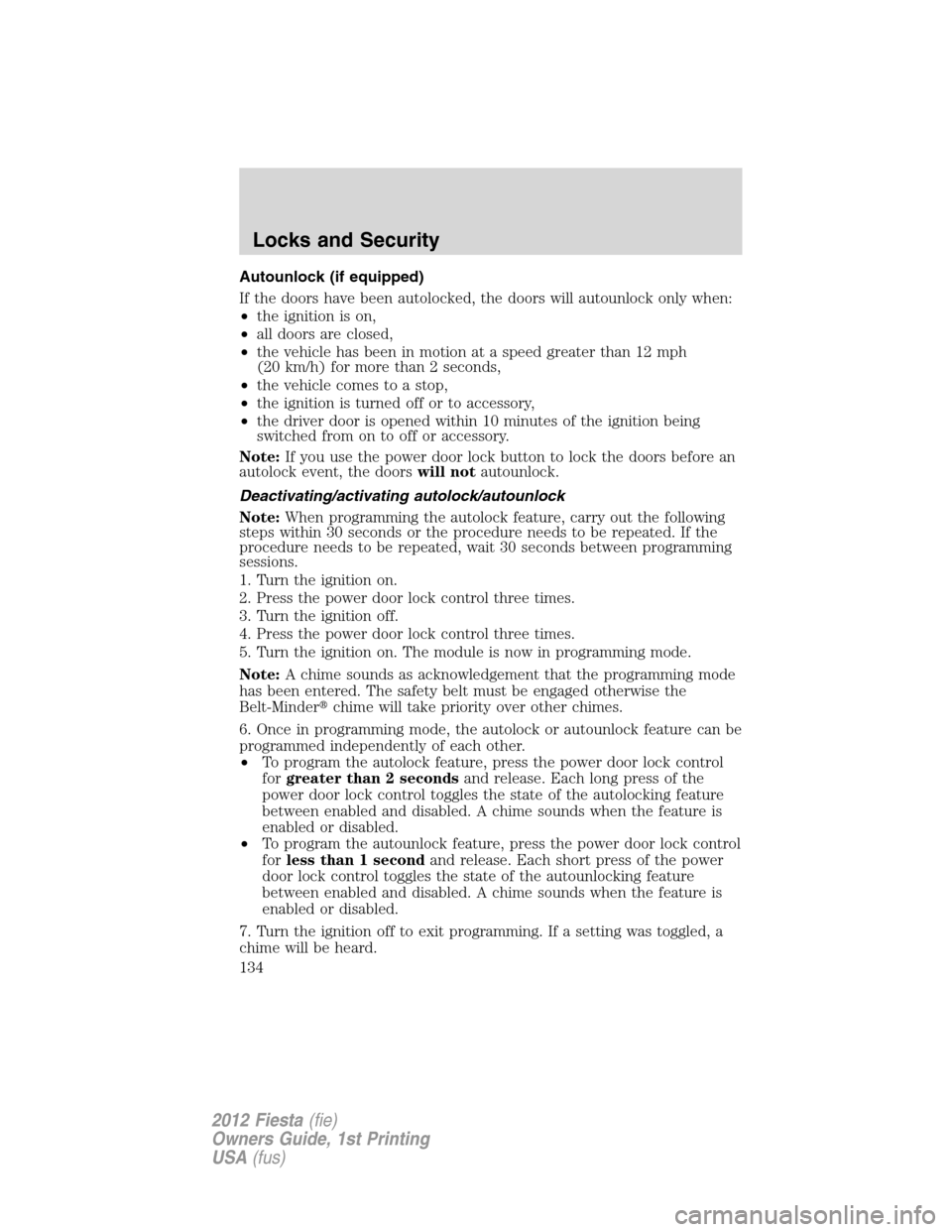

Autounlock (if equipped)
If the doors have been autolocked, the doors will autounlock only when:
•the ignition is on,
•all doors are closed,
•the vehicle has been in motion at a speed greater than 12 mph
(20 km/h) for more than 2 seconds,
•the vehicle comes to a stop,
•the ignition is turned off or to accessory,
•the driver door is opened within 10 minutes of the ignition being
switched from on to off or accessory.
Note:If you use the power door lock button to lock the doors before an
autolock event, the doorswill notautounlock.
Deactivating/activating autolock/autounlock
Note:When programming the autolock feature, carry out the following
steps within 30 seconds or the procedure needs to be repeated. If the
procedure needs to be repeated, wait 30 seconds between programming
sessions.
1. Turn the ignition on.
2. Press the power door lock control three times.
3. Turn the ignition off.
4. Press the power door lock control three times.
5. Turn the ignition on. The module is now in programming mode.
Note:A chime sounds as acknowledgement that the programming mode
has been entered. The safety belt must be engaged otherwise the
Belt-Minderchime will take priority over other chimes.
6. Once in programming mode, the autolock or autounlock feature can be
programmed independently of each other.
•To program the autolock feature, press the power door lock control
forgreater than 2 secondsand release. Each long press of the
power door lock control toggles the state of the autolocking feature
between enabled and disabled. A chime sounds when the feature is
enabled or disabled.
•To program the autounlock feature, press the power door lock control
forless than 1 secondand release. Each short press of the power
door lock control toggles the state of the autounlocking feature
between enabled and disabled. A chime sounds when the feature is
enabled or disabled.
7. Turn the ignition off to exit programming. If a setting was toggled, a
chime will be heard.
Locks and Security
134
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

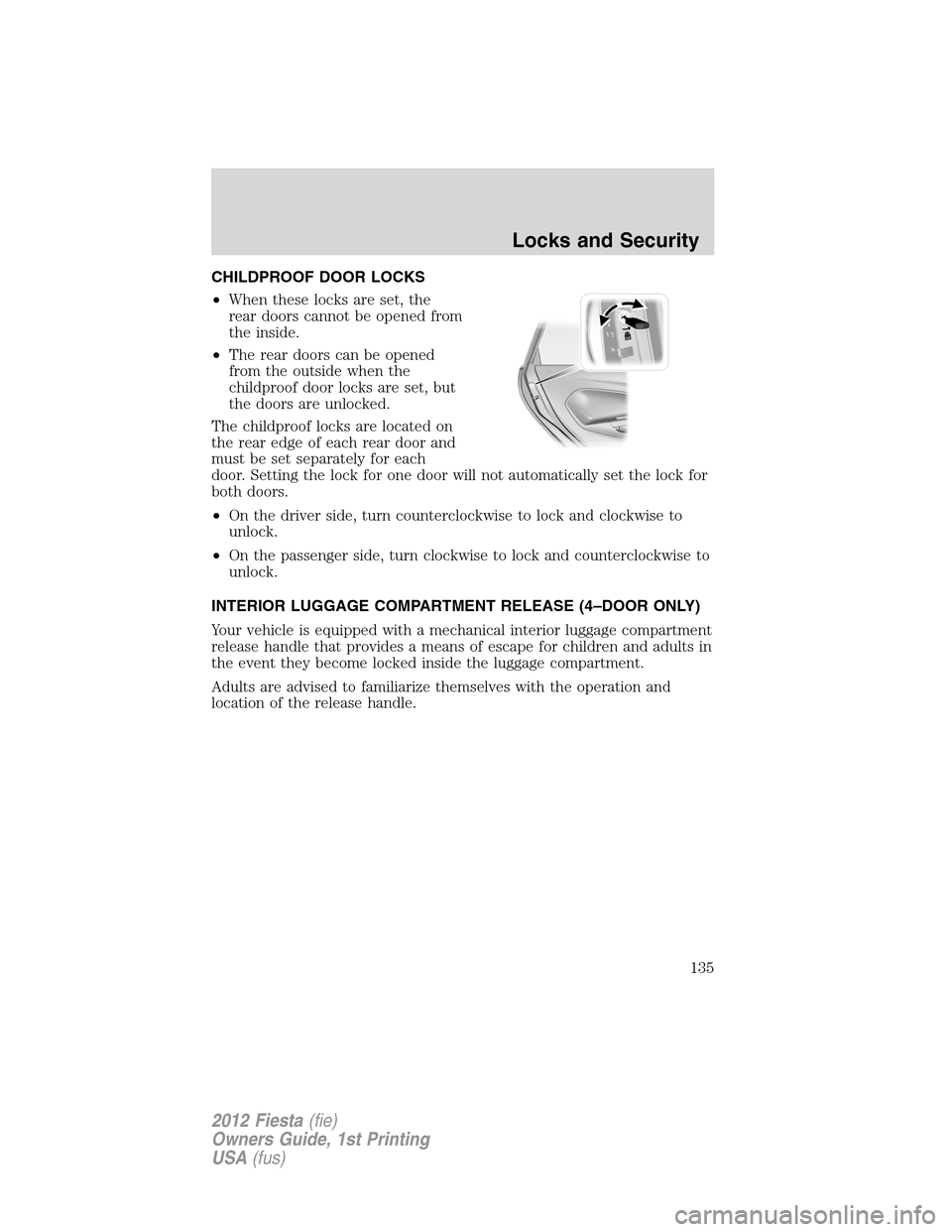

CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the
childproof door locks are set, but
the doors are unlocked.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door will not automatically set the lock for
both doors.
•On the driver side, turn counterclockwise to lock and clockwise to
unlock.
•On the passenger side, turn clockwise to lock and counterclockwise to
unlock.
INTERIOR LUGGAGE COMPARTMENT RELEASE (4–DOOR ONLY)
Your vehicle is equipped with a mechanical interior luggage compartment
release handle that provides a means of escape for children and adults in
the event they become locked inside the luggage compartment.
Adults are advised to familiarize themselves with the operation and
location of the release handle.
Locks and Security
135
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

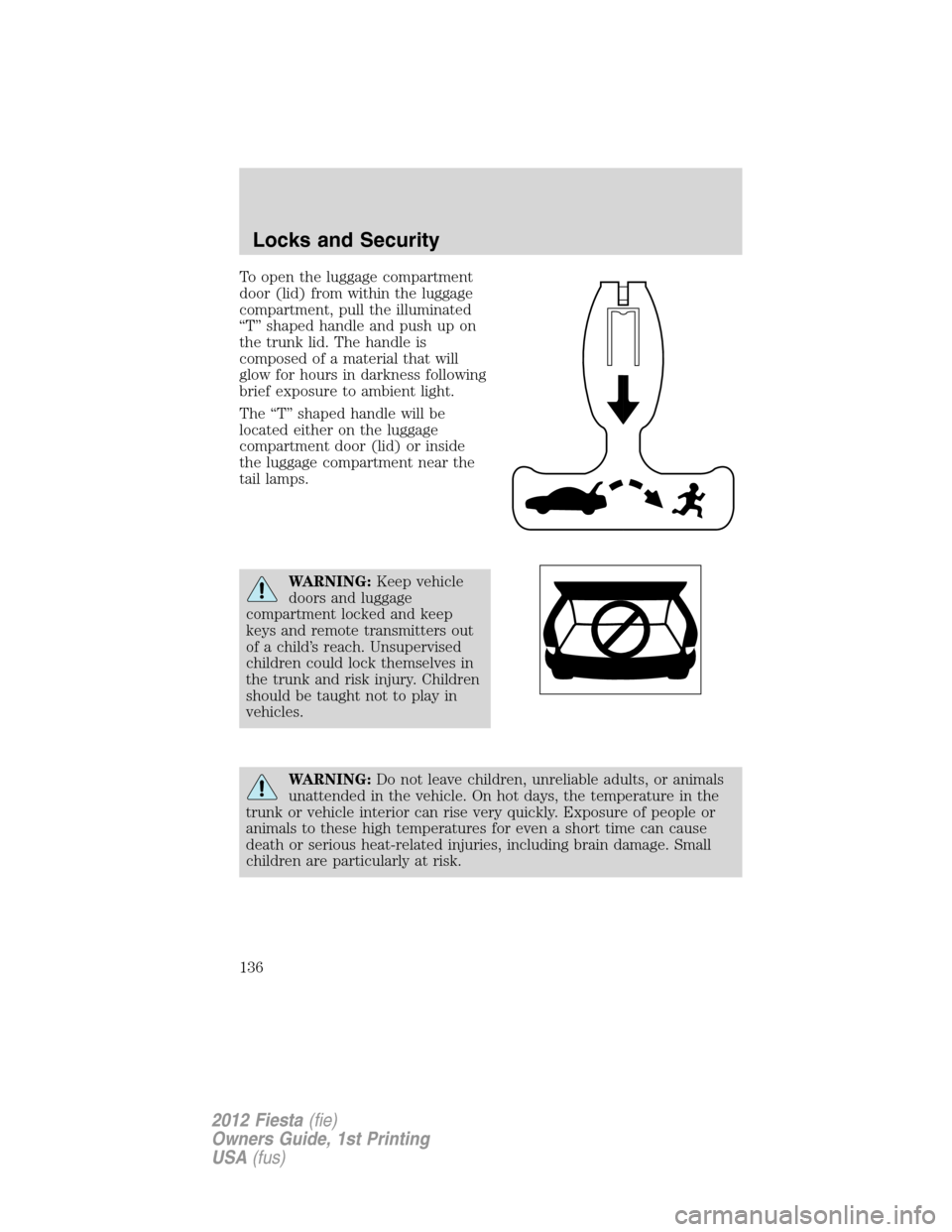

To open the luggage compartment
door (lid) from within the luggage
compartment, pull the illuminated
“T” shaped handle and push up on
the trunk lid. The handle is
composed of a material that will
glow for hours in darkness following
brief exposure to ambient light.
The “T” shaped handle will be
located either on the luggage
compartment door (lid) or inside
the luggage compartment near the
tail lamps.
WARNING:Keep vehicle
doors and luggage
compartment locked and keep
keys and remote transmitters out
of a child’s reach. Unsupervised
children could lock themselves in
the trunk and risk injury. Children
should be taught not to play in
vehicles.
WARNING:Do not leave children, unreliable adults, or animals
unattended in the vehicle. On hot days, the temperature in the
trunk or vehicle interior can rise very quickly. Exposure of people or
animals to these high temperatures for even a short time can cause
death or serious heat-related injuries, including brain damage. Small
children are particularly at risk.
Locks and Security
136
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

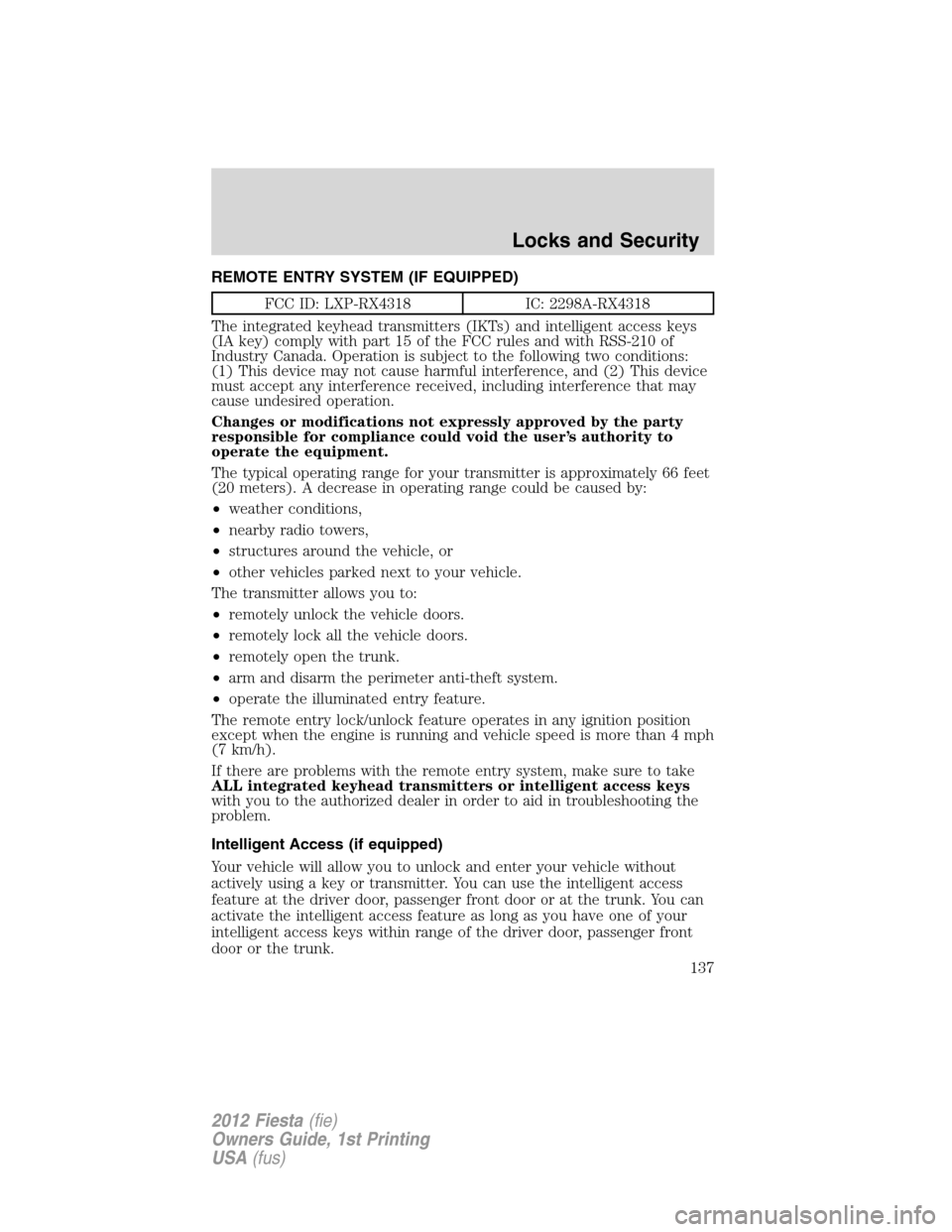

REMOTE ENTRY SYSTEM (IF EQUIPPED)
FCC ID: LXP-RX4318 IC: 2298A-RX4318
The integrated keyhead transmitters (IKTs) and intelligent access keys
(IA key) comply with part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your transmitter is approximately 66 feet
(20 meters). A decrease in operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
The transmitter allows you to:
•remotely unlock the vehicle doors.
•remotely lock all the vehicle doors.
•remotely open the trunk.
•arm and disarm the perimeter anti-theft system.
•operate the illuminated entry feature.
The remote entry lock/unlock feature operates in any ignition position
except when the engine is running and vehicle speed is more than 4 mph
(7 km/h).
If there are problems with the remote entry system, make sure to take
ALL integrated keyhead transmitters or intelligent access keys
with you to the authorized dealer in order to aid in troubleshooting the
problem.
Intelligent Access (if equipped)
Your vehicle will allow you to unlock and enter your vehicle without
actively using a key or transmitter. You can use the intelligent access
feature at the driver door, passenger front door or at the trunk. You can
activate the intelligent access feature as long as you have one of your
intelligent access keys within range of the driver door, passenger front
door or the trunk.
Locks and Security
137
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

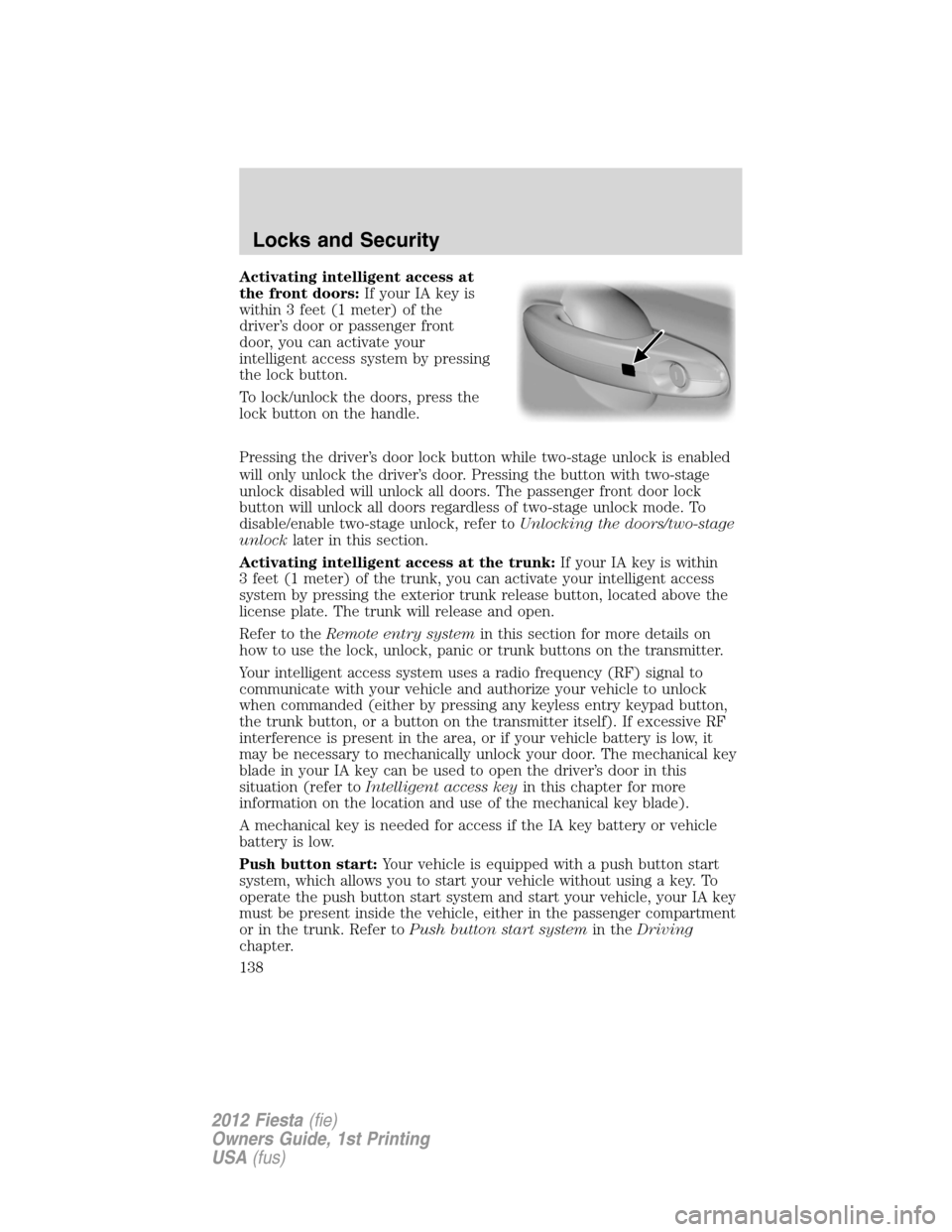

Activating intelligent access at
the front doors:If your IA key is
within 3 feet (1 meter) of the
driver’s door or passenger front
door, you can activate your
intelligent access system by pressing
the lock button.
To lock/unlock the doors, press the
lock button on the handle.
Pressing the driver’s door lock button while two-stage unlock is enabled
will only unlock the driver’s door. Pressing the button with two-stage
unlock disabled will unlock all doors. The passenger front door lock
button will unlock all doors regardless of two-stage unlock mode. To
disable/enable two-stage unlock, refer toUnlocking the doors/two-stage
unlocklater in this section.
Activating intelligent access at the trunk:If your IA key is within
3 feet (1 meter) of the trunk, you can activate your intelligent access
system by pressing the exterior trunk release button, located above the
license plate. The trunk will release and open.
Refer to theRemote entry systemin this section for more details on
how to use the lock, unlock, panic or trunk buttons on the transmitter.
Your intelligent access system uses a radio frequency (RF) signal to
communicate with your vehicle and authorize your vehicle to unlock
when commanded (either by pressing any keyless entry keypad button,
the trunk button, or a button on the transmitter itself). If excessive RF
interference is present in the area, or if your vehicle battery is low, it
may be necessary to mechanically unlock your door. The mechanical key
blade in your IA key can be used to open the driver’s door in this
situation (refer toIntelligent access keyin this chapter for more
information on the location and use of the mechanical key blade).
A mechanical key is needed for access if the IA key battery or vehicle
battery is low.
Push button start:Your vehicle is equipped with a push button start
system, which allows you to start your vehicle without using a key. To
operate the push button start system and start your vehicle, your IA key
must be present inside the vehicle, either in the passenger compartment
or in the trunk. Refer toPush button start systemin theDriving
chapter.
Locks and Security
138
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

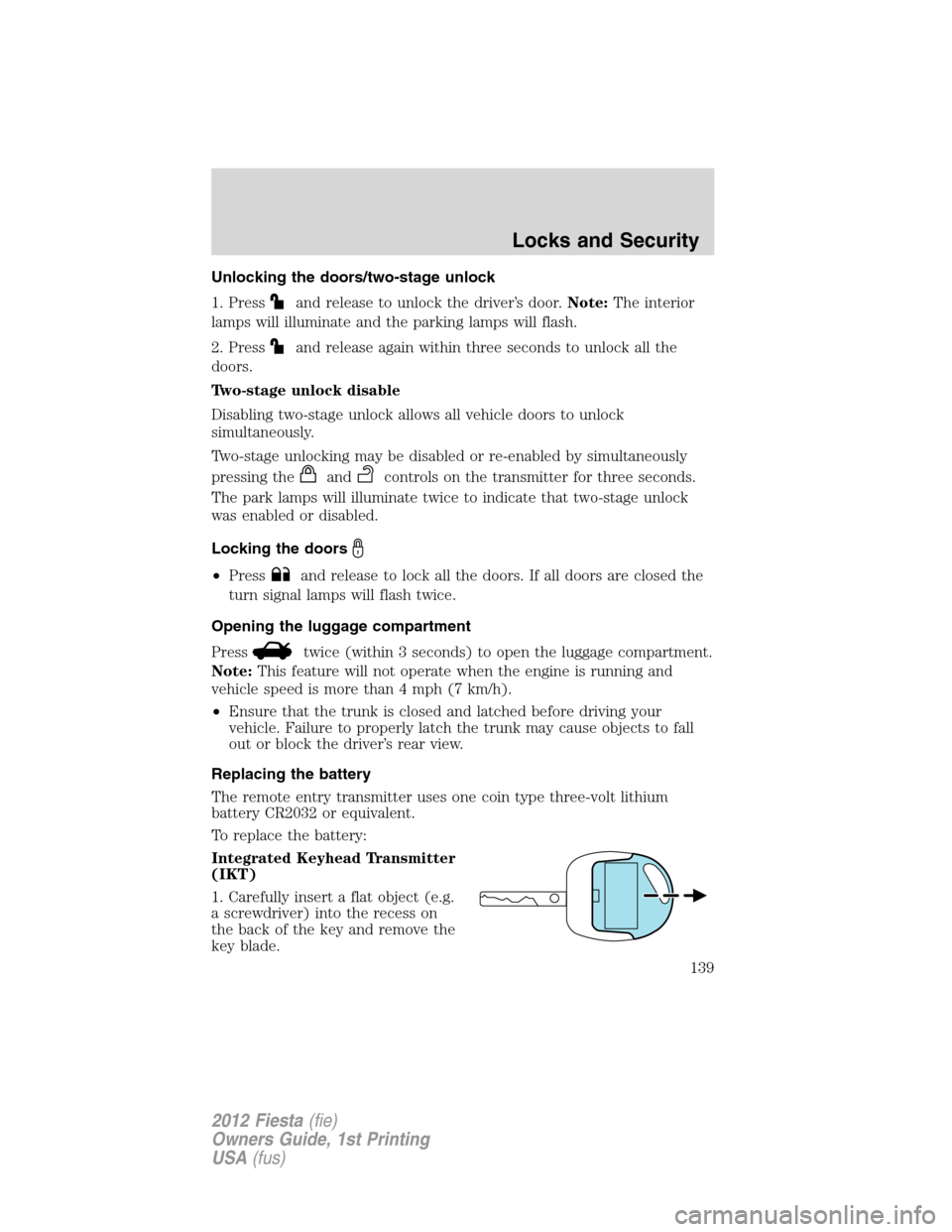

Unlocking the doors/two-stage unlock
1. Press
and release to unlock the driver’s door.Note:The interior
lamps will illuminate and the parking lamps will flash.
2. Press
and release again within three seconds to unlock all the
doors.
Two-stage unlock disable
Disabling two-stage unlock allows all vehicle doors to unlock
simultaneously.
Two-stage unlocking may be disabled or re-enabled by simultaneously
pressing the
andcontrols on the transmitter for three seconds.
The park lamps will illuminate twice to indicate that two-stage unlock
was enabled or disabled.
Locking the doors
•Pressand release to lock all the doors. If all doors are closed the
turn signal lamps will flash twice.
Opening the luggage compartment
Press
twice (within 3 seconds) to open the luggage compartment.
Note:This feature will not operate when the engine is running and
vehicle speed is more than 4 mph (7 km/h).
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
Integrated Keyhead Transmitter
(IKT)
1. Carefully insert a flat object (e.g.
a screwdriver) into the recess on
the back of the key and remove the
key blade.
Locks and Security
139
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

2. Release the retaining clips with a
flat object and separate the two
halves of the transmitter.
3. Carefully pry out the battery with
a flat object. Be careful not to touch
the battery contacts or the printed
circuit board with the flat object.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
4. Insert the new battery with the +
facing upwards.
5. Snap the two halves of the
transmitter back together.
Intelligent Access key (IA key)
1. Press and hold the push buttons
on the edges of the transmitter to
release the cover. Carefully remove
the cover.
2. Remove the key blade.
1
1
2
Locks and Security
140
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
