FORD FIESTA 2012 6.G Quick Reference Guide

fiesta
2012
1 Trip compuTer (if equipped)
Press the end of the lever to scroll through the trip computer
displays which will appear in the Instrument cluster. You can
scroll through:
XXX mi – Odometer: Registers the total miles/kilometers of
the vehicle.
mi TRIP – Trip odometer: Use to register mileage of
individual journeys.
mi TO E –

Distance to empty (if equipped): Indicates approximate distance the vehicle will travel on the remaining fuel.
AVG mpg – Average fuel consumption (if equipped): Indicates your average fuel consumption since the last reset.
AVG mph – Average speed (if equipped): Indicates the
average speed calculated since the last reset.
XXX ºF – Outside air temperature (if equipped): Displays outside air temperature. Press and hold the end of the multifunction lever to reset. Refer to your Owner’s Guide for more information.
2 iNdicAT or LiGHTS
Service engine soon light : Illuminates briefly when
the ignition is turned on. If it remains on or is blinking
after the engine is started, the on-board diagnostics system (OBD-II) has detected a malfunction. Drive in a moderate fashion and contact your authorized dealer as soon as possible.
Airbag readiness light
: Illuminates briefly when
the ignition is turned on. If this light fails to illuminate, remains on or continues to flash after the engine is started, contact your authorized dealer for service as soon as possible. A chime will also sound if there is a malfunction in the indicator light.
Upshift light
(if equipped with a manual
transmission): Illuminates when the manual transmission should be shifted to the next highest gear in order to maximize fuel efficiency.
3 power door Lock
Press to lock/unlock the doors. When the
indicator light is illuminated, all doors and
the trunk are locked. When the light is
off, it indicates that one or more doors
are unlocked.
4
10
9
5
8
3
1
6
16
2
fiesta
4 BA ckup me THod of STAr TiNG
In the event that the battery is low in your intelligent access (IA) k\
ey, or if there is
excessive radio frequency interference, you can start the car by holding the IA key to
the back-up location near the steering column. Then, press the ENGINE START/STOP
button and brake pedal (automatic transmission) or clutch pedal (manu\
al transmission)
to start your vehicle as usual. The vehicle should respond normally as long as the IA
key is held to the back-up location on the steering column. The IA key c\
an be removed
once the vehicle is started, if desired.
5 HAzArd fLASHer
6 muLTifuNcTioN diSpLA y
This display is capable of monitoring many vehicle systems and alerting \
you to
potential vehicle problems and various conditions with informational messages. You
can also program various vehicle settings (such as lane change indicator and chime\
s),
as well as access and adjust media information. If your vehicle is equip\
ped with
SYNC
®, the compass heading will be displayed also.
7 AuxiLiAry iNpuT jAck
Provides a way to connect and play music from your portable music player over the
vehicle’s speakers.
8 uSB por T (if equipped)
If your vehicle has SYNC®, you will have a USB port. This feature allows you to plug
in media playing devices, memory sticks, and also to charge devices if they support
this feature. Refer to the SYNC
® section of your Owner’s Guide.
9 puSH BuTT oN STArT/STop (if equipped)
Push button start allows you to start your vehicle by simply pressing the ENGINE
START/STOP button while pressing the brake pedal (automatic transmission) or
clutch pedal (manual transmission), provided your intelligent access (IA) key is present
inside the vehicle. To stop the vehicle, simply put the car in P (Park) (for automatic
transmissions) or into neutral (for manual transmissions) and press the ENGINE
START/STOP button.
10 mA x A/c (if equipped)
Use to distribute recirculated air through the instrument panel vents to cool the
vehicle. This mode is more economical and efficient than normal A/C mode.
11 (recircuLATed Air)
Press to activate/deactivate air recirculation in the vehicle cabin. Recirculated air may
reduce the amount of time to cool the interior of the vehicle and also ma\
y help reduce
undesired odors from reaching the interior of the vehicle.
12 Speed coNTroLS (oN your STeeriNG wHeeL , if equipped)
To set the speed:
1. Press ON.
2. Accelerate to the desired speed.
3. Press SET + and take your foot off the accelerator.
o To set a higher speed, press and hold SET + or press SET +
repeatedly until the desired speed is reached.
o To set a lower speed, press and hold SET – or press SET –
repeatedly until the desired speed is reached.
o To disengage speed control, tap the brake pedal or clutch pedal
(if equipped) or press CAN.
o To return to a previously set speed, press RES (Resume).
o To turn off, press OFF or turn the vehicle off.
13 Sy Nc®/Audio coNTroLS (oN your STeeriNG wHeeL , if equipped)
Press
to access SYNC® phone features, if equipped.
Press M repeatedly to cycle through all available audio modes.
Press
to scroll through various menus and selections.
Press OK to confirm your selections.
14 AmBieNT LiGHTiNG (if equipped)
Press repeatedly to turn the feature on, cycle through your color options
and turn the feature off. When activated, the footwell areas, cupholders and
instrument panel will illuminate with the chosen color.
15 Sy Nc® Voice recoGNiTioN
Press to activate the SYNC® voice recognition system. Refer to the
SYNC® section (if equipped) in the Entertainment Systems chapter of your
Owner’s Guide for more information.
16 AuxiLiAry power poiNT
Provides a power outlet for accessory plugs (only). To prevent a fuse from
being blown, do not plug in an accessory requiring over 12VDC/180W.
17 pASSeNG er AirBAG iNdicAT or
Illuminates when the passenger airbag has been turned off. For a complete
description of when the system will turn off the indicator light and the passenger
airbag, refer to the Front Passenger Sensing system in the Seating and Safety
Restraints chapter of your Owner’s Guide.
11
13
CE8J 19G217 AA
June 2011
First Printing
Quick Reference Guide Ford Fiesta
Litho in U.S.A.
www.fordowner.com www.ford.ca
12
14
15
Use extreme caution when using any device or
feature that may take your attention off the
road. Ford recommends against the use of any
hand-held device while driving and that you
comply with all applicable laws. Your primary
responsibility is the safe operation of the vehicle.
7
17

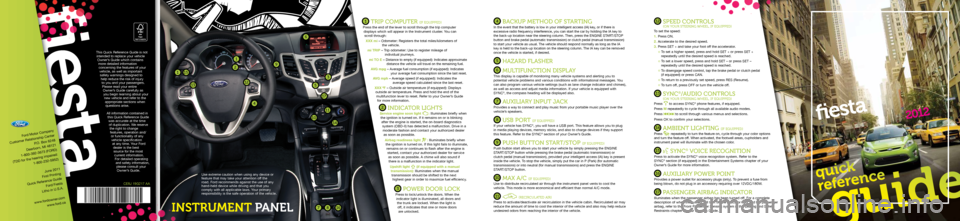

Instrument panel
This Quick Reference Guide is not
intended to replace your vehicle Owner’s Guide which contains more detailed information concerning the features of your vehicle, as well as important safety warnings designed to help reduce the risk of injury to you and your passengers. Please read your entire Owner’s Guide carefully as you begin learning about your new vehicle and refer to the appropriate sections when questions arise.
All information contained in this Quick Reference Guide was accurate at the time of duplication. We reserve the right to change features, operation and/ or functionality of any vehicle specification at any time. Your Ford dealer is the best source for the most current information. For detailed operating
and safety information,
please consult your Owner’s Guide.
Ford Motor Company
Customer Relationship Center P.O. Box 6248
Dearborn, MI 48121
1-800-392-3673 (FORD)
(TDD for the hearing impaired: 1-800-232-5952)
1

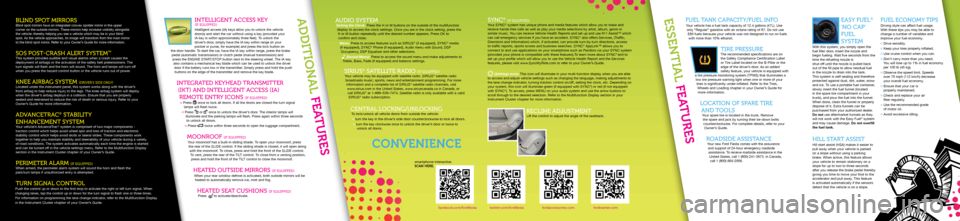

essentIal featuresfueL TANk cAp AciT y/fueL iNfo
Your vehicle has a fuel tank capacity of 12.4 gallons (47L). Use
only “Regular” gasoline with an octane rating of 87. Do not use E85 fuels because your vehicle was not designed to run on fuels with more than 10% ethanol.
Tire preSSureThe recommended specifications are on
the Safety Compliance Certification Label
or Tire Label located on the B-Pillar or the
edge of the driver’s door. As an added
safety feature, your vehicle is equipped with
a tire pressure monitoring system (TPMS) that illuminates a
low tire pressure warning light when one or more of your tires is significantly under-inflated. Refer to the Tires, Wheels and Loading chapter in your Owner’s Guide for more information.
LocATioN of Sp Are Tire
ANd TooLS
Your spare tire is located in the trunk. Remove
the spare and jack by turning their tie-down bolts counterclockwise. For complete details, refer to your Owner’s Guide.
r o AdSide ASSiSTANceYour new Ford Fiesta comes with the assurance
and support of 24-hour emergency roadside assistance. To receive roadside assistance in the United States, call 1 (800) 241-3673. In Canada,
call 1 (800) 665-2006.
eASy fueL®
‘ No cAp’
fueL
SySTem
With this system, you simply open the
fuel filler door, insert the nozzle and
begin fueling. Wait five seconds from the
time the refueling nozzle is
shut-off until the nozzle is pulled back
out of the fill pipe to allow residual fuel
in the nozzle to drain into the tank.
This system is self-sealing and therefore
protected against dust, dirt, water, snow
and ice. To use a portable fuel container,
slowly insert the fuel funnel (located
in the spare tire compartment in your
trunk), and pour the fuel into the funnel.
When done, clean the funnel or properly
dispose of it. Extra funnels can be
purchased from your authorized dealer.
Do not use aftermarket funnels as they
will not work with the Easy Fuel
® system
and may cause damage. Do not overfill
the fuel tank.
HiLL STAr T ASSiST
Hill start assist (HSA) makes it easier to
pull away when your vehicle is parked
on a slope without using a parking
brake. When active, this feature allows
your vehicle to remain stationary on a
slope for up to two to three seconds
after you release the brake pedal thereby
giving you time to move your foot to the
accelerator and pull away. This feature
is activated automatically if the sensors
detect that the vehicle is on a slope.
fueL ecoNomy TipS
Driving style can affect fuel usage.
With these tips you may be able to
change a number of variables and
improve your fuel economy.
o Drive sensibly.
o Keep your tires properly inflated.
o Use cruise control when you can.
o Don’t carry more than you need.
You will lose up to 1% in fuel economy
per 100 lb (45 kg).
o Observe the speed limit. Speeds
over 70 mph (112 km/h) decrease
your overall fuel economy.
o Ensure that your car is
properly maintained.
o Check and replace your air
filter regularly.
o Use the recommended grade
of motor oil.
o Avoid excessive idling.
BLiNd Spo T mirrorSBlind spot mirrors have an integrated convex spotter mirror in the upper
corner on the outside mirrors. These mirrors help increase visibility alongside
the vehicle; thereby helping you see a vehicle which may be in your blind
spot. As the vehicle approaches, its image will transition from the main mirror
to the blind spot mirror. Refer to your Owner’s Guide for more information.
SoS poST -cr ASH AL erT SySTem™
This system provides audible and visual alarms when a crash causes the
deployment of airbags or the activation of the safety belt pretensioners. The
turn signals will flash and the horn will sound. The horn and lamps will turn off
when you press the hazard control button or the vehicle runs out of power.
kNee AirBAG SySTem (driVer’ S Side oNL y)
Located under the instrument panel, this system works along with the dri\
ver’s
front airbag to help reduce injury to the legs. The knee airbag system will deploy
when the driver’s airbag deploys in a collision. Ensure that you are properly
seated and restrained to reduce the risk of death or serious injury. Refer to your
Owner’s Guide for more information.
Ad VANceTr Ac® STABiLiT y
eNHANcemeNT SySTem
Your vehicle’s AdvanceTrac® system is comprised of two major components -
traction control which helps avoid wheel spin and loss of traction and electronic
stability control which helps avoid skids or lateral slides. These components work
together to help you maintain stability and steerability of your vehicle\
during a variety
of road conditions. The system activates automatically each time the engine \
is started
and can be turned off in the vehicle settings menu. Refer to the Multifunction Display
section in the Instrument Cluster chapter of your Owner’s Guide.
perime Ter ALArm (if equipped)
When armed, the perimeter alarm system will sound the horn and flash the
park/turn lamps if unauthorized entry is attempted.
TurN SiGNAL coNTroL
Push the control up or down to the first stop to activate the right or left turn signal. When
changing lanes, tap the control up or down for the turn signal to flash one or three times.
For information on programming the lane change indicator, refer to the Multifunction Display
in the Instrument Cluster chapter of your Owner’s Guide.
iNTeLLiG eNT AcceSS key
(if equipped)
Intelligent access (IA) keys allow you to unlock the vehicle
door(s) and start the car without using a key (provided your
IA key is within approximately three feet). To unlock the
driver’s door, simply have the IA key within range (in your
pocket or purse, for example) and press the lock button on
the door handle. To start the car, have the IA key within range, press the brake pedal (automatic transmission) or clutch pedal (manual transmission)\
and press the ENGINE START/STOP button next to the steering wheel. The IA key also contains a mechanical key blade which can be used to unlock the dri\
ver door if the battery runs low in the transmitter. Simply press and hold the push buttons on the edge of the transmitter and remove the key blade.
iNTeG rATed keyHeAd TrANSmiTTer
(ikT) ANd iNTeLLiG eNT AcceSS (iA)
remo Te eNTry icoNS
(if equipped)
o Press once to lock all doors. If all the doors are closed the turn signal
lamps will flash twice.
o Press or once to unlock the driver’s door. The interior lamps will
illuminate and the parking lamps will flash. Press again within three seconds to unlock all doors.
o Press twice within three seconds to open the luggage compartment.
mooNroof (if equipped)
Your moonroof has a built-in sliding shade. To open your moonroof, press the rear of the SLIDE control. If the sliding shade is closed, it will open along with the moonroof. To close, press and hold the front of the SLIDE control. To vent, press the rear of the TILT control. To close from a venting position, press and hold the front of the TILT control to close the moonroof.
HeATed ouTSide mirrorS (if equipped)
When your rear window defrost is activated, both outside mirrors will be heated to automatically remove ice, mist and fog.
HeATed SeAT cuSHioNS (if equipped)
Press to activate/deactivate.
addItIonal featuresAudio SySTemSetting the Clock: Press the H or M buttons on the outside of the multifunction display to access the clock settings. Once you are in the clock setting, press the
H or M button repeatedly until the desired number appears. Press OK to
confirm and close.
Menu: Press to access features such as SIRIUS
® (if equipped), SYNC® media
(if equipped), SYNC® Phone (if equipped), Audio menu with Sound, DSP
Occupancy, DSP Equalizer and other selections.
(Sound Menu): Press to access the sound menu and make adjustments to
Treble, Bass, Fade (if equipped) and balance settings.
SiriuS® SATeLLiTe r Adio (if equipped) Your vehicle may be equipped with satellite radio. SIRIUS® satellite radio
broadcasts music, sports, news and entertainment programming. For more information and a complete list of SIRIUS
® satellite radio channels, visit
www.sirius.com in the United States, www.siriuscanada.ca in Canada, or call SIRIUS
® at 1–888–539–7474. Satellite radio is only available with a va\
lid
SIRIUS® radio subscription.
ceNTr AL LockiNG/u NLockiNGTo lock/unlock all vehicle doors from outside the vehicle:
o turn the key in the driver’s side door counterclockwise to lock all doors.
o turn the key clockwise once to unlock the driver’s door or twice to
unlock all doors.
Sy Nc® (if equipped) Your SYNC® system has unique phone and media features which allow you to make and
receive hands-free calls as well as play your media selections by artist, album, genre or
similar music. You can receive Vehicle Health Reports and set up and use 911 Assist™ which
can call emergency services if you have an accident. SYNC
® also offers Services, (Traffic,
Directions and Information) which, if activated, can provide turn-by-turn directions, access
to traffic reports, sports scores and business searches. SYNC
® AppLink™ allows you to
connect to and use applications on your smartphone such as Pandora via y\
our SYNC system
(provided your phone is compatible with these features).To learn more about SYNC
® and to
set up your profile which will allow you to use the Vehicle Health Report and the Services
features, please visit www.SyncMyRide.com or refer to your Owner’s Guide.
(Settings icon): This icon will illuminate in your multi-function display when you are able
to access and adjust vehicle settings such as changing the language, making adjustment\
s to
the lane change indicator, turning traction control on/off, setting the clock, etc. Depending on
your system, this icon will illuminate green (if equipped with SYNC
®) or red (if not equipped
with SYNC®). To access, press MENU on your audio system and use the arrow buttons to
scroll through to the desired selection. Refer to the Multifunction Display section in your
Instrument Cluster chapter for more information.
recLiNe AdjuST meNTLift the control to adjust the angle of the seatback.
facebook.com/fordfiestatwitter.com/fordfiestafordaccessories.comfordowner.com
ConvenIenCe
smartphone interactive.
sCan here.
