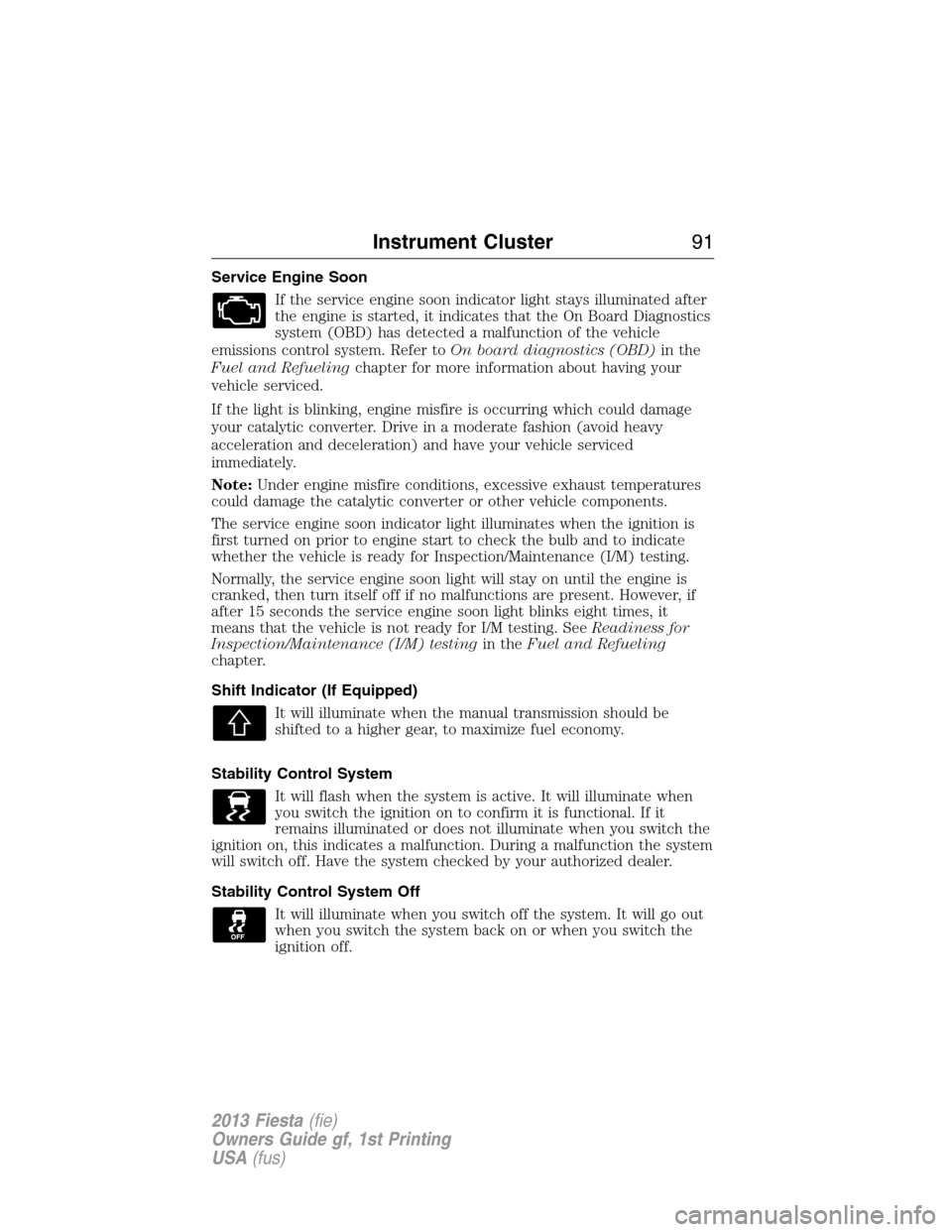

Page 91 of 341

FORD FIESTA 2013 7.G Owners Manual Service Engine Soon
If the service engine soon indicator light stays illuminated after
the engine is started, it indicates that the On Board Diagnostics
system (OBD) has detected a malfunction of the

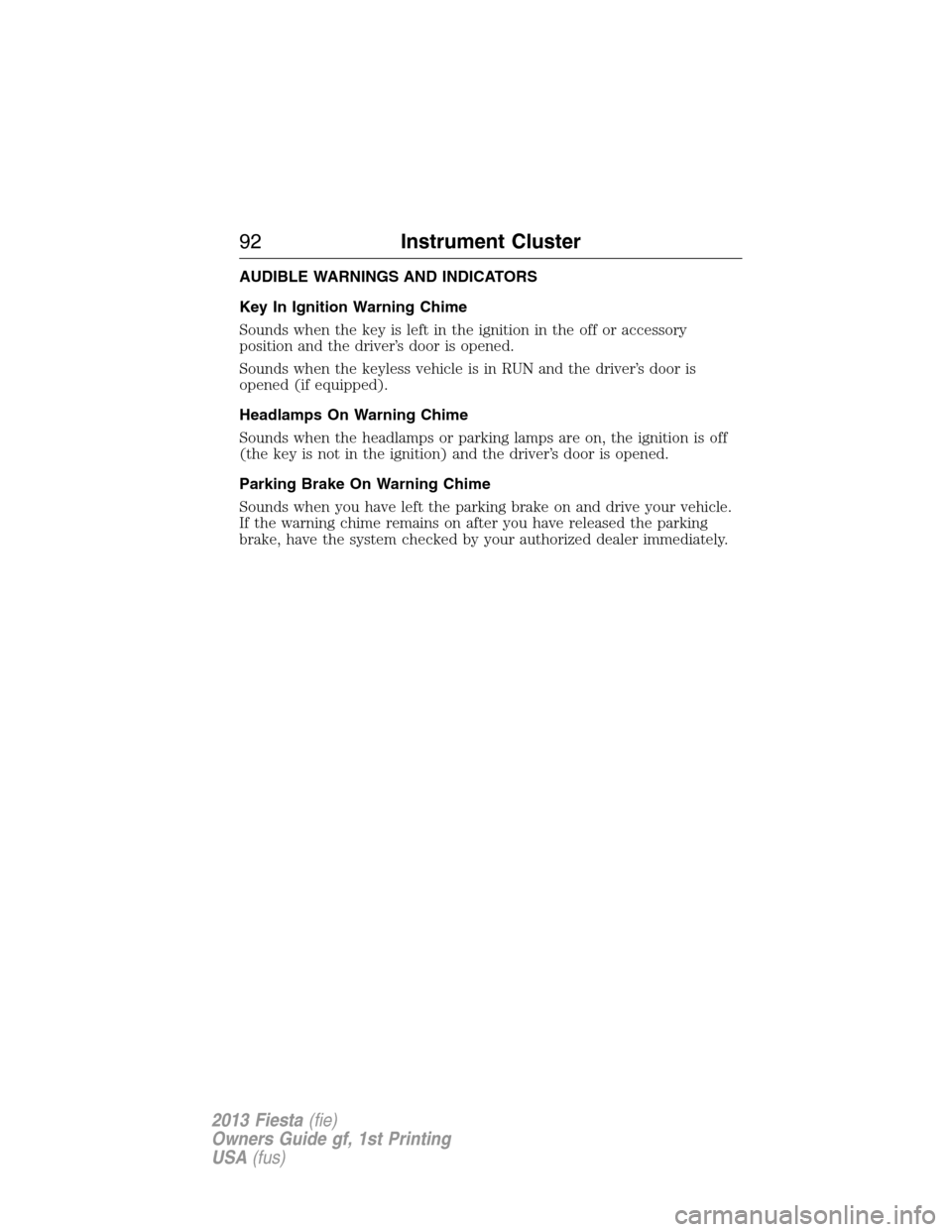

Page 92 of 341

FORD FIESTA 2013 7.G Owners Manual AUDIBLE WARNINGS AND INDICATORS
Key In Ignition Warning Chime
Sounds when the key is left in the ignition in the off or accessory
position and the driver’s door is opened.
Sounds when the keyless ve

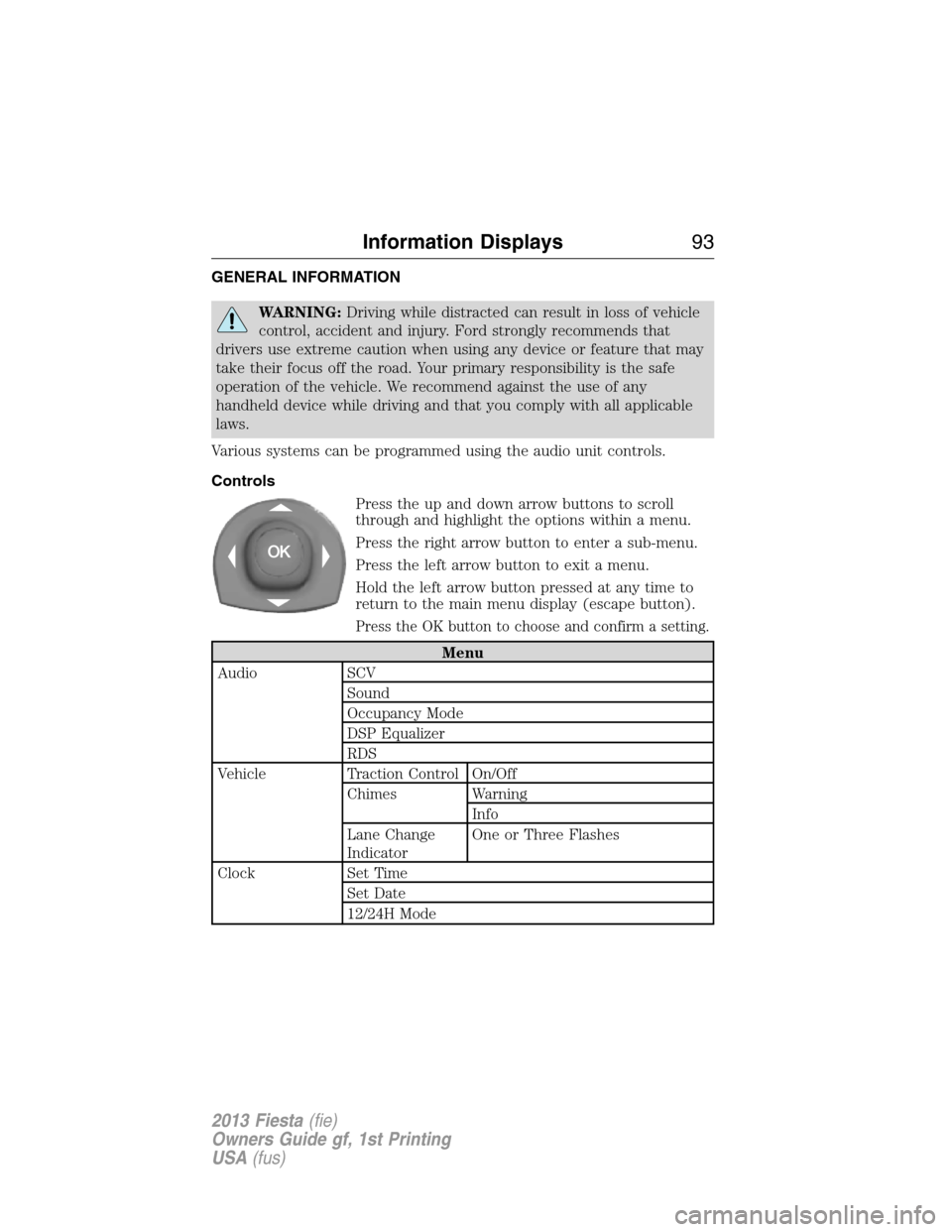

Page 93 of 341

FORD FIESTA 2013 7.G Owners Manual GENERAL INFORMATION
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feat

Page 94 of 341

FORD FIESTA 2013 7.G Owners Manual Menu
Display Units of measure
Language
Messages
Compass (if
equipped)If your vehicle is equipped with SYNC,the
compass heading is displayed to the left of the clock
in the upper portion of the multif

Page 95 of 341

FORD FIESTA 2013 7.G Owners Manual INFORMATION MESSAGES
Note:Depending on the vehicle options equipped with your vehicle, not
all of the messages will display or be available. Certain messages may be
abbreviated or shortened depending

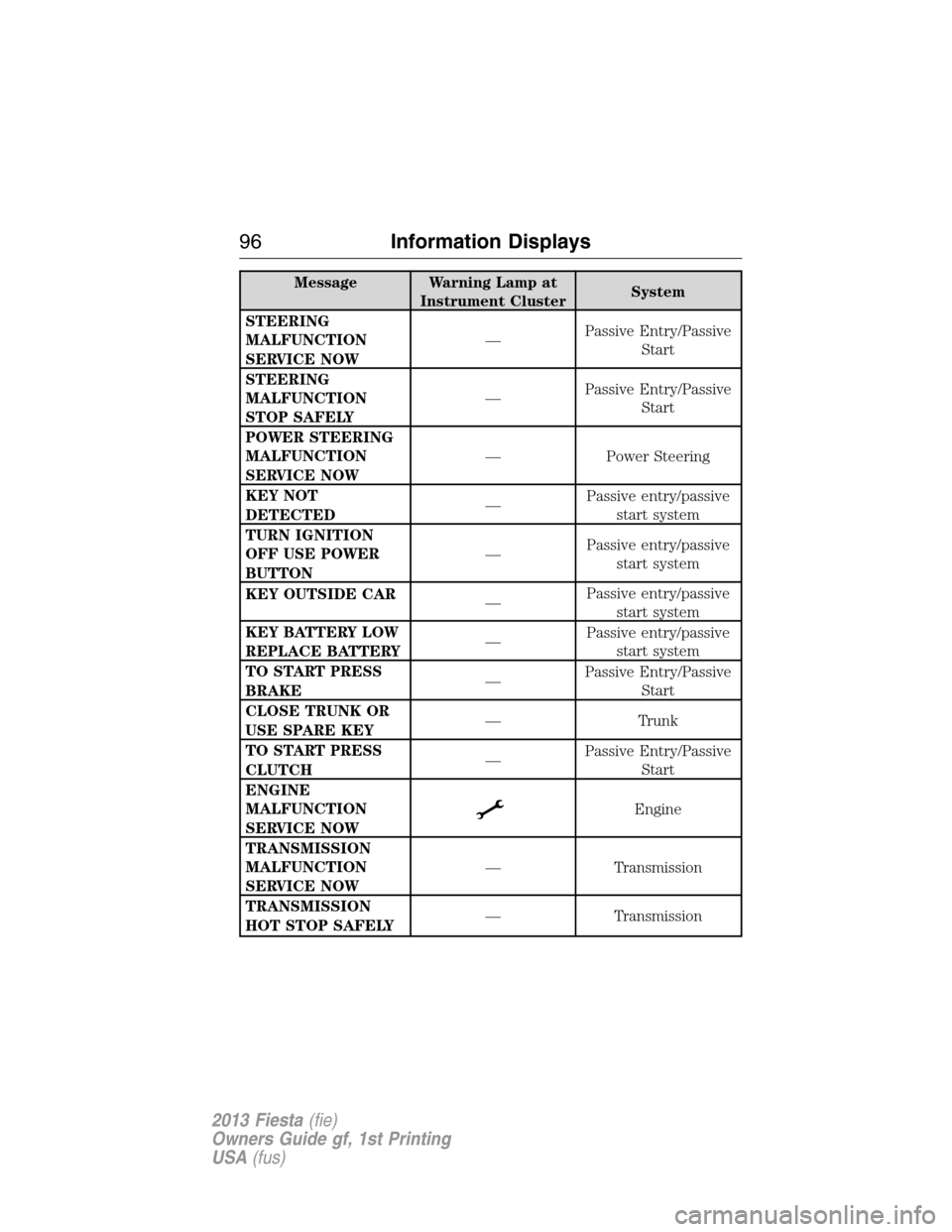

Page 96 of 341

FORD FIESTA 2013 7.G Owners Manual Message Warning Lamp at
Instrument ClusterSystem
STEERING
MALFUNCTION
SERVICE NOW—Passive Entry/Passive
Start
STEERING
MALFUNCTION
STOP SAFELY—Passive Entry/Passive
Start
POWER STEERING
MALFUNCTIO

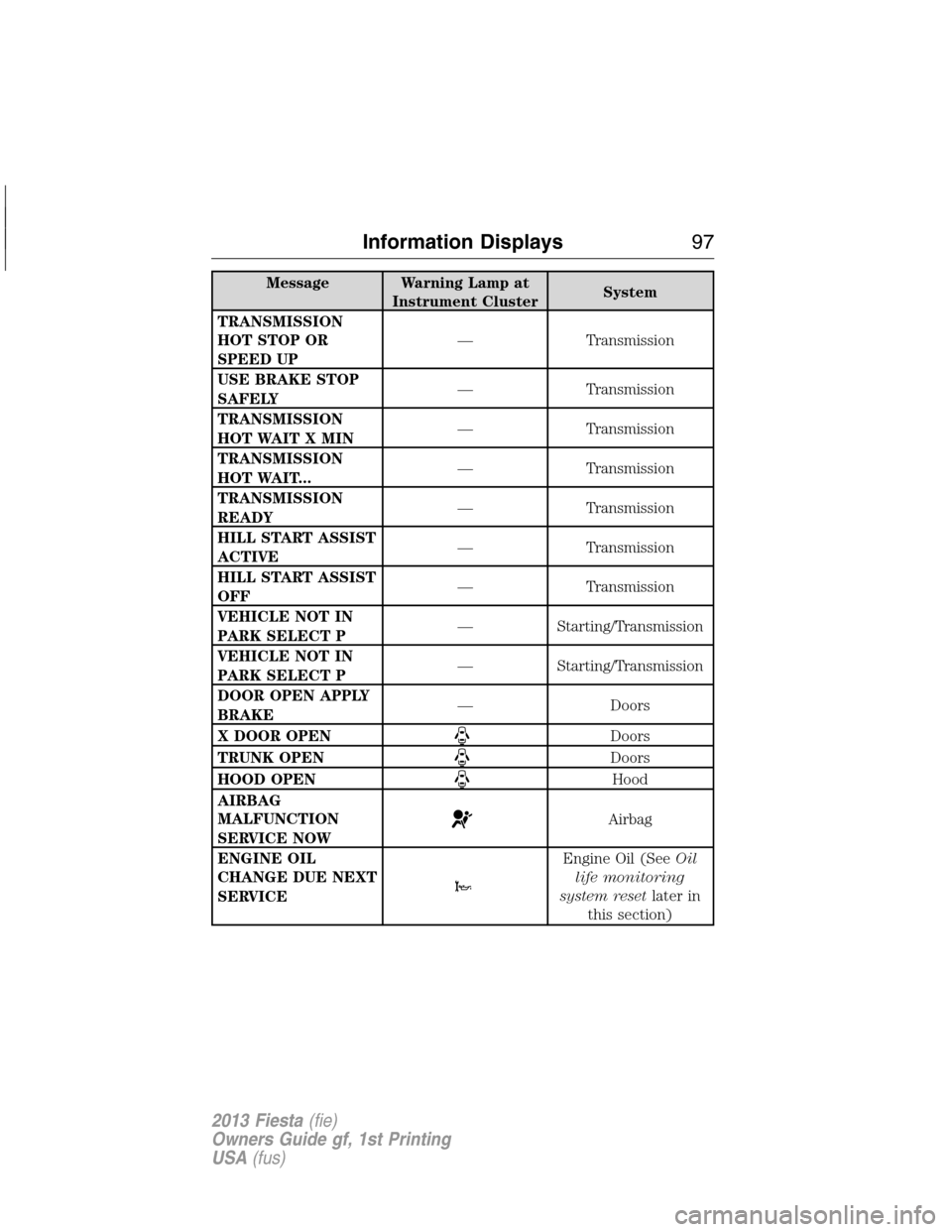

Page 97 of 341

FORD FIESTA 2013 7.G Owners Manual Message Warning Lamp at
Instrument ClusterSystem
TRANSMISSION
HOT STOP OR
SPEED UP— Transmission
USE BRAKE STOP
SAFELY— Transmission
TRANSMISSION
HOT WAIT X MIN— Transmission
TRANSMISSION
HOT WA

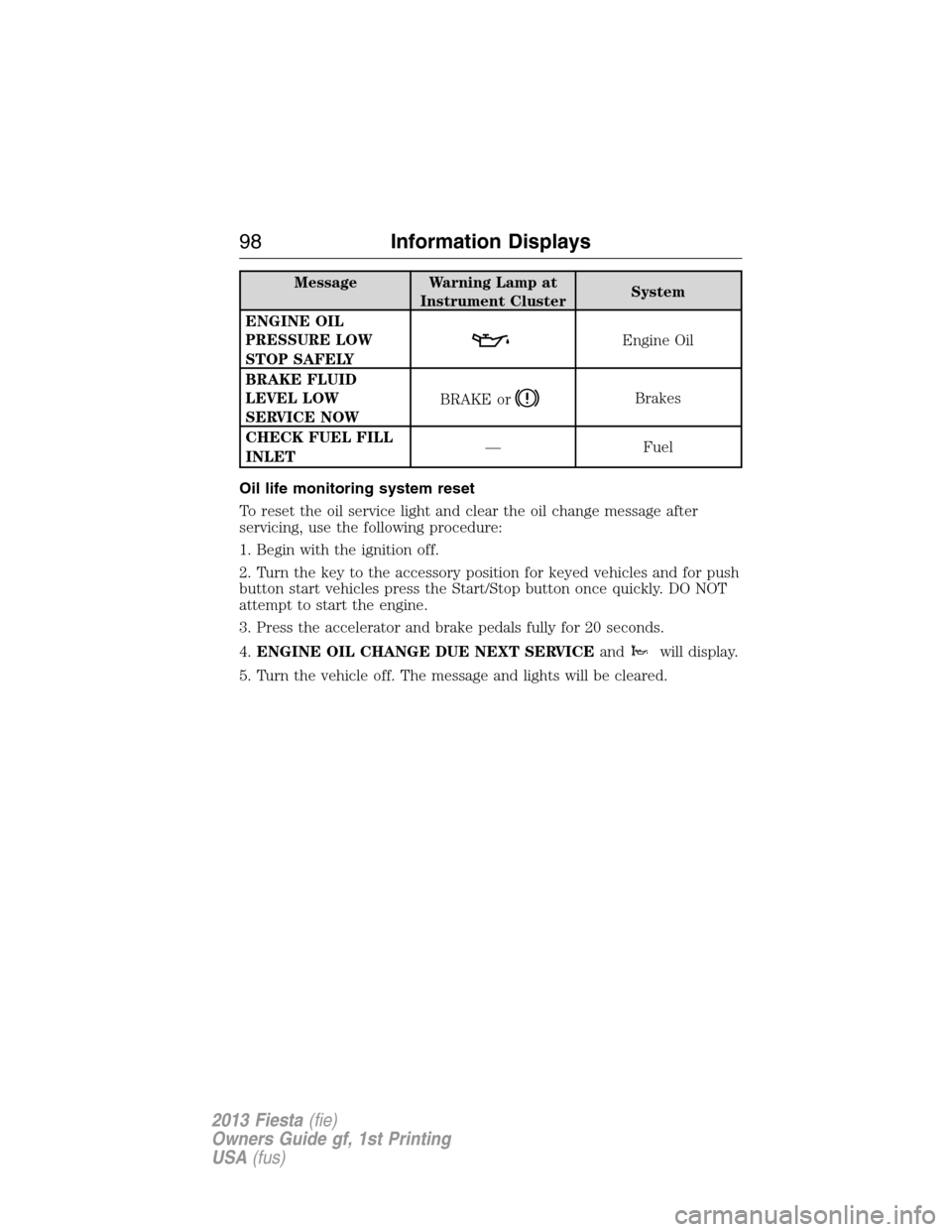

Page 98 of 341

FORD FIESTA 2013 7.G Owners Manual Message Warning Lamp at
Instrument ClusterSystem
ENGINE OIL
PRESSURE LOW
STOP SAFELY
Engine Oil
BRAKE FLUID
LEVEL LOW
SERVICE NOWBRAKE or
Brakes
CHECK FUEL FILL
INLET— Fuel
Oil life monitoring syste

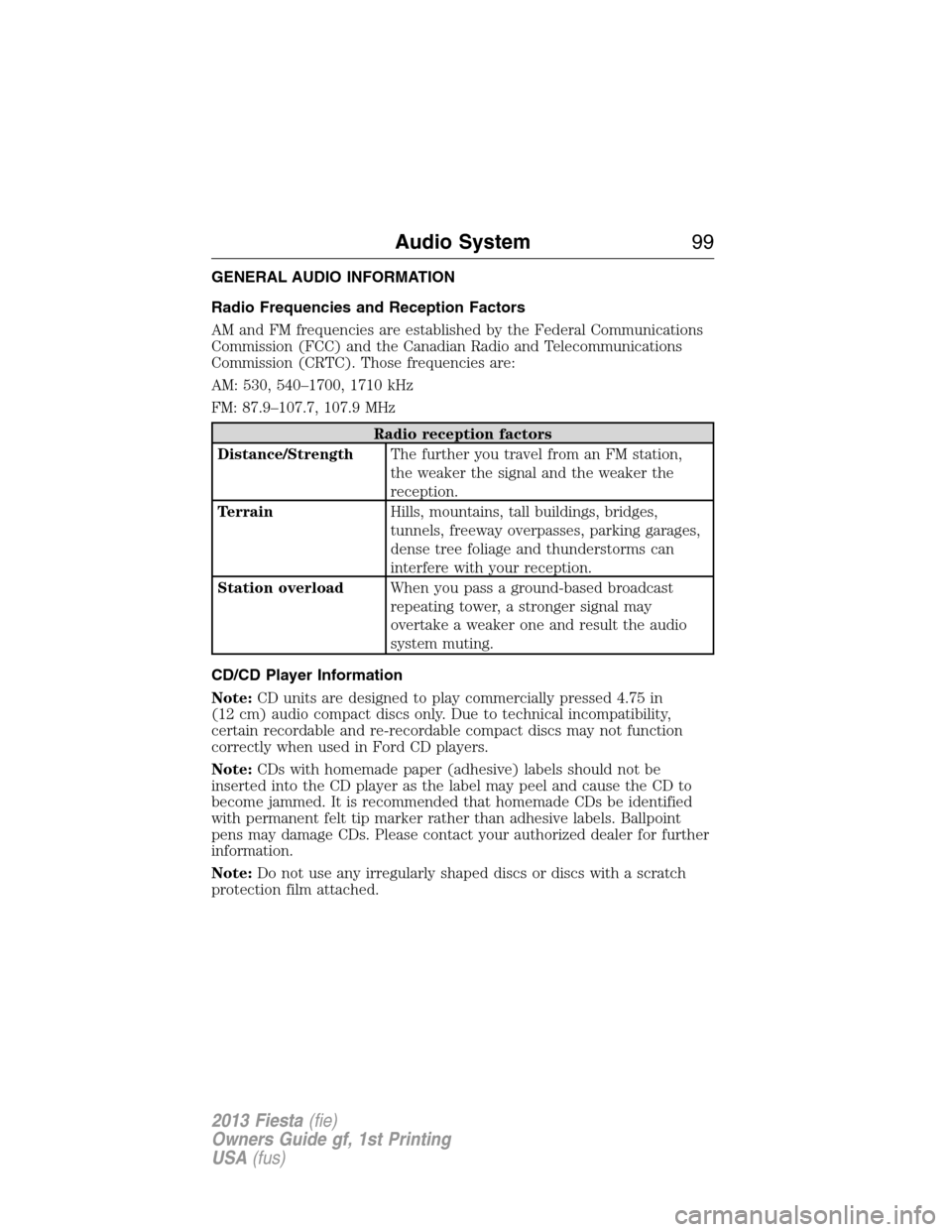

Page 99 of 341

FORD FIESTA 2013 7.G Owners Manual GENERAL AUDIO INFORMATION
Radio Frequencies and Reception Factors
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Com

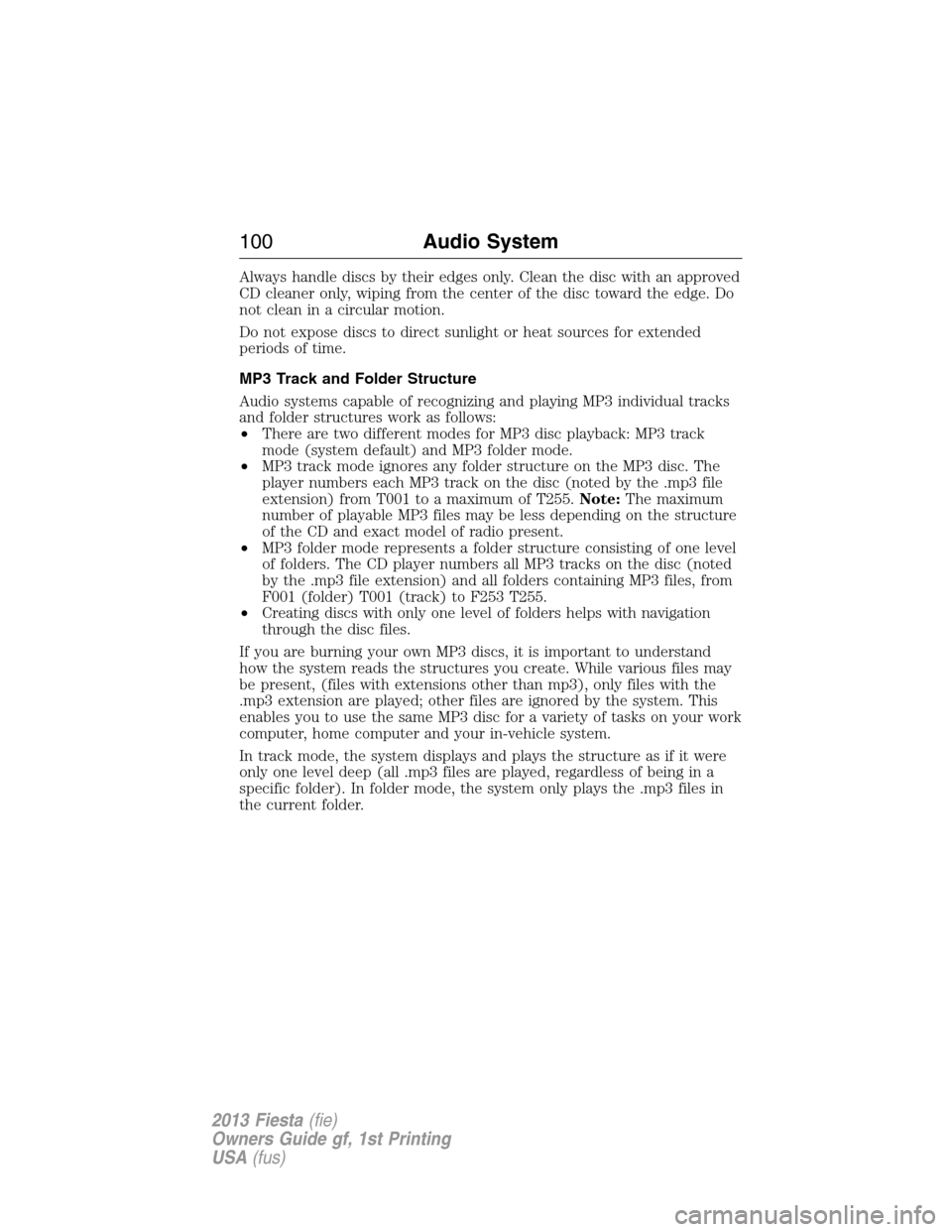

Page 100 of 341

FORD FIESTA 2013 7.G Owners Manual Always handle discs by their edges only. Clean the disc with an approved
CD cleaner only, wiping from the center of the disc toward the edge. Do
not clean in a circular motion.
Do not expose discs to
