Locks 61
Locking and unlocking..................................61
Locks..............................................61
Trunk release.........................................67
Interior luggage compartment release.......................68
Security 69
SecuriLockpassive anti-theft system.......................69
Steering Wheel 72
Adjusting the steering wheel..............................72
Steering wheel controls.................................73
Wipers and Washers 75
Windshield wipers.....................................75
Windshield washers....................................76
Rear-window wiper and washer............................76
Lighting 77
Lighting control.......................................77
Instrument lighting dimmer...............................77
Headlamp exit delay....................................78
Daytime running lamps..................................78
Turn signal control.....................................78
Interior lamps........................................79
Ambient lighting.......................................80
Windows and Mirrors 81
Power windows.......................................81
Exteriormirrors.......................................83
Interiormirrors .......................................84
Moonroof............................................85
Instrument Cluster 86
Gauges.............................................86
Warning lamps and indicators.............................87
Audible warnings and indicators...........................92
2Table of Contents
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
Page 6 of 341
Vehicle Care 219
Cleaning products.....................................219
Cleaning the exterior..................................219
Waxing.............................................221
Repairing minor paint damage............................221
Cleaning the engine...................................221
Cleaning the windows and wiper blades.....................222
Cleaning the interior...................................222
Cleaning the instrument panel and instrument cluster lens.......223
Cleaning leather seats..................................224
Cleaning the alloy wheels...............................224
Vehicle storage.......................................225
Wheels and Tires 228
Tirecare ...........................................228
Tire Pressure Monitoring System (TPMS)...................244
Changing a road wheel.................................248
Technical specifications.................................253
Wheel lug nut torque..................................253
Capacities and Specifications 254
Engine specifications..................................254
Engine drivebelt......................................254
Part numbers........................................258
Vehicle identification number............................259
Vehicle certification label...............................260
Transmission code designation............................260
Accessories 261
Accessories.........................................261
Ford Extended Service Plan 263
Scheduled Maintenance 266
Normal scheduled maintenance and log.....................271
6Table of Contents
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
Page 11 of 341

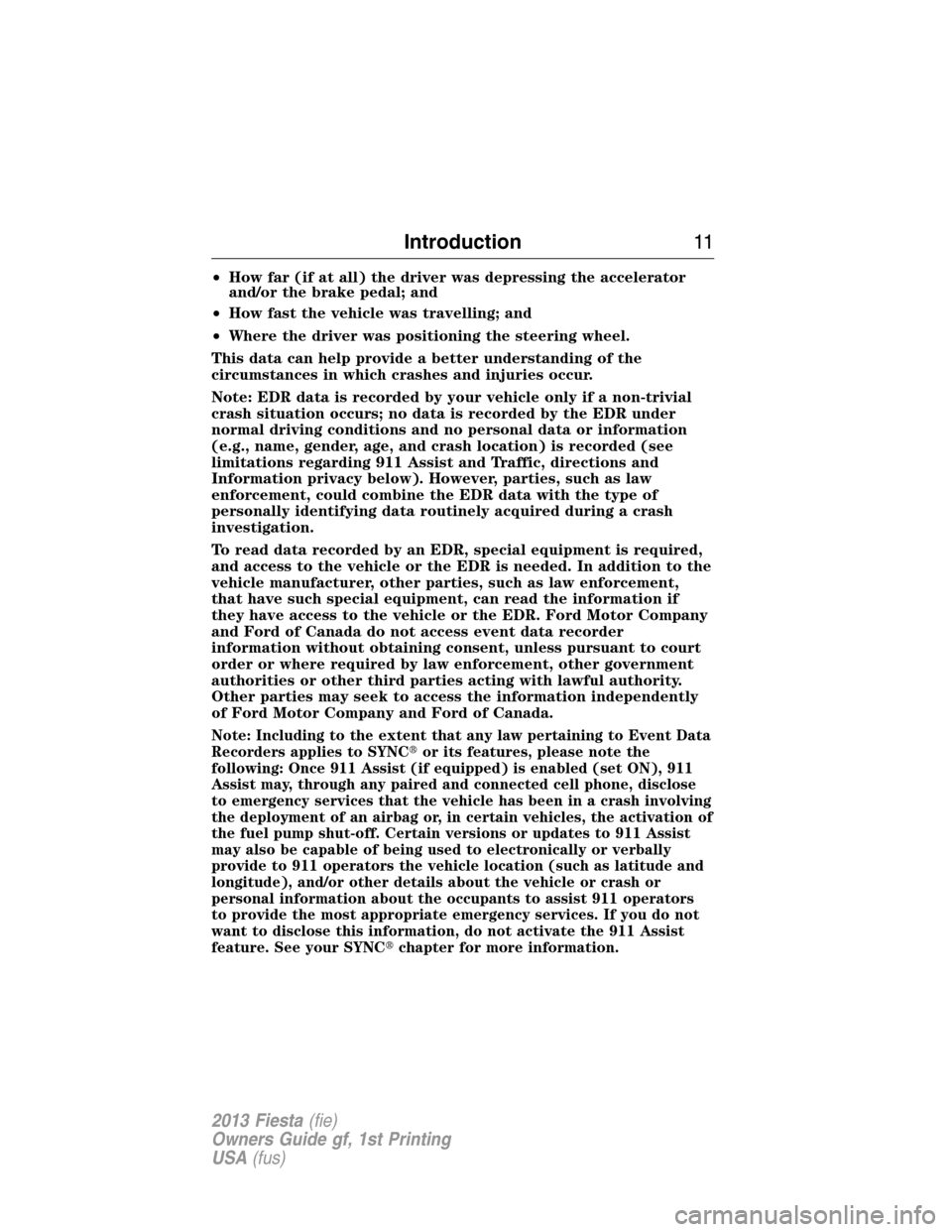

•How far (if at all) the driver was depressing the accelerator
and/or the brake pedal; and
•How fast the vehicle was travelling; and
•Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the
circumstances in which crashes and injuries occur.
Note: EDR data is recorded by your vehicle only if a non-trivial
crash situation occurs; no data is recorded by the EDR under
normal driving conditions and no personal data or information
(e.g., name, gender, age, and crash location) is recorded (see
limitations regarding 911 Assist and Traffic, directions and
Information privacy below). However, parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement,
that have such special equipment, can read the information if
they have access to the vehicle or the EDR. Ford Motor Company
and Ford of Canada do not access event data recorder
information without obtaining consent, unless pursuant to court
order or where required by law enforcement, other government
authorities or other third parties acting with lawful authority.
Other parties may seek to access the information independently
of Ford Motor Company and Ford of Canada.
Note: Including to the extent that any law pertaining to Event Data
Recorders applies to SYNCor its features, please note the
following: Once 911 Assist (if equipped) is enabled (set ON), 911
Assist may, through any paired and connected cell phone, disclose
to emergency services that the vehicle has been in a crash involving
the deployment of an airbag or, in certain vehicles, the activation of
the fuel pump shut-off. Certain versions or updates to 911 Assist
may also be capable of being used to electronically or verbally
provide to 911 operators the vehicle location (such as latitude and
longitude), and/or other details about the vehicle or crash or
personal information about the occupants to assist 911 operators
to provide the most appropriate emergency services. If you do not
want to disclose this information, do not activate the 911 Assist
feature. See your SYNCchapter for more information.
Introduction11
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
Page 72 of 341

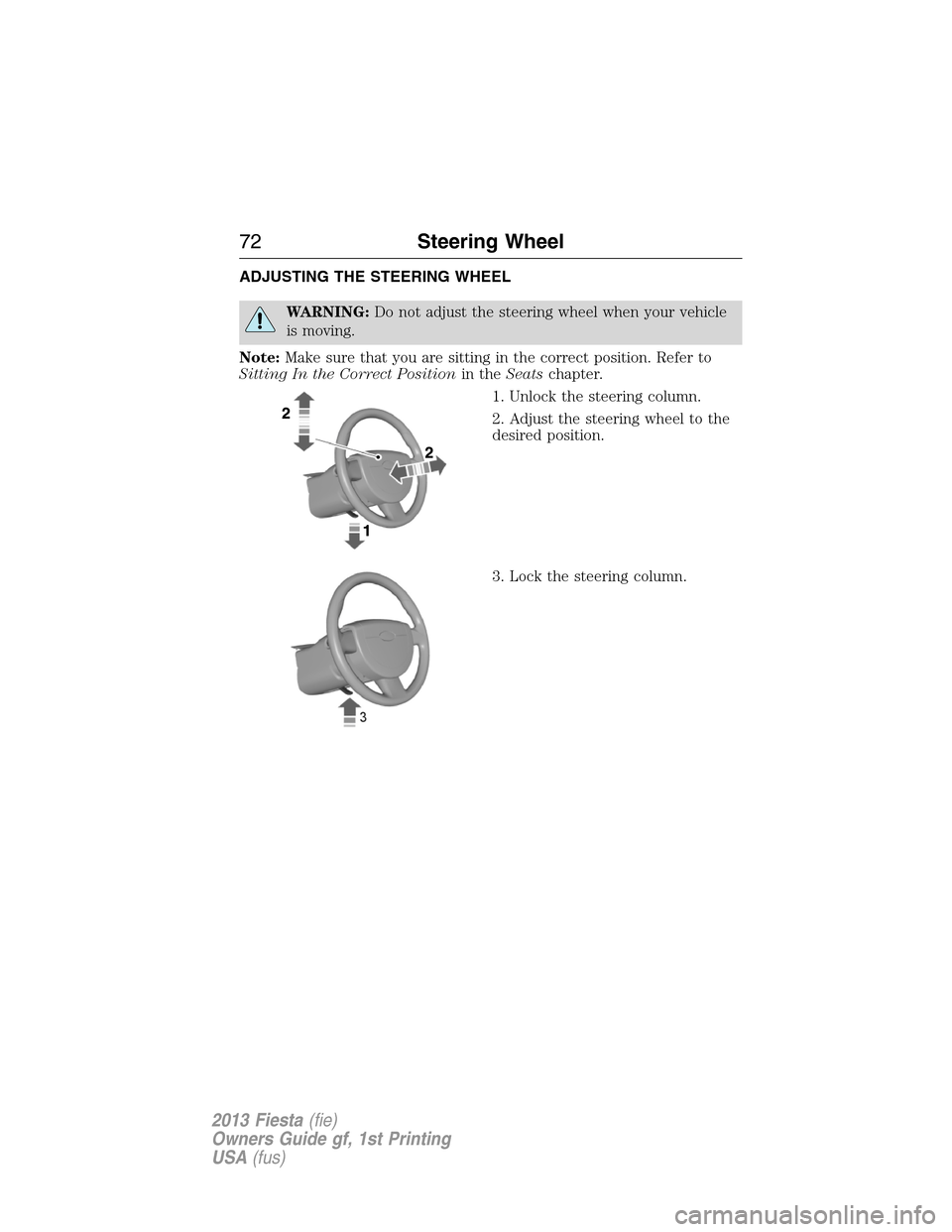

ADJUSTING THE STEERING WHEEL
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. Refer to
Sitting In the Correct Positionin theSeatschapter.
1. Unlock the steering column.
2. Adjust the steering wheel to the
desired position.
3. Lock the steering column.
72Steering Wheel
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
Page 73 of 341

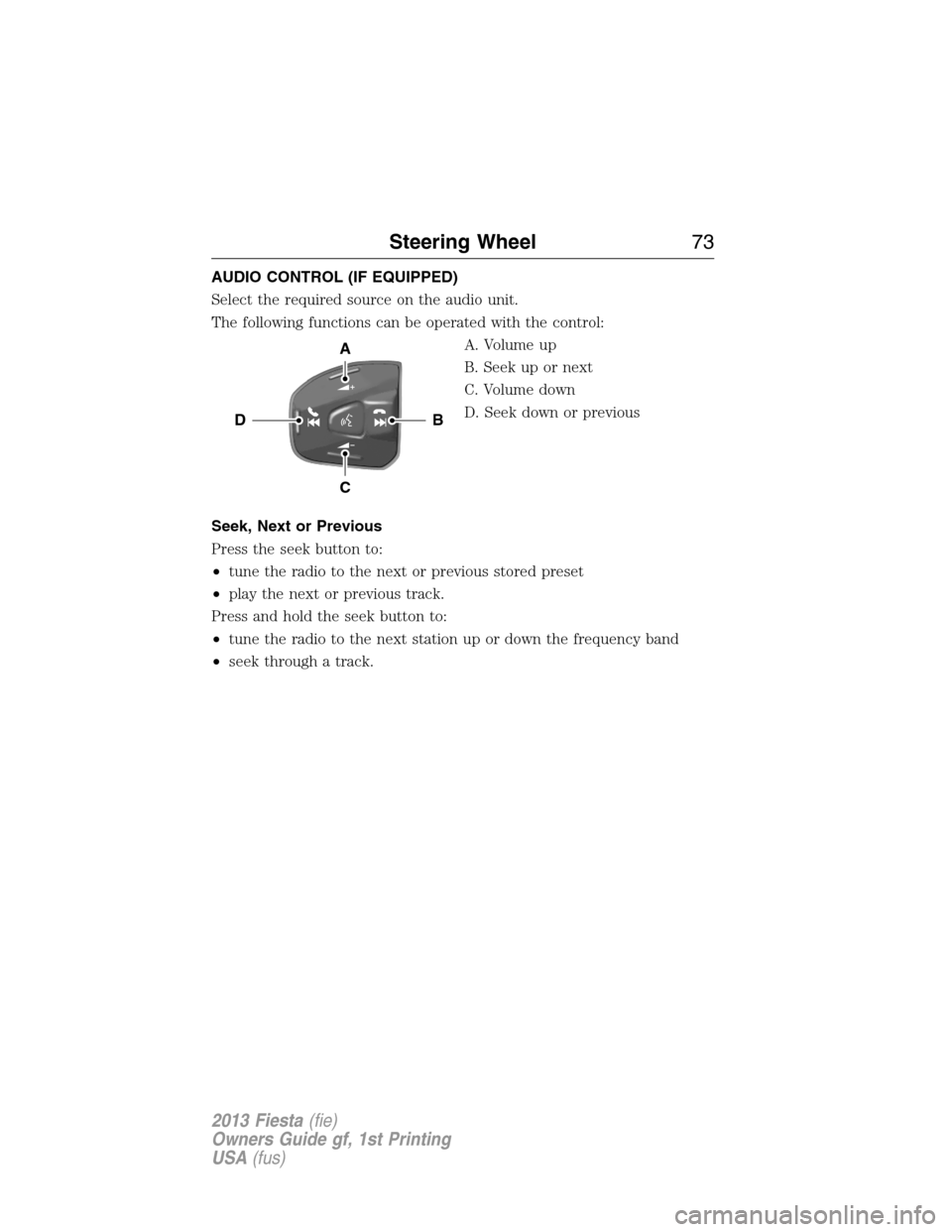

AUDIO CONTROL (IF EQUIPPED)
Select the required source on the audio unit.
The following functions can be operated with the control:
A. Volume up
B. Seek up or next
C. Volume down
D. Seek down or previous
Seek, Next or Previous
Press the seek button to:
•tune the radio to the next or previous stored preset
•play the next or previous track.
Press and hold the seek button to:
•tune the radio to the next station up or down the frequency band
•seek through a track.
B
A
C
D
Steering Wheel73
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
Page 74 of 341

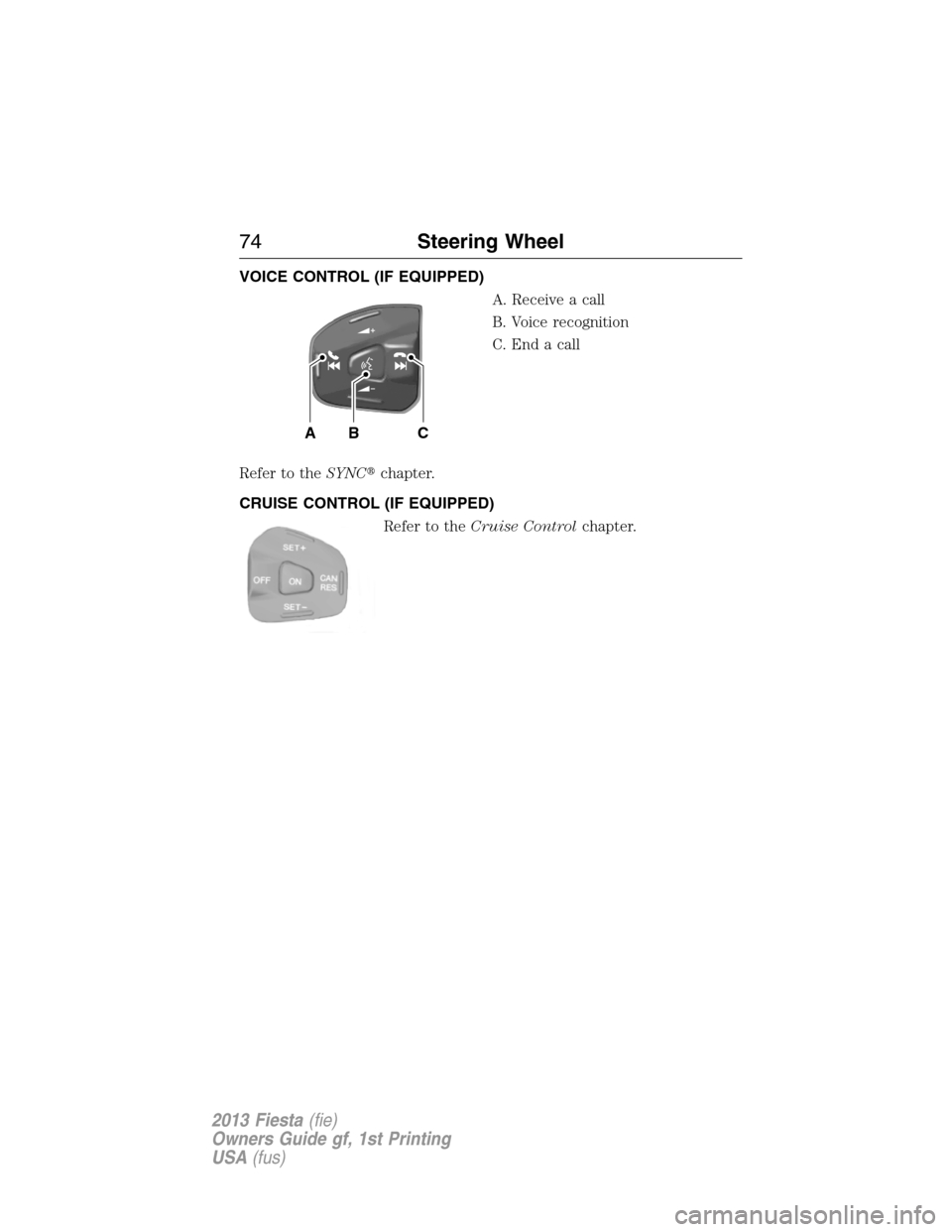

VOICE CONTROL (IF EQUIPPED)
A. Receive a call
B. Voice recognition
C. End a call
Refer to theSYNCchapter.
CRUISE CONTROL (IF EQUIPPED)
Refer to theCruise Controlchapter.
BAC
74Steering Wheel
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
Page 94 of 341
Menu
Display Units of measure
Language
Messages
Compass (if
equipped)If your vehicle is equipped with SYNC,the
compass heading is displayed to the left of the clock
in the upper portion of the multifunction display.

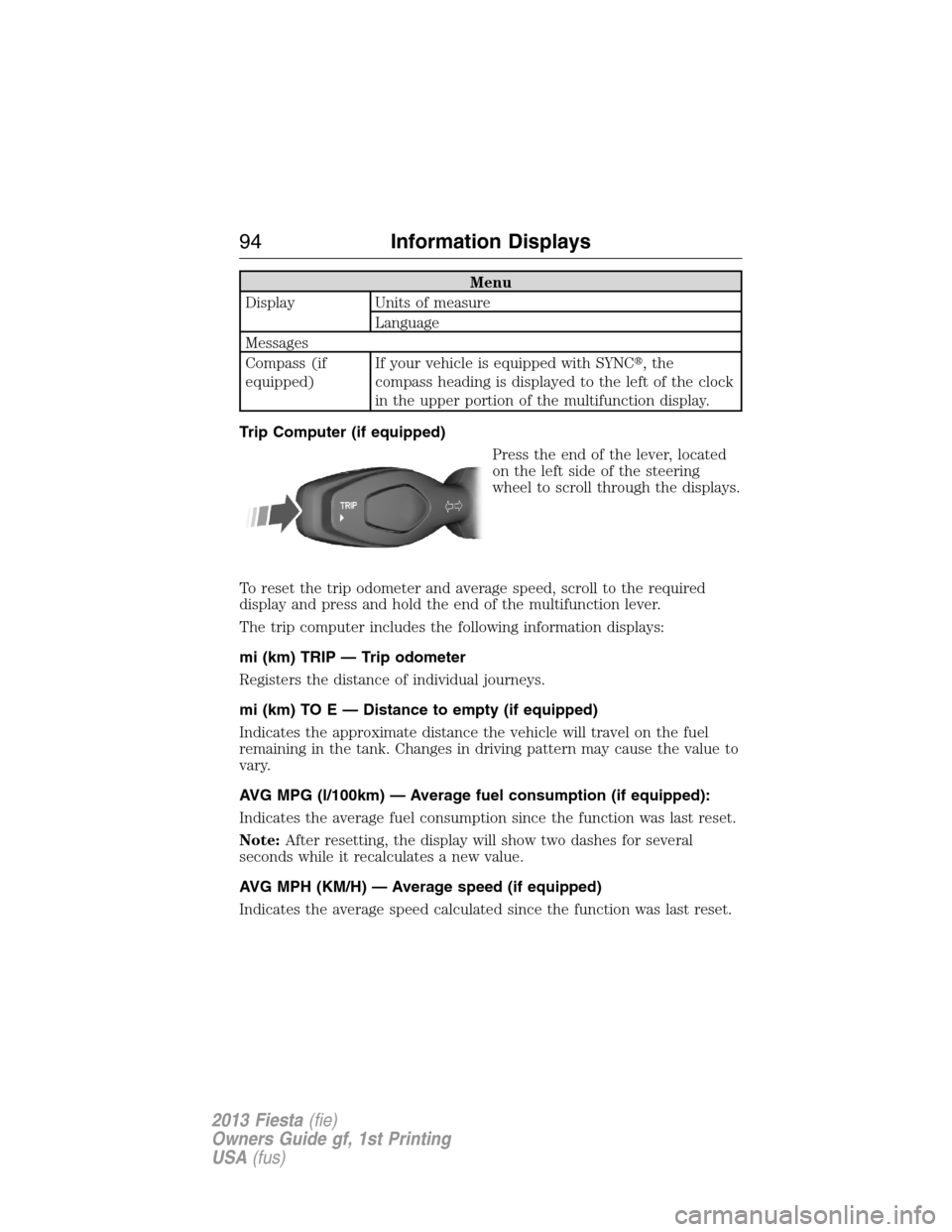

Trip Computer (if equipped)
Press the end of the lever, located
on the left side of the steering
wheel to scroll through the displays.
To reset the trip odometer and average speed, scroll to the required
display and press and hold the end of the multifunction lever.
The trip computer includes the following information displays:
mi (km) TRIP — Trip odometer
Registers the distance of individual journeys.
mi (km) TO E — Distance to empty (if equipped)
Indicates the approximate distance the vehicle will travel on the fuel
remaining in the tank. Changes in driving pattern may cause the value to
vary.
AVG MPG (l/100km) — Average fuel consumption (if equipped):
Indicates the average fuel consumption since the function was last reset.
Note:After resetting, the display will show two dashes for several
seconds while it recalculates a new value.
AVG MPH (KM/H) — Average speed (if equipped)
Indicates the average speed calculated since the function was last reset.
94Information Displays
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
Page 95 of 341

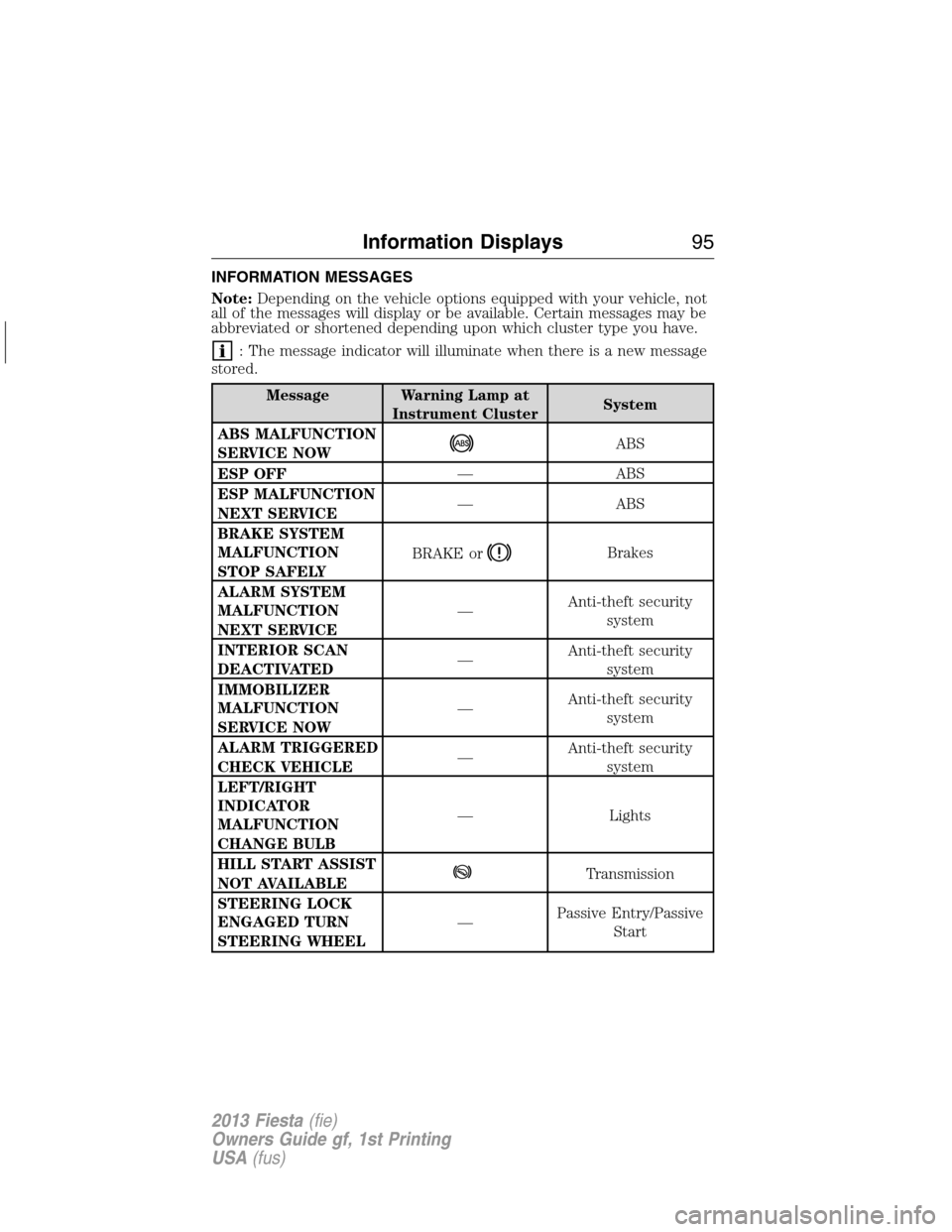

INFORMATION MESSAGES
Note:Depending on the vehicle options equipped with your vehicle, not
all of the messages will display or be available. Certain messages may be
abbreviated or shortened depending upon which cluster type you have.
: The message indicator will illuminate when there is a new message
stored.
Message Warning Lamp at
Instrument ClusterSystem
ABS MALFUNCTION
SERVICE NOW
ABS
ESP OFF— ABS
ESP MALFUNCTION
NEXT SERVICE— ABS
BRAKE SYSTEM
MALFUNCTION
STOP SAFELYBRAKE or
Brakes
ALARM SYSTEM
MALFUNCTION
NEXT SERVICE—Anti-theft security
system
INTERIOR SCAN
DEACTIVATED—Anti-theft security
system
IMMOBILIZER
MALFUNCTION
SERVICE NOW—Anti-theft security
system
ALARM TRIGGERED
CHECK VEHICLE—Anti-theft security
system
LEFT/RIGHT
INDICATOR
MALFUNCTION
CHANGE BULB— Lights
HILL START ASSIST
NOT AVAILABLE
Transmission
STEERING LOCK
ENGAGED TURN
STEERING WHEEL—Passive Entry/Passive
Start
Information Displays95
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
Page 118 of 341

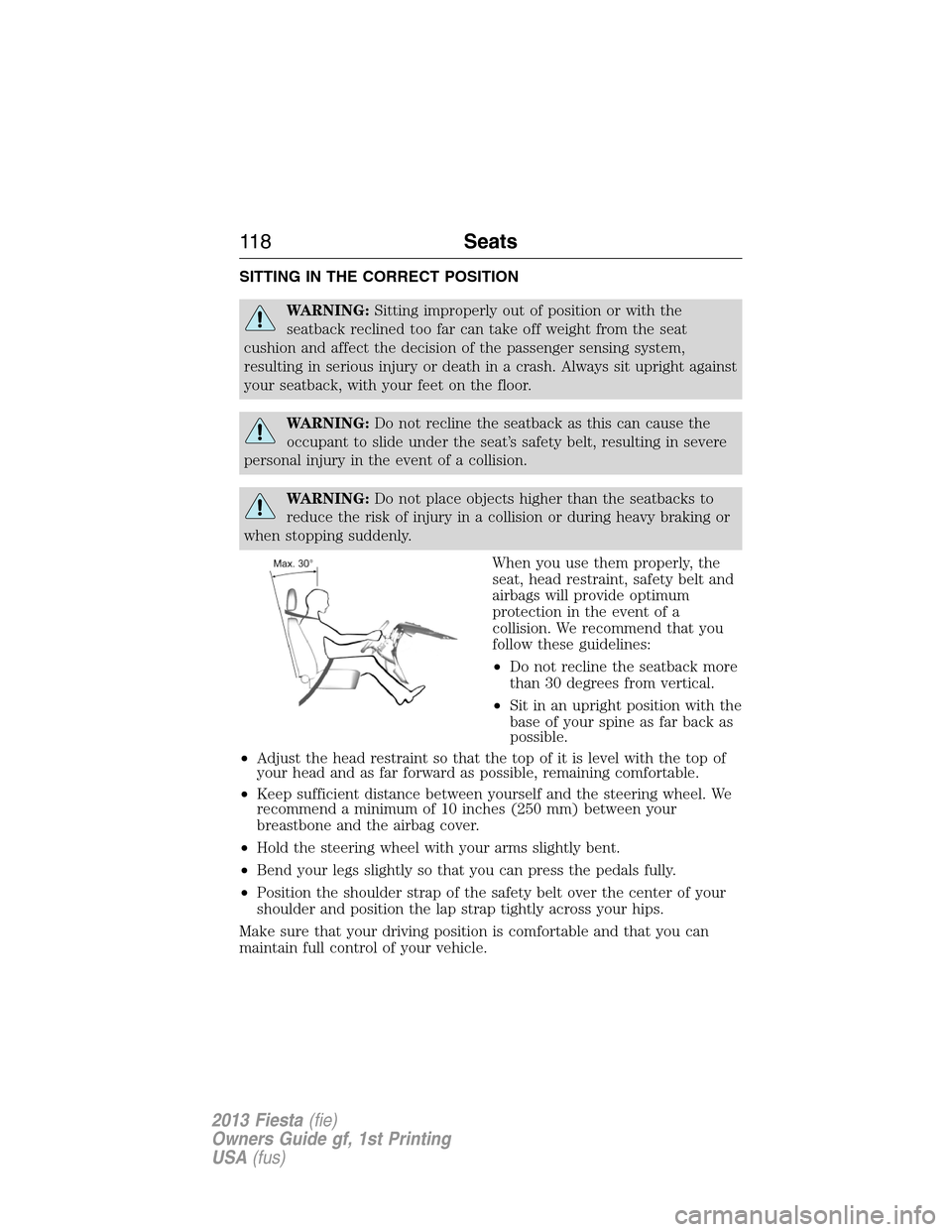

SITTING IN THE CORRECT POSITION
WARNING:Sitting improperly out of position or with the
seatback reclined too far can take off weight from the seat
cushion and affect the decision of the passenger sensing system,
resulting in serious injury or death in a crash. Always sit upright against
your seatback, with your feet on the floor.
WARNING:Do not recline the seatback as this can cause the
occupant to slide under the seat’s safety belt, resulting in severe
personal injury in the event of a collision.
WARNING:Do not place objects higher than the seatbacks to
reduce the risk of injury in a collision or during heavy braking or
when stopping suddenly.
When you use them properly, the
seat, head restraint, safety belt and
airbags will provide optimum
protection in the event of a
collision. We recommend that you
follow these guidelines:
•Do not recline the seatback more
than 30 degrees from vertical.
•Sit in an upright position with the
base of your spine as far back as
possible.
•Adjust the head restraint so that the top of it is level with the top of
your head and as far forward as possible, remaining comfortable.
•Keep sufficient distance between yourself and the steering wheel. We
recommend a minimum of 10 inches (250 mm) between your
breastbone and the airbag cover.
•Hold the steering wheel with your arms slightly bent.
•Bend your legs slightly so that you can press the pedals fully.
•Position the shoulder strap of the safety belt over the center of your
shoulder and position the lap strap tightly across your hips.
Make sure that your driving position is comfortable and that you can
maintain full control of your vehicle.
11 8Seats
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
Page 143 of 341

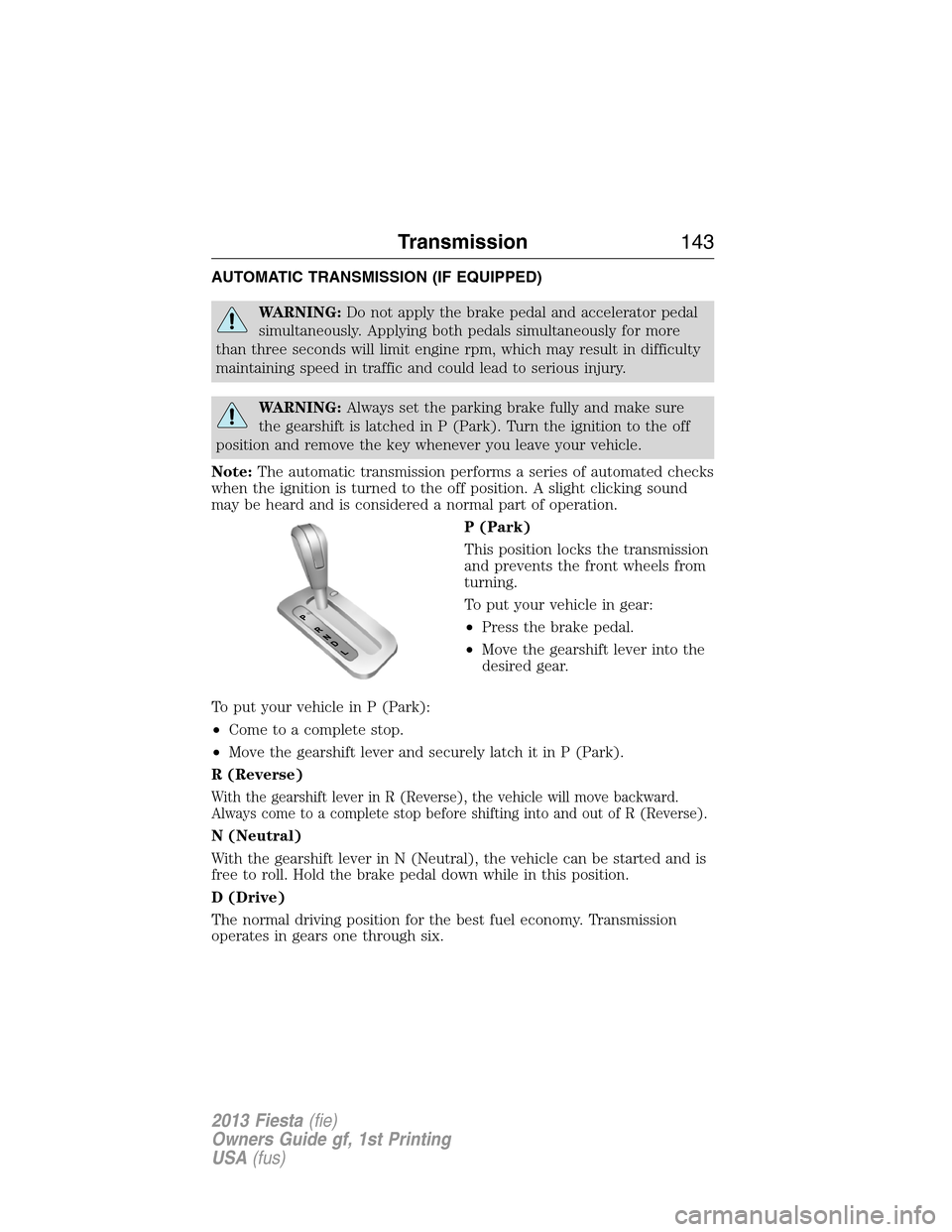

AUTOMATIC TRANSMISSION (IF EQUIPPED)
WARNING:Do not apply the brake pedal and accelerator pedal
simultaneously. Applying both pedals simultaneously for more
than three seconds will limit engine rpm, which may result in difficulty
maintaining speed in traffic and could lead to serious injury.
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
Note:The automatic transmission performs a series of automated checks
when the ignition is turned to the off position. A slight clicking sound
may be heard and is considered a normal part of operation.
P (Park)
This position locks the transmission
and prevents the front wheels from
turning.
To put your vehicle in gear:
•Press the brake pedal.
•Move the gearshift lever into the
desired gear.
To put your vehicle in P (Park):
•Come to a complete stop.
•Move the gearshift lever and securely latch it in P (Park).
R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R (Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.
D (Drive)
The normal driving position for the best fuel economy. Transmission
operates in gears one through six.
Transmission143
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
