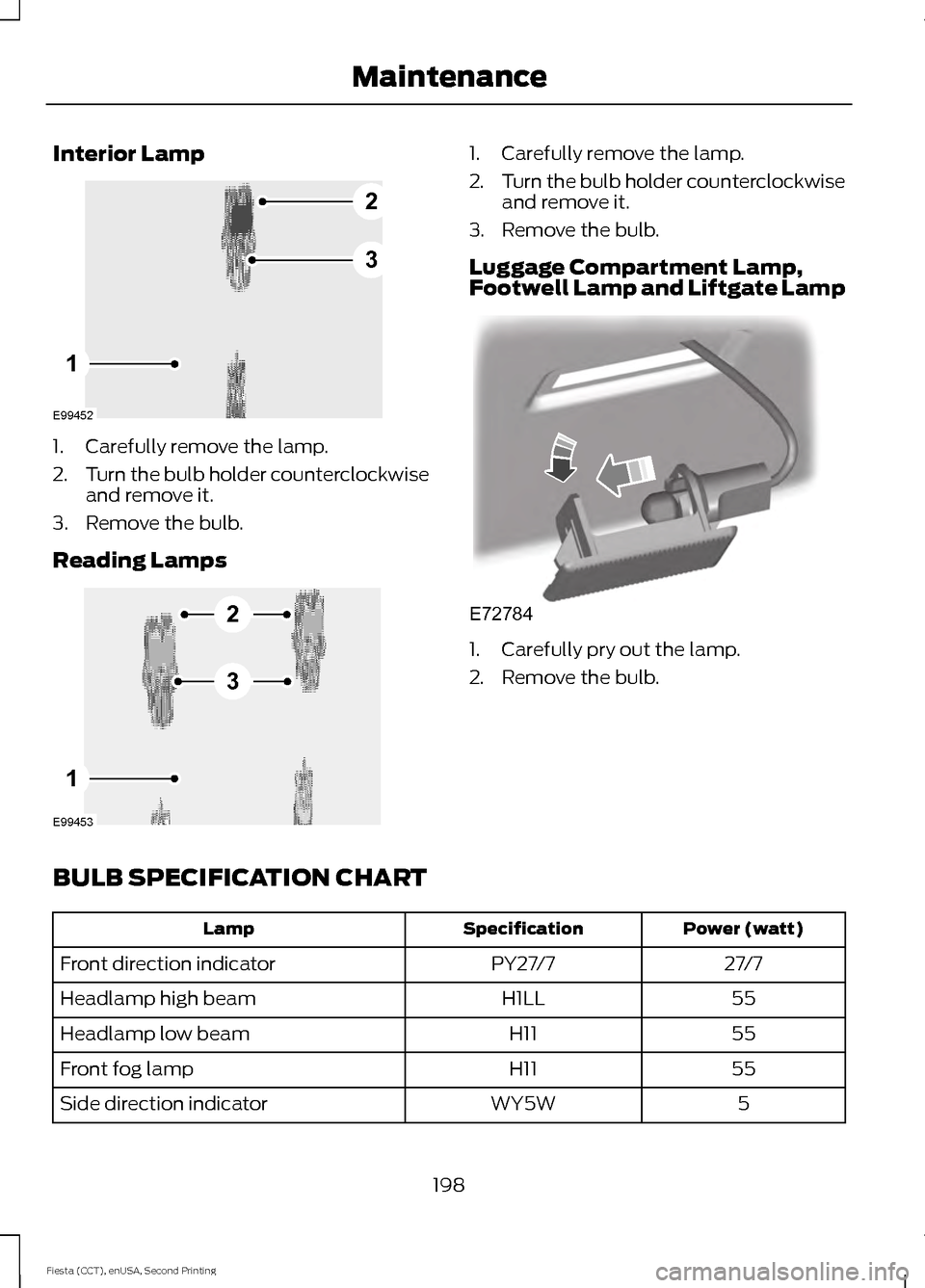

Interior Lamp
1. Carefully remove the lamp.
2.
Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb.
Reading Lamps 1. Carefully remove the lamp.
2.
Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb.
Luggage Compartment Lamp,
Footwell Lamp and Liftgate Lamp 1. Carefully pry out the lamp.
2. Remove the bulb.
BULB SPECIFICATION CHART Power (watt)
Specification
Lamp
27/7
PY27/7
Front direction indicator
55
H1LL
Headlamp high beam
55
H11
Headlamp low beam
55
H11
Front fog lamp
5
WY5W
Side direction indicator
198
Fiesta (CCT), enUSA, Second Printing MaintenanceE99452
2
3
1 E99453
2
3
1 E72784

Power (watt)
Specification
Lamp
27/7
PY27/7

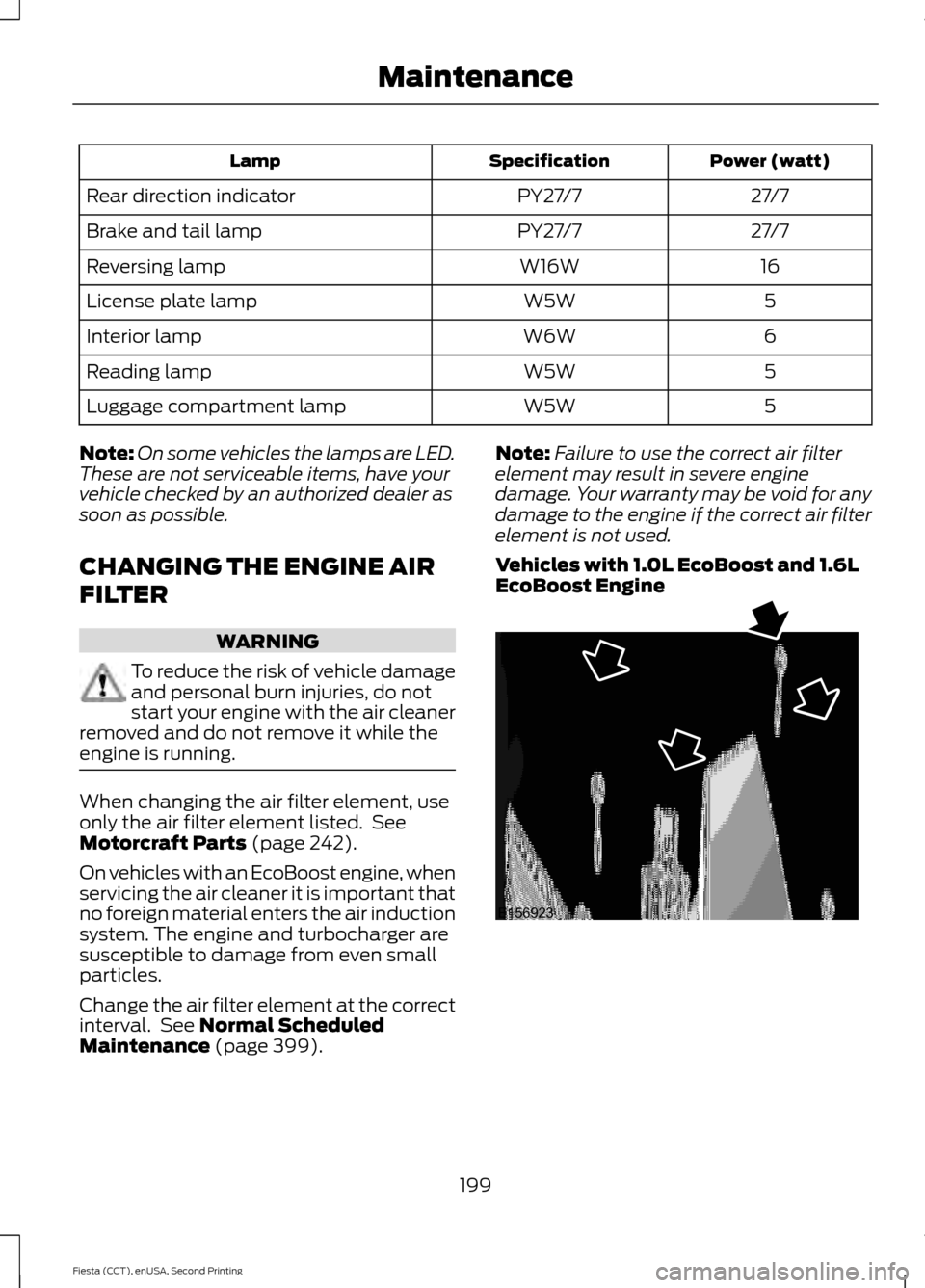

Rear direction indicator
27/7
PY27/7
Brake and tail lamp
16
W16W
Reversing lamp
5
W5W
License plate lamp
6
W6W
Interior lamp
5
W5W
Reading lamp
5
W5W
Luggage compartment lamp
Note: On some vehicles the lamps are LED.
These are not serviceable items, have your
vehicle checked by an authorized dealer as
soon as possible.
CHANGING THE ENGINE AIR
FILTER WARNING
To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. When changing the air filter element, use
only the air filter element listed. See
Motorcraft Parts (page 242).
On vehicles with an EcoBoost engine, when
servicing the air cleaner it is important that
no foreign material enters the air induction
system. The engine and turbocharger are
susceptible to damage from even small
particles.
Change the air filter element at the correct
interval. See
Normal Scheduled
Maintenance (page 399). Note:
Failure to use the correct air filter
element may result in severe engine
damage. Your warranty may be void for any
damage to the engine if the correct air filter
element is not used.
Vehicles with 1.0L EcoBoost and 1.6L
EcoBoost Engine 199
Fiesta (CCT), enUSA, Second Printing MaintenanceE156923

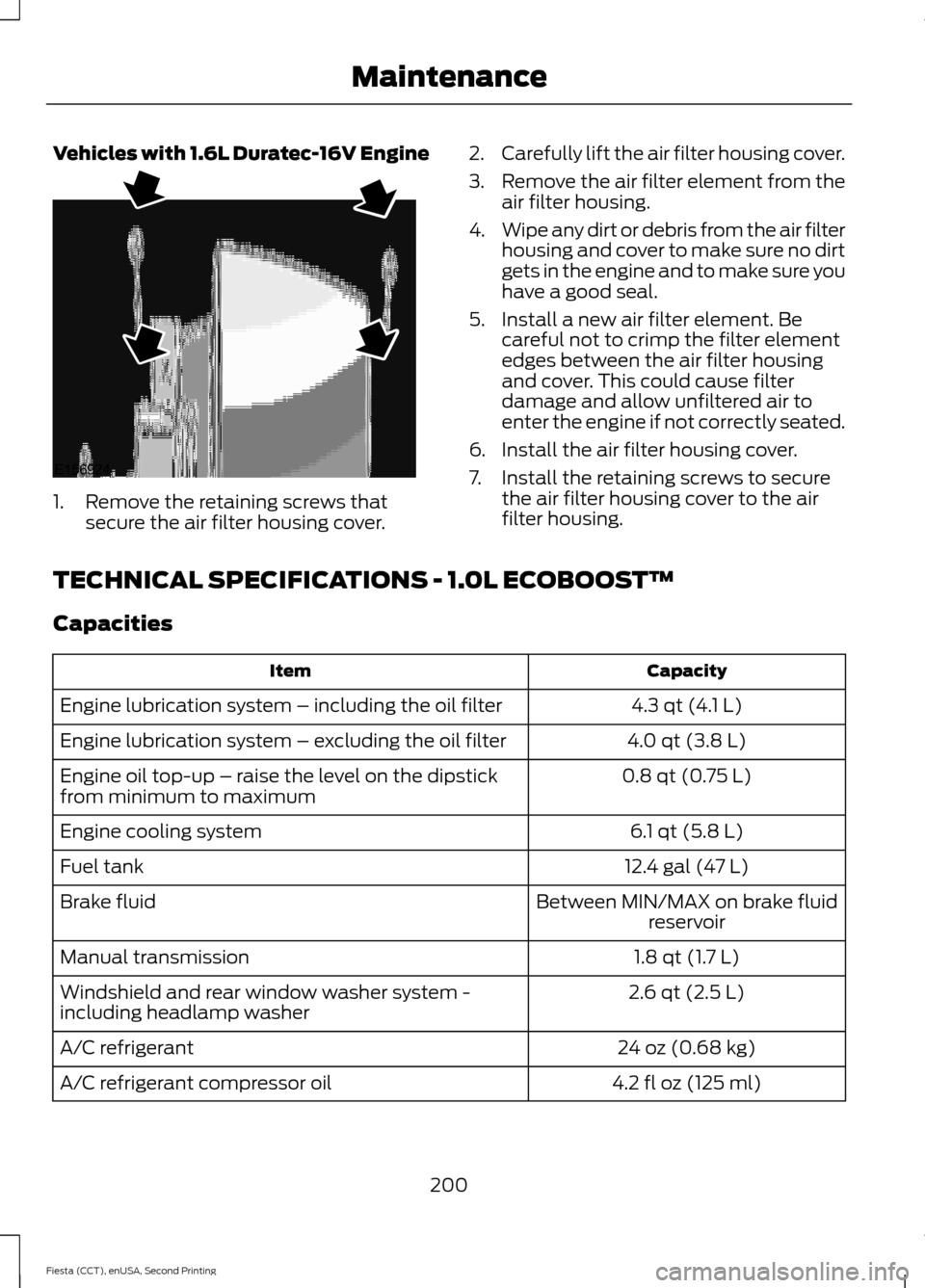

Vehicles with 1.6L Duratec-16V Engine
1. Remove the retaining screws that
secure the air filter housing cover. 2.
Carefully lift the air filter housing cover.
3. Remove the air filter element from the
air filter housing.
4. Wipe any dirt or debris from the air filter
housing and cover to make sure no dirt
gets in the engine and to make sure you
have a good seal.
5. Install a new air filter element. Be careful not to crimp the filter element
edges between the air filter housing
and cover. This could cause filter
damage and allow unfiltered air to
enter the engine if not correctly seated.
6. Install the air filter housing cover.
7. Install the retaining screws to secure the air filter housing cover to the air
filter housing.
TECHNICAL SPECIFICATIONS - 1.0L ECOBOOST™
Capacities Capacity
Item
4.3 qt (4.1 L)
Engine lubrication system – including the oil filter
4.0 qt (3.8 L)
Engine lubrication system – excluding the oil filter
0.8 qt (0.75 L)
Engine oil top-up – raise the level on the dipstick
from minimum to maximum
6.1 qt (5.8 L)
Engine cooling system
12.4 gal (47 L)
Fuel tank
Between MIN/MAX on brake fluidreservoir
Brake fluid
1.8 qt (1.7 L)
Manual transmission
2.6 qt (2.5 L)
Windshield and rear window washer system -
including headlamp washer
24 oz (0.68 kg)
A/C refrigerant
4.2 fl oz (125 ml)
A/C refrigerant compressor oil
200
Fiesta (CCT), enUSA, Second Printing MaintenanceE156924

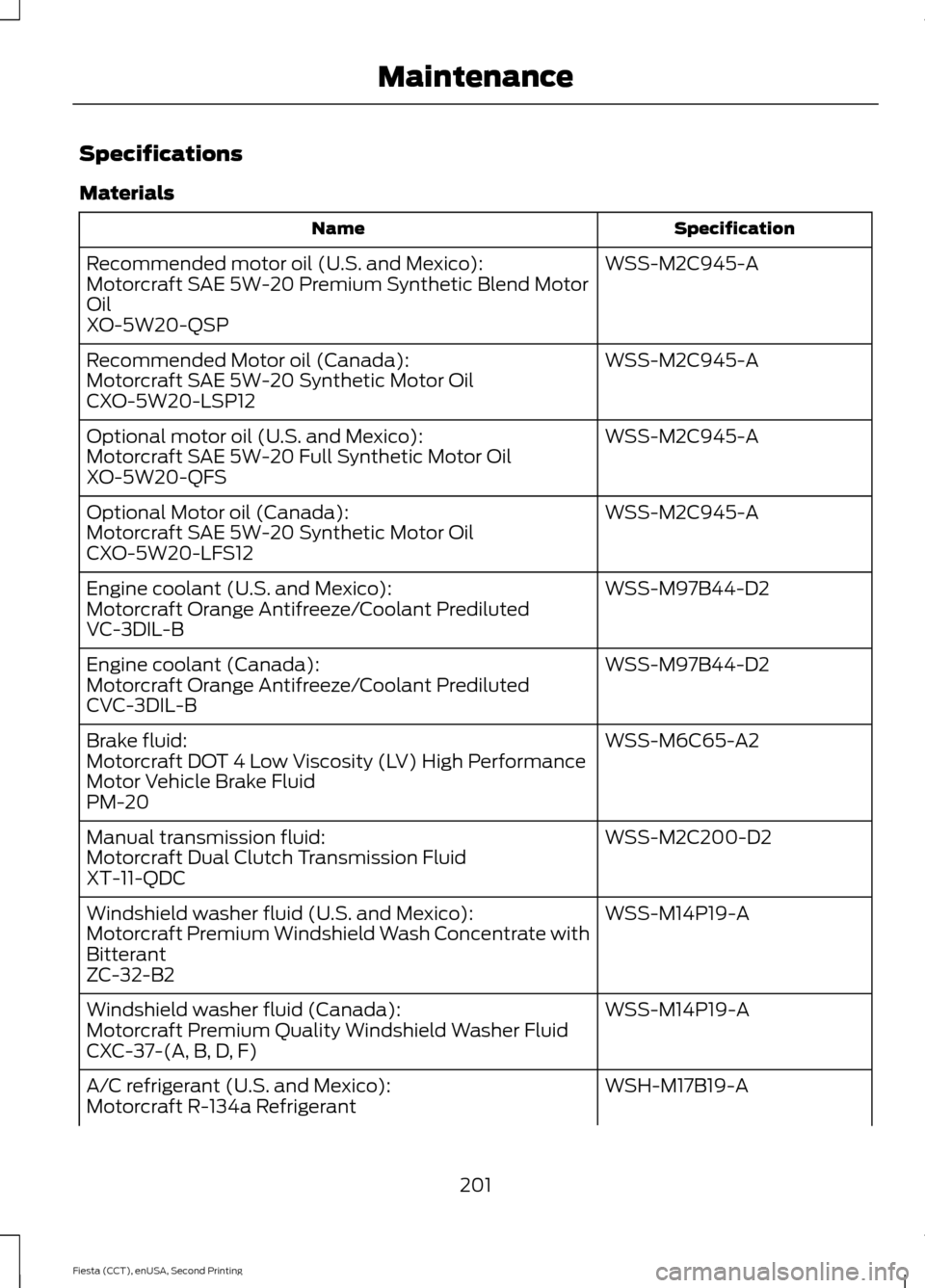

Specifications

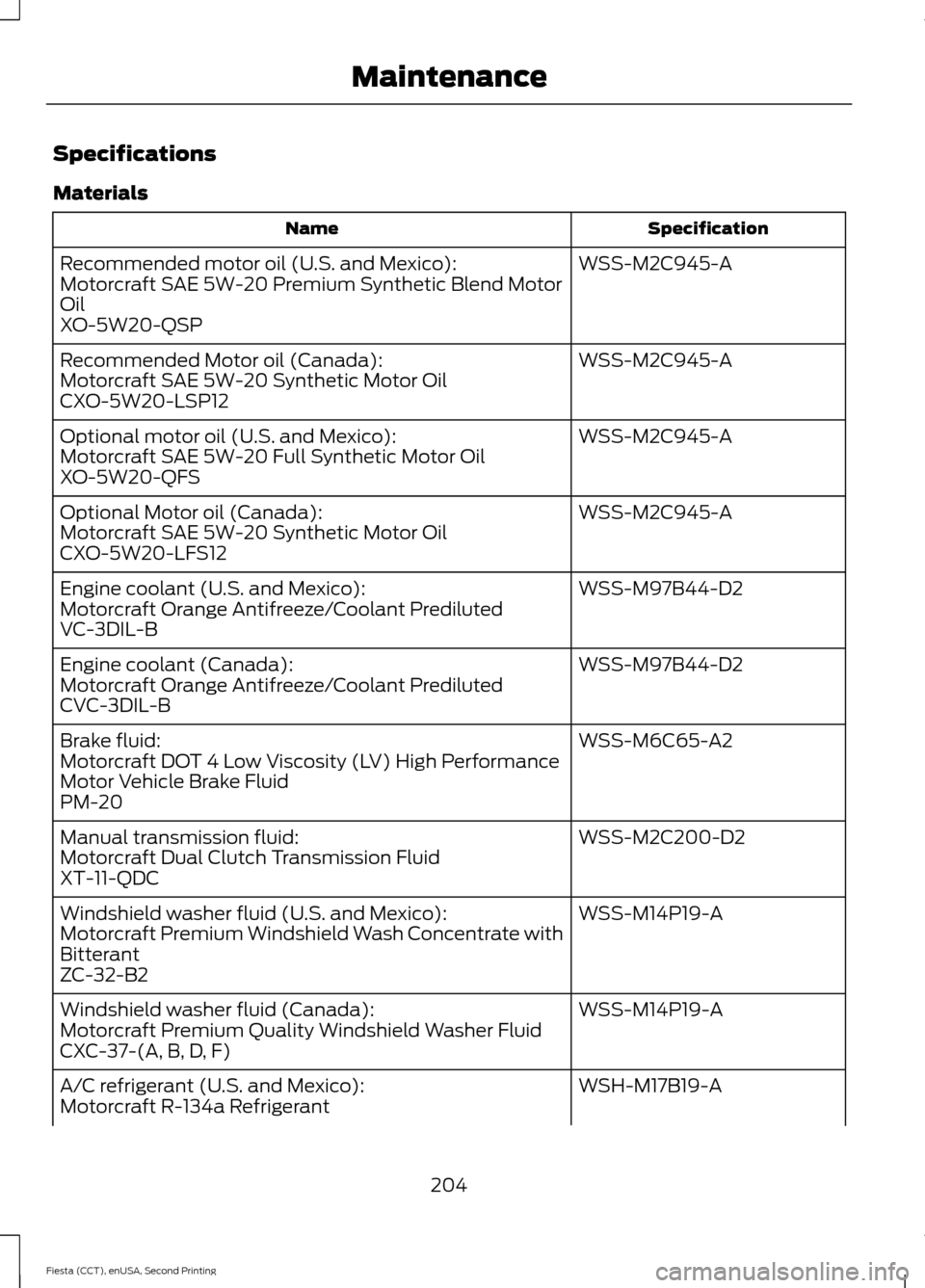

Materials
Specification
Name
WSS-M2C945-A
Recommended motor oil (U.S. and Mexico):
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor
Oil
XO-5W20-QSP
WSS-M2C945-A
Recommended Motor oil (Canada):
Motorcraft SAE 5W-20 Synthetic Motor Oil
CXO-5W20-LSP12
WSS-M2C945-A
Optional motor oil (U.S. and Mexico):
Motorcraft SAE 5W-20 Full Synthetic Motor Oil
XO-5W20-QFS
WSS-M2C945-A
Optional Motor oil (Canada):
Motorcraft SAE 5W-20 Synthetic Motor Oil
CXO-5W20-LFS12
WSS-M97B44-D2
Engine coolant (U.S. and Mexico):
Motorcraft Orange Antifreeze/Coolant Prediluted
VC-3DIL-B
WSS-M97B44-D2
Engine coolant (Canada):
Motorcraft Orange Antifreeze/Coolant Prediluted
CVC-3DIL-B
WSS-M6C65-A2
Brake fluid:
Motorcraft DOT 4 Low Viscosity (LV) High Performance
Motor Vehicle Brake Fluid
PM-20
WSS-M2C200-D2
Manual transmission fluid:
Motorcraft Dual Clutch Transmission Fluid
XT-11-QDC
WSS-M14P19-A
Windshield washer fluid (U.S. and Mexico):
Motorcraft Premium Windshield Wash Concentrate with
Bitterant
ZC-32-B2
WSS-M14P19-A
Windshield washer fluid (Canada):
Motorcraft Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)
WSH-M17B19-A
A/C refrigerant (U.S. and Mexico):
Motorcraft R-134a Refrigerant
201
Fiesta (CCT), enUSA, Second Printing Maintenance

Specification
Name
YN-19 WSH-M17B19-A
A/C refrigerant (Canada):
Motorcraft R-134a Refrigerant
CYN-16-R
WSH-M1C231-B
A/C refrigerant compressor oil:
Motorcraft PAG Refrigerant Compressor Oil
YN-12-D
ESB-M1C93-B
Multi-purpose grease:
Motorcraft Multi-Purpose Grease Spray
XL-5

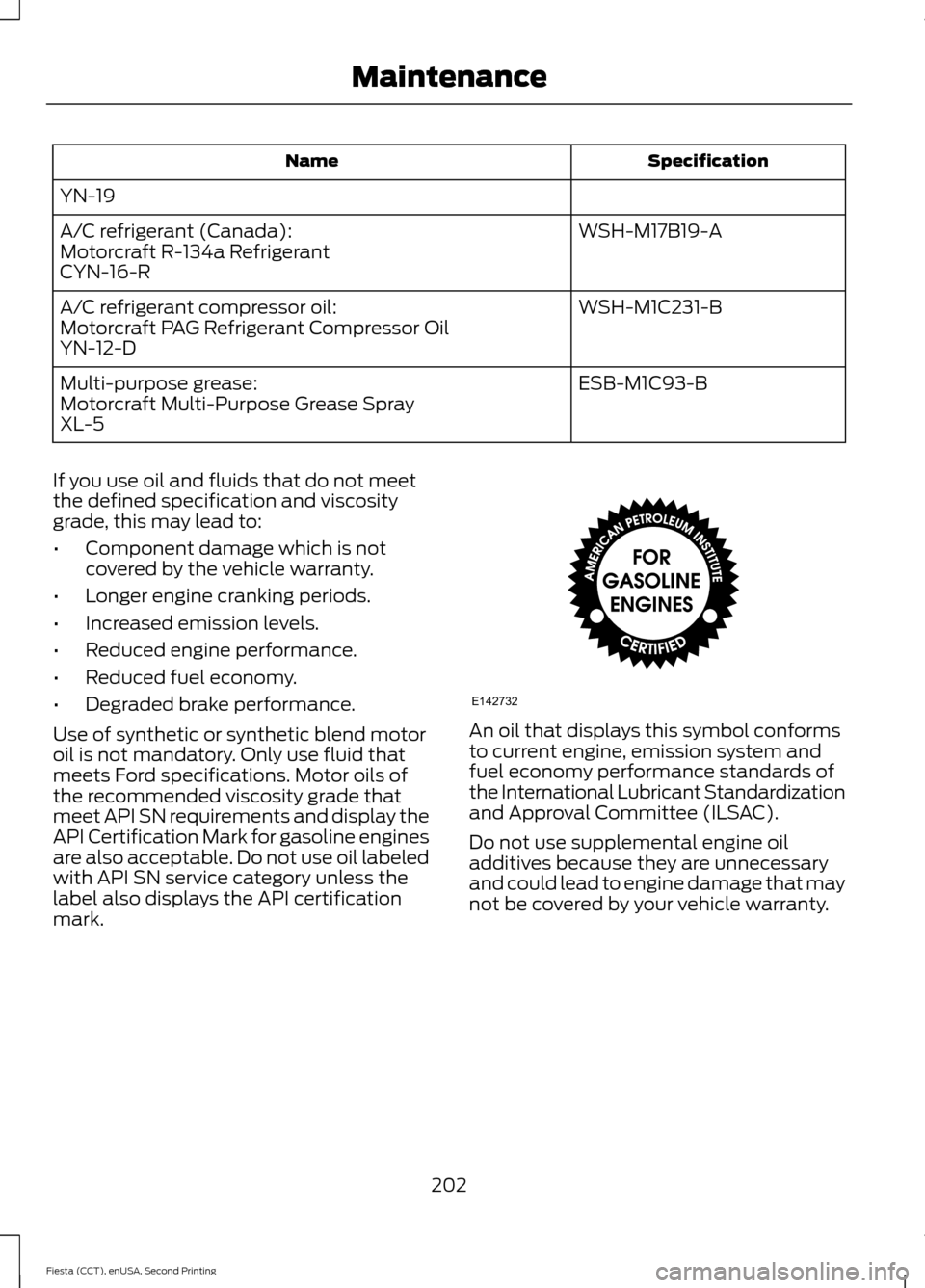

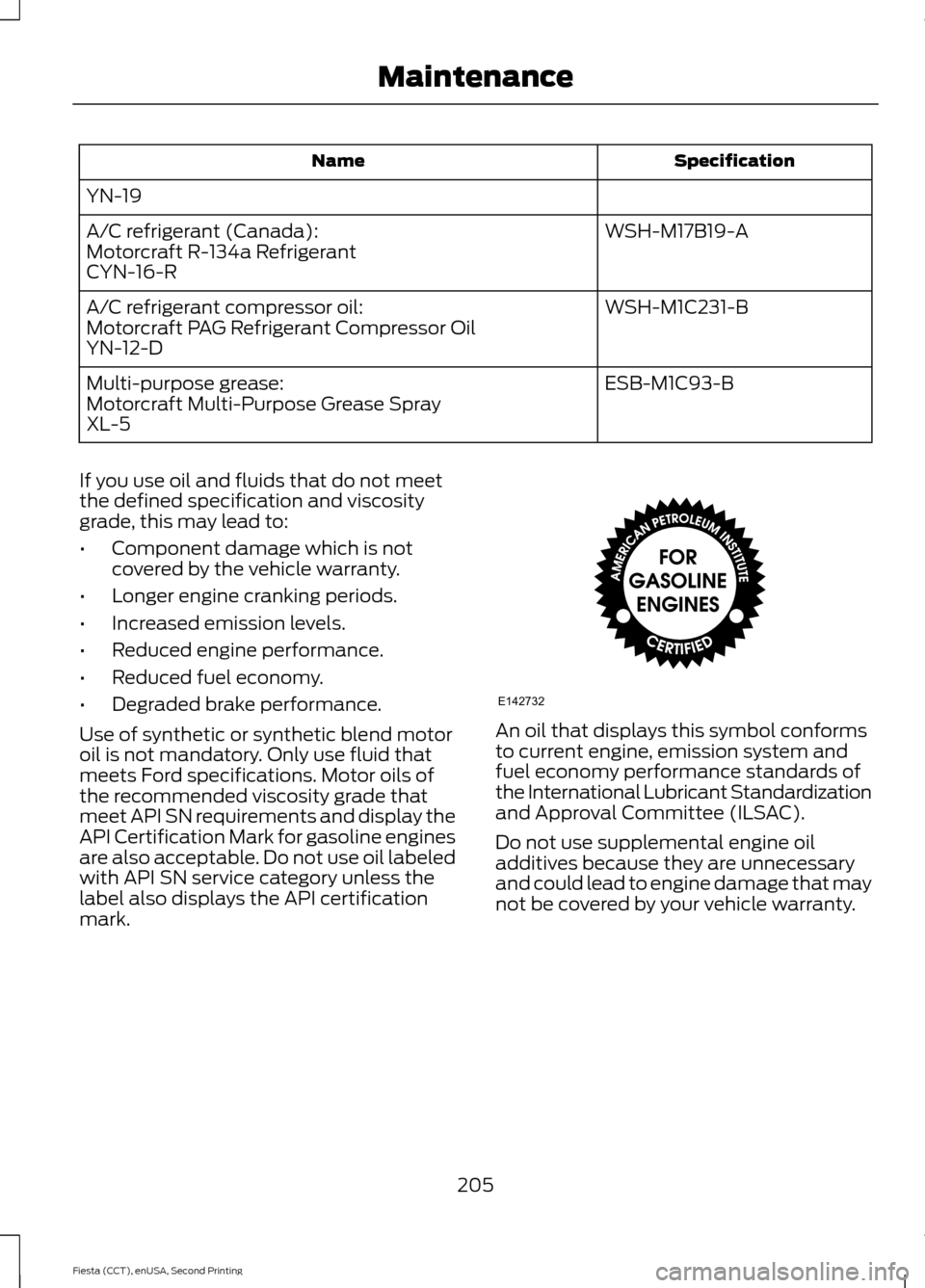

If you use oil and fluids that do not meet
the defined specification and viscosity
grade, this may lead to:
• Component damage which is not
covered by the vehicle warranty.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced engine performance.
• Reduced fuel economy.
• Degraded brake performance.
Use of synthetic or synthetic blend motor
oil is not mandatory. Only use fluid that
meets Ford specifications. Motor oils of
the recommended viscosity grade that
meet API SN requirements and display the
API Certification Mark for gasoline engines
are also acceptable. Do not use oil labeled
with API SN service category unless the
label also displays the API certification
mark. An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
the International Lubricant Standardization
and Approval Committee (ILSAC).
Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by your vehicle warranty.
202
Fiesta (CCT), enUSA, Second Printing MaintenanceE142732

Note:
Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other
materials may result in brake system
damage and possible failure.

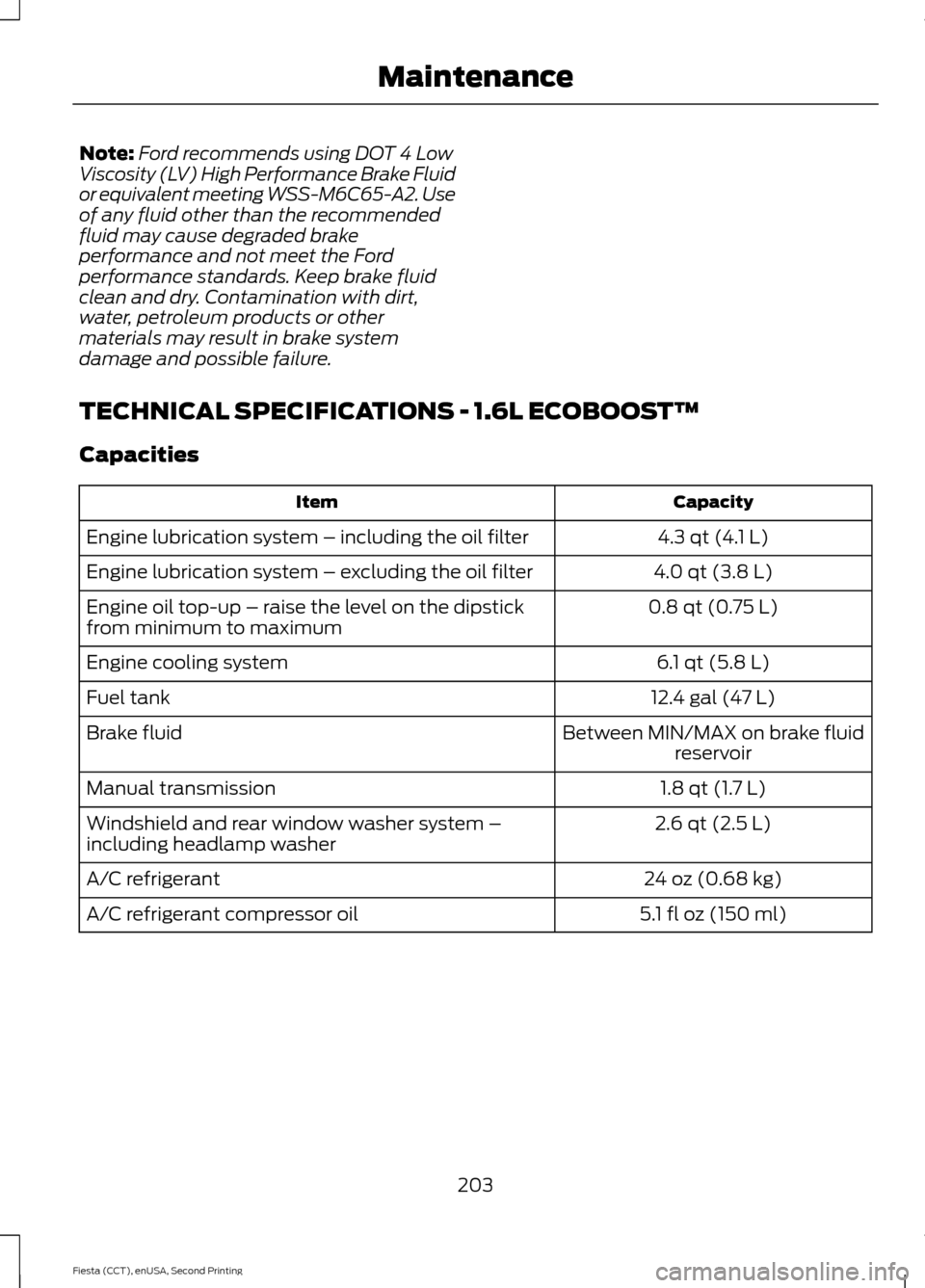

TECHNICAL SPECIFICATIONS - 1.6L ECOBOOST™
Capacities Capacity
Item
4.3 qt (4.1 L)
Engine lubrication system – including the oil filter
4.0 qt (3.8 L)
Engine lubrication system – excluding the oil filter
0.8 qt (0.75 L)
Engine oil top-up – raise the level on the dipstick
from minimum to maximum
6.1 qt (5.8 L)
Engine cooling system
12.4 gal (47 L)
Fuel tank
Between MIN/MAX on brake fluidreservoir
Brake fluid
1.8 qt (1.7 L)
Manual transmission
2.6 qt (2.5 L)
Windshield and rear window washer system –
including headlamp washer
24 oz (0.68 kg)
A/C refrigerant
5.1 fl oz (150 ml)
A/C refrigerant compressor oil
203
Fiesta (CCT), enUSA, Second Printing Maintenance

Specifications
Materials
Specification
Name
WSS-M2C945-A
Recommended motor oil (U.S. and Mexico):
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor
Oil
XO-5W20-QSP
WSS-M2C945-A
Recommended Motor oil (Canada):
Motorcraft SAE 5W-20 Synthetic Motor Oil
CXO-5W20-LSP12
WSS-M2C945-A
Optional motor oil (U.S. and Mexico):
Motorcraft SAE 5W-20 Full Synthetic Motor Oil
XO-5W20-QFS
WSS-M2C945-A
Optional Motor oil (Canada):
Motorcraft SAE 5W-20 Synthetic Motor Oil
CXO-5W20-LFS12
WSS-M97B44-D2
Engine coolant (U.S. and Mexico):
Motorcraft Orange Antifreeze/Coolant Prediluted
VC-3DIL-B
WSS-M97B44-D2
Engine coolant (Canada):
Motorcraft Orange Antifreeze/Coolant Prediluted
CVC-3DIL-B
WSS-M6C65-A2
Brake fluid:
Motorcraft DOT 4 Low Viscosity (LV) High Performance
Motor Vehicle Brake Fluid
PM-20
WSS-M2C200-D2
Manual transmission fluid:
Motorcraft Dual Clutch Transmission Fluid
XT-11-QDC
WSS-M14P19-A
Windshield washer fluid (U.S. and Mexico):
Motorcraft Premium Windshield Wash Concentrate with
Bitterant
ZC-32-B2
WSS-M14P19-A
Windshield washer fluid (Canada):
Motorcraft Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)
WSH-M17B19-A
A/C refrigerant (U.S. and Mexico):
Motorcraft R-134a Refrigerant
204
Fiesta (CCT), enUSA, Second Printing Maintenance

Specification
Name
YN-19 WSH-M17B19-A
A/C refrigerant (Canada):
Motorcraft R-134a Refrigerant
CYN-16-R
WSH-M1C231-B
A/C refrigerant compressor oil:
Motorcraft PAG Refrigerant Compressor Oil
YN-12-D
ESB-M1C93-B
Multi-purpose grease:
Motorcraft Multi-Purpose Grease Spray
XL-5
If you use oil and fluids that do not meet
the defined specification and viscosity
grade, this may lead to:
• Component damage which is not
covered by the vehicle warranty.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced engine performance.
• Reduced fuel economy.
• Degraded brake performance.
Use of synthetic or synthetic blend motor
oil is not mandatory. Only use fluid that
meets Ford specifications. Motor oils of
the recommended viscosity grade that
meet API SN requirements and display the
API Certification Mark for gasoline engines
are also acceptable. Do not use oil labeled
with API SN service category unless the
label also displays the API certification
mark. An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
the International Lubricant Standardization
and Approval Committee (ILSAC).
Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by your vehicle warranty.
205
Fiesta (CCT), enUSA, Second Printing MaintenanceE142732

Note:
Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other
materials may result in brake system
damage and possible failure.

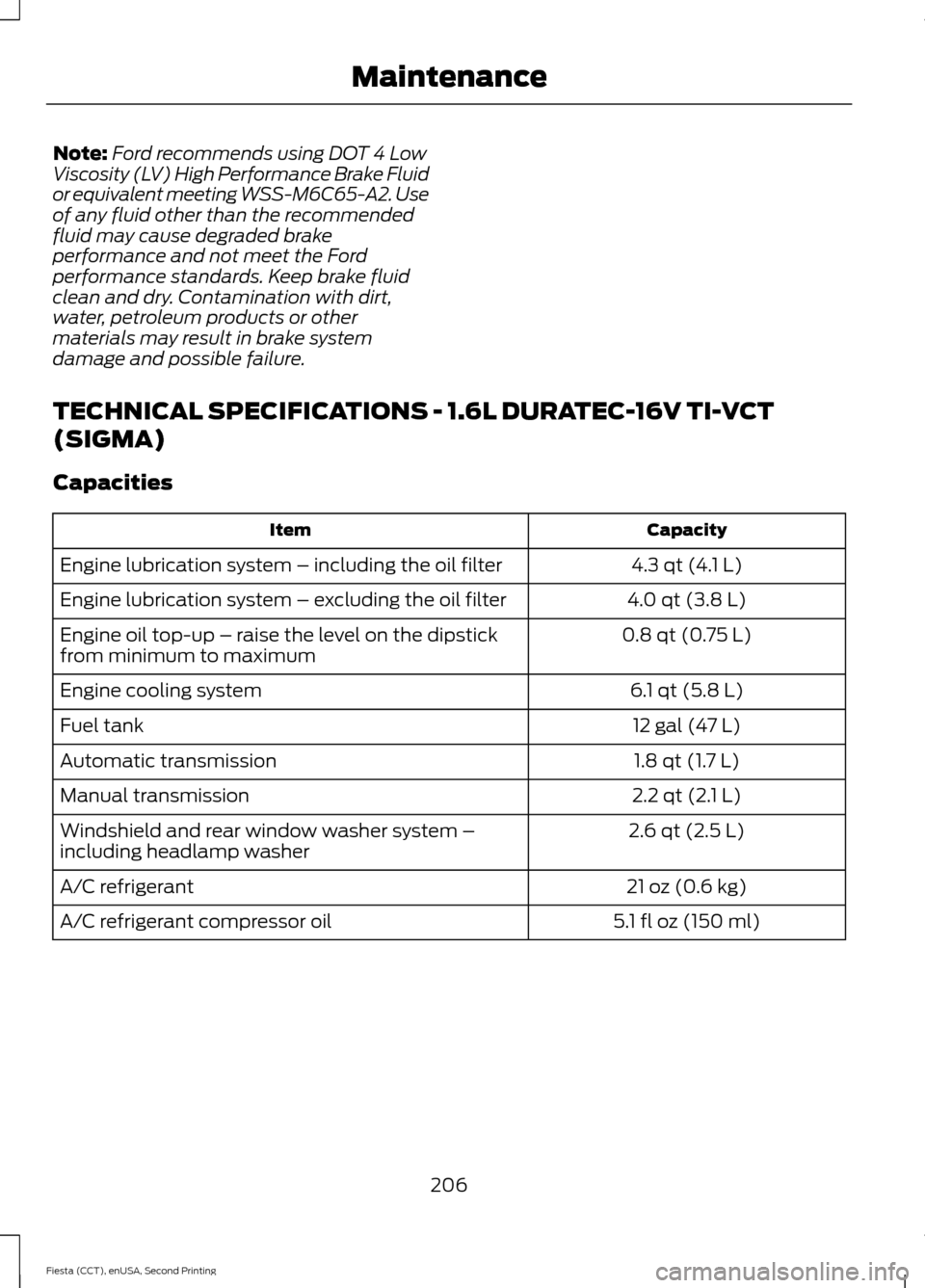

TECHNICAL SPECIFICATIONS - 1.6L DURATEC-16V TI-VCT
(SIGMA)
Capacities Capacity
Item
4.3 qt (4.1 L)
Engine lubrication system – including the oil filter
4.0 qt (3.8 L)
Engine lubrication system – excluding the oil filter
0.8 qt (0.75 L)
Engine oil top-up – raise the level on the dipstick
from minimum to maximum
6.1 qt (5.8 L)
Engine cooling system
12 gal (47 L)
Fuel tank
1.8 qt (1.7 L)
Automatic transmission
2.2 qt (2.1 L)
Manual transmission
2.6 qt (2.5 L)
Windshield and rear window washer system –
including headlamp washer
21 oz (0.6 kg)
A/C refrigerant
5.1 fl oz (150 ml)
A/C refrigerant compressor oil
206
Fiesta (CCT), enUSA, Second Printing Maintenance

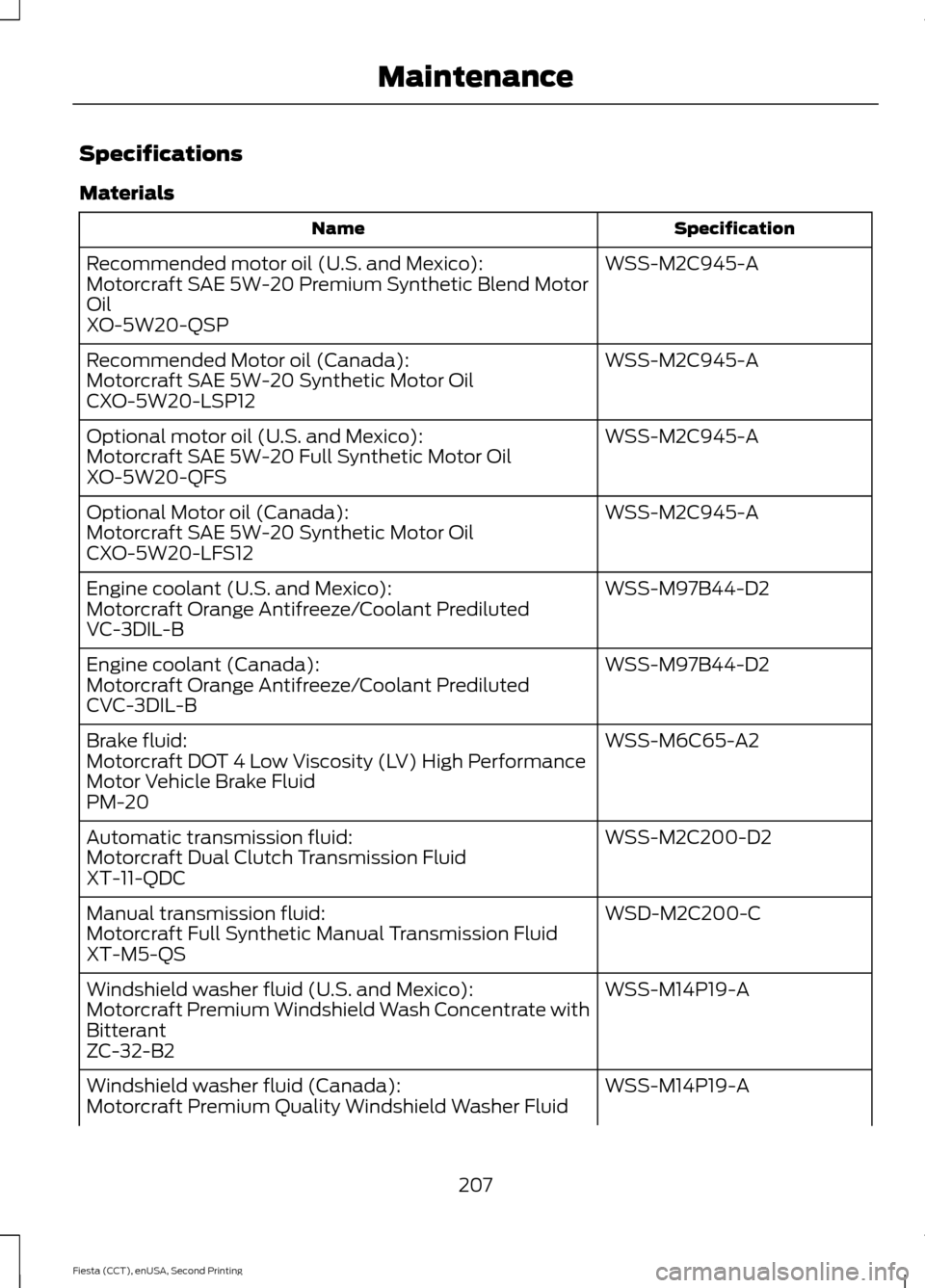

Specifications
Materials
Specification
Name
WSS-M2C945-A
Recommended motor oil (U.S. and Mexico):
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor
Oil
XO-5W20-QSP
WSS-M2C945-A
Recommended Motor oil (Canada):
Motorcraft SAE 5W-20 Synthetic Motor Oil
CXO-5W20-LSP12
WSS-M2C945-A
Optional motor oil (U.S. and Mexico):
Motorcraft SAE 5W-20 Full Synthetic Motor Oil
XO-5W20-QFS
WSS-M2C945-A
Optional Motor oil (Canada):
Motorcraft SAE 5W-20 Synthetic Motor Oil
CXO-5W20-LFS12
WSS-M97B44-D2
Engine coolant (U.S. and Mexico):
Motorcraft Orange Antifreeze/Coolant Prediluted
VC-3DIL-B
WSS-M97B44-D2
Engine coolant (Canada):
Motorcraft Orange Antifreeze/Coolant Prediluted
CVC-3DIL-B
WSS-M6C65-A2
Brake fluid:
Motorcraft DOT 4 Low Viscosity (LV) High Performance
Motor Vehicle Brake Fluid
PM-20
WSS-M2C200-D2
Automatic transmission fluid:
Motorcraft Dual Clutch Transmission Fluid
XT-11-QDC
WSD-M2C200-C
Manual transmission fluid:
Motorcraft Full Synthetic Manual Transmission Fluid
XT-M5-QS
WSS-M14P19-A
Windshield washer fluid (U.S. and Mexico):
Motorcraft Premium Windshield Wash Concentrate with
Bitterant
ZC-32-B2
WSS-M14P19-A
Windshield washer fluid (Canada):
Motorcraft Premium Quality Windshield Washer Fluid
207
Fiesta (CCT), enUSA, Second Printing Maintenance
