FORD FIESTA 2016 Owners Manual

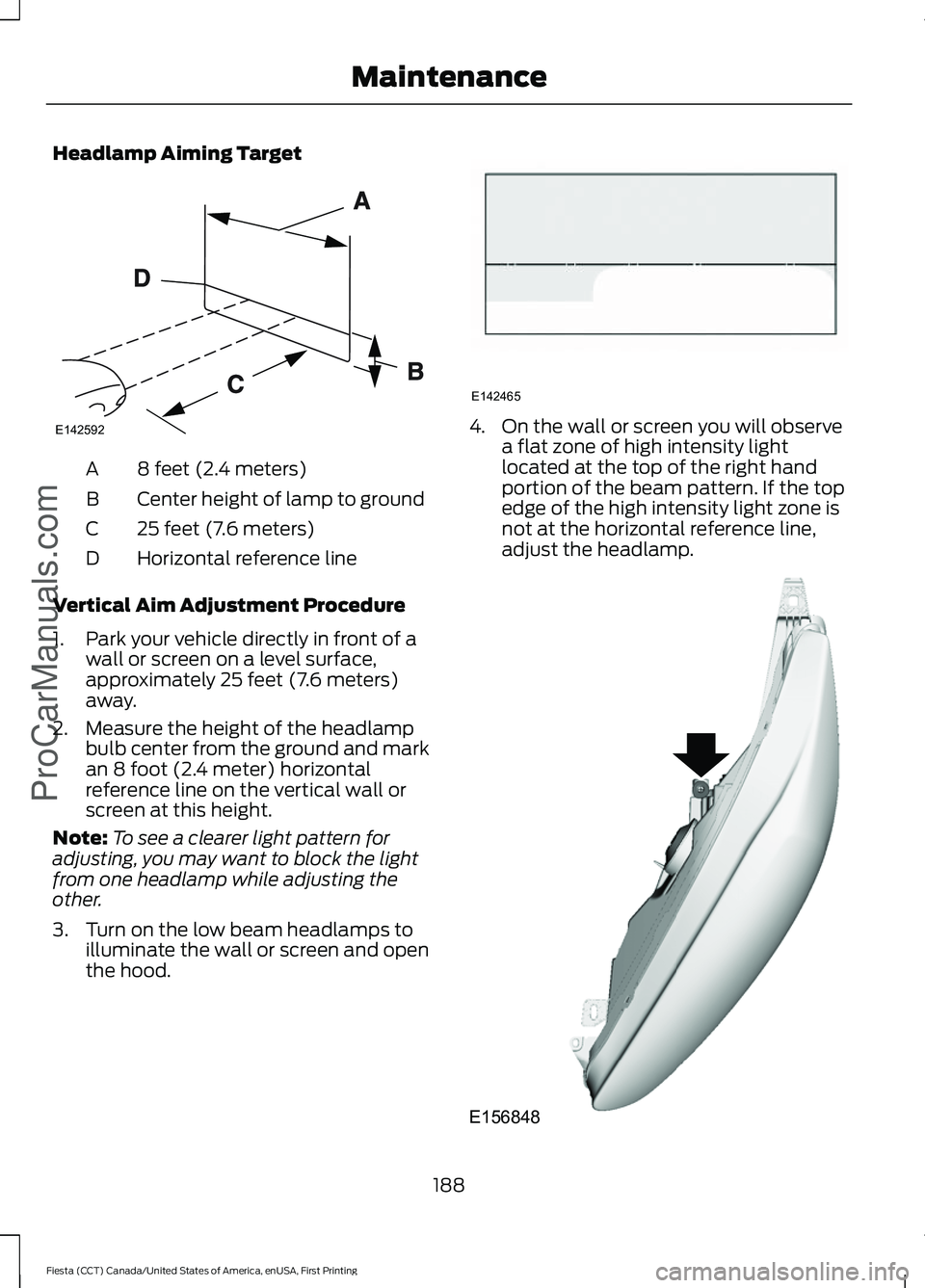

Headlamp Aiming Target
8 feet (2.4 meters)
A
Center height of lamp to ground
B
25 feet (7.6 meters)
C
Horizontal reference line
D
Vertical Aim Adjustment Procedure
1. Park your vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters)
away.
2. Measure the height of the headlamp bulb center from the ground and mark
an 8 foot (2.4 meter) horizontal
reference line on the vertical wall or
screen at this height.
Note: To see a clearer light pattern for
adjusting, you may want to block the light
from one headlamp while adjusting the
other.
3. Turn on the low beam headlamps to illuminate the wall or screen and open
the hood. 4. On the wall or screen you will observe
a flat zone of high intensity light
located at the top of the right hand
portion of the beam pattern. If the top
edge of the high intensity light zone is
not at the horizontal reference line,
adjust the headlamp. 188
Fiesta (CCT) Canada/United States of America, enUSA, First Printing MaintenanceProCarManuals.comE142592 E142465 E156848

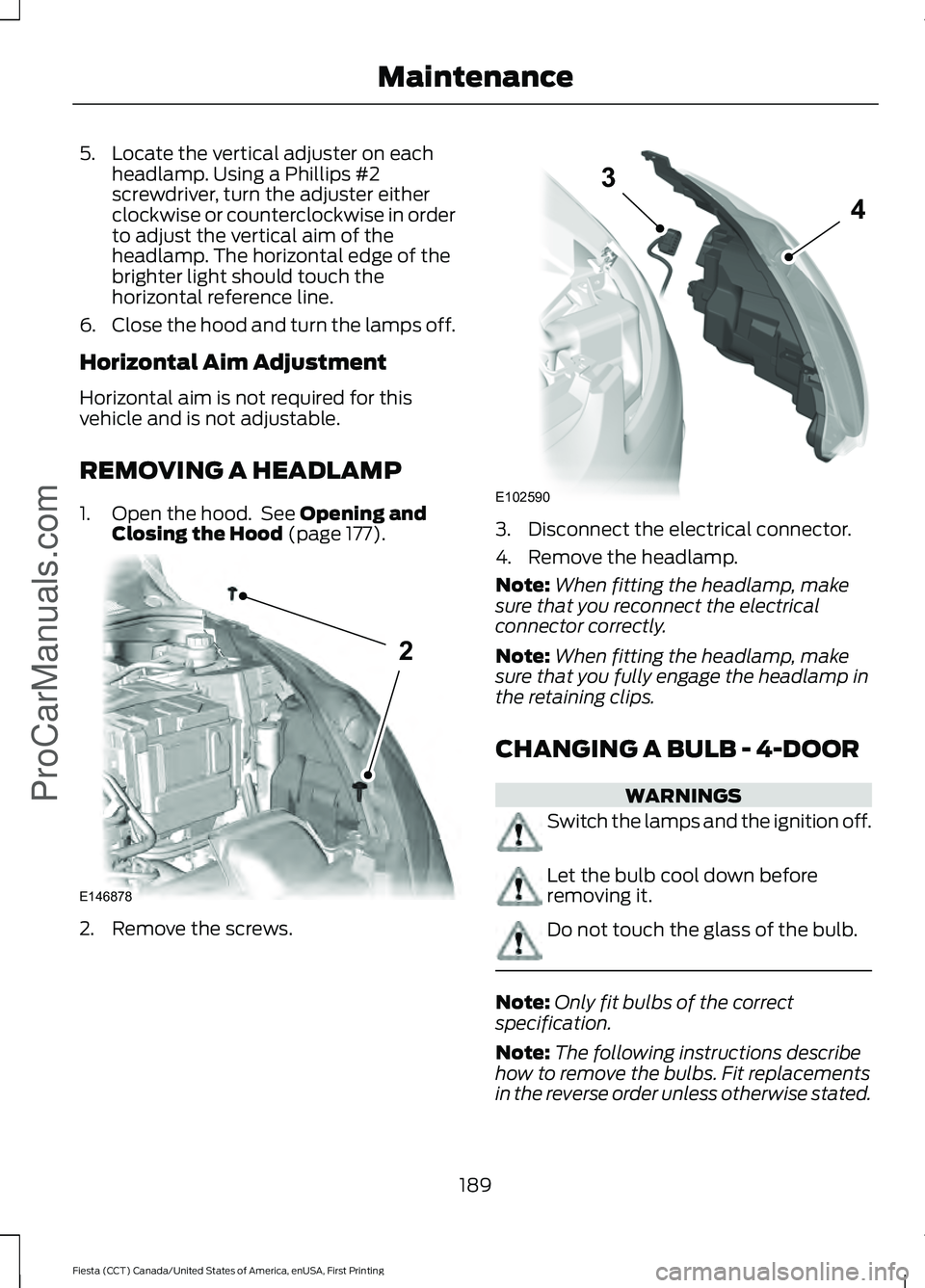

5. Locate the vertical adjuster on each
headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to adjust the vertical aim of the
headlamp. The horizontal edge of the
brighter light should touch the
horizontal reference line.
6. Close the hood and turn the lamps off.
Horizontal Aim Adjustment
Horizontal aim is not required for this
vehicle and is not adjustable.
REMOVING A HEADLAMP
1. Open the hood. See Opening and
Closing the Hood (page 177). 2. Remove the screws. 3. Disconnect the electrical connector.
4. Remove the headlamp.
Note:
When fitting the headlamp, make
sure that you reconnect the electrical
connector correctly.
Note: When fitting the headlamp, make
sure that you fully engage the headlamp in
the retaining clips.
CHANGING A BULB - 4-DOOR WARNINGS
Switch the lamps and the ignition off.
Let the bulb cool down before
removing it.
Do not touch the glass of the bulb.
Note:
Only fit bulbs of the correct
specification.
Note: The following instructions describe
how to remove the bulbs. Fit replacements
in the reverse order unless otherwise stated.
189
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Maintenance
ProCarManuals.comE146878
2 E102590
3
4

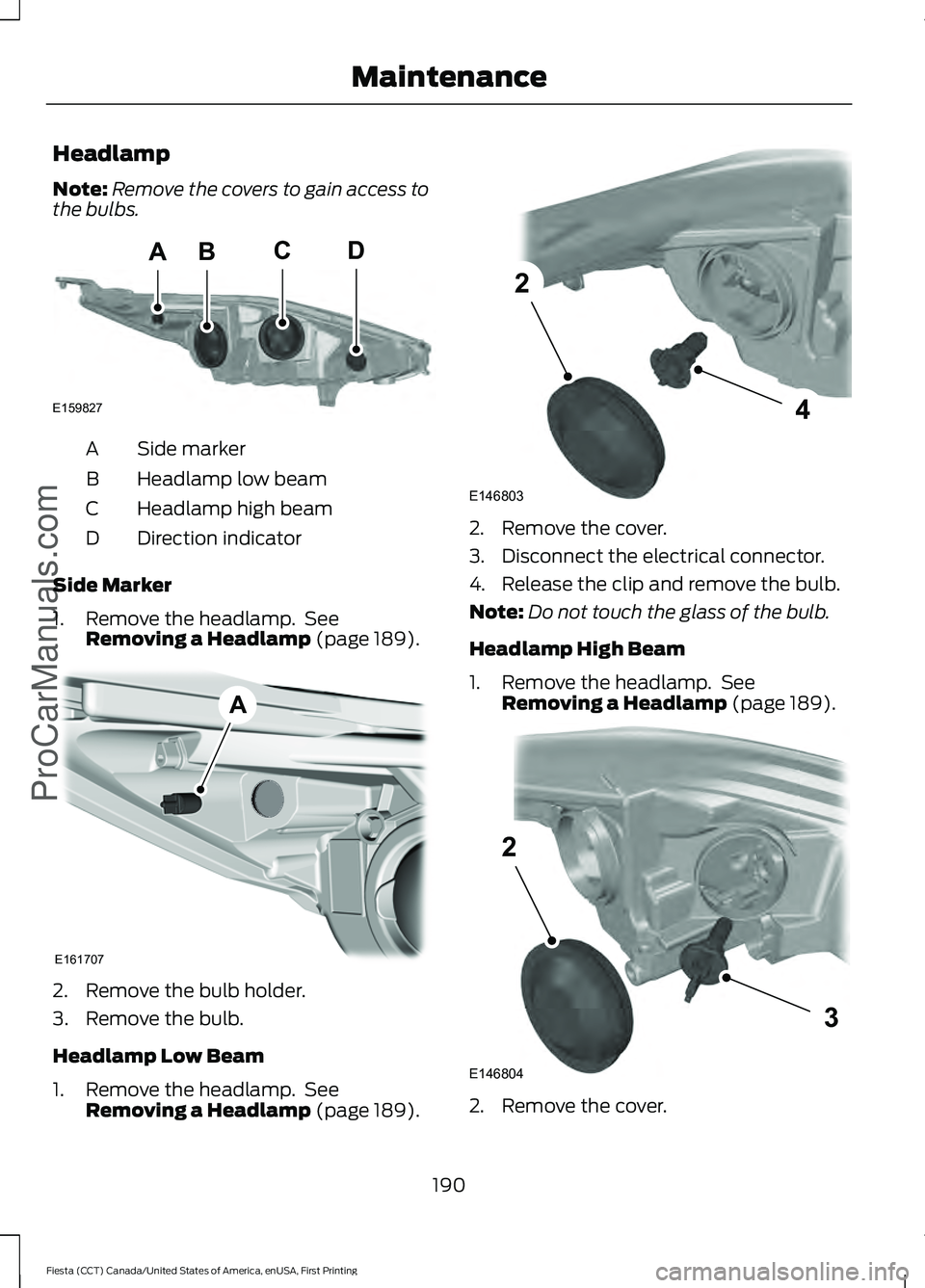

Headlamp
Note:
Remove the covers to gain access to
the bulbs. Side marker
A
Headlamp low beam
B
Headlamp high beam
C
Direction indicator
D
Side Marker
1. Remove the headlamp. See Removing a Headlamp (page 189). 2. Remove the bulb holder.
3. Remove the bulb.
Headlamp Low Beam
1. Remove the headlamp. See
Removing a Headlamp
(page 189). 2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Note:
Do not touch the glass of the bulb.
Headlamp High Beam
1. Remove the headlamp. See Removing a Headlamp
(page 189). 2. Remove the cover.
190
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Maintenance
ProCarManuals.comBACD
E159827 E161707
A E146803
4
2 E146804
2
3

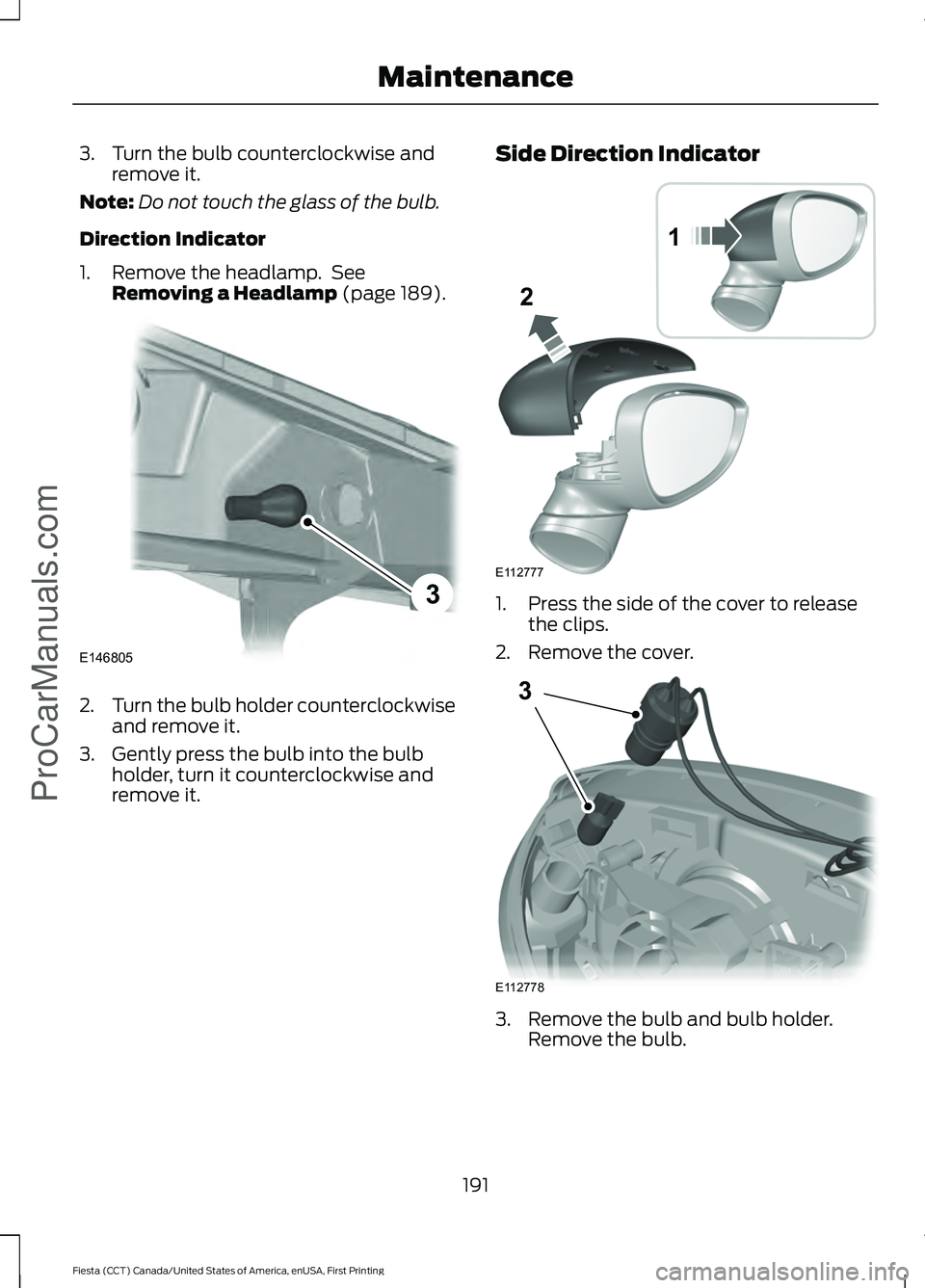

3. Turn the bulb counterclockwise and
remove it.
Note: Do not touch the glass of the bulb.
Direction Indicator
1. Remove the headlamp. See Removing a Headlamp (page 189). 2.
Turn the bulb holder counterclockwise
and remove it.
3. Gently press the bulb into the bulb holder, turn it counterclockwise and
remove it. Side Direction Indicator
1. Press the side of the cover to release
the clips.
2. Remove the cover. 3. Remove the bulb and bulb holder.
Remove the bulb.
191
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Maintenance
ProCarManuals.comE146805
3 1
2
E112777 3
E112778

Front Fog Lamps
1. Remove the retaining clips to gain
access to the lamp assembly. Note:
You cannot separate the fog lamp
bulb from the bulb holder.
2. Using a suitable implement, remove the cover.
3. Remove the screws.
4. Remove the lamp. 5. Disconnect the electrical connector.
6.
Turn the bulb holder counterclockwise
and remove it.
Rear Lamps
Brake, Tail and Direction Indicator
Lamps
1. Remove the trim and disconnect the electrical connector.
2. Loosen the wing nut and carefully pull
out the rear lamp.
192
Fiesta (CCT) Canada/United States of America, enUSA, First Printing MaintenanceProCarManuals.comE161665
1 234
E161667 5
E161670
6

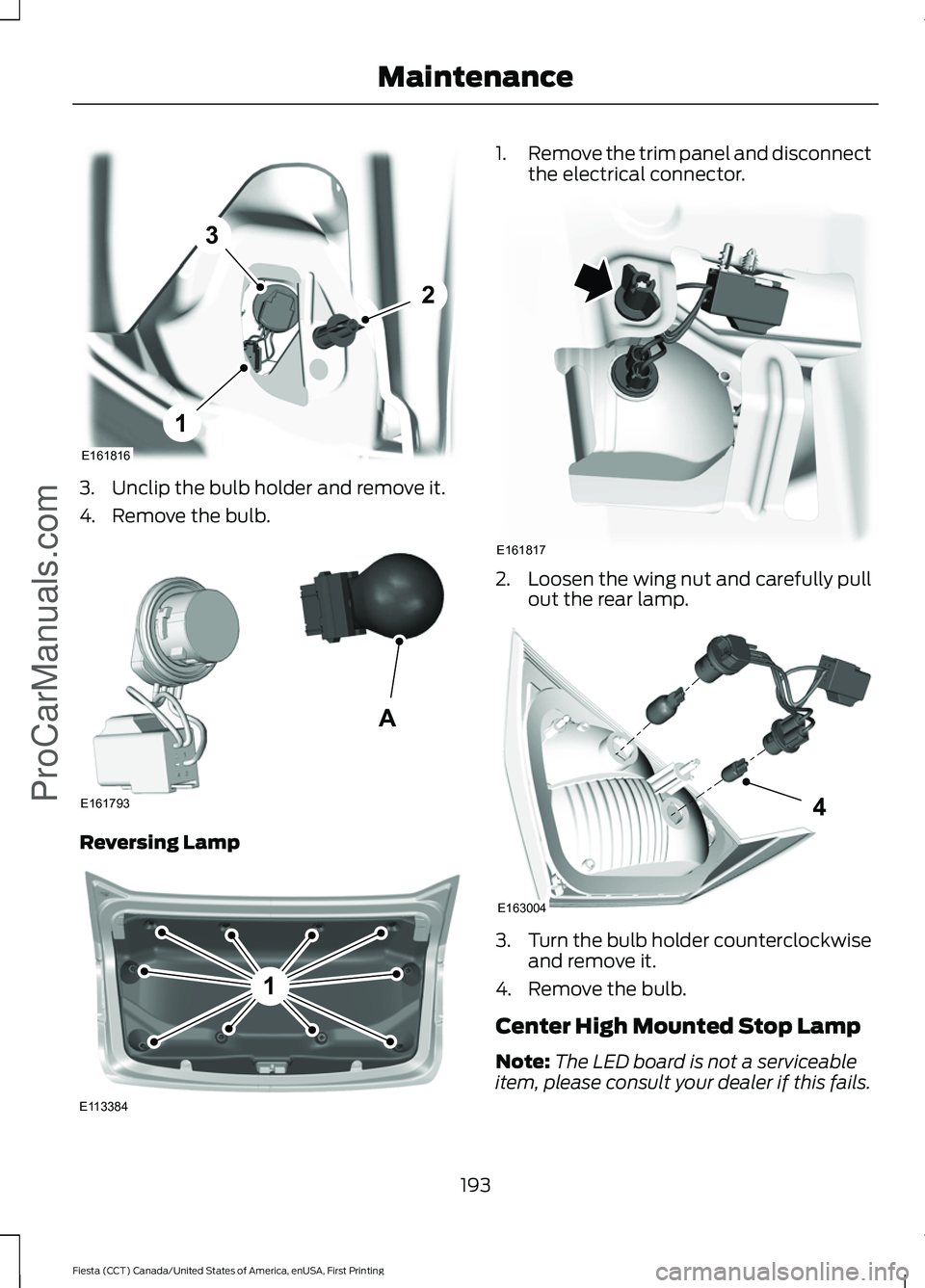

3. Unclip the bulb holder and remove it.
4. Remove the bulb.
Reversing Lamp 1.
Remove the trim panel and disconnect
the electrical connector. 2.
Loosen the wing nut and carefully pull
out the rear lamp. 3.
Turn the bulb holder counterclockwise
and remove it.
4. Remove the bulb.
Center High Mounted Stop Lamp
Note: The LED board is not a serviceable
item, please consult your dealer if this fails.
193
Fiesta (CCT) Canada/United States of America, enUSA, First Printing MaintenanceProCarManuals.comE161816
1
3
2 E161793
A 1
E113384 E161817 E163004
4

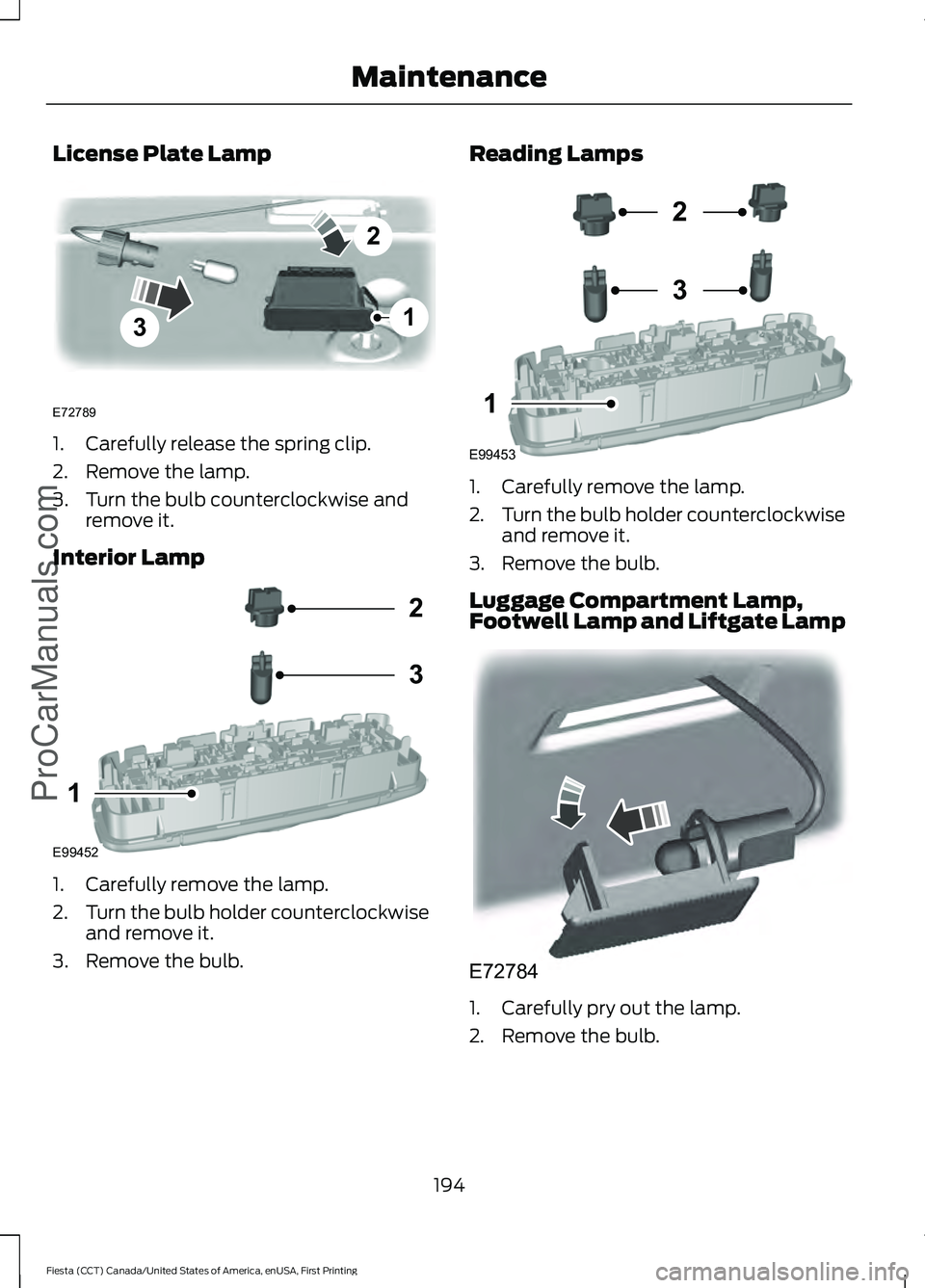

License Plate Lamp
1. Carefully release the spring clip.
2. Remove the lamp.
3. Turn the bulb counterclockwise and
remove it.
Interior Lamp 1. Carefully remove the lamp.
2.
Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb. Reading Lamps
1. Carefully remove the lamp.
2.
Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb.
Luggage Compartment Lamp,
Footwell Lamp and Liftgate Lamp 1. Carefully pry out the lamp.
2. Remove the bulb.
194
Fiesta (CCT) Canada/United States of America, enUSA, First Printing MaintenanceProCarManuals.com3
2
1
E72789 E99452
2
3
1 E99453
2
3
1 E72784

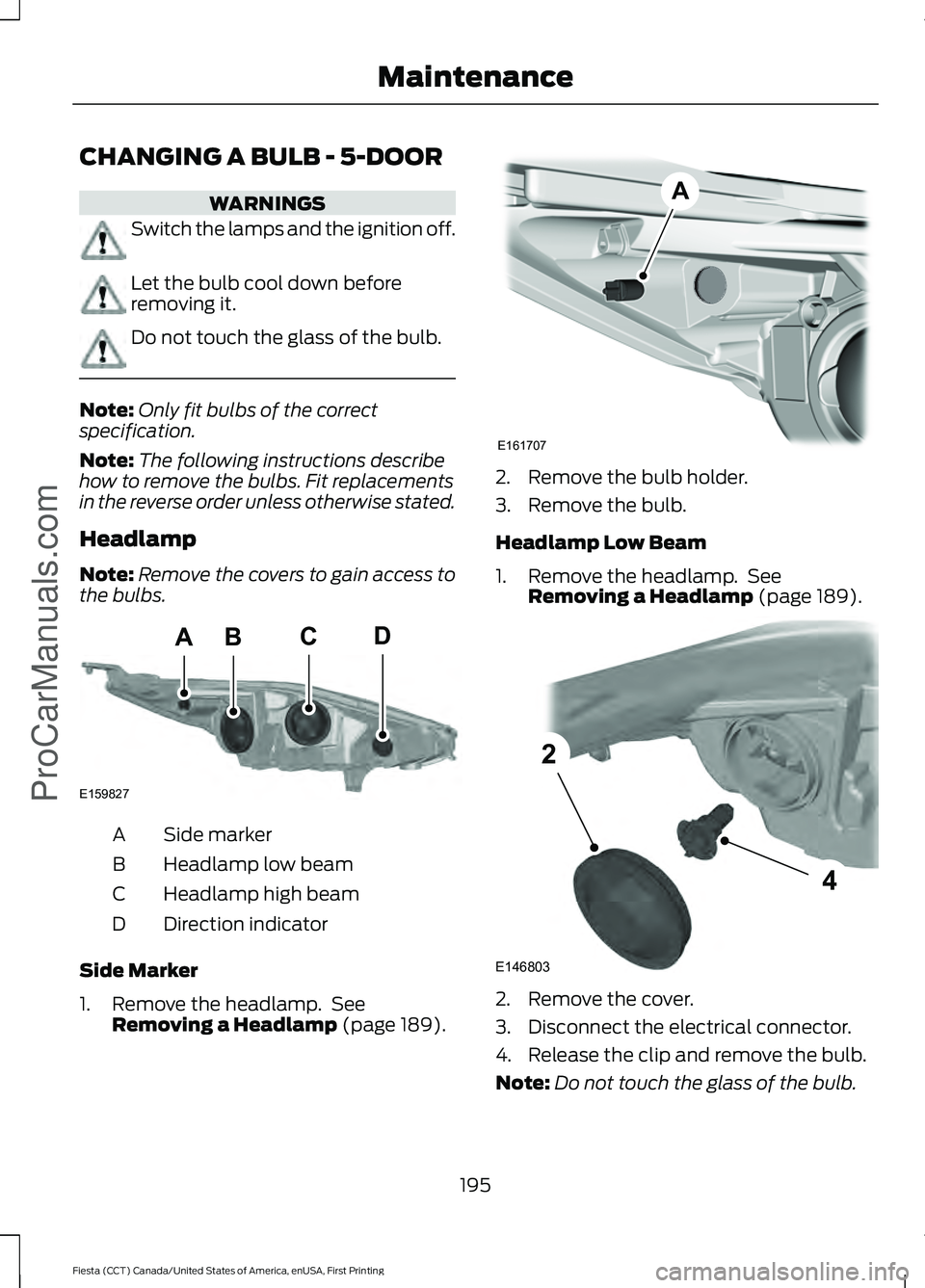

CHANGING A BULB - 5-DOOR
WARNINGS
Switch the lamps and the ignition off.
Let the bulb cool down before
removing it.
Do not touch the glass of the bulb.
Note:
Only fit bulbs of the correct
specification.
Note: The following instructions describe
how to remove the bulbs. Fit replacements
in the reverse order unless otherwise stated.
Headlamp
Note: Remove the covers to gain access to
the bulbs. Side marker
A
Headlamp low beam
B
Headlamp high beam
C
Direction indicator
D
Side Marker
1. Remove the headlamp. See Removing a Headlamp (page 189). 2. Remove the bulb holder.
3. Remove the bulb.
Headlamp Low Beam
1. Remove the headlamp. See
Removing a Headlamp
(page 189). 2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Note:
Do not touch the glass of the bulb.
195
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Maintenance
ProCarManuals.comBACD
E159827 E161707
A E146803
4
2

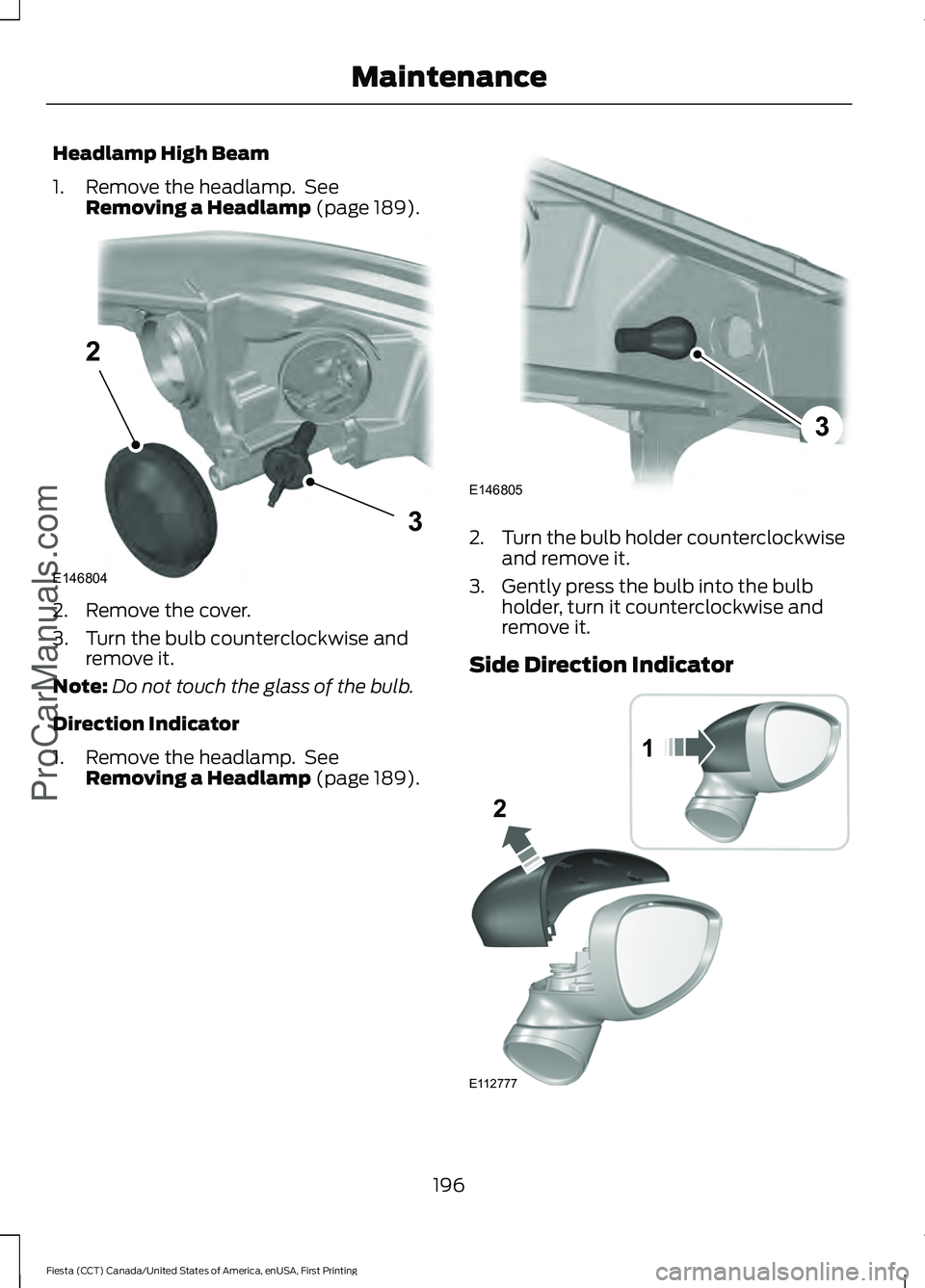

Headlamp High Beam
1. Remove the headlamp. See
Removing a Headlamp (page 189). 2. Remove the cover.
3. Turn the bulb counterclockwise and
remove it.
Note: Do not touch the glass of the bulb.
Direction Indicator
1. Remove the headlamp. See Removing a Headlamp
(page 189). 2.
Turn the bulb holder counterclockwise
and remove it.
3. Gently press the bulb into the bulb holder, turn it counterclockwise and
remove it.
Side Direction Indicator 196
Fiesta (CCT) Canada/United States of America, enUSA, First Printing Maintenance
ProCarManuals.comE146804
2
3 E146805
3 1
2
E112777

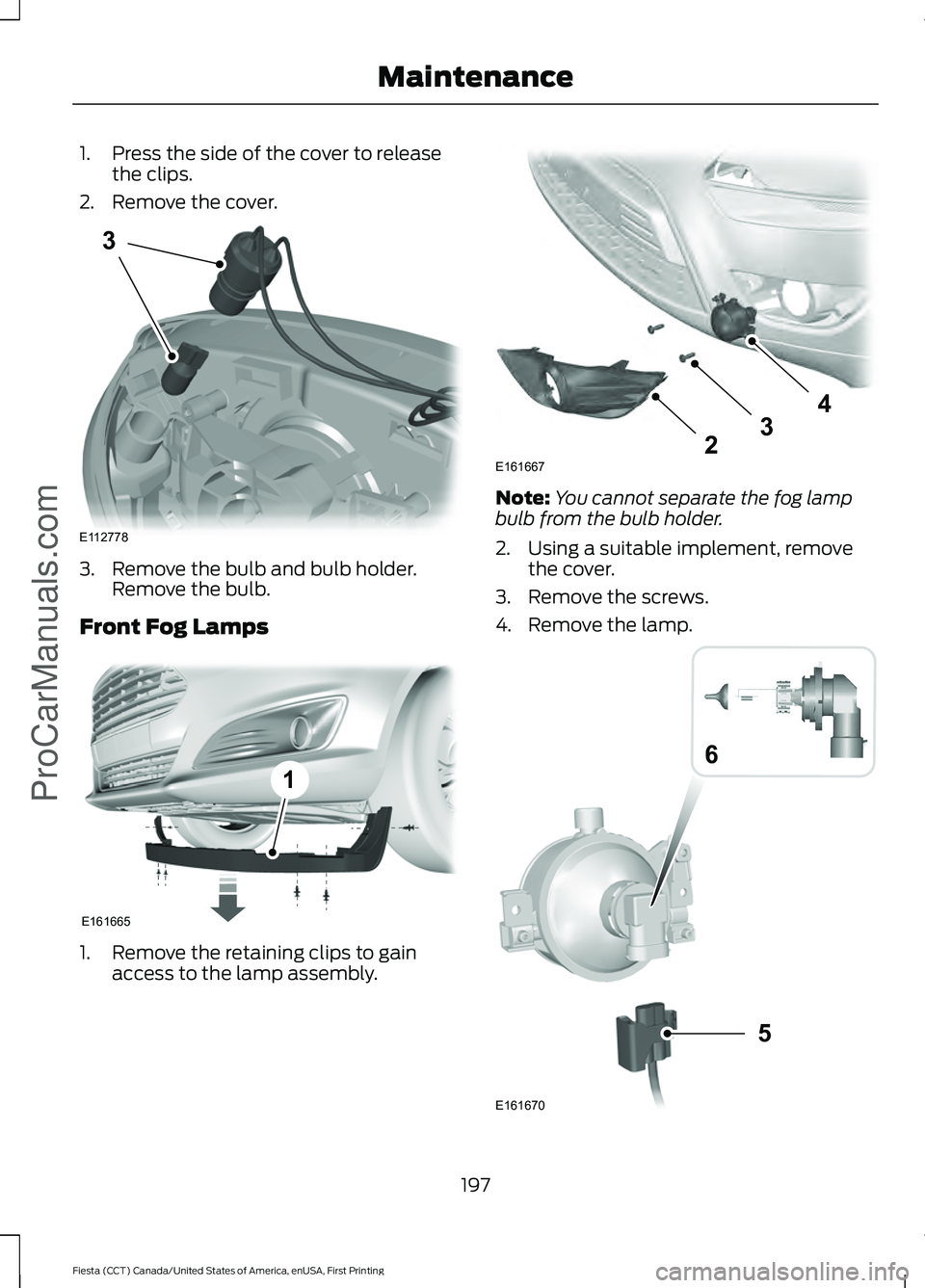

1. Press the side of the cover to release
the clips.
2. Remove the cover. 3. Remove the bulb and bulb holder.
Remove the bulb.
Front Fog Lamps 1. Remove the retaining clips to gain
access to the lamp assembly. Note:
You cannot separate the fog lamp
bulb from the bulb holder.
2. Using a suitable implement, remove the cover.
3. Remove the screws.
4. Remove the lamp. 197
Fiesta (CCT) Canada/United States of America, enUSA, First Printing MaintenanceProCarManuals.com3
E112778 E161665
1 234
E161667 5
E161670
6
