1. Make sure the headlamp switch is in the OFF position and open the
trunk.
2. Carefully pull the carpet away to expose the backside of the tail lamp
assembly.
3. Remove the nut and washer assemblies, then pull the lamp assembly
away from the vehicle.
4. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
5. Pull the bulb straight from the
socket.
Install new bulb(s) in reverse order.
Replacing high-mount brake lamp bulbs
1. Make sure the ignition control is
in the OFF position.
2. Open the trunk and reach under
the decklid.
3. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
4. Pull the bulb straight from the
socket.
Install new bulb(s) in reverse order.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
41

Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the two screws from the
license plate lamp assembly.
3. Remove bulb socket by turning
counterclockwise.
4. Carefully pull the bulb out from
the socket.
Install new bulb(s) in reverse order.
Replacing foglamp bulbs
1. Make sure the foglamp switch is
in the OFF position.
2. Remove the bulb socket from the
foglamp by turning
counterclockwise.
3. Disconnect the electrical
connector.
Install the new bulb in reverse order.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
42

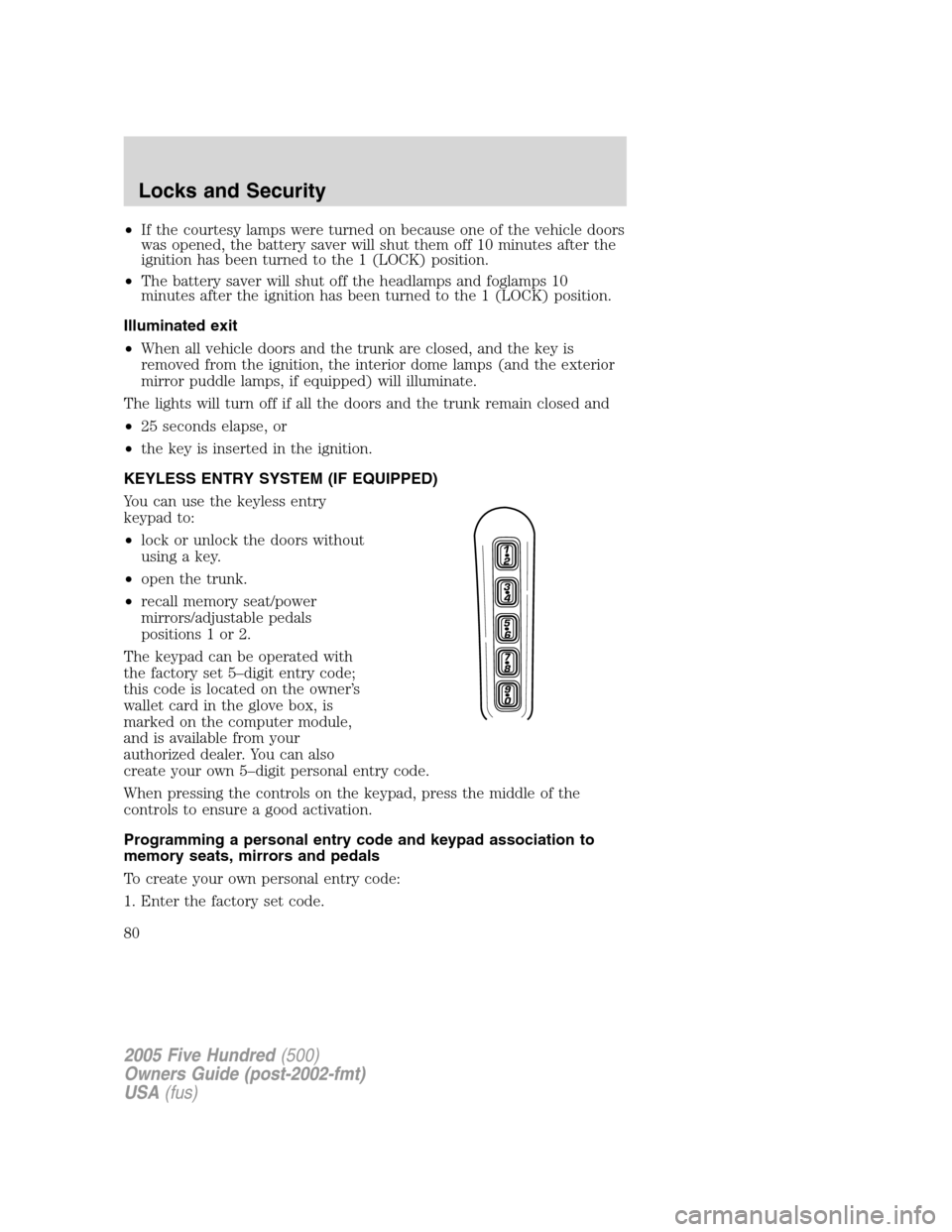

•If the courtesy lamps were turned on because one of the vehicle doors
was opened, the battery saver will shut them off 10 minutes after the
ignition has been turned to the 1 (LOCK) position.
•The battery saver will shut off the headlamps and foglamps 10
minutes after the ignition has been turned to the 1 (LOCK) position.
Illuminated exit
•When all vehicle doors and the trunk are closed, and the key is
removed from the ignition, the interior dome lamps (and the exterior
mirror puddle lamps, if equipped) will illuminate.
The lights will turn off if all the doors and the trunk remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•open the trunk.
•recall memory seat/power
mirrors/adjustable pedals
positions 1 or 2.
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s
wallet card in the glove box, is
marked on the computer module,
and is available from your
authorized dealer. You can also
create your own 5–digit personal entry code.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory seats, mirrors and pedals
To create your own personal entry code:
1. Enter the factory set code.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
80

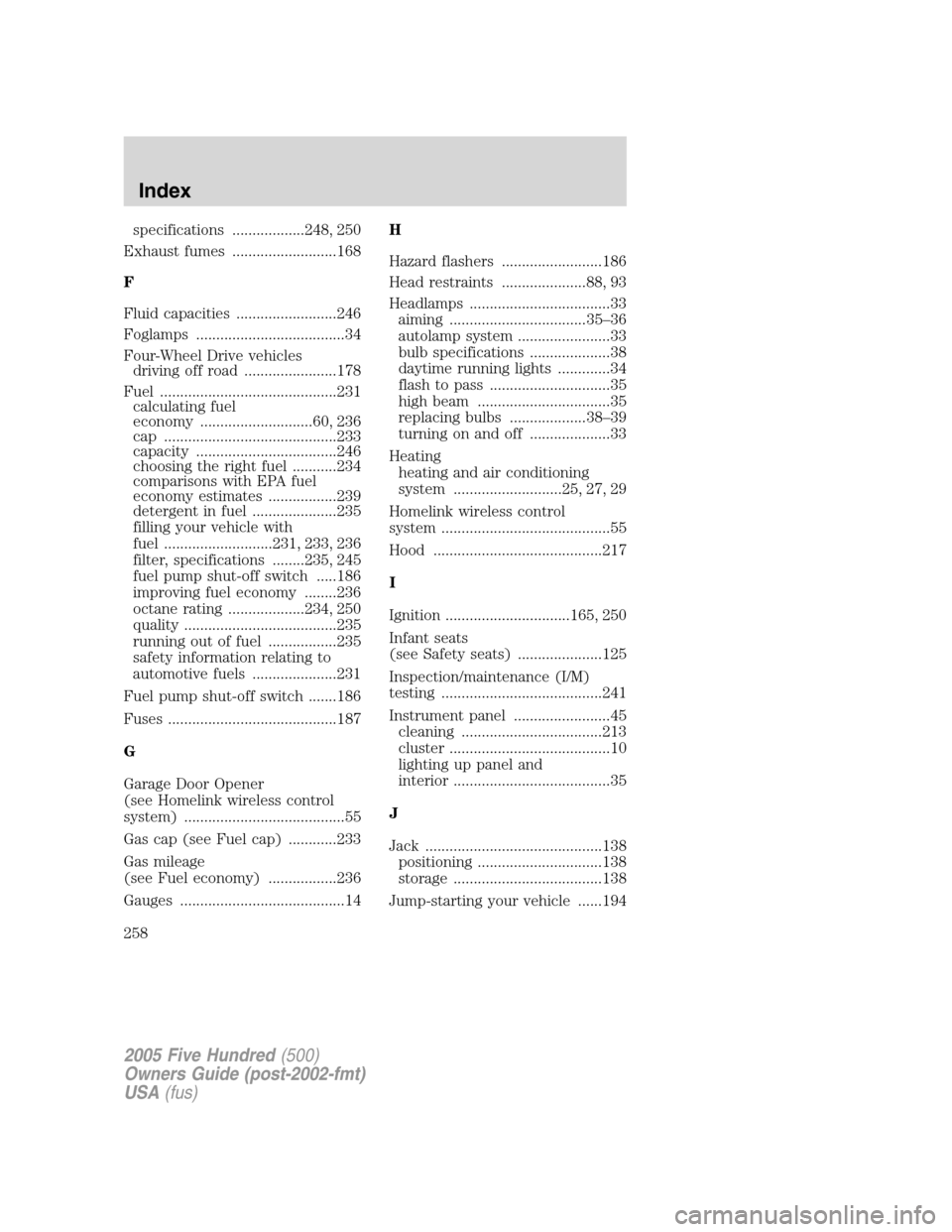

specifications ..................248, 250
Exhaust fumes ..........................168
F
Fluid capacities .........................246
Foglamps .....................................34
Four-Wheel Drive vehicles
driving off road .......................178
Fuel ............................................231
calculating fuel
economy ............................60, 236
cap ...........................................233
capacity ...................................246
choosing the right fuel ...........234
comparisons with EPA fuel
economy estimates .................239
detergent in fuel .....................235
filling your vehicle with
fuel ...........................231, 233, 236
filter, specifications ........235, 245
fuel pump shut-off switch .....186
improving fuel economy ........236
octane rating ...................234, 250
quality ......................................235
running out of fuel .................235
safety information relating to
automotive fuels .....................231
Fuel pump shut-off switch .......186
Fuses ..........................................187
G
Garage Door Opener
(see Homelink wireless control
system) ........................................55
Gas cap (see Fuel cap) ............233
Gas mileage
(see Fuel economy) .................236
Gauges .........................................14H
Hazard flashers .........................186
Head restraints .....................88, 93
Headlamps ...................................33
aiming ..................................35–36
autolamp system .......................33
bulb specifications ....................38
daytime running lights .............34
flash to pass ..............................35
high beam .................................35
replacing bulbs ...................38–39
turning on and off ....................33
Heating
heating and air conditioning
system ...........................25, 27, 29
Homelink wireless control
system ..........................................55
Hood ..........................................217
I
Ignition ...............................165, 250
Infant seats
(see Safety seats) .....................125
Inspection/maintenance (I/M)
testing ........................................241
Instrument panel ........................45
cleaning ...................................213
cluster ........................................10
lighting up panel and
interior .......................................35
J
Jack ............................................138
positioning ...............................138
storage .....................................138
Jump-starting your vehicle ......194
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
258

K
Keyless entry system .................80
autolock .....................................82
Keys
positions of the ignition .........165
L
Lamps
autolamp system .......................33
bulb replacement
specifications chart ..................38
daytime running light ...............34
fog lamps ...................................34
headlamps .....................33, 38–39
headlamps, flash to pass ..........35
instrument panel, dimming .....35
interior lamps ...........................37
replacing bulbs ...................37–42
Lane change indicator
(see Turn signal) ........................37
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........169
Load limits .................................155
Locks
autolock .....................................82
childproof ..................................73
doors ..........................................72
Lubricant specifications ...248, 250
Lug nuts ....................................145
Lumbar support, seats ...............89
M
Message center ...........................59
english/metric button ...............63
system check button ................64
warning messages .....................64
Mirrors ...................................45, 49automatic dimming rearview
mirror ........................................49
fold away ...................................49
side view mirrors (power) .......49
Moon roof ....................................54
Motorcraft parts ................235, 245
O
Octane rating ............................234
Oil (see Engine oil) ..................219
P
Parking brake ............................170
Parts (see Motorcraft parts) ....245
Passenger Occupant
Classification Sensor ...................96
Power adjustable foot pedals .....50
Power distribution box
(see Fuses) ...............................190
Power door locks ........................72
Power mirrors .............................49
Power point .................................46
Power steering ..........................172
fluid, checking and adding ....241
fluid, refill capacity ................246
fluid, specifications .........248, 250
Power Windows ...........................46
R
Radio ......................................17, 20
Relays ........................................187
Remote entry system .................75
illuminated entry ................79–80
opening the trunk .....................76
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
259
