Replacing front parking lamp/turn signal bulbs
1. Make sure headlamp switch is in the OFF position, then open the
hood.
2. Reach in behind the headlamp assembly to access the bulb sockets
and connectors.
3. Locate the parking/turn signal
lamp electrical connector and
remove it by pulling it straight off.
4. Remove the bulb socket by
turning it counterclockwise and
pulling it straight out.
5. To remove the bulb, pull it
straight out of the bulb socket.
Install the new bulb(s) in reverse order.
Replacing tail lamp/brake lamp/backup lamp/turn signal lamp bulbs
The tail lamp, brake lamp, backup lamp and turn signal lamp bulbs are
located in the tail lamp assembly. Follow the same steps to replace either
bulb.
•(1)Backup lamp
•(2)Brake/tail/turn lamp
•(3)Tail lamp
1. Make sure the headlamp switch is
in the OFF position and open the
trunk.
2. Carefully pull the carpet away to
expose the backside of the tail lamp
assembly.
3. Remove the nut and washer
assemblies, then pull the lamp assembly away from the vehicle.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
61

4. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
5. Pull the bulb straight from the
socket.
Install new bulb(s) in reverse order.
Replacing high-mount brake lamp bulbs
1. Make sure the ignition control is
in the OFF position.
2. Open the trunk and reach under
the decklid.
3. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
4. Pull the bulb straight from the
socket.
Install new bulb(s) in reverse order.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the two screws from the
license plate lamp assembly.
3. Remove bulb socket by turning
counterclockwise.
4. Carefully pull the bulb out from
the socket.
Install new bulb(s) in reverse order.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
62

6. Press the power door unlock control twice within 5 seconds.Note:
The horn will chirp once to indicate the perimeter lighting feature has
been deactivated. The horn will chirp once and honk once (one short
and one long) to indicate the perimeter lighting feature has been
activated.
7. Turn the ignition to the 1 (LOCK) position to exit the procedure.
Note:The horn will chirp once to confirm the procedure is complete.
Illuminated exit
•When all vehicle doors and the trunk are closed, and the key is
removed from the ignition, the interior dome lamps (and the exterior
mirror puddle lamps, if equipped) will illuminate.
The lights will turn off if all the doors and the trunk remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
Battery saver
The battery saver will shut off the interior lamps 30 minutes after the
ignition has been turned to the 1 (LOCK) position.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut off them off 30 minutes after the ignition has
been turned to the 1 (LOCK) position.
•If the courtesy lamps were turned on because one of the vehicle doors
was opened, the battery saver will shut them off 10 minutes after the
ignition has been turned to the 1 (LOCK) position.
•
The battery saver will shut off the headlamps and foglamps 10 minutes
after the ignition has been turned to the 1 (LOCK) position.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
102

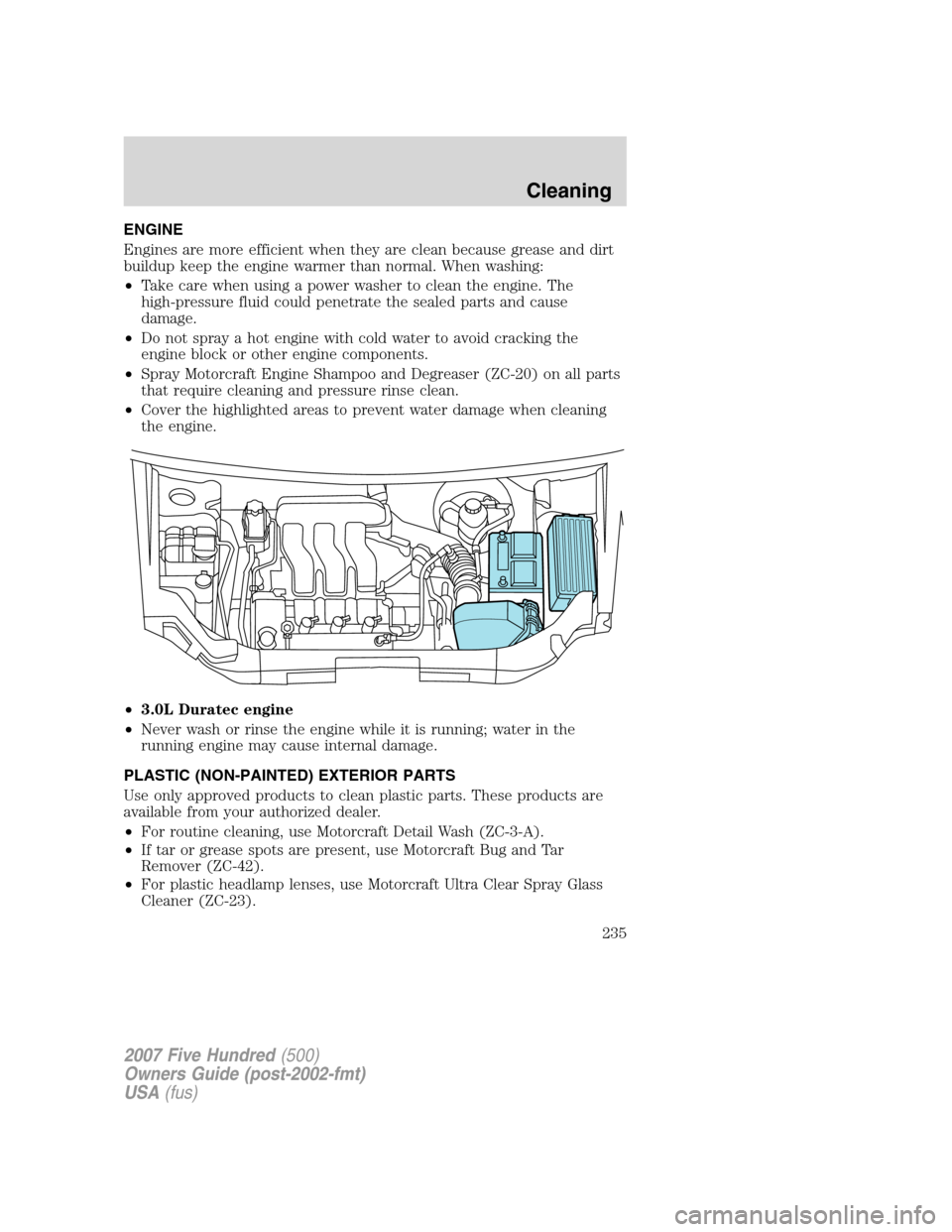

ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal. When washing:
•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray Motorcraft Engine Shampoo and Degreaser (ZC-20) on all parts
that require cleaning and pressure rinse clean.
•Cover the highlighted areas to prevent water damage when cleaning
the engine.
•3.0L Duratec engine
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3-A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
235

F
Family entertainment system ....30
Fluid capacities .........................272
Foglamps .....................................55
Four-Wheel Drive vehicles
driving off road .......................195
Fuel ............................................256
calculating fuel
economy ............................82, 261
cap ...........................................258
capacity ...................................272
choosing the right fuel ...........259
comparisons with EPA fuel
economy estimates .................264
detergent in fuel .....................260
filling your vehicle
with fuel ..................256, 258, 261
filter, specifications ........256, 271
fuel pump shut-off switch .....204
improving fuel economy ........261
octane rating ...................260, 274
quality ......................................260
running out of fuel .................260
safety information relating to
automotive fuels .....................256
Fuel pump shut-off switch .......204
Fuses ..........................................204
G
Gas cap (see Fuel cap) ............258
Gas mileage
(see Fuel economy) .................261
Gauges .........................................14
H
Hazard flashers .........................203
Head restraints .........110, 115–116Headlamps ...................................54
aiming ........................................56
autolamp system .......................54
bulb specifications ....................58
daytime running lights .............56
flash to pass ..............................55
high beam .................................55
replacing bulbs ...................59–60
turning on and off ....................54
Heating
heating and air
conditioning system .....46, 48, 50
Homelink wireless
control system .............................77
Hood ..........................................241
I
Ignition ...............................182, 274
Illuminated visor mirror .............65
Infant seats
(see Safety seats) .....................150
Inspection/maintenance
(I/M) testing ..............................266
Instrument panel ........................66
cleaning ...................................236
cluster ........................................10
lighting up panel
and interior ...............................56
J
Jack ............................................210
positioning ...............................210
storage .....................................210
Jump-starting your vehicle ......217
K
Keyless entry system ...............103
autolock .....................................91
keypad .....................................103
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
281

locking and
unlocking doors ......................104
programming entry code .......103
Keys ...........................................106
positions of the ignition .........182
L
Lamps
autolamp system .......................54
bulb replacement
specifications chart ..................58
daytime running light ...............56
fog lamps ...................................55
headlamps .................................54
headlamps, flash to pass ..........55
instrument panel, dimming .....56
interior lamps .....................58–59
replacing bulbs .............59–60, 63
Lane change indicator
(see Turn signal) ........................58
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........186
Load limits .................................174
Locks
autolock .....................................91
childproof ..................................94
doors ..........................................91
Lubricant specifications ...........272
Lug nuts ....................................217
Lumbar support, seats .............111
M
Message center ...........................81
english/metric button ...............86
system check button ................86
warning messages .....................86
Mirrors .........................................70automatic dimming
rearview mirror .........................70
fold away ...................................71
heated ........................................71
side view mirrors (power) .......70
Moon roof ....................................76
Motorcraft parts ........239, 256, 271
N
Navigation system .......................45
O
Octane rating ............................260
Oil (see Engine oil) ..................244
P
Parking brake ............................187
Parts (see Motorcraft parts) ....271
Passenger Occupant
Classification Sensor .................119
Power adjustable foot pedals .....71
Power distribution box
(see Fuses) ...............................207
Power door locks ........................91
Power mirrors .............................70
Power point .................................67
Power steering ..........................189
fluid, checking and adding ....267
fluid, refill capacity ................272
fluid, specifications .................272
Power Windows ...........................68
R
Radio ......................................16, 21
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
282
