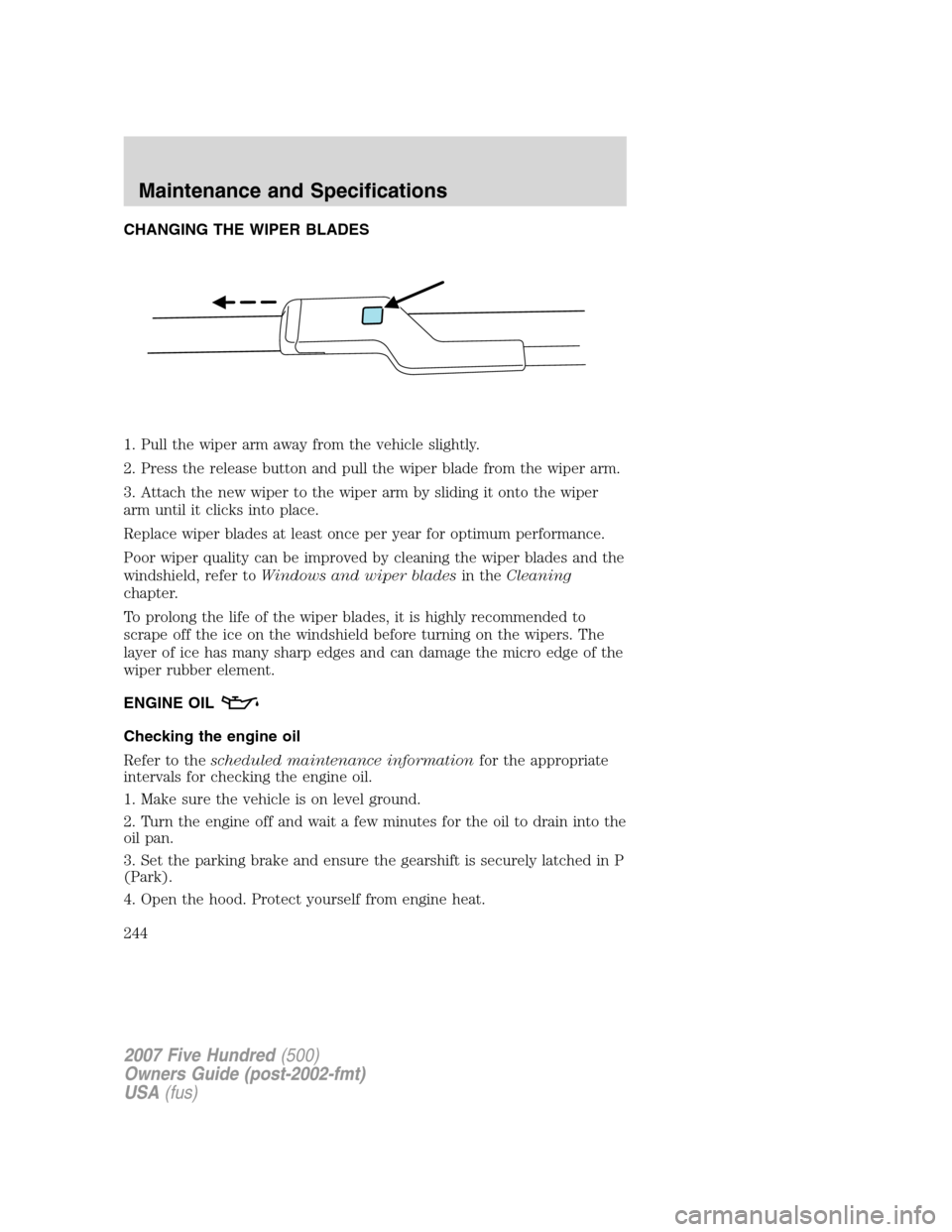

CHANGING THE WIPER BLADES
1. Pull the wiper arm away from the vehicle slightly.
2. Press the release button and pull the wiper blade from the wiper arm.
3. Attach the new wiper to the wiper arm by sliding it onto the wiper
arm until it clicks into place.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and the
windshield, refer toWindows and wiper bladesin theCleaning
chapter.
To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
ENGINE OIL
Checking the engine oil
Refer to thescheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait a few minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
4. Open the hood. Protect yourself from engine heat.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
244

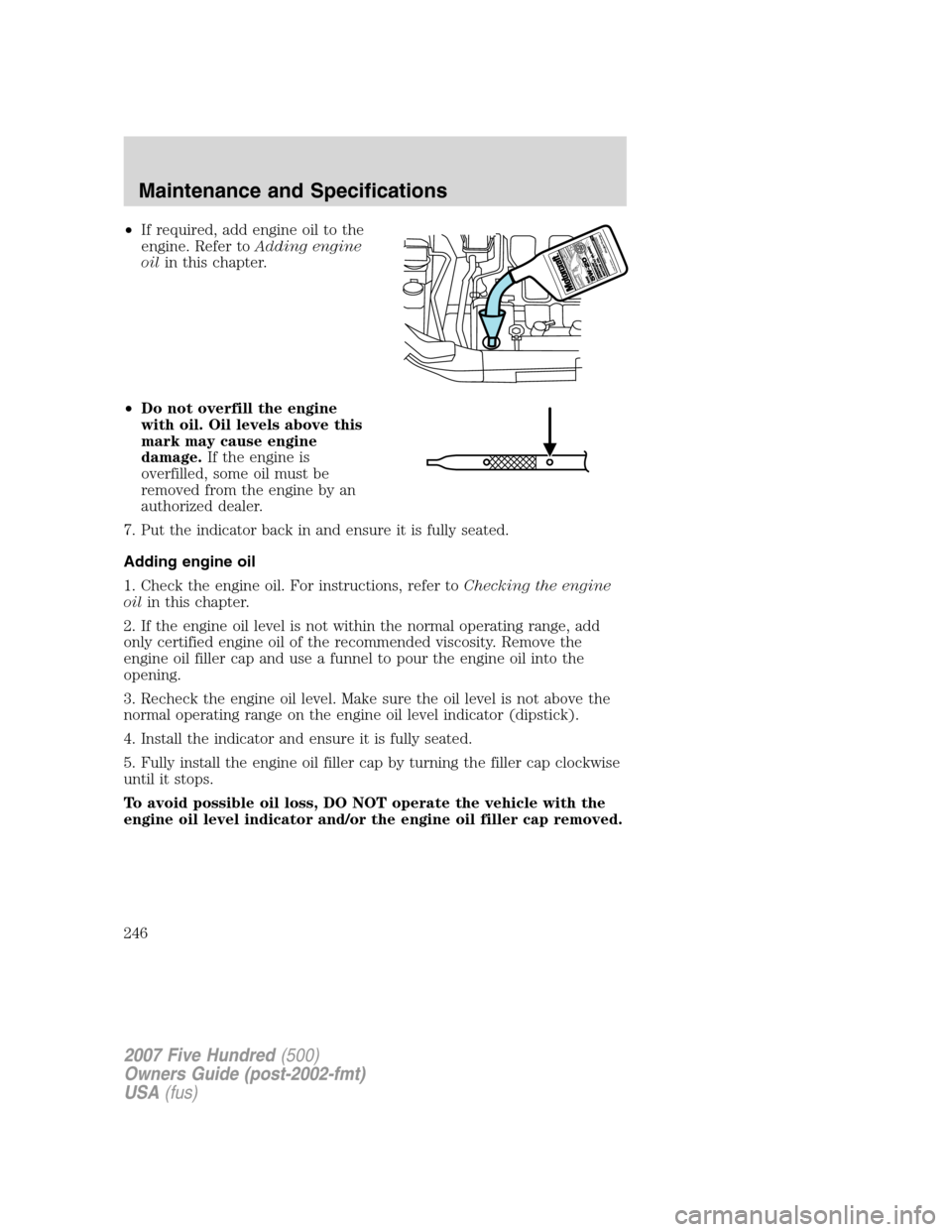

•If required, add engine oil to the
engine. Refer toAdding engine
oilin this chapter.
•Do not overfill the engine
with oil. Oil levels above this
mark may cause engine
damage.If the engine is
overfilled, some oil must be
removed from the engine by an
authorized dealer.
7. Put the indicator back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal operating range, add
only certified engine oil of the recommended viscosity. Remove the
engine oil filler cap and use a funnel to pour the engine oil into the
opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
until it stops.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
246

•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level or within the “COLD
FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
L
E
A
D
RETURN
RECYCLE
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
250

washing ....................................233
waxing .....................................234
wheels ......................................234
wiper blades ............................236
Climate control (see Air
conditioning or Heating) ......48, 50
Clock ............................................66
Clock adjust
6-CD in dash .............................22
AM/FM/CD .................................17
Compass, electronic
set zone adjustment .................83
Console ........................................67
overhead ....................................66
Controls
power seat ...............................112
steering column ........................75
Coolant
checking and adding ..............250
refill capacities ................255, 272
specifications ..........................272
Cruise control
(see Speed control) ....................72
Cupholder(s) .............................117
Customer Assistance ................202
Ford Extended
Service Plan ............................229
Getting assistance outside
the U.S. and Canada ..............230
Getting roadside assistance ...202
Getting the service
you need .................................225
Ordering additional
owner’s literature ...................231
Utilizing the
Mediation/Arbitration
Program ...................................229D
Daytime running lamps
(see Lamps) ................................56
Dipstick
automatic transmission
fluid ..................................268–269
engine oil .................................244
Driving under special
conditions ..........................196, 199
sand .........................................197
snow and ice ...........................200
through water .................198, 201
DVD system .................................30
E
Electronic message center .........81
Emergencies, roadside
jump-starting ..........................217
Emission control system ..........264
Engine ........................................274
cleaning ...................................235
coolant .....................................250
idle speed control ...................248
lubrication specifications .......272
refill capacities ........................272
service points ..........................242
starting after a collision .........204
Engine block heater .................185
Engine oil ..................................244
change oil soon warning,
message center .......................244
checking and adding ..............244
dipstick ....................................244
filter, specifications ........247, 271
recommendations ...................247
refill capacities ........................272
specifications ..........................272
Exhaust fumes ..........................185
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
280

locking and
unlocking doors ......................104
programming entry code .......103
Keys ...........................................106
positions of the ignition .........182
L
Lamps
autolamp system .......................54
bulb replacement
specifications chart ..................58
daytime running light ...............56
fog lamps ...................................55
headlamps .................................54
headlamps, flash to pass ..........55
instrument panel, dimming .....56
interior lamps .....................58–59
replacing bulbs .............59–60, 63
Lane change indicator
(see Turn signal) ........................58
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........186
Load limits .................................174
Locks
autolock .....................................91
childproof ..................................94
doors ..........................................91
Lubricant specifications ...........272
Lug nuts ....................................217
Lumbar support, seats .............111
M
Message center ...........................81
english/metric button ...............86
system check button ................86
warning messages .....................86
Mirrors .........................................70automatic dimming
rearview mirror .........................70
fold away ...................................71
heated ........................................71
side view mirrors (power) .......70
Moon roof ....................................76
Motorcraft parts ........239, 256, 271
N
Navigation system .......................45
O
Octane rating ............................260
Oil (see Engine oil) ..................244
P
Parking brake ............................187
Parts (see Motorcraft parts) ....271
Passenger Occupant
Classification Sensor .................119
Power adjustable foot pedals .....71
Power distribution box
(see Fuses) ...............................207
Power door locks ........................91
Power mirrors .............................70
Power point .................................67
Power steering ..........................189
fluid, checking and adding ....267
fluid, refill capacity ................272
fluid, specifications .................272
Power Windows ...........................68
R
Radio ......................................16, 21
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
282
