Seating and Safety Restraints 110
Seating 110
Safety restraints 117
Airbags 131
Child restraints 145
Tires, Wheels and Loading 158
Tire information 158
Tire inflation 160
Vehicle loading 174
Trailer towing 179
Recreational towing 181
Driving 182
Starting 182
Brakes 185
Traction Control™ 188
Transmission operation 189
Roadside Emergencies 202
Getting roadside assistance 202
Hazard flasher switch 203
Fuel pump shut-off switch 204
Fuses and relays 204
Changing tires 210
Lug nut torque 217
Jump starting 217
Wrecker towing 223
Customer Assistance 225
Reporting safety defects (U.S. only) 231
Reporting safety defects (Canada only) 232
Cleaning 233
Table of Contents
2
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)

CENTER CONSOLE
Your vehicle may be equipped with a
variety of console features. These
include:
•Utility compartment with power
point
•Gear Shift
•Cup holders
•Rear vent (if equipped)
Use only soft cups in the cupholder. Hard objects can injure you
in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power points are
located on the instrument panel and
in the center console utility
compartment.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of
12 VDC/180W. If the power point or cigar lighter socket is not working, a
fuse may have blown. Refer toFuses and Relaysin theRoadside
Emergencieschapter for information on checking and replacing fuses.
To prevent the battery from being discharged, do not use the power
point longer than necessary when the engine is not running.
Always keep the power point caps closed when not being used.
Cigar/Cigarette lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter
socket.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
67

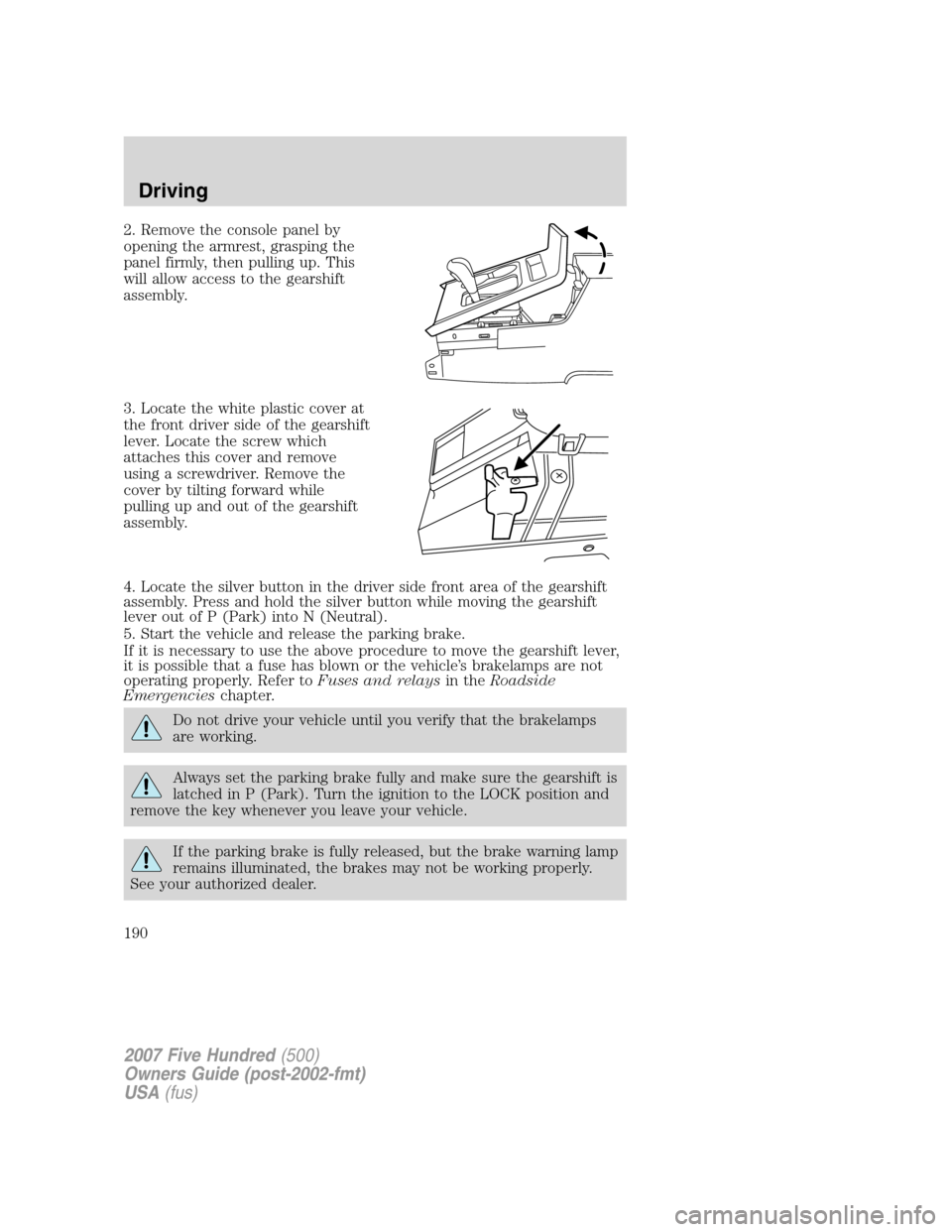

2. Remove the console panel by
opening the armrest, grasping the
panel firmly, then pulling up. This
will allow access to the gearshift
assembly.
3. Locate the white plastic cover at
the front driver side of the gearshift
lever. Locate the screw which
attaches this cover and remove
using a screwdriver. Remove the
cover by tilting forward while
pulling up and out of the gearshift
assembly.
4. Locate the silver button in the driver side front area of the gearshift
assembly. Press and hold the silver button while moving the gearshift
lever out of P (Park) into N (Neutral).
5. Start the vehicle and release the parking brake.
If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
Emergencieschapter.
Do not drive your vehicle until you verify that the brakelamps
are working.
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your authorized dealer.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
190

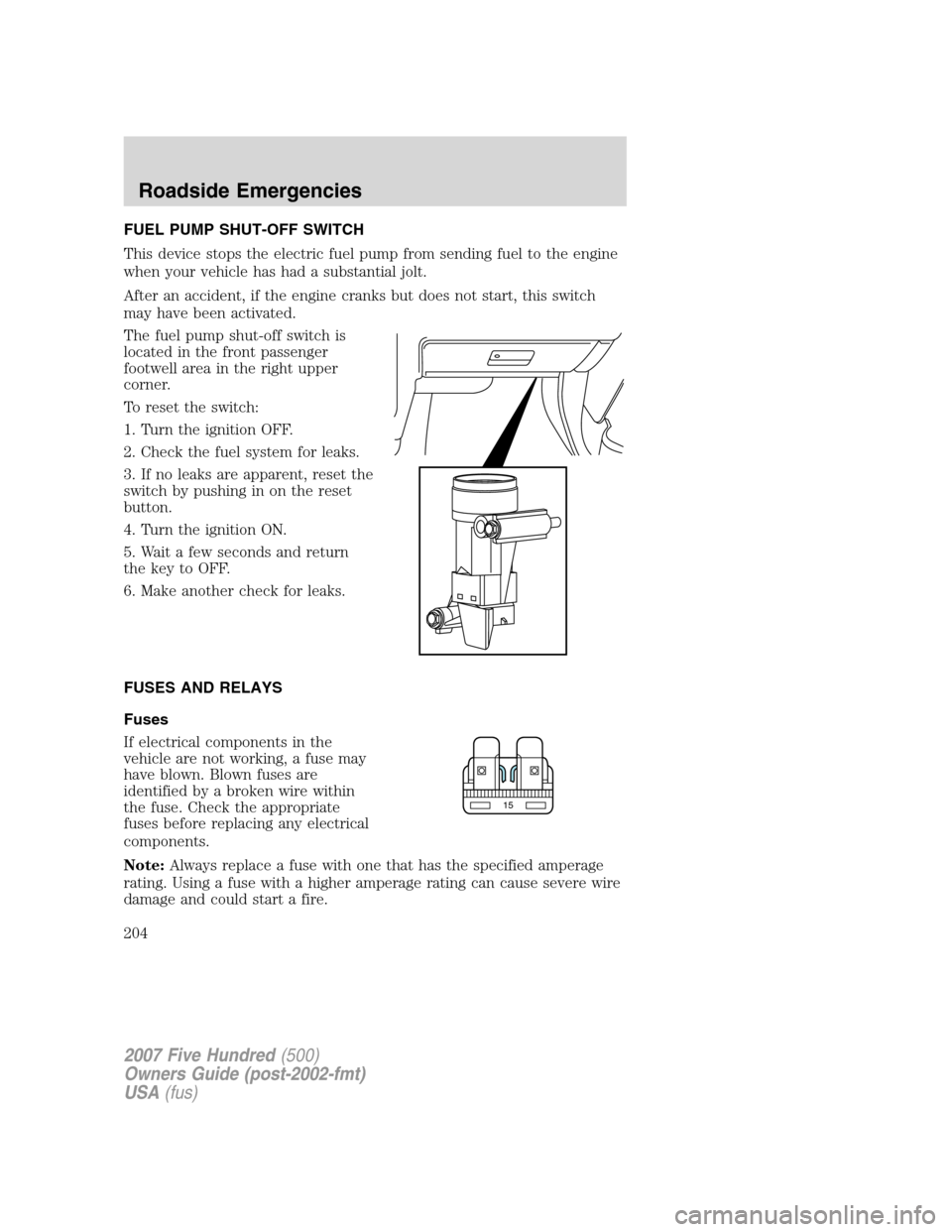

FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
The fuel pump shut-off switch is
located in the front passenger
footwell area in the right upper
corner.
To reset the switch:
1. Turn the ignition OFF.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition ON.
5. Wait a few seconds and return
the key to OFF.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
204

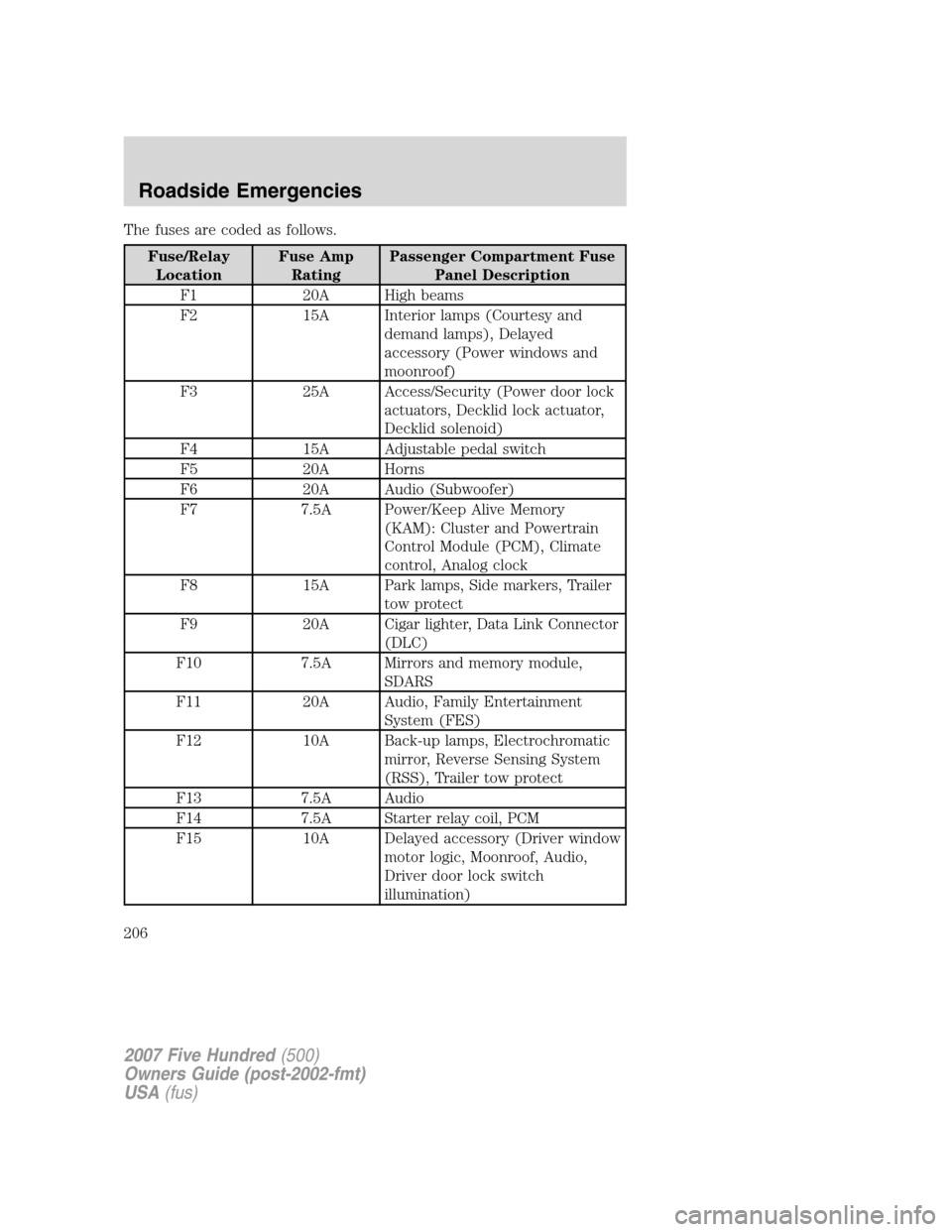

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
F1 20A High beams
F2 15A Interior lamps (Courtesy and
demand lamps), Delayed
accessory (Power windows and
moonroof)
F3 25A Access/Security (Power door lock
actuators, Decklid lock actuator,
Decklid solenoid)
F4 15A Adjustable pedal switch
F5 20A Horns
F6 20A Audio (Subwoofer)
F7 7.5A Power/Keep Alive Memory
(KAM): Cluster and Powertrain
Control Module (PCM), Climate
control, Analog clock
F8 15A Park lamps, Side markers, Trailer
tow protect
F9 20A Cigar lighter, Data Link Connector
(DLC)
F10 7.5A Mirrors and memory module,
SDARS
F11 20A Audio, Family Entertainment
System (FES)
F12 10A Back-up lamps, Electrochromatic
mirror, Reverse Sensing System
(RSS), Trailer tow protect
F13 7.5A Audio
F14 7.5A Starter relay coil, PCM
F15 10A Delayed accessory (Driver window
motor logic, Moonroof, Audio,
Driver door lock switch
illumination)
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
206

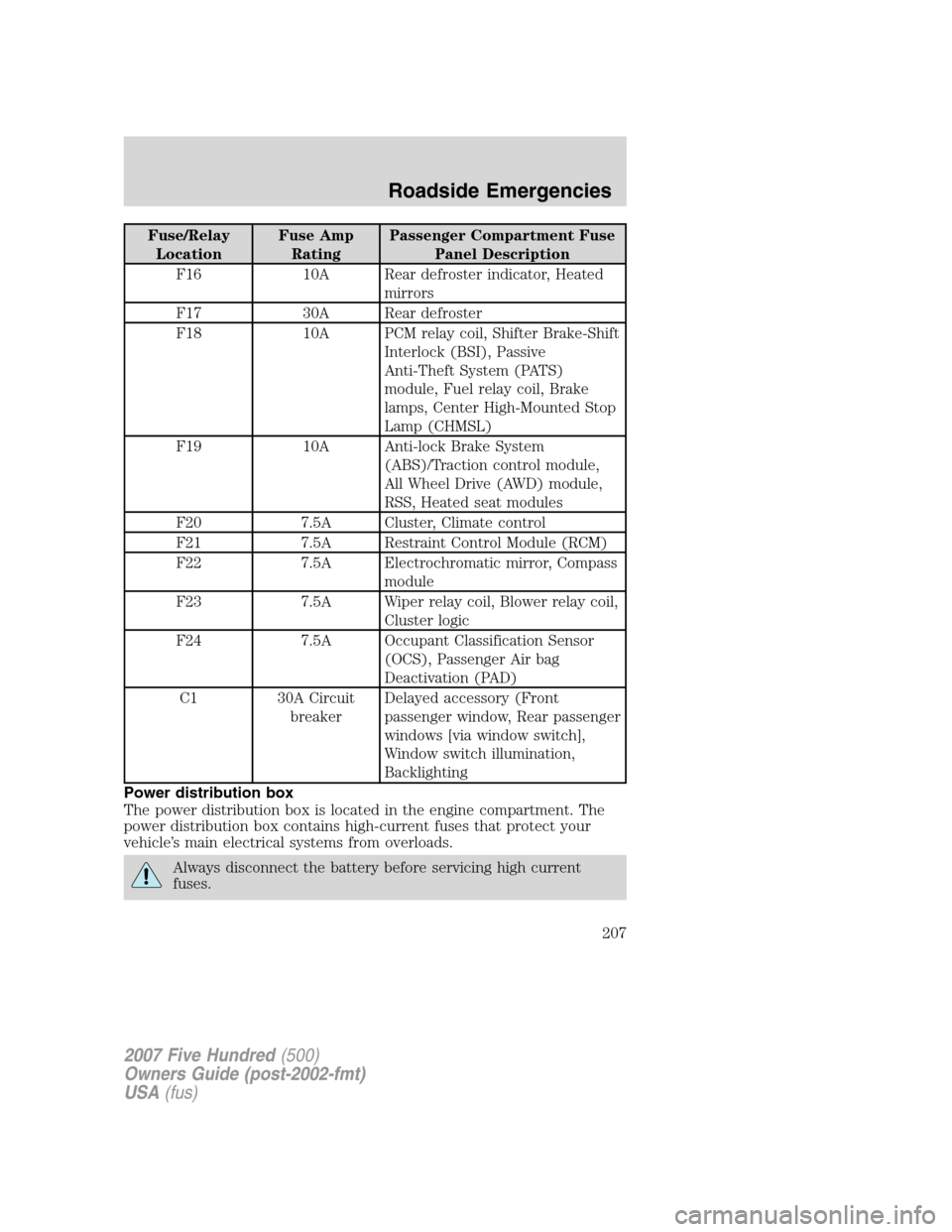

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
F16 10A Rear defroster indicator, Heated
mirrors
F17 30A Rear defroster
F18 10A PCM relay coil, Shifter Brake-Shift
Interlock (BSI), Passive
Anti-Theft System (PATS)
module, Fuel relay coil, Brake
lamps, Center High-Mounted Stop
Lamp (CHMSL)
F19 10A Anti-lock Brake System
(ABS)/Traction control module,
All Wheel Drive (AWD) module,
RSS, Heated seat modules
F20 7.5A Cluster, Climate control
F21 7.5A Restraint Control Module (RCM)
F22 7.5A Electrochromatic mirror, Compass
module
F23 7.5A Wiper relay coil, Blower relay coil,
Cluster logic
F24 7.5A Occupant Classification Sensor
(OCS), Passenger Air bag
Deactivation (PAD)
C1 30A Circuit
breakerDelayed accessory (Front
passenger window, Rear passenger
windows [via window switch],
Window switch illumination,
Backlighting
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
207

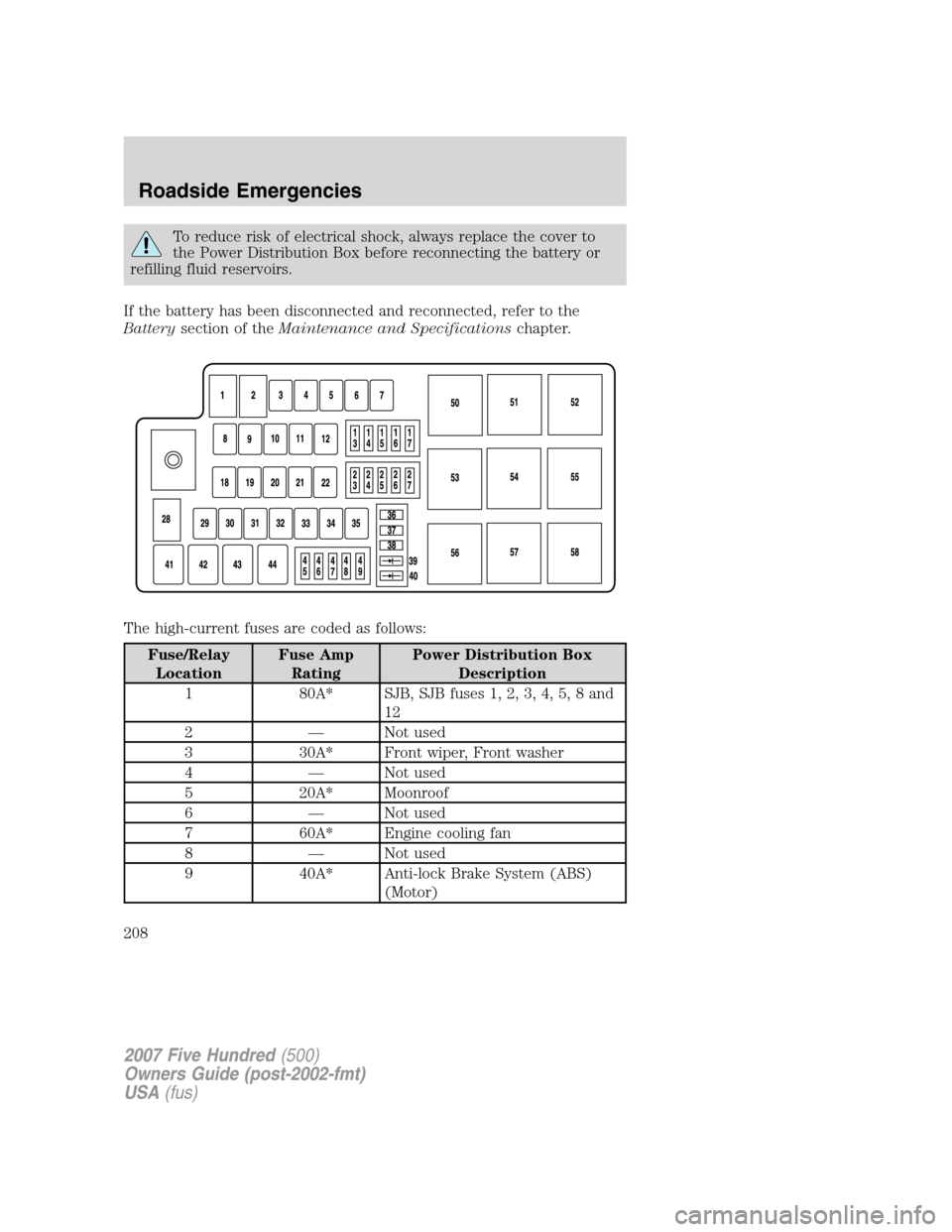

To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 80A* SJB, SJB fuses 1, 2, 3, 4, 5, 8 and
12
2 — Not used
3 30A* Front wiper, Front washer
4 — Not used
5 20A* Moonroof
6 — Not used
7 60A* Engine cooling fan
8 — Not used
9 40A* Anti-lock Brake System (ABS)
(Motor)
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
208

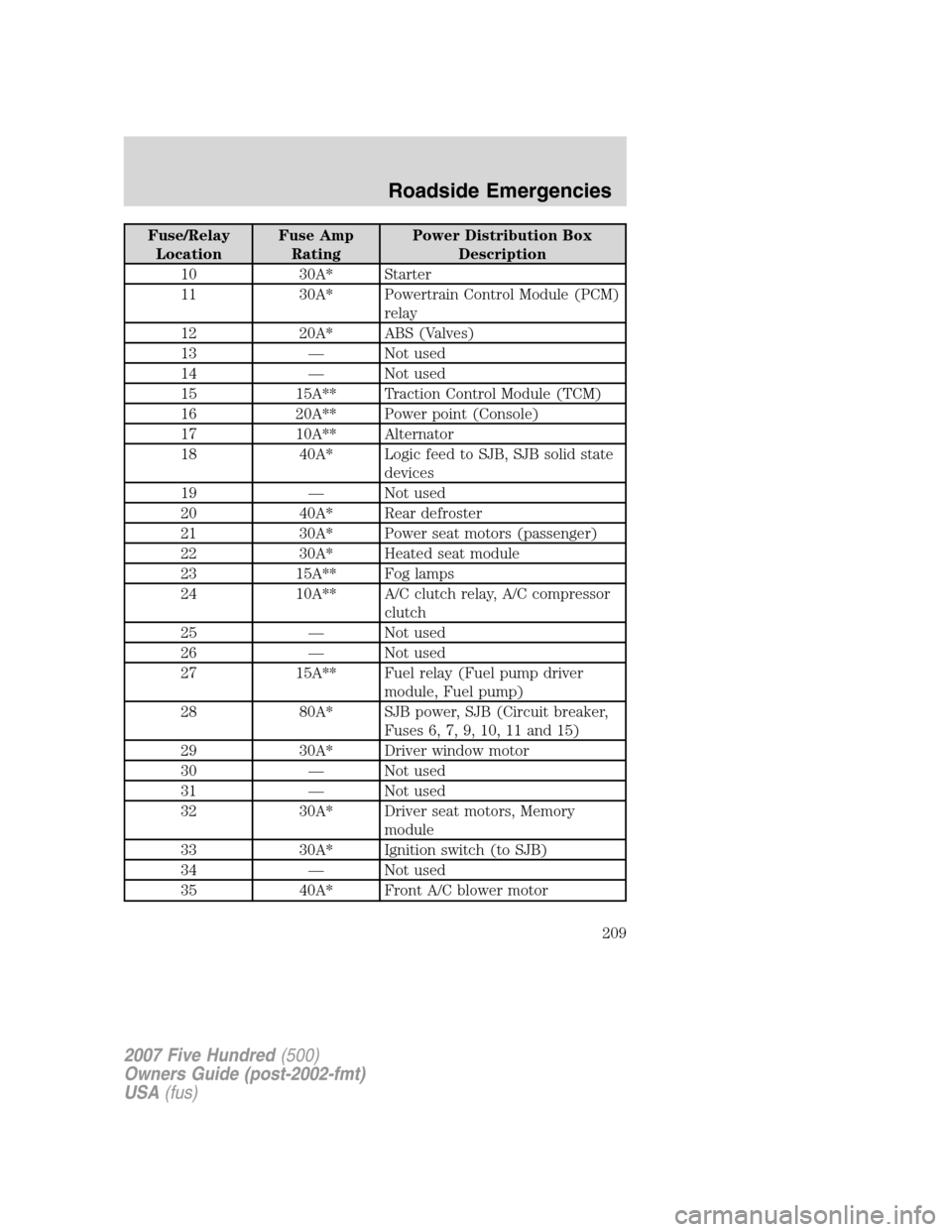

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
10 30A* Starter
11 30A* Powertrain Control Module (PCM)
relay
12 20A* ABS (Valves)
13 — Not used
14 — Not used
15 15A** Traction Control Module (TCM)
16 20A** Power point (Console)
17 10A** Alternator
18 40A* Logic feed to SJB, SJB solid state
devices
19 — Not used
20 40A* Rear defroster
21 30A* Power seat motors (passenger)
22 30A* Heated seat module
23 15A** Fog lamps
24 10A** A/C clutch relay, A/C compressor
clutch
25 — Not used
26 — Not used
27 15A** Fuel relay (Fuel pump driver
module, Fuel pump)
28 80A* SJB power, SJB (Circuit breaker,
Fuses 6, 7, 9, 10, 11 and 15)
29 30A* Driver window motor
30 — Not used
31 — Not used
32 30A* Driver seat motors, Memory
module
33 30A* Ignition switch (to SJB)
34 — Not used
35 40A* Front A/C blower motor
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
209

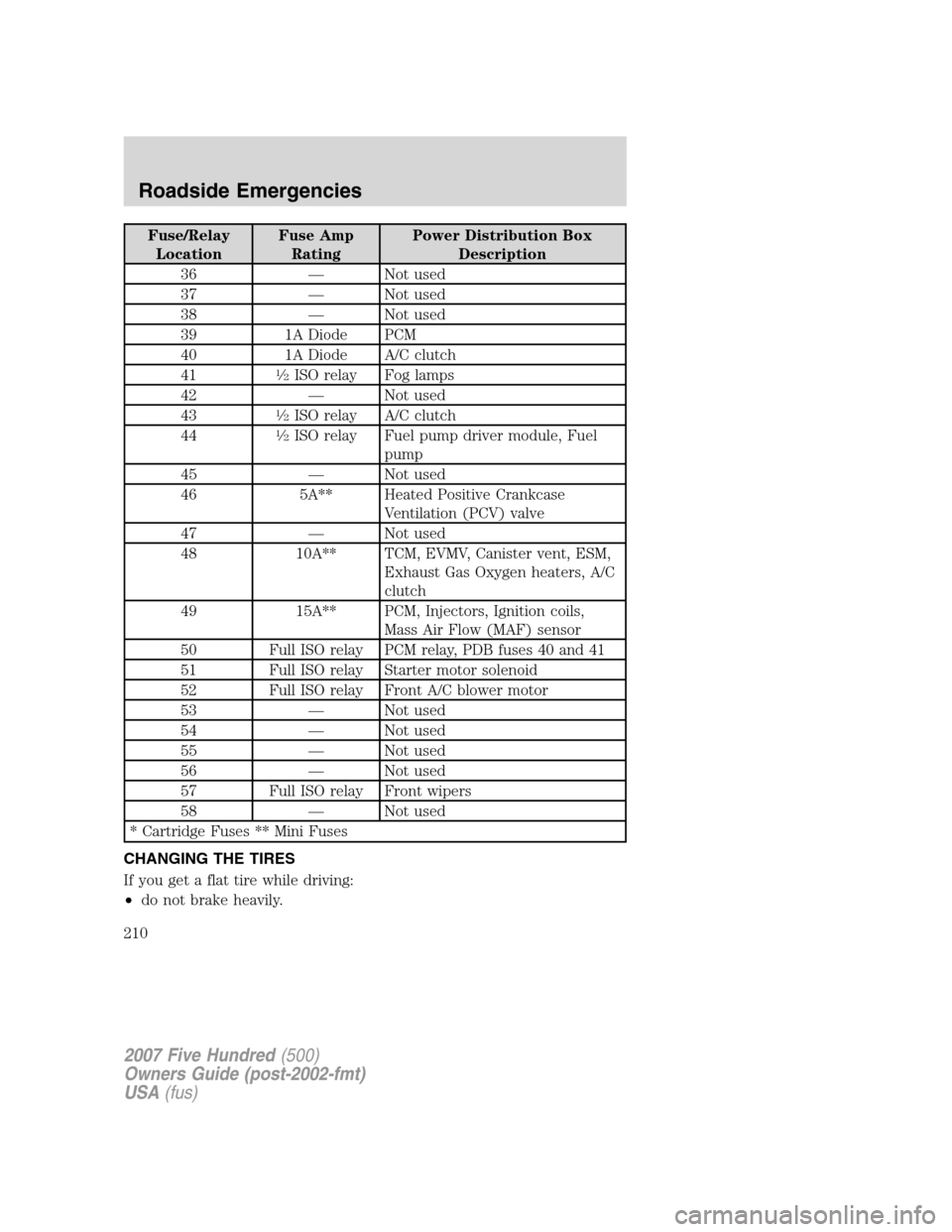

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
36 — Not used
37 — Not used
38 — Not used
39 1A Diode PCM
40 1A Diode A/C clutch
41
12ISO relay Fog lamps
42 — Not used
43
12ISO relay A/C clutch
44
12ISO relay Fuel pump driver module, Fuel
pump
45 — Not used
46 5A** Heated Positive Crankcase
Ventilation (PCV) valve
47 — Not used
48 10A** TCM, EVMV, Canister vent, ESM,
Exhaust Gas Oxygen heaters, A/C
clutch
49 15A** PCM, Injectors, Ignition coils,
Mass Air Flow (MAF) sensor
50 Full ISO relay PCM relay, PDB fuses 40 and 41
51 Full ISO relay Starter motor solenoid
52 Full ISO relay Front A/C blower motor
53 — Not used
54 — Not used
55 — Not used
56 — Not used
57 Full ISO relay Front wipers
58 — Not used
* Cartridge Fuses ** Mini Fuses
CHANGING THE TIRES
If you get a flat tire while driving:
•do not brake heavily.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
210

Rear seat entertainment
system ..........................................30
Relays ........................................204
Remote entry system .................96
illuminated entry ............100, 102
locking/unlocking doors .....96–97
opening the trunk .....................97
panic alarm ...............................97
replacement/additional
transmitters ...............................99
replacing the batteries .............98
Reverse sensing system ...........193
Roadside assistance ..................202
S
Safety Belt Maintenance ..........125
Safety belts
(see Safety restraints) ............117,
121–124
Safety Canopy ...........................142
Safety defects,
reporting ............................231–232
Safety restraints ........117, 121–125
Belt-Minder...........................126
extension assembly ................125
for adults .........................122–124
for children .....................145–146
Occupant Classification
Sensor ......................................119
safety belt maintenance .........125
warning light and chime ........126
Safety seats for children ..........150
Safety Compliance
Certification Label ....................275
Satellite Radio Information ........27
Seats ..........................................110
child safety seats ....................150front seats ...............110, 112, 114
heated ........................................50
memory seat .....................97, 115
SecuriLock passive
anti-theft system .......................105
Servicing your vehicle ..............240
Setting the clock
AM/FM single CD .....................17
AM/FM/In-dash 6 CD ................22
Spare tire
(see Changing the Tire) ...........213
Spark plugs,
specifications .....................271, 274
Specification chart,
lubricants ...................................272
Speed control ..............................72
Starting your vehicle ........182–184
jump starting ..........................217
Steering wheel
controls ......................................75
tilting .........................................65
T
Tilt steering wheel ......................65
Tires ...........................158–159, 210
alignment ................................166
care ..........................................162
changing ..........................210, 213
checking the pressure ............162
inflating ...................................160
label .........................................172
replacing ..................................164
rotating ....................................166
safety practices .......................165
sidewall information ...............168
snow tires and chains ............173
spare tire .................................211
terminology .............................159
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
283
