wiper fluid FORD FLEX 2009 1.G Owners Manual

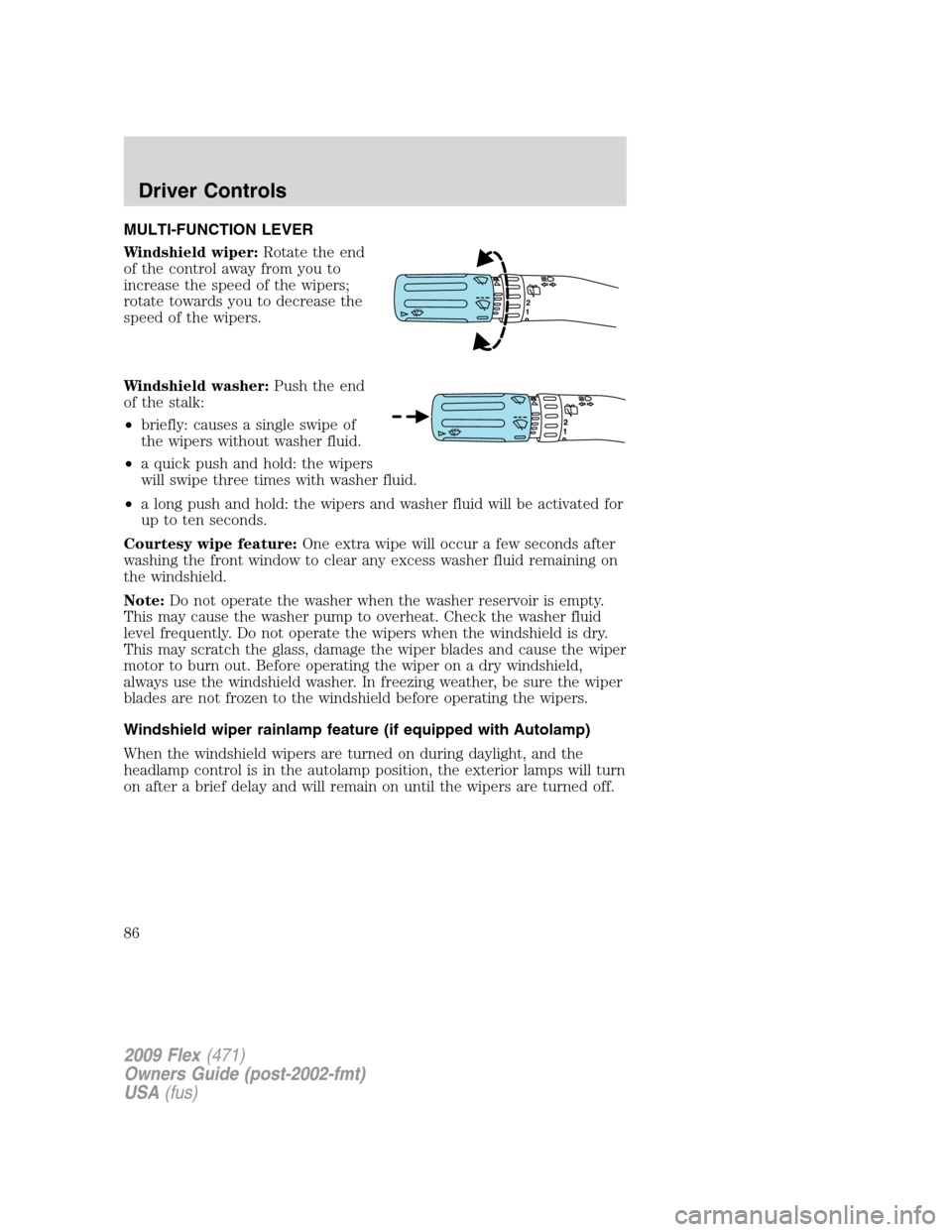

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Courtesy wipe feature:One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper rainlamp feature (if equipped with Autolamp)
When the windshield wipers are turned on during daylight, and the
headlamp control is in the autolamp position, the exterior lamps will turn
on after a brief delay and will remain on until the wipers are turned off.
12
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
86

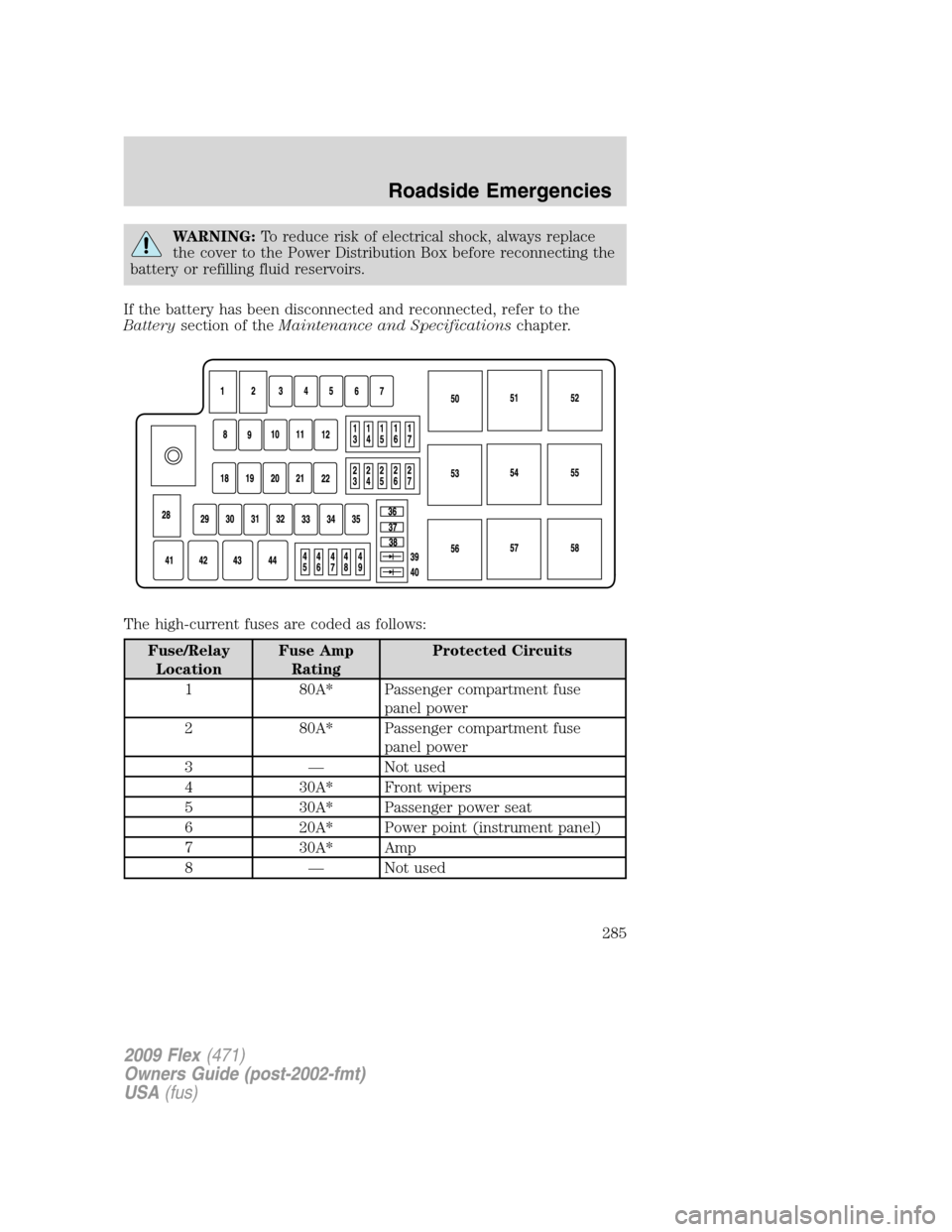

WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 80A* Passenger compartment fuse
panel power
2 80A* Passenger compartment fuse
panel power
3 — Not used
4 30A* Front wipers
5 30A* Passenger power seat
6 20A* Power point (instrument panel)
7 30A* Amp
8 — Not used
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
285

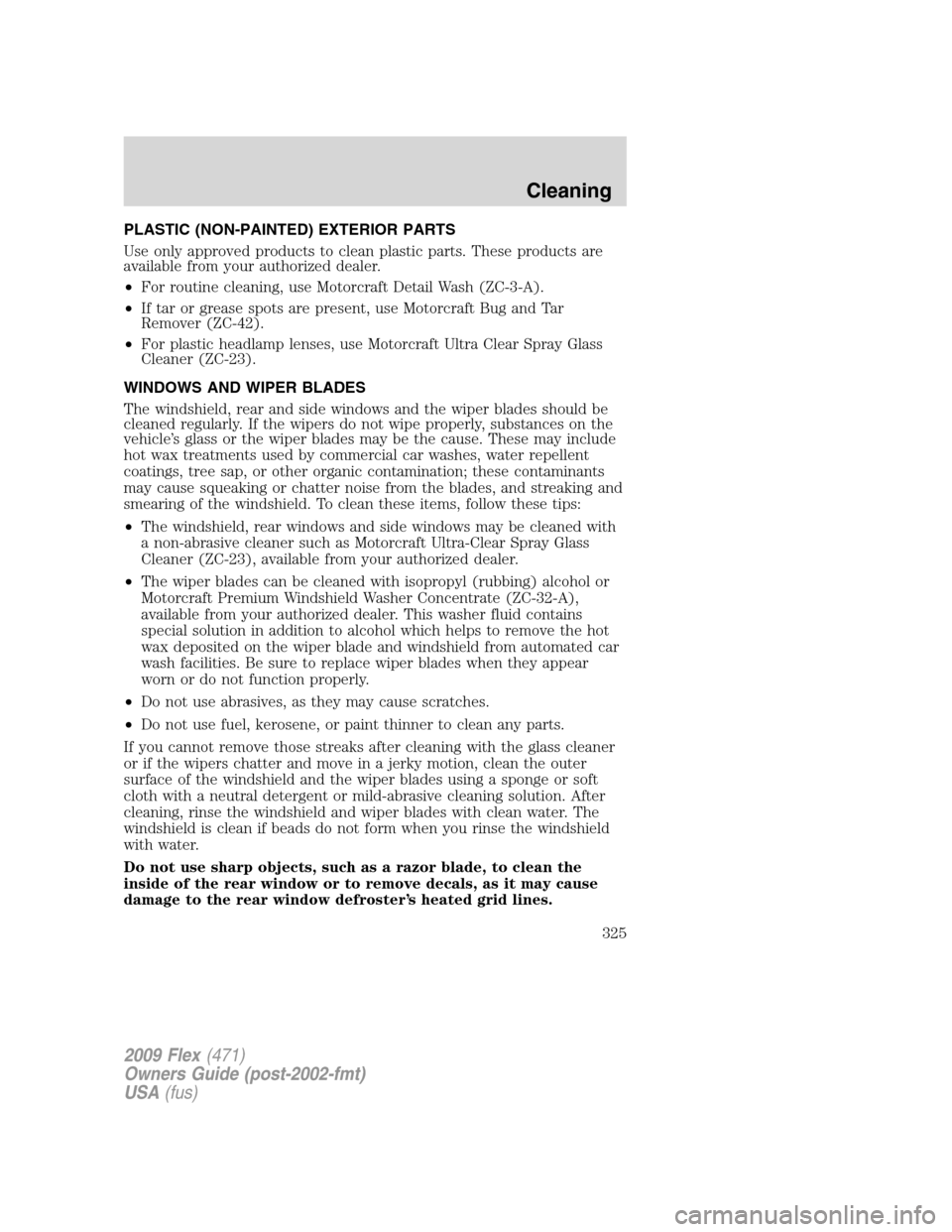

PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3-A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
325

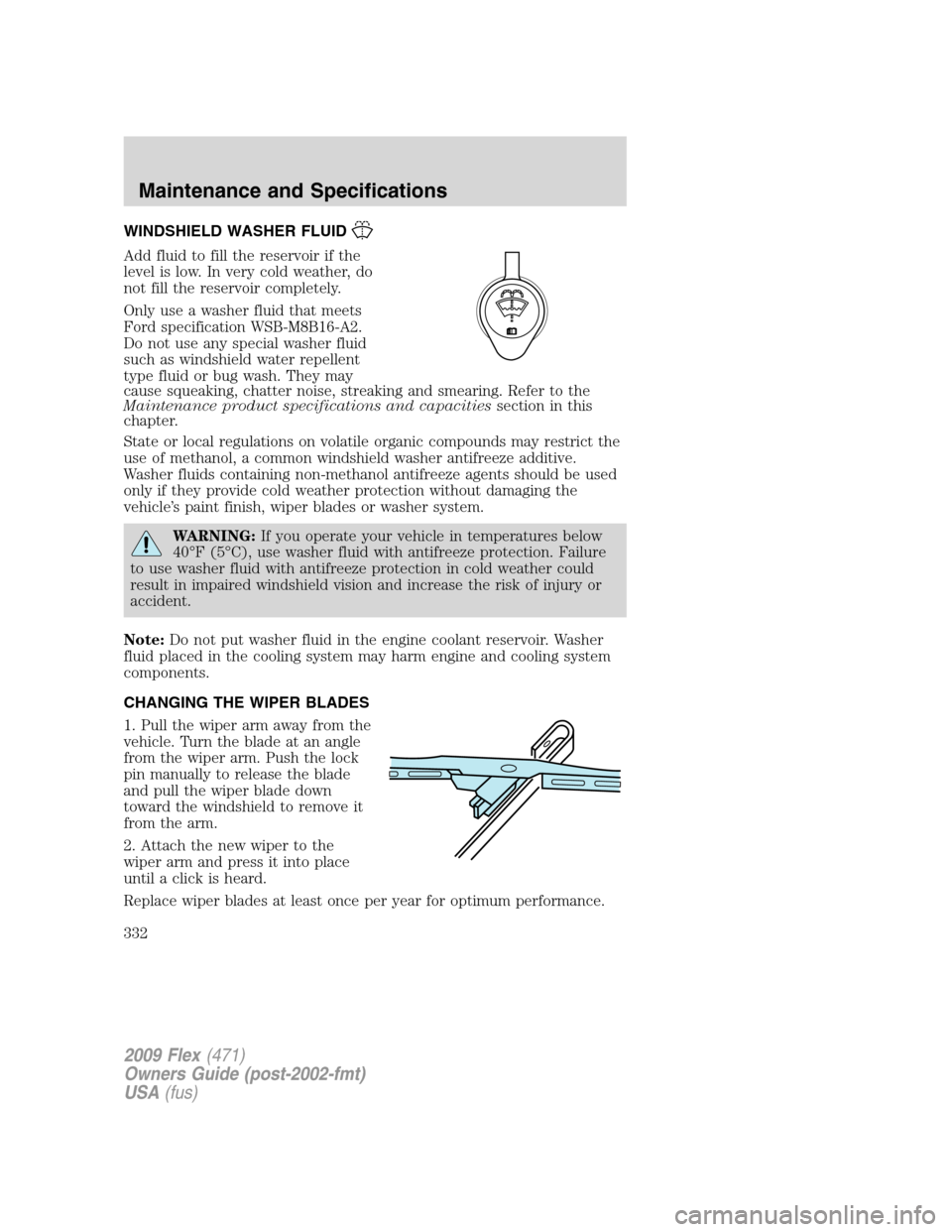

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16-A2.
Do not use any special washer fluid
such as windshield water repellent
type fluid or bug wash. They may
cause squeaking, chatter noise, streaking and smearing. Refer to the
Maintenance product specifications and capacitiessection in this
chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
CHANGING THE WIPER BLADES
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Push the lock
pin manually to release the blade
and pull the wiper blade down
toward the windshield to remove it
from the arm.
2. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
Replace wiper blades at least once per year for optimum performance.
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
332

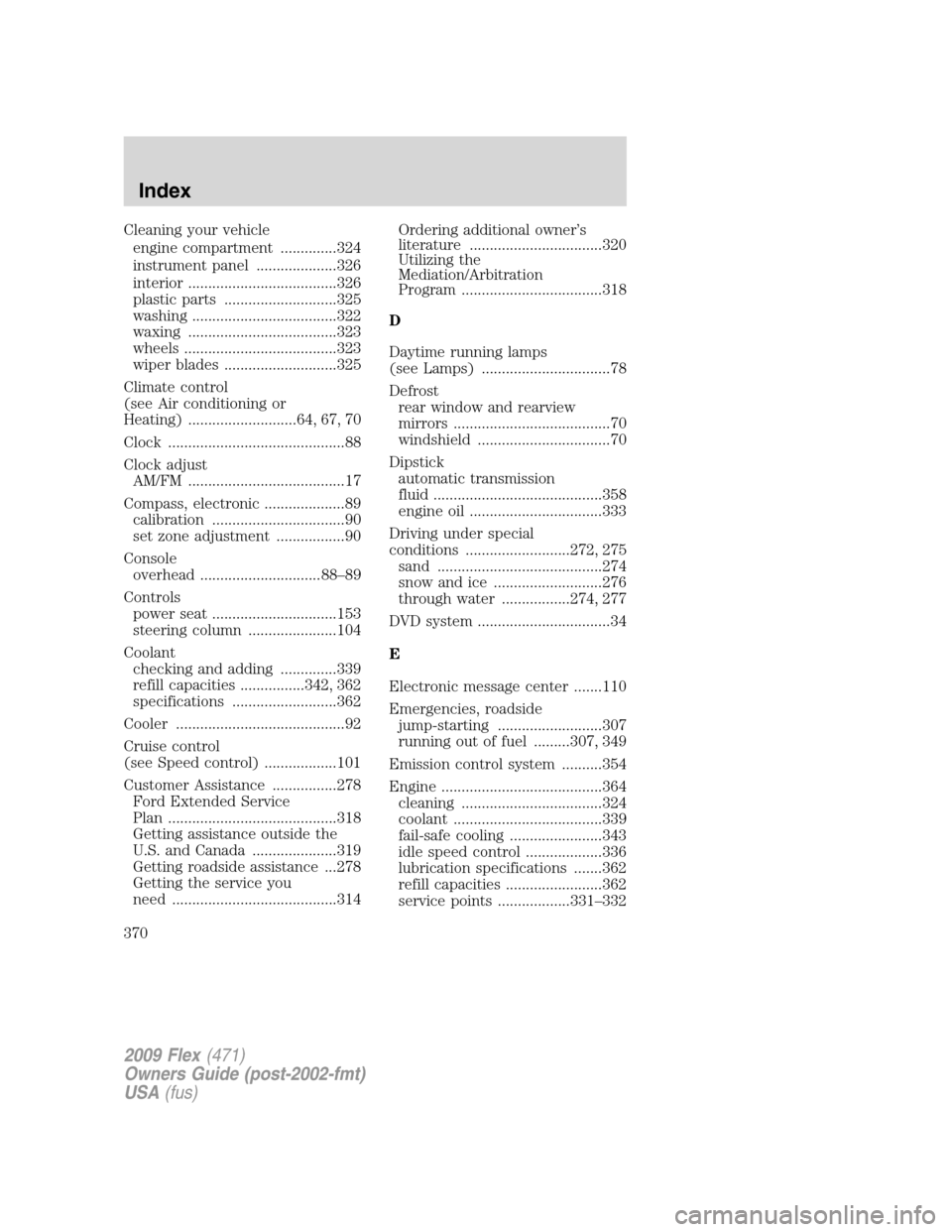

Cleaning your vehicle
engine compartment ..............324
instrument panel ....................326
interior .....................................326
plastic parts ............................325
washing ....................................322
waxing .....................................323
wheels ......................................323
wiper blades ............................325
Climate control
(see Air conditioning or
Heating) ...........................64, 67, 70
Clock ............................................88
Clock adjust
AM/FM .......................................17
Compass, electronic ....................89
calibration .................................90
set zone adjustment .................90
Console
overhead ..............................88–89
Controls
power seat ...............................153
steering column ......................104
Coolant
checking and adding ..............339
refill capacities ................342, 362
specifications ..........................362
Cooler ..........................................92
Cruise control
(see Speed control) ..................101
Customer Assistance ................278
Ford Extended Service
Plan ..........................................318
Getting assistance outside the
U.S. and Canada .....................319
Getting roadside assistance ...278
Getting the service you
need .........................................314Ordering additional owner’s
literature .................................320
Utilizing the
Mediation/Arbitration
Program ...................................318
D
Daytime running lamps
(see Lamps) ................................78
Defrost
rear window and rearview
mirrors .......................................70
windshield .................................70
Dipstick
automatic transmission
fluid ..........................................358
engine oil .................................333
Driving under special
conditions ..........................272, 275
sand .........................................274
snow and ice ...........................276
through water .................274, 277
DVD system .................................34
E
Electronic message center .......110
Emergencies, roadside
jump-starting ..........................307
running out of fuel .........307, 349
Emission control system ..........354
Engine ........................................364
cleaning ...................................324
coolant .....................................339
fail-safe cooling .......................343
idle speed control ...................336
lubrication specifications .......362
refill capacities ........................362
service points ..................331–332
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Index
370

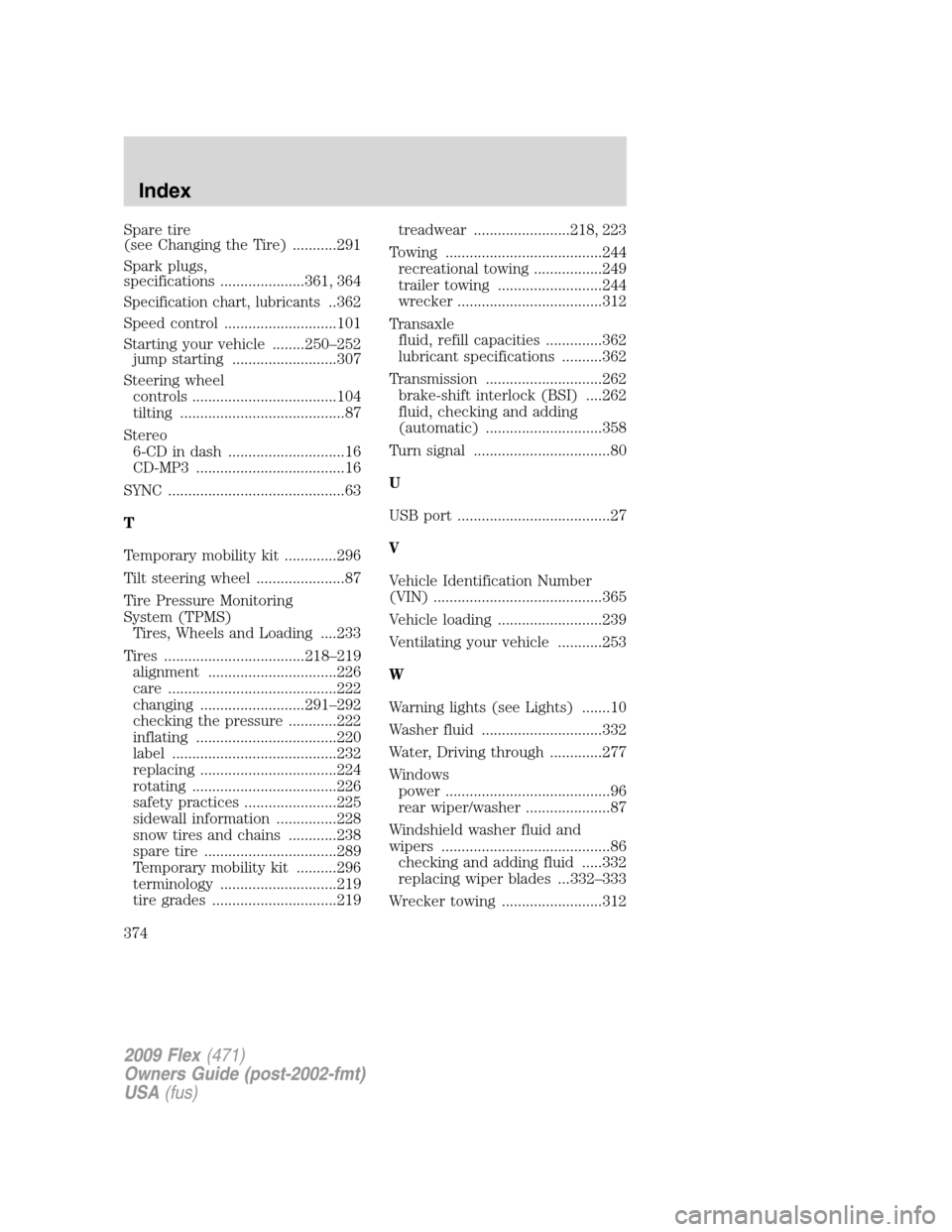

Spare tire
(see Changing the Tire) ...........291
Spark plugs,
specifications .....................361, 364
Specification chart, lubricants..362
Speed control ............................101
Starting your vehicle ........250–252
jump starting ..........................307
Steering wheel
controls ....................................104
tilting .........................................87
Stereo
6-CD in dash .............................16
CD-MP3 .....................................16
SYNC ............................................63
T
Temporary mobility kit .............296
Tilt steering wheel ......................87
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....233
Tires ...................................218–219
alignment ................................226
care ..........................................222
changing ..........................291–292
checking the pressure ............222
inflating ...................................220
label .........................................232
replacing ..................................224
rotating ....................................226
safety practices .......................225
sidewall information ...............228
snow tires and chains ............238
spare tire .................................289
Temporary mobility kit ..........296
terminology .............................219
tire grades ...............................219treadwear ........................218, 223
Towing .......................................244
recreational towing .................249
trailer towing ..........................244
wrecker ....................................312
Transaxle
fluid, refill capacities ..............362
lubricant specifications ..........362
Transmission .............................262
brake-shift interlock (BSI) ....262
fluid, checking and adding
(automatic) .............................358
Turn signal ..................................80
U
USB port ......................................27
V
Vehicle Identification Number
(VIN) ..........................................365
Vehicle loading ..........................239
Ventilating your vehicle ...........253
W
Warning lights (see Lights) .......10
Washer fluid ..............................332
Water, Driving through .............277
Windows
power .........................................96
rear wiper/washer .....................87
Windshield washer fluid and
wipers ..........................................86
checking and adding fluid .....332
replacing wiper blades ...332–333
Wrecker towing .........................312
2009 Flex(471)
Owners Guide (post-2002-fmt)
USA(fus)
Index
374
