headlamp FORD FLEX 2010 1.G User Guide

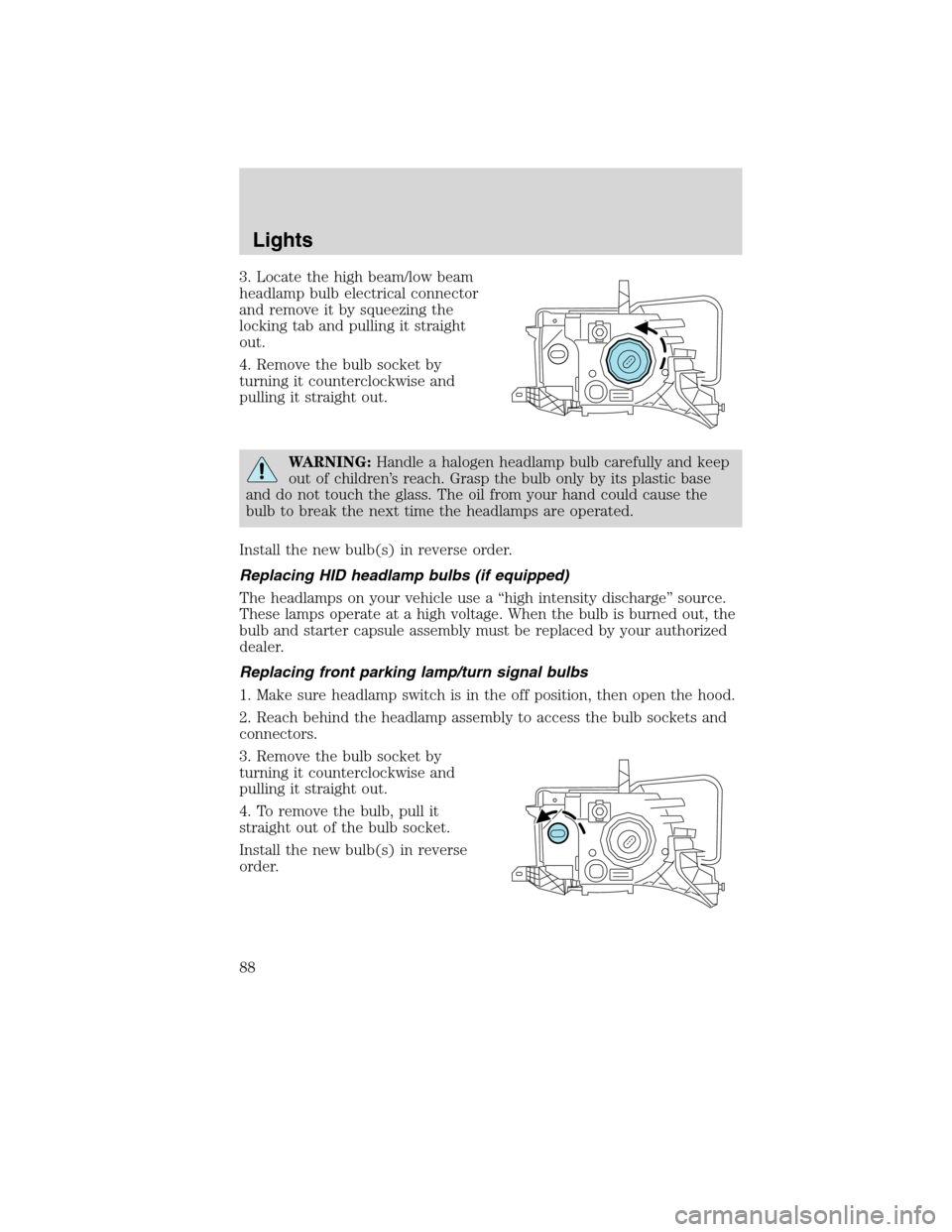

3. Locate the high beam/low beam
headlamp bulb electrical connector
and remove it by squeezing the
locking tab and pulling it straight
out.
4. Remove the bulb socket by
turning it counterclockwise and
pulling it straight out.
WARNING:Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
Install the new bulb(s) in reverse order.
Replacing HID headlamp bulbs (if equipped)
The headlamps on your vehicle use a “high intensity discharge” source.
These lamps operate at a high voltage. When the bulb is burned out, the
bulb and starter capsule assembly must be replaced by your authorized
dealer.
Replacing front parking lamp/turn signal bulbs
1. Make sure headlamp switch is in the off position, then open the hood.
2. Reach behind the headlamp assembly to access the bulb sockets and
connectors.
3. Remove the bulb socket by
turning it counterclockwise and
pulling it straight out.
4. To remove the bulb, pull it
straight out of the bulb socket.
Install the new bulb(s) in reverse
order.
Lights
88
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

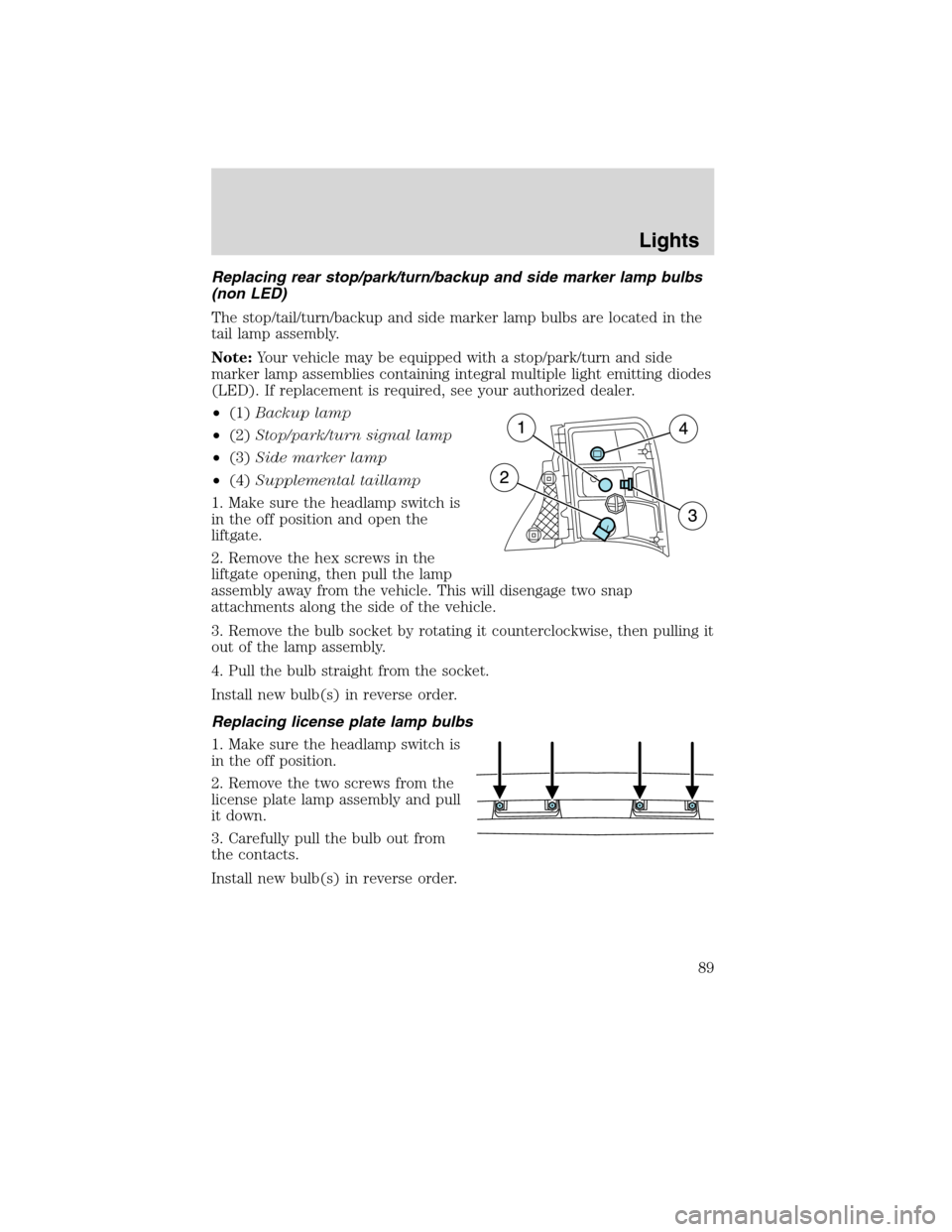

Replacing rear stop/park/turn/backup and side marker lamp bulbs
(non LED)
The stop/tail/turn/backup and side marker lamp bulbs are located in the
tail lamp assembly.
Note:Your vehicle may be equipped with a stop/park/turn and side
marker lamp assemblies containing integral multiple light emitting diodes
(LED). If replacement is required, see your authorized dealer.
•(1)Backup lamp
•(2)Stop/park/turn signal lamp
•(3)Side marker lamp
•(4)Supplemental taillamp
1. Make sure the headlamp switch is
in the off position and open the
liftgate.
2. Remove the hex screws in the
liftgate opening, then pull the lamp
assembly away from the vehicle. This will disengage two snap
attachments along the side of the vehicle.
3. Remove the bulb socket by rotating it counterclockwise, then pulling it
out of the lamp assembly.
4. Pull the bulb straight from the socket.
Install new bulb(s) in reverse order.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the off position.
2. Remove the two screws from the
license plate lamp assembly and pull
it down.
3. Carefully pull the bulb out from
the contacts.
Install new bulb(s) in reverse order.
Lights
89
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

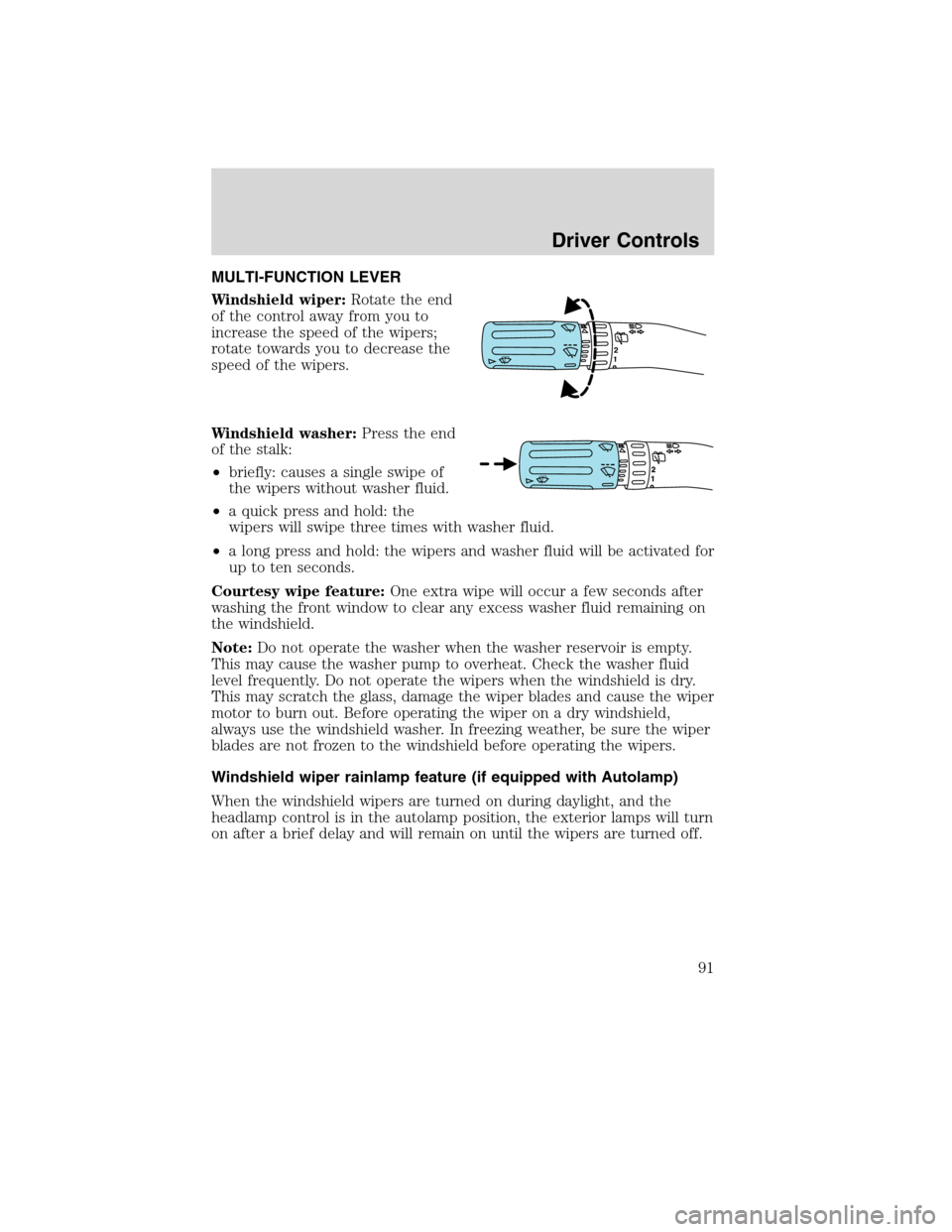

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Press the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick press and hold: the
wipers will swipe three times with washer fluid.
•a long press and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Courtesy wipe feature:One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper rainlamp feature (if equipped with Autolamp)
When the windshield wipers are turned on during daylight, and the
headlamp control is in the autolamp position, the exterior lamps will turn
on after a brief delay and will remain on until the wipers are turned off.
12
Driver Controls
91
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the off position.

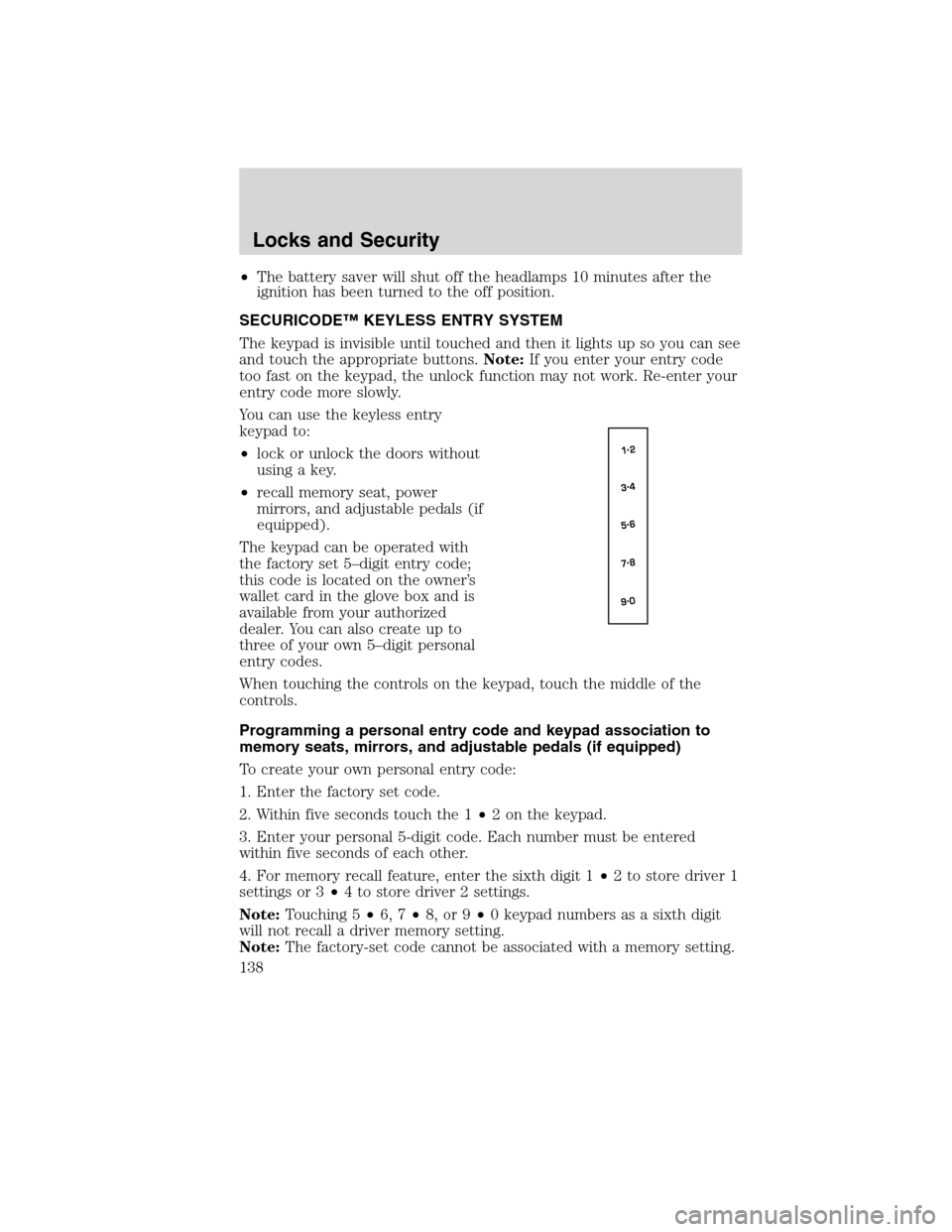

SECURICODE™ KEYLESS ENTRY SYSTEM
The keypad is invisible until touched and then it lights up so you can see
and touch the appropriate buttons.Note:If you enter your entry code
too fast on the keypad, the unlock function may not work. Re-enter your
entry code more slowly.
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•recall memory seat, power
mirrors, and adjustable pedals (if
equipped).
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s
wallet card in the glove box and is
available from your authorized
dealer. You can also create up to
three of your own 5–digit personal
entry codes.
When touching the controls on the keypad, touch the middle of the
controls.
Programming a personal entry code and keypad association to
memory seats, mirrors, and adjustable pedals (if equipped)
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds touch the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. For memory recall feature, enter the sixth digit 1•2 to store driver 1
settings or 3•4 to store driver 2 settings.
Note:Touching 5•6, 7•8, or 9•0 keypad numbers as a sixth digit
will not recall a driver memory setting.
Note:The factory-set code cannot be associated with a memory setting.
Locks and Security
138
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Passenger compartment fuse panel
The fuse panel is located under the instrument panel to the left of the
steering wheel.
The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Driver smart window motor
2 15A Trailer tow stop/turn lamps
3 15A Not used (spare)
4 30A DC/AC inverter
5 10A Keypad illumination, 3rd row
passenger seats, Brake
transmission shift interlock
6 20A Turn signals
7 10A Low beam headlamps (left)
Roadside Emergencies
296
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
10 15A Backlighting, Puddle lamps
11 10A All wheel drive (AWD)
12 7.5A Not used (spare)
13 5A Keypad, Mirror switch, Memory
module, DSM logic, Adjustable
pedals
14 10A Power liftgate module, Center
information display, SYNC, GPS
module
15 10A Climate control head
16 15A Electronic finish panel, Navigation
Screen
17 20A All power lock motor feeds,
Liftgate release
18 20A 2nd row power fold seats, Heated
seats
19 25A Moon roof
20 15A Data link connector, Memory seat
21 15A Fog lamps, Fog lamp indicator
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/Interior lamps,
Power fold seats
26 10A Instrument panel cluster
27 20A Ignition Switch
28 5A Radio/navigation
29 5A Instrument panel cluster
30 5A Transmission shifter
31 10A Not used (spare)
Roadside Emergencies
297
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
9 40A* Anti-lock brake system (ABS)
pump
10 30A* Starter relay
11 30A* Powertrain control module (PCM)
relay
12 20A* ABS valve
13 20A** Left high intensity discharge
(HID) headlamp
14 10A** Brake on/off (BOO) switch
15 25A** Rear wiper
16 20A** Right HID headlamp
17 10A** Alternator sensor
18 20A* Rear power point
19 20A* Instrument panel power point
20 40A* Rear defroster
21 20A* Console power point
22 20A* Subwoofer amplifier
23 10A** PCM keep alive power, Canister
vent
24 10A** A/C clutch
25 15A** Refrigerator
26 20A** Backup relay
27 15A** Fuel relay (Fuel pump driver
module, Fuel pump)
28 80A* Cooling fan
29 — Not used
30 30A* Battery charge (trailer tow)
31 40A* Auxiliary blower motor
32 30A* Driver seat motor
33 30A* 3rd row power seats
34 30A* Power liftgate
35 40A* Front A/C blower
Roadside Emergencies
300
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

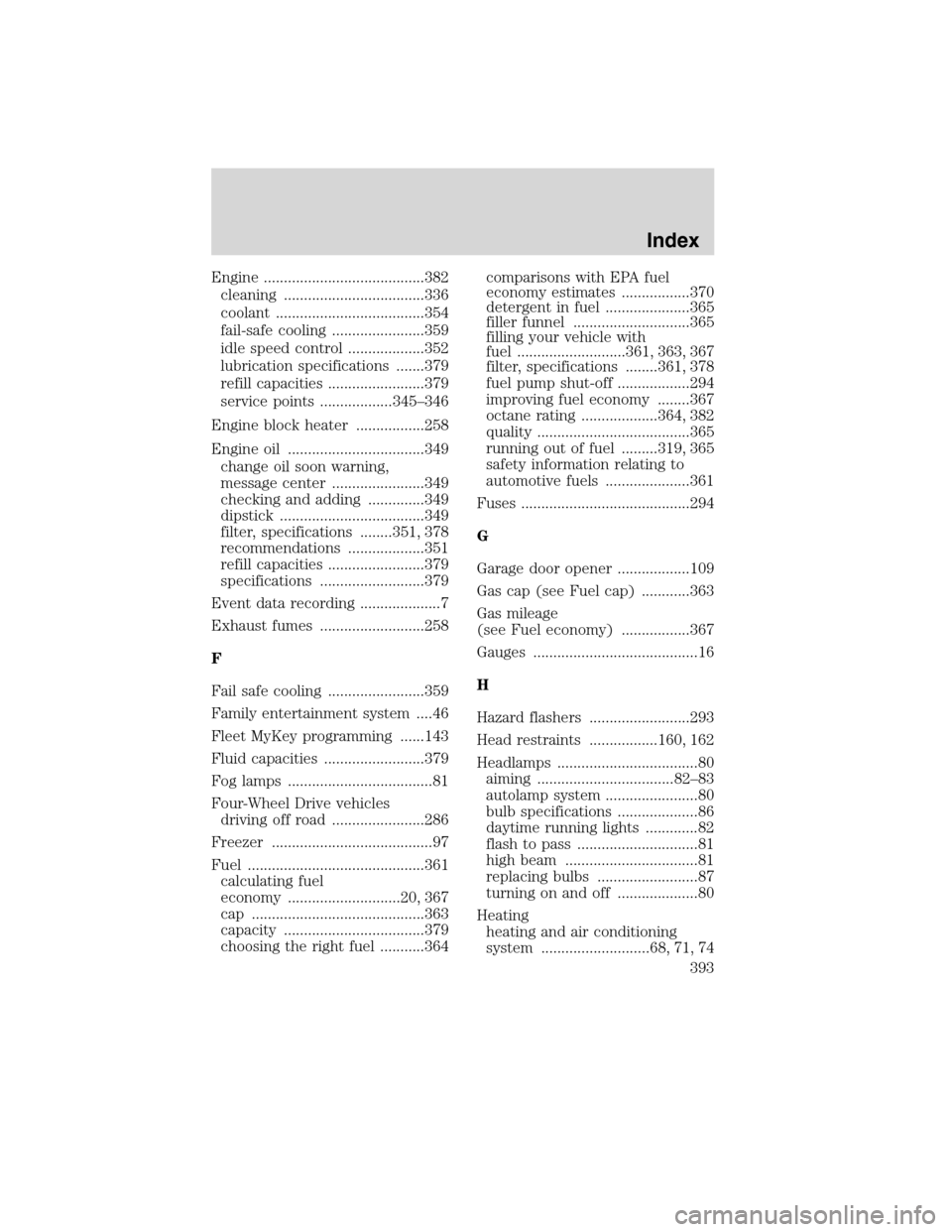

Engine ........................................382
cleaning ...................................336
coolant .....................................354
fail-safe cooling .......................359
idle speed control ...................352
lubrication specifications .......379
refill capacities ........................379
service points ..................345–346
Engine block heater .................258
Engine oil ..................................349
change oil soon warning,
message center .......................349
checking and adding ..............349
dipstick ....................................349
filter, specifications ........351, 378
recommendations ...................351
refill capacities ........................379
specifications ..........................379
Event data recording ....................7
Exhaust fumes ..........................258
F
Fail safe cooling ........................359
Family entertainment system ....46
Fleet MyKey programming ......143
Fluid capacities .........................379
Fog lamps ....................................81
Four-Wheel Drive vehicles
driving off road .......................286
Freezer ........................................97
Fuel ............................................361
calculating fuel
economy ............................20, 367
cap ...........................................363
capacity ...................................379
choosing the right fuel ...........364comparisons with EPA fuel
economy estimates .................370
detergent in fuel .....................365
filler funnel .............................365
filling your vehicle with
fuel ...........................361, 363, 367
filter, specifications ........361, 378
fuel pump shut-off ..................294
improving fuel economy ........367
octane rating ...................364, 382
quality ......................................365
running out of fuel .........319, 365
safety information relating to
automotive fuels .....................361
Fuses ..........................................294
G
Garage door opener ..................109
Gas cap (see Fuel cap) ............363
Gas mileage
(see Fuel economy) .................367
Gauges .........................................16
H
Hazard flashers .........................293
Head restraints .................160, 162
Headlamps ...................................80
aiming ..................................82–83
autolamp system .......................80
bulb specifications ....................86
daytime running lights .............82
flash to pass ..............................81
high beam .................................81
replacing bulbs .........................87
turning on and off ....................80
Heating
heating and air conditioning
system ...........................68, 71, 74
Index
393
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

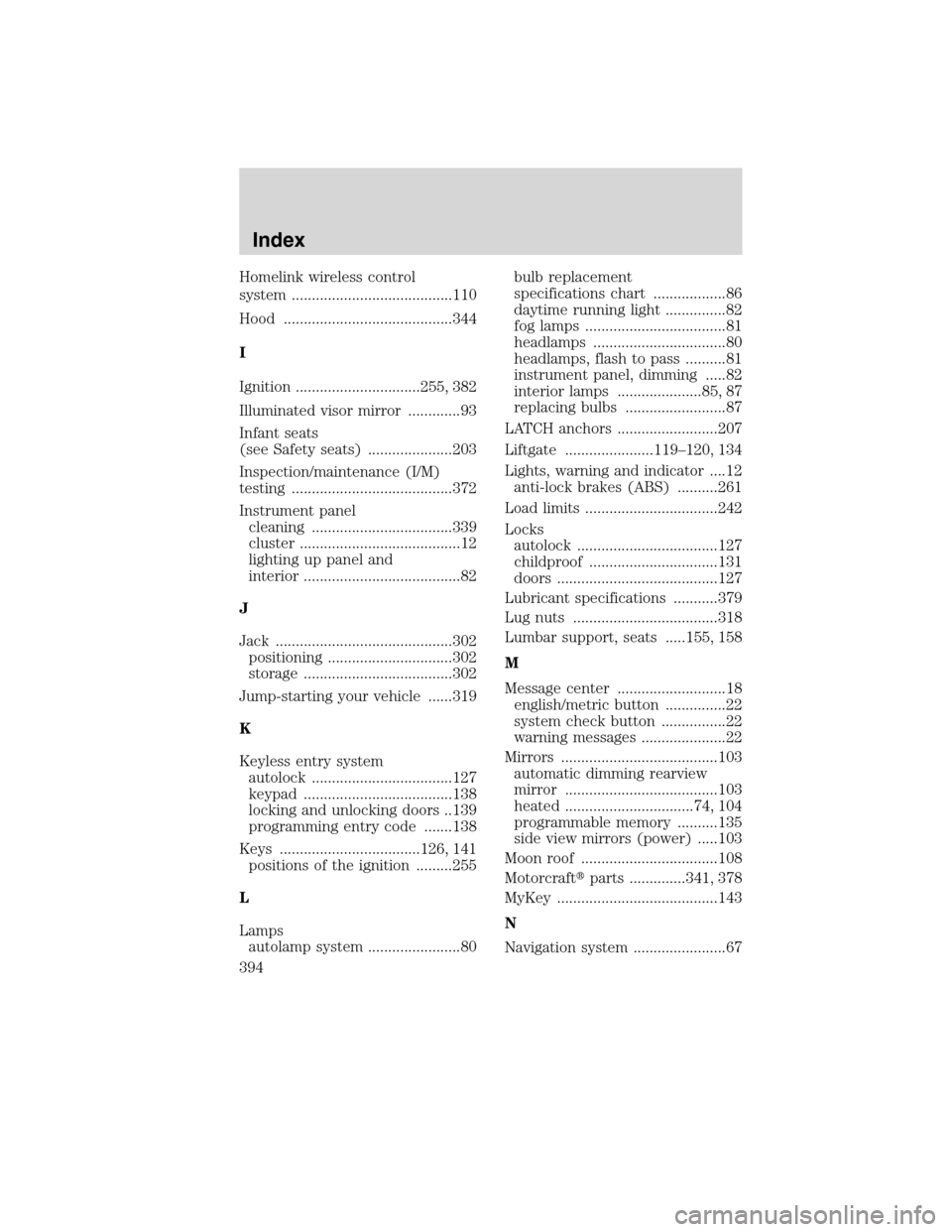

Homelink wireless control
system ........................................110
Hood ..........................................344
I
Ignition ...............................255, 382
Illuminated visor mirror .............93
Infant seats
(see Safety seats) .....................203
Inspection/maintenance (I/M)
testing ........................................372
Instrument panel
cleaning ...................................339
cluster ........................................12
lighting up panel and
interior .......................................82
J
Jack ............................................302
positioning ...............................302
storage .....................................302
Jump-starting your vehicle ......319
K
Keyless entry system
autolock ...................................127
keypad .....................................138
locking and unlocking doors ..139
programming entry code .......138
Keys ...................................126, 141
positions of the ignition .........255
L
Lamps
autolamp system .......................80bulb replacement
specifications chart ..................86
daytime running light ...............82
fog lamps ...................................81
headlamps .................................80
headlamps, flash to pass ..........81
instrument panel, dimming .....82
interior lamps .....................85, 87
replacing bulbs .........................87
LATCH anchors .........................207
Liftgate ......................119–120, 134
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........261
Load limits .................................242
Locks
autolock ...................................127
childproof ................................131
doors ........................................127
Lubricant specifications ...........379
Lug nuts ....................................318
Lumbar support, seats .....155, 158
M
Message center ...........................18
english/metric button ...............22
system check button ................22
warning messages .....................22
Mirrors .......................................103
automatic dimming rearview
mirror ......................................103
heated ................................74, 104
programmable memory ..........135
side view mirrors (power) .....103
Moon roof ..................................108
Motorcraftparts ..............341, 378
MyKey ........................................143
N
Navigation system .......................67
Index
394
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)
