Quick start
Your family entertainment system includes two headrest-mounted DVD
player/screens, two sets of wireless infrared (IR) headphones and a
wireless infrared (IR) remote control capable of controlling either DVD
player. Both DVD players are capable of playing their own independent
media, or they can both watch the same media.
When in single play mode, the headrest video sources that have been
selected at each headrest will play through the speakers, but no audio is
available through the headphones.
To play a DVD
1. Insert a DVD into the system, label side facing the rear passengers.
The disc slot indicator lights will illuminate. The system will
automatically load the disc and it will begin to play. LOADING will
appear in the screen.
2. If there is already a disc in the system, press the power button on the
DVD system and then press
(Play) to begin to play the disc.
3. Use the bezel controls to play (
) pause (), stop (), or
eject (
) a DVD.
Press
/to access the previous/next chapter. Press and hold for a
fast reverse/forward search.
Note:The system goes into dual play mode when it is turned on. Audio
from the DVD system will not play over the rear two speakers until dual
play mode is turned off. When dual play mode is turned on, the audio
sound plays over the front two speakers until dual play mode is turned
off.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
To watch a DVD playing in the other headrest system:Press MEDIA
repeatedly until the desired system (Monitor A or Monitor B) appears in
the display.
Entertainment Systems
47
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

The liftgate will only operate with the vehicle in P (Park).
When the liftgate is being power closed, a chime will sound three times
as the liftgate begins to power close. A single chime indicates a problem
with the close request, caused by:
•the ignition is in on and the transmission is not in Park
•or the battery voltage is below the minimum operating voltage
•or the vehicle speed is at or above 3 mph (5 km/h)
If the liftgate reverses and starts to close after a open request, a fast
continuous chime indicates excessive load on the gate or a possible strut
failure. If any excessive load is removed and you still have a faster
chime, have the system serviced immediately by your authorized dealer.
Do not attempt to manually force the liftgate to travel faster than the
power system will permit. This will activate the obstacle detection
feature.
Note:Cycling the ignition prior to completely latching the liftgate could
result in damage to the liftgate and/or its power components. Make sure
the liftgate is fully latched before operating the vehicle.
Care should be exercised in starting the engine before the liftgate is fully
closed (latched). If the ignition is cycled during a liftgate power close
cycle and the liftgate is 6-10 inches (15–24 cm) from being latched, the
liftgate may reverse to the full open position. Verify that the gate is
closed before operating or moving the vehicle, especially in an enclosure,
like a garage or a parking structure. The liftgate or its components could
be damaged in an enclosure, if the liftgate is open.
When power operating the liftgate at temperatures below 32°F (0°C), the
liftgate may stop about five inches (12.7 cm) from the full open position.
The liftgate can be fully opened by pushing it upward to the maximum
open position.
The power liftgate feature can be enabled or disabled using the message
center. With the control in the OFF position, power operation is disabled
from the liftgate handle button and from the rear cargo area button. The
integrated keyhead transmitter and instrument panel switch will still
continue to operate the liftgate regardless of the position state of the
message center. Refer toMessage centerin theInstrument Cluster
chapter.
Driver Controls
121
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

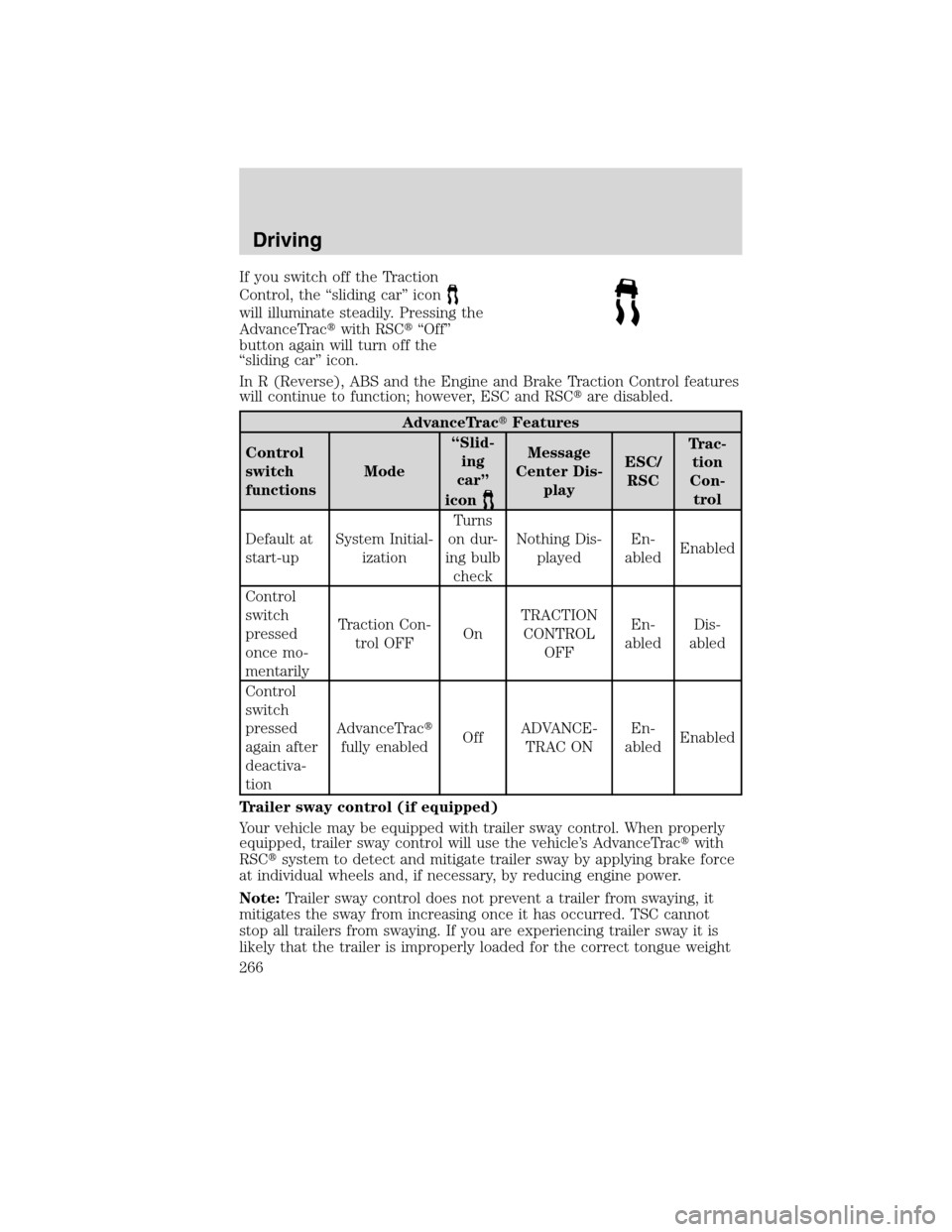

If you switch off the Traction
Control, the “sliding car” icon
will illuminate steadily. Pressing the
AdvanceTracwith RSC“Off”
button again will turn off the
“sliding car” icon.
In R (Reverse), ABS and the Engine and Brake Traction Control features
will continue to function; however, ESC and RSCare disabled.
AdvanceTracFeatures
Control
switch
functionsMode“Slid-
ing
car”
icon
Message
Center Dis-
playESC/
RSCTrac-
tion
Con-
trol
Default at
start-upSystem Initial-
izationTurns
on dur-
ing bulb
checkNothing Dis-
playedEn-
abledEnabled
Control
switch
pressed
once mo-
mentarilyTraction Con-
trol OFFOnTRACTION
CONTROL
OFFEn-
abledDis-
abled
Control
switch
pressed
again after
deactiva-
tionAdvanceTrac
fully enabledOffADVANCE-
TRAC ONEn-
abledEnabled
Trailer sway control (if equipped)
Your vehicle may be equipped with trailer sway control. When properly
equipped, trailer sway control will use the vehicle’s AdvanceTracwith
RSCsystem to detect and mitigate trailer sway by applying brake force
at individual wheels and, if necessary, by reducing engine power.
Note:Trailer sway control does not prevent a trailer from swaying, it
mitigates the sway from increasing once it has occurred. TSC cannot
stop all trailers from swaying. If you are experiencing trailer sway it is
likely that the trailer is improperly loaded for the correct tongue weight
Driving
