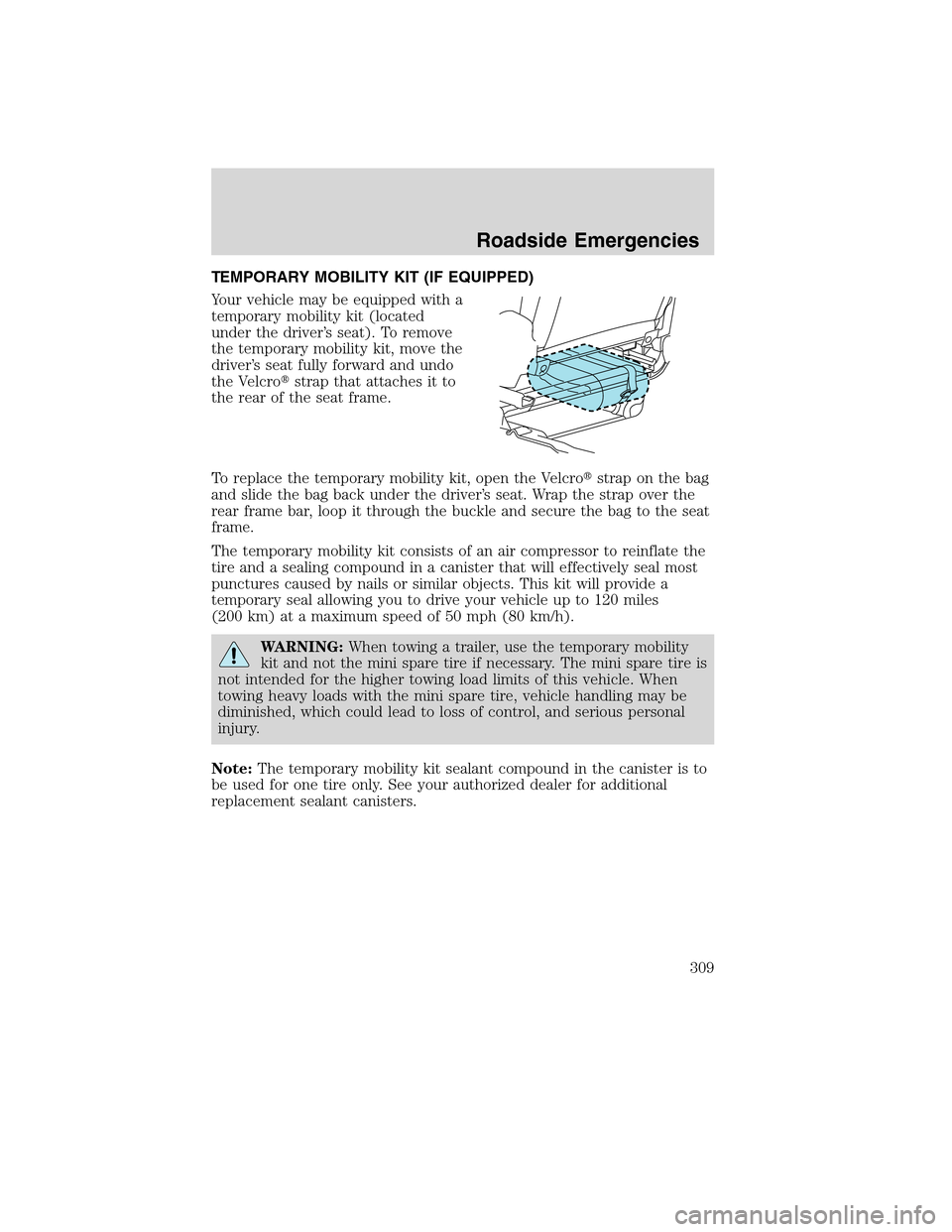

TEMPORARY MOBILITY KIT (IF EQUIPPED)
Your vehicle may be equipped with a
temporary mobility kit (located
under the driver’s seat). To remove
the temporary mobility kit, move the
driver’s seat fully forward and undo
the Velcrostrap that attaches it to
the rear of the seat frame.
To replace the temporary mobility kit, open the Velcrostrap on the bag
and slide the bag back under the driver’s seat. Wrap the strap over the
rear frame bar, loop it through the buckle and secure the bag to the seat
frame.
The temporary mobility kit consists of an air compressor to reinflate the
tire and a sealing compound in a canister that will effectively seal most
punctures caused by nails or similar objects. This kit will provide a
temporary seal allowing you to drive your vehicle up to 120 miles
(200 km) at a maximum speed of 50 mph (80 km/h).
WARNING:When towing a trailer, use the temporary mobility
kit and not the mini spare tire if necessary. The mini spare tire is
not intended for the higher towing load limits of this vehicle. When
towing heavy loads with the mini spare tire, vehicle handling may be
diminished, which could lead to loss of control, and serious personal
injury.
Note:The temporary mobility kit sealant compound in the canister is to
be used for one tire only. See your authorized dealer for additional
replacement sealant canisters.
Roadside Emergencies
309
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

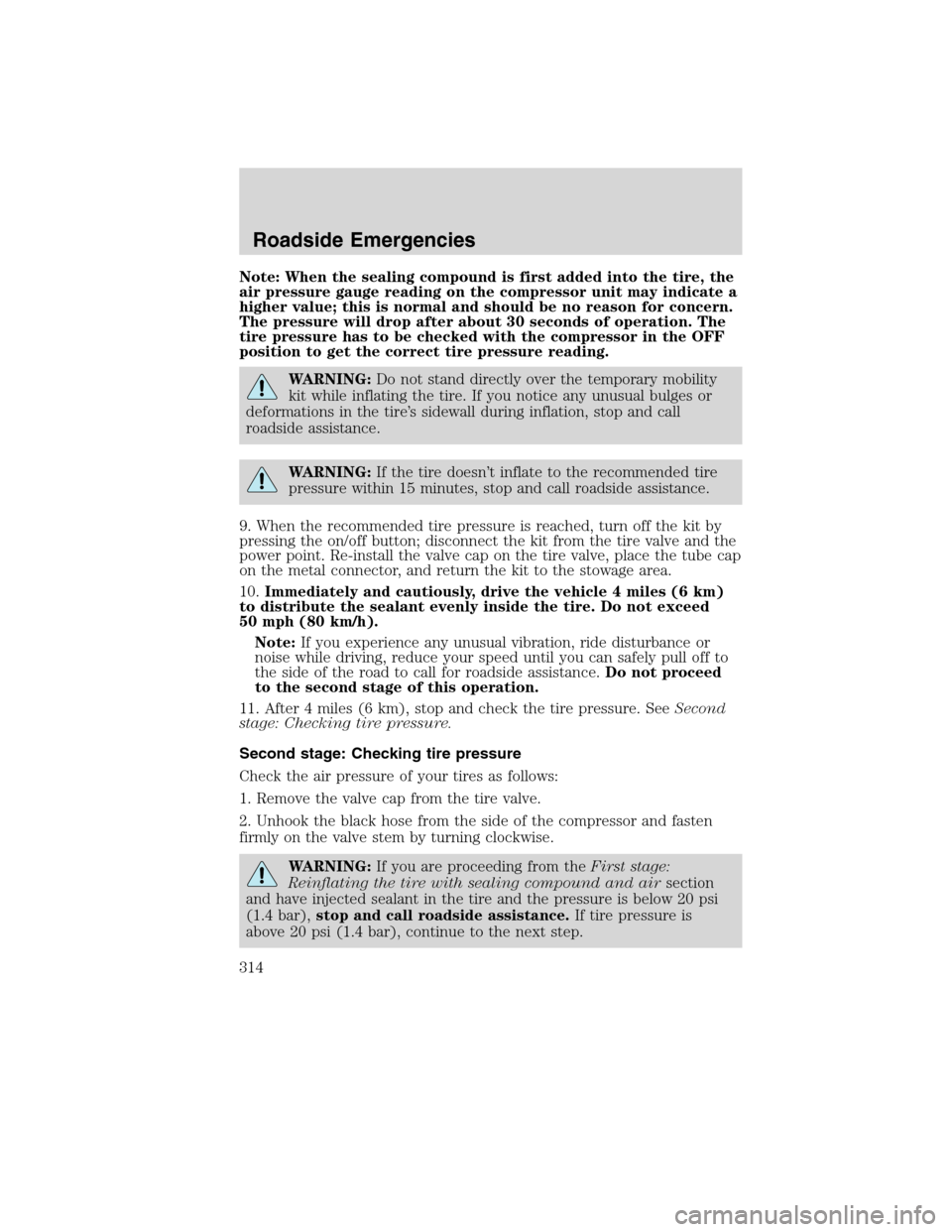

Note: When the sealing compound is first added into the tire, the
air pressure gauge reading on the compressor unit may indicate a
higher value; this is normal and should be no reason for concern.
The pressure will drop after about 30 seconds of operation. The
tire pressure has to be checked with the compressor in the OFF
position to get the correct tire pressure reading.
WARNING:Do not stand directly over the temporary mobility
kit while inflating the tire. If you notice any unusual bulges or
deformations in the tire’s sidewall during inflation, stop and call
roadside assistance.
WARNING:If the tire doesn’t inflate to the recommended tire
pressure within 15 minutes, stop and call roadside assistance.
9. When the recommended tire pressure is reached, turn off the kit by
pressing the on/off button; disconnect the kit from the tire valve and the
power point. Re-install the valve cap on the tire valve, place the tube cap
on the metal connector, and return the kit to the stowage area.
10.Immediately and cautiously, drive the vehicle 4 miles (6 km)
to distribute the sealant evenly inside the tire. Do not exceed
50 mph (80 km/h).
Note:If you experience any unusual vibration, ride disturbance or
noise while driving, reduce your speed until you can safely pull off to
the side of the road to call for roadside assistance.Do not proceed
to the second stage of this operation.
11. After 4 miles (6 km), stop and check the tire pressure. SeeSecond
stage: Checking tire pressure.
Second stage: Checking tire pressure
Check the air pressure of your tires as follows:
1. Remove the valve cap from the tire valve.
2. Unhook the black hose from the side of the compressor and fasten
firmly on the valve stem by turning clockwise.
WARNING:If you are proceeding from theFirst stage:
Reinflating the tire with sealing compound and airsection
and have injected sealant in the tire and the pressure is below 20 psi
(1.4 bar),stop and call roadside assistance.If tire pressure is
above 20 psi (1.4 bar), continue to the next step.
