battery replacement FORD FLEX 2012 1.G Owners Manual
[x] Cancel search | Manufacturer: FORD, Model Year: 2012, Model line: FLEX, Model: FORD FLEX 2012 1.GPages: 405, PDF Size: 2.75 MB
Page 54 of 405

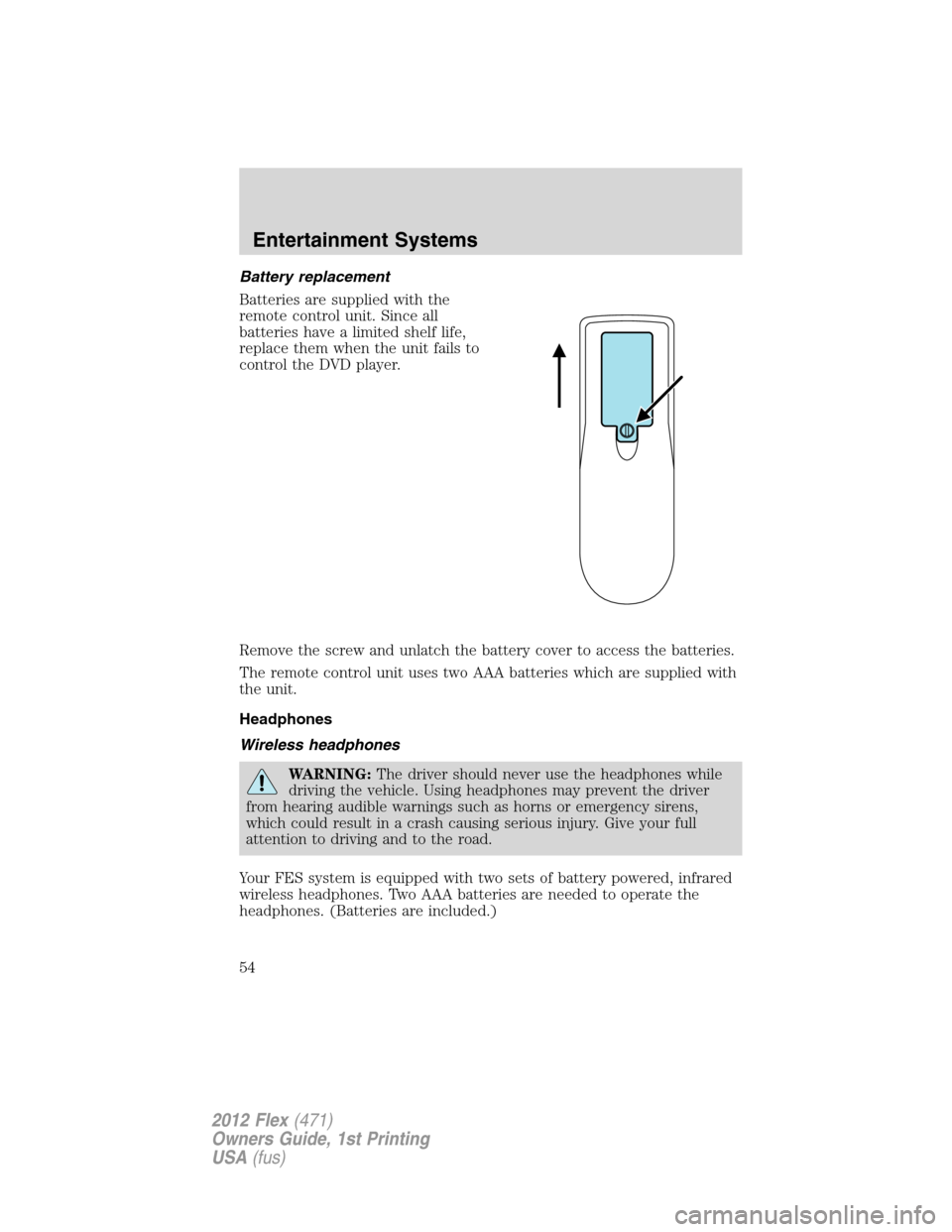

Battery replacement
Batteries are supplied with the
remote control unit. Since all
batteries have a limited shelf life,
replace them when the unit fails to
control the DVD player.
Remove the screw and unlatch the battery cover to access the batteries.
The remote control unit uses two AAA batteries which are supplied with
the unit.
Headphones
Wireless headphones
WARNING:The driver should never use the headphones while
driving the vehicle. Using headphones may prevent the driver
from hearing audible warnings such as horns or emergency sirens,
which could result in a crash causing serious injury. Give your full
attention to driving and to the road.
Your FES system is equipped with two sets of battery powered, infrared
wireless headphones. Two AAA batteries are needed to operate the
headphones. (Batteries are included.)
Entertainment Systems
54
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
Page 132 of 405

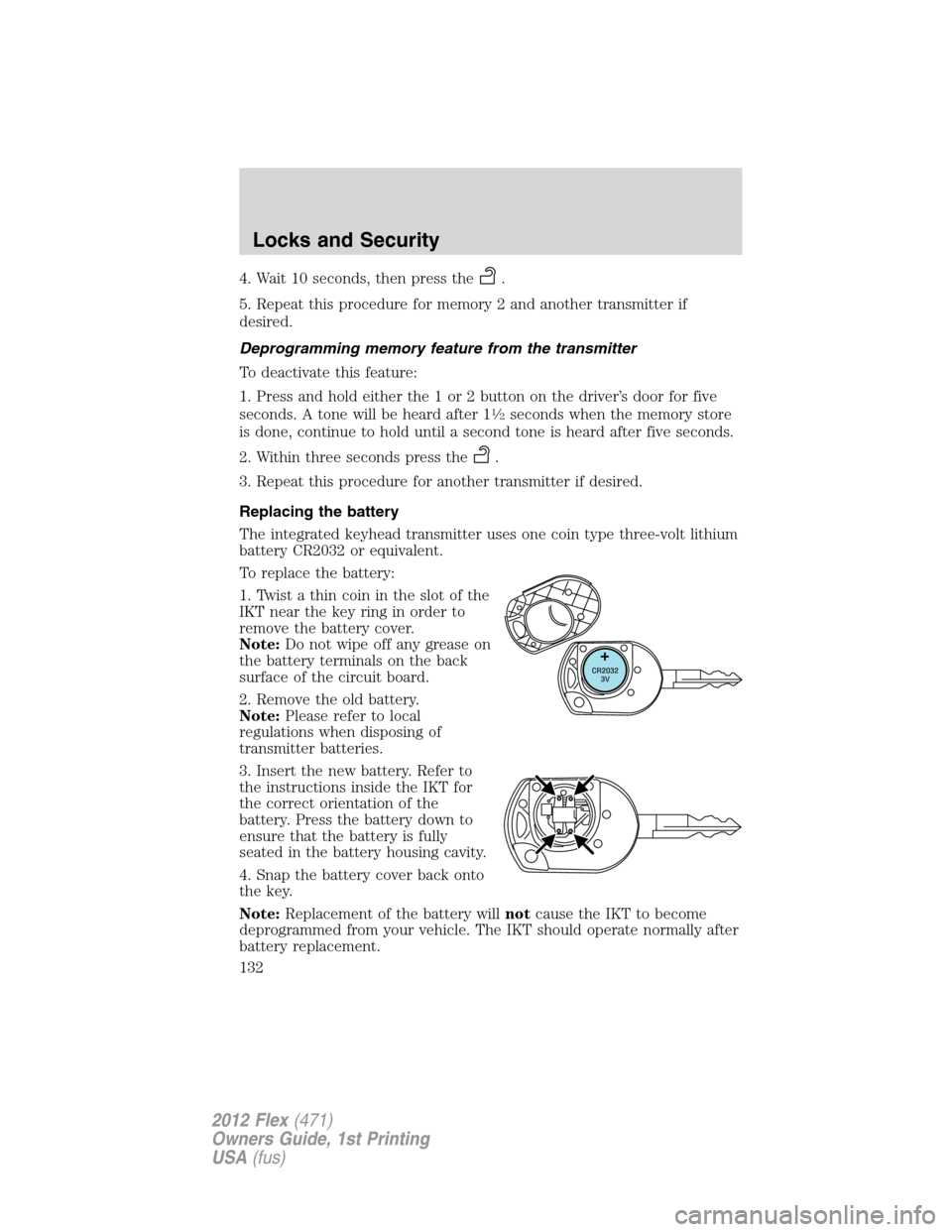

4. Wait 10 seconds, then press the.
5. Repeat this procedure for memory 2 and another transmitter if
desired.
Deprogramming memory feature from the transmitter
To deactivate this feature:
1. Press and hold either the 1 or 2 button on the driver’s door for five
seconds. A tone will be heard after 1
1 2seconds when the memory store
is done, continue to hold until a second tone is heard after five seconds.
2. Within three seconds press the
.
3. Repeat this procedure for another transmitter if desired.
Replacing the battery
The integrated keyhead transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin in the slot of the
IKT near the key ring in order to
remove the battery cover.
Note:Do not wipe off any grease on
the battery terminals on the back
surface of the circuit board.
2. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
3. Insert the new battery. Refer to
the instructions inside the IKT for
the correct orientation of the
battery. Press the battery down to
ensure that the battery is fully
seated in the battery housing cavity.
4. Snap the battery cover back onto
the key.
Note:Replacement of the battery willnotcause the IKT to become
deprogrammed from your vehicle. The IKT should operate normally after
battery replacement.
Locks and Security
132
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
Page 285 of 405

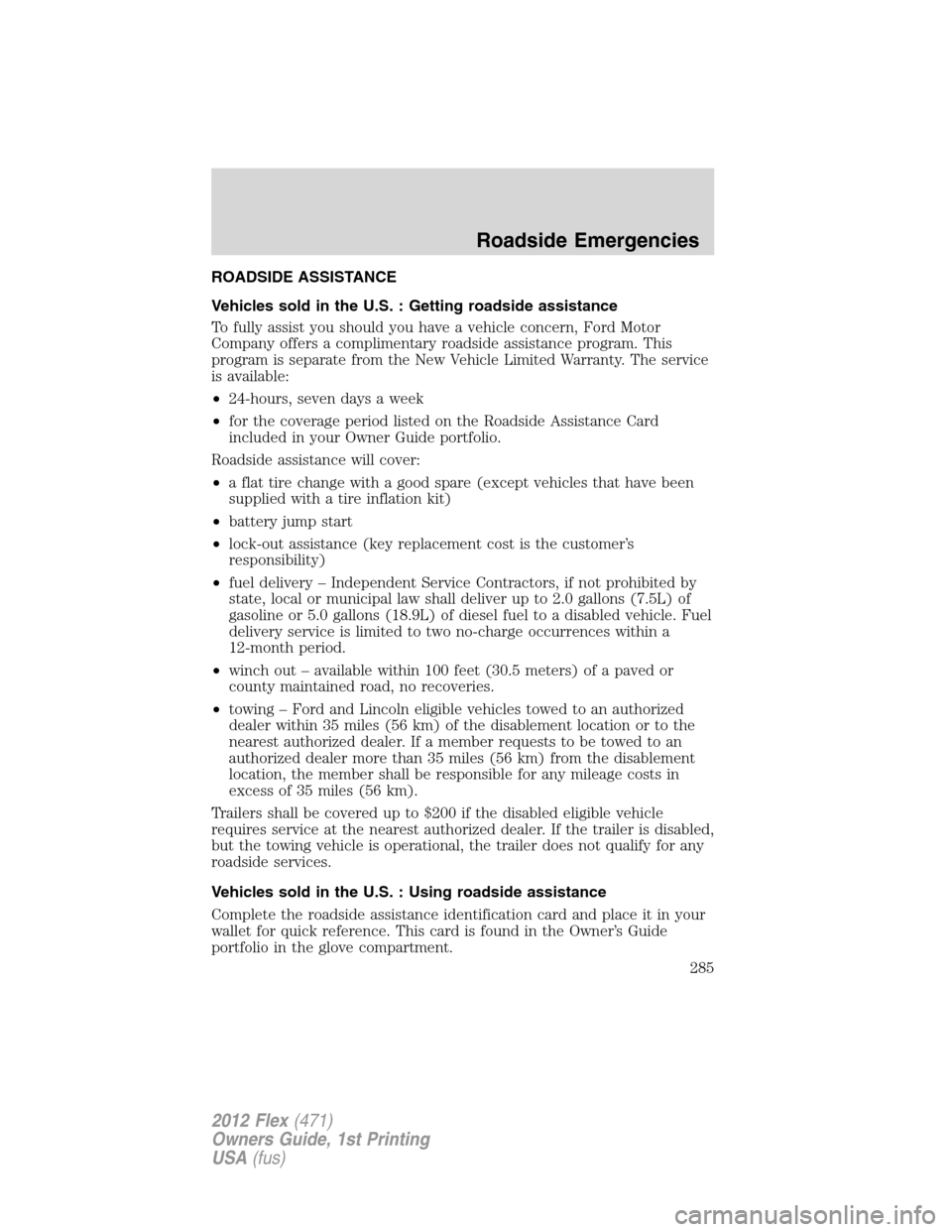

ROADSIDE ASSISTANCE
Vehicles sold in the U.S. : Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24-hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford and Lincoln eligible vehicles towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Vehicles sold in the U.S. : Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. This card is found in the Owner’s Guide
portfolio in the glove compartment.
Roadside Emergencies
285
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
Page 365 of 405

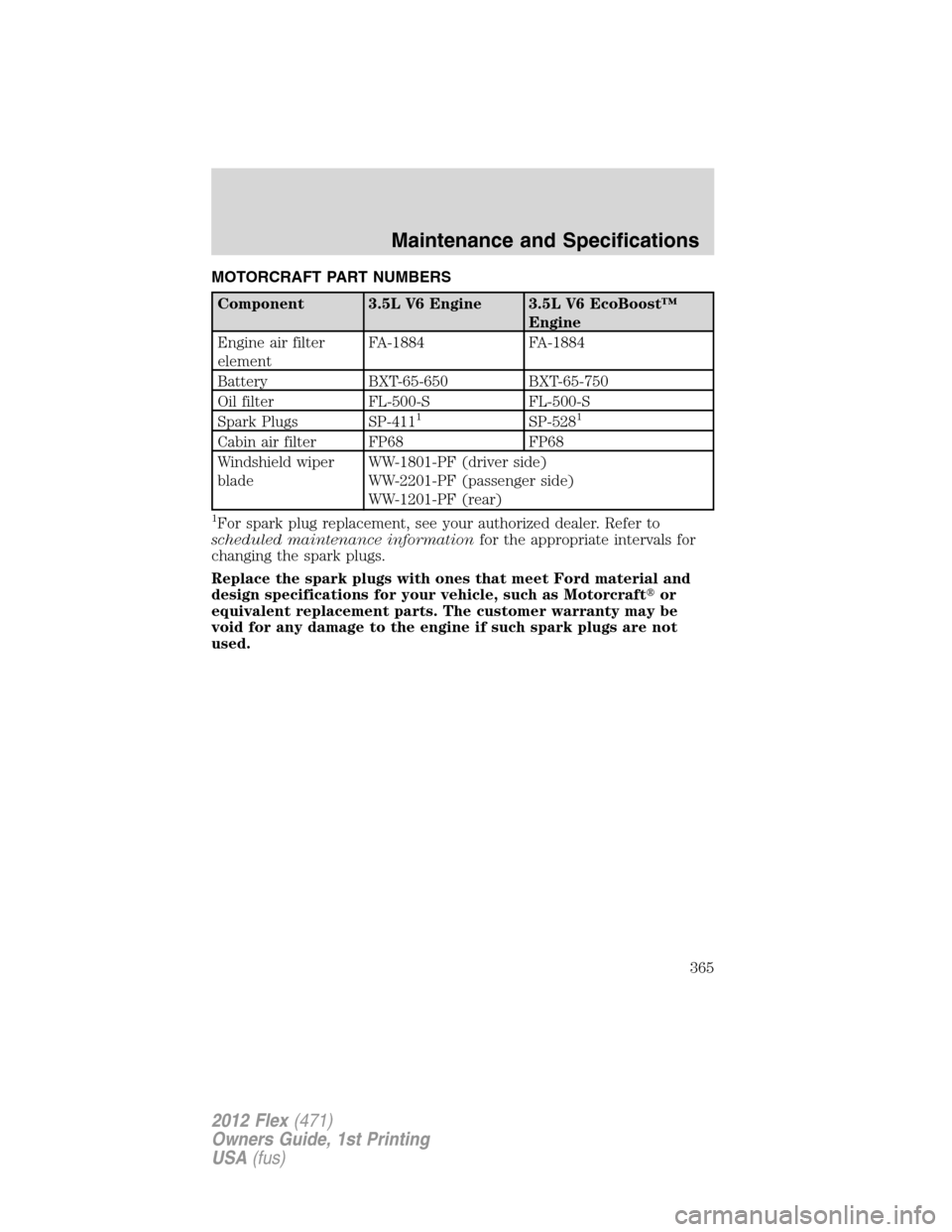

MOTORCRAFT PART NUMBERS
Component 3.5L V6 Engine 3.5L V6 EcoBoost™
Engine
Engine air filter
elementFA-1884 FA-1884
Battery BXT-65-650 BXT-65-750
Oil filter FL-500-S FL-500-S
Spark Plugs SP-411
1SP-5281
Cabin air filter FP68 FP68
Windshield wiper
bladeWW-1801-PF (driver side)
WW-2201-PF (passenger side)
WW-1201-PF (rear)
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
365
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
Page 399 of 405
A
Accessory delay ........................101
Active Park Assist .....................273
AdvanceTrac ..............................255
Airbag supplemental restraint
system ........................179, 188, 190
and child safety seats ............181
description ..............179, 188, 190
disposal ....................................193
driver airbag ............181, 189, 191
indicator light .................187, 193
operation .................181, 189, 191
passenger airbag .....181, 189, 191
side airbag ...............................188
Air cleaner filter ...............361, 365
Air conditioning ..............67, 70, 73
manual heating and air
conditioning system .................67
All Wheel Drive (AWD),
driving off road .........................278
Ambient mood/lighting ...............85
AM/FM .........................................28
Antifreeze
(see Engine coolant) ................336
Anti-lock brake system
(see Brakes) ..............................252
Anti-theft system ..............136, 140
arming the system ..................140
disarming a triggered
system .....................................141
Audio system (see Radio) .........28
Automatic transaxle
fluid, refill capacities ..............366
fluid, specification ..................366Automatic transmission
driving an automatic
overdrive .........................263, 266
fluid, adding ............................356
fluid, checking ........................356
Selectshift (SST) ....................268
Auxiliary input jack (Line in) ....37
B
Battery .......................................334
acid, treating emergencies .....334
jumping a disabled battery ....302
maintenance-free ....................334
replacement, specifications ...365
servicing ..................................334
Belt-Minder.............................174
Booster seats .............................208
Brakes ........................................252
anti-lock ...................................252
anti-lock brake system (ABS)
warning light ...........................253
fluid, checking and adding ....356
fluid, refill capacities ..............366
fluid, specifications .................366
lubricant specifications ..........366
parking ....................................254
shift interlock ..........................262
Bulbs ............................................85
C
Capacities for refilling fluids ....366
Cargo net ...................................117
CD ................................................28
Cell phone use ..............................8
Changing a tire .........................294
Child safety seats ......................198
in front seat ............................198
Index
399
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
