Power locks FORD FLEX 2013 1.G User Guide

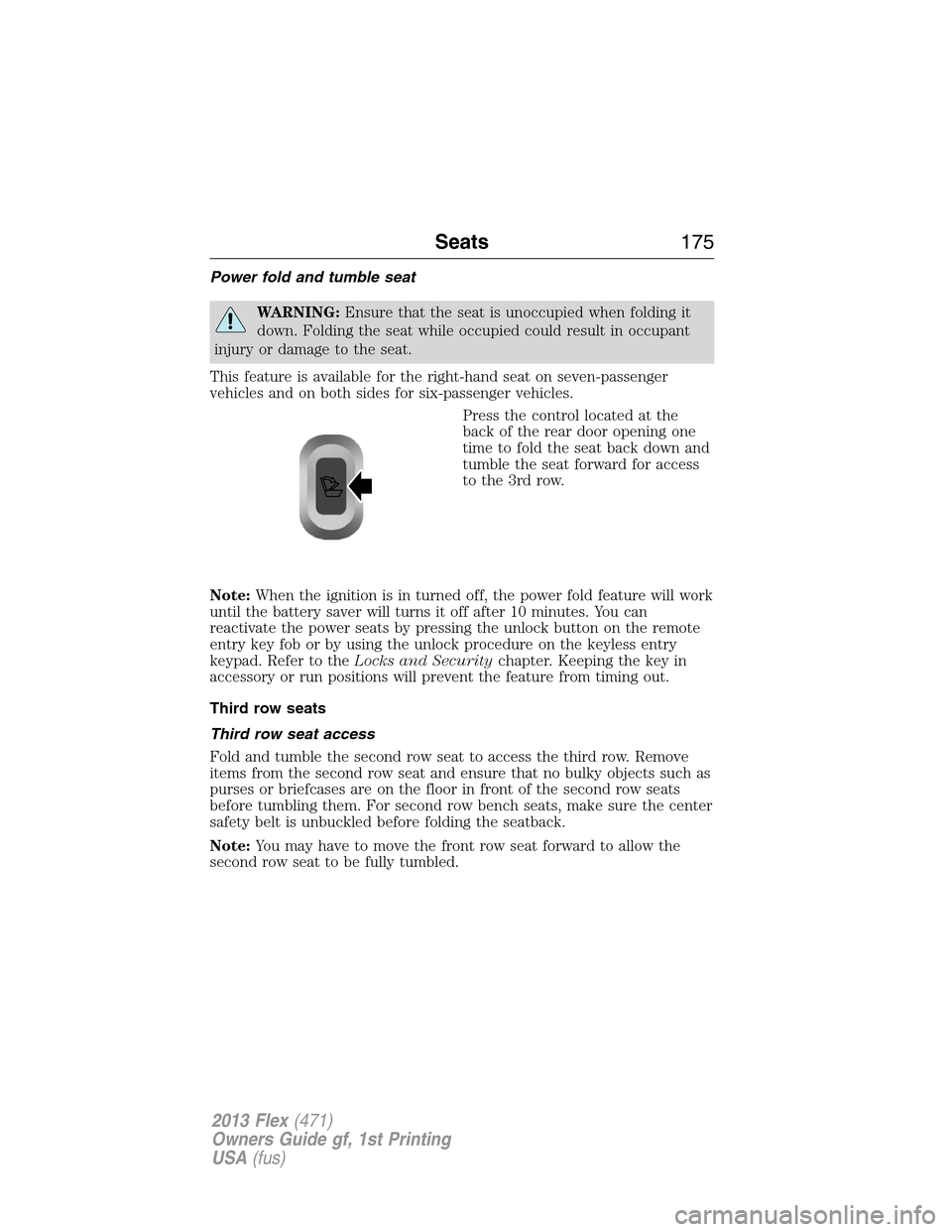

Power fold and tumble seat
WARNING:Ensure that the seat is unoccupied when folding it
down. Folding the seat while occupied could result in occupant
injury or damage to the seat.
This feature is available for the right-hand seat on seven-passenger
vehicles and on both sides for six-passenger vehicles.
Press the control located at the
back of the rear door opening one
time to fold the seat back down and
tumble the seat forward for access
to the 3rd row.
Note:When the ignition is in turned off, the power fold feature will work
until the battery saver will turns it off after 10 minutes. You can
reactivate the power seats by pressing the unlock button on the remote
entry key fob or by using the unlock procedure on the keyless entry
keypad. Refer to theLocks and Securitychapter. Keeping the key in
accessory or run positions will prevent the feature from timing out.
Third row seats
Third row seat access
Fold and tumble the second row seat to access the third row. Remove
items from the second row seat and ensure that no bulky objects such as
purses or briefcases are on the floor in front of the second row seats
before tumbling them. For second row bench seats, make sure the center
safety belt is unbuckled before folding the seatback.
Note:You may have to move the front row seat forward to allow the
second row seat to be fully tumbled.
Seats175
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

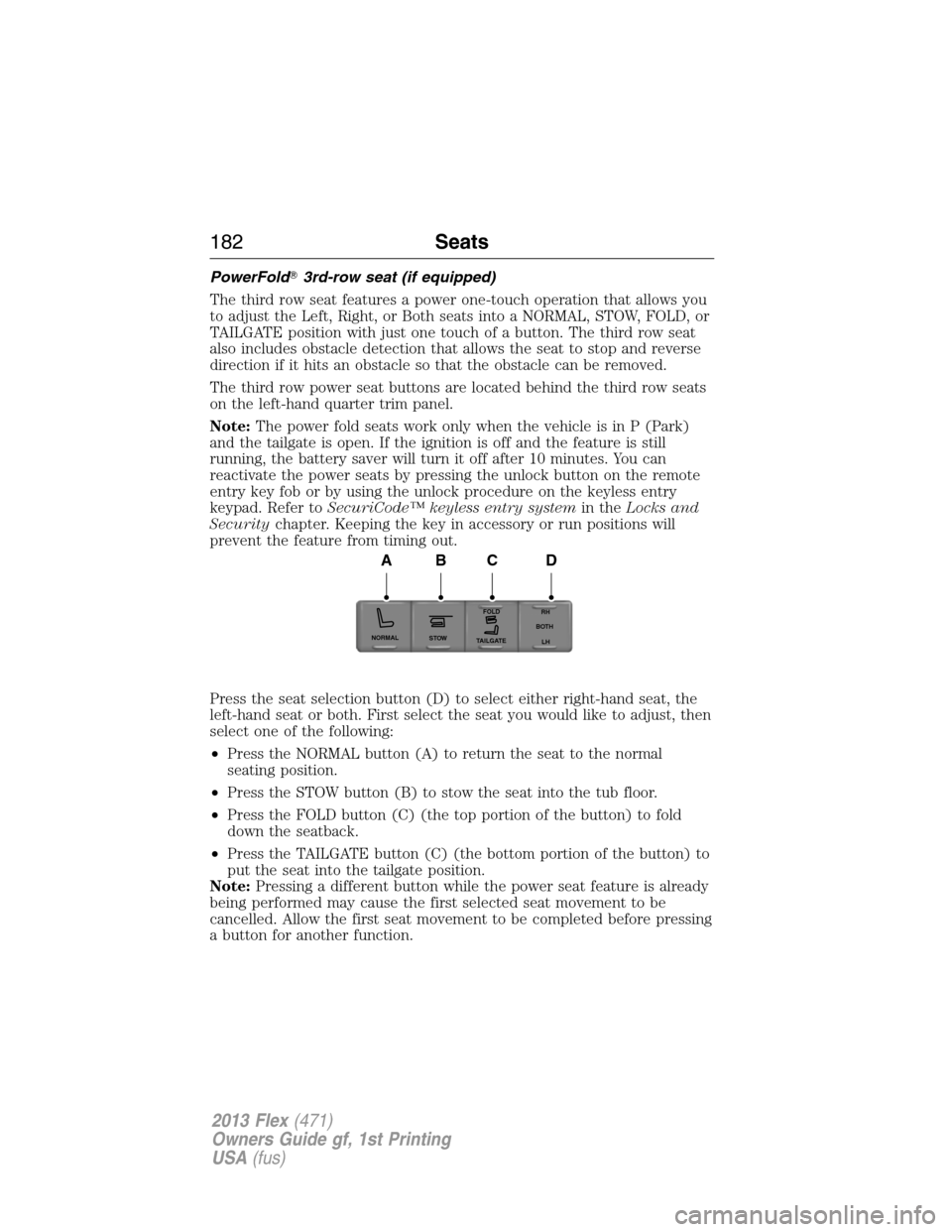

PowerFold3rd-row seat (if equipped)
The third row seat features a power one-touch operation that allows you
to adjust the Left, Right, or Both seats into a NORMAL, STOW, FOLD, or
TAILGATE position with just one touch of a button. The third row seat
also includes obstacle detection that allows the seat to stop and reverse
direction if it hits an obstacle so that the obstacle can be removed.
The third row power seat buttons are located behind the third row seats
on the left-hand quarter trim panel.
Note:The power fold seats work only when the vehicle is in P (Park)
and the tailgate is open. If the ignition is off and the feature is still
running, the battery saver will turn it off after 10 minutes. You can
reactivate the power seats by pressing the unlock button on the remote
entry key fob or by using the unlock procedure on the keyless entry
keypad. Refer toSecuriCode™ keyless entry systemin theLocks and
Securitychapter. Keeping the key in accessory or run positions will
prevent the feature from timing out.
Press the seat selection button (D) to select either right-hand seat, the
left-hand seat or both. First select the seat you would like to adjust, then
select one of the following:
•Press the NORMAL button (A) to return the seat to the normal
seating position.
•Press the STOW button (B) to stow the seat into the tub floor.
•Press the FOLD button (C) (the top portion of the button) to fold
down the seatback.
•Press the TAILGATE button (C) (the bottom portion of the button) to
put the seat into the tailgate position.
Note:Pressing a different button while the power seat feature is already
being performed may cause the first selected seat movement to be
cancelled. Allow the first seat movement to be completed before pressing
a button for another function.
NORMAL
STOWRH
BOTH
LH
FOLD
TA I L G AT E
ABCD
182Seats
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

Fuse/Relay
NumberFuse Amp
RatingProtected Components
9 10A SYNC, Electronic finish panel, Radio
transceiver module
10 10A Run/accessory relay, Front wiper
motor relay
11 10A Intelligent access module, Heads-up
display
12 15A Interior lighting, Puddle lamps,
Backlighting
13 15A Right turn signals
14 15A Left turn signals
15 15A Center high mounted stop lamp,
Backup lamp
16 10A Low beam headlamps (right)
17 10A Low beam headlamps (left)
18 10A
Third row power seats, Start button run
indicator, Keypad illumination, Brake
shift interlock, Powertrain control
module wake-up, Anti-theft system
19 20A Not used (spare)
20 20A Locks
21 10A Not used (spare)
22 20A Horn relay
23 15A Steering wheel control module,
Instrument cluster
24 15A Datalink connector, Steering wheel
control module
25 15A Liftgate release
26 5A Ignition switch, Push button start
switch
27 20A Intelligent access module
28 15A Not used (spare)
Fuses301
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

MAP DVD - Loading and
Unloading .................................. 492
Map icons .................................. 528
Map mode .................................. 527
Map preferences ....................... 526
Map updates .............................. 531
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) .......................... 441
Message center ......................... 117
warning messages ........... 122, 129
Mirrors ............................... 104, 107
fold away ................................. 104
programmable memory ............ 66
side view mirrors (power) ..... 104
Moon roof .................................. 108
Motorcraftparts .............. 330, 375
MyFord Touch™ system .......... 450
MyKey .......................................... 70
N
Navigation features ................... 521
Navigation voice commands .... 531
Notifications .............................. 505
O
Octane rating ............................ 202
Overdrive ................................... 213
P
Pairing other phones ........ 409, 492
Pairing your phone ................... 491
Pairing your phone for the first
time .................................... 408, 491Parental MyKey programming ... 70
Park Assist ................................ 230
Parking brake ............................ 224
Parts (see Motorcraft
parts) ......................................... 375
Passenger Occupant
Classification Sensor ................... 53
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) .......................... 420
Phone redial .............................. 414
Phone settings .................. 496, 514
Phone voice commands ............ 497
Playing music (by artist,
album, genre, playlist, tracks,
similar) ...................................... 438
POI categories ........................... 523
Point of Interest (POI) ............. 523
Power distribution box (see
Fuses) ........................................ 295
Power door locks ........................ 76
Power liftgate .............................. 81
Power mirrors ........................... 104
Powerpoint ................................ 189
Power steering .......................... 258
fluid, refill capacity ................ 371
fluid, specifications ................. 371
Power Windows ......................... 103
Privacy information .......... 405, 456
Push button start system ......... 196
Putting a call on/off hold ......... 412
Q
Quick touch buttons ................. 530
Index555
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
